Transporto priemonė: O 309 D; VIN numerio dalis: 310386
Grupė: 54 ELECTRICAL SYSTEM - 001 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|

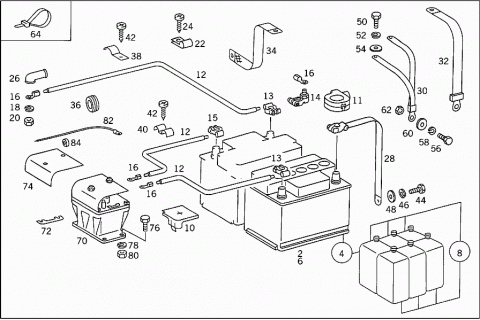

| A 0005419401 | BATTERY | |
| Repalced by: A 0005417401 | ||
| A 0005417401 | BATTERY | |
| Repalced by: A 0025419901 | ||
| 002 | A 0025419901 | BATTERY |
| 12V/70AH | ||
| 004 | A 1235400101 | BATTERY |
| Repalced by: A 1405400001 | ||
| 004 | A 1405400001 | BATTERY |
| PARTS KIT | ||
| 006 | A 0015417901 | BATTERY |
| Repalced by: A 0025414301 | ||
| 006 | A 0025414301 | BATTERY |
| Repalced by: A 0045412301 | ||
| 006 | A 0045412301 | BATTERY |
| 12 V,66 AH | ||
| 008 | A 0009890515 | BATTERY ACID BOTTLE SET |
| Repalced by: A 0009891315 | ||
| 008 | A 0009891315 | BATTERY ACID BOTTLE SET |
| TO 001 541 79 01 | ||
| 010 | A 0005462335 | BOOT |
| POS. POLE | ||
| 011 | A 0005463735 | BOOT |
| NEG.POLE | ||
| 012 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 012 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO BATTERY CHANGE-OVER SWITCH | ||
| 012 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY I POS. POLE TO BATTERY II NEG. POLE | ||
| 013 | N 072332013100 | SOLDERING TERMINAL |
| FROM BATTERY TO STARTING MOTOR | ||
| 013 | N 072332013100 | SOLDERING TERMINAL |
| FROM BATTERY TO BATTERY CHANGE-OVER SWITCH | ||
| 013 | N 072332013100 | SOLDERING TERMINAL |
| FROM BATTERY I POS. POLE TO BATTERY II NEG. POLE | ||
| 014 | A 0005469844 | CLAMPING PIECE |
| POS. POLE | ||
| 015 | N 072332013200 | SOLDERING TERMINAL |
| FROM BATTERY TO BATTERY CHANGE-OVER SWITCH | ||
| 015 | N 072332013200 | SOLDERING TERMINAL |
| FROM BATTERY I POS. POLE TO BATTERY II NEG. POLE | ||
| 016 | N 046234012006 | CABLE SHOE |
| FROM BATTERY TO BATTERY CHANGE-OVER SWITCH | ||
| 016 | N 046234010007 | CABLE SHOE |
| FROM BATTERY TO STARTING MOTOR | ||
| 016 | N 046234010007 | CABLE SHOE |
| FROM BATTERY TO BATTERY CHANGE-OVER SWITCH | ||
| 018 | N 912004010102 | LOCK WASHER |
| CABLE TO STARTING MOTOR,TERMINAL 30 | ||
| 020 | N 913021010001 | NUT |
| Repalced by: N 304035010001 | ||
| 020 | N 304035010001 | NUT |
| CABLE TO STARTING MOTOR,TERMINAL 30 | ||
| A 3049950120 | CLAMP | |
| Repalced by: A 3609950601 | ||
| 022 | A 3609950601 | CLAMP |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| 024 | N 007981006208 | SHEET METAL SCREW |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| A 3095460035 | BOOT | |
| Repalced by: A 0005460135 | ||
| 026 | A 0005460135 | BOOT |
| POS. CABLE | ||
| 028 | A 3145400931 | NEG. CABLE |
| FROM BATTERY TO BATTERY SUPPORT | ||
| A 3095400341 | GROUND STRAP | |
| Repalced by: A 3135400041 | ||
| 030 | A 3135400041 | GROUND STRAP |
| FROM BELL HOUSING TO CAB SIDE MEMBER | ||
| A 3145400041 | GROUND STRAP | |
| Repalced by: A 3525400041 | ||
| 032 | A 3525400041 | GROUND STRAP |
| FROM CAB CROSS MEMBER TO BELL HOUSING | ||
| 034 | A 3095460120 | GROUND STRAP |
| FROM CAB RIGHT SIDE MEMBER TO FRAME SIDE MEMBER | ||
| 036 | A 1869970781 | GROMMET |
| CABLE THRU DRIVER'S SEAT BOX | ||
| A 3045060441 | CLAMP | |
| Repalced by: A 3049950220 | ||
| A 3049950220 | CLAMP | |
| Repalced by: A 3129952420 | ||
| 038 | A 3129952420 | CLAMP |
| Repalced by: A 1109950401 | ||
| 038 | A 1109950401 | CLAMP |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| 040 | A 3039950232 | CLAMP |
| MAIN CABLE HARNESS & STARTING CABLE TO CAB LEFT SIDE MEMBER | ||
| 042 | N 007981006208 | SHEET METAL SCREW |
| CLAMP MOUNTING | ||
| 044 | N 000933010128 | SCREW |
| BATTERY CABLE TO BATTERY SUPPORT | ||
| 046 | N 912004010102 | LOCK WASHER |
| BATTERY CABLE TO BATTERY SUPPORT | ||
| 048 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 048 | N 009021010209 | WASHER |
| BATTERY CABLE TO BATTERY SUPPORT | ||
| 050 | N 000933010112 | SCREW |
| Repalced by: N 304017010043 | ||
| 050 | N 304017010043 | SCREW |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 052 | N 912004010102 | LOCK WASHER |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 054 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 054 | N 009021010209 | WASHER |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 056 | N 000933010128 | SCREW |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 058 | N 912004010102 | LOCK WASHER |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 060 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 060 | N 009021010209 | WASHER |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 062 | N 000934010014 | NUT |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 064 | A 0019978390 | LOOM TIE |
| A 3105400539 | ELECTRIC CABLE | |
| FROM BATTERY I TO BATTERY CHANGE-OVER SWITCH | ||
| 070 | A 0005450908 | SWITCH |
| BATTERY | ||
| 072 | A 0005450334 | FUSE |
| 074 | A 3095450046 | COVERING |
| SWITCH | ||
| 076 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 076 | N 304017008034 | SCREW |
| SWITCH | ||
| 078 | N 912004008102 | LOCK WASHER |
| SWITCH | ||
| 080 | N 000934008010 | NUT |
| SWITCH | ||
| A 3095400339 | ELECTRIC CABLE | |
| FROM BATTERY CHANGE-OVER SWITCH TO BATTERY SUPPORT | ||
| 082 | A 3095402139 | ELECTRIC CABLE |
| FROM BATTERY CHANGE-OVER SWITCH TO BATTERY SUPPORT | ||
| 082 | A 3095402039 | ELECTRIC CABLE |
| FROM BATTERY CHANGE-OVER SWITCH TO BATTERY SUPPORT | ||
| A 3095401939 | ELECTRIC CABLE | |
| FROM STARTING MOTOR TO ALTERNATOR | ||
| 084 | A 1109970481 | GROMMET |
| BATTERY CABLE TO BATTERY SUPPORT | ||
| A 3105400305 | CABLE HARNESS | |
| Repalced by: A 3105400705 | ||
| 086 | A 3105400705 | CABLE HARNESS |

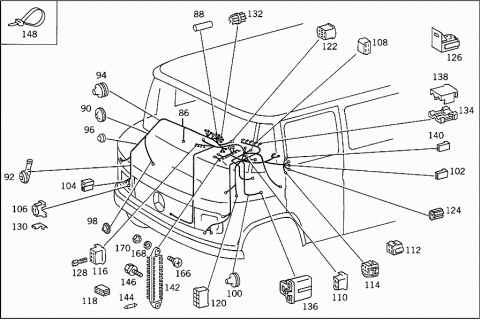

| CAB MAIN CABLE HARNESS | ||
| 086 | A 3105401005 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 086 | A 3105401605 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 086 | A 3105404205 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 086 | A 3105401505 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 086 | A 3105404405 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 086 | A 3105400805 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 086 | A 3105401105 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 086 | A 3105401705 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 086 | A 3105404305 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| A 0009970081 | GROMMET | |
| 088 | A 0009970381 | GROMMET |
| 088 | A 0009970581 | GROMMET |
| 088 | A 0009970681 | GROMMET |
| 090 | A 1109970481 | GROMMET |
| 090 | A 3099970881 | GROMMET |
| 092 | A 3149970181 | GROMMET |
| A 3219970281 | GROMMET | |
| Repalced by: A 3359970081 | ||
| 094 | A 3359970081 | GROMMET |
| 096 | A 3099970081 | GROMMET |
| 098 | A 3099970681 | GROMMET |
| 100 | A 3109970081 | GROMMET |
| 102 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 104 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 106 | A 0015458528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| A 0015452428 | PIN BUSHING HOUSING | |
| Repalced by: A 0015458428 | ||
| 108 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 110 | A 0015454128 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 112 | A 0075457328 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 114 | A 0065450728 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 116 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 118 | A 0055458428 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 120 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 122 | A 0065455528 | PIN BUSHING HOUSING |
| 10-POLE | ||
| 124 | A 0055459928 | PIN BUSHING HOUSING |
| 7-POLE | ||
| 126 | A 0065451428 | PIN BUSHING HOUSING |
| RELAY | ||
| A 0005454526 | PIN BUSHING | |
| Repalced by: A 0005453726 | ||
| 128 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 128 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 128 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 128 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 128 | A 0005454626 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 130 | A 0005453626 | PIN BUSHING |
| Repalced by: A 0075457426 | ||
| 130 | A 0075457426 | PIN BUSHING |
| OFFSET | ||
| 4 MM2 | ||
| 132 | A 0045451428 | PLUG |
| 8-POLE | ||
| A 0065457928 | PLUG | |
| Repalced by: A 0025454928 | ||
| A 0025454928 | PLUG | |
| Repalced by: A 0085453728 | ||
| 134 | A 0085453728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 136 | A 0025459528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 138 | A 0005452403 | CAP |
| 140 | A 0005451745 | BOOT |
| PIN BUSHING | ||
| 142 | A 3145450001 | FUSE BOX |
| 10-POLE; TERMINALS 1-2-3;5-6;7-8;9-10 SHUNTED | ||
| 144 | A 0005458234 | FUSE |
| Repalced by: N 072581008101 | ||
| 144 | N 072581008101 | FUSE |
| 8A | ||
| 146 | N 914025004103 | COMBINATION BOLT |
| CABLE TO FUSE BOX | ||
| 148 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 148 | A 0019978390 | LOOM TIE |
| MAIN CABLE HARNESS TO FIRE WALL | ||
| 148 | A 0019978490 | LOOM TIE |
| MAIN CABLE HARNESS TO CAB FLOOR PLATE | ||
| 150 | N 912004006102 | LOCK WASHER |
| CABLE TO STARTING MOTOR,TERMINAL 50 | ||
| 152 | N 000084006132 | SCREW |
| CABLE TO STARTING MOTOR,TERMINAL 50 | ||

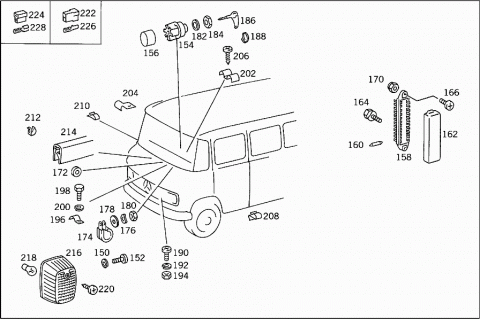

| 154 | A 0005453013 | SWITCH |
| (IGNITION AND LIGHT SWITH) | ||
| 156 | A 3099971181 | GROMMET |
| SWITCH BOX | ||
| 158 | A 0005458501 | FUSE BOX |
| 12-POLE;TERMINALS 2-8;9-10;11-12 SHUNTED | ||
| 158 | A 0005458401 | FUSE BOX |
| 12-POLE; TERMINALS 1-2,3-8,9-12 SHUNTED | ||
| 160 | A 0005458234 | FUSE |
| Repalced by: N 072581008101 | ||
| 160 | N 072581008101 | FUSE |
| 8A | ||
| 160 | A 0005458334 | FUSE |
| 16 A | ||
| 160 | N 072581025100 | FUSE |
| Repalced by: A 0015457534 | ||
| 160 | A 0015457534 | FUSE |
| 25A | ||
| 162 | A 0005452303 | CAP |
| FUSE BOX | ||
| 164 | N 914025004103 | COMBINATION BOLT |
| CABLE TO FUSE BOX | ||
| 166 | N 007985006154 | SCREW |
| FUSE BOX | ||
| 166 | N 007985005175 | SCREW |
| FUSE BOX TO BRACKET | ||
| 168 | N 912004005103 | LOCK WASHER |
| FUSE BOX TO BRACKET | ||
| 170 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 170 | N 913004006001 | NUT |
| FUSE BOX | ||
| 170 | N 000934005008 | NUT |
| FUSE BOX TO BRACKET | ||
| 172 | A 3109970181 | GROMMET |
| REGULATOR FEED CABLE TO VENTILATION DUCT | ||
| A 0009950501 | CLAMP | |
| Repalced by: N 916016015201 | ||
| 174 | N 916016015201 | CLAMP |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 176 | N 000137005203 | SPRING WASHER |
| AT ALTERNATOR | ||
| 176 | N 000137006204 | SPRING WASHER |
| AT ALTERNATOR | ||
| 178 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 178 | N 009021005205 | WASHER |
| AT ALTERNATOR | ||
| 180 | N 000934005008 | NUT |
| AT ALTERNATOR | ||
| 180 | N 000934006007 | NUT |
| AT ALTERNATOR | ||
| A 0005450176 | WASHER | |
| Repalced by: A 0005450376 | ||
| 182 | A 0005450376 | WASHER |
| IGNITION SWITCH TO INSTRUMENT PANEL | ||
| A 0005450672 | NUT | |
| Repalced by: A 0005451072 | ||
| 184 | A 0005451072 | NUT |
| IGNITION SWITCH TO INSTRUMENT PANEL | ||
| 186 | A 0005451235 | KEY |
| IGNITION AND LIGHT SWITCH | ||
| 188 | A 0005830296 | RING |
| IGNITION AND LIGHT SWITCH | ||
| 190 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 190 | N 000000001145 | SCREW |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| 192 | N 912004006102 | LOCK WASHER |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| 194 | N 000934006007 | NUT |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| 196 | A 1989950020 | CLAMP |
| BRANCH-OFF TO WINDSHIELD WIPER | ||
| 198 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 198 | N 304017006018 | SCREW |
| BRANCH-OFF TO WINDSHIELD WIPER | ||
| 200 | N 912004006102 | LOCK WASHER |
| BRANCH-OFF TO WINDSHIELD WIPER | ||
| 202 | A 3039950232 | CLAMP |
| MAIN CABLE HARNESS & STARTING CABLE TO CAB LEFT SIDE MEMBER | ||
| 204 | A 3129952420 | CLAMP |
| Repalced by: A 1109950401 | ||
| 204 | A 1109950401 | CLAMP |
| MAIN CABLE HARNESS TO CAB SIDE MEMBER | ||
| 206 | N 007981006208 | SHEET METAL SCREW |
| CLAMP MOUNTING | ||
| 208 | A 0009881778 | CLIP |
| MAIN CABLE HARNESS TOWARDS OIL PRESS. GAUGE SENDER UNIT AT CAB FLOOR PLATE | ||
| 210 | A 0009885378 | CLIP |
| MAIN CABLE HARNESS TO THE RIGHT FRONT OF WINDOW SILL | ||
| 212 | A 0009883478 | CLIP |
| MAIN CABLE HARNESS TO FIRE WALL | ||
| 214 | A 0009876870 | RUBBER SECTION |
| MAIN CABLE HARNESS TO FIRE WALL | ||
| 75 MM | ||
| 216 | A 0018220220 | BLINKER LAMP |
| FRONT LEFT AND RIGHT,LATERAL | ||
| 218 | N 072601012800 | BULB |
| 12 V/2 W | ||
| 220 | A 0009909236 | SCREW |
| BLINKER LAMP | ||
| A 3095407937 | ELECTRIC CABLE | |
| FROM BLINKER LAMP PLUG CONNECTION TO SIDE BLINKER LAMP | ||
| 222 | A 0015457928 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 224 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 226 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.50 MM | ||
| 226 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 228 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 228 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 228 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 3095400437 | ELECTRIC CABLE | |
| INTERIOR LIGHTING | ||
| 230 | A 3095400836 | ELECTRIC CABLE |
| INTERIOR LIGHTING | ||

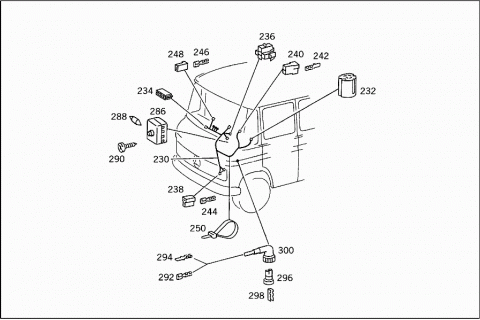

| 232 | A 0055459928 | PIN BUSHING HOUSING |
| 7-POLE | ||
| 234 | A 0055458428 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 236 | A 0065450728 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 238 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 240 | A 0015457928 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 242 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.50 MM | ||
| 242 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 244 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 244 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 244 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 246 | A 0005454626 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 4 MM2 | ||
| 248 | A 0005451745 | BOOT |
| PIN BUSHING | ||
| 250 | A 0019978390 | LOOM TIE |
| 280 MM | ||

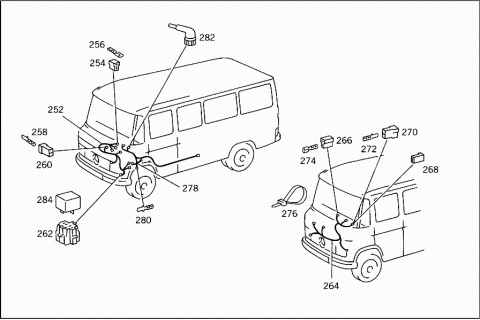

| 252 | A 3135401227 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO TELL-TALE LAMP | ||
| 252 | A 3135401627 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO TELL-TALE LAMP | ||
| 254 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 256 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 256 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 256 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 258 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 260 | A 0015457928 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 262 | A 0065450728 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 264 | A 3095400408 | CABLE HARNESS |
| Repalced by: A 3095400508 | ||
| 264 | A 3095400508 | CABLE HARNESS |
| FROM FLUID RESERVOIR TO TELL-TALE LAMP | ||
| 266 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| A 0015456628 | PLUG | |
| Repalced by: A 0025451128 | ||
| 268 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 270 | A 0015457928 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 272 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 274 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 274 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 274 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 276 | A 0019978490 | LOOM TIE |
| 376 MM | ||
| 278 | A 3135401327 | ELECTRIC CABLE |
| FROM CABLE CONNECTOR TO ELECTRIC MOTOR | ||
| 280 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 3805400181 | PLUG SOCKET | |
| Repalced by: A 3805402181 | ||
| 282 | A 3805402181 | PLUG SOCKET |
| REPAIR SIZE | ||
| M 24X1 | ||
| 284 | A 0005455505 | RELAY |
| BRAKE FLUID CONTROL | ||
| 284 | A 0005458305 | RELAY |
| BRAKE FLUID CONTROL | ||
| 286 | A 3545450001 | FUSE BOX |
| 288 | A 0005458234 | FUSE |
| Repalced by: N 072581008101 | ||
| 288 | N 072581008101 | FUSE |
| 288 | N 072581025100 | FUSE |
| Repalced by: A 0015457534 | ||
| 288 | A 0015457534 | FUSE |
| 288 | A 0005458334 | FUSE |
| 290 | N 007981005213 | SHEET METAL SCREW |
| FUSE BOX | ||
| A 3095402632 | ELECTRIC CABLE | |
| FROM PLUG CONNECTION TO STOP LIGHT SWITCH | ||
| 292 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 294 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 3805460335 | BOOT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| A 0009903654 | NUT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 27X1 | ||
| A 3809900140 | WASHER | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| 296 | A 3805450226 | PLUG SOCKET |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| 298 | A 0015454826 | ROUND PIN BUSHING |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| A 3805400281 | PLUG SOCKET | |
| Repalced by: A 3805402281 | ||
| 300 | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M27X1 | ||

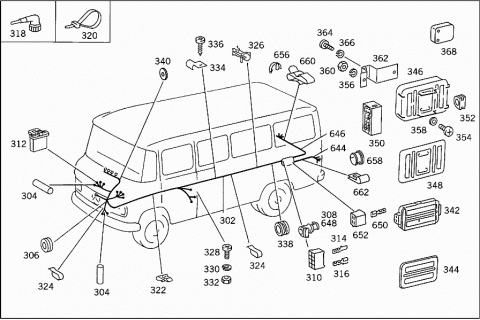

| 302 | A 3105404527 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 302 | A 3105404627 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| A 3105405527 | ELECTRIC CABLE | |
| Repalced by: A 3105405927 | ||
| A 3105405927 | ELECTRIC CABLE | |
| Repalced by: A 3105407627 | ||
| 302 | A 3105407627 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| A 3219970281 | GROMMET | |
| Repalced by: A 3359970081 | ||
| 304 | A 0009970381 | GROMMET |
| 306 | A 3359970081 | GROMMET |
| 308 | A 0005461237 | GROMMET |
| 310 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 312 | A 0025459528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 314 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 314 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 316 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 316 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 316 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 316 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4 MM2 | ||
| A 0005400281 | PLUG SOCKET | |
| Repalced by: A 3805400281 | ||
| A 3805400281 | PLUG SOCKET | |
| Repalced by: A 3805402281 | ||
| 318 | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M27X1 | ||
| 320 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 320 | A 0019978490 | LOOM TIE |
| 376 MM | ||
| 320 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| A 3129951040 | CLAMP | |
| Repalced by: A 0005460875 | ||
| 322 | A 0005460875 | CLAMP |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| A 3529950040 | CLAMP | |
| Repalced by: A 3099950140 | ||
| 324 | A 3099950140 | CLAMP |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| A 3219950140 | CLAMP | |
| Repalced by: A 3099950240 | ||
| 324 | A 3099950240 | CLAMP |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 326 | A 0049882678 | CLIP |
| 328 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 328 | N 000000001145 | SCREW |
| GROUND CABLE FO FUEL GAUGE SENDER UNIT TO FRAME | ||
| 330 | N 912004006102 | LOCK WASHER |
| GROUND CABLE FO FUEL GAUGE SENDER UNIT TO FRAME | ||
| 332 | N 000934006007 | NUT |
| GROUND CABLE FO FUEL GAUGE SENDER UNIT TO FRAME | ||
| 334 | N 072571001030 | CLAMP |
| ELEC.CABLE TO LEFT SIDE MEMBER BETWEEN FUEL GAUGE SENDER&REAR CABLE CONNECTOR | ||
| 336 | A 0009900232 | SCREW |
| ELEC.CABLE TO LEFT SIDE MEMBER BETWEEN FUEL GAUGE SENDER&REAR CABLE CONNECTOR | ||
| 338 | A 3099970181 | GROMMET |
| ELECTRIC CABLE THRU FRAME SIDE MEMBER | ||
| 340 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 340 | N 009021006208 | WASHER |
| 342 | A 0005466141 | CABLE CONNECTOR |
| REAR | ||
| 344 | A 0005460781 | COVERING |
| WITH GASKET | ||
| A 0005469541 | CABLE CONNECTOR | |
| Repalced by: A 0015463341 | ||
| A 0015463341 | CABLE CONNECTOR | |
| Repalced by: A 0015463841 | ||
| A 0015463841 | CABLE CONNECTOR | |
| Repalced by: A 0015465441 | ||
| 346 | A 0015465441 | CABLE CONNECTOR |
| REAR | ||
| A 0005460481 | COVERING | |
| Repalced by: A 0005460581 | ||
| 348 | A 0005460581 | COVERING |
| A 0045458928 | PLUG | |
| Repalced by: A 0105456728 | ||
| 350 | A 0105456728 | PLUG |
| CABLE CONNECTOR | ||
| 352 | A 0009872844 | EXPANSION PLUG |
| CABLE CONNECTOR | ||
| 354 | N 007985004180 | SCREW |
| CABLE CONNECTOR TO BRACKET | ||
| 354 | N 007985005175 | SCREW |
| CABLE CONNECTOR TO BRACKET | ||
| 356 | N 912004004102 | LOCK WASHER |
| CABLE CONNECTOR TO BRACKET | ||
| 356 | N 912004005103 | LOCK WASHER |
| CABLE CONNECTOR TO BRACKET | ||
| 358 | N 000125004316 | WASHER |
| CABLE CONNECTOR TO BRACKET | ||
| 358 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 358 | N 000433005304 | WASHER |
| CABLE CONNECTOR TO BRACKET | ||
| 360 | N 000934004006 | NUT |
| CABLE CONNECTOR TO BRACKET | ||
| 360 | N 000934005008 | NUT |
| CABLE CONNECTOR TO BRACKET | ||
| A 3095403573 | BRACKET | |
| Repalced by: A 3095405173 | ||
| A 3095405173 | BRACKET | |
| Repalced by: A 6675400273 | ||
| 362 | A 6675400273 | BRACKET |
| CABLE CONNECTOR | ||
| 364 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 364 | N 000000001146 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 366 | N 912004006102 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 368 | A 3095460084 | SHIM |
| JUNCTION BOX | ||

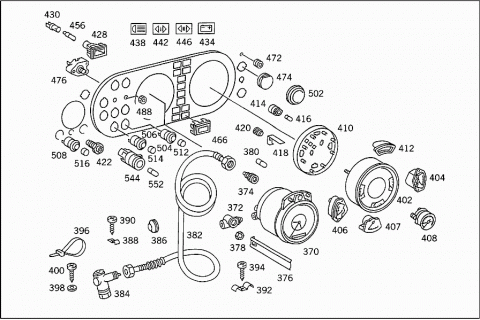

| 370 | A 0075422506 | SPEEDOMETER |
| Repalced by: A 0075429210 | ||
| 370 | A 0075429210 | TACHOGRAPH |
| 370 | A 0095424310 | TACHOGRAPH |
| Repalced by: A 0095424410 | ||
| 370 | A 0095424410 | TACHOGRAPH |
| Repalced by: A 0085425310 | ||
| 370 | A 0085425310 | TACHOGRAPH |
| ONE-DAY REGISTRATION;READING IN KILOMETERS;MEASURING RANGE,125KM/H | ||
| 370 | A 0085425310 | TACHOGRAPH |
| ONE-DAY REGISTRATION;READING IN KILOMETERS;MEASURING RANGE,125KM/H | ||
| 370 | A 0095424410 | TACHOGRAPH |
| Repalced by: A 0085425310 | ||
| 370 | A 0085425310 | TACHOGRAPH |
| ONE-DAY REGISTRATION;READING IN KILOMETERS;MEASURING RANGE,125KM/H | ||
| 372 | A 0035427130 | ANGLE DRIVE |
| TO 008 542 53 10 | ||
| 372 | A 0025429330 | ANGLE DRIVE |
| TO 009 542 43 10,44 10 | ||
| 374 | A 0005421347 | COUPLER |
| TACHOGRAPH | ||
| A 0005423394 | DIAGRAM PAPER | |
| SET = 100 PIECES | ||
| 376 | A 0005421840 | BRACKET |
| TACHOGRAPH | ||
| A 0005421172 | NUT | |
| Repalced by: N 000934005008 | ||
| 378 | N 000934005008 | NUT |
| TACHOGRAPH | ||
| 380 | N 072601012800 | BULB |
| 2 W | ||
| 380 | A 0015442594 | BULB |
| Repalced by: A 0005453419 | ||
| 380 | A 0005453419 | SOCKET LAMP |
| 12V 0.08A | ||
| 380 | A 0015442694 | BULB |
| 24V 0.05A | ||
| A 0015427507 | FLEXIBLE SHAFT | |
| Repalced by: A 0055425007 | ||
| 382 | A 0055425007 | FLEXIBLE SHAFT |
| 2000 MM | ||
| 382 | A 0045428607 | FLEXIBLE SHAFT |
| 2000 MM | ||
| 382 | A 0025421207 | FLEXIBLE SHAFT |
| 2400 MM | ||
| 382 | A 0045423207 | FLEXIBLE SHAFT |
| 2400 MM | ||
| 384 | A 0005426330 | ANGLE DRIVE |
| RATIO: | ||
| 0.818 | ||
| 384 | A 0015421730 | ANGLE DRIVE |
| RATIO 1: | ||
| 0.909 | ||
| 384 | A 0015427630 | ANGLE DRIVE |
| RATIO: | ||
| 0.850 | ||
| 384 | A 0005424230 | ANGLE DRIVE |
| RATIO: | ||
| 0.882 | ||
| A 3219970081 | GROMMET | |
| Repalced by: A 3359970081 | ||
| 386 | A 3359970081 | GROMMET |
| FLEXIBLE SHAFT THRU WINDOW SILL | ||
| 386 | A 3099971081 | GROMMET |
| FLEXIBLE SHAFT THRU WINDOW SILL | ||
| A 3049951920 | CLAMP | |
| Repalced by: A 3049951620 | ||
| 388 | A 3049951620 | CLAMP |
| FLEXIBLE SHAFT TO CAB STAY | ||
| 388 | A 3049951520 | CLAMP |
| FLEXIBLE SHAFT TO CAB | ||
| 388 | A 3609951901 | CLAMP |
| FLEXIBLE SHAFT TO CAB | ||
| 390 | N 007981004279 | SHEET METAL SCREW |
| FLEXIBLE SHAFT TO CAB STAY | ||
| 392 | A 3039950232 | CLAMP |
| STARTING CABLE AND FLEXIBLE SHAFT TO CROSS MEMBER | ||
| 394 | N 007981006208 | SHEET METAL SCREW |
| FLEXIBLE SHAFT TO CAB | ||
| A 0009953344 | CLAMP | |
| Repalced by: A 0019978390 | ||
| 396 | A 0019978390 | LOOM TIE |
| FLEXIBLE SHAFT THRU WINDOW SILL | ||
| 396 | A 0009972490 | LOOM TIE |
| Repalced by: A 0009974390 | ||
| 396 | A 0009974390 | LOOM TIE |
| FLEXIBLE SHAFT THRU WINDOW SILL | ||
| 398 | N 000125004332 | WASHER |
| FLEXIBLE SHAFT THRU WINDOW SILL | ||
| 400 | N 007981003214 | SHEET METAL SCREW |
| FLEXIBLE SHAFT THRU WINDOW SILL | ||
| 402 | A 0025406647 | INSTRUMENT CLUSTER |
| A 0025408947 | INSTRUMENT CLUSTER | |
| Repalced by: A 0035408747 | ||
| A 0035408747 | INSTRUMENT CLUSTER | |
| Repalced by: A 0035407347 | ||
| 402 | A 0035407347 | INSTRUMENT CLUSTER |
| 402 | A 0035407347 | INSTRUMENT CLUSTER |
| A 0025409547 | INSTRUMENT CLUSTER | |
| Repalced by: A 0035408847 | ||
| A 0035408847 | INSTRUMENT CLUSTER | |
| Repalced by: A 0035407447 | ||
| 402 | A 0035407447 | INSTRUMENT CLUSTER |
| A 0025405747 | INSTRUMENT CLUSTER | |
| Repalced by: A 0035407547 | ||
| A 0035407547 | INSTRUMENT CLUSTER | |
| Repalced by: A 0035407247 | ||
| 402 | A 0035407247 | INSTRUMENT CLUSTER |
| A 0025405847 | INSTRUMENT CLUSTER | |
| Repalced by: A 0035405447 | ||
| A 0035405447 | INSTRUMENT CLUSTER | |
| Repalced by: A 0035407847 | ||
| A 0035407847 | INSTRUMENT CLUSTER | |
| Repalced by: A 0035409647 | ||
| 402 | A 0035409647 | INSTRUMENT CLUSTER |
| 404 | A 0035421005 | TEMPERATURE GAUGE |
| TO 002 540 66 47 | ||
| 404 | A 0035423805 | TEMPERATURE GAUGE |
| TO 002 540 89 47,002 540 57 47 | ||
| 404 | A 0035428905 | TEMPERATURE GAUGE |
| TO 003 540 87 47,003 540 75 47 | ||
| 404 | A 0035429605 | TEMPERATURE GAUGE |
| TO 003 540 72 47/73 47 | ||
| 404 | A 0035423305 | TEMPERATURE GAUGE |
| TO 002 540 95 47,002 540 58 478 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 003 540 54 47 | ||
| 404 | A 0035427405 | TEMPERATURE GAUGE |
| TO 003 540 96 47/74 47 | ||
| 404 | A 0035428805 | TEMPERATURE GAUGE |
| TO 003 540 78 47,003 540 88 47 | ||
| 404 | A 0025423205 | TEMPERATURE GAUGE |
| TO 003 540 72 47/73 47 | ||
| 406 | A 0015424102 | OIL PRESSURE GAUGE |
| TO 002 540 66 47 | ||
| 406 | A 0025420202 | OIL PRESSURE GAUGE |
| TO 002 540 89 47,002 540 57 47 | ||
| 406 | A 0025422802 | OIL PRESSURE GAUGE |
| TO 003 540 87 47,003 540 75 47 | ||
| 406 | A 0015429902 | OIL PRESSURE GAUGE |
| TO 002 540 95 47,002 540 58 47, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 003 540 54 47 | ||
| 406 | A 0025421702 | OIL PRESSURE GAUGE |
| TO 003 542 96 47/74 47 | ||
| 406 | A 0025422702 | OIL PRESSURE GAUGE |
| TO 003 540 78 47,003 540 88 47 | ||
| 407 | A 0005428503 | FUEL GAUGE DASH UNIT |
| TO 002 540 66 47 | ||
| 407 | A 0015425103 | FUEL GAUGE DASH UNIT |
| TO 002 540 89 47,002 540 57 47 | ||
| 407 | A 0025429103 | FUEL GAUGE DASH UNIT |
| TO 003 540 87 47,003 540 75 47 | ||
| 407 | A 0025429303 | FUEL GAUGE DASH UNIT |
| TO 003 542 72 47/73 47 | ||
| 407 | A 0015424503 | FUEL GAUGE DASH UNIT |
| TO 0025409547;0025405847;0035405447 | ||
| 407 | A 0025428503 | FUEL GAUGE DASH UNIT |
| TO 003 542 96 47/74 47 | ||
| 407 | A 0025429203 | FUEL GAUGE DASH UNIT |
| TO 003 540 78 47,003 540 88 47 | ||
| 408 | A 0015420408 | AIR PRESSURE GAUGE |
| TO 002 540 57 47,002 540 58 47, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 003 540 54 47 | ||
| 408 | A 0015423908 | AIR PRESSURE GAUGE |
| TO 003 540 78 47,003 540 75 47 | ||
| A 0015422708 | AIR PRESSURE GAUGE | |
| Repalced by: A 0015424208 | ||
| 408 | A 0015424208 | AIR PRESSURE GAUGE |
| TO 003 540 96 47/74 47 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 003 540 72 47/73 47 | ||
| 410 | A 0005422178 | CONNECTION PLATE |
| TO 002 540 57 47,002 540 58 47, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 003 540 54 47 | ||
| 410 | A 0005422878 | CONNECTION PLATE |
| TO 002 540 95 47,002 540 89 47 | ||
| 410 | A 0005423078 | CONNECTION PLATE |
| TO 003 540 75 47 | ||
| 410 | A 0005422978 | CONNECTION PLATE |
| TO 003 540 88 47 | ||
| 410 | A 0005423178 | CONNECTION PLATE |
| TO 003 540 78 47 | ||
| 410 | A 0005423278 | CONNECTION PLATE |
| TO 003 540 87 47 | ||
| 410 | A 0005423578 | CONNECTION PLATE |
| TO 003 540 96 47 | ||
| 410 | A 0005423678 | CONNECTION PLATE |
| TO 003 540 72 47 | ||
| 410 | A 0005423878 | CONNECTION PLATE |
| TO 003 540 73 47 | ||
| 410 | A 0005423778 | CONNECTION PLATE |
| TO 003 540 74 47 | ||
| 412 | A 0005420332 | TELL-TALE LAMP |
| 414 | A 0005451219 | SOCKET |
| 416 | N 072601012800 | BULB |
| TO 003 540 73 47,72 47 | ||
| 416 | N 072601024801 | BULB |
| TO 003 540 96 47,74 47 | ||
| 418 | A 0005421740 | BRACKET |
| INSTRUMENT CLUSTER | ||
| 420 | A 0005421072 | NUT |
| INSTRUMENT CLUSTER | ||
| A 0005453926 | PLUG SOCKET | |
| Repalced by: A 0015458526 | ||
| A 0005454426 | PLUG SOCKET | |
| Repalced by: A 0015458526 | ||
| A 0005453526 | PLUG SOCKET | |
| Repalced by: A 0015458526 | ||
| 422 | A 0015458526 | PLUG SOCKET |
| HAND LAMP | ||
| 424 | A 0005458026 | PLUG SOCKET |
| Repalced by: A 0045454326 | ||
| 424 | A 0045454326 | PLUG SOCKET |
| AT INSTRUMENT PANEL | ||
| 426 | A 0009900946 | WASHER |
| AT INSTRUMENT PANEL | ||
| A 0015450615 | TELL-TALE LAMP | |
| Repalced by: A 0005451630 | ||
| 428 | A 0005451630 | SHELL |
| 430 | A 0005452319 | SOCKET |
| 432 | A 0015451815 | TELL-TALE LAMP |
| 434 | A 0005450190 | LENS |
| CHARGE CONTROL | ||
| A 0005453790 | LENS | |
| Repalced by: A 0035453290 | ||
| 436 | A 0035453290 | LENS |
| CHARGE CONTROL | ||
| 438 | A 0005451190 | LENS |
| HIGH BEAM | ||
| A 0005455290 | LENS | |
| Repalced by: A 0035453390 | ||
| A 0035453390 | LENS | |
| Repalced by: A 0065451990 | ||
| 440 | A 0065451990 | LENS |
| HIGH BEAM | ||
| 442 | A 0005451290 | LENS |
| TRUCK-TRACTOR BLINKER | ||
| A 0005455390 | LENS | |
| Repalced by: A 0035454190 | ||
| A 0035454190 | LENS | |
| Repalced by: A 0035455290 | ||
| 444 | A 0035455290 | LENS |
| BLINKER LIGHT CONTROL | ||
| 446 | A 0005451390 | LENS |
| TRAILER BLINKER | ||
| A 0005459090 | LENS | |
| Repalced by: A 0005459590 | ||
| 448 | A 0005459590 | LENS |
| INTERIOR LIGHTING | ||
| A 0005454990 | LENS | |
| Repalced by: A 0035453890 | ||
| 450 | A 0035453890 | LENS |
| BRAKE LINING WEAR INDICATOR | ||
| A 0005455190 | LENS | |
| Repalced by: A 0035453790 | ||
| 452 | A 0035453790 | LENS |
| PARKING BRAKE | ||
| A 0005455090 | LENS | |
| Repalced by: A 0055458890 | ||
| 454 | A 0055458890 | LENS |
| BRAKE FLUID | ||
| 456 | N 072601012800 | BULB |
| 2 W | ||
| 456 | N 072601024801 | BULB |
| 2 W | ||
| 458 | A 0015452518 | RESISTOR |
| CHARGE CONTROL | ||
| 460 | N 007985005157 | SCREW |
| RESISTOR TO WINDOW SILL | ||
| 462 | N 912004005103 | LOCK WASHER |
| RESISTOR TO WINDOW SILL | ||
| 464 | N 000934005008 | NUT |
| RESISTOR TO WINDOW SILL | ||
| 466 | A 0009973535 | PLUG |
| TO PLUG THE FREE HOLES FOR TELL-TALE LAMP | ||
| 468 | A 0009974335 | PLUG |
| TO PLUG THE FREE HOLES FOR TELL-TALE LAMP | ||
| 470 | A 0009974435 | PLUG |
| TO PLUG THE FREE BORES IN INSTRUMENT PANEL | ||
| A 3129971681 | GROMMET | |
| Repalced by: A 0009870344 | ||
| 472 | A 0009870344 | EXPANSION PLUG |
| HEATER PLUG STARTING SWITCH | ||
| 474 | A 3099870244 | EXPANSION PLUG |
| HEATER-PLUG INDICATOR RESISTOR | ||
| A 0005421425 | POTENTIOMETER | |
| Repalced by: A 3015420025 | ||
| 476 | A 3015420025 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| A 0005422525 | POTENTIOMETER | |
| Repalced by: A 0005422925 | ||
| A 0005422925 | POTENTIOMETER | |
| Repalced by: A 6155420125 | ||
| 478 | A 6155420125 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| A 0005423025 | POTENTIOMETER | |
| Repalced by: A 6155420225 | ||
| 478 | A 6155420225 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 480 | A 0005421325 | POTENTIOMETER |
| HEATER BLOWER | ||
| 480 | A 0005421725 | POTENTIOMETER |
| HEATER BLOWER | ||
| A 0005421189 | KNOB | |
| Repalced by: A 0005421889 | ||
| 482 | A 0005421889 | KNOB |
| SYMBOL: INSTRUMENT LIGHTING | ||
| A 0005421089 | KNOB | |
| Repalced by: A 3095420089 | ||
| 484 | A 3095420089 | KNOB |
| HEATER BLOWER SWITCH | ||
| 486 | N 006797012153 | TOOTHED WASHER |
| INSTRUMENT LIGHTING | ||
| 488 | A 0005450372 | NUT |
| HEATER BLOWER SWITCH | ||
| 488 | A 0005450372 | NUT |
| INSTRUMENT LIGHTING | ||
| A 0005451472 | NUT | |
| Repalced by: A 0029906251 | ||
| 490 | A 0029906251 | NUT |
| INSTRUMENT LIGHTING | ||

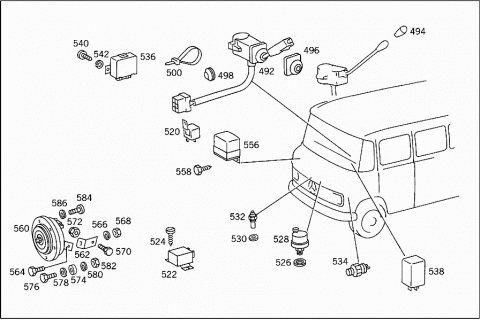

| A 0035453324 | SWITCH,AUTOMATIC | |
| Repalced by: A 0035455724 | ||
| 492 | A 0035455724 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 492 | A 0055453124 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 492 | A 0065450324 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 494 | A 0005454437 | BUTTON |
| 496 | A 0005453445 | BOOT |
| A 3149970281 | GROMMET | |
| Repalced by: A 3359970081 | ||
| 498 | A 3359970081 | GROMMET |
| STEERING-COLUMN-MOUNTED-SWITCH CABLE THRU BODY | ||
| 500 | A 0019978390 | LOOM TIE |
| STEERING-COLUMN-MOUNTED-SWITCH CABLE TO SUSPENDED PEDAL SUPPORT | ||
| 502 | A 3099970981 | GROMMET |
| TO PLUG THE BORE IN WINDOW SILL LOWER PART | ||
| 502 | A 3099970981 | GROMMET |
| TO PLUG THE BORE IN WINDOW SILL LOWER PART | ||
| 504 | A 0005459211 | SWITCH |
| WINDSHIELD WIPER,"SLOW-FAST" | ||
| 506 | A 0005459311 | SWITCH |
| WINDSHIELD WIPER O F F O N | ||
| 508 | A 0005459111 | SWITCH |
| INTERIOR LIGHTING | ||
| A 0015450311 | SWITCH | |
| Repalced by: A 0015450511 | ||
| 510 | A 0015450511 | SWITCH |
| INTERIOR LIGHTING | ||
| A 0015450411 | SWITCH | |
| Repalced by: A 0015450611 | ||
| 510 | A 0015450611 | SWITCH |
| INTERIOR LIGHTING | ||
| 512 | A 0005451583 | CAP |
| WINDSHIELD WIPER,"SLOW-FAST" | ||
| 514 | A 0005451483 | CAP |
| WINDSHIELD WIPER O F F O N | ||
| 516 | A 0005451883 | CAP |
| INTERIOR LIGHTING | ||
| 518 | A 0005452883 | CAP |
| INTERIOR LIGHTING | ||
| 520 | A 0005455505 | RELAY |
| 520 | A 0005458305 | RELAY |
| 520 | A 0005458305 | RELAY |
| INTERIOR LIGHTING | ||
| 520 | A 0005458305 | RELAY |
| BRAKE LINING WEAR | ||
| 520 | A 0005459705 | RELAY |
| FROM ALTERNATOR TO REGULATOR | ||
| 520 | A 0005458405 | RELAY |
| 520 | A 0005455405 | RELAY |
| Repalced by: A 0035459605 | ||
| 520 | A 0035459605 | RELAY |
| 520 | A 0035459605 | RELAY |
| BRAKE LINING WEAR | ||
| 520 | A 0035459605 | RELAY |
| ALTERNATOR TERMINAL D+ | ||
| 520 | A 0035459605 | RELAY |
| INTERIOR LIGHTING | ||
| 522 | A 0055450524 | SENDER UNIT |
| Repalced by: A 0055451324 | ||
| 522 | A 0055451324 | SENDER UNIT |
| WIPER INTERMITTENT ACTION | ||
| 522 | A 0055451524 | SENDER UNIT |
| WIPER INTERMITTENT ACTION | ||
| 522 | A 0055450624 | SENDER UNIT |
| Repalced by: A 0225452532 | ||
| 522 | A 0225452532 | CONTROL UNIT |
| WIPER PULSE SENDER UNIT | ||
| 522 | A 0055451424 | SENDER UNIT |
| WIPER PULSE SENDER UNIT | ||
| 522 | A 0055451624 | SENDER UNIT |
| WIPER PULSE SENDER UNIT | ||
| 524 | N 007981006208 | SHEET METAL SCREW |
| WIPER PULSE SENDER UNIT | ||
| 526 | N 007603014400 | SEAL RING |
| OIL PRESSURE GAUGE | ||
| A 0015424917 | SENDER UNIT | |
| Repalced by: A 0045428917 | ||
| 528 | A 0045428917 | SENDER UNIT |
| OIL PRESSURE GAUGE | ||
| 530 | N 007603014403 | SEAL RING |
| TEMPERATURE GAUGE | ||
| 532 | A 0015422317 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| A 0005455009 | SWITCH | |
| Repalced by: A 0005455909 | ||
| 534 | A 0005455909 | SWITCH |
| STOP LIGHT | ||
| A 0025440932 | SENDER UNIT | |
| Repalced by: A 0025447332 | ||
| A 0015447932 | SENDER UNIT | |
| Repalced by: A 0025447332 | ||
| 536 | A 0025447332 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| A 0025444832 | SENDER UNIT | |
| Repalced by: A 0025449832 | ||
| 538 | A 0025449832 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| A 0025444132 | SENDER UNIT | |
| Repalced by: A 0025448632 | ||
| 538 | A 0025448632 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| HELLA | ||
| 538 | A 0025448332 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 538 | A 0025449432 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 540 | N 007985005157 | SCREW |
| BLINKER SENDER UNIT TO BODY | ||
| 542 | N 912004005103 | LOCK WASHER |
| BLINKER SENDER UNIT TO BODY | ||
| 544 | A 0025457124 | SWITCH,AUTOMATIC |
| HAZARD WARNING LIGHT | ||
| 546 | A 0045450224 | SWITCH |
| HAZARD WARNING LIGHT | ||
| 548 | A 0005453637 | BUTTON |
| HAZARD WARNING LIGHT SWITCH | ||
| 550 | A 3015400165 | RESISTOR |
| HAZARD WARNING LIGHT SWITCH | ||
| 550 | A 3015400265 | RESISTOR |
| HAZARD WARNING LIGHT SWITCH | ||
| 552 | N 072601012110 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 2 W | ||
| 554 | N 072601012800 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 2 W | ||
| 554 | N 072601024801 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 2 W | ||
| A 0011548406 | REGULATOR AND CUT-OUT | |
| Repalced by: A 0021543606 | ||
| A 0021543606 | REGULATOR AND CUT-OUT | |
| Repalced by: A 0021547406 | ||
| 556 | A 0021547406 | REGULATOR AND CUT-OUT |
| 558 | N 007976004217 | SHEET METAL SCREW |
| Repalced by: N 914128004303 | ||
| 558 | N 914128004303 | SHEET METAL SCREW |
| REGULATOR TO VENTILATION DUCT | ||
| A 0025426220 | HORN | |
| Repalced by: A 0035423220 | ||
| 560 | A 0035423220 | HORN |
| Repalced by: A 6315420120 | ||
| 560 | A 6315420120 | HORN |
| Repalced by: A 0035422720 | ||
| 560 | A 0035422720 | HORN |
| 560 | A 0025426420 | HORN |
| Repalced by: A 6315420120 | ||
| 560 | A 6315420120 | HORN |
| Repalced by: A 0035422720 | ||
| 560 | A 0035422720 | HORN |
| 560 | A 0025426720 | HORN |
| Repalced by: A 0045424420 | ||
| 560 | A 0045424420 | HORN |
| HELLA | ||
| 560 | A 0025428320 | HORN |
| Repalced by: A 0045422920 | ||
| 560 | A 0045422920 | HORN |
| Repalced by: A 0045424420 | ||
| 560 | A 0045424420 | HORN |
| BOSCH | ||
| A 3095420140 | BRACKET | |
| Repalced by: A 3095421340 | ||
| 562 | A 3095421340 | BRACKET |
| HORN | ||
| 564 | N 000933010128 | SCREW |
| HORN TO BRACKET | ||
| 566 | N 912004010102 | LOCK WASHER |
| HORN TO BRACKET | ||
| 568 | N 000934010014 | NUT |
| HORN TO BRACKET | ||
| 570 | N 000933010105 | SCREW |
| BRACKET TO FRAME | ||
| 572 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 572 | N 910113010000 | NUT |
| BRACKET TO FRAME | ||
| 574 | A 3044310076 | WASHER |
| HORN TO FRAME | ||
| 576 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 576 | N 304017008034 | SCREW |
| HORN TO FRAME | ||
| 578 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 578 | N 000125008443 | WASHER |
| HORN TO FRAME | ||
| 580 | N 912004008102 | LOCK WASHER |
| HORN TO FRAME | ||
| 582 | N 000934008010 | NUT |
| HORN TO FRAME | ||
| 584 | N 007985004123 | SCREW |
| CABLE TO DISC-TYPE HORN | ||
| 586 | N 912004004102 | LOCK WASHER |
| CABLE TO DISC-TYPE HORN | ||
| 588 | A 3099900640 | WASHER |
| SWITCH | ||
| A 0005456314 | SWITCH | |
| Repalced by: A 0015450214 | ||
| A 0015450214 | SWITCH | |
| Repalced by: A 0015454914 | ||
| 590 | A 0015454914 | SWITCH |
| STARTING MOTOR | ||

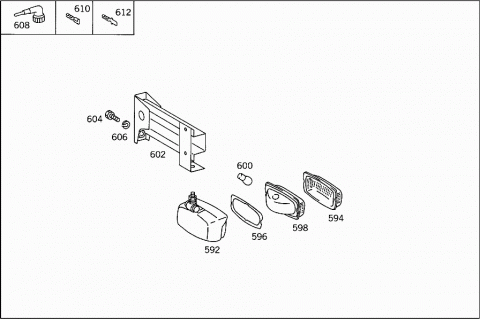

| A 0005441807 | BACK-UP LAMP | |
| Repalced by: A 0005443007 | ||
| 592 | A 0005443007 | BACK-UP LAMP |
| 594 | A 0015445390 | LENS |
| TO 000 544 18 07 | ||
| 596 | A 0008266980 | SEAL |
| TO 000 544 18 07 | ||
| 598 | A 0005441318 | BEAM UNIT |
| TO 000 544 18 07 | ||
| 598 | A 0005442318 | BEAM UNIT |
| TO 000 544 30 07 | ||
| 600 | N 072601012400 | BULB |
| 35W; TO 000 544 18 07 | ||
| 600 | N 072601012190 | BULB |
| 21W; TO 000 544 30 07 | ||
| A 3095401673 | BRACKET | |
| BACK-UP LIGHT | ||
| 602 | A 3095401573 | BRACKET |
| BACK-UP LIGHT | ||
| 604 | N 000933010128 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 604 | N 000933010105 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 606 | N 912004010102 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| A 3095406637 | ELECTRIC CABLE | |
| Repalced by: A 3095406737 | ||
| A 3095406737 | ELECTRIC CABLE | |
| BACK-UP LIGHT | ||
| A 3805400181 | PLUG SOCKET | |
| Repalced by: A 3805402181 | ||
| 608 | A 3805402181 | PLUG SOCKET |
| REPAIR SIZE | ||
| M 24X1 | ||
| A 0005454526 | PIN BUSHING | |
| Repalced by: A 0005453726 | ||
| 610 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 610 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 610 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 612 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 612 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 614 | A 3095403873 | BRACKET |
| LEFT TAIL LAMP | ||
| 614 | A 3095403973 | BRACKET |
| RIGHT TAIL LAMP | ||
| 616 | A 3525440538 | BRACKET |
| REFLECTOR | ||
| 618 | N 000933010128 | SCREW |
| TAIL LAMP BRACKET TO SIDE MEMBER | ||
| 618 | N 000933010105 | SCREW |
| TAIL LAMP BRACKET TO SIDE MEMBER | ||
| 620 | N 912004010102 | LOCK WASHER |
| TAIL LAMP BRACKET TO SIDE MEMBER | ||
| 622 | N 000963006005 | SCREW |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 624 | N 000084006137 | SCREW |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 626 | N 000125006421 | WASHER |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 628 | N 000934006007 | NUT |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 630 | A 0005443305 | REFLECTOR |
| 632 | A 3225440184 | SHIM |
| 634 | N 000934005008 | NUT |
| REFLECTOR TO BRACKET | ||
| 636 | N 912004005103 | LOCK WASHER |
| REFLECTOR TO BRACKET | ||
| 638 | N 007985005146 | SCREW |
| REFLECTOR TO BRACKET | ||
| 640 | A 0015447603 | TAIL LAMP |
| Repalced by: A 0015449203 | ||
| 640 | A 0015449203 | TAIL LAMP |
| WITH LICENSE PLATE LAMP,LEFT | ||
| 640 | A 0015447703 | TAIL LAMP |
| WITH LICENSE PLATE LAMP,RIGHT | ||
| 640 | A 0015447503 | TAIL LAMP |
| Repalced by: A 0015449103 | ||
| 640 | A 0015449103 | TAIL LAMP |
| RIGHT | ||
| 640 | A 0015447803 | TAIL LAMP |
| LEFT | ||
| 642 | N 072601012702 | BULB |
| TAIL LIGHT | ||
| 12V 10W | ||
| 642 | N 072601024702 | BULB |
| TAIL LIGHT | ||
| 24V 10W | ||
| 643 | N 072601012190 | BULB |
| STOP AND BLINKER LIGHTS | ||
| 12V 21W | ||
| 643 | N 072601024190 | BULB |
| Repalced by: N 072601024192 | ||
| 643 | N 072601024192 | BULB |
| STOP AND BLINKER LIGHTS | ||
| 24V 21W | ||
| 644 | A 3095406932 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| A 3095407032 | ELECTRIC CABLE | |
| Repalced by: A 3095409632 | ||
| 646 | A 3095409632 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 648 | A 3805461937 | GROMMET |
| FROM REAR CABLE CONNECTOR TO TAIL LAMP | ||
| 650 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 650 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 650 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 652 | A 0015458428 | PIN BUSHING HOUSING |
| FROM REAR CABLE CONNECTOR TO TAIL LAMP | ||
| 654 | A 6019972181 | GROMMET |
| CABLE SEALING AT TAIL LAMPS | ||
| 656 | A 0015460144 | CLAMPING PIECE |
| ELECTRIC CABLE TENSILE STRESS RELIEF | ||
| 658 | A 3094760350 | BUSHING |
| Repalced by: A 0009973481 | ||
| 658 | A 0009973481 | GROMMET |
| ELECTRIC CABLE THRU FRAME SIDE MEMBER | ||
| 660 | A 0005460875 | CLAMP |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 662 | A 3099950140 | CLAMP |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 664 | N 000934006007 | NUT |
| TAIL LAMP TO BRACKET | ||
| 666 | N 006798006103 | SERRATED WASHER |
| TAIL LAMP TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
