Transporto priemonė: O 309 D; VIN numerio dalis: 310386

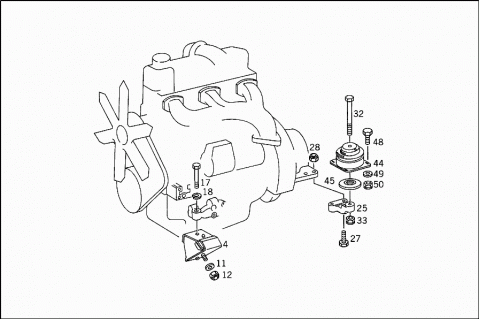

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT

#	Kodas	Pavadinimas
004	A 3102410213	RUBBER MOUNTING
	Repalced by: A 3102410313
004	A 3102410313	RUBBER MOUNTING
		FRONT
011	N 000125017010	WASHER
	Repalced by: N 000125017016
011	N 000125017016	WASHER
		RUBBER MOUNTING TO FRONT CONSOLE
012	N 913004016005	NUT
	Repalced by: N 910113016001
012	N 910113016001	NUT
		RUBBER MOUNTING TO FRONT CONSOLE
017	N 000961016105	SCREW
	Repalced by: N 308676016004
017	N 308676016004	SCREW
		SUPPORTING ARM TO FRONT RUBBER MOUNTING
		M 16 X 55
018	N 912004016101	LOCK WASHER
		SUPPORTING ARM TO FRONT RUBBER MOUNTING
	T YYYYYYYYYYYY	PART NAME MISSING
		FOR FURTHER PARTS, SEE OM314 ENGINE STANDARD VERSION,GROUP 22
025	A 3142240107	ENGINE SUPPORT
		REAR
027	N 000960014138	SCREW
	Repalced by: N 000961014084
027	N 000961014084	SCREW
	Repalced by: N 000961014148
027	N 000961014148	SCREW
		SUPPORTING ARM TO BELL HOUSING
		M 14 X 75
028	N 913004014005	NUT
	Repalced by: N 910113014000
028	N 910113014000	NUT
		SUPPORTING ARM TO BELL HOUSING
032	N 000960016209	SCREW
		SUPPORTING ARM TO BELL HOUSING
		M 16 X 120
033	N 913004016005	NUT
	Repalced by: N 910113016001
033	N 910113016001	NUT
		SUPPORTING ARM TO BELL HOUSING
044	A 3102420113	RUBBER MOUNTING
		REAR
045	A 3102420066	WASHER
		WITH RUBBER LINING
048	N 000933010105	SCREW
		RUBBER MOUNTING TO ENGINE REAR SUPPORT
049	N 000125010518	WASHER
	Repalced by: N 000125010532
049	N 000125010532	WASHER
		RUBBER MOUNTING TO ENGINE REAR SUPPORT
050	N 913004010008	NUT
	Repalced by: N 910113010000
050	N 910113010000	NUT
		RUBBER MOUNTING TO ENGINE REAR SUPPORT
