Transporto priemonė: O 309 D; VIN numerio dalis: 310386

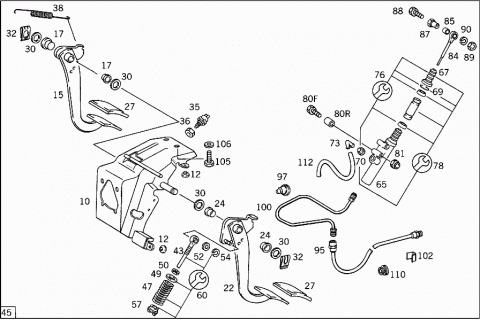

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3092900833 | BRACKET |
| Repalced by: A 3092901333 | ||
| 010 | A 3092901333 | BRACKET |
| PEDAL BEARING | ||
| 012 | A 1152910186 | STOP |
| 015 | A 3092900918 | PEDAL |
| BRAKE | ||
| 017 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 017 | A 1242920050 | BUSHING |
| 022 | A 3092901016 | PEDAL |
| CLUTCH | ||
| 022 | A 3092901416 | PEDAL |
| Repalced by: A 3092902216 | ||
| 022 | A 3092902216 | PEDAL |
| Repalced by: A 3102900416 | ||
| 022 | A 3102900416 | PEDAL |
| CLUTCH | ||
| 024 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 024 | A 1242920050 | BUSHING |
| 027 | A 1102910182 | PAD |
| Repalced by: A 1072910182 | ||
| 027 | A 1072910182 | PAD |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 030 | A 1152910076 | WASHER |
| PEDALS TO PIVOT PINS | ||
| 032 | A 0009941151 | LOCK |
| PEDALS TO PIVOT PINS | ||
| 035 | A 0005453509 | SWITCH |
| STOP LIGHT | ||
| 035 | A 0005456909 | SWITCH |
| STOP LIGHT | ||
| 036 | A 0009909251 | NUT |
| STOP LIGHT SWITCH | ||
| 038 | A 3099931110 | SPRING |
| BRAKE PEDAL RESET | ||
| 043 | A 3812900039 | ROD |
| Repalced by: A 3132900139 | ||
| 043 | A 3132900139 | ROD |
| Repalced by: A 3102900439 | ||
| 043 | A 3102900439 | ROD |
| OVER-CENTER ACTING SPRING | ||
| 045 | A 1102910750 | BUSHING |
| 047 | A 1109930501 | SPRING |
| (DEAD CENTER SPRING) | ||
| 049 | A 1112910491 | SPRING RETAINER |
| DEAD CENTER SPRING,TOP | ||
| 050 | N 070616010003 | NUT |
| SPRING TO PUSH ROD | ||
| 052 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 052 | N 000125008443 | WASHER |
| PUSH ROD TO PEDAL | ||
| 054 | N 006799006003 | LOCK PLATE |
| PUSH ROD TO PEDAL | ||
| A 1102900633 | BRACKET | |
| Repalced by: A 3092910091 | ||
| 057 | A 3092910091 | SPRING RETAINER |
| BOTTOM | ||
| 060 | A 3092900093 | REPAIR KIT |
| DEAD CENTER SPRING | ||
| 065 | A 0012951506 | MASTER CYLINDER |
| Repalced by: A 0002957706 | ||
| 065 | A 0012951406 | MASTER CYLINDER |
| Repalced by: A 0002959106 | ||
| 065 | A 0002959106 | MASTER CYLINDER |
| Repalced by: A 0002957706 | ||
| 065 | A 0002957706 | MASTER CYLINDER |
| Repalced by: A 0012958706 | ||
| 065 | A 0012958706 | MASTER CYLINDER |
| CLUTCH | ||
| 067 | A 0002951583 | BOOT |
| 069 | N 000472019000 | LOCK RING |
| A 0009974235 | PLUG | |
| Repalced by: A 0009971186 | ||
| 070 | A 0009971186 | PLUG |
| 073 | A 3092950036 | INTERMEDIATE PIECE |
| CLUTCH MASTER CYLINDER | ||
| 076 | A 0005862929 | REPAIR KIT |
| LESS PISTON | ||
| 078 | A 0005865229 | REPAIR KIT |
| TO MASTER CYLINDER HAVING ALUMINUM PISTON | ||
| TO 000 295 77 06 | ||
| A 0002903112 | REPAIR KIT | |
| TO MASTER CYLINDER HAVING SYNTHETIC PISTON | ||
| TO 001 295 87 06 | ||
| 080F | N 000931006115 | SCREW |
| Repalced by: N 000933006151 | ||
| 080F | N 000933006151 | SCREW |
| MASTER CYLINDER TO SUPPORT | ||
| M 6X50,TO 000 295 77 06 | ||
| 080F | N 000933006147 | SCREW |
| MASTER CYLINDER TO SUPPORT | ||
| M 6X45,TO 000 295 91 06 | ||
| 080R | A 3092950053 | SPACER TUBE |
| MASTER CYLINDER TO SUPPORT | ||
| TO 000 295 91 06 | ||
| 081 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 081 | N 913004006001 | NUT |
| MASTER CYLINDER TO SUPPORT | ||
| 084 | A 1152900639 | ROD |
| FROM CLUTCH PEDAL TO MASTER CYLINDER | ||
| 084 | A 3102900339 | ROD |
| FROM CLUTCH PEDAL TO MASTER CYLINDER | ||
| 085 | A 1102950250 | BUSHING |
| 087 | A 1102950571 | SCREW |
| Repalced by: A 1152950172 | ||
| 087 | A 1152950172 | NUT |
| PISTON ROD TO LEVER | ||
| 087 | A 1232950150 | BUSHING |
| PISTON ROD TO LEVER | ||
| 088 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 088 | N 304017008016 | SCREW |
| PISTON ROD TO LEVER | ||
| M8X16 | ||
| 088 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 088 | N 304017008018 | SCREW |
| PISTON ROD TO LEVER | ||
| M 8X35 | ||
| 089 | N 000439008213 | NUT |
| PISTON ROD TO LEVER | ||
| 089 | N 913004008004 | NUT |
| PISTON ROD TO LEVER | ||
| 090 | N 912004008102 | LOCK WASHER |
| PISTON ROD TO LEVER | ||
| 095 | A 3092950035 | HOSE |
| FROM CLUTCH MASTER CYLINDER LINE TO SLAVE CYLINDER | ||
| 097 | A 1109971481 | GROMMET |
| Repalced by: A 1079970881 | ||
| 097 | A 1079970881 | GROMMET |
| Repalced by: A 0079975881 | ||
| 097 | A 0079975881 | GROMMET |
| MASTER CYLINDER LINE THRU CAB FLOOR | ||
| 100 | A 3092900013 | LINE |
| Repalced by: A 3404201129 | ||
| 100 | A 3404201129 | LINE |
| FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 102 | A 1072950073 | LOCK |
| Repalced by: A 1072950173 | ||
| 102 | A 1072950173 | LOCK |
| CLUTCH | ||
| 105 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 105 | N 304017008021 | SCREW |
| PEDAL UNIT TO WINDOW SILL GIRDER | ||
| 106 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 106 | N 000125008443 | WASHER |
| PEDAL UNIT TO WINDOW SILL GIRDER | ||
| A 3099970381 | GROMMET | |
| Repalced by: A 0009972781 | ||
| 110 | A 0009972781 | GROMMET |
| Repalced by: A 0009972881 | ||
| 110 | A 0009972881 | GROMMET |
| RESERVOIR LINE THRU CAB WINDOW SILL | ||
| 112 | A 0099973882 | HOSE |
| FROM CLUTCH MASTER CYLINDER TO RESERVOIR | ||

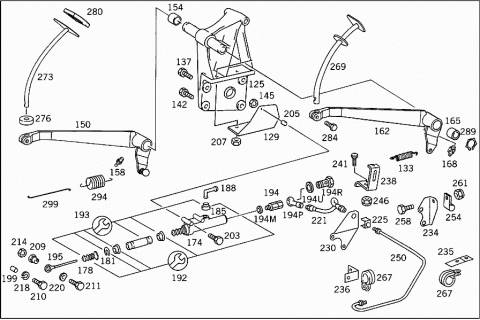

| 125 | A 3092903419 | BEARING BRACKET |
| Repalced by: A 3092903619 | ||
| 125 | A 3092903619 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 129 | A 3102950440 | BRACKET |
| Repalced by: A 3102951440 | ||
| 129 | A 3102951440 | BRACKET |
| CLUTCH AND BRAKE | ||
| 133 | A 3099931110 | SPRING |
| RELEASE SPRING | ||
| 137 | N 000931010258 | SCREW |
| PEDAL BEARING BRACKET TO FRAME | ||
| M 10X55 | ||
| 137 | N 000931010282 | SCREW |
| PEDAL BEARING BRACKET TO FRAME | ||
| M 10X40 | ||
| 142 | N 000933010145 | SCREW |
| PEDAL BEARING BRACKET TO FRAME | ||
| M 10X35 | ||
| 142 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 142 | N 304017010002 | SCREW |
| PEDAL BEARING BRACKET TO FRAME | ||
| M 10X30 | ||
| 145 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 145 | N 910113010000 | NUT |
| PEDAL BEARING BRACKET TO FRAME | ||
| 150 | A 3092900818 | PEDAL |
| BRAKE | ||
| 154 | A 3092920050 | BUSHING |
| 158 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 158 | N 071412008102 | GREASE NIPPLE |
| 162 | A 3092901216 | PEDAL |
| CLUTCH | ||
| 162 | A 3092902416 | PEDAL |
| CLUTCH | ||
| 165 | A 3092920050 | BUSHING |
| 168 | N 071412008200 | GREASE NIPPLE |
| 174 | A 0012951506 | MASTER CYLINDER |
| Repalced by: A 0002957706 | ||
| 174 | A 0012951406 | MASTER CYLINDER |
| Repalced by: A 0002959106 | ||
| 174 | A 0002959106 | MASTER CYLINDER |
| CLUTCH | ||
| 174 | A 0002957706 | MASTER CYLINDER |
| Repalced by: A 0012958706 | ||
| 174 | A 0012958706 | MASTER CYLINDER |
| CLUTCH | ||
| 178 | A 0002951583 | BOOT |
| 181 | N 000472019000 | LOCK RING |
| A 0009974235 | PLUG | |
| Repalced by: A 0009971186 | ||
| 185 | A 0009971186 | PLUG |
| 188 | A 3092950036 | INTERMEDIATE PIECE |
| FROM CLUTCH MASTER CYLINDER TO RESERVOIR | ||
| 192 | A 0005862929 | REPAIR KIT |
| LESS PISTON | ||
| 193 | A 0005865229 | REPAIR KIT |
| TO MASTER CYLINDER HAVING ALUMINUM PISTON | ||
| TO 000 295 77 06 | ||
| A 0002903112 | REPAIR KIT | |
| TO MASTER CYLINDER HAVING SYNTHETIC PISTON | ||
| TO 001 295 87 06 | ||
| 194 | A 0004313707 | VALVE |
| Repalced by: A 0002950720 | ||
| 194 | A 0002950720 | VALVE |
| PRESSURE RETAINING | ||
| 194 | A 0002950820 | VALVE |
| PRESSURE RETAINING | ||
| A 0004230384 | FITTING | |
| Repalced by: A 0002950720 | ||
| A 0004281931 | CONNECTOR | |
| Repalced by: A 0002950720 | ||
| 194M | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 194M | N 007603010110 | SEAL RING |
| PRESSURE RETAINING VALVE | ||
| TO 000 431 37 07 | ||
| 194P | A 0004281830 | CONNECTOR |
| PRESSURE RETAINING VALVE | ||
| 194R | A 0009901763 | HOLLOW SCREW |
| PRESSURE RETAINING VALVE | ||
| 194U | N 007603014106 | SEAL RING |
| PRESSURE RETAINING VALVE | ||
| 195 | A 1152900639 | ROD |
| FROM CLUTCH PEDAL TO MASTER CYLINDER | ||
| 195 | A 3102900339 | ROD |
| FROM CLUTCH PEDAL TO MASTER CYLINDER | ||
| 199 | A 1102950250 | BUSHING |
| 203 | N 000931006191 | SCREW |
| MASTER CYLINDER TO CONSOLE | ||
| M6X55 | ||
| 203 | N 000931006118 | SCREW |
| MASTER CYLINDER TO SUPPORT | ||
| M6X35 | ||
| 203 | N 000931006181 | SCREW |
| Repalced by: N 000933006226 | ||
| 203 | N 000933006226 | SCREW |
| MASTER CYLINDER TO SUPPORT | ||
| M 6X120 | ||
| 203 | N 000931006216 | SCREW |
| MASTER CYLINDER TO SUPPORT | ||
| M 6X110 | ||
| 205 | A 3092950153 | SPACER TUBE |
| Repalced by: A 3529910340 | ||
| 205 | A 3529910340 | SPACER TUBE |
| MASTER CYLINDER TO SUPPORT | ||
| 207 | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 207 | N 913002006009 | NUT |
| MASTER CYLINDER TO SUPPORT | ||
| 209 | A 1102950571 | SCREW |
| Repalced by: A 1152950172 | ||
| 209 | A 1162950172 | NUT |
| PISTON ROD TO LEVER | ||
| 209 | A 1232950150 | BUSHING |
| PISTON ROD TO LEVER | ||
| 210 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 210 | N 304017008016 | SCREW |
| PISTON ROD TO LEVER | ||
| M 8X16 | ||
| 211 | N 000931008047 | SCREW |
| Repalced by: N 304017008018 | ||
| 211 | N 304017008018 | SCREW |
| PISTON ROD TO LEVER | ||
| M 8X35 | ||
| 214 | N 000439008213 | NUT |
| PISTON ROD TO LEVER | ||
| 214 | N 000934008010 | NUT |
| PISTON ROD TO LEVER | ||
| 218 | N 912004008102 | LOCK WASHER |
| PISTON ROD TO LEVER | ||
| 220 | N 000137008204 | SPRING WASHER |
| PISTON ROD TO LEVER | ||
| 221 | A 3092950035 | HOSE |
| FROM CLUTCH MASTER CYLINDER TO SLAVE CYLINDER LINE | ||
| 225 | A 1072950073 | LOCK |
| Repalced by: A 1072950173 | ||
| 225 | A 1072950173 | LOCK |
| 230 | A 3102950840 | BRACKET |
| CLUTCH HOSE TO BELL HOUSING | ||
| 234 | A 3102950940 | BRACKET |
| LINE MOUNTING | ||
| 234 | A 3102950940 | BRACKET |
| LINE MOUNTING | ||
| 235 | A 3104312740 | BRACKET |
| LINE MOUNTING | ||
| 236 | A 3095441338 | BRACKET |
| LINE MOUNTING | ||
| 238 | A 3094280940 | BRACKET |
| CLUTCH PEDAL RELEASE SPRING | ||
| 241 | N 000933010105 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 246 | N 913002010001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| A 3102900113 | LINE | |
| Repalced by: A 3404201829 | ||
| 250 | A 3404201829 | LINE |
| FROM CLUTCH HOSE TO SLAVE CYLINDER | ||
| 1050 MM | ||
| 250 | A 3404201429 | LINE |
| FROM CLUTCH HOSE TO SLAVE CYLINDER | ||
| 850 MM | ||
| 254 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 254 | N 916016008200 | CLAMP |
| HYDRAULIC LINE TO BRACKET | ||
| 254 | N 916016008200 | CLAMP |
| HYDRAULIC LINE TO BRACKET | ||
| 254 | N 916016008200 | CLAMP |
| HYDRAULIC LINE TO BRACKET | ||
| 258 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 258 | N 000000001146 | SCREW |
| HYDRAULIC LINE TO BRACKET | ||
| 261 | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 261 | N 913002006009 | NUT |
| HYDRAULIC LINE TO BRACKET | ||
| A 3109970382 | HOSE | |
| Repalced by: A 6039970482 | ||
| A 6039970482 | HOSE | |
| FROM CLUTCH MASTER CYLINDER TO RESERVOIR | ||
| 7.3X11.3 MM | ||
| A 0089979082 | HOSE | |
| Repalced by: A 0009872727 | ||
| A 0009872727 | PLASTIC PIPE | |
| FROM CLUTCH MASTER CYLINDER TO RESERVOIR | ||
| 6X8 MM | ||
| A 0039978972 | FITTING | |
| Repalced by: A 0029905971 | ||
| A 0029905971 | FITTING | |
| (PARTS KIT),LINE RUPTURE | ||
| A 1869970681 | GROMMET | |
| RESERVOIR LINE THRU CAB WINDOW SILL | ||
| 267 | N 916016008200 | CLAMP |
| HOSE TO SLAVE CYLINDER | ||
| 269 | A 3092900124 | PEDAL PLATE |
| CLUTCH | ||
| 273 | A 3092900524 | PEDAL PLATE |
| BRAKE | ||
| 276 | A 3092920086 | BUFFER |
| CLUTCH AND BRAKE | ||
| 280 | A 3192920082 | PAD |
| CLUTCH AND BRAKE | ||
| 284 | N 000933010105 | SCREW |
| 289 | N 000983028000 | LOCK RING |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 294 | A 3099930010 | SPRING |
| BRAKE PEDAL | ||
| 299 | A 3092920042 | EXTENSION |
| RELEASE SPRING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
