Transporto priemonė: O 309 D; VIN numerio dalis: 310386

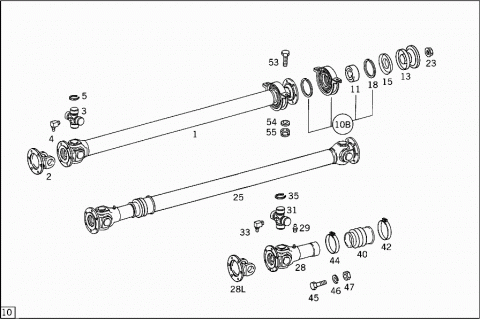

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
001	A 3104100201	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1138 MM
002	A 3024110011	DRIVE FLANGE
003	A 3024100031	UNIVERSAL JOINT CROSS
	Repalced by: A 3854100231
003	A 3854100231	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
004	N 071412008302	GREASE NIPPLE
005	A 3129941135	SNAP RING
		AS REQUIRED
		2.50 MM
005	A 3129941635	SNAP RING
		AS REQUIRED
		2.55 M
005	A 3129941335	SNAP RING
		AS REQUIRED
		2.30 MM
005	A 3129941435	SNAP RING
		AS REQUIRED
		2.65 MM
005	A 3129941535	SNAP RING
		AS REQUIRED
		2.70 MM
005	A 3129941735	SNAP RING
		AS REQUIRED
		2.75 MM
010	A 3104100922	INTERMEDIATE BEARING
	Repalced by: A 3095860141
010	A 3095860141	REPAIR KIT
	Repalced by: A 3094100110
010B	A 3094100110	REPAIR KIT
	Repalced by: A 3104100822
010B	A 3104100822	INTERMEDIATE BEARING
011	A 0019811025	BALL BEARING
011	A 0019815925	BALL BEARING
013	A 3104100230	CENTERING FLANGE
015	A 3104130061	PROTECTIVE CAP
018	A 0009947235	SNAP RING
	Repalced by: N 912009072200
018	N 912009072200	SNAP RING
023	A 3104110072	NUT
023	A 3104110172	NUT
025	A 3144100502	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1901 MM
025	A 3124108602	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1865 MM
028	A 3234100108	UNIVERSAL JOINT YOKE
028L	A 3024110011	DRIVE FLANGE
029	N 071412008101	GREASE NIPPLE
	Repalced by: N 071412008102
029	N 071412008102	GREASE NIPPLE
031	A 3024100031	UNIVERSAL JOINT CROSS
	Repalced by: A 3854100231
031	A 3854100231	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
033	N 071412008302	GREASE NIPPLE
035	A 3129941135	SNAP RING
		AS REQUIRED
		2.50 MM
035	A 3129941635	SNAP RING
		AS REQUIRED
		2.55 MM
035	A 3129941335	SNAP RING
		AS REQUIRED
		2.60 MM
035	A 3129941435	SNAP RING
		AS REQUIRED
		2.65 MM
035	A 3129941535	SNAP RING
		AS REQUIRED
		2.70 MM
035	A 3129941735	SNAP RING
		AS REQUIRED
		2.75 MM
040	A 3144100080	BOOT
042	N 900269078100	CLAMP
		A 78/12
044	N 900269070101	CLAMP
		A 10/12
045	A 3219901501	SCREW
	Repalced by: A 3539900001
045	A 3539900001	SCREW
		PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
046	N 912004010102	LOCK WASHER
		PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
047	N 000934010010	NUT
		PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
053	N 000933010105	SCREW
		INTERMEDIATE SHAFT BEARING TO CROSS MEMBER
054	N 000125010518	WASHER
	Repalced by: N 000125010532
054	N 000125010532	WASHER
		INTERMEDIATE SHAFT BEARING TO CROSS MEMBER
055	N 913002010010	NUT
		INTERMEDIATE SHAFT BEARING TO CROSS MEMBER
