Transporto priemonė: O 309 D; VIN numerio dalis: 310386

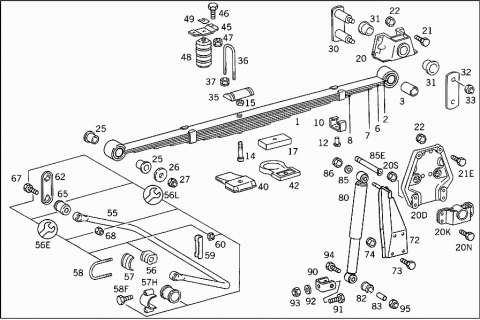

Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3103200602 | FRONT SPRING |
| 8-LEAF | ||
| 001 | A 3103200902 | FRONT SPRING |
| 8-LEAF | ||
| 002 | A 3103200094 | SPRING LEAF |
| USED WITH SPRING LEAF NO.2 WITH ROUND SPRING EYE | ||
| NO.1 | ||
| 002 | A 3103201494 | SPRING LEAF |
| USED WITH SPRING LEAF NO.2 WITH FLATTEND SPRING EYE | ||
| NO.1 | ||
| 002 | A 3103200594 | SPRING LEAF |
| USED WITH SPRING LEAF NO.2 WITH ROUND SPRING EYE | ||
| NO.1 | ||
| 002 | A 3103201594 | SPRING LEAF |
| USED WITH SPRING LEAF NO.2 WITH FLATTEND SPRING EYE | ||
| NO.1 | ||
| 003 | A 3093220050 | BUSHING |
| 006 | A 3103210512 | SPRING LEAF |
| USED WITH SPRING LEAF NO.2 WITH ROUND SPRING EYE | ||
| NO.2 | ||
| 006 | A 3103211012 | SPRING LEAF |
| USED WITH SPRING LEAF NO.2 WITH FLATTEND SPRING EYE | ||
| NO.2 | ||
| 006 | A 3103210812 | SPRING LEAF |
| USED WITH SPRING LEAF NO.2 WITH ROUND SPRING EYE | ||
| NO.2 | ||
| 006 | A 3103211212 | SPRING LEAF |
| USED WITH SPRING LEAF NO.2 WITH FLATTEND SPRING EYE | ||
| NO.2 | ||
| 007 | A 3103210513 | SPRING LEAF |
| NO.3 | ||
| 007 | A 3103210813 | SPRING LEAF |
| NO.3 | ||
| 008 | A 3103200294 | SPRING LEAF |
| Repalced by: A 3103210514 | ||
| 008 | A 3103210514 | SPRING LEAF |
| LESS SPRING CLAMP | ||
| NO.4 | ||
| 008 | A 3103200694 | SPRING LEAF |
| Repalced by: A 3103210814 | ||
| 008 | A 3103210814 | SPRING LEAF |
| LESS SPRING CLAMP | ||
| NO.4 | ||
| 010 | A 3093210933 | SPRING CLAMP |
| Repalced by: A 3093211833 | ||
| 010 | A 3093211833 | SPRING CLAMP |
| TO SPRING LEAVES NOS. 4 AND 6 | ||
| 010 | A 3103210633 | SPRING CLAMP |
| Repalced by: A 3223242033 | ||
| 010 | A 3223242033 | SPRING CLAMP |
| TO SPRING LEAF NO.4 | ||
| 010 | A 3223242033 | SPRING CLAMP |
| TO SPRING LEAF NO. 6 | ||
| 012 | N 910006008000 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| A 0003212353 | SPACER TUBE | |
| Repalced by: A 0003213253 | ||
| A 0003213253 | SPACER TUBE | |
| FOR SPRING CLAMPS | ||
| N 000931008189 | SCREW | |
| FOR SPRING CLAMPS | ||
| N 913004008004 | NUT | |
| FOR SPRING CLAMPS | ||
| 014 | N 004626010122 | SPRING BOLT |
| M 10X75 | ||
| 014 | N 004626010131 | SPRING BOLT |
| M 10X80 | ||
| 015 | N 913004010011 | NUT |
| 017 | A 3093220384 | SHIM |
| 020 | A 3093200675 | SPRING BRACKET |
| FRONT SPRING REAR BRACKET | ||
| 020 | A 3093200675 | SPRING BRACKET |
| FRONT SPRING REAR BRACKET | ||
| 020D | A 3093251901 | FRONT SPRING BRACKET |
| Repalced by: A 3093220501 | ||
| 020D | A 3093220501 | FRONT SPRING BRACKET |
| REAR INSIDE | ||
| 020K | A 3093200470 | REAR SUBFRAME |
| Repalced by: A 3093200570 | ||
| 020K | A 3093200570 | REAR SUBFRAME |
| (FRONT SPRING BRACKET),REAR,OUTSIDE | ||
| 020N | N 000931010258 | SCREW |
| FRONT SPRING REAR BRACKET | ||
| 020S | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 020S | N 910113010000 | NUT |
| FRONT SPRING REAR BRACKET | ||
| 021 | N 000933010145 | SCREW |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| M 10X35 | ||
| 021 | N 000933010145 | SCREW |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| M 10X35 | ||
| 021 | N 000933010145 | SCREW |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| M 10X35 | ||
| 021E | N 000933010150 | SCREW |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| M 10X55 | ||
| 022 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 022 | N 910113010000 | NUT |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| 025 | A 3193240750 | BUSHING |
| FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 026 | A 3093250162 | THRUST WASHER |
| FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 027 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 027 | N 910113016002 | NUT |
| FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 030 | A 3193200662 | SHACKLE |
| Repalced by: A 3103200563 | ||
| 030 | A 3103200563 | SHACKLE |
| FRONT SPRING TO FRONT-SPRING REAR BRACKET | ||
| 031 | A 3193240750 | BUSHING |
| FRONT SPRING TO FRONT-SPRING REAR BRACKET | ||
| 032 | A 3193250320 | SHACKLE |
| FRONT SPRING TO FRONT-SPRING REAR BRACKET | ||
| 033 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 033 | N 910113016002 | NUT |
| FRONT SPRING TO FRONT-SPRING REAR BRACKET | ||
| 035 | A 3093310027 | SPACER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 036 | A 3093311225 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 150 MM | ||
| 037 | N 913004012008 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 040 | A 3093300477 | STOP |
| Repalced by: A 3103300177 | ||
| 040 | A 3103300177 | STOP |
| LEFT FRONT SPRING | ||
| 040 | A 3093300577 | STOP |
| Repalced by: A 3103300377 | ||
| 040 | A 3103300377 | STOP |
| RIGHT FRONT SPRING | ||
| 042 | A 3093300677 | STOP |
| Repalced by: A 3103300077 | ||
| 042 | A 3103300077 | STOP |
| LEFT FRONT SPRING | ||
| 042 | A 3093300777 | STOP |
| Repalced by: A 3103300277 | ||
| 042 | A 3103300277 | STOP |
| RIGHT FRONT SPRING | ||
| 045 | A 3103220240 | BRACKET |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 046 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 046 | N 304017010002 | SCREW |
| BRACKET TO FRAME | ||
| 047 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 047 | N 910113010000 | NUT |
| BRACKET TO FRAME | ||
| 048 | A 3093200177 | RUBBER SPRING |
| FRONT SPRING STOP | ||
| 049 | A 3093250040 | BRACKET |
| RUBBER SPRING TO SUBSTRUCTURE | ||
| 055 | A 3093230465 | TORSION BAR |
| FRONT AXLE | ||
| 055 | A 3093230465 | TORSION BAR |
| Repalced by: A 3103230265 | ||
| 055 | A 3103230265 | TORSION BAR |
| FRONT AXLE | ||
| 056 | A 3093230385 | RUBBER MOUNTING |
| TORSION BAR | ||
| 056 | A 3093230385 | RUBBER MOUNTING |
| TORSION BAR | ||
| 056 | A 3183210585 | RUBBER MOUNTING |
| TORSION BAR TO FRONT AXLE | ||
| 056E | A 3095860132 | REPAIR KIT |
| Repalced by: A 3093200228 | ||
| 056E | A 3093200228 | REPAIR KIT |
| FRONT AXLE TORSION BAR | ||
| 056E | A 3093200228 | REPAIR KIT |
| FRONT AXLE TORSION BAR | ||
| 056L | A 3093200047 | REPAIR KIT |
| FRONT AXLE TORSION BAR | ||
| 057 | A 3093230440 | BRACKET |
| TORSION BAR TO FRONT AXLE | ||
| 057 | A 3093230440 | BRACKET |
| TORSION BAR TO FRONT AXLE | ||
| 057H | A 3183200543 | BRACKET |
| TORSION BAR TO FRONT AXLE | ||
| 058 | A 3103230026 | CLAMP |
| Repalced by: A 3103230426 | ||
| 058 | A 3103230426 | CLAMP |
| TORSION BAR TO FRONT AXLE | ||
| 058 | A 3103230426 | CLAMP |
| TORSION BAR TO FRONT AXLE | ||
| 058F | N 000931010161 | SCREW |
| Repalced by: N 000931010462 | ||
| 058F | N 000931010462 | SCREW |
| TORSION BAR TO FRONT AXLE | ||
| 059 | A 3103230040 | BRACKET |
| Repalced by: A 3103230540 | ||
| 059 | A 3103230540 | BRACKET |
| TORSION BAR TO FRONT AXLE | ||
| 060 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 060 | N 910113010000 | NUT |
| TORSION BAR TO FRONT AXLE | ||
| 062 | A 3093200463 | SHACKLE |
| Repalced by: A 3093260547 | ||
| 062 | A 3093260547 | SHACKLE |
| TORSION BAR,FRONT | ||
| A 3143260481 | RUBBER MOUNTING | |
| Repalced by: A 3093200073 | ||
| A 3143260153 | SPACER TUBE | |
| Repalced by: A 3093200073 | ||
| 065 | A 3093200073 | BEARING |
| TORSION BAR | ||
| 067 | N 000960012197 | SCREW |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| 068 | N 913004012008 | NUT |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| 072 | A 3093200378 | CONSOLE |
| Repalced by: A 3093200678 | ||
| 072 | A 3093200678 | CONSOLE |
| FRONT SHOCK ABSORBERS | ||
| 072 | A 3093200678 | CONSOLE |
| FRONT SHOCK ABSORBERS | ||
| 073 | N 000933010105 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 074 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 074 | N 910113010000 | NUT |
| BEARING BRACKET TO FRAME | ||
| 080 | A 0023232700 | SHOCK ABSORBER |
| Repalced by: A 0033236000 | ||
| 080 | A 0023239600 | SHOCK ABSORBER |
| Repalced by: A 0033236000 | ||
| 080 | A 0033235500 | SHOCK ABSORBER |
| Repalced by: A 0033236000 | ||
| 080 | A 0023232600 | SHOCK ABSORBER |
| Repalced by: A 0033236000 | ||
| 080 | A 0023239400 | SHOCK ABSORBER |
| Repalced by: A 0033236000 | ||
| 080 | A 0033235800 | SHOCK ABSORBER |
| Repalced by: A 0033236000 | ||
| 080 | A 0033236000 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 082 | A 0003231585 | RUBBER MOUNTING |
| 083 | A 0003230353 | SPACER TUBE |
| Repalced by: A 0003232750 | ||
| 083 | A 0003232750 | BUSHING |
| 085 | A 3193260076 | WASHER |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 085E | A 3093260371 | SCREW |
| Repalced by: N 000960014287 | ||
| 085E | N 000960014287 | SCREW |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 086 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 086 | N 910113014001 | NUT |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 090 | A 3093230026 | CLAMP |
| Repalced by: A 3093230226 | ||
| 090 | A 3093230226 | CLAMP |
| AT AXLE BEAM | ||
| 091 | N 308676014002 | SCREW |
| CLAMP TO AXLE BODY | ||
| 092 | A 3093230076 | WASHER |
| Repalced by: A 3193260076 | ||
| 092 | A 3193260076 | WASHER |
| CLAMP TO AXLE BODY | ||
| 093 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 093 | N 910113014001 | NUT |
| AT AXLE BEAM | ||
| 094 | A 3099900001 | SCREW |
| Repalced by: A 3099901101 | ||
| 094 | A 3099901101 | SCREW |
| Repalced by: N 000960014121 | ||
| 094 | N 000960014121 | SCREW |
| Repalced by: N 308676014014 | ||
| 094 | N 308676014014 | SCREW |
| SHOCK ABSORBER TO BRACKET AT FRONT AXLE | ||
| 095 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 095 | N 910113014001 | NUT |
| SHOCK ABSORBER TO BRACKET AT FRONT AXLE | ||

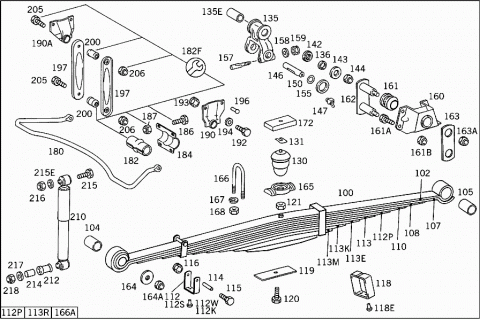

| 100 | A 3093204806 | REAR SPRING |
| 8-LEAF | ||
| 100 | A 3093205906 | REAR SPRING |
| 8-LEAF | ||
| 100 | A 3103201406 | REAR SPRING |
| 10-LEAF;LESS RUBBER PAD | ||
| 100 | A 3103202306 | REAR SPRING |
| 10-LEAF;LESS RUBBER PAD | ||
| 102 | A 3093202293 | SPRING LEAF |
| NO.1 | ||
| 102 | A 3093204893 | SPRING LEAF |
| NO.1 | ||
| 102 | A 3103200893 | SPRING LEAF |
| NO.1 | ||
| 102 | A 3103201293 | SPRING LEAF |
| NO.1 | ||
| 104 | A 3103250050 | BUSHING |
| FRONT | ||
| 104 | A 3103200050 | BUSHING |
| FRONT AND REAR | ||
| 104 | A 3103200050 | BUSHING |
| FRONT AND REAR | ||
| 105 | A 3103250150 | BUSHING |
| REAR | ||
| 107 | A 3093244212 | SPRING LEAF |
| NO.2 | ||
| 107 | A 3093244312 | SPRING LEAF |
| NO.2 | ||
| 107 | A 3103240912 | SPRING LEAF |
| Repalced by: A 3093242712 | ||
| 107 | A 3093242712 | SPRING LEAF |
| NO.2 | ||
| 107 | A 3103241212 | SPRING LEAF |
| NO.2 | ||
| 108 | A 3093243813 | SPRING LEAF |
| NO.3 | ||
| 108 | A 3093243913 | SPRING LEAF |
| NO.3 | ||
| 108 | A 3103241013 | SPRING LEAF |
| NO.3 | ||
| 110 | A 3093202393 | SPRING LEAF |
| NO.4 | ||
| 110 | A 3093204993 | SPRING LEAF |
| NO.4 | ||
| 110 | A 3093243914 | SPRING LEAF |
| NO.4 | ||
| 110 | A 3103241014 | SPRING LEAF |
| NO.4 | ||
| 112 | A 0013213333 | SPRING CLAMP |
| Repalced by: A 3093210933 | ||
| 112 | A 3093210933 | SPRING CLAMP |
| Repalced by: A 3093211833 | ||
| 112 | A 3093211833 | SPRING CLAMP |
| TO SPRING LEAF NO.4 | ||
| 112K | N 910006008022 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 112P | A 3093203493 | SPRING LEAF |
| NO.5 | ||
| 112S | A 3093210933 | SPRING CLAMP |
| Repalced by: A 3093211833 | ||
| 112S | A 3093211833 | SPRING CLAMP |
| TO SPRING LEAF NO. 5 | ||
| 32 MM | ||
| 112S | A 3223242033 | SPRING CLAMP |
| TO SPRING LEAF NO. 5 | ||
| 30 MM | ||
| 112W | N 910006008022 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 8X20 MM | ||
| 113 | A 3093242816 | SPRING LEAF |
| NO.6 | ||
| 113E | A 3093242017 | SPRING LEAF |
| NO.7 | ||
| 113K | A 3093240818 | SPRING LEAF |
| NO.8 | ||
| 113M | A 3093240319 | SPRING LEAF |
| NO.9 | ||
| 113R | A 3093203593 | SPRING LEAF |
| NO.10 | ||
| 114 | A 0003212153 | SPACER TUBE |
| Repalced by: A 0003212353 | ||
| 114 | A 0003212353 | SPACER TUBE |
| Repalced by: A 0003213253 | ||
| 114 | A 0003213253 | SPACER TUBE |
| FOR SPRING CLAMPS | ||
| 115 | N 000931008189 | SCREW |
| FOR SPRING CLAMPS | ||
| 116 | N 913004008004 | NUT |
| FOR SPRING CLAMPS | ||
| 118 | A 3093210933 | SPRING CLAMP |
| Repalced by: A 3093211833 | ||
| 118 | A 3093211833 | SPRING CLAMP |
| AS REQUIRED; HOLE SPACING: | ||
| 32 MM | ||
| 118 | A 3223242033 | SPRING CLAMP |
| AS REQUIRED; HOLE SPACING: | ||
| 30 MM | ||
| 118E | N 910006008025 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 8X22 MM | ||
| 119 | A 3093250884 | SHIM |
| 120 | N 004626010101 | SPRING BOLT |
| M 10X130 | ||
| 120 | N 004626010100 | SPRING BOLT |
| M 10X105 | ||
| 120 | N 004626010102 | SPRING BOLT |
| M 10X120 | ||
| 120 | N 004626010125 | SPRING BOLT |
| M 10X135 | ||
| 121 | N 000934010014 | NUT |

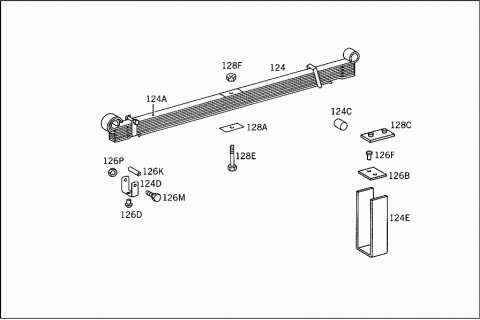

| 124 | A 3133200006 | REAR SPRING |
| 6-LEAF;WITH RUBBER PAD | ||
| 124A | A 3133200693 | SPRING LEAF |
| NO.1 | ||
| 124C | A 3103200050 | BUSHING |
| 124D | A 3223242033 | SPRING CLAMP |
| TO SPRING LEAF NO. 5 | ||
| 124E | A 3133250025 | SPRING CLAMP |
| TO SPRING LEAF NO. 6 | ||
| 126B | A 3133250095 | WEB |
| TO SPRING LEAF NO. 6 | ||
| 126D | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| M 8X25 | ||
| 126F | N 910002008029 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 8X18 MM | ||
| 126K | A 0003212353 | SPACER TUBE |
| Repalced by: A 0003213253 | ||
| 126K | A 0003213253 | SPACER TUBE |
| FOR SPRING CLAMPS | ||
| 126M | N 000931008189 | SCREW |
| FOR SPRING CLAMPS | ||
| 126P | N 913004008004 | NUT |
| FOR SPRING CLAMPS | ||
| 128A | A 3133210084 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 128C | A 3133210062 | THRUST WASHER |
| BETWEEN THE SPRING LEAVES | ||
| 128E | N 004626010117 | SPRING BOLT |
| M 10X110 | ||
| 128F | N 913004010011 | NUT |
| 130 | A 3093200277 | RUBBER SPRING |
| Repalced by: A 6673200077 | ||
| 130 | A 6673200077 | RUBBER SPRING |
| STOP TO REAR AXLE | ||
| 131 | A 3093250040 | BRACKET |
| RUBBER SPRING TO SUBSTRUCTURE | ||
| 135 | A 3103200063 | SHACKLE |
| REAR SPRING SUSPENSION | ||
| 135E | A 3103250250 | BUSHING |
| 136 | A 3103250176 | WASHER |
| AS REQUIRED | ||
| 3.70 MM | ||
| 136 | A 3103250276 | WASHER |
| AS REQUIRED | ||
| 3.80 MM | ||
| 136 | A 3103250376 | WASHER |
| AS REQUIRED | ||
| 3.90 MM | ||
| 136 | A 3103250476 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 136 | A 3103250576 | WASHER |
| AS REQUIRED | ||
| 4.10 MM | ||
| 136 | A 3103250676 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 136 | A 3103250776 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 142 | A 0009978441 | SEAL RING |
| REAR SPRING SUSPENSION | ||
| 143 | A 3103250162 | THRUST WASHER |
| REAR SPRING SUSPENSION | ||
| 144 | A 0019902051 | NUT |
| REAR SPRING SUSPENSION | ||
| 146 | A 3103250022 | PIN |
| REAR SPRING SUSPENSION | ||
| 147 | N 071412010100 | GREASE NIPPLE |
| REAR SPRING SUSPENSION | ||
| 147 | N 071412010100 | GREASE NIPPLE |
| REAR SPRING SUSPENSION | ||
| 150 | A 3103250976 | WASHER |
| AS REQUIRED | ||
| 3.70 MM | ||
| 150 | A 3103251076 | WASHER |
| AS REQUIRED | ||
| 3.80 MM | ||
| 150 | A 3103251176 | WASHER |
| AS REQUIRED | ||
| 3.90 MM | ||
| 150 | A 3103251276 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 150 | A 3103251376 | WASHER |
| AS REQUIRED | ||
| 4.10 MM | ||
| 150 | A 3103251476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 150 | A 3103251576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 155 | A 0009978541 | SEAL RING |
| REAR SPRING SUSPENSION | ||
| 157 | A 3529900337 | BOLT |
| REAR SPRING SUSPENSION | ||
| 158 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 158 | N 000125010532 | WASHER |
| REAR SPRING SUSPENSION | ||
| 159 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 159 | N 910113010000 | NUT |
| REAR SPRING SUSPENSION | ||
| 160 | A 3103201275 | SPRING BRACKET |
| Repalced by: A 3103201475 | ||
| 160 | A 3103201475 | SPRING BRACKET |
| REAR | ||
| A 3103250161 | BEARING TUBE | |
| 161 | A 3103200050 | BUSHING |
| REAR SPRING SUSPENSION | ||
| 161A | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 161A | N 304017010002 | SCREW |
| SPRING BRACKET TO FRAME | ||
| 161B | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 161B | N 910113010000 | NUT |
| SPRING BRACKET TO FRAME | ||
| 162 | A 3103200563 | SHACKLE |
| REAR SPRING SUSPENSION | ||
| 163 | A 3103250220 | SHACKLE |
| Repalced by: A 3193250320 | ||
| 163 | A 3193250320 | SHACKLE |
| SPRING TO SHACKLE | ||
| 163A | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 163A | N 910113016002 | NUT |
| SPRING TO SHACKLE | ||
| 164 | A 3093250162 | THRUST WASHER |
| REAR SPRING TO REAR SPRING FRONT BRACKET | ||
| 164A | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 164A | N 910113016002 | NUT |
| REAR SPRING TO REAR SPRING FRONT BRACKET | ||
| 165 | A 3093250331 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 166 | A 3093510625 | U-BOLT |
| Repalced by: A 3093510525 | ||
| 166 | A 3093510525 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 200 MM | ||
| 166 | A 3093510525 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 200 MM | ||
| 166 | A 3093510725 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 220 MM | ||
| 166 | A 3093510325 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 180 MM | ||
| 167 | N 074361012301 | LOCK WASHER |
| REAR SPRING TO REAR AXLE | ||
| 168 | N 913004012008 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 172 | A 3093200356 | SHIM |
| REAR SPRING TO REAR AXLE | ||
| 172 | A 3093200356 | SHIM |
| REAR SPRING TO REAR AXLE | ||

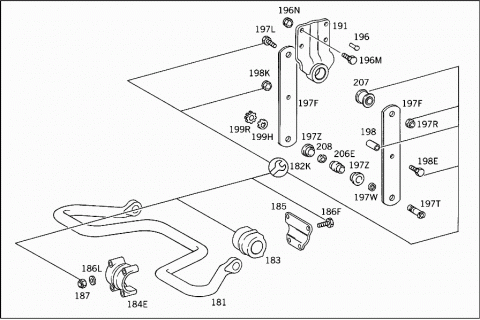

| 180 | A 3103260365 | TORSION BAR |
| REAR AXLE | ||
| A 3103260665 | TORSION BAR | |
| Repalced by: A 3103260965 | ||
| A 3103260865 | TORSION BAR | |
| Repalced by: A 3103260965 | ||
| 181 | A 3103260965 | TORSION BAR |
| REAR STABILIZER | ||
| 182 | A 3093260481 | RUBBER MOUNTING |
| TORSION BAR | ||
| 182F | A 3095860432 | REPAIR KIT |
| Repalced by: A 3093200528 | ||
| 182F | A 3093200528 | REPAIR KIT |
| TORSION BAR TO REAR AXLE | ||
| 182K | A 3093200628 | REPAIR KIT |
| TORSION BAR TO REAR AXLE | ||
| 183 | A 3103260181 | RUBBER MOUNTING |
| TORSION BAR TO REAR AXLE | ||
| 184 | A 3093260740 | BRACKET |
| TORSION BAR TO REAR AXLE | ||
| 184E | A 3103260440 | BRACKET |
| TORSION BAR TO REAR AXLE | ||
| 185 | A 3103260540 | BRACKET |
| TORSION BAR TO REAR AXLE | ||
| 186 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 186 | N 304017008021 | SCREW |
| TORSION BAR TO REAR AXLE | ||
| M 8X20 | ||
| 186F | N 000931008254 | SCREW |
| Repalced by: N 304014008002 | ||
| 186F | N 304014008002 | SCREW |
| TORSION BAR TO REAR AXLE | ||
| M 8X65 | ||
| 186L | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 186L | N 000125008443 | WASHER |
| TORSION BAR TO REAR AXLE | ||
| 187 | N 913004008004 | NUT |
| TORSION BAR TO REAR AXLE | ||
| 190 | A 3143200478 | CONSOLE |
| LEFT | ||
| 190A | A 3143200578 | CONSOLE |
| RIGHT | ||
| 191 | A 3103200478 | CONSOLE |
| LEFT AND RIGHT | ||
| 191 | A 3103200678 | CONSOLE |
| LEFT AND RIGHT | ||
| 192 | N 000933010157 | SCREW |
| CONSOLE TO FRAME | ||
| 193 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 193 | N 910113010000 | NUT |
| CONSOLE TO FRAME | ||
| 194 | N 000440011103 | WASHER |
| CONSOLE TO FRAME | ||
| 196 | N 910005010014 | RIVET |
| CONSOLE TO FRAME | ||
| 10X26 MM | ||
| 196 | N 910005010016 | RIVET |
| CONSOLE TO FRAME | ||
| 10X28 MM | ||
| 196M | N 000933010105 | SCREW |
| CONSOLE TO FRAME | ||
| 196N | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 196N | N 910113010000 | NUT |
| CONSOLE TO FRAME | ||
| 197 | A 3093200363 | SHACKLE |
| Repalced by: A 3093260447 | ||
| 197 | A 3093260447 | SHACKLE |
| Repalced by: A 6673200837 | ||
| 197 | A 6673200837 | SHACKLE |
| TORSION BAR,REAR | ||
| 197F | A 3103260247 | SHACKLE |
| TORSION BAR,REAR | ||
| 197F | A 3103260847 | SHACKLE |
| TORSION BAR,REAR | ||
| 197L | N 000960016206 | SCREW |
| SHACKLE TO CONSOLE | ||
| 197R | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 197R | N 910113016001 | NUT |
| SHACKLE TO CONSOLE | ||
| 197T | A 3103260074 | PIN |
| SHACKLE TO CONSOLE | ||
| 197W | A 3103260253 | SPACER TUBE |
| SHACKLE TO CONSOLE | ||
| 197Z | A 3103260057 | SEAL RING |
| SHACKLE TO CONSOLE | ||
| 198 | A 3103260153 | SPACER TUBE |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| 198 | A 3044920053 | SPACER TUBE |
| Repalced by: A 3179911040 | ||
| 198 | A 3179911040 | SPACER TUBE |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| 198E | N 000931010271 | SCREW |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| M 10X60 | ||
| 198E | N 000931010331 | SCREW |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| M 10X65 | ||
| 198K | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 198K | N 910113010000 | NUT |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| 199H | N 070952024102 | LOCK PLATE |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| 199R | N 070852024001 | NUT |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| A 3143260481 | RUBBER MOUNTING | |
| Repalced by: A 3093200073 | ||
| A 3143260153 | SPACER TUBE | |
| Repalced by: A 3093200073 | ||
| 200 | A 3093200073 | BEARING |
| TORSION BAR | ||
| 205 | N 000960012246 | SCREW |
| Repalced by: N 000960012353 | ||
| 205 | N 000960012353 | SCREW |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| 206 | N 913004012008 | NUT |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| 206E | A 0009819131 | JOINT BEARING |
| TORSION BAR TO SHACKLE | ||
| 206E | A 0019810131 | JOINT BEARING |
| TORSION BAR TO SHACKLE | ||
| 207 | A 3183200073 | BEARING |
| TORSION BAR TO SHACKLE | ||
| 208 | N 000472042001 | LOCK RING |
| TORSION BAR TO SHACKLE | ||
| 210 | A 0023232700 | SHOCK ABSORBER |
| Repalced by: A 0033236000 | ||
| 210 | A 0023239600 | SHOCK ABSORBER |
| Repalced by: A 0033236000 | ||
| 210 | A 0033235500 | SHOCK ABSORBER |
| Repalced by: A 0033236000 | ||
| 210 | A 0023232600 | SHOCK ABSORBER |
| Repalced by: A 0033236000 | ||
| 210 | A 0023239400 | SHOCK ABSORBER |
| Repalced by: A 0033236000 | ||
| 210 | A 0033235800 | SHOCK ABSORBER |
| Repalced by: A 0033236000 | ||
| 210 | A 0033236000 | SHOCK ABSORBER |
| REAR AXLE | ||
| 212 | A 0003231585 | RUBBER MOUNTING |
| 214 | A 0003230353 | SPACER TUBE |
| Repalced by: A 0003232750 | ||
| 214 | A 0003232750 | BUSHING |
| 215 | N 000960014211 | SCREW |
| SHOCK ABSORBER TO FRAME | ||
| 215E | A 3193260076 | WASHER |
| SHOCK ABSORBER TO FRAME | ||
| 216 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 216 | N 910113014001 | NUT |
| SHOCK ABSORBER TO FRAME | ||
| 217 | A 3193260076 | WASHER |
| SHOCK ABSORBER TO REAR AXLE | ||
| 218 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 218 | N 910113014001 | NUT |
| SHOCK ABSORBER TO REAR AXLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
