Transporto priemonė: O 309 D; VIN numerio dalis: 310386
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|

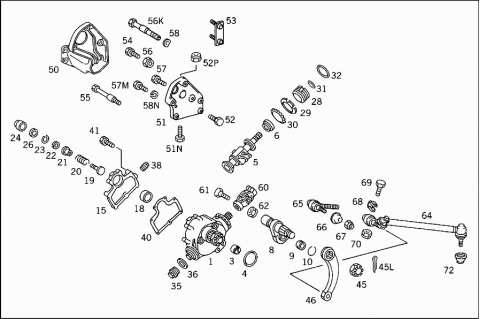

| 001 | A 3094601501 | STEERING BOX ASSEMBLY |
| Repalced by: A 3084600001 | ||
| 001 | A 3084600001 | STEERING BOX ASSEMBLY |
| LESS PITMAN ARM | ||
| 003 | A 3214610350 | BUSHING |
| STEERING SHAFT BEARING | ||
| 004 | A 0019970645 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 004 | A 0049976845 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 005 | A 3094600708 | STEERING WORM |
| Repalced by: A 3094601018 | ||
| 005 | A 3094601018 | STEERING NUT |
| Repalced by: A 3094600708 | ||
| 005 | A 3094600708 | STEERING WORM |
| WITH STEERING NUT | ||
| 006 | A 0009811306 | BARREL-TYPE BEARING |
| STEERING NUT BEARING | ||
| 006 | A 3459817006 | BARREL-TYPE BEARING |
| STEERING NUT BEARING | ||
| 006 | A 0009810806 | BARREL-TYPE BEARING |
| STEERING NUT BEARING | ||
| 008 | A 3214601111 | STEERG. WORM SECTOR SHAFT |
| 009 | A 3214620537 | BALL CUP |
| STEERING SHAFT BEARING IN COVER | ||
| 010 | N 009045038001 | SNAP RING |
| STEERING SHAFT BEARING IN COVER | ||
| A 3274600314 | STEERING BOX COVER | |
| Repalced by: A 3214600514 | ||
| 015 | A 3214600514 | STEERING BOX COVER |
| STEERING BOX | ||
| 018 | A 3214620250 | BUSHING |
| STEERING SHAFT BEARING IN COVER | ||
| 019 | A 3214620171 | SCREW |
| STEERING SHAFT BEARING IN COVER | ||
| 020 | A 3219932201 | SPRING |
| STEERING SHAFT BEARING IN COVER | ||
| 021 | A 3214620185 | THRUST PIECE |
| STEERING SHAFT BEARING IN COVER | ||
| 022 | A 3214610162 | THRUST WASHER |
| STEERING SHAFT BEARING IN COVER | ||
| 023 | A 0009946041 | LOCK |
| STEERING SHAFT BEARING IN COVER | ||
| 024 | A 3219900050 | NUT |
| STEERING SHAFT BEARING IN COVER | ||
| 024 | A 0029900251 | NUT |
| STEERING SHAFT BEARING IN COVER | ||
| 026 | A 0019976140 | SEAL RING |
| 028 | A 3224620151 | RING |
| STEERING NUT BEARING | ||
| 029 | N 070852060000 | NUT |
| Repalced by: A 6743560226 | ||
| 029 | A 6743560226 | GROOVED NUT |
| STEERING NUT BEARING | ||
| 030 | A 3229940115 | LOCK |
| STEERING NUT BEARING | ||
| 031 | A 0029974346 | SEAL RING |
| STEERING NUT BEARING | ||
| 032 | A 0029979845 | SEAL RING |
| STEERING NUT BEARING | ||
| 035 | N 007604030201 | SCREW PLUG |
| Repalced by: N 007604030206 | ||
| 035 | N 007604030206 | SCREW PLUG |
| OIL DRAIN | ||
| 036 | N 007603030400 | SEAL RING |
| OIL DRAIN | ||
| 038 | A 3029970035 | PLUG |
| Repalced by: N 000906016002 | ||
| 038 | N 000906016002 | SCREW PLUG |
| BOX COVER | ||
| 040 | A 3214610880 | GASKET |
| Repalced by: A 3524610180 | ||
| 040 | A 3524610180 | GASKET |
| COVER TO STEERING BOX | ||
| 041 | A 0019909101 | SCREW |
| COVER TO STEERING BOX | ||
| 045 | A 0009902555 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 045L | N 000094006013 | COTTER PIN |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 046 | A 3094630901 | PITMAN ARM |
| 046 | A 3094631601 | PITMAN ARM |
| A 3094631701 | PITMAN ARM | |
| 046 | A 3134630201 | PITMAN ARM |
| Repalced by: A 3134630401 | ||
| 046 | A 3134630401 | PITMAN ARM |
| 050 | A 3094612240 | STEERING SUPPORT |
| A 3094612540 | STEERING SUPPORT | |
| 051 | A 3104610340 | STEERING SUPPORT |
| A 3104610440 | STEERING SUPPORT | |
| 051N | N 000933010145 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 10X35 | ||
| 052 | N 000931010271 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 10X60 | ||
| 052P | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 052P | N 910113010000 | NUT |
| STEERING SUPPORT TO FRAME | ||
| 053 | A 3104600028 | PLATE |
| STEERING SUPPORT TO FRAME | ||
| 053 | A 3104600028 | PLATE |
| STEERING SUPPORT TO FRAME | ||
| 054 | A 3099900114 | SCREW |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| 055 | A 3099900214 | SCREW |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| 056 | A 0019900951 | NUT |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| 056K | A 3099901014 | SCREW |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| 057 | N 000961012122 | SCREW |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| M 12X40 | ||
| N 000961012151 | SCREW | |
| 057 | N 000961012151 | SCREW |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| M 12X30 | ||
| 057M | N 000960012087 | SCREW |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| M 12X70 | ||
| 057M | N 000960012199 | SCREW |
| Repalced by: N 308676012018 | ||
| 057M | N 308676012018 | SCREW |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| M 12X65 | ||
| 058 | N 900055012001 | SPRING WASHER |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| 058N | N 912004012100 | LOCK WASHER |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| 059 | A 3104620296 | BOOT |
| UNIVERSAL JOINT COVERING | ||
| 060 | A 4214600457 | UNIVERSAL JOINT |
| Repalced by: A 3164600057 | ||
| 060 | A 3164600157 | UNIVERSAL JOINT |
| Repalced by: A 0004600157 | ||
| 060 | A 0004600157 | UNIVERSAL JOINT |
| 060 | A 3164600057 | UNIVERSAL JOINT |
| Repalced by: A 0004600057 | ||
| 060 | A 0004600057 | UNIVERSAL JOINT |
| 061 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING | ||
| M 8X38 | ||
| 061 | A 3819900114 | SCREW |
| UNIVERSAL JOINT TO STEERING | ||
| M 8X42 | ||
| 062 | A 0019901651 | NUT |
| Repalced by: N 913004008005 | ||
| 062 | N 913004008005 | NUT |
| UNIVERSAL JOINT TO STEERING | ||
| 064 | A 3094601205 | DRAG LINK |
| Repalced by: A 3094602905 | ||
| 064 | A 3094601405 | DRAG LINK |
| Repalced by: A 3094603005 | ||
| 064 | A 3094602405 | DRAG LINK |
| Repalced by: A 3094602905 | ||
| 064 | A 3094602605 | DRAG LINK |
| Repalced by: A 3094602905 | ||
| 064 | A 3094602905 | DRAG LINK |
| Repalced by: A 3094603105 | ||
| 064 | A 3094603105 | DRAG LINK |
| 064 | A 3094603205 | DRAG LINK |
| 064 | A 3094602505 | DRAG LINK |
| Repalced by: A 3094603005 | ||
| 064 | A 3094603005 | DRAG LINK |
| Repalced by: A 3094602905 | ||
| 064 | A 3134600005 | DRAG LINK |
| Repalced by: A 3134600105 | ||
| 064 | A 3134600105 | DRAG LINK |
| 065 | A 3103300435 | JOINT |
| Repalced by: A 0003305035 | ||
| 065 | A 0004604148 | DRAG LINK END |
| Repalced by: A 0004608548 | ||
| 065 | A 0004608548 | DRAG LINK END |
| ADJUSTABLE | ||
| LEMFOERDER | ||
| 065 | A 3103300835 | JOINT |
| Repalced by: A 3103301335 | ||
| 065 | A 3103301335 | JOINT |
| Repalced by: A 0004604548 | ||
| 065 | A 0004604548 | DRAG LINK END |
| ADJUSTABLE | ||
| EHRENREICH | ||
| 065 | A 3103300635 | JOINT |
| Repalced by: A 0003305635 | ||
| 065 | A 0003381810 | BALL JOINT |
| Repalced by: A 0003305635 | ||
| 065 | A 0003305635 | JOINT |
| Repalced by: A 0004604348 | ||
| 065 | A 0004604348 | DRAG LINK END |
| ADJUSTABLE | ||
| LEMFOERDER | ||
| 065 | A 3103301035 | JOINT |
| Repalced by: A 3103301235 | ||
| 065 | A 3103301235 | JOINT |
| Repalced by: A 0004605648 | ||
| 065 | A 0004605648 | DRAG LINK END |
| ADJUSTABLE | ||
| EHRENREICH | ||
| 066 | A 0003300085 | BOOT |
| Repalced by: A 0004631396 | ||
| 066 | A 0004631396 | BOOT |
| Repalced by: A 0004631896 | ||
| 066 | A 0004631896 | BOOT |
| STEERING JOINT | ||
| 066 | A 0003300985 | BOOT |
| STEERING JOINT | ||
| 067 | N 000979014007 | NUT |
| DRAG LINK TO LEVER | ||
| 067 | N 000979016006 | NUT |
| Repalced by: N 000979016007 | ||
| 067 | N 000979016007 | NUT |
| DRAG LINK TO LEVER | ||
| N 000094003226 | COTTER PIN | |
| DRAG LINK TO LEVER | ||
| N 000094004056 | COTTER PIN | |
| DRAG LINK TO LEVER | ||
| 068 | A 0003380563 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| 068 | A 0003382745 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| 068 | A 0003380363 | CLAMP |
| Repalced by: A 0003382845 | ||
| 068 | A 0003382845 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| 068 | A 0003382845 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| 069 | N 000960010023 | SCREW |
| DRAG LINK END TO DRAG LINK | ||
| 070 | N 913004010010 | NUT |
| Repalced by: N 910113010002 | ||
| 070 | N 910113010002 | NUT |
| DRAG LINK END TO DRAG LINK | ||
| 072 | A 0003300085 | BOOT |
| Repalced by: A 0004631396 | ||
| 072 | A 0004631396 | BOOT |
| Repalced by: A 0004631896 | ||
| 072 | A 0004631896 | BOOT |
| FIXED PART OF JOINT | ||
| 072 | A 0003300985 | BOOT |
| FIXED PART OF JOINT | ||

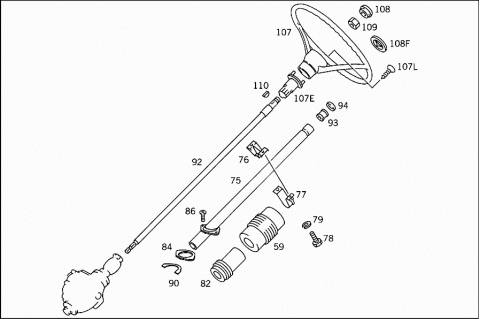

| 075 | A 3104600016 | STEER. COLUMN JACKET TUBE |
| 075 | A 3094601916 | STEER. COLUMN JACKET TUBE |
| 075 | A 3094602716 | STEER. COLUMN JACKET TUBE |
| 076 | A 3094610045 | STEERING COLUMN BRACKET |
| STEERING COLUMN JACKET TUBE,FIRE WALL | ||
| 077 | A 3094600165 | STRAP |
| STEERING COLUMN JACKET TUBE,FIRE WALL | ||
| 078 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 078 | N 304017008021 | SCREW |
| STEERING COLUMN BRACKET TO CAB | ||
| 079 | N 912004008102 | LOCK WASHER |
| STEERING COLUMN BRACKET TO CAB | ||
| 082 | A 3094620596 | BOOT |
| UNIVERSAL JOINT COVERING | ||
| 084 | A 3094620397 | SEAL |
| STEERING COLUMN JACKET TUBE TO FLOOR PLATE | ||
| 086 | N 000966006020 | SCREW |
| STEERING COLUMN JACKET TUBE TO FLOOR PLATE | ||
| 090 | A 3094600235 | BRACKET |
| STEERING COLUMN JACKET TUBE,FIRE WALL | ||
| 092 | A 3094600309 | STEERING SHAFT |
| 092 | A 3094602509 | STEERING SHAFT |
| Repalced by: A 3094603409 | ||
| 092 | A 3094602609 | STEERING SHAFT |
| Repalced by: A 3094603409 | ||
| 092 | A 3094603409 | STEERING SHAFT |
| 092 | A 3104620001 | STEERING SHAFT |
| 092 | A 3104620301 | STEERING SHAFT |
| 093 | A 3124621050 | BUSHING |
| STEERING COLUMN BEARING | ||
| 094 | A 3124621065 | RING |
| STEERING COLUMN BEARING | ||
| 107 | A 3144600303 | STEERING WHEEL |
| Repalced by: A 3104640001 | ||
| 107 | A 3104640001 | STEERING WHEEL |
| 107 | A 3134640201 | STEERING WHEEL |
| 107E | A 3134620055 | RING HALF |
| STEERING COLUMN MOUNTED SWITCH RESET | ||
| 107L | N 007983002205 | SHEET METAL SCREW |
| STEERING WHEEL TO STEERING COLUMN | ||
| 108 | A 0004640131 | CAP |
| Repalced by: A 0004641231 | ||
| 108 | A 0004641231 | CAP |
| Repalced by: A 0004642631 | ||
| 108 | A 0004642631 | CAP |
| STEERING WHEEL | ||
| 108F | A 0004640432 | BADGE |
| STEERING WHEEL | ||
| 109 | N 308675022001 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 110 | N 006888005006 | WOODRUFF KEY |
| STEERING WHEEL TO STEERING COLUMN | ||
