Transporto priemonė: O 309 D; VIN numerio dalis: 310386
Grupė: 26 TRANSMISSION

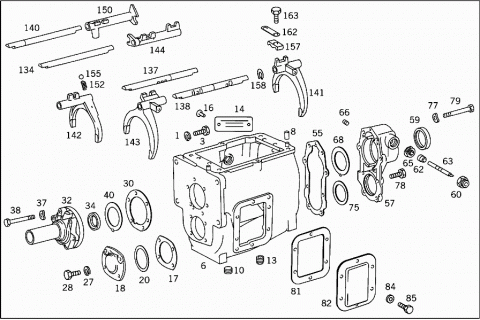

19027

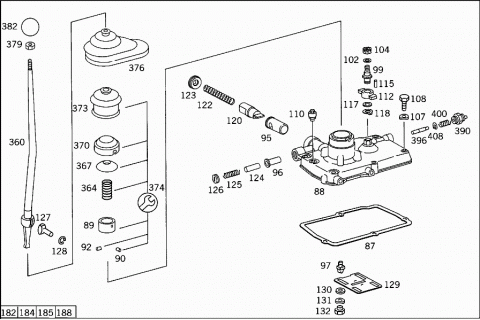

19028

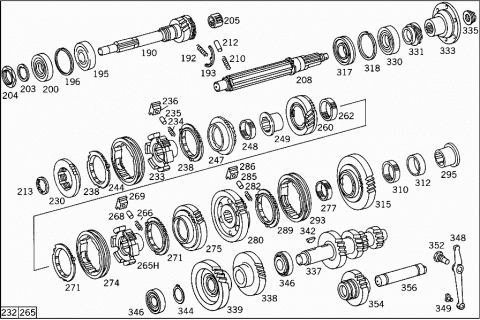

19029
# Kodas Pavadinimas
001 N 912004014100 LOCK WASHER
TRANSMISSION TO BELL HOUSING
003 N 000933014014 SCREW
TRANSMISSION TO BELL HOUSING
A 3142600400 TRANSMISSION
006 A 3142600311 TRANSMISSION CASE
008 N 000007010239 CYLINDRICAL PIN
Repalced by: N 000007010102
008 N 000007010102 CYLINDRICAL PIN
010 A 1869970032 SCREW PLUG
Repalced by: A 3529970032
010 A 3529970032 SCREW PLUG
OIL FILLING
013 A 0009973432 SCREW PLUG
OIL DRAIN
013 A 0009972632 SCREW PLUG
OIL DRAIN
014 A 3215841024 UNIT IDENTIFICATION PLATE
Repalced by: A 3855845824
014 A 3855841824 UNIT IDENTIFICATION PLATE
Repalced by: A 3855845824
014 A 3855845824 UNIT IDENTIFICATION PLATE
Repalced by: A 6755840024
014 A 6755840024 UNIT IDENTIFICATION PLATE
016 N 001476003007 GROOVED NAIL
017 A 3142610580 GASKET
Repalced by: A 3142611680
017 A 3142611680 GASKET
018 A 3142610233 COVER
Repalced by: A 3142610433
018 A 3142610433 COVER
FRONT BOTTOM
020 A 3122632152 SPACER WASHER
AS REQUIRED
0.05 MM
020 A 3122631452 SPACER WASHER
AS REQUIRED
0.125 MM
020 A 3122631552 SPACER WASHER
AS REQUIRED
0.24 MM
020 A 3122631652 SPACER WASHER
AS REQUIRED
0.50 MM
027 N 912004008102 LOCK WASHER
CASE COVER TO TRANSMISSION
028 N 000933008147 SCREW
Repalced by: N 304017008021
028 N 304017008021 SCREW
CASE COVER TO TRANSMISSION
M 8X20
028 N 000933008153 SCREW
Repalced by: N 304017008034
028 N 304017008034 SCREW
CASE COVER TO TRANSMISSION
M 8X25
030 A 3142610380 GASKET
Repalced by: A 3122612179
030 A 3122612179 GASKET
Repalced by: A 3122611180
030 A 3122611180 GASKET
A 3142600221 TRANSMISSION CASE COVER
Repalced by: A 3142610618
A 3142610318 TRANSMISSION CASE COVER
Repalced by: A 3142610618
032 A 3142610618 TRANSMISSION CASE COVER
TOP
034 A 0089971346 SEAL RING
034 A 0119978346 SEAL RING
037 N 000137008204 SPRING WASHER
CASE COVER TO TRANSMISSION
038 N 000931008246 SCREW
Repalced by: N 304017008028
038 N 304017008028 SCREW
CASE COVER TO TRANSMISSION
040 A 3242620462 SEAL RING
AS REQUIRED
2.36 MM
040 A 3242620562 SEAL RING
AS REQUIRED
2.44 MM
040 A 3242620662 SEAL RING
AS REQUIRED
2.52 MM
040 A 3242620762 SEAL RING
AS REQUIRED
2.60 MM
040 A 3242620862 SEAL RING
AS REQUIRED
2.68 MM
040 A 3242620962 SEAL RING
AS REQUIRED
2.76 MM
040 A 3242621062 SEAL RING
AS REQUIRED
2.84 MM
040 A 3142621462 SEAL RING
AS REQUIRED
2.92 MM
040 A 3142621562 SEAL RING
AS REQUIRED
3.00 MM
040 A 3142621662 SEAL RING
AS REQUIRED
3.08 MM
055 A 3142610480 GASKET
Repalced by: A 3142611580
055 A 3142611580 GASKET
057 A 3142610120 TRANSMISSION CASE COVER
Repalced by: A 3142610920
057 A 3142610920 TRANSMISSION CASE COVER
REAR
057 A 3142610120 TRANSMISSION CASE COVER
Repalced by: A 3142610820
057 A 3142610820 TRANSMISSION CASE COVER
REAR
059 A 0089971246 SEAL RING
059 A 0119978246 SEAL RING
060 A 3212610031 THREADED BUSHING
062 A 0119976647 SEAL RING
Repalced by: A 1152740060
062 A 1152740060 SEAL RING
Repalced by: A 0119976447
062 A 0119976447 SEAL RING
063 A 3142640032 SHAFT
Repalced by: A 6732640032
063 A 6732640032 SHAFT
SPEEDOMETER DRIVE
065 A 3122641331 DRIVE GEAR
Repalced by: A 6732640031
065 A 6732640031 DRIVE GEAR
SPEEDOMETER DRIVE
066 A 1532640055 PLUG
068 A 3242620462 SEAL RING
AS REQUIRED
2.36 MM
068 A 3242620562 SEAL RING
AS REQUIRED
2.44 MM
068 A 3242620662 SEAL RING
AS REQUIRED
2.52 MM
068 A 3242620762 SEAL RING
AS REQUIRED
2.60 MM
068 A 3242620862 SEAL RING
AS REQUIRED
2.68 MM
068 A 3242620962 SEAL RING
AS REQUIRED
2.76 MM
068 A 3242621062 SEAL RING
AS REQUIRED
2.84 MM
068 A 3142621462 SEAL RING
AS REQUIRED
2.92 MM
068 A 3142621562 SEAL RING
AS REQUIRED
3.00 MM
068 A 3142621662 SEAL RING
AS REQUIRED
3.08 MM
075 A 3122632152 SPACER WASHER
AS REQUIRED
0.05 MM
075 A 3122631452 SPACER WASHER
AS REQUIRED
0.125 MM
075 A 3122631552 SPACER WASHER
AS REQUIRED
0.24 MM
075 A 3122631652 SPACER WASHER
AS REQUIRED
0.50 MM
077 N 000137008204 SPRING WASHER
CASE COVER TO TRANSMISSION
078 N 000933008116 SCREW
Repalced by: N 000933008337
078 N 000933008337 SCREW
Repalced by: A 0099900101
078 A 0099900101 SCREW
CASE COVER TO TRANSMISSION
M 8X28
079 N 304014008004 SCREW
CASE COVER TO TRANSMISSION
M 8X70
079 N 000931008255 SCREW
CASE COVER TO TRANSMISSION
M 8X70
081 A 3122611080 GASKET
A 3142610019 TRANSMISSION CASE COVER
Repalced by: A 3162710005
082 A 3162710005 COVER
LATERAL
084 N 007603010401 SEAL RING
085 N 000933010238 SCREW
Repalced by: N 304017010028
085 N 304017010028 SCREW
087 A 3142610280 GASKET
Repalced by: A 3142611480
087 A 3142611480 GASKET
Repalced by: A 3142611780
087 A 3142611780 GASKET
TOP
088 A 3142601314 TRANSMISSION CASE COVER
TOP
A 3142680435 BEARING
Repalced by: A 3102680035
089 A 3102680035 BEARING
CASE COVER
090 A 3192670050 BUSHING
CASE COVER
092 N 001473005022 GROOVED PIN
CASE COVER
095 A 3212650250 BUSHING
CASE COVER
096 A 3212650150 BUSHING
CASE COVER
097 A 1362650247 INTERLOCK PLUG
Repalced by: A 3142650044
097 A 3142650044 GUIDE PIN
CASE COVER
099 A 3142650074 PIN
CASE COVER
102 N 000125013008 WASHER
104 N 000979012001 NUT
CASE COVER
N 000094003217 COTTER PIN
CASE COVER
107 N 000137008204 SPRING WASHER
CASE COVER TO TRANSMISSION
108 N 000931008246 SCREW
Repalced by: N 304017008028
108 N 304017008028 SCREW
CASE COVER TO TRANSMISSION
108 N 000931008238 SCREW
SHIFT CASE TO TRANSMISSION
110 A 1112600058 BREATHER
SHIFT CASE TO TRANSMISSION
112 A 3242650007 LEVER
1ST SPEED ROCKER ARM
115 N 005402302104 CYLINDRICAL ROLLER
1ST SPEED ROCKER ARM
117 N 000433015000 WASHER
1ST SPEED ROCKER ARM
118 N 000471015000 LOCK RING
1ST SPEED ROCKER ARM
120 A 3212650416 THRUST PIECE
Repalced by: A 3802650016
120 A 3802650016 THRUST PIECE
TRANSMISSION CASE TOP COVER
122 A 3219930501 SPRING
TRANSMISSION CASE TOP COVER
123 A 3219970103 PLUG
TRANSMISSION CASE TOP COVER
124 A 3212650248 INTERLOCK PIN
TRANSMISSION CASE TOP COVER
125 A 3219930601 SPRING
TRANSMISSION CASE TOP COVER
126 N 071022024000 SLOTTED PLUG
TRANSMISSION CASE TOP COVER
127 A 3142670025 SLIDING BLOCK
Repalced by: A 3142670125
127 A 3142670125 SLIDING BLOCK
TRANSMISSION CASE TOP COVER
128 N 009045006001 SNAP RING
TRANSMISSION CASE TOP COVER
129 A 3142600246 PLATE
SHIFTING DOME
130 A 1369908240 WASHER
PLATE TO TRANSMISSION CASE TOP COVER
131 N 900055008002 SPRING WASHER
PLATE TO TRANSMISSION CASE TOP COVER
132 A 1362650272 NUT
PLATE TO TRANSMISSION CASE TOP COVER
134 A 3142650605 SHIFTING ROD
1ST SPEED
137 A 3142650505 SHIFTING ROD
2ND AND 3RD SPEED
138 A 3142650405 SHIFTING ROD
4TH AND 5TH SPEED
140 A 3142650805 SHIFTING ROD
REVERSE SPEED
141 A 3142650301 SHIFTING FORK
Repalced by: A 3142650501
141 A 3142650501 SHIFTING FORK
1ST SPEED
142 A 3142650402 SHIFTING FORK
Repalced by: A 3142651302
142 A 3142650602 SHIFTING FORK
Repalced by: A 3142651302
142 A 3142651302 SHIFTING FORK
2ND AND 3RD SPEED
142 A 3142651602 SHIFTING FORK
2ND AND 3RD SPEED
143 A 3142650502 SHIFTING FORK
Repalced by: A 3142650702
143 A 3142650702 SHIFTING FORK
4TH AND 5TH SPEED
143 A 3142651702 SHIFTING FORK
4TH AND 5TH SPEED
144 A 3142650223 SHIFTING DOG
Repalced by: A 3142650623
144 A 3142650623 SHIFTING DOG
1ST SPEED
150 A 3142650423 SHIFTING DOG
Repalced by: A 3142650523
150 A 3142650523 SHIFTING DOG
REVERSE SPEED
152 A 3149930801 SPRING
REVERSE SPEED
155 N 005401311000 BALL
REVERSE SPEED
157 A 3122651236 BRACKET
SHIFTING FORK TO SHIFTING ROD
158 N 900055016300 LOCK RING
SHIFTING FORK TO SHIFTING ROD
162 A 3129940332 LOCK
SHIFTING FORK TO SHIFTING ROD
163 N 000933008153 SCREW
Repalced by: N 304017008034
163 N 304017008034 SCREW
SHIFTING FORK TO SHIFTING ROD
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
390
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
396
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
400
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
408
190 A 3142620802 DRIVE SHAFT
192 A 3249930001 SPRING
193 A 3142620073 LOCK
195 A 0019816101 CYLINDR. ROLLER BEARING
196 A 3249940040 SNAP RING
AS REQUIRED
1.88 MM
196 A 3249940140 SNAP RING
AS REQUIRED
1.93 MM
196 A 3249940240 SNAP RING
AS REQUIRED
1.98 MM
196 A 3249940340 SNAP RING
AS REQUIRED
2.03 MM
196 A 3249940440 SNAP RING
AS REQUIRED
2.08 MM
196 A 3249940540 SNAP RING
AS REQUIRED
2.13 MM
196 A 3249940640 SNAP RING
AS REQUIRED
2.18 MM
200 A 0009813727 ANGULAR CONTACT BEARING
200 A 0009813427 ANGULAR CONTACT BEARING
200 A 0019811427 ANGULAR CONTACT BEARING
203 A 3142621762 SEAL RING
204 A 3242620072 NUT
205 A 0009813412 ROLLER ASSEMBLY
Repalced by: A 0049817110
205 A 0049817110 NEEDLE BEARING
208 A 3142620205 MAIN SHAFT
Repalced by: A 3142620405
208 A 3142620405 MAIN SHAFT
210 A 3149930301 SPRING
212 A 3142620674 PIN
213 A 3142620262 SEAL RING
AS REQUIRED
5.55 MM
213 A 3142620362 SEAL RING
AS REQUIRED
5.65 MM
213 A 3142620462 SEAL RING
AS REQUIRED
5.75 MM
213 A 3142620562 SEAL RING
AS REQUIRED
5.85 MM
213 A 3142620662 SEAL RING
AS REQUIRED
5.95 MM
213 A 3142620762 SEAL RING
AS REQUIRED
6.05 MM
213 A 3142620862 SEAL RING
AS REQUIRED
6.15 MM
213 A 3142620962 SEAL RING
AS REQUIRED
6.25 MM
213 A 3142621062 SEAL RING
AS REQUIRED
6.35 MM
213 A 3142621162 SEAL RING
AS REQUIRED
6.45 MM
213 A 3142621262 SEAL RING
AS REQUIRED
6.55 MM
230 A 3142621434 SYNCHRONIZER RING
232 A 3142601045 SYNCHRONIZER BODY
4TH AND 5TH SPEED
235 A 3142621035 SYNCHRONIZER BODY
Repalced by: A 3142620735
233 A 3142620735 SYNCHRONIZER BODY
Repalced by: A 3142621535
233 A 3142621535 SYNCHRONIZER BODY
4TH AND 5TH SPEED
234 A 3149930001 SPRING
4TH AND 5TH SPEED
235 A 3142620574 PIN
4TH AND 5TH SPEED
236 A 3142620140 FOLLOWER
4TH AND 5TH SPEED
A 3142620237 SYNCHRONIZER CONE
Repalced by: A 3142620437
238 A 3142620437 SYNCHRONIZER CONE
4TH AND 5TH SPEED
244 A 3142620923 SLIDING COLLAR
Repalced by: A 3142621123
244 A 3142621123 SLIDING COLLAR
Repalced by: A 3142621223
244 A 3142621223 SLIDING COLLAR
2ND THRU 5TH SPEED
A 3142603244 GEAR
Repalced by: A 3142602444
247 A 3142602444 GEAR
4TH SPEED
248 A 3149810010 NEEDLE BEARING
248 A 3149810110 NEEDLE BEARING
249 A 3142623450 BUSHING
AS REQUIRED
39.40 MM
249 A 3142623550 BUSHING
AS REQUIRED
39.50 MM
249 A 3142623650 BUSHING
AS REQUIRED
39.60 MM
249 A 3142623750 BUSHING
AS REQUIRED
39.70 MM
249 A 3142623850 BUSHING
AS REQUIRED
39.80 MM
249 A 3142623950 BUSHING
AS REQUIRED
39.90 MM
249 A 3142624050 BUSHING
AS REQUIRED
40.00 MM
249 A 3142624150 BUSHING
AS REQUIRED
40.10 MM
249 A 3142624250 BUSHING
AS REQUIRED
40.20 MM
260 A 3142603044 GEAR
Repalced by: A 3142603644
260 A 3142603644 GEAR
3RD SPEED
262 A 3149810012 ROLLER ASSEMBLY
Repalced by: A 0019817012
262 A 3149810112 ROLLER ASSEMBLY
Repalced by: A 0019817012
262 A 0019817012 ROLLER ASSEMBLY
262 A 3149810612 ROLLER ASSEMBLY
265 A 3142601145 SYNCHRONIZER BODY
2ND AND 3RD SPEED
265H A 3142620935 SYNCHRONIZER BODY
Repalced by: A 3142621735
265H A 3142621735 SYNCHRONIZER BODY
2ND AND 3RD SPEED
266 A 3149930001 SPRING
2ND AND 3RD SPEED
268 A 3142620574 PIN
2ND AND 3RD SPEED
269 A 3142620140 FOLLOWER
2ND AND 3RD SPEED
271 A 3142620237 SYNCHRONIZER CONE
Repalced by: A 3142620437
271 A 3142620437 SYNCHRONIZER CONE
2ND AND 3RD SPEED
274 A 3142620923 SLIDING COLLAR
Repalced by: A 3142621123
274 A 3142621123 SLIDING COLLAR
Repalced by: A 3142621223
274 A 3142621223 SLIDING COLLAR
2ND THRU 5TH SPEED
275 A 3142620212 GEAR
Repalced by: A 3142620512
275 A 3142620512 GEAR
2ND SPEED
277 A 3149810012 ROLLER ASSEMBLY
Repalced by: A 0019817012
277 A 3149810112 ROLLER ASSEMBLY
Repalced by: A 0019817012
277 A 0019817012 ROLLER ASSEMBLY
277 A 3149810612 ROLLER ASSEMBLY
A 3142600825 GEAR
REVERSE IDLER GEAR
280 A 3142630433 REVERSE IDLER GEAR
282 A 3149930001 SPRING
285 A 3142620374 PIN
286 A 3142620040 FOLLOWER
289 A 3142620237 SYNCHRONIZER CONE
Repalced by: A 3142620437
289 A 3142620437 SYNCHRONIZER CONE
293 A 3142620823 SLIDING COLLAR
Repalced by: A 3142621023
293 A 3142621023 SLIDING COLLAR
1ST SPEED
295 A 3142623450 BUSHING
AS REQUIRED
39.40 MM
295 A 3142623550 BUSHING
AS REQUIRED
39.50 MM
295 A 3142623650 BUSHING
AS REQUIRED
39.60 MM
295 A 3142623750 BUSHING
AS REQUIRED
39.70 MM
295 A 3142623850 BUSHING
AS REQUIRED
39.80 MM
295 A 3142623950 BUSHING
AS REQUIRED
39.90 MM
295 A 3142624050 BUSHING
AS REQUIRED
40.00 MM
295 A 3142624150 BUSHING
AS REQUIRED
40.10 MM
295 A 3142624250 BUSHING
AS REQUIRED
40.20 MM
310 N 005402004203 CYLINDRICAL ROLLER
310 A 3149810012 ROLLER ASSEMBLY
Repalced by: A 0019817012
310 A 0019817012 ROLLER ASSEMBLY
310 A 3149810612 ROLLER ASSEMBLY
312 A 3142620053 SPACER TUBE
315 A 3142620211 GEAR
Repalced by: A 3142620711
315 A 3142620711 GEAR
1ST SPEED
317 A 0019816101 CYLINDR. ROLLER BEARING
318 A 3249940040 SNAP RING
AS REQUIRED
1.88 MM
318 A 3249940140 SNAP RING
AS REQUIRED
1.93 MM
318 A 3249940240 SNAP RING
AS REQUIRED
1.98 MM
318 A 3249940340 SNAP RING
AS REQUIRED
2.03 MM
318 A 3249940440 SNAP RING
AS REQUIRED
2.08 MM
318 A 3249940540 SNAP RING
AS REQUIRED
2.13 MM
318 A 3249940640 SNAP RING
AS REQUIRED
2.18 MM
330 A 0009813727 ANGULAR CONTACT BEARING
330 A 0009813427 ANGULAR CONTACT BEARING
330 A 0019811427 ANGULAR CONTACT BEARING
331 A 3142640230 DRIVE GEAR
SPEEDOMETER
333 A 3142620145 FLANGE
335 A 3142620072 NUT
337 A 3142630402 COUNTERSHAFT
Repalced by: A 3142631002
337 A 3142631002 COUNTERSHAFT
338 A 3142630614 GEAR
Repalced by: A 3142631414
338 A 3142630514 GEAR
Repalced by: A 3142631414
A 3142631214 GEAR
Repalced by: A 3142631414
338 A 3142631414 GEAR
4TH SPEED
339 A 3142630610 GEAR
CONSTANT
342 N 006888008004 WOODRUFF KEY
344 N 900055042301 LOCK RING
346 A 0019815705 TAPERED ROLLER BEARING
346 A 0019817105 TAPERED ROLLER BEARING
346 A 0019819105 TAPERED ROLLER BEARING
348 A 3142650108 LEVER
REVERSE SPEED
349 A 3142650349 SLIDE
REVERSE SPEED
352 A 3142650274 PIN
REVERSE SPEED
354 A 3142600725 GEAR
REVERSE SPEED
356 A 3142630230 REVERSE IDLER SHAFT
360 A 3142601739 SHIFT LEVER
360 A 3102600139 SHIFT LEVER
360 A 3142603339 SHIFT LEVER
360 A 3102600939 SHIFT LEVER
364 A 1109930401 SPRING
SHIFT LEVER
367 A 3022670008 SPHERICAL PIECE
SHIFT LEVER
370 A 3142680005 COVER
SHIFT LEVER
373 A 3372670096 BOOT
Repalced by: A 3522670196
373 A 3522670196 BOOT
SHIFT LEVER
374 A 3092600195 REPAIR KIT
SHIFTING PARTS
376 A 3142680596 BOOT
Repalced by: A 3142681296
376 A 3142681296 BOOT
Repalced by: A 3092680096
376 A 3092680096 BOOT
Repalced by: A 3092680196
376 A 3092680196 BOOT
FLOOR COVERING
379 N 000936010010 NUT
GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER
382 A 3222600040 HANDLE
SHIFT LEVER
390 A 0005455011 SWITCH
BACK-UP LIGHT
396 A 3172610074 PIN
BACK-UP LIGHT SWITCH
400 A 3129934201 SPRING
BACK-UP LIGHT SWITCH
408 A 0019946341 LOCK
BACK-UP LIGHT SWITCH
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
