Transporto priemonė: O 309 D; VIN numerio dalis: 313386
Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|

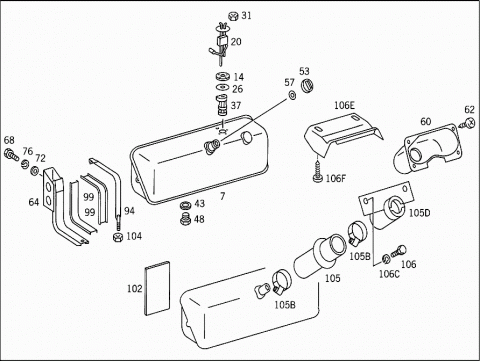

| 007 | A 3094709101 | FUEL TANK |
| Repalced by: A 3094708301 | ||
| 007 | A 3094708301 | FUEL TANK |
| 80 L. | ||
| A 3094709201 | FUEL TANK | |
| Repalced by: A 3094709101 | ||
| A 3524710080 | GASKET | |
| Repalced by: A 4044710080 | ||
| 014 | A 4044710080 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 020 | A 0045425117 | SENDER UNIT |
| Repalced by: A 0075424117 | ||
| 020 | A 0075424117 | SENDER UNIT |
| 026 | A 0669970640 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 031 | N 000934005008 | NUT |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 037 | A 3094700006 | FUEL STRAINER |
| 043 | N 915035000017 | SEAL RING |
| AT TANK | ||
| 048 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 048 | N 007604014110 | SCREW PLUG |
| AT TANK | ||
| 053 | A 0004716330 | FILLER CAP |
| Repalced by: A 1244700005 | ||
| 053 | A 0004717430 | FILLER CAP |
| Repalced by: A 1244700005 | ||
| 053 | A 1244700005 | FILLER CAP |
| Repalced by: A 0004700730 | ||
| 053 | A 0004700730 | FUEL FILLER CAP |
| Repalced by: A 9014700005 | ||
| 053 | A 9014700005 | FILLER CAP |
| Repalced by: A 9014700105 | ||
| 053 | A 9014700105 | FILLER CAP |
| 057 | A 1154710079 | SEAL RING |
| 060 | A 3094710081 | BOOT |
| (FILLER PIPE) | ||
| 060 | A 3094710281 | BOOT |
| (FILLER PIPE) | ||
| 062 | A 0009908720 | SCREW |
| 064 | A 3094703142 | SUPPORT |
| FUEL TANK TO FRAME | ||
| 068 | N 000933010157 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 10X28 | ||
| 072 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 072 | N 000125010532 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 076 | N 912004010102 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 094 | A 3144700240 | STRAP |
| 099 | A 3144750020 | PAD |
| FUEL TANK | ||
| 475 MM | ||
| 099 | A 3604750020 | PAD |
| FUEL TANK | ||
| 170 MM | ||
| 099 | A 6204750920 | PAD |
| Repalced by: A 6204750620 | ||
| 099 | A 6204750620 | PAD |
| Repalced by: A 6254750520 | ||
| 099 | A 6254750520 | PAD |
| FUEL TANK | ||
| 102 | A 3149870214 | RUBBER STRIP |
| FUEL TANK | ||
| 104 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 104 | N 304032010003 | NUT |
| FUEL TANK | ||
| 105 | A 3109970482 | HOSE |
| FILLER PIPE TO FUEL TANK | ||
| 105B | N 900288066004 | CLAMP |
| 105D | A 3104700220 | FILLER NECK |
| 106 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 106 | N 304017008016 | SCREW |
| FILLER PIPE TO BODY | ||
| 106C | N 912004008102 | LOCK WASHER |
| FILLER PIPE TO BODY | ||
| 106E | A 3094710287 | COVERING |
| TO FILLER CAP | ||
| 106F | N 914113003100 | TAPPING SCREW |
| TO FILLER CAP | ||
| 109 | A 0089975482 | HOSE |
| FEED LINE AND RETURN LINE | ||
| 8X11 MM | ||
| 112 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 112 | A 0009872727 | PLASTIC PIPE |
| LEAK LINE LEADING TO PUMP LINE | ||
| 6X8 MM | ||
| 115 | A 0109977082 | HOSE |
| LEAK LINE LEADING TO PUMP LINE | ||
| 6X4 MM | ||
| 118 | N 073379006203 | HOSE |
| LEAK LINE LEADING TO PUMP LINE | ||
| 121 | N 040621014200 | INSULATING HOSE |
| FUEL LINES | ||
| 123 | A 0009909688 | BANJO UNION |
| LEAK LINE LEADING TO PUMP LINE | ||
| 126 | A 3139900086 | BANJO UNION |
| Repalced by: N 915052008016 | ||
| 126 | N 915052008016 | BANJO UNION |
| Repalced by: N 000000000363 | ||
| 126 | N 000000000363 | BANJO UNION |
| LEAK LINE TO RETURN LINE | ||
| 130 | N 916002009100 | CLAMP |
| LEAK LINE LEADING TO PUMP LINE | ||
| 132 | A 0029974390 | LOOM TIE |
| 134 | N 915062004000 | SLEEVE |
| 135 | N 916016011201 | CLAMP |
| FUEL LINE TO FRAME | ||
| 139 | N 912004008102 | LOCK WASHER |
| CLAMP TO ENGINE | ||
| 143 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 143 | N 304017008039 | SCREW |
| CLAMP TO ENGINE | ||
| 150 | A 0004760524 | ELBOW FITTING |
| FUEL LINE LEADING TO FILTER | ||
| 154 | N 900288010001 | CLAMP |
| FUEL LINE LEADING TO FILTER | ||
| 158 | N 915011008103 | HOLLOW SCREW |
| Repalced by: N 915036010100 | ||
| 158 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 158 | N 915036010108 | HOLLOW SCREW |
| LINE TO FEED PUMP | ||
| 162 | N 007603014405 | SEAL RING |
| LINE TO FEED PUMP | ||
| 166 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 166 | N 304017008021 | SCREW |
| HOSE TO SIDE MEMBER | ||
| 170 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 170 | N 000125008443 | WASHER |
| HOSE TO SIDE MEMBER | ||
| 174 | N 916016006202 | CLAMP |
| HOSE TO SIDE MEMBER | ||
| 178 | N 913004008004 | NUT |
| HOSE TO SIDE MEMBER | ||
| 186 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 186 | A 0009872727 | PLASTIC PIPE |
| FROM FUEL TANK TO FUEL-OIL PUMP | ||
| 6X8 MM | ||
| 186 | A 0009872727 | PLASTIC PIPE |
| FROM PUMP TO HEATER CASE | ||
| 6X8 MM | ||
| 186 | A 0009872727 | PLASTIC PIPE |
| FROM RETURN LINE TO FUEL TANK | ||
| 6X8 MM | ||
| N 003870008101 | UNION NUT | |
| Repalced by: N 915017008100 | ||
| 188 | N 915017008100 | UNION NUT |
| FROM RETURN LINE TO FUEL TANK | ||
| 191 | N 003861008005 | GLAND |
| FROM RETURN LINE TO FUEL TANK | ||
| 194 | A 0009907488 | BANJO UNION |
| Repalced by: N 915052006003 | ||
| 194 | N 915052006022 | BANJO UNION |
| FROM FUEL TANK TO FUEL-OIL PUMP | ||
| 194 | N 915052006022 | BANJO UNION |
| FROM PUMP TO HEATER CASE | ||
| 199 | N 915052006021 | BANJO UNION |
| FROM RETURN LINE TO FUEL TANK | ||
| A 0007630043 | SLEEVE | |
| Repalced by: N 915062006000 | ||
| 202 | N 915062006000 | SLEEVE |
| FROM RETURN LINE TO FUEL TANK | ||
| 205 | N 915011004103 | HOLLOW SCREW |
| Repalced by: N 915036006103 | ||
| 205 | N 915036006202 | HOLLOW SCREW |
| FROM FUEL TANK TO FUEL-OIL PUMP | ||
| 205 | N 915036006202 | HOLLOW SCREW |
| FROM PUMP TO HEATER CASE | ||
| 205 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 205 | N 915036010108 | HOLLOW SCREW |
| FUEL LINE TO FEED PUMP | ||
| 219 | N 007603010401 | SEAL RING |
| FROM FUEL TANK TO FUEL-OIL PUMP | ||
| 219 | N 007603010401 | SEAL RING |
| FROM PUMP TO HEATER CASE | ||
| 219 | N 007603014405 | SEAL RING |
| FUEL LINE TO FEED PUMP | ||
| 222 | N 915047010202 | HOLLOW SCREW |
| RETURN LINE TO FILTER | ||
| 225 | N 007603014406 | SEAL RING |
| RETURN LINE TO FILTER | ||

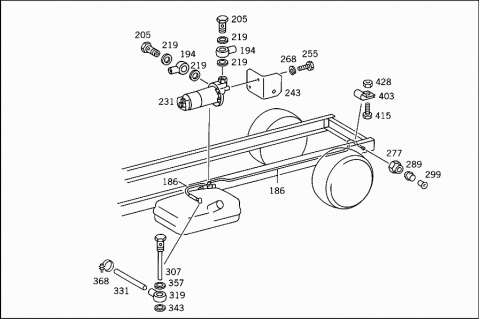

| 231 | A 0008354064 | PUMP |
| 243 | A 3094750684 | BRACKET |
| FUEL-OIL PUMP | ||
| 255 | N 000933006102 | SCREW |
| PUMP TO BRACKET | ||
| 268 | N 912004006102 | LOCK WASHER |
| PUMP TO BRACKET | ||
| 277 | N 915017008100 | UNION NUT |
| FROM PUMP TO HEATER CASE | ||
| 289 | N 003861008005 | GLAND |
| FROM PUMP TO HEATER CASE | ||
| 299 | A 0007630043 | SLEEVE |
| Repalced by: N 915062006000 | ||
| 299 | N 915062006000 | SLEEVE |
| FROM PUMP TO HEATER CASE | ||
| 307 | A 3094700626 | RISING PIPE |
| FUEL LINE TO TANK | ||
| 319 | A 3094700179 | INTERMEDIATE PIECE |
| FUEL LINE TO TANK | ||
| 331 | N 073379008200 | HOSE |
| FUEL LINE TO SENDER UNIT | ||
| 333 | N 916017011001 | CLAMP |
| Repalced by: N 000000000665 | ||
| 333 | N 000000000665 | CLAMP |
| FUEL LINE TO SENDER UNIT | ||
| A 0029971090 | LOOM TIE | |
| Repalced by: A 0039975390 | ||
| 336 | A 0039975390 | LOOM TIE |
| FUEL LINE TO SENDER UNIT | ||
| 340 | N 915062006000 | SLEEVE |
| FUEL LINE TO SENDER UNIT | ||
| 343 | N 007603014406 | SEAL RING |
| FUEL TANK | ||
| 357 | A 0079974245 | SEAL RING |
| FUEL TANK | ||
| 368 | N 916002013100 | CLAMP |
| Repalced by: A 0019976990 | ||
| 368 | A 0019976990 | HOSE CLAMP |
| FUEL TANK | ||
| 375 | A 3094761436 | BRACKET |
| FUEL LINE TO FRAME | ||
| 375 | A 3094761436 | BRACKET |
| FUEL LINE TO FRAME | ||
| 375 | A 3094760236 | BRACKET |
| Repalced by: A 3094760636 | ||
| 375 | A 3094760636 | BRACKET |
| FUEL LINE TO FRAME | ||
| 380 | A 0049881378 | CLIP |
| FUEL LINE TO FRAME | ||
| 383 | A 0049882678 | CLIP |
| FUEL LINE TO FRAME | ||
| 392 | A 0019978490 | LOOM TIE |
| FUEL LINE TO FRAME | ||
| 376 MM | ||
| 392 | A 0019978390 | LOOM TIE |
| FUEL LINE TO FRAME | ||
| 280 MM | ||
| 403 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 403 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 403 | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 403 | N 000000000319 | CLAMP |
| FUEL LINE TO FRAME | ||
| 415 | N 000933006102 | SCREW |
| FUEL LINE TO FRAME | ||
| 428 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 428 | N 913004006001 | NUT |
| FUEL LINE TO FRAME | ||
| 431 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 431 | N 304017010028 | HEXAGON HEAD BOLT |
| FUEL LINE TO FRAME | ||
| 434 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 434 | N 910113010000 | NUT |
| FUEL LINE TO FRAME | ||
| 440 | A 3094760150 | BUSHING |
| FUEL LINE TO FRAME | ||
| 440 | A 3094760350 | BUSHING |
| Repalced by: A 0009973481 | ||
| 440 | A 0009973481 | GROMMET |
| FUEL LINE TO FRAME | ||
