Transporto priemonė: O 309 D; VIN numerio dalis: 313386
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

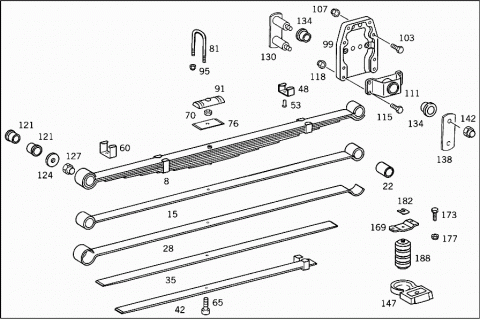

| 008 | A 3103200902 | FRONT SPRING |
| 8-LEAF | ||
| 015 | A 3103200594 | SPRING LEAF |
| USED WITH SPRING LEAF NO.2 WITH ROUND SPRING EYE | ||
| NO.1 | ||
| 015 | A 3103201594 | SPRING LEAF |
| USED WITH SPRING LEAF NO.2 WITH FLATTEND SPRING EYE | ||
| NO.1 | ||
| 022 | A 3093220050 | BUSHING |
| 028 | A 3103210812 | SPRING LEAF |
| USED WITH SPRING LEAF NO.2 WITH ROUND SPRING EYE | ||
| NO.2 | ||
| 028 | A 3103211212 | SPRING LEAF |
| USED WITH SPRING LEAF NO.2 WITH FLATTEND SPRING EYE | ||
| NO.2 | ||
| 035 | A 3103210813 | SPRING LEAF |
| NO.3 | ||
| 042 | A 3103200694 | SPRING LEAF |
| Repalced by: A 3103210814 | ||
| 042 | A 3103210814 | SPRING LEAF |
| LESS SPRING CLAMP | ||
| NO.4 | ||
| 048 | A 3093210933 | SPRING CLAMP |
| Repalced by: A 3093211833 | ||
| 048 | A 3093211833 | SPRING CLAMP |
| TO SPRING LEAF NO.4 | ||
| 048 | A 3103210633 | SPRING CLAMP |
| Repalced by: A 3223242033 | ||
| 048 | A 3223242033 | SPRING CLAMP |
| TO SPRING LEAF NO.4 | ||
| 053 | N 910006008000 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 060 | A 3093210933 | SPRING CLAMP |
| Repalced by: A 3093211833 | ||
| 060 | A 3093211833 | SPRING CLAMP |
| TO SPRING LEAF NO. 6 | ||
| 060 | A 3223242033 | SPRING CLAMP |
| TO SPRING LEAF NO. 6 | ||
| N 910006008000 | RIVET | |
| SPRING CLAMP TO SPRING LEAF | ||
| A 0003212353 | SPACER TUBE | |
| Repalced by: A 0003213253 | ||
| A 0003213253 | SPACER TUBE | |
| FOR SPRING CLAMPS | ||
| N 000931008189 | SCREW | |
| FOR SPRING CLAMPS | ||
| N 913004008004 | NUT | |
| FOR SPRING CLAMPS | ||
| 065 | N 004626010121 | SPRING BOLT |
| 070 | N 913004010011 | NUT |
| 076 | A 3093220384 | SHIM |

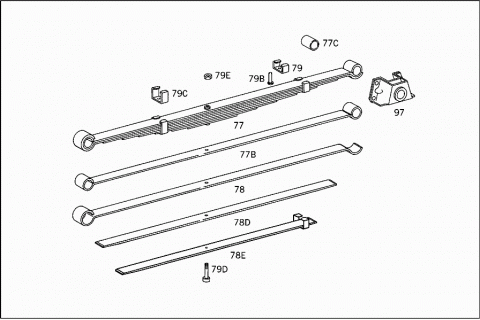

| 077 | A 3133200002 | FRONT SPRING |
| 8-LEAF | ||
| 077B | A 3133200094 | SPRING LEAF |
| USED WITH SPRING LEAF NO.2 WITH ROUND SPRING EYE | ||
| NO.1 | ||
| 077B | A 3133200294 | SPRING LEAF |
| USED WITH SPRING LEAF NO.2 WITH FLATTEND SPRING EYE | ||
| NO.1 | ||
| 077C | A 3093220050 | BUSHING |
| 078 | A 3133210012 | SPRING LEAF |
| USED WITH SPRING LEAF NO.2 WITH ROUND SPRING EYE | ||
| NO.2 | ||
| 078 | A 3133210112 | SPRING LEAF |
| USED WITH SPRING LEAF NO.2 WITH FLATTEND SPRING EYE | ||
| NO.2 | ||
| 078D | A 3133210013 | SPRING LEAF |
| NO.3 | ||
| 078E | A 3133200194 | SPRING LEAF |
| Repalced by: A 3133210014 | ||
| 078E | A 3133210014 | SPRING LEAF |
| LESS SPRING CLAMP | ||
| NO.4 | ||
| 079 | A 3093210933 | SPRING CLAMP |
| Repalced by: A 3093211833 | ||
| 079 | A 3093211833 | SPRING CLAMP |
| TO SPRING LEAF NO.4 | ||
| 079 | A 3103210633 | SPRING CLAMP |
| Repalced by: A 3223242033 | ||
| 079 | A 3223242033 | SPRING CLAMP |
| TO SPRING LEAF NO.4 | ||
| 079B | N 910006008000 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 079C | A 3093210933 | SPRING CLAMP |
| Repalced by: A 3093211833 | ||
| 079C | A 3093211833 | SPRING CLAMP |
| TO SPRING LEAF NO. 6 | ||
| 079C | A 3223242033 | SPRING CLAMP |
| TO SPRING LEAF NO. 6 | ||
| N 910006008000 | RIVET | |
| SPRING CLAMP TO SPRING LEAF | ||
| A 0003212353 | SPACER TUBE | |
| Repalced by: A 0003213253 | ||
| A 0003213253 | SPACER TUBE | |
| FOR SPRING CLAMPS | ||
| N 000931008189 | SCREW | |
| FOR SPRING CLAMPS | ||
| N 913004008004 | NUT | |
| FOR SPRING CLAMPS | ||
| 079D | N 004626010124 | SPRING BOLT |
| 079E | N 913004001011 | NUT |
| 081 | A 3093311225 | U-BOLT |
| LEFT | ||
| 150 MM | ||
| 081 | A 3093311125 | U-BOLT |
| Repalced by: A 3093311225 | ||
| 081 | A 3093311225 | U-BOLT |
| RIGHT | ||
| 140 MM | ||
| 091 | A 3093310027 | SPACER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 095 | N 913004012008 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 097 | A 3093200675 | SPRING BRACKET |
| FRONT SPRING REAR BRACKET | ||
| 097 | A 3093200675 | SPRING BRACKET |
| FRONT SPRING REAR BRACKET | ||
| 099 | A 3093251901 | FRONT SPRING BRACKET |
| Repalced by: A 3093220501 | ||
| 099 | A 3093220501 | FRONT SPRING BRACKET |
| REAR | ||
| 103 | N 000933010145 | SCREW |
| FRONT SPRING REAR BRACKET | ||
| M 10X35 | ||
| 103 | N 000933010145 | SCREW |
| FRONT SPRING REAR BRACKET | ||
| M 10X35 | ||
| 103 | N 000933010145 | SCREW |
| FRONT SPRING REAR BRACKET | ||
| M 10X35 | ||
| 103 | N 000933010150 | SCREW |
| FRONT SPRING REAR BRACKET | ||
| M 10X55 | ||
| 107 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 107 | N 910113010000 | NUT |
| FRONT SPRING REAR BRACKET | ||
| 111 | A 3093200470 | REAR SUBFRAME |
| Repalced by: A 3093200570 | ||
| 111 | A 3093200570 | REAR SUBFRAME |
| FRONT SPRING REAR BRACKET | ||
| 115 | N 000931010258 | SCREW |
| FRONT SPRING REAR BRACKET | ||
| 118 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 118 | N 910113010000 | NUT |
| FRONT SPRING REAR BRACKET | ||
| 121 | A 3193240750 | BUSHING |
| FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 124 | A 3093250162 | THRUST WASHER |
| FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 127 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 127 | N 910113016002 | NUT |
| FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 130 | A 3193200662 | SHACKLE |
| Repalced by: A 3103200563 | ||
| 130 | A 3103200563 | SHACKLE |
| FRONT SPRING TO FRONT-SPRING REAR BRACKET | ||
| 134 | A 3193240750 | BUSHING |
| FRONT SPRING TO FRONT-SPRING REAR BRACKET | ||
| 138 | A 3193250320 | SHACKLE |
| FRONT SPRING TO FRONT-SPRING REAR BRACKET | ||
| 142 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 142 | N 910113016002 | NUT |
| FRONT SPRING TO FRONT-SPRING REAR BRACKET | ||
| 147 | A 3103300177 | STOP |
| LEFT | ||
| 147 | A 3103300377 | STOP |
| RIGHT | ||
| 169 | A 3103220240 | BRACKET |
| AT FRAME | ||
| 173 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 173 | N 304017010002 | SCREW |
| BRACKET TO FRAME | ||
| 177 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 177 | N 910113010000 | NUT |
| BRACKET TO FRAME | ||
| 182 | A 3093250040 | BRACKET |
| RUBBER SPRING | ||
| 188 | A 3093200177 | RUBBER SPRING |

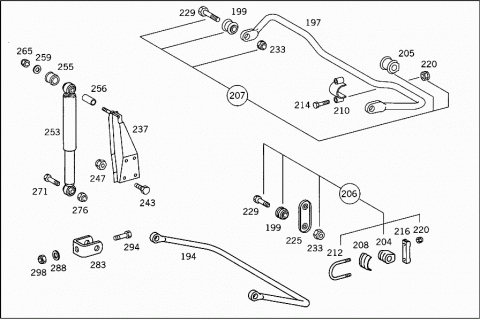

| 194 | A 3093230465 | TORSION BAR |
| FRONT AXLE | ||
| 194 | A 3093230465 | TORSION BAR |
| Repalced by: A 3103230265 | ||
| 197 | A 3103230265 | TORSION BAR |
| FRONT AXLE | ||
| 199 | A 3093200073 | BEARING |
| TORSION BAR | ||
| 204 | A 3093230385 | RUBBER MOUNTING |
| TORSION BAR | ||
| 204 | A 3093230385 | RUBBER MOUNTING |
| TORSION BAR | ||
| 205 | A 3183210585 | RUBBER MOUNTING |
| TORSION BAR TO FRONT AXLE | ||
| 206 | A 3095860132 | REPAIR KIT |
| Repalced by: A 3093200228 | ||
| 206 | A 3093200228 | REPAIR KIT |
| FRONT AXLE TORSION BAR | ||
| 206 | A 3093200228 | REPAIR KIT |
| FRONT AXLE TORSION BAR | ||
| 207 | A 3093200047 | REPAIR KIT |
| FRONT AXLE TORSION BAR | ||
| 208 | A 3093230440 | BRACKET |
| TORSION BAR TO FRONT AXLE | ||
| 208 | A 3093230440 | BRACKET |
| TORSION BAR TO FRONT AXLE | ||
| 210 | A 3183200543 | BRACKET |
| TORSION BAR TO FRONT AXLE | ||
| 212 | A 3103230026 | CLAMP |
| Repalced by: A 3103230426 | ||
| 212 | A 3103230426 | CLAMP |
| TORSION BAR TO FRONT AXLE | ||
| 212 | A 3103230426 | CLAMP |
| TORSION BAR TO FRONT AXLE | ||
| 214 | N 000931010161 | SCREW |
| Repalced by: N 000931010462 | ||
| 214 | N 000931010462 | SCREW |
| TORSION BAR TO FRONT AXLE | ||
| 216 | A 3103230040 | BRACKET |
| Repalced by: A 3103230540 | ||
| 216 | A 3103230540 | BRACKET |
| TORSION BAR | ||
| 216 | A 3103230540 | BRACKET |
| Repalced by: A 3103200643 | ||
| 216 | A 3103200643 | BRACKET |
| TORSION BAR | ||
| 220 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 220 | N 910113010000 | NUT |
| TORSION BAR | ||
| 225 | A 3093200463 | SHACKLE |
| Repalced by: A 3093260547 | ||
| 225 | A 3093260547 | SHACKLE |
| TORSION BAR,FRONT | ||
| 229 | N 000960012197 | SCREW |
| Repalced by: N 000960012384 | ||
| 229 | N 000960012384 | SCREW |
| SHACKLE TO TORSION BAR | ||
| 233 | N 913004012008 | NUT |
| SHACKLE TO TORSION BAR | ||
| 237 | A 3093200678 | CONSOLE |
| FRONT AXLE SHOCK ABSORBER | ||
| 243 | N 000933010105 | SCREW |
| CONSOLE TO FRAME | ||
| 247 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 247 | N 910113010000 | NUT |
| CONSOLE TO FRAME | ||
| 253 | A 0023239600 | SHOCK ABSORBER |
| Repalced by: A 0033236000 | ||
| 253 | A 0033235500 | SHOCK ABSORBER |
| Repalced by: A 0033236000 | ||
| 253 | A 0023239400 | SHOCK ABSORBER |
| Repalced by: A 0033236000 | ||
| 253 | A 0033235800 | SHOCK ABSORBER |
| Repalced by: A 0033236000 | ||
| 253 | A 0033236000 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 255 | A 0003231585 | RUBBER MOUNTING |
| 256 | A 0003232750 | BUSHING |
| 259 | A 3193260076 | WASHER |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 265 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 265 | N 910113014001 | NUT |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 271 | A 3099901101 | SCREW |
| Repalced by: N 000960014121 | ||
| 271 | N 000960014121 | SCREW |
| Repalced by: N 308676014014 | ||
| 271 | N 308676014014 | SCREW |
| SHOCK ABSORBER TO BRACKET AT FRONT AXLE | ||
| 276 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 276 | N 910113014001 | NUT |
| SHOCK ABSORBER TO BRACKET AT FRONT AXLE | ||
| 283 | A 3093230026 | CLAMP |
| Repalced by: A 3093230226 | ||
| 283 | A 3093230226 | CLAMP |
| AT AXLE BEAM | ||
| 288 | A 3193260076 | WASHER |
| CLAMP TO AXLE BODY | ||
| 294 | N 308676014002 | SCREW |
| CLAMP TO AXLE BODY | ||
| 298 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 298 | N 910113014001 | NUT |
| CLAMP TO AXLE BODY | ||

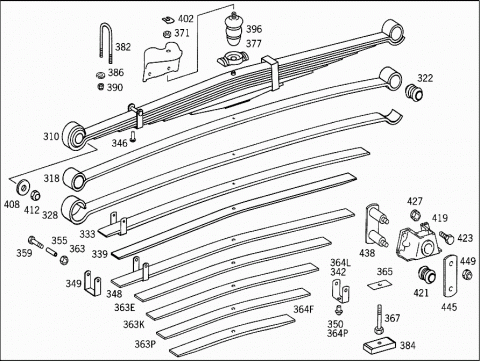

| 310 | A 3093205906 | REAR SPRING |
| 8-LEAF | ||
| 310 | A 3093205906 | REAR SPRING |
| 8-LEAF | ||
| 310 | A 3103201406 | REAR SPRING |
| 10-LEAF | ||
| 310 | A 3103201406 | REAR SPRING |
| 10-LEAF | ||
| 318 | A 3093203993 | SPRING LEAF |
| Repalced by: A 3093204893 | ||
| 318 | A 3093204893 | SPRING LEAF |
| NO.1 | ||
| 318 | A 3093204893 | SPRING LEAF |
| NO.1 | ||
| 318 | A 3103200893 | SPRING LEAF |
| NO.1 | ||
| 318 | A 3103200893 | SPRING LEAF |
| NO.1 | ||
| 322 | A 3103200050 | BUSHING |
| FRONT AND REAR | ||
| 328 | A 3093244312 | SPRING LEAF |
| NO.2 | ||
| 328 | A 3093244312 | SPRING LEAF |
| NO.2 | ||
| 328 | A 3103240912 | SPRING LEAF |
| Repalced by: A 3093242712 | ||
| 328 | A 3093242712 | SPRING LEAF |
| NO.2 | ||
| 328 | A 3093242712 | SPRING LEAF |
| NO.2 | ||
| 333 | A 3093243813 | SPRING LEAF |
| NO.3 | ||
| 333 | A 3093243813 | SPRING LEAF |
| NO.3 | ||
| 333 | A 3093243913 | SPRING LEAF |
| Repalced by: A 3093241713 | ||
| 333 | A 3093241713 | SPRING LEAF |
| NO.3 | ||
| 333 | A 3093241713 | SPRING LEAF |
| NO.3 | ||
| 339 | A 3093203893 | SPRING LEAF |
| Repalced by: A 3093204993 | ||
| 339 | A 3093204993 | SPRING LEAF |
| NO.4 | ||
| 339 | A 3093204993 | SPRING LEAF |
| NO.4 | ||
| 339 | A 3093243914 | SPRING LEAF |
| NO.4 | ||
| 342 | A 3093210933 | SPRING CLAMP |
| Repalced by: A 3093211833 | ||
| 342 | A 3093211833 | SPRING CLAMP |
| TO SPRING LEAF NO.4 | ||
| 342 | A 3093211833 | SPRING CLAMP |
| TO SPRING LEAF NO.4 | ||
| 346 | N 910006008022 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 8X20 MM | ||
| 346 | N 910006008022 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 8X20 MM | ||
| 348 | A 3093203493 | SPRING LEAF |
| NO.5 | ||
| 349 | A 3093210933 | SPRING CLAMP |
| Repalced by: A 3093211833 | ||
| 349 | A 3093211833 | SPRING CLAMP |
| TO SPRING LEAF NO. 5 | ||
| 349 | A 3223242033 | SPRING CLAMP |
| TO SPRING LEAF NO. 5 | ||
| 350 | N 910006008022 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 8X20 MM | ||
| 355 | A 0003212153 | SPACER TUBE |
| Repalced by: A 0003212353 | ||
| 355 | A 0003212353 | SPACER TUBE |
| Repalced by: A 0003213253 | ||
| 355 | A 0003213253 | SPACER TUBE |
| FOR SPRING CLAMPS | ||
| 359 | N 000931008189 | SCREW |
| FOR SPRING CLAMPS | ||
| 363 | N 913004008004 | NUT |
| FOR SPRING CLAMPS | ||
| 363E | A 3093242816 | SPRING LEAF |
| NO.6 | ||
| 363E | A 3093242816 | SPRING LEAF |
| NO.6 | ||
| 363K | A 3093242017 | SPRING LEAF |
| NO.7 | ||
| 363K | A 3093242017 | SPRING LEAF |
| NO.7 | ||
| 363P | A 3093240818 | SPRING LEAF |
| NO.8 | ||
| 363P | A 3093240818 | SPRING LEAF |
| NO.8 | ||
| 364F | A 3093240319 | SPRING LEAF |
| NO.9 | ||
| 364F | A 3093240319 | SPRING LEAF |
| NO.9 | ||
| A 3093203593 | SPRING LEAF | |
| NO.10 | ||
| 364L | A 3093210933 | SPRING CLAMP |
| Repalced by: A 3093211833 | ||
| 364L | A 3093211833 | SPRING CLAMP |
| TO SPRING LEAVES NOS.8 AND 10 | ||
| 364L | A 3223242033 | SPRING CLAMP |
| TO SPRING LEAVES NOS.8 AND 10 | ||
| 364P | N 910006008022 | RIVET |
| TO SPRING LEAVES NOS.8 AND 10 | ||
| 8X20 MM | ||
| 365 | A 3093250884 | SHIM |
| 365 | A 3093250884 | SHIM |
| 367 | N 004626010100 | SPRING BOLT |
| M 10X105 | ||
| 367 | N 004626010100 | SPRING BOLT |
| M 10X105 | ||
| 367 | N 004626010102 | SPRING BOLT |
| M 10X120 | ||
| 367 | N 004626010102 | SPRING BOLT |
| M 10X120 | ||
| 371 | N 913004010011 | NUT |

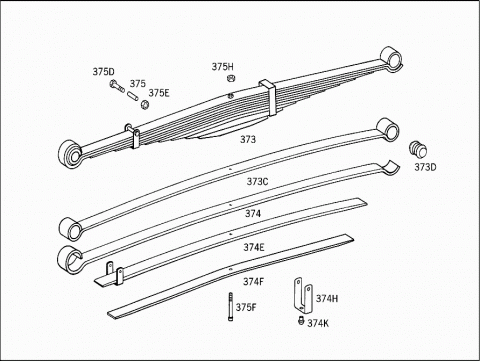

| 373 | A 3103202306 | REAR SPRING |
| 10-LEAF;LESS RUBBER PAD | ||
| 373C | A 3103201293 | SPRING LEAF |
| NO.1 | ||
| 373D | A 3103200050 | BUSHING |
| 374 | A 3103241212 | SPRING LEAF |
| NO.2 | ||
| 374E | A 3103241013 | SPRING LEAF |
| NO.3 | ||
| 374F | A 3103241014 | SPRING LEAF |
| NO.4 | ||
| A 3133210062 | THRUST WASHER | |
| BETWEEN THE SPRING LEAVES | ||
| 374H | A 3093210933 | SPRING CLAMP |
| Repalced by: A 3093211833 | ||
| 374H | A 3093211833 | SPRING CLAMP |
| TO SPRING LEAVES NOS.5 AND 9 | ||
| 374H | A 3223242033 | SPRING CLAMP |
| TO SPRING LEAVES NOS.5 AND 9 | ||
| 374K | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 375 | A 0003212153 | SPACER TUBE |
| Repalced by: A 0003212353 | ||
| 375 | A 0003212353 | SPACER TUBE |
| Repalced by: A 0003213253 | ||
| 375 | A 0003213253 | SPACER TUBE |
| FOR SPRING CLAMPS | ||
| 375D | N 000931008189 | SCREW |
| FOR SPRING CLAMPS | ||
| M 8X85 | ||
| 375E | N 000934008010 | NUT |
| FOR SPRING CLAMPS | ||
| 375F | N 004626010127 | SPRING BOLT |
| M 10X140 | ||
| 375H | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 375H | N 304032010003 | NUT |

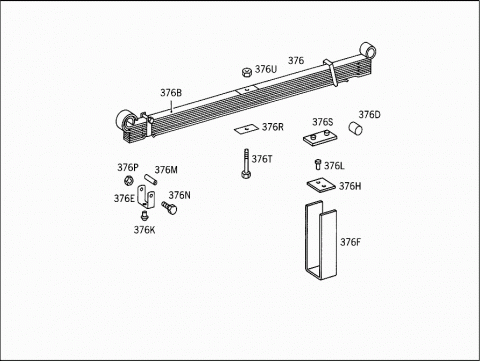

| 376 | A 3133200006 | REAR SPRING |
| 6-LEAF;WITH RUBBER PAD | ||
| 376B | A 3133200693 | SPRING LEAF |
| NO.1 | ||
| 376D | A 3103200050 | BUSHING |
| 376E | A 3223242033 | SPRING CLAMP |
| TO SPRING LEAF NO. 5 | ||
| 376F | A 3133250025 | SPRING CLAMP |
| TO SPRING LEAF NO. 6 | ||
| 376H | A 3133250095 | WEB |
| TO SPRING LEAF NO. 6 | ||
| 376K | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 8X25 MM | ||
| 376L | N 910002008029 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 8X18 MM | ||
| 376M | A 0003212353 | SPACER TUBE |
| Repalced by: A 0003213253 | ||
| 376M | A 0003213253 | SPACER TUBE |
| FOR SPRING CLAMPS | ||
| 376N | N 000931008189 | SCREW |
| FOR SPRING CLAMPS | ||
| M 8X85 | ||
| 376P | N 913004008004 | NUT |
| FOR SPRING CLAMPS | ||
| 376R | A 3133210084 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 376S | A 3133210062 | THRUST WASHER |
| BETWEEN THE SPRING LEAVES | ||
| 376T | N 004626010117 | SPRING BOLT |
| M 10X110 | ||
| 376U | N 913004010011 | NUT |
| 377 | A 3093250331 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 382 | A 3093510625 | U-BOLT |
| Repalced by: A 3093510525 | ||
| 382 | A 3093510525 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 200 MM | ||
| 382 | A 3093510525 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 200 MM | ||
| 382 | A 3093510525 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 200 MM | ||
| 382 | A 3093510725 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 220 MM | ||
| 382 | A 3093510725 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 220 MM | ||
| 382 | A 3093510525 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 210 MM | ||
| 382 | A 3093510325 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 180 MM | ||
| 384 | A 3093200356 | SHIM |
| REAR SPRING TO REAR AXLE | ||
| 384 | A 3093200356 | SHIM |
| REAR SPRING TO REAR AXLE | ||
| 386 | N 074361012301 | SPRING LOCK WASHER |
| REAR SPRING TO REAR AXLE | ||
| 390 | N 913004012008 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 396 | A 3093200277 | RUBBER SPRING |
| Repalced by: A 6673200077 | ||
| 396 | A 6673200077 | RUBBER SPRING |
| 402 | A 3093250040 | BRACKET |
| RUBBER SPRING | ||
| 408 | A 3093250162 | THRUST WASHER |
| REAR SPRING TO REAR SPRING FRONT BRACKET | ||
| 412 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 412 | N 910113016002 | NUT |
| REAR SPRING TO REAR SPRING FRONT BRACKET | ||
| 419 | A 3103201475 | SPRING BRACKET |
| REAR | ||
| 421 | A 3103200050 | BUSHING |
| 423 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 423 | N 304017010002 | SCREW |
| SPRING BRACKET TO FRAME | ||
| 427 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 427 | N 910113010000 | NUT |
| SPRING BRACKET TO FRAME | ||
| 438 | A 3103200563 | SHACKLE |
| SPRING BRACKET | ||
| 445 | A 3103250220 | SHACKLE |
| Repalced by: A 3193250320 | ||
| 445 | A 3193250320 | SHACKLE |
| SPRING TO SHACKLE | ||
| 449 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 449 | N 910113016002 | NUT |
| SPRING TO SHACKLE | ||

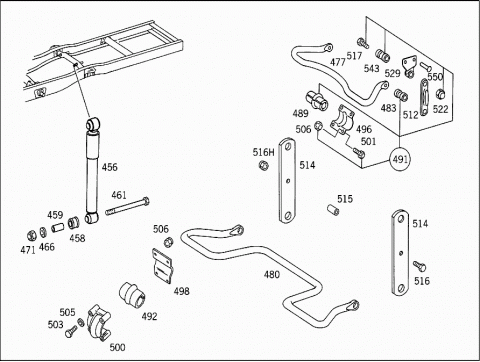

| 456 | A 0023239400 | SHOCK ABSORBER |
| Repalced by: A 0033236000 | ||
| 456 | A 0033235800 | SHOCK ABSORBER |
| Repalced by: A 0033236000 | ||
| 456 | A 0023239600 | SHOCK ABSORBER |
| Repalced by: A 0033236000 | ||
| 456 | A 0033235500 | SHOCK ABSORBER |
| Repalced by: A 0033236000 | ||
| 456 | A 0033236000 | SHOCK ABSORBER |
| REAR AXLE | ||
| 458 | A 0003231585 | RUBBER MOUNTING |
| 459 | A 0003232750 | BUSHING |
| 461 | N 000960014211 | SCREW |
| SHOCK ABSORBER MOUNTING | ||
| 466 | A 3193260076 | WASHER |
| SHOCK ABSORBER MOUNTING | ||
| 471 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 471 | N 910113014001 | NUT |
| SHOCK ABSORBER MOUNTING | ||
| 477 | A 3103260365 | TORSION BAR |
| REAR AXLE | ||
| 480 | A 3103260765 | TORSION BAR |
| REAR AXLE | ||
| 483 | A 3093200073 | BEARING |
| TORSION BAR,REAR | ||
| 489 | A 3093260481 | RUBBER MOUNTING |
| TORSION BAR | ||
| 491 | A 3095860432 | REPAIR KIT |
| Repalced by: A 3093200528 | ||
| 491 | A 3093200528 | REPAIR KIT |
| TORSION BAR TO REAR AXLE | ||
| 491 | A 3103200711 | REPAIR KIT |
| TORSION BAR TO REAR AXLE | ||
| 491E | A 3093200628 | REPAIR KIT |
| TORSION BAR TO REAR AXLE | ||
| 492 | A 3103260281 | RUBBER MOUNTING |
| TORSION BAR TO REAR AXLE | ||
| 496 | A 3093260740 | BRACKET |
| TORSION BAR TO REAR AXLE | ||
| 498 | A 3103260540 | BRACKET |
| TORSION BAR TO REAR AXLE | ||
| 500 | A 3103260440 | BRACKET |
| TORSION BAR TO REAR AXLE | ||
| 501 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 501 | N 304017008021 | SCREW |
| TORSION BAR TO REAR AXLE | ||
| 503 | N 000931008254 | SCREW |
| Repalced by: N 304014008002 | ||
| 503 | N 304014008002 | SCREW |
| TORSION BAR TO REAR AXLE | ||
| 505 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 505 | N 000125008443 | WASHER |
| TORSION BAR TO REAR AXLE | ||
| 506 | N 913004008004 | NUT |
| TORSION BAR TO REAR AXLE | ||
| 512 | A 3093200363 | SHACKLE |
| Repalced by: A 3093260447 | ||
| 512 | A 3093260447 | SHACKLE |
| Repalced by: A 6673200837 | ||
| 512 | A 6673200837 | SHACKLE |
| TORSION BAR,REAR | ||
| 512 | A 3093200263 | SHACKLE |
| Repalced by: A 3093260347 | ||
| 512 | A 3093260347 | SHACKLE |
| TORSION BAR,REAR | ||
| 514 | A 3103260647 | SHACKLE |
| CONSOLE TO FRAME | ||
| 514 | A 3103260547 | SHACKLE |
| CONSOLE TO FRAME | ||
| 515 | A 3812910726 | TUBE |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| 516 | N 000931006191 | SCREW |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| 516H | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 516H | N 913004006001 | NUT |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| 517 | N 000960012246 | SCREW |
| Repalced by: N 000960012353 | ||
| 517 | N 000960012353 | SCREW |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| 522 | N 913004012008 | NUT |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| 529 | A 3143200478 | CONSOLE |
| LEFT | ||
| 529 | A 3143200578 | CONSOLE |
| RIGHT | ||
| 543 | A 3093200073 | BEARING |
| TORSION BAR,REAR | ||
| 550 | N 910005010014 | RIVET |
| CONSOLE TO FRAME | ||
| 10X26 MM | ||

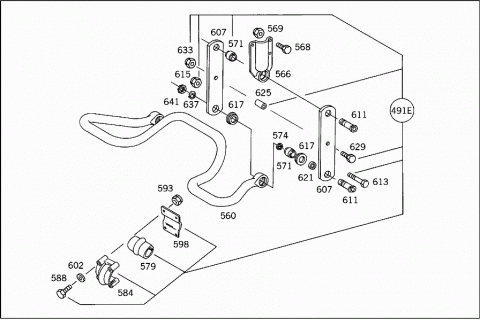

| 560 | A 3103260665 | TORSION BAR |
| Repalced by: A 3103260965 | ||
| 560 | A 3103260865 | TORSION BAR |
| Repalced by: A 3103260965 | ||
| 560 | A 3103260965 | TORSION BAR |
| REAR AXLE | ||
| 566 | A 3103200478 | CONSOLE |
| TORSION BAR,REAR | ||
| 566 | A 3103200678 | CONSOLE |
| TORSION BAR,REAR | ||
| N 910005010016 | RIVET | |
| CONSOLE TO FRAME | ||
| 10X28 MM | ||
| 568 | N 000933010105 | SCREW |
| CONSOLE TO FRAME | ||
| 569 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 569 | N 910113010000 | NUT |
| CONSOLE TO FRAME | ||
| 571 | A 0009819131 | JOINT BEARING |
| TORSION BAR,REAR | ||
| 571 | A 0019810131 | JOINT BEARING |
| TORSION BAR,REAR | ||
| 571 | A 3183200073 | BEARING |
| TORSION BAR,REAR | ||
| 574 | N 000472042001 | LOCK RING |
| TORSION BAR,REAR | ||
| 579 | A 3103260181 | RUBBER MOUNTING |
| TORSION BAR TO REAR AXLE | ||
| 584 | A 3103260440 | BRACKET |
| TORSION BAR TO REAR AXLE | ||
| 588 | N 000931008254 | SCREW |
| Repalced by: N 304014008002 | ||
| 588 | N 304014008002 | SCREW |
| TORSION BAR TO REAR AXLE | ||
| 593 | N 913004008004 | NUT |
| TORSION BAR TO REAR AXLE | ||
| 598 | A 3103260540 | BRACKET |
| TORSION BAR TO REAR AXLE | ||
| 602 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 602 | N 000125008443 | WASHER |
| TORSION BAR TO REAR AXLE | ||
| 607 | A 3103260247 | SHACKLE |
| TORSION BAR,REAR | ||
| 607 | A 3103260847 | SHACKLE |
| TORSION BAR,REAR | ||
| 611 | A 3103260074 | PIN |
| TORSION BAR,REAR | ||
| 613 | N 000960016206 | SCREW |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| 615 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 615 | N 910113016001 | NUT |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| 617 | A 3103260057 | SEAL RING |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| 621 | A 3103260253 | SPACER TUBE |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| 625 | A 3103260153 | SPACER TUBE |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| 625 | A 3044920053 | SPACER TUBE |
| Repalced by: A 3179911040 | ||
| 625 | A 3179911040 | SPACER TUBE |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| 629 | N 000931010271 | SCREW |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| M 10X60 | ||
| 629 | N 000931010331 | SCREW |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| M 10X65 | ||
| 633 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 633 | N 910113010000 | NUT |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| 637 | N 070952024101 | LOCK PLATE |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| 641 | N 070852024000 | NUT |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
