Transporto priemonė: O 309 D; VIN numerio dalis: 313389
Grupė: 52 CHASSIS SHEET METAL - 001 SHEET METAL,AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|

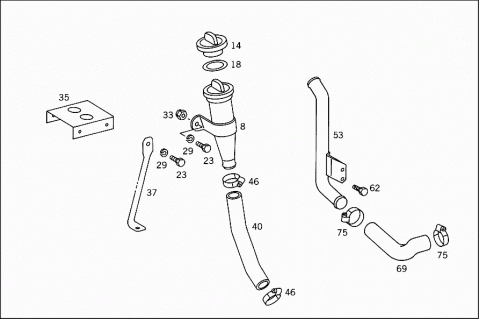

| 008 | A 3520105464 | OIL FILLER NECK |
| 008 | A 3520105564 | OIL FILLER NECK |
| 014 | A 3520100168 | CAP |
| Repalced by: A 0000180702 | ||
| 014 | A 0000180702 | CAP |
| OIL REFILLING | ||
| 014 | A 1020180302 | CAP |
| OIL REFILLING | ||
| 014 | A 1020180402 | CAP |
| OIL REFILLING | ||
| 018 | A 3520180180 | GASKET |
| TO 352 010 01 68 | ||
| 018 | A 0000180180 | GASKET |
| Repalced by: A 1020180080 | ||
| 018 | A 1020180080 | GASKET |
| Repalced by: A 1020180380 | ||
| 018 | A 1020180380 | GASKET |
| TO 000 018 07 02 | ||
| 023 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 023 | N 304017008016 | SCREW |
| OIL FILLER NECK TO BRACKET | ||
| 029 | N 912004008102 | LOCK WASHER |
| OIL FILLER NECK TO BRACKET | ||
| 033 | N 913004008004 | NUT |
| OIL FILLER NECK TO BRACKET | ||
| 035 | A 3520184640 | BRACKET |
| OIL FILLER NECK TO BRACKET | ||
| 037 | A 3520180295 | WEB |
| OIL FILLER NECK TO BRACKET | ||
| 040 | A 3520181382 | HOSE |
| OIL REFILLING | ||
| 046 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 046 | N 000000000670 | CLAMP |
| 053 | A 3520100169 | OIL FILLER NECK |
| HOSE TO FILLER NECK | ||
| 062 | N 007513008105 | TAPPING SCREW |
| OIL FILLER NECK TO CAB | ||
| 069 | A 3520181482 | HOSE |
| FROM OIL FILLER NECK TO OIL PAN | ||
| 075 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 075 | N 000000000670 | CLAMP |

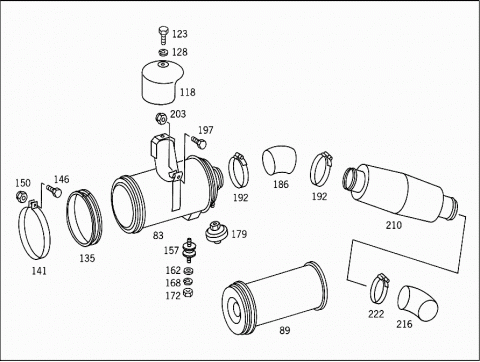

| 083 | A 3520940302 | AIR CLEANER |
| 089 | A 0010949604 | FILTER ELEMENT |
| 118 | A 3135200089 | COVER |
| AIR INTAKE | ||
| 123 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 123 | N 304017008016 | SCREW |
| COVER TO AIR CLEANER | ||
| 128 | N 912004008102 | LOCK WASHER |
| COVER TO AIR CLEANER | ||
| 135 | A 3520940083 | MUFFLER |
| AIR CLEANER TO CAB | ||
| 141 | A 3520940042 | CLAMP |
| AIR CLEANER TO CAB | ||
| 146 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 146 | N 304017008027 | SCREW |
| AIR CLEANER TO CAB | ||
| 150 | N 913004008004 | NUT |
| AIR CLEANER TO CAB | ||
| 157 | A 0019875240 | RUBBER BUFFER |
| AIR CLEANER TO CAB | ||
| 162 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 162 | N 000125008443 | WASHER |
| AIR CLEANER TO CAB | ||
| 168 | N 912004008102 | LOCK WASHER |
| AIR CLEANER TO CAB | ||
| 172 | N 000934008010 | NUT |
| AIR CLEANER TO CAB | ||
| 179 | A 0000940368 | VACUUM BOX |
| 179 | A 0000940768 | VACUUM BOX |
| 186 | A 3135280108 | AIR INTAKE PIPE |
| 192 | N 916017080000 | CLAMP |
| Repalced by: N 000000000675 | ||
| 192 | N 000000000675 | CLAMP |
| Repalced by: A 0059972990 | ||
| 192 | A 0059972990 | CLAMP |
| 197 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 197 | N 304017006020 | SCREW |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 203 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 203 | N 913004006001 | NUT |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 210 | A 0060947202 | AIR CLEANER |
| Repalced by: A 0080944802 | ||
| 210 | A 0080944802 | MUFFLER |
| INTAKE MUFFLER | ||
| 216 | A 3135280008 | AIR INTAKE PIPE |
| 222 | N 916017080000 | CLAMP |
| Repalced by: N 000000000675 | ||
| 222 | N 000000000675 | CLAMP |
| Repalced by: A 0059972990 | ||
| 222 | A 0059972990 | CLAMP |

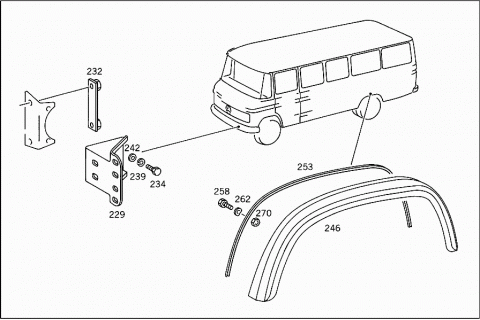

| 229 | A 3095250239 | BRACKET |
| Repalced by: A 3095251839 | ||
| 229 | A 3095251839 | BRACKET |
| Repalced by: A 3095202641 | ||
| 229 | A 3095202641 | BRACKET |
| FRONT BUMPER | ||
| 229 | A 3095251839 | BRACKET |
| Repalced by: A 3095202641 | ||
| 229 | A 3095202641 | BRACKET |
| FRONT BUMPER | ||
| A 3095251939 | BRACKET | |
| LEFT AND RIGHT BUMPER FACE BARS TO CENTRAL PART | ||
| 232 | A 3095203241 | BRACKET |
| Repalced by: A 3604293140 | ||
| 232 | A 3604293140 | BRACKET |
| LEFT AND RIGHT BUMPER FACE BARS TO CENTRAL PART | ||
| N 000933010145 | SCREW | |
| BRACKET TO SPRING FRONT BRACKET | ||
| 234 | N 000933010128 | SCREW |
| BRACKET TO SPRING FRONT BRACKET | ||
| 239 | N 912004010102 | LOCK WASHER |
| BRACKET TO SPRING FRONT BRACKET | ||
| 242 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 242 | N 000125010532 | WASHER |
| BRACKET TO SPRING FRONT BRACKET | ||
| 246 | A 3098800024 | COVERING |
| 253 | A 3098820098 | SEAL |
| COVERING TO SIDE PANEL | ||
| 258 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 258 | N 304017006034 | SCREW |
| COVERING TO SIDE PANEL | ||
| 262 | N 912004006102 | LOCK WASHER |
| COVERING TO SIDE PANEL | ||
| 270 | N 000934006007 | NUT |
| COVERING TO SIDE PANEL | ||
