Transporto priemonė: O 309 D; VIN numerio dalis: 313389

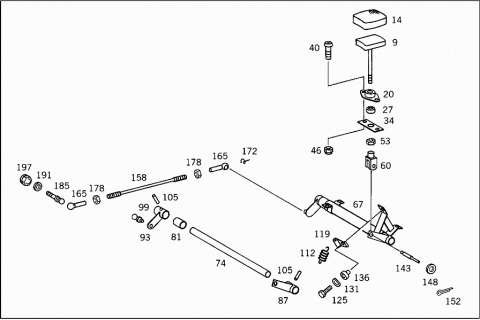

Grupė: 43 EXHAUST BRAKE

#	Kodas	Pavadinimas
009	A 3094300018	BRAKE PEDAL
014	A 3203015082	PAD
020	A 3524340140	BRACKET
		GUIDE
027	A 3524340123	GUIDE
034	A 3104340087	SHIM
		BRACKET TO CAB
040	N 007985006157	SCREW
	Repalced by: N 000000001145
040	N 000000001145	SCREW
		BRACKET TO CAB
046	N 913004006002	NUT
	Repalced by: N 913004006001
046	N 913004006001	NUT
		BRACKET TO CAB
053	N 000934008010	NUT
060	N 071752008002	YOKE
067	A 3134300046	INTERMEDIATE SHAFT
074	A 3134340046	INTERMEDIATE SHAFT
081	A 3194340250	BUSHING
087	A 3094300223	LEVER
093	A 3094300323	LEVER
099	N 071803010204	BALL PIVOT
105	N 001481005026	CLAMPING SLEEVE
112	A 3099930710	SPRING
119	A 3094340040	BRACKET
		SHAFT TO CAB
125	N 000933006121	SCREW
	Repalced by: N 304017006020
125	N 304017006020	SCREW
		SHAFT TO CAB
131	N 912004006102	LOCK WASHER
		SHAFT TO CAB
136	N 913010006107	RIVETED NUT
		SHAFT TO CAB
143	A 3094340074	PIN
		LEVER TO EXHAUST BRAKE PEDAL
148	N 000125008418	WASHER
	Repalced by: N 000125008443
148	N 000125008443	WASHER
		LEVER TO EXHAUST BRAKE PEDAL
152	N 000094002059	COTTER PIN
		LEVER TO EXHAUST BRAKE PEDAL
	Repalced by: N 000094002060
152	N 000094002060	COTTER PIN
		LEVER TO EXHAUST BRAKE PEDAL
	N 900331006616	PULL ROD
158	A 3134340022	ROD
	A 0009912422	BALL SOCKET
165	A 0009914822	BALL SOCKET
172	N 071805010403	CIRCLIP
178	N 000934006007	NUT
185	N 071803010102	BALL PIVOT
	Repalced by: N 071803010301
185	N 071803010301	BALL PIVOT
		ROD TO LEVER
	Repalced by: N 000000004467
185	N 000000004467	SCREW
		ROD TO LEVER
191	N 000125006421	WASHER
		ROD TO LEVER
	Repalced by: N 000125006449
191	N 000125006449	WASHER
		ROD TO LEVER
197	N 913004006002	NUT
	Repalced by: N 913004006001
197	N 913004006001	NUT
		ROD TO LEVER
215	A 0089976082	HOSE
	Repalced by: A 0009872627
215	A 0009872627	PLASTIC PIPE
		4X6 MM
	A 0004290701	LINE
	Repalced by: A 0004296201
	A 0004296201	LINE
		FROM OPERATING VALVE TO COMPRESSED AIR CYLINDER
216	N 915017006100	UNION NUT
216	N 915017006100	UNION NUT
217	N 003861006007	GLAND
217	N 003861006007	GLAND
218	A 0009920105	BUSHING
	Repalced by: N 915062004000
218	N 915062004000	SLEEVE
218	N 915062004000	SLEEVE
	N 915052004019	BANJO UNION
		HOSE WIDTH, / I.D.,
		4/16 MM
	A 0004342001	VALVE
	Repalced by: A 0004342301
219	A 0004342301	VALVE
		EXHAUST BRAKE
		WABCO
219	A 0004342301	VALVE
		EXHAUST BRAKE
		WABCO
219	A 0004342101	VALVE
		EXHAUST BRAKE
		BOSCH
219	A 0004342101	VALVE
		EXHAUST BRAKE
		BOSCH
221	A 0004340586	CUP
		TO 000 434 23 01,WABCO
222	A 0009971977	HANDLE
		TO 000 434 23 01,WABCO
	A 0079972448	SEAL RING
		TO 000 434 23 01,WABCO
	A 0079972548	SEAL RING
		TO 000 434 23 01,WABCO
224	A 0005869743	REPAIR KIT
		TO 000 434 20 01,WABCO
224	A 0005869743	REPAIR KIT
		TO 000 434 20 01,WABCO
224	A 0025869843	REPAIR KIT
		TO 000 434 23 01,WABCO
	A 0025865343	REPAIR KIT
		TO 000 431 21 01,BOSCH
	A 0025865343	REPAIR KIT
		TO 000 431 21 01,BOSCH
230	A 0004292738	ELBOW FITTING
		EXHAUST BRAKE VALVE; CONNECTION:
		"2"
230	A 0004292738	ELBOW FITTING
		EXHAUST BRAKE VALVE; CONNECTION:
		"2"
237	A 0019972872	FITTING
	Repalced by: A 0039979072
	A 0039979072	FITTING
	Repalced by: A 0029906071
	A 0029906071	FITTING
		EXHAUST BRAKE VALVE; CONNECTION:
		"1"
	A 0029906071	FITTING
		EXHAUST BRAKE VALVE; CONNECTION:
		"1"
238	N 080705012003	NUT
		EXHAUST BRAKE VALVE; CONNECTION:
		"2"
238	N 080705012003	NUT
		EXHAUST BRAKE VALVE; CONNECTION:
		"2"
239	A 0004290827	THRUST RING
		EXHAUST BRAKE VALVE; CONNECTION:
		"1,2"
239	A 0004290827	THRUST RING
		EXHAUST BRAKE VALVE; CONNECTION:
		"1,2"
240	A 0019875046	SEALING CORD
		EXHAUST BRAKE VALVE; CONNECTION:
		"1,2"
240	A 0019875046	SEALING CORD
		EXHAUST BRAKE VALVE; CONNECTION:
		"1,2"
241	A 0019972872	FITTING
	Repalced by: A 0039979072
241	A 0039979072	FITTING
	Repalced by: A 0029906071
241	A 0029906071	FITTING
		EXHAUST BRAKE CYLINDER
241	A 0029906071	FITTING
		EXHAUST BRAKE CYLINDER
241	A 0029906071	FITTING
		EXHAUST BRAKE VALVE; CONNECTION:
		3
242	A 0004290827	THRUST RING
		EXHAUST BRAKE VALVE; CONNECTION:
		"3"
242	A 0004290827	THRUST RING
		EXHAUST BRAKE VALVE; CONNECTION:
		"3"
244	A 0019875046	SEALING CORD
		EXHAUST BRAKE VALVE; CONNECTION:
		"3"
244	A 0019875046	SEALING CORD
		EXHAUST BRAKE VALVE; CONNECTION:
		"3"
	A 3933280065	PIPE SOCKET
	Repalced by: A 4063580065
	A 4063580065	BREATHER
	Repalced by: A 3933280065
	A 3933280065	PIPE SOCKET
		EXHAUST BRAKE VALVE; CONNECTION:
		"3"
246	N 007603012110	SEAL RING
		EXHAUST BRAKE CYLINDER
248	A 0004290827	THRUST RING
		EXHAUST BRAKE CYLINDER
248	A 0004290827	THRUST RING
		EXHAUST BRAKE CYLINDER
249	A 0019875046	SEALING CORD
		EXHAUST BRAKE CYLINDER
249	A 0019875046	SEALING CORD
		EXHAUST BRAKE CYLINDER
251	A 3134340087	SHIM
		VALVE TO CAB
251	A 3134340087	SHIM
		VALVE TO CAB
257	N 074305026202	HOLLOW SCREW
		VALVE TO CAB
257	N 074305026202	HOLLOW SCREW
		VALVE TO CAB
	A 0029972290	LOOM TIE
	Repalced by: A 0019978390
267	A 0019978490	LOOM TIE
267	A 0019978490	LOOM TIE
274	A 0049881478	CLIP
		LINE TO SIDE MEMBER
274	A 0049881478	CLIP
		LINE TO SIDE MEMBER
