Transporto priemonė: O 309 D; VIN numerio dalis: 313389

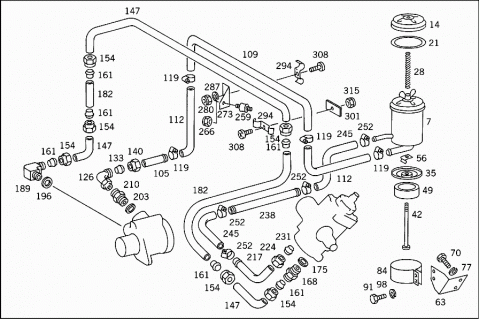

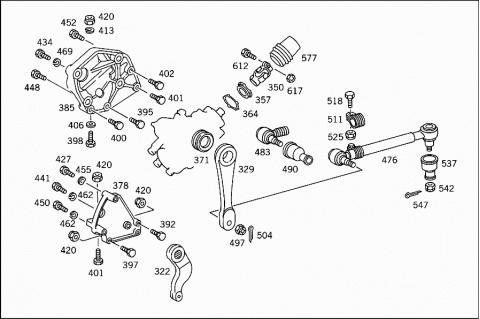

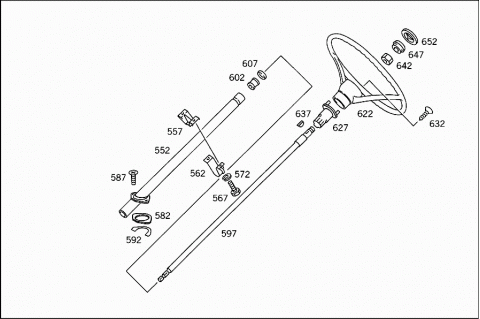

Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR STEERING,SEE UNIT STANDARD VERSION, MODEL: | ||
| 760.3 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR STEERING,SEE UNIT STANDARD VERSION, MODEL: | ||
| 766.3 | ||
| 007 | A 3094600483 | OIL TANK |
| 007 | A 3094600583 | OIL TANK |
| 014 | A 0004601182 | COVER |
| 021 | A 0002360080 | GASKET |
| 028 | A 0049930301 | SPRING |
| 035 | A 0002360076 | WASHER |
| 042 | A 0009904133 | SCREW |
| Repalced by: N 000931006172 | ||
| 042 | N 000931006172 | SCREW |
| 049 | A 0002360055 | FILTER |
| 056 | A 0004660373 | LOCK |
| 063 | A 3094600835 | BRACKET |
| OIL TANK | ||
| 063 | A 3094601135 | BRACKET |
| OIL TANK | ||
| 070 | N 000933008242 | SCREW |
| BRACKET TO CAB | ||
| 077 | N 912004008102 | LOCK WASHER |
| BRACKET TO CAB | ||
| 084 | A 3104660077 | CLAMP |
| OIL TANK TO BRACKET | ||
| 091 | N 000931006114 | SCREW |
| Repalced by: N 304017006012 | ||
| 091 | N 304017006012 | SCREW |
| OIL TANK TO BRACKET | ||
| 098 | N 912004006102 | LOCK WASHER |
| OIL TANK TO BRACKET | ||
| 105 | A 0005516456 | TUBE |
| OIL-TANK-TO-HYDRAULIC-PUMP HYDRAULIC LINE | ||
| 109 | A 3134660165 | LINE |
| OIL-TANK-TO-HYDRAULIC-PUMP HYDRAULIC LINE | ||
| 112 | A 3099972682 | HOSE |
| OIL-TANK-TO-HYDRAULIC-PUMP HYDRAULIC LINE | ||
| 119 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 119 | N 000000000667 | CLAMP |
| OIL-TANK-TO-HYDRAULIC-PUMP HYDRAULIC LINE | ||
| 126 | A 0029904871 | ELBOW FITTING |
| SUCTION LINE TO OIL PUMP | ||
| 133 | N 003861018003 | GLAND |
| Repalced by: A 0019901167 | ||
| 133 | A 0019901167 | SEAL CONE |
| SUCTION LINE TO OIL PUMP | ||
| 140 | N 915017018100 | UNION NUT |
| SUCTION LINE TO OIL PUMP | ||
| 147 | A 0002610283 | OIL PIPE |
| PUMP-TO-STEERING-GEAR HYDRAULIC LINE | ||
| 154 | N 915017010100 | UNION NUT |
| HIGH PRESSURE LINE | ||
| M 16X1.5 | ||
| 154 | N 915017010104 | UNION NUT |
| HIGH PRESSURE LINE | ||
| M 18X1.5 | ||
| 161 | N 003861010009 | GLAND |
| HIGH PRESSURE LINE | ||
| 168 | N 003901010001 | SCREW-IN FITTING |
| HIGH PRESSURE LINE | ||
| 175 | N 007603014405 | SEAL RING |
| HIGH PRESSURE LINE | ||
| 182 | A 3609970682 | HOSE |
| PUMP-TO-STEERING-GEAR HYDRAULIC LINE | ||
| 182 | A 3609971282 | HOSE |
| PUMP-TO-STEERING-GEAR HYDRAULIC LINE | ||
| 189 | A 0019906068 | FITTING |
| HIGH PRESSURE LINE | ||
| 196 | N 007603016401 | SEAL RING |
| HIGH PRESSURE LINE | ||
| 203 | N 007603016105 | SEAL RING |
| PIPE LINE TO STEERING | ||
| 210 | N 003901012011 | SCREW-IN FITTING |
| PIPE LINE TO STEERING | ||
| 217 | A 0004291001 | LINE |
| 224 | N 915017012100 | UNION NUT |
| Repalced by: N 000000006239 | ||
| 224 | N 000000006239 | UNION NUT |
| 231 | A 0019901967 | SEAL CONE |
| PIPE LINE TO STEERING | ||
| 238 | A 3134660265 | LINE |
| SUCTION LINE | ||
| 245 | A 3099972782 | HOSE |
| 252 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 252 | N 000000000666 | CLAMP |
| 259 | A 0019875240 | RUBBER BUFFER |
| DELIVERY AND SUCTION LINES | ||
| 266 | N 913004008004 | NUT |
| DELIVERY AND SUCTION LINES | ||
| 273 | A 3094660640 | BRACKET |
| DELIVERY AND SUCTION LINES | ||
| 280 | N 000934008010 | NUT |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| 287 | N 912004008102 | LOCK WASHER |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| 294 | A 3099950232 | CLAMP |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| 301 | A 3094660078 | SHIM |
| Repalced by: A 4064750019 | ||
| 301 | A 4064750019 | BASE |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| 308 | N 007985008142 | SCREW |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| 315 | N 913004008004 | NUT |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| 322 | A 3134630101 | PITMAN ARM |
| Repalced by: A 3134630201 | ||
| 322 | A 3134630201 | PITMAN ARM |
| 329 | A 3134630001 | PITMAN ARM |
| 329 | A 3134630401 | PITMAN ARM |
| 329 | A 3134630601 | PITMAN ARM |
| 350 | A 3164600057 | UNIVERSAL JOINT |
| PITMAN ARM | ||
| 350 | A 3164600157 | UNIVERSAL JOINT |
| PITMAN ARM | ||
| 350 | A 4214600457 | UNIVERSAL JOINT |
| Repalced by: A 3164600057 | ||
| 350 | A 0004620644 | UNIVERSAL JOINT |
| PITMAN ARM | ||
| 357 | A 3144620139 | BRACKET |
| PITMAN ARM | ||
| 364 | N 900055040200 | LOCK RING |
| PITMAN ARM | ||
| 371 | A 0029974947 | SEAL RING |
| PITMAN ARM | ||
| 378 | A 3104610340 | STEERING SUPPORT |
| 385 | A 3094612640 | STEERING SUPPORT |
| 392 | N 000931010258 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 10X55 | ||
| 395 | N 000931010260 | SCREW |
| Repalced by: N 304017010030 | ||
| 395 | N 304017010030 | HEXAGON HEAD BOLT |
| Repalced by: N 304017010053 | ||
| 395 | N 304017010053 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 10X50 | ||
| 397 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 397 | N 304017010002 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 10X30 | ||
| 398 | N 000931010271 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 10X60 | ||
| 400 | N 000931010331 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 10X65 | ||
| 401 | N 000933010145 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 10X35 | ||
| 402 | N 000931010260 | SCREW |
| Repalced by: N 304017010030 | ||
| 402 | N 304017010030 | HEXAGON HEAD BOLT |
| Repalced by: N 304017010053 | ||
| 402 | N 304017010053 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 10X50 | ||
| 406 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 406 | N 000125010532 | WASHER |
| STEERING SUPPORT TO FRAME | ||
| 413 | N 912004010102 | LOCK WASHER |
| STEERING SUPPORT TO FRAME | ||
| 420 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 420 | N 910113010000 | NUT |
| STEERING SUPPORT TO FRAME | ||
| 427 | A 3099900914 | SCREW |
| Repalced by: A 3099901014 | ||
| 427 | A 3099901014 | SCREW |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| 434 | A 3099900314 | SCREW |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| 441 | N 000961012122 | SCREW |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| M12X40 | ||
| 448 | N 000961016039 | SCREW |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| M 16X50 | ||
| 450 | N 000960012230 | SCREW |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| M12X70 | ||
| 452 | N 000960016212 | SCREW |
| Repalced by: N 000960016261 | ||
| 452 | N 000960016261 | SCREW |
| Repalced by: N 308676016014 | ||
| 452 | N 308676016014 | SCREW |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| M 12X65 | ||
| 455 | N 900055012001 | SPRING WASHER |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| 462 | N 912004012100 | LOCK WASHER |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| 469 | N 912004016101 | LOCK WASHER |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| 476 | A 3134600005 | DRAG LINK |
| Repalced by: A 3134600105 | ||
| 476 | A 3134600105 | DRAG LINK |
| 483 | A 3103300635 | JOINT |
| Repalced by: A 0003305635 | ||
| 483 | A 0003381810 | BALL JOINT |
| Repalced by: A 0003305635 | ||
| 483 | A 0003305635 | JOINT |
| Repalced by: A 0004604348 | ||
| 483 | A 0004604348 | DRAG LINK END |
| ADJUSTABLE | ||
| LEMFOERDER | ||
| 483 | A 3103301035 | JOINT |
| Repalced by: A 3103301235 | ||
| 483 | A 3103301235 | JOINT |
| Repalced by: A 0004605648 | ||
| 483 | A 0004605648 | DRAG LINK END |
| ADJUSTABLE | ||
| EHRENREICH | ||
| 490 | A 0003300985 | BOOT |
| STEERING JOINT | ||
| 497 | N 000979016006 | NUT |
| Repalced by: N 000979016007 | ||
| 497 | N 000979016007 | NUT |
| DRAG LINK TO LEVER | ||
| 504 | N 000094004056 | COTTER PIN |
| DRAG LINK TO LEVER | ||
| 511 | A 0003380363 | CLAMP |
| Repalced by: A 0003382845 | ||
| 511 | A 0003382845 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| 518 | N 000960010023 | SCREW |
| DRAG LINK END TO DRAG LINK | ||
| 525 | N 913004010010 | NUT |
| Repalced by: N 910113010002 | ||
| 525 | N 910113010002 | HEXAGON NUT |
| DRAG LINK END TO DRAG LINK | ||
| 537 | A 0003300985 | BOOT |
| 542 | N 000979016006 | NUT |
| Repalced by: N 000979016007 | ||
| 542 | N 000979016007 | NUT |
| DRAG LINK TO LEVER | ||
| 547 | N 000094004056 | COTTER PIN |
| DRAG LINK TO LEVER | ||
| 552 | A 3094602016 | STEER. COLUMN JACKET TUBE |
| 552 | A 3134601116 | STEER. COLUMN JACKET TUBE |
| 552 | A 3134601216 | STEER. COLUMN JACKET TUBE |
| 557 | A 3094610045 | STEERING COLUMN BRACKET |
| STEERING COLUMN JACKET TUBE,FIRE WALL | ||
| 562 | A 3094600165 | STRAP |
| STEERING COLUMN JACKET TUBE,FIRE WALL | ||
| 567 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 567 | N 304017008021 | SCREW |
| STEERING COLUMN BRACKET TO CAB | ||
| 572 | N 912004008102 | LOCK WASHER |
| STEERING COLUMN BRACKET TO CAB | ||
| 577 | A 3104620296 | BOOT |
| UNIVERSAL JOINT COVERING | ||
| 577 | A 3104620096 | BOOT |
| UNIVERSAL JOINT COVERING | ||
| 582 | A 3094620397 | SEAL |
| STEERING COLUMN JACKET TUBE TO FLOOR PLATE | ||
| 587 | N 000966006020 | SCREW |
| STEERING COLUMN JACKET TUBE TO FLOOR PLATE | ||
| 592 | A 3094600235 | BRACKET |
| STEERING COLUMN JACKET TUBE,FIRE WALL | ||
| 597 | A 3094602509 | STEERING SHAFT |
| Repalced by: A 3094603409 | ||
| 597 | A 3094603409 | STEERING SHAFT |
| 597 | A 3134621001 | STEERING SHAFT |
| 597 | A 3134621301 | STEERING SHAFT |
| 597 | A 3134621401 | STEERING SHAFT |
| 597 | A 3134601609 | STEERING SHAFT |
| 602 | A 3124621050 | BUSHING |
| STEERING COLUMN BEARING | ||
| 607 | A 3124621065 | RING |
| STEERING COLUMN BEARING | ||
| 612 | A 3169900114 | SCREW |
| STEERING COLUMN TUBE TO UNIVERSAL JOINT | ||
| M 8X38 | ||
| 617 | A 0019901651 | NUT |
| Repalced by: N 913004008005 | ||
| 617 | N 913004008005 | NUT |
| STEERING COLUMN TUBE TO UNIVERSAL JOINT | ||
| 622 | A 3144600303 | STEERING WHEEL |
| Repalced by: A 3104640001 | ||
| 622 | A 3104640001 | STEERING WHEEL |
| 622 | A 3134640201 | STEERING WHEEL |
| 627 | A 3134620055 | RING HALF |
| 632 | N 007983002205 | SHEET METAL SCREW |
| 637 | N 006888005006 | WOODRUFF KEY |
| STEERING WHEEL TO STEERING COLUMN | ||
| 642 | N 308675022001 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 647 | A 0004640131 | CAP |
| Repalced by: A 0004641231 | ||
| 647 | A 0004641231 | CAP |
| Repalced by: A 0004642631 | ||
| 647 | A 0004642631 | CAP |
| STEERING WHEEL | ||
| 652 | A 0004640432 | BADGE |
| STEERING WHEEL | ||
