Transporto priemonė: O 309 D; VIN numerio dalis: 313389
Grupė: 40 WHEELS
| # | Kodas | Pavadinimas |
|---|---|---|

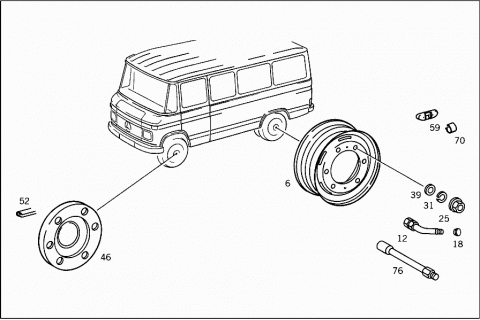

| 006 | A 3104000702 | DISC WHEEL |
| Repalced by: A 3104001102 | ||
| 006 | A 3104001102 | DISC WHEEL |
| 5.25-17.5 | ||
| A 3134000002 | DISC WHEEL | |
| Repalced by: A 3184001402 | ||
| A 3184001402 | DISC WHEEL | |
| 5.25-17.5 | ||
| 012 | A 0004013213 | VALVE |
| A 0004010272 | NUT | |
| 018 | N 007757008600 | VALVE CAP |
| 025 | N 074361014202 | NUT |
| Repalced by: N 074361014205 | ||
| 025 | N 074361014205 | NUT |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 025 | N 074361018205 | NUT |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 031 | N 074361014353 | SPRING LOCK WASHER |
| Repalced by: A 9019900047 | ||
| 031 | A 9019900047 | LOCK WASHER |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 031 | N 074361018352 | SPRING LOCK WASHER |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| Repalced by: N 000000006796 | ||
| 031 | N 000000006796 | SPRING LOCK WASHER |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 039 | A 3194020075 | SPHERICAL RING |
| DISC WHEEL TO REAR AXLE | ||
| A 3249970026 | SPHERICAL RING | |
| DISC WHEEL TO REAR AXLE | ||
| 046 | A 3094000925 | HUB CAP |
| Repalced by: A 3104001725 | ||
| 046 | A 3104001725 | HUB CAP |
| 046 | A 3184000225 | HUB CAP |
| Repalced by: A 3184000125 | ||
| 046 | A 3184000125 | HUB CAP |
| 052 | A 3099870272 | EDGE GUARD SECTION |
| Repalced by: A 0009876870 | ||
| 052 | A 0009876870 | RUBBER SECTION |
| 059 | A 0014015194 | BALANCING WEIGHT |
| Repalced by: A 0014015294 | ||
| 059 | A 0014015294 | BALANCING WEIGHT |
| 100 G | ||
| 059 | A 0014015394 | BALANCING WEIGHT |
| 150 G | ||
| 059 | A 0014015494 | BALANCING WEIGHT |
| 200 G | ||
| 070 | A 3104010028 | BRACKET |
| BALANCING WEIGHT | ||
| 076 | A 3104010113 | VALVE |
| EXTENSION,REAR WHEEL | ||
| 076 | A 3104010413 | VALVE |
| EXTENSION,REAR WHEEL | ||

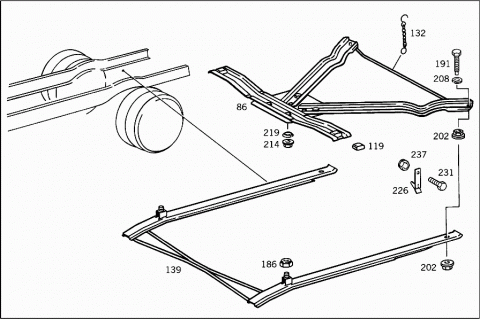

| 086 | A 3094003439 | BRACKET |
| SPARE WHEEL MOUNTING | ||
| A 3094005739 | BRACKET | |
| Repalced by: A 3094006739 | ||
| A 3094006739 | BRACKET | |
| SPARE WHEEL MOUNTING | ||
| A 3094000739 | BRACKET | |
| SPARE WHEEL MOUNTING | ||
| 119 | A 3094030182 | RUBBER BUFFER |
| 132 | A 3094000085 | CHAIN |
| SPARE WHEEL CARRIER | ||
| 139 | A 3094001342 | CONNECTING RAIL |
| SPARE WHEEL CARRIER | ||
| A 3094001642 | CONNECTING RAIL | |
| Repalced by: A 3094001842 | ||
| A 3094001842 | CONNECTING RAIL | |
| SPARE WHEEL CARRIER | ||
| 186 | N 913004008005 | NUT |
| BRACKET TO FRAME | ||
| 191 | A 3094030471 | SCREW |
| BRACKET TO FRAME | ||
| 202 | A 3094000172 | NUT |
| Repalced by: A 0004000072 | ||
| 202 | A 0004000072 | NUT |
| AT FRAME | ||
| 202 | A 3094000472 | NUT |
| AT FRAME | ||
| 208 | N 912004010102 | LOCK WASHER |
| AT FRAME | ||
| 214 | N 074361014202 | NUT |
| Repalced by: N 074361014205 | ||
| 214 | N 074361014205 | NUT |
| DISC WHEEL TO SUPPORT | ||
| 214 | A 3094030372 | NUT |
| DISC WHEEL TO SUPPORT | ||
| 219 | N 074361014353 | SPRING LOCK WASHER |
| Repalced by: A 9019900047 | ||
| 219 | A 9019900047 | LOCK WASHER |
| DISC WHEEL TO SUPPORT | ||
| 219 | N 007349015003 | WASHER |
| DISC WHEEL TO SUPPORT | ||
| 226 | A 3094002239 | BRACKET |
| 231 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 231 | N 304017008021 | SCREW |
| BRACKET TO FRAME | ||
| 237 | N 913004008004 | NUT |
| BRACKET TO FRAME | ||
