Transporto priemonė: O 317; VIN numerio dalis: 317232
Grupė: 47 FUEL SYSTEM

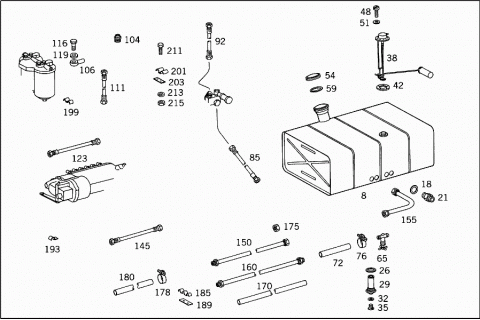

56481
# Kodas Pavadinimas
A 3174700601 FUEL TANK
Repalced by: A 3174700701
A 3174702001 FUEL TANK
Repalced by: A 3174700701
008 A 3174700701 FUEL TANK
Repalced by: A 3074702701
008 A 3074702701 FUEL TANK
200L
008 A 3074702701 FUEL TANK
200L
A 3174701601 FUEL TANK
Repalced by: A 3174701701
A 3174701701 FUEL TANK
175L
018 N 007603014106 SEAL RING
021 N 915013008000 SCREW FITTING
FUEL LINE TO TANK
026 N 915035000010 SEAL RING
FUEL STRAINER SCREEN
A 0029977245 SEAL RING
A 3204700006 FUEL STRAINER
Repalced by: A 3604700006
029 A 3604700006 FUEL STRAINER
Repalced by: A 3074700106
029 A 3074700106 FUEL STRAINER
032 N 007603014106 SEAL RING
035 N 007604014106 SCREW PLUG
Repalced by: N 007604014110
035 N 007604014110 SCREW PLUG
038 A 0005426117 SENDER UNIT
FUEL TANK
038 A 0005426117 SENDER UNIT
FUEL TANK
A 0015426417 SENDER UNIT
FUEL TANK
042 A 3524710080 GASKET
Repalced by: A 4044710080
042 A 4044710080 GASKET
FUEL GAUGE SENDER UNIT TO FUEL TANK
048 N 000084005108 SCREW
FUEL GAUGE SENDER UNIT TO FUEL TANK
N 000934005008 NUT
051 A 0669970640 SEAL RING
FUEL GAUGE SENDER UNIT TO FUEL TANK
054 A 3044700005 FILLER CAP
Repalced by: A 3094700005
054 A 3094700005 FILLER CAP
A 1369970640 SEAL RING
059 A 3049970340 SEAL RING
FILLER CAP
A 3174703371 LINE
Repalced by: A 3404701965
A 3174706171 LINE
Repalced by: A 3404701965
A 3174709271 LINE
Repalced by: A 3404701265
A 0039974482 HOSE
A 3174703972 LINE
Repalced by: A 3404701265
A 3174707271 LINE
Repalced by: A 3404701965
A 3174709371 LINE
Repalced by: A 3404701965
N 915017010200 UNION NUT
Repalced by: N 915017010201
N 915017010201 UNION NUT
N 915003008201 SEAL CONE
Repalced by: A 0009909167
A 0009909167 SEAL CONE
Repalced by: N 915003008202
N 915003008202 SEAL CONE
N 915010008203 BANJO UNION
065 N 900121008000 VALVE
FUEL LINE
A 3174703471 LINE
Repalced by: A 3404701265
A 3174706271 LINE
Repalced by: A 3404702165
A 3174703372 LINE
Repalced by: A 3404702165
A 3404701965 LINE
FROM FUEL TANK TO THRU-WAY VALVE (FEED LINE)
A 3224760026 HOSE
Repalced by: A 3054760126
072 A 3054760126 HOSE
CONNECTION OF FUEL LINES ONE BELOW THE OTHER
17X280MM
A 3124761426 HOSE
Repalced by: A 3054760126
A 3054760126 HOSE
CONNECTION OF FUEL LINES ONE BELOW THE OTHER
17X100MM
076 N 916026016001 CLAMP
Repalced by: A 0059970190
076 A 0059970190 LOOM TIE
FUEL HOSE TO FUEL LINE
N 915017010201 UNION NUT
N 915003008201 SEAL CONE
Repalced by: A 0009909167
A 0009909167 SEAL CONE
Repalced by: N 915003008202
N 915003008202 SEAL CONE
N 915008008406 FITTING
Repalced by: N 915008008402
N 915008008402 FITTING
A 3174703571 LINE
Repalced by: A 3404701265
N 915017010201 UNION NUT
N 915003008201 SEAL CONE
Repalced by: A 0009909167
A 0009909167 SEAL CONE
Repalced by: N 915003008202
N 915003008202 SEAL CONE
N 915008008406 FITTING
Repalced by: N 915008008402
N 915008008402 FITTING
A 3174765914 LINE
Repalced by: A 0004290901
A 3174763410 LINE
Repalced by: A 0004290901
A 3404702765 LINE
Repalced by: A 3404702865
A 3174766114 LINE
Repalced by: A 0004290901
A 3174763510 LINE
Repalced by: A 0004290901
A 3174766214 LINE
Repalced by: A 0004290901
A 3174706371 LINE
Repalced by: A 3404702865
N 915008008406 FITTING
Repalced by: N 915008008402
N 915008008402 FITTING
085 A 0039974582 HOSE
FUEL TANK
A 3260702432 LINE
Repalced by: A 3404702665
N 915008008406 FITTING
Repalced by: N 915008008402
N 915008008402 FITTING
N 915010008203 BANJO UNION
092 A 0039974582 HOSE
LEAK LINE
A 3174703971 LINE
Repalced by: A 3404702665
A 3174705171 LINE
Repalced by: A 3404702665
104 N 915008008406 FITTING
Repalced by: N 915008008402
104 N 915008008402 FITTING
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
123
N 007623014032 HOLLOW SCREW
N 007623008100 HOLLOW SCREW
116 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
116 N 915036010108 HOLLOW SCREW
FUEL LINES
119 N 007603014106 SEAL RING
FUEL LINES
123 A 0039974582 HOSE
A 3174705271 LINE
Repalced by: A 3404702665
N 915008008406 FITTING
Repalced by: N 915008008402
N 915008008402 FITTING
N 915010008203 BANJO UNION
N 007603014106 SEAL RING
N 915006006000 DOUBLE FITTING
N 915006006000 DOUBLE FITTING
A 3174700972 LINE
Repalced by: A 3404701265
N 915010008203 BANJO UNION
N 915017010201 UNION NUT
N 915003008201 SEAL CONE
Repalced by: A 0009909167
A 0009909167 SEAL CONE
Repalced by: N 915003008202
N 915003008202 SEAL CONE
A 3174701372 LINE
Repalced by: A 3404701965
N 915017008201 UNION NUT
N 915003006203 SEAL CONE
A 3174701772 LINE
Repalced by: A 3404702165
N 915017010201 UNION NUT
N 915004006203 SEAL CONE
N 915003006203 SEAL CONE
N 915017008201 UNION NUT
A 1980700068 DAMPER CAGE
Repalced by: A 3404702165
N 915003006203 SEAL CONE
N 915017008201 UNION NUT
A 3174700272 LINE
Repalced by: A 3404701265
A 3174701072 LINE
Repalced by: A 3404701265
N 915008008406 FITTING
Repalced by: N 915008008402
N 915008008402 FITTING
N 915017010201 UNION NUT
N 915003008201 SEAL CONE
Repalced by: A 0009909167
A 0009909167 SEAL CONE
Repalced by: N 915003008202
N 915003008202 SEAL CONE
A 3174701472 LINE
Repalced by: A 3404702165
N 915008006404 FITTING
A 3174701172 LINE
Repalced by: A 3404701265
N 915008008406 FITTING
Repalced by: N 915008008402
N 915008008402 FITTING
N 915017010201 UNION NUT
N 915003008201 SEAL CONE
Repalced by: A 0009909167
A 0009909167 SEAL CONE
Repalced by: N 915003008202
N 915003008202 SEAL CONE
A 3174761310 LINE
Repalced by: A 0004290901
A 3174764310 LINE
Repalced by: A 0004290901
N 915017010201 UNION NUT
N 915003008201 SEAL CONE
Repalced by: A 0009909167
A 0009909167 SEAL CONE
Repalced by: N 915003008202
N 915003008202 SEAL CONE
N 007603012308 SEAL RING
Repalced by: N 007603012111
N 007603012111 SEAL RING
N 915007008000 ADAPTER FITTING
A 3174701972 LINE
Repalced by: A 3404702165
N 915017010201 UNION NUT
N 915003008201 SEAL CONE
Repalced by: A 0009909167
A 0009909167 SEAL CONE
Repalced by: N 915003008202
N 915003008202 SEAL CONE
A 3174703572 LINE
Repalced by: A 3404701265
N 915008008406 FITTING
Repalced by: N 915008008402
N 915008008402 FITTING
N 915017010201 UNION NUT
N 915003008201 SEAL CONE
Repalced by: A 0009909167
A 0009909167 SEAL CONE
Repalced by: N 915003008202
N 915003008202 SEAL CONE
A 3174761410 LINE
Repalced by: A 0004290901
A 3174764210 LINE
Repalced by: A 0004290901
A 3174761510 LINE
Repalced by: A 0004290901
A 3174701272 LINE
Repalced by: A 3404701265
N 915008008406 FITTING
Repalced by: N 915008008402
N 915008008402 FITTING
N 915017010201 UNION NUT
N 915003008201 SEAL CONE
Repalced by: A 0009909167
A 0009909167 SEAL CONE
Repalced by: N 915003008202
N 915003008202 SEAL CONE
A 3174765914 LINE
Repalced by: A 0004290901
A 3174764110 LINE
Repalced by: A 0004290901
A 3174701572 LINE
Repalced by: A 3404702165
A 3174702572 LINE
Repalced by: A 3404701465
A 3174703872 LINE
Repalced by: A 3404701465
N 915017010201 UNION NUT
N 915003008201 SEAL CONE
Repalced by: A 0009909167
A 0009909167 SEAL CONE
Repalced by: N 915003008202
N 915003008202 SEAL CONE
N 915010008203 BANJO UNION
A 3124761426 HOSE
Repalced by: A 3054760126
A 3054760126 HOSE
17X100MM
A 3224760026 HOSE
Repalced by: A 3054760126
A 3054760126 HOSE
17X280MM
N 916026016001 CLAMP
Repalced by: A 0059970190
A 0059970190 LOOM TIE
145 A 0039974582 HOSE
FROM FEED PUMP TO FILTER
A 3174700771 LINE
Repalced by: A 3404701465
A 3174702871 LINE
Repalced by: A 3404701265
A 3404702765 LINE
Repalced by: A 3404702865
A 3174706571 LINE
Repalced by: A 3404702665
A 3174703772 LINE
Repalced by: A 3404702665
N 915008008406 FITTING
Repalced by: N 915008008402
N 915008008402 FITTING
N 915017010201 UNION NUT
N 915003008201 SEAL CONE
Repalced by: A 0009909167
A 0009909167 SEAL CONE
Repalced by: N 915003008202
N 915003008202 SEAL CONE
A 3174703571 LINE
Repalced by: A 3404701265
N 915017010201 UNION NUT
N 915003008201 SEAL CONE
Repalced by: A 0009909167
A 0009909167 SEAL CONE
Repalced by: N 915003008202
N 915003008202 SEAL CONE
A 3174766414 LINE
Repalced by: A 0004290901
A 3174766514 LINE
Repalced by: A 0004290901
A 3174709971 LINE
Repalced by: A 3404701465
A 3174702472 LINE
Repalced by: A 3404701265
N 915017010201 UNION NUT
N 915003008201 SEAL CONE
Repalced by: A 0009909167
A 0009909167 SEAL CONE
Repalced by: N 915003008202
N 915003008202 SEAL CONE
N 915010008203 BANJO UNION
A 3404702065 LINE
Repalced by: A 3404702165
N 915008008406 FITTING
Repalced by: N 915008008402
N 915008008402 FITTING
N 915017010201 UNION NUT
N 915002008204 UNION NUT
A 3174765914 LINE
Repalced by: A 0004290901
A 3174763810 LINE
Repalced by: A 0004290901
A 3174706471 LINE
Repalced by: A 3404702165
A 3174709471 LINE
Repalced by: A 3404701465
A 3174703672 LINE
Repalced by: A 3404701465
A 3174709571 LINE
Repalced by: A 3404701465
N 915017010201 UNION NUT
N 915003008201 SEAL CONE
Repalced by: A 0009909167
A 0009909167 SEAL CONE
Repalced by: N 915003008202
N 915003008202 SEAL CONE
N 915010008203 BANJO UNION
FUEL LINE TO FUEL FILTER
N 007603014106 SEAL RING
FUEL LINE TO FUEL FILTER
N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
N 915036010108 HOLLOW SCREW
FUEL LINE TO FUEL FILTER
150 A 3404701265 LINE
WITH BANJO UNION
A 3404701465 LINE
WITH BANJO UNION
155 A 3404701965 LINE
WITH SEAL CONE
A 3404702165 LINE
WITH SEAL CONE
A 3404702865 LINE
Repalced by: A 3404702665
160 A 3404702665 LINE
WITH FITTING
1000 MM
170 A 0004290901 LINE
10 MM
175 N 915017010201 UNION NUT
FROM FILTER TO HOSE CONNECTION (RETURN LINE)
178 N 916026010000 CLAMP
Repalced by: N 000000000665
178 N 000000000665 CLAMP
FUEL HOSE
180 N 073379009200 HOSE
CONNECTION OF FUEL LINES ONE BELOW THE OTHER
N 000933012077 SCREW
FUEL FILTER TO SUBSTRUCTURE
M 12X35
N 912004012100 LOCK WASHER
FUEL FILTER TO SUBSTRUCTURE
N 000934012021 NUT
FUEL FILTER TO SUBSTRUCTURE
185 A 3129950232 CLAMP
Repalced by: A 4429955032
185 A 4429955032 CLAMP
FUEL LINES TO BODY
189 A 3124761236 BRACKET
Repalced by: A 3604293140
189 A 3604293140 BRACKET
FUEL LINES TO BODY
193 A 3179950020 CLAMP
FUEL LINES TO BODY
N 007971004226 SHEET METAL SCREW
FUEL LINES TO BODY
N 007971004240 SHEET METAL SCREW
Repalced by: N 007981004258
N 007981004258 SHEET METAL SCREW
FUEL LINES TO BODY
199 A 3179950832 CLAMP
LINES TO BRACKET
201 A 3229950632 CLAMP
LINES TO BRACKET
203 A 3124761736 BRACKET
FUEL LINES TO BODY
A 3124761036 BRACKET
Repalced by: A 3124761236
A 3124761236 BRACKET
Repalced by: A 3604293140
A 3604293140 BRACKET
FUEL LINES TO BODY
211 N 000933006102 SCREW
LINES TO BRACKET
M 6X15
213 N 912004006102 LOCK WASHER
LINES TO BRACKET
215 N 000934006007 NUT
LINES TO BRACKET
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
