Transporto priemonė: O 317; VIN numerio dalis: 317232
Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |

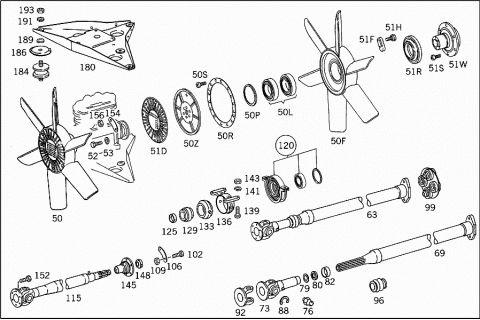

| FAN | ||
| 050 | A 3172050506 | FAN |
| 050F | A 0012050406 | FAN |
| 050L | A 0039812925 | BALL BEARING |
| 050P | A 0002060151 | SPACER RING |
| 050R | A 0002060180 | GASKET |
| Repalced by: A 0002060680 | ||
| 050R | A 0002060680 | GASKET |
| 050S | N 000912006040 | SCREW |
| 050Z | A 0002060228 | PRIMARY CUP |
| 051D | A 0002060503 | COVER |
| 051F | A 0002060118 | GUIDE |
| 051H | A 0002060071 | SCREW |
| 051R | A 0039979440 | SEAL RING |
| 051S | A 0009907520 | SCREW |
| Repalced by: A 0009842029 | ||
| 051S | A 0009842029 | SCREW |
| 051W | A 0002060245 | FLANGE |
| A 0005831635 | RECEPTACLE | |
| Repalced by: A 0005831835 | ||
| A 0005831835 | RECEPTACLE | |
| 052 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 052 | N 304017008021 | SCREW |
| 053 | N 912004008102 | LOCK WASHER |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| AIR COMPRESSOR | ||
| 063 | A 3172002345 | SHAFT |
| REAR | ||
| 063 | A 3172003738 | SHAFT |
| REAR | ||
| 063 | A 3172000238 | SHAFT |
| REAR | ||
| 063 | A 3172007345 | SHAFT |
| REAR | ||
| 063 | A 3172003838 | SHAFT |
| REAR | ||
| 063 | A 3172000138 | SHAFT |
| REAR | ||
| 069 | A 3172002245 | SHAFT |
| REAR | ||
| 069 | A 3172004038 | SHAFT |
| REAR | ||
| 069 | A 3172000538 | SHAFT |
| REAR | ||
| 069 | A 3172007545 | SHAFT |
| REAR | ||
| 069 | A 3172004138 | SHAFT |
| REAR | ||
| 069 | A 3172000438 | SHAFT |
| REAR | ||
| 073 | A 3172008745 | SHAFT |
| REAR | ||
| 073 | A 3172008745 | SHAFT |
| REAR | ||
| 076 | N 071412006101 | GREASE NIPPLE |
| 079 | A 1804110162 | THRUST WASHER |
| 080 | A 1804110560 | RUBBER RING |
| 082 | A 1804110358 | SEAL HOLDER |
| A 1804100331 | UNIVERSAL JOINT CROSS | |
| A 1804100331 | UNIVERSAL JOINT CROSS | |
| A 1234100131 | UNIVERSAL JOINT CROSS | |
| 088 | A 1889940534 | SNAP RING |
| 1.45 MM | ||
| 088 | A 1889940534 | SNAP RING |
| 1.45 MM | ||
| A 1889940034 | SNAP RING | |
| 1.5 MM | ||
| A 1889940034 | SNAP RING | |
| 1.5 MM | ||
| A 1889940134 | SNAP RING | |
| 1.55 MM | ||
| A 1889940134 | SNAP RING | |
| 1.55 MM | ||
| A 1889940234 | SNAP RING | |
| 1.6 MM | ||
| A 1889940234 | SNAP RING | |
| 1.6 MM | ||
| A 1889940334 | SNAP RING | |
| 1.65 MM | ||
| A 1889940334 | SNAP RING | |
| 1.65 MM | ||
| A 1889940434 | SNAP RING | |
| 1.7 MM | ||
| A 1889940434 | SNAP RING | |
| 1.7 MM | ||
| A 1884110044 | DRIVE FLANGE | |
| 092 | A 3094110211 | DRIVE FLANGE |
| A 3172000031 | BOOT | |
| A 3172000031 | BOOT | |
| 096 | A 3194100080 | BOOT |
| Repalced by: A 3194110297 | ||
| 096 | A 3194110297 | BOOT |
| N 900263000900 | STRAP | |
| N 900263000900 | STRAP | |
| N 900262009100 | LOOM TIE | |
| N 900262009100 | LOOM TIE | |
| N 900264005517 | LOOM TIE | |
| N 900264005505 | LOOM TIE | |
| A 0002060035 | FLEXIBLE JOINT DISC | |
| Repalced by: A 0002060435 | ||
| 099 | A 0002060435 | FLEXIBLE JOINT DISC |
| A 1154111115 | FLEXIBLE JOINT DISC | |
| Repalced by: A 1234110015 | ||
| A 1234110015 | FLEXIBLE JOINT DISC | |
| N 070613010024 | SCREW | |
| A 1159903940 | WASHER | |
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| A 3172060527 | COUPLING FLANGE | |
| A 3172060527 | COUPLING FLANGE | |
| N 000960012085 | SCREW | |
| A 1829900001 | SCREW | |
| N 000935012003 | NUT | |
| N 000315008006 | NUT | |
| N 000094003219 | COTTER PIN | |
| A 3179900840 | WASHER | |
| A 1869940325 | LOCK | |
| N 000935012003 | NUT | |
| N 000934008010 | NUT | |
| N 000094003219 | COTTER PIN | |
| N 912004008102 | LOCK WASHER | |
| N 912004008102 | LOCK WASHER | |
| 102 | A 1829900001 | SCREW |
| 102 | A 1829900001 | SCREW |
| 106 | A 1869940325 | LOCK |
| 106 | A 1869940325 | LOCK |
| N 000934008010 | NUT | |
| 109 | N 000934008010 | NUT |
| 109 | N 000934008010 | NUT |
| 115 | A 3172005645 | SHAFT |
| FRONT | ||
| 115 | A 3172002438 | SHAFT |
| FRONT | ||
| 115 | A 3172006345 | SHAFT |
| FRONT | ||
| 115 | A 3172002638 | SHAFT |
| FRONT | ||
| 115 | A 3172008645 | SHAFT |
| FRONT | ||
| 115 | A 3172002538 | SHAFT |
| FRONT | ||
| 115 | A 3172008145 | SHAFT |
| FRONT | ||
| 115 | A 3172002738 | SHAFT |
| FRONT | ||
| N 071412008101 | GREASE NIPPLE | |
| Repalced by: N 071412008102 | ||
| N 071412008102 | GREASE NIPPLE | |
| A 1804100331 | UNIVERSAL JOINT CROSS | |
| A 1804100331 | UNIVERSAL JOINT CROSS | |
| A 1234100131 | UNIVERSAL JOINT CROSS | |
| A 1889940534 | SNAP RING | |
| 1.45 MM | ||
| A 1889940534 | SNAP RING | |
| 1.45 MM | ||
| A 1889940034 | SNAP RING | |
| 1.5 MM | ||
| A 1889940034 | SNAP RING | |
| 1.5 MM | ||
| A 1889940134 | SNAP RING | |
| 1.55 MM | ||
| A 1889940134 | SNAP RING | |
| 1.55 MM | ||
| A 1889940234 | SNAP RING | |
| 1,6 MM | ||
| A 1889940234 | SNAP RING | |
| 1,6 MM | ||
| A 1889940334 | SNAP RING | |
| 1,65 MM | ||
| A 1889940334 | SNAP RING | |
| 1,65 MM | ||
| A 1889940434 | SNAP RING | |
| 1,7 MM | ||
| A 1889940434 | SNAP RING | |
| 1,7 MM | ||
| A 1884110044 | DRIVE FLANGE | |
| A 3094110211 | DRIVE FLANGE | |
| A 1104110094 | BALANCING PLATE | |
| 40-250 MM | ||
| A 3104100622 | INTERMEDIATE BEARING | |
| Repalced by: A 3095860141 | ||
| A 3095860141 | REPAIR KIT | |
| Repalced by: A 3094100110 | ||
| A 3104100922 | INTERMEDIATE BEARING | |
| Repalced by: A 3095860141 | ||
| A 3095860141 | REPAIR KIT | |
| Repalced by: A 3094100110 | ||
| 120 | A 3094100110 | REPAIR KIT |
| Repalced by: A 3104100822 | ||
| 120 | A 3104100822 | INTERMEDIATE BEARING |
| A 0019815925 | BALL BEARING | |
| A 0019811025 | BALL BEARING | |
| N 912009072200 | SNAP RING | |
| A 3172009345 | SHAFT | |
| A 3172009545 | SHAFT | |
| A 3172009445 | SHAFT | |
| A 3094130061 | PROTECTIVE CAP | |
| 125 | A 3194130031 | BEARING RING |
| 129 | A 3194100051 | BALL BEARING |
| N 000472062000 | LOCK RING | |
| Repalced by: A 0039945241 | ||
| A 0039945241 | LOCK | |
| N 000625446206 | GROOVED BALL BEARING | |
| Repalced by: A 0009816225 | ||
| A 0009816225 | BALL BEARING | |
| Repalced by: A 0019810925 | ||
| A 0019810925 | BALL BEARING | |
| 133 | A 3174130412 | RUBBER MOUNTING |
| 136 | A 3172060705 | BEARING BODY |
| A 3094100922 | INTERMEDIATE BEARING | |
| Repalced by: A 3094101222 | ||
| A 3094101222 | INTERMEDIATE BEARING | |
| Repalced by: A 3095860041 | ||
| A 3095860041 | REPAIR KIT | |
| Repalced by: A 3094100010 | ||
| A 3094100010 | REPAIR KIT | |
| 139 | N 000933010105 | SCREW |
| 139 | N 000933010105 | SCREW |
| 139 | N 000933010105 | SCREW |
| 141 | N 912004010102 | LOCK WASHER |
| 141 | N 912004010102 | LOCK WASHER |
| 143 | N 000934010014 | NUT |
| 143 | N 000934010014 | NUT |
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| N 913004010011 | NUT | |
| 145 | A 3172620345 | FLANGE |
| A 3094100130 | CENTERING FLANGE | |
| Repalced by: A 3094100430 | ||
| A 3094100430 | CENTERING FLANGE | |
| A 3094130061 | PROTECTIVE CAP | |
| A 3172000346 | FLANGE | |
| 148 | A 3192620226 | GROOVED NUT |
| 148 | A 3099900360 | NUT |
| A 1869900060 | NUT | |
| A 1829940043 | LOCK | |
| 152 | A 1829900001 | SCREW |
| 154 | A 1869940325 | LOCK |
| 156 | N 000934008010 | NUT |
| A 1894110015 | FLEXIBLE JOINT DISC | |
| Repalced by: A 1894110115 | ||
| A 1894110115 | FLEXIBLE JOINT DISC | |
| A 1104110071 | SCREW | |
| A 3179901140 | WASHER | |
| Repalced by: A 3179902540 | ||
| A 3179902540 | WASHER | |
| N 912004012100 | LOCK WASHER | |
| N 000934012022 | NUT | |
| 180 | A 3174300839 | SUPPORT |
| 184 | A 3175000012 | RUBBER BUFFER |
| 186 | A 3175040066 | CAP |
| 189 | N 000125013008 | WASHER |
| 191 | N 912004012100 | LOCK WASHER |
| 193 | N 000934012021 | NUT |
| RADIATOR | ||
| A 3175002203 | RADIATOR | |
| A 3175002003 | RADIATOR | |
| A 3175002903 | RADIATOR | |
| 400 | A 3175003503 | RADIATOR |
| 400 | A 3175003503 | RADIATOR |
| 400 | A 3175003503 | RADIATOR |
| 404 | A 0005000740 | VALVE |
| 407 | A 0005010080 | GASKET |
| N 000933005058 | SCREW | |
| N 912004005103 | LOCK WASHER | |
| N 000934005008 | NUT | |
| 415 | A 0005010115 | RADIATOR CAP |
| 418 | A 0005010360 | SEAL RING |
| A 0005010460 | SEAL RING | |
| 423 | A 0009880695 | SAFETY CHAIN |
| A 0005012315 | RADIATOR CAP | |
| A 0005010380 | GASKET | |
| 436 | N 000933010128 | SCREW |
| 439 | N 912004010102 | LOCK WASHER |
| 441 | N 000934010014 | NUT |
| 445 | A 3175000827 | SUPPORT |
| 449 | A 3179870214 | RUBBER STRIP |
| 20X5X700 MM | ||
| A 3179870414 | RUBBER STRIP | |
| Repalced by: A 3179870214 | ||
| 452 | A 3175000216 | AIR BAFFLE |
| 456 | N 000931008152 | SCREW |
| 459 | N 912004008102 | LOCK WASHER |
| 461 | N 000934008010 | NUT |
| 466 | A 3175000012 | RUBBER BUFFER |
| 468 | N 000125013008 | WASHER |
| 470 | N 912004012100 | LOCK WASHER |
| 472 | N 000934012021 | NUT |
| 481 | N 900331010462 | PULL ROD |
| Repalced by: N 900331010654 | ||
| 481 | N 900331010654 | PULL ROD |
| 483 | N 900331010463 | PULL ROD |
| Repalced by: N 900331010655 | ||
| 483 | N 900331010655 | PULL ROD |
| 486 | A 3275040065 | RUBBER BUFFER |
| 489 | A 3275040053 | SPACER TUBE |
| 492 | A 3209906040 | WASHER |
| 5 MM | ||
| A 3209905640 | WASHER | |
| 2.5 MM | ||
| 496 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 496 | N 009021010209 | WASHER |
| 499 | N 912004010102 | LOCK WASHER |
| 501 | N 000934010014 | NUT |

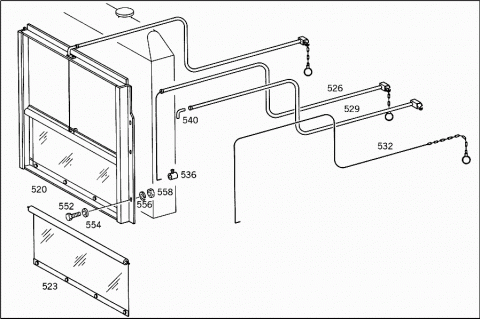

| 520 | A 0005054301 | RADIATOR SHUTTER |
| 523 | A 0005054001 | RADIATOR SHUTTER |
| 703 MM | ||
| 526 | A 0005050110 | CABLE PULL |
| 529 | A 0005051821 | GUIDE |
| 532 | A 0005051409 | CHAIN |
| 536 | A 0005050227 | FERRULE |
| 540 | A 0005051921 | GUIDE |
| 552 | N 000933006102 | SCREW |
| 554 | N 000125006421 | WASHER |
| 556 | N 912004006102 | LOCK WASHER |
| 558 | N 000934006007 | NUT |
| X XXXXXXXXXXXX | PART NAME MISSING | |

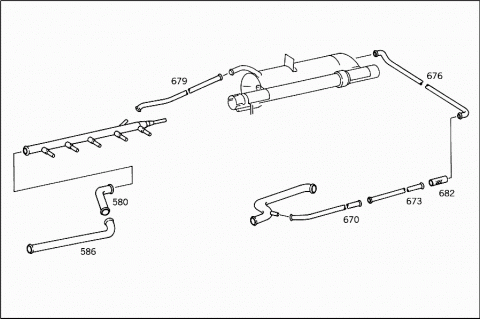

| COOLING WATER LINES | ||
| A 3175012224 | COOLING WATER PIPE | |
| 45 MM | ||
| 580 | A 3175016024 | COOLING WATER PIPE |
| 45 MM | ||
| 580 | A 3175016024 | COOLING WATER PIPE |
| 45 MM | ||
| A 3175019224 | COOLING WATER PIPE | |
| A 3175000035 | PANELLING | |
| 586 | A 3175013624 | COOLING WATER PIPE |
| 586 | A 3175013624 | COOLING WATER PIPE |
| A 3175019424 | COOLING WATER PIPE | |
| A 3175003189 | LINE | |
| A 3175003289 | LINE | |
| A 3175013724 | COOLING WATER PIPE | |
| A 3175014624 | COOLING WATER PIPE | |
| A 3175002872 | LINE | |
| A 3175002872 | LINE | |
| A 3175000089 | LINE | |
| A 3175008772 | LINE | |
| A 3175007772 | LINE | |
| A 3175002689 | LINE | |
| A 3175005572 | LINE | |
| A 3175000189 | LINE | |
| A 3175003672 | LINE | |
| 588 | A 3175009972 | LINE |
| A 3175003172 | LINE | |

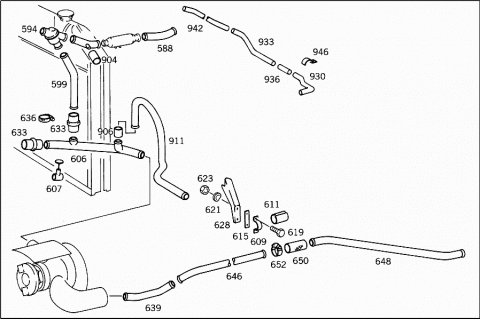

| A 3175000889 | LINE | |
| A 3175005872 | LINE | |
| A 3175000989 | LINE | |
| A 3175003772 | LINE | |
| A 3175000789 | LINE | |
| A 3175012626 | COOLING WATER PIPE | |
| A 0012031475 | THERMOSTAT ELEMENT | |
| Repalced by: A 0022030175 | ||
| 594 | A 0022030175 | THERMOSTAT ELEMENT |
| 599 | A 3172030715 | PIPE |
| A 3175003389 | LINE | |
| N 007604014101 | SCREW PLUG | |
| N 007603014405 | SEAL RING | |
| A 3172001153 | LINE | |
| Repalced by: A 3172001553 | ||
| A 3172001553 | LINE | |
| A 3172001553 | LINE | |
| A 3175008872 | LINE | |
| 606 | A 3175000289 | LINE |
| 606 | A 3175000289 | LINE |
| 607 | A 0005061864 | VALVE |
| 607 | A 0005061864 | VALVE |
| A 3175002772 | LINE | |
| A 3175002772 | LINE | |
| 609 | A 3175010120 | BRACKET |
| A 3179950510 | CLAMP | |
| N 000933012004 | SCREW | |
| N 912004012100 | LOCK WASHER | |
| 611 | A 3179972082 | HOSE |
| 615 | A 3172030084 | SHIM |
| 5 MM | ||
| A 3172030184 | SHIM | |
| 2 MM | ||
| A 3172030384 | SHIM | |
| 5 MM | ||
| A 3172030484 | SHIM | |
| 2 MM | ||
| 619 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 619 | N 304017008034 | SCREW |
| 621 | N 912004008102 | LOCK WASHER |
| 623 | N 000934008010 | NUT |
| 628 | A 3176111914 | BRACKET |
| 633 | A 3175011582 | HOSE |
| 636 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 636 | N 000000000671 | CLAMP |
| A 3175014524 | COOLING WATER PIPE | |
| 639 | A 3175013924 | COOLING WATER PIPE |
| 639 | A 3175013924 | COOLING WATER PIPE |
| A 3175019524 | COOLING WATER PIPE | |
| A 3175017024 | COOLING WATER PIPE | |
| A 3175016624 | COOLING WATER PIPE | |
| A 3155460175 | CLAMP | |
| N 000933006102 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
| 646 | A 3175014824 | COOLING WATER PIPE |
| 646 | A 3175014824 | COOLING WATER PIPE |
| A 3175019324 | COOLING WATER PIPE | |
| 648 | A 3175015024 | COOLING WATER PIPE |
| 648 | A 3175015024 | COOLING WATER PIPE |
| A 3175014924 | COOLING WATER PIPE | |
| 650 | N 900271045010 | HOSE |
| 120 MM | ||
| 652 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 652 | N 000000000671 | CLAMP |
| N 916016022202 | CLAMP | |
| N 916016022206 | CLAMP | |
| N 007971007100 | SHEET METAL SCREW | |
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| N 000933006121 | SCREW | |
| Repalced by: N 304017006020 | ||
| N 304017006020 | SCREW | |
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| N 000125006421 | WASHER | |
| N 912004008102 | LOCK WASHER | |
| N 912004006102 | LOCK WASHER | |
| N 000934008010 | NUT | |
| N 000934000607 | NUT | |
| A 3172030040 | BRACKET | |
| A 3179950010 | CLAMP | |
| 670 | A 3175063860 | PIPE |
| 670 | A 3175063860 | PIPE |
| A 3175064360 | PIPE | |
| 673 | A 3175063960 | PIPE |
| A 3175063560 | PIPE | |
| 676 | A 3175064060 | PIPE |
| 679 | A 3175063460 | PIPE |
| 682 | N 900271022010 | HOSE |
| 90 MM | ||
| N 916017025000 | CLAMP | |
| Repalced by: N 000000000668 | ||
| N 000000000668 | CLAMP | |
| N 000933008145 | SCREW | |
| N 912004008102 | LOCK WASHER | |
| N 000934008010 | NUT | |
| A 3175060860 | PIPE | |
| Repalced by: A 3175008072 | ||
| A 3175008072 | LINE | |
| A 3175008072 | LINE | |
| A 3175009172 | LINE | |
| A 3175001289 | LINE | |
| A 3175001289 | LINE | |
| 904 | N 900271012018 | HOSE |
| 90 MM | ||
| 906 | N 900271028008 | HOSE |
| 100 MM | ||
| N 916017032000 | CLAMP | |
| Repalced by: N 000000000670 | ||
| N 000000000670 | CLAMP | |
| N 916017016000 | CLAMP | |
| Repalced by: N 000000000666 | ||
| N 000000000666 | CLAMP | |
| A 3175002272 | LINE | |
| 911 | A 3175060960 | PIPE |
| 911 | A 3175060960 | PIPE |
| 911 | A 3175060960 | PIPE |
| A 3175065560 | PIPE | |
| A 3175065560 | PIPE | |
| A 3175019824 | COOLING WATER PIPE | |
| N 916016045200 | CLAMP | |
| N 000125006421 | WASHER | |
| N 000084006137 | SCREW | |
| A 3179950310 | CLAMP | |
| Repalced by: A 3179950410 | ||
| A 3179950410 | CLAMP | |
| A 3179972182 | HOSE | |
| N 000084006197 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
| N 900271045010 | HOSE | |
| 120 MM | ||
| A 3462030082 | HOSE | |
| N 916017040000 | CLAMP | |
| Repalced by: N 000000000671 | ||
| N 000000000671 | CLAMP | |
| 930 | A 3175060857 | BREATHER PIPE |
| 930 | A 3175060857 | BREATHER PIPE |
| A 3175019724 | COOLING WATER PIPE | |
| 933 | A 3175060957 | BREATHER PIPE |
| 933 | A 3175060957 | BREATHER PIPE |
| A 3175019624 | COOLING WATER PIPE | |
| A 3175012726 | COOLING WATER PIPE | |
| 936 | N 900271012018 | HOSE |
| 90 MM | ||
| N 900271015054 | HOSE | |
| 80 MM | ||
| N 916017020000 | CLAMP | |
| Repalced by: N 000000000667 | ||
| N 000000000667 | CLAMP | |
| 942 | N 900271012018 | HOSE |
| 340 MM | ||
| 942 | N 900271012018 | HOSE |
| 340 MM | ||
| N 900271012021 | HOSE | |
| N 916017016000 | CLAMP | |
| Repalced by: N 000000000666 | ||
| N 000000000666 | CLAMP | |
| N 916017040000 | CLAMP | |
| Repalced by: N 000000000671 | ||
| N 000000000671 | CLAMP | |
| 946 | A 3049951520 | CLAMP |
| A 3179950010 | CLAMP | |
| N 000933006102 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
| N 916016012201 | CLAMP | |
| N 916016045200 | CLAMP | |
| N 007981005212 | SHEET METAL SCREW | |
| N 000933008145 | SCREW | |
| N 912004008102 | LOCK WASHER | |
| N 000934008010 | NUT | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
