Transporto priemonė: O 317; VIN numerio dalis: 317245
Grupė: 57 CENTRAL LUBRICATION

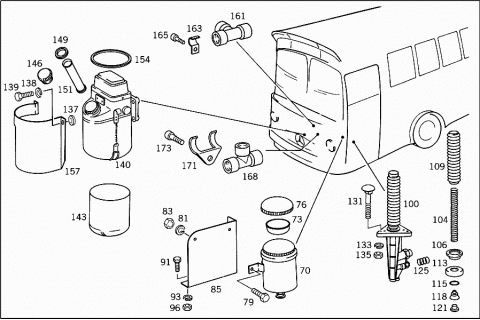

81472

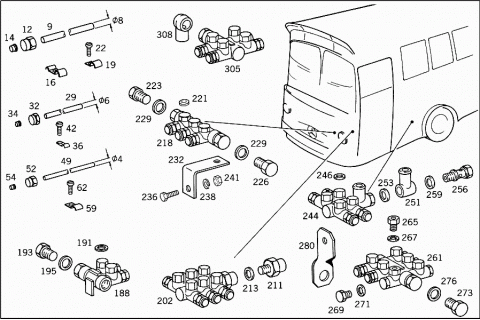

81473

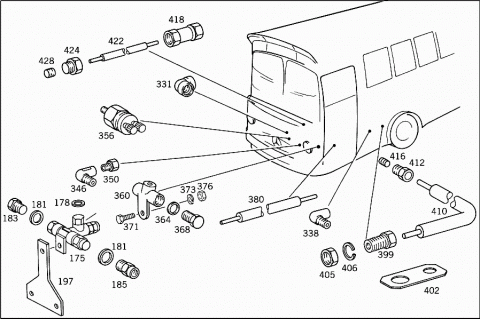

81474
# Kodas Pavadinimas
X XXXXXXXXXXXX PART NAME MISSING
HYDRAULIC SYSTEM
009 A 0005730210 LINE
8 MM
012 N 003871008103 UNION SCREW
014 N 003862008001 DOUBLE TAPER RING
016 N 071434008420 CLAMP
LINE MOUNTING
019 N 071434008100 CLAMP
LINE MOUNTING
022 N 007981004261 SHEET METAL SCREW
LINE MOUNTING
029 A 0005730110 LINE
6 MM
032 N 003871006100 UNION SCREW
Repalced by: A 0009908068
032 A 0009908068 FITTING
034 N 003862006001 DOUBLE TAPER RING
036 A 1369950920 CLAMP
LINE MOUNTING
042 N 007971004223 SHEET METAL SCREW
LINE MOUNTING
049 A 0005730101 LINE
4X0.75 MM
A 0005730201 LINE
4X2.50 MM
052 N 003871004102 UNION SCREW
054 N 003862004001 DOUBLE TAPER RING
N 071434008420 CLAMP
LINE MOUNTING
059 N 072571001000 CLAMP
LINE MOUNTING
N 071434004220 CLAMP
LINE MOUNTING
062 N 007981004261 SHEET METAL SCREW
LINE MOUNTING
070 A 0005710804 RESERVOIR
OIL
073 A 0005710120 STRAINER
076 A 0005711103 COVER
079 N 000933006102 SCREW
081 N 912004006102 LOCK WASHER
083 N 000934006007 NUT
A 3175710040 BRACKET
TO 000 571 08 04
085 A 3175710140 BRACKET
TO 000 571 08 04
N 007971005204 SHEET METAL SCREW
BRACKET TO HEATING AIR DUCT
091 N 000931006114 SCREW
Repalced by: N 304017006012
091 N 304017006012 SCREW
BRACKET TO HEATING AIR DUCT
093 N 912004006102 LOCK WASHER
BRACKET TO HEATING AIR DUCT
096 N 000934006007 NUT
BRACKET TO HEATING AIR DUCT
100 A 0005712301 PUMP
104 A 0005710911 SPRING
106 A 0005710089 SPRING RETAINER
109 A 0005710286 BOOT
113 A 0005710108 CLAMPING RING
115 A 0005710760 SEAL RING
A 0005710414 VALVE
Repalced by: A 0005710386
118 A 0005710386 BOOT
121 A 0005710189 SPRING RETAINER
A 0005711011 SPRING
TO 000 571 04 14
A 0005711211 SPRING
TO 000 571 03 86
125 A 0005711111 SPRING
131 N 000603006040 SCREW
PUMP TO SUBSTRUCTURE
133 N 912004006102 LOCK WASHER
PUMP TO SUBSTRUCTURE
135 N 000934006007 NUT
PUMP TO SUBSTRUCTURE
137 N 000125006421 WASHER
PUMP TO SUBSTRUCTURE
138 N 912004006102 LOCK WASHER
PUMP TO SUBSTRUCTURE
139 N 000931006131 SCREW
PUMP TO SUBSTRUCTURE
140 A 0001803601 OIL PUMP
12 V
A 0001803701 OIL PUMP
24 V
143 A 0005710904 RESERVOIR
146 A 0005710956 SCREW PLUG
149 A 0005710960 SEAL RING
151 A 0005710220 STRAINER
A 0005710860 SEAL RING
Repalced by: A 0005711060
154 A 0005711060 SEAL RING
157 A 3175710088 COVER PLATE
161 A 0005730325 T-FITTING
163 N 071434018600 CLAMP
T-FITTING TO SUBSTRUCTURE
165 N 007971004288 SHEET METAL SCREW
T-FITTING TO SUBSTRUCTURE
168 A 0009900070 T-FITTING
171 N 071434018600 CLAMP
T-FITTING TO SUBSTRUCTURE
173 N 007981004261 SHEET METAL SCREW
T-FITTING TO SUBSTRUCTURE
175 A 0015731920 DISTRIBUTOR
WITH 1 AIR CHAMBER
178 N 071425000400 SEAL RING
181 N 007603014405 SEAL RING
AS REQUIRED
14X18
183 A 0009975230 SCREW PLUG
185 A 0005730032 CONNECTOR
A 0015730320 DISTRIBUTOR
Repalced by: A 0015733620
188 A 0015733620 DISTRIBUTOR
WITH 2 AIR CHAMBERS
191 N 071425000400 SEAL RING
193 A 0005730171 SCREW
195 A 0005730160 SEAL RING
197 A 3175730940 BRACKET
TO 001 573 36 20
202 A 0015730220 DISTRIBUTOR
WITH 6 AIR CHAMBERS
A 3175730540 BRACKET
TO 001 573 02 20
A 0015731020 DISTRIBUTOR
WITH 7 AIR CHAMBERS
N 071425000400 SEAL RING
N 071425000400 SEAL RING
211 A 0005730354 NIPPLE
Repalced by: A 0005731632
211 A 0005731632 CONNECTOR
213 A 0005730260 SEAL RING
A 0015732020 DISTRIBUTOR
Repalced by: A 0015733820
218 A 0015733820 DISTRIBUTOR
WITH 3 AIR CHAMBERS
221 N 071425000400 SEAL RING
223 A 0005730632 CONNECTOR
226 A 0005730171 SCREW
229 A 0005730160 SEAL RING
232 A 3175730140 BRACKET
TO 001 573 38 20
236 N 000931006013 SCREW
BRACKET TO STEERING INTERMEDIATE ARM
238 N 912004006102 LOCK WASHER
241 N 000934006007 NUT
244 A 0005739720 DISTRIBUTOR
Repalced by: A 0015735720
244 A 0015735720 DISTRIBUTOR
ON THE LEFT;WITH 4 AIR CHAMBERS
246 N 071425000400 SEAL RING
251 A 0005730655 CONNECTOR
Repalced by: A 0005730629
251 A 0005730629 SWIVEL FITTING
253 N 007603014405 SEAL RING
14X18
256 A 0005730764 HOLLOW SCREW
259 A 0005730160 SEAL RING
261 A 0015730420 DISTRIBUTOR
ON THE LEFT;WITH 5 AIR CHAMBERS
N 071425000400 SEAL RING
265 A 0005731032 CONNECTOR
267 N 071425000400 SEAL RING
269 A 0005710156 SCREW PLUG
271 N 071425000400 SEAL RING
273 A 0005730171 SCREW
276 A 0005730260 SEAL RING
A 3175730040 BRACKET
TO 001 573 04 20
280 A 3175730340 BRACKET
TO 001 573 04 20
A 0005739620 DISTRIBUTOR
Repalced by: A 0015735420
A 0015735420 DISTRIBUTOR
ON THE RIGHT;WITH 4 AIR CHAMBERS
N 071425000400 SEAL RING
A 0005730655 CONNECTOR
Repalced by: A 0005730629
A 0005730629 SWIVEL FITTING
N 007603014405 SEAL RING
14X18
A 0005730764 HOLLOW SCREW
A 0005730160 SEAL RING
A 0015730520 DISTRIBUTOR
ON THE RIGHT;WITH 5 AIR CHAMBERS
N 071425000400 SEAL RING
A 0005731032 CONNECTOR
N 071425000400 SEAL RING
A 0005710156 SCREW PLUG
N 071425000400 SEAL RING
A 0005730171 SCREW
A 0005730260 SEAL RING
A 3175730040 BRACKET
TO 000 573 96 20
A 3175730440 BRACKET
TO 000 573 96 20
305 A 0015731820 DISTRIBUTOR
Repalced by: A 0015733720
305 A 0015733720 DISTRIBUTOR
WITH 4 AIR CHAMBERS
N 071425000400 SEAL RING
308 A 0005730930 ELBOW
Repalced by: A 0005730629
308 A 0005730629 SWIVEL FITTING
A 3175730840 BRACKET
TO 001 573 18 20
A 0015732120 DISTRIBUTOR
Repalced by: A 0015733920
A 0015733920 DISTRIBUTOR
N 071425000400 SEAL RING
A 0005731030 ELBOW
N 914126006025 SCREW
Repalced by: N 910105006005
N 910105006005 SCREW
Repalced by: N 000000001479
N 000000001479 SCREW
DISTRIBUTOR TO BRACKET
N 912004006102 LOCK WASHER
DISTRIBUTOR TO BRACKET
N 000934006007 NUT
DISTRIBUTOR TO BRACKET
A 0015730320 DISTRIBUTOR
Repalced by: A 0015733620
A 0015733620 DISTRIBUTOR
WITH 2 AIR CHAMBERS
N 071425000400 SEAL RING
A 0005730171 SCREW
A 0005730160 SEAL RING
A 3175730640 BRACKET
N 000933006130 SCREW
DISTRIBUTOR TO BRACKET
N 912004006102 LOCK WASHER
DISTRIBUTOR TO BRACKET
N 000934006007 NUT
DISTRIBUTOR TO BRACKET
331 A 0005730430 ELBOW
BETWEEN PUMP AND T-FITTING
338 A 0005730530 ELBOW
Repalced by: A 0005731230
338 A 0005731230 ELBOW
Repalced by: A 0005733530
338 A 0005733530 ELBOW
FRONT DRAG LINK BALL HEAD
338 A 0005733530 ELBOW
BRAKE-VALVE-CONTROL INTERMEDIATE SHAFT
A 0005730830 ELBOW
HAND BRAKE SHAFT BEARING, RIGHT
346 A 0005730630 ELBOW
ACCELERATOR PEDAL
346 A 0005730630 ELBOW
HAND BRAKE SHAFT BEARING, LEFT
346 A 0005730630 ELBOW
HAND BRAKE LEVER
346 A 0005730630 ELBOW
STEERING KNUCKLE,BOTTOM LEFT AND RIGHT
A 0005731132 CONNECTOR
M 6
350 A 0005730432 CONNECTOR
M 8
A 0005730532 CONNECTOR
M 10
A 0005452209 SWITCH
OIL PRESSURE
356 A 0005429517 SENDER UNIT
OIL PRESSURE
360 A 1815730025 T-FITTING
364 N 007603014405 SEAL RING
368 A 0009975230 SCREW PLUG
371 N 000931006127 SCREW
T-FITTING TO SUBSTRUCTURE
373 N 912004006102 LOCK WASHER
T-FITTING TO SUBSTRUCTURE
376 N 000934006007 NUT
T-FITTING TO SUBSTRUCTURE
380 N 071435004000 HOSE
N 071435004001 HOSE
FROM DISTRIBUTOR AT STEERING INTERMEDIATE ARM TO FRONT DRAG LINK
A 0005730730 ELBOW
DRAG LINK, FRONT
N 900262005100 LOOM TIE
LINE TO DRAG LINK,FRONT
N 900263005018 STRAP
LINE TO DRAG LINK,FRONT
399 A 0005730332 CONNECTOR
402 A 3175730240 BRACKET
TO 000 573 03 32
405 N 000936016002 NUT
406 N 912004016101 LOCK WASHER
410 N 071435006001 HOSE
412 N 003871006100 UNION SCREW
Repalced by: A 0009908068
412 A 0009908068 FITTING
416 N 003862006001 DOUBLE TAPER RING
418 A 0005730732 CONNECTOR
BETWEEN LINES AND HOSE
422 N 071435006002 HOSE
424 N 003871006100 UNION SCREW
Repalced by: A 0009908068
424 A 0009908068 FITTING
428 N 003862006001 DOUBLE TAPER RING
