Transporto priemonė: O 317; VIN numerio dalis: 317245

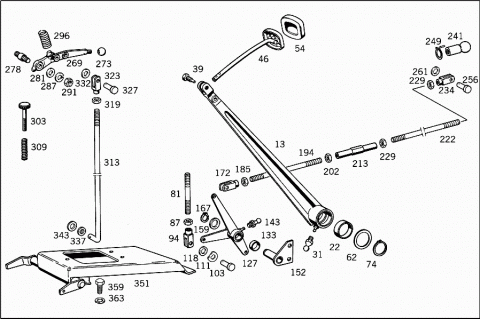

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 013 | A 3173000516 | ACCELERATOR PEDAL |
| ACCELERATOR PEDAL CONTROL | ||
| A 3173010150 | BUSHING | |
| Repalced by: A 3124272350 | ||
| A 3173000004 | ACCELERATOR PEDAL | |
| ACCELERATOR PEDAL CONTROL | ||
| 022 | A 3124272350 | BUSHING |
| ACCELERATOR PEDAL BEARING | ||
| 031 | N 071412010100 | GREASE NIPPLE |
| ACCELERATOR PEDAL BEARING | ||
| 039 | A 3209900015 | SCREW |
| ACCELERATOR PEDAL | ||
| 046 | A 3173000202 | PLATE |
| ACCELERATOR PEDAL | ||
| 054 | A 3203015082 | PAD |
| ACCELERATOR PEDAL | ||
| 062 | N 000988040001 | FITTED WASHER |
| ACCELERATOR PEDAL | ||
| 074 | N 000471040002 | LOCK RING |
| ACCELERATOR PEDAL | ||
| A 3172900419 | BEARING BRACKET | |
| Repalced by: A 3172901419 | ||
| A 3172901419 | BEARING BRACKET | |
| N 000470028000 | EXPANSION PLUG | |
| N 000933010164 | SCREW | |
| N 912004010102 | LOCK WASHER | |
| N 000934010014 | NUT | |
| A 3173001215 | ROD | |
| Repalced by: N 900331008261 | ||
| 081 | N 900331008419 | PULL ROD |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| M 8,200 MM | ||
| N 900331006619 | PULL ROD | |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| M6,1000 MM | ||
| N 900331006617 | PULL ROD | |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| M 6,600 MM | ||
| N 900331006335 | PULL ROD | |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| M 6,1000 MM | ||
| 087 | N 000934008010 | NUT |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| N 000934006007 | NUT | |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| 094 | N 071752008003 | YOKE |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| A 3073010022 | YOKE | |
| 103 | N 001434008038 | PIN |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| N 001434006051 | PIN | |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| 111 | N 000137008204 | SPRING WASHER |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| 118 | N 000433008406 | WASHER |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| N 000125006421 | WASHER | |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| N 000094002059 | COTTER PIN | |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| N 000094001617 | COTTER PIN | |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| A 3173000425 | LEVER | |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| 127 | A 3173001325 | LEVER |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| 133 | A 3173010250 | BUSHING |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| 143 | N 071412010100 | GREASE NIPPLE |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| A 3173001425 | LEVER | |
| 152 | A 3173000236 | BEARING BRACKET |
| CONTROL LEVER | ||
| N 000933008031 | SCREW | |
| Repalced by: A 1249902201 | ||
| A 1249902201 | SCREW | |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| M 8X18 | ||
| N 912004008102 | LOCK WASHER | |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| N 000934008010 | NUT | |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 159 | N 000988018004 | FITTED WASHER |
| CONTROL LEVER | ||
| 167 | N 000471018000 | LOCK RING |
| CONTROL LEVER | ||
| A 3173000144 | INTERMEDIATE SHAFT | |
| I | ||
| A 3229920101 | BUSHING | |
| A 3023000340 | BRACKET | |
| A 3229920101 | BUSHING | |
| A 3173000540 | BRACKET | |
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| N 912004008102 | LOCK WASHER | |
| N 000934008010 | NUT | |
| N 006888005012 | WOODRUFF KEY | |
| N 000433015005 | WASHER | |
| N 000471014000 | LOCK RING | |
| A 3073010022 | YOKE | |
| N 000934006007 | NUT | |
| N 001434006051 | PIN | |
| N 000125006421 | WASHER | |
| N 000094001617 | COTTER PIN | |
| N 900331006621 | PULL ROD | |
| FROM CONTROL SHAFT I TO CONTRO SHAFT II | ||
| M 6,1500 MM | ||
| A 3173010319 | SHAFT | |
| II | ||
| A 3173010431 | LEVER | |
| RIGHT | ||
| A 3173010531 | LEVER | |
| LEFT | ||
| N 000931008244 | SCREW | |
| N 000934008010 | NUT | |
| N 000433008406 | WASHER | |
| N 900331006630 | PULL ROD | |
| FROM CONTROL SHAFT II TO TURNBUCKLE NUT | ||
| M 6,400 MM | ||
| 172 | A 3073010022 | YOKE |
| ACCELERAT0R CONTROL LINKAGE | ||
| 185 | N 000934006007 | NUT |
| ACCELERAT0R CONTROL LINKAGE | ||
| 194 | N 900331006633 | PULL ROD |
| ACCELERAT0R CONTROL LINKAGE | ||
| M 6,2700 MM | ||
| 194 | N 900331006052 | PULL ROD |
| ACCELERAT0R CONTROL LINKAGE | ||
| M 6,2100 MM | ||
| 202 | N 000934006012 | NUT |
| ACCELERAT0R CONTROL LINKAGE | ||
| 202 | N 000934006012 | NUT |
| 213 | N 900333006001 | TURNBUCKLE |
| ACCELERAT0R CONTROL LINKAGE | ||
| N 900331006038 | PULL ROD | |
| Repalced by: N 900331006317 | ||
| 222 | N 900331006621 | PULL ROD |
| ACCELERAT0R CONTROL LINKAGE | ||
| M 6,1500 MM | ||
| N 900331006619 | PULL ROD | |
| FROM TURNBUCKLE NUT TO ENGINE | ||
| M 6,1000 MM | ||
| N 900331006617 | PULL ROD | |
| FROM TURNBUCKLE NUT TO ENGINE | ||
| M 6,600 MM | ||
| 229 | N 000934006007 | NUT |
| ACCELERAT0R CONTROL LINKAGE | ||
| 234 | A 3073010022 | YOKE |
| ACCELERAT0R CONTROL LINKAGE | ||
| 241 | N 071805010204 | BALL SOCKET |
| ACCELERAT0R CONTROL LINKAGE | ||
| N 071805010302 | SNAP RING | |
| ACCELERAT0R CONTROL LINKAGE | ||
| 249 | N 071805010403 | SECURING CLIP |
| ACCELERAT0R CONTROL LINKAGE | ||
| 256 | A 3059910204 | PIN |
| ACCELERAT0R CONTROL LINKAGE | ||
| 256 | A 3059910204 | PIN |
| ACCELERAT0R CONTROL LINKAGE | ||
| 261 | N 000125006421 | WASHER |
| ACCELERAT0R CONTROL LINKAGE | ||
| 261 | N 000125006421 | WASHER |
| ACCELERAT0R CONTROL LINKAGE | ||
| N 000094001617 | COTTER PIN | |
| ACCELERAT0R CONTROL LINKAGE | ||
| N 000094001617 | COTTER PIN | |
| ACCELERAT0R CONTROL LINKAGE | ||
| A 3173003115 | ROD | |
| FROM ENGINE TO TRANSMISSION | ||
| N 000934006007 | NUT | |
| N 071805010204 | BALL SOCKET | |
| N 071805010403 | SECURING CLIP | |
| N 001479006001 | TURNBUCKLE | |
| N 900331006629 | PULL ROD | |
| N 000934006012 | NUT | |
| 269 | A 3203020514 | LEVER |
| MANUAL CONTROL AND SHUT-OFF DEVICE | ||
| 273 | A 1534760088 | HANDLE |
| MANUAL CONTROL AND SHUT-OFF DEVICE | ||
| 278 | A 3209900005 | STUD |
| MANUAL CONTROL AND SHUT-OFF DEVICE | ||
| 281 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 281 | N 000125008443 | WASHER |
| MANUAL CONTROL AND SHUT-OFF DEVICE | ||
| 287 | N 912004008102 | LOCK WASHER |
| MANUAL CONTROL AND SHUT-OFF DEVICE | ||
| 291 | N 000934008010 | NUT |
| MANUAL CONTROL AND SHUT-OFF DEVICE | ||
| 296 | A 3209930301 | SPRING |
| MANUAL CONTROL AND SHUT-OFF DEVICE | ||
| 303 | A 3173000010 | KNURLED HEAD SCREW |
| MANUAL CONTROL AND SHUT-OFF DEVICE | ||
| 309 | A 1829930601 | SPRING |
| MANUAL CONTROL AND SHUT-OFF DEVICE | ||
| 313 | A 3129960325 | ROD |
| Repalced by: A 3179961125 | ||
| 313 | A 3179961125 | ROD |
| LINK TO PEDAL PLATE | ||
| 319 | N 000934006007 | NUT |
| LINK TO PEDAL PLATE | ||
| 323 | A 3073010022 | YOKE |
| LINK TO PEDAL PLATE | ||
| 327 | A 3059910204 | PIN |
| LINK TO PEDAL PLATE | ||
| 332 | N 000125006421 | WASHER |
| LINK TO PEDAL PLATE | ||
| N 000094001617 | COTTER PIN | |
| LINK TO PEDAL PLATE | ||
| 337 | N 900056006400 | COUNTERSUNK WASHER |
| LINK TO PEDAL PLATE | ||
| 343 | N 000125006421 | WASHER |
| LINK TO PEDAL PLATE | ||
| N 000094002059 | COTTER PIN | |
| LINK TO PEDAL PLATE | ||
| A 3172901231 | BEARING | |
| SERVICE BRAKE VALVE | ||
| 351 | A 3172902231 | BEARING |
| SERVICE BRAKE VALVE | ||
| 351 | A 3172902431 | BEARING |
| SERVICE BRAKE VALVE | ||
| A 3172902631 | BEARING | |
| SERVICE BRAKE VALVE | ||
| N 000933010105 | SCREW | |
| GUIDE PLATE TO SUBSTRUCTURE | ||
| N 912004010102 | LOCK WASHER | |
| GUIDE PLATE TO SUBSTRUCTURE | ||
| N 000934010014 | NUT | |
| GUIDE PLATE TO SUBSTRUCTURE | ||
| 359 | N 000933006102 | SCREW |
| GUIDE PLATE TO SUBSTRUCTURE | ||
| 363 | N 912004006102 | LOCK WASHER |
| GUIDE PLATE TO SUBSTRUCTURE | ||
