Transporto priemonė: O 317; VIN numerio dalis: 317245

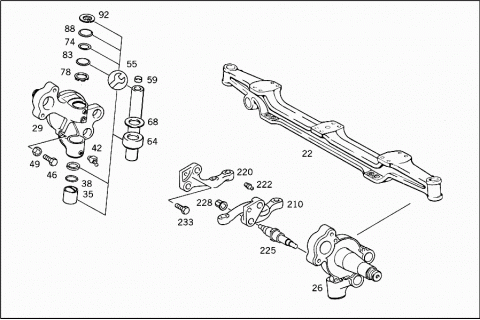

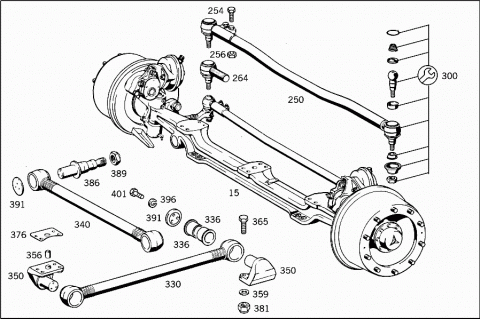

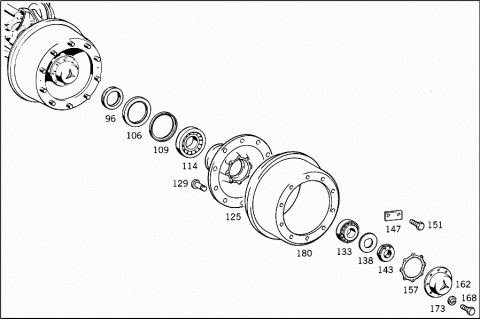

Grupė: 33 FRONT AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| 015 | A 3173304000 | FRONT AXLE |
| 015 | A 3173304100 | FRONT AXLE |
| 022 | A 3173310301 | FRONT AXLE BEAM |
| Repalced by: A 3173310501 | ||
| 022 | A 3173310501 | FRONT AXLE BEAM |
| 022 | A 3173310601 | FRONT AXLE BEAM |
| 026 | A 3053300620 | STEERING KNUCKLE |
| Repalced by: A 3053320201 | ||
| 026 | A 3053320201 | STEERING KNUCKLE |
| LEFT | ||
| 029 | A 3053300920 | STEERING KNUCKLE |
| Repalced by: A 3053320202 | ||
| 029 | A 3053320202 | STEERING KNUCKLE |
| RIGHT | ||
| 035 | A 3173320348 | BUSHING |
| STANDARD | ||
| 035 | A 3173320648 | BUSHING |
| STANDARD SIZE I | ||
| 035 | A 3053320648 | BUSHING |
| STANDARD | ||
| 035 | A 3053320748 | BUSHING |
| REPAIR SIZE I | ||
| 038 | A 0079972945 | SEAL RING |
| 042 | N 071412010200 | GREASE NIPPLE |
| 046 | N 000961014016 | SCREW |
| 049 | N 000934014009 | NUT |
| 055 | A 3553300919 | KING PIN |
| STANDARD | ||
| 450 MM | ||
| 055 | A 3023300319 | KING PIN |
| STANDARD | ||
| TO 317 331 05 01,317 331 06 01 | ||
| 055 | A 3553301019 | KING PIN |
| STANDARD SIZE I | ||
| 45.3 MM | ||
| 055 | A 3553301319 | KING PIN |
| STANDARD SIZE I | ||
| 45.3 MM | ||
| 055 | A 3023300419 | KING PIN |
| STANDARD SIZE I | ||
| TO 317 331 05 01,317 331 06 01 | ||
| 055 | A 3553301119 | KING PIN |
| REPAIR SIZE I | ||
| 45.6 MM | ||
| 055 | A 3553301419 | KING PIN |
| REPAIR SIZE I | ||
| 45.6 MM | ||
| 055 | A 3023300519 | KING PIN |
| REPAIR SIZE I | ||
| TO 317 331 05 01,317 331 06 01 | ||
| 059 | N 000443028001 | EXPANSION PLUG |
| 064 | A 0009818318 | ROLLER BEARING |
| STANDARD | ||
| 064 | A 0009818418 | ROLLER BEARING |
| REPAIR SIZE I | ||
| 064 | A 0009818518 | ROLLER BEARING |
| REPAIR SIZE II | ||
| 068 | A 3173321952 | SPACER WASHER |
| 0.7 MM | ||
| 068 | A 3173321852 | SPACER WASHER |
| 0.8 MM | ||
| 068 | A 3173321752 | SPACER WASHER |
| 0.9 MM | ||
| 068 | A 3173321252 | SPACER WASHER |
| 1.0 MM | ||
| 068 | A 3173321652 | SPACER WASHER |
| 1.1 MM | ||
| 068 | A 3173321452 | SPACER WASHER |
| 1.3 MM | ||
| 068 | A 3173320652 | SPACER WASHER |
| 1.9 MM | ||
| 068 | A 3173320852 | SPACER WASHER |
| 2.1 MM | ||
| 068 | A 3173320952 | SPACER WASHER |
| 2.2 MM | ||
| 074 | A 3179970145 | SEAL RING |
| 4 MM | ||
| 074 | A 3039970145 | SEAL RING |
| 4 MM | ||
| 078 | A 3173320051 | SPACER RING |
| 083 | A 3173320229 | SEALING CAP |
| INSIDE | ||
| 083 | A 3053320429 | SEALING CAP |
| INSIDE | ||
| 088 | A 3173320329 | SEALING CAP |
| OUTSIDE | ||
| 088 | A 3053320529 | SEALING CAP |
| OUTSIDE | ||
| 092 | N 000472055000 | LOCK RING |
| 092 | N 000472050000 | LOCK RING |
| 096 | A 3173340115 | RING |
| LEFT | ||
| 096 | A 3173340215 | RING |
| RIGHT | ||
| 106 | A 0019970646 | SEAL RING |
| 109 | A 3173340251 | SPACER RING |
| 114 | A 0019817505 | TAPERED ROLLER BEARING |
| 114 | A 0019817705 | TAPERED ROLLER BEARING |
| 125 | A 3173340701 | WHEEL HUB |
| 129 | A 3894010071 | WHEEL MOUNTING BOLT |
| 133 | A 0019817405 | TAPERED ROLLER BEARING |
| 133 | A 0019817605 | TAPERED ROLLER BEARING |
| 133 | A 0019812905 | TAPERED ROLLER BEARING |
| 133 | A 0069819905 | TAPERED ROLLER BEARING |
| 138 | A 3173320062 | THRUST WASHER |
| 143 | A 3179900051 | NUT |
| FRONT WHEEL HUB TO STEERING KNUCKLE | ||
| 147 | A 3049940430 | LOCK |
| FRONT WHEEL HUB TO STEERING KNUCKLE | ||
| 151 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 151 | N 304017008021 | SCREW |
| FRONT WHEEL HUB TO STEERING KNUCKLE | ||
| 157 | A 3223560179 | GASKET |
| 162 | A 3173340225 | HUB CAP |
| 168 | N 000933008015 | SCREW |
| 173 | N 912004008102 | LOCK WASHER |
| 180 | A 3174210101 | BRAKE DRUM |
| 180 | A 3174210401 | BRAKE DRUM |
| 210 | A 3173380407 | STEERING ARM |
| LEFT | ||
| 220 | A 3173380308 | STEERING ARM |
| RIGHT | ||
| 220 | A 3173380306 | STEERING ARM |
| RIGHT | ||
| 222 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 222 | N 071412008102 | GREASE NIPPLE |
| 225 | A 3174210318 | PIVOT PIN |
| STEERING ARM TO STEERING KNUCKLE | ||
| 228 | A 3179900155 | NUT |
| STEERING ARM TO STEERING KNUCKLE | ||
| 233 | N 000960018011 | SCREW |
| STEERING ARM TO STEERING KNUCKLE | ||
| 250 | A 3023301603 | TIE ROD |
| EHRENREICH | ||
| 250 | A 3173300903 | TIE ROD |
| A 0003382445 | CLAMP | |
| 254 | N 000960012246 | SCREW |
| Repalced by: N 000960012353 | ||
| 254 | N 000960012353 | SCREW |
| 256 | N 913004012008 | NUT |
| 264 | A 0013300135 | JOINT |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 268 | A 0003380425 | BALL PIN |
| 274 | A 0003380882 | RUBBER RING |
| BOTTOM | ||
| 278 | A 0003381082 | RUBBER RING |
| TOP | ||
| 288 | A 0003301085 | BOOT |
| 295 | N 000937020001 | NUT |
| 300 | A 0005861033 | REPAIR KIT |
| TIE ROD | ||
| 300 | A 0005861133 | REPAIR KIT |
| TIE ROD | ||
| 300 | A 0005861333 | REPAIR KIT |
| TIE ROD | ||
| 300 | A 0005861233 | REPAIR KIT |
| TIE ROD | ||
| 330 | A 3173300211 | THRUST ARM |
| 336 | A 3173331164 | RUBBER RING |
| 340 | A 3173300411 | THRUST ARM |
| Repalced by: A 3573304211 | ||
| 340 | A 3573304211 | THRUST ARM |
| A 3173331164 | RUBBER RING | |
| 350 | A 3173300213 | BEARING BRACKET |
| Repalced by: A 3073300013 | ||
| 350 | A 3073300013 | BEARING BRACKET |
| 356 | A 3173330174 | PIN |
| 359 | A 3179901340 | WASHER |
| 1.0 MM | ||
| 359 | A 3179901440 | WASHER |
| 2.0 MM | ||
| 359 | A 3179901540 | WASHER |
| 3.0 MM | ||
| 365 | N 000960018020 | SCREW |
| M 18X72 | ||
| 365 | N 000960018142 | SCREW |
| M 18X65 | ||
| 365 | N 000960018020 | SCREW |
| M 18X145 | ||
| 376 | A 3223330184 | SHIM |
| 1.0 MM | ||
| 376 | A 3223330084 | SHIM |
| 2.5 MM | ||
| 381 | N 000935018000 | NUT |
| 381 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 381 | N 910113018004 | NUT |
| 386 | A 3073330030 | PIN |
| 389 | N 000937040001 | NUT |
| 391 | A 3173330162 | THRUST WASHER |
| 396 | N 912004012100 | LOCK WASHER |
| 401 | A 3179900014 | SCREW |
| M 12X1.5X40 | ||
| 401 | A 3079900014 | SCREW |
| M 12X1.5X50 | ||
