Transporto priemonė: O 317 FH: 317.209; VIN numerio dalis: 317209
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 3174600901 | STEERING BOX ASSEMBLY |
| Repalced by: A 3174601001 | ||
| 004 | A 3174601001 | STEERING BOX ASSEMBLY |

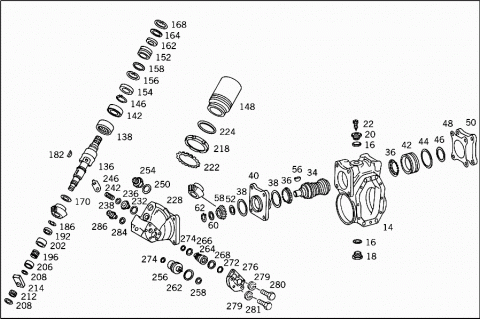

| 014 | A 0004612301 | BOX |
| 016 | N 007603026100 | SEAL RING |
| 018 | A 0009972430 | SCREW PLUG |
| 020 | A 0009972530 | SCREW PLUG |
| 022 | A 0009900015 | SCREW |
| 024 | A 0009815910 | NEEDLE BEARING |
| 45X55X30 MM | ||
| 026 | A 0004612250 | BUSHING |
| 028 | A 0009812810 | NEEDLE BEARING |
| 45X55X20 MM | ||
| 030 | A 0019970640 | SEAL RING |
| 032 | N 000472060000 | LOCK RING |

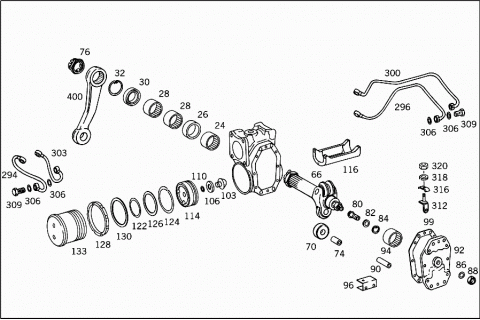

| 034 | A 0004620404 | STEERING WORM |
| 036 | A 3049810084 | CAGE |
| 038 | A 0009870746 | SEALING CORD |
| 040 | A 0009810180 | OUTER RACE |
| 042 | A 3049810080 | OUTER RACE |
| 044 | A 0009870946 | SEALING CORD |
| A 0009871046 | SEALING CORD | |
| Repalced by: A 0119973645 | ||
| 046 | A 0119973645 | SEAL RING |
| 048 | A 0004614152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 050 | A 0004611405 | COVER |
| N 000137012203 | SPRING WASHER | |
| N 000933012056 | SCREW | |
| Repalced by: N 304017012020 | ||
| N 304017012020 | SCREW | |
| 052 | A 0004621252 | SPACER WASHER |
| AS REQUIRED | ||
| 1.40 MM | ||
| 052 | A 0004621452 | SPACER WASHER |
| AS REQUIRED | ||
| 1.60 MM | ||
| 052 | A 0004621852 | SPACER WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| 056 | N 006888008002 | WOODRUFF KEY |
| A 0004620510 | WORM GEAR | |
| A 0004620810 | WORM GEAR | |
| NUMBER OF TEETH: | ||
| 17,21 | ||
| 058 | A 0004620710 | WORM GEAR |
| NUMBER OF TEETH: | ||
| 15-23 | ||
| 060 | A 0004622552 | SPACER WASHER |
| AS REQUIRED | ||
| 1.60 MM | ||
| 060 | A 0004622652 | SPACER WASHER |
| AS REQUIRED | ||
| 1.70 MM | ||
| 062 | N 000471024000 | LOCK RING |
| 066 | A 0004620712 | STEERG. WORM SECTOR SHAFT |
| 070 | A 0004620018 | ROLLER |
| A 3049810087 | NEEDLE | |
| 074 | A 0004620016 | PIN |
| 076 | N 000937035001 | NUT |
| N 000094006013 | COTTER PIN | |
| 080 | A 0009901177 | SCREW |
| 082 | A 0004623352 | SPACER WASHER |
| AS REQUIRED | ||
| 2.30 MM | ||
| 084 | N 000472028000 | LOCK RING |
| 086 | A 0009871146 | SEALING CORD |
| 088 | N 000936016003 | NUT |
| 090 | A 0009970410 | PIN |
| N 000939010007 | STUD BOLT | |
| 092 | A 0004610905 | COVER |
| 094 | A 0009812810 | NEEDLE BEARING |
| 096 | A 0004620015 | SLIDE |
| N 000137006204 | SPRING WASHER | |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| 099 | A 0004611579 | GASKET |
| N 000137010100 | SPRING WASHER | |
| COVER TO BOX | ||
| N 000931010034 | SCREW | |
| COVER TO BOX | ||
| N 000931010424 | SCREW | |
| COVER TO BOX | ||
| N 000934010014 | NUT | |
| COVER TO BOX | ||
| 103 | A 0004620017 | CONICAL SLEEVE |
| 106 | A 0004624252 | SPACER WASHER |
| AS REQUIRED | ||
| 4.94 MM | ||
| 106 | A 0004624352 | SPACER WASHER |
| AS REQUIRED | ||
| 4.97 MM | ||
| 106 | A 0004624452 | SPACER WASHER |
| AS REQUIRED | ||
| 5.00 MM | ||
| 106 | A 0004624552 | SPACER WASHER |
| AS REQUIRED | ||
| 5.03 MM | ||
| 110 | A 0009871146 | SEALING CORD |
| A 0004620083 | PISTON | |
| Repalced by: A 0004620283 | ||
| A 0004620183 | PISTON | |
| Repalced by: A 0004620283 | ||
| A 0004620283 | PISTON | |
| 114 | A 0004620483 | PISTON |
| 116 | A 0004620098 | CONNECTOR |
| N 007984008013 | SCREW | |
| TO 000 462 00 83,000 462 01 83 | ||
| A 0004628152 | SPACER WASHER | |
| TO 000 462 02 83,000 462 04 83 | ||
| N 000933008146 | SCREW | |
| TO 000 462 02 83,000 462 04 83 | ||
| 122 | A 0009941851 | LOCK |
| TO 000 462 00 83,000 462 01 83 | ||
| 124 | A 0004620160 | SEAL RING |
| 126 | A 0004620065 | RING |
| 128 | A 0004620226 | NUT |
| 130 | A 0009871246 | SEALING CORD |
| 133 | A 0004610003 | CYLINDER |
| A 0004620501 | STEERING SHAFT | |
| 136 | A 0004620001 | STEERING SHAFT |
| 138 | A 0009812910 | NEEDLE BEARING |
| 142 | N 000625506007 | GROOVED BALL BEARING |
| 146 | N 000471035000 | LOCK RING |
| 148 | A 0004620045 | FLANGE |
| 152 | A 0004620233 | LOCK RING |
| 154 | A 0029972446 | SEAL RING |
| 156 | N 000472047000 | LOCK RING |
| 158 | A 0009871046 | SEALING CORD |
| Repalced by: A 0119973645 | ||
| 158 | A 0119973645 | SEAL RING |
| 162 | A 0004620165 | RING |
| 164 | A 0004624952 | SPACER WASHER |
| AS REQUIRED | ||
| 1.20 MM | ||
| 164 | A 0004625152 | SPACER WASHER |
| AS REQUIRED | ||
| 1.40 MM | ||
| 168 | N 000472062000 | LOCK RING |
| Repalced by: A 0039945241 | ||
| 168 | A 0039945241 | LOCK |
| 170 | A 0004626252 | SPACER WASHER |
| AS REQUIRED | ||
| 3.50 MM | ||
| 182 | N 006888008002 | WOODRUFF KEY |
| A 0004620410 | WORM GEAR | |
| A 0004620053 | SPACER TUBE | |
| 186 | A 0004620194 | SNAP RING |
| 192 | A 0004626452 | SPACER WASHER |
| AS REQUIRED | ||
| 3.60 MM | ||
| 196 | A 0009813010 | NEEDLE BEARING |
| 202 | A 0004620118 | ROLLER |
| 206 | A 0004620153 | SPACER TUBE |
| 208 | A 0004627952 | SPACER WASHER |
| AS REQUIRED | ||
| 2.80 MM | ||
| 212 | A 0009813110 | NEEDLE BEARING |
| 214 | A 0004620036 | LEVER |
| 218 | A 0004620326 | NUT |
| 222 | A 0004620373 | LOCK |
| 224 | A 0009870946 | SEALING CORD |
| 228 | A 0004610104 | BOX |
| 232 | A 0009871346 | SEALING CORD |
| 236 | A 0009970016 | THREADED CHUCK |
| 238 | A 0009871446 | SEALING CORD |
| 242 | A 0009900977 | SCREW |
| 246 | A 0004620473 | LOCK |
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| N 000933008212 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| 250 | N 007603026100 | SEAL RING |
| 254 | A 0009976172 | FITTING |
| 256 | A 0004610082 | VALVE |
| 258 | A 0009871346 | SEALING CORD |
| 262 | A 0009871546 | SEALING CORD |
| 264 | A 0004610182 | VALVE |
| N 000471016001 | LOCK RING | |
| Repalced by: A 0079942041 | ||
| A 0079942041 | LOCK | |
| 266 | A 0009871646 | SEALING CORD |
| 268 | A 0009871746 | SEALING CORD |
| 272 | A 0009871346 | SEALING CORD |
| 274 | A 0009871846 | SEALING CORD |
| 276 | A 0004610046 | COVER |
| 279 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 279 | N 000137008212 | SPRING WASHER |
| 280 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 280 | N 304017008027 | SCREW |
| 281 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 281 | N 304017008034 | SCREW |
| 284 | N 007603016401 | SEAL RING |
| 286 | N 007627010001 | SCREW FITTING |
| N 912004012100 | LOCK WASHER | |
| N 000931012018 | SCREW | |
| 294 | A 0004610824 | LINE |
| LEFT | ||
| 296 | A 0004610924 | LINE |
| RIGHT | ||
| 300 | A 0004611024 | LINE |
| 303 | A 0004611124 | LINE |
| 306 | A 0009871946 | SEALING CORD |
| 309 | A 0009900863 | HOLLOW SCREW |
| 312 | A 0004610089 | RETAINING PLATE |
| 316 | A 0009950820 | CLAMP |
| 318 | N 000137006204 | SPRING WASHER |
| 320 | N 000934006007 | NUT |

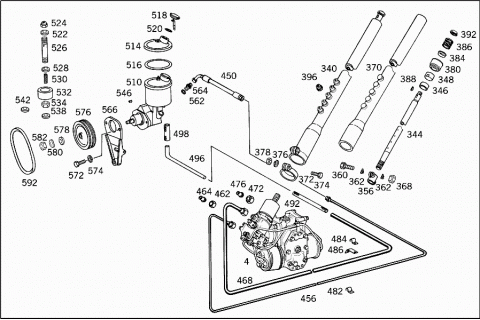

| 340 | A 3174600009 | STEERING SHAFT |
| Repalced by: A 3174600109 | ||
| 340 | A 3174600109 | STEERING SHAFT |
| 344 | A 0004620401 | STEERING SHAFT |
| Repalced by: A 0004622101 | ||
| 344 | A 0004622101 | STEERING SHAFT |
| 346 | A 0004621750 | BUSHING |
| 348 | A 0004620028 | BEARING RING |
| A 0004620078 | COUPLING COLLAR | |
| 356 | A 0004620178 | COUPLING COLLAR |
| 360 | A 0009900614 | SCREW |
| TO 000 990 06 14 | ||
| 362 | A 0009941215 | LOCK |
| N 000934008020 | NUT | |
| A 0009902855 | NUT | |
| N 000094002008 | COTTER PIN | |
| 368 | A 0019902951 | NUT |
| 370 | A 0004622720 | STEER.COLUMN JACKET TUBE |
| 372 | A 0009950644 | CLAMP |
| 374 | N 000931010331 | SCREW |
| 376 | N 912004010102 | LOCK WASHER |
| 378 | N 000934010014 | NUT |
| 380 | A 3254620050 | BUSHING |
| 384 | A 3254620051 | RING |
| 386 | A 3259930101 | SPRING |
| 388 | N 006888006001 | WOODRUFF KEY |
| 392 | N 000936024000 | NUT |
| 396 | A 0004640219 | CONTACT PIECE |
| Repalced by: A 0004640319 | ||
| 396 | A 0004640319 | CONTACT PIECE |
| A 3174630101 | PITMAN ARM | |
| 400 | A 3174630501 | PITMAN ARM |
| 450 | A 0059976982 | HOSE |
| Repalced by: A 0079973082 | ||
| 450 | A 0079973082 | HOSE |
| 456 | A 3174600424 | LINE |
| Repalced by: A 3174600624 | ||
| 456 | A 3174600624 | LINE |
| 462 | N 915017012200 | UNION NUT |
| 464 | N 915003010101 | SEAL CONE |
| A 3174600124 | LINE | |
| 468 | A 3174600524 | LINE |
| 472 | N 915017015200 | UNION NUT |
| 476 | N 915003013102 | SEAL CONE |
| N 915008013301 | FITTING | |
| 482 | A 3049951520 | CLAMP |
| 484 | A 3129952420 | CLAMP |
| Repalced by: A 1109950401 | ||
| 484 | A 1109950401 | CLAMP |
| 486 | A 3174660540 | BRACKET |
| N 000933006102 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
| A 0029978582 | HOSE | |
| 492 | A 0059976782 | HOSE |
| 496 | A 3174661165 | LINE |
| 498 | A 0059976882 | HOSE |
| N 916017020000 | CLAMP | |
| Repalced by: N 000000000667 | ||
| N 000000000667 | CLAMP | |
| A 3174600280 | HYDRAULIC PUMP | |
| Repalced by: A 3174600780 | ||
| A 3174600380 | HYDRAULIC PUMP | |
| Repalced by: A 3174600780 | ||
| A 3174600380 | HYDRAULIC PUMP | |
| Repalced by: A 3174600780 | ||
| A 0002360155 | FILTER | |
| N 007603020404 | SEAL RING | |
| A 3179970471 | FITTING | |
| 510 | A 3174600480 | HYDRAULIC PUMP |
| Repalced by: A 3174600780 | ||
| 510 | A 3174600580 | HYDRAULIC PUMP |
| Repalced by: A 3174600780 | ||
| 510 | A 3174600780 | HYDRAULIC PUMP |
| A 0004661902 | TANK | |
| A 0004663402 | TANK | |
| 514 | A 3174600082 | COVER |
| 516 | A 0004660560 | SEAL RING |
| 518 | A 0004600982 | COVER |
| 520 | A 0004660660 | SEAL RING |
| 522 | A 3174660360 | SEAL RING |
| 524 | A 0009909551 | NUT |
| 526 | A 0004660070 | STUD |
| A 0009900398 | COTTER PIN | |
| Repalced by: N 000094002030 | ||
| N 000094002030 | COTTER PIN | |
| 528 | A 0009909440 | WASHER |
| 530 | A 0019938801 | SPRING |
| 532 | A 0002360155 | FILTER |
| 534 | A 0019900051 | NUT |
| 538 | A 0004660760 | SEAL RING |
| 542 | A 0004660860 | SEAL RING |
| A 0004660680 | GASKET | |
| 546 | A 0009910167 | WOODRUFF KEY |
| A 0005861046 | REPAIR KIT | |
| A 0005861146 | REPAIR KIT | |
| A 0005861246 | REPAIR KIT | |
| PUMP CARTRIDGE | ||
| A 0005861346 | REPAIR KIT | |
| PUMP CARTRIDGE | ||
| 562 | N 007603020404 | SEAL RING |
| 564 | A 3179970471 | FITTING |
| 566 | A 3174600135 | BRACKET |
| 572 | A 0019905201 | SCREW |
| Repalced by: A 0039901101 | ||
| 572 | A 0039901101 | SCREW |
| 574 | N 000137010201 | SPRING WASHER |
| 576 | A 3172050910 | PULLEY |
| 578 | N 000125013008 | WASHER |
| 580 | N 000137012203 | SPRING WASHER |
| 582 | A 3179900351 | NUT |
| N 000960016052 | SCREW | |
| N 000960016244 | SCREW | |
| N 000125017010 | WASHER | |
| Repalced by: N 000125017016 | ||
| N 000125017016 | WASHER | |
| N 912004016101 | LOCK WASHER | |
| N 000934016011 | NUT | |
| Repalced by: N 308673016001 | ||
| N 308673016001 | NUT | |
| N 000933010095 | SCREW | |
| Repalced by: N 304017010030 | ||
| N 304017010030 | SCREW | |
| Repalced by: N 304017010053 | ||
| N 304017010053 | SCREW | |
| N 000934010014 | NUT | |
| 592 | N 007753012511 | NARROW V-BELT |
| 12.5X1200 | ||

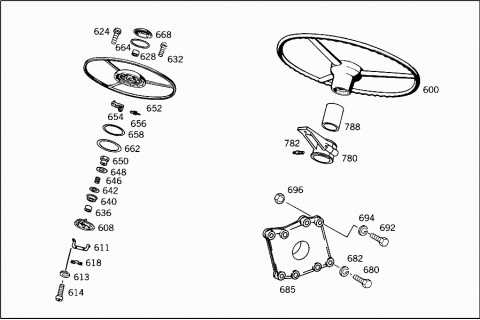

| 600 | A 3174600203 | STEERING WHEEL |
| IVORY | ||
| A 3174600703 | STEERING WHEEL | |
| BLACK | ||
| A 1204600245 | PLATE | |
| Repalced by: A 0004640417 | ||
| 603 | A 1814640071 | SCREW |
| 608 | A 0004640417 | CONTACT PLATE |
| A 3204640034 | BRACKET | |
| Repalced by: A 3224640034 | ||
| 611 | A 3224640034 | BRACKET |
| 613 | N 912004004102 | LOCK WASHER |
| 614 | N 000084004137 | SCREW |
| Repalced by: N 007985004149 | ||
| 614 | N 007985004149 | SCREW |
| Repalced by: N 000000001933 | ||
| 614 | N 000000001933 | SCREW |
| A 3209950010 | CLAMP | |
| 618 | N 072573001006 | CLAMP |
| N 000084004139 | SCREW | |
| N 912004004102 | LOCK WASHER | |
| N 000934004006 | NUT | |
| 624 | A 0009903220 | SCREW |
| 628 | A 3204640053 | SPACER TUBE |
| 632 | A 0009903320 | SCREW |
| N 912004004102 | LOCK WASHER | |
| N 912004004102 | LOCK WASHER | |
| 636 | A 3224640050 | BUSHING |
| 640 | A 1814640186 | CONTACT CUP |
| 642 | A 1534640023 | INSULATING PLATE |
| 646 | A 3209930201 | SPRING |
| 648 | A 1814640028 | CONTACT RING |
| 650 | A 3204640072 | NUT |
| A 3209910055 | PIN | |
| A 3204600240 | SIGNAL RING | |
| Repalced by: A 3204640215 | ||
| A 3224600040 | SIGNAL RING | |
| Repalced by: A 3204640215 | ||
| A 3224600140 | SIGNAL RING | |
| Repalced by: A 3204640215 | ||
| 652 | A 3204640215 | SIGNAL RING |
| A 0004640437 | PLATE | |
| 654 | A 0004640139 | LEVER |
| 656 | A 0004640290 | SPRING |
| 658 | A 3214640062 | THRUST WASHER |
| 662 | A 3204640182 | RING |
| 664 | A 1839970540 | SEAL RING |
| 668 | A 1874600244 | BADGE |
| IVORY | ||
| A 1874600144 | BADGE | |
| BLACK | ||
| N 000933016007 | SCREW | |
| STEERING BOX ASSEMBLY TO MOUNTING PLATE | ||
| 680 | N 000933016014 | SCREW |
| STEERING BOX ASSEMBLY TO MOUNTING PLATE | ||
| 682 | N 912004016101 | LOCK WASHER |
| STEERING BOX ASSEMBLY TO MOUNTING PLATE | ||
| A 3174600329 | STEERING BRACKET | |
| Repalced by: A 3174610540 | ||
| 685 | A 3174610540 | STEERING SUPPORT |
| 692 | N 000961016108 | SCREW |
| MOUNTING PLATE TO SUBSTRUCTURE | ||
| 694 | N 912004016101 | LOCK WASHER |
| MOUNTING PLATE TO SUBSTRUCTURE | ||
| 696 | N 000934016013 | NUT |
| Repalced by: N 308673016001 | ||
| 696 | N 308673016001 | NUT |
| MOUNTING PLATE TO SUBSTRUCTURE | ||

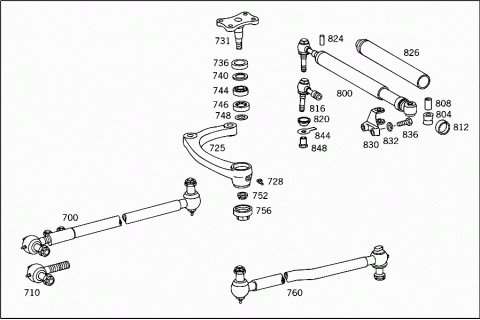

| 700 | A 3174600305 | DRAG LINK |
| Repalced by: A 3174600905 | ||
| 700 | A 3174600905 | DRAG LINK |
| FRONT | ||
| A 3174603105 | DRAG LINK | |
| Repalced by: A 3174606305 | ||
| A 3174603905 | DRAG LINK | |
| Repalced by: A 3174606305 | ||
| A 3174606305 | DRAG LINK | |
| FRONT | ||
| A 3174606405 | DRAG LINK | |
| FRONT | ||
| A 3174601305 | DRAG LINK | |
| Repalced by: A 3174601105 | ||
| A 3174601105 | DRAG LINK | |
| FRONT | ||
| A 3174602805 | DRAG LINK | |
| Repalced by: A 3174605705 | ||
| A 3174603605 | DRAG LINK | |
| Repalced by: A 3174605705 | ||
| A 3174605705 | DRAG LINK | |
| FRONT | ||
| A 3174605805 | DRAG LINK | |
| FRONT | ||
| A 3174603405 | DRAG LINK | |
| Repalced by: A 3174605305 | ||
| A 3174605305 | DRAG LINK | |
| FRONT | ||
| A 3174605405 | DRAG LINK | |
| FRONT | ||
| A 3174601805 | DRAG LINK | |
| Repalced by: A 3174601905 | ||
| A 3174601905 | DRAG LINK | |
| FRONT | ||
| A 3174602905 | DRAG LINK | |
| Repalced by: A 3174605905 | ||
| A 3174603705 | DRAG LINK | |
| Repalced by: A 3174605905 | ||
| A 3174605905 | DRAG LINK | |
| Repalced by: A 3174607105 | ||
| A 3174607105 | DRAG LINK | |
| FRONT | ||
| A 3174606005 | DRAG LINK | |
| Repalced by: A 3174606905 | ||
| A 3174606905 | DRAG LINK | |
| FRONT | ||
| A 3174603305 | DRAG LINK | |
| Repalced by: A 3174605105 | ||
| A 3174605105 | DRAG LINK | |
| FRONT | ||
| A 3174605205 | DRAG LINK | |
| FRONT | ||
| A 3174602205 | DRAG LINK | |
| FRONT | ||
| A 3174602305 | DRAG LINK | |
| A 3174603005 | DRAG LINK | |
| Repalced by: A 3174606105 | ||
| A 3174603805 | DRAG LINK | |
| Repalced by: A 3174606105 | ||
| A 3174606105 | DRAG LINK | |
| FRONT | ||
| A 3174606205 | DRAG LINK | |
| FRONT | ||
| A 3174603505 | DRAG LINK | |
| Repalced by: A 3174605505 | ||
| A 3174605505 | DRAG LINK | |
| FRONT | ||
| A 3174605605 | DRAG LINK | |
| FRONT | ||
| N 000960010006 | SCREW | |
| N 000960012292 | SCREW | |
| N 000935010010 | NUT | |
| N 000935012003 | NUT | |
| N 000094002077 | COTTER PIN | |
| N 000094003219 | COTTER PIN | |
| TO 317 460 31 05,33 05,39 05 | ||
| N 000094003226 | COTTER PIN | |
| TO 317 460 51 05,317 460 59 05 | ||
| A 0003380645 | CLAMP | |
| TO 317 460 31 05,33 05,39 05 | ||
| A 0004630017 | CLAMPING PIECE | |
| Repalced by: A 0003380645 | ||
| A 0003380645 | CLAMP | |
| TO 317 460 51 05,317 460 59 05 | ||
| A 0004630218 | DRAG LINK END | |
| Repalced by: A 0004600348 | ||
| A 0004630418 | DRAG LINK END | |
| Repalced by: A 0004600348 | ||
| A 0004630518 | DRAG LINK END | |
| Repalced by: A 0004600348 | ||
| A 0004630618 | DRAG LINK END | |
| Repalced by: A 0004600348 | ||
| A 0003305235 | JOINT | |
| Repalced by: A 0004600348 | ||
| 710 | A 0004600348 | DRAG LINK END |
| Repalced by: A 0004602848 | ||
| 710 | A 0004602848 | DRAG LINK END |
| Repalced by: A 0014600848 | ||
| 710 | A 0014600848 | DRAG LINK END |
| Repalced by: A 0014602248 | ||
| 710 | A 0014602248 | DRAG LINK END |
| R.H. THREAD | ||
| LEMFOERDER | ||
| A 0019905451 | NUT | |
| LEMFOERDER | ||
| N 071412008101 | GREASE NIPPLE | |
| Repalced by: N 071412008102 | ||
| N 071412008102 | GREASE NIPPLE | |
| A 0004632829 | BALL JOINT | |
| TO 317 460 51 05,317 460 59 05 | ||
| A 0004630127 | BALL SOCKET | |
| A 3349910115 | BALL PIVOT | |
| A 3349910215 | BALL PIVOT | |
| A 0004630026 | BALL SOCKET | |
| Repalced by: A 0004630126 | ||
| A 0004630126 | BALL SOCKET | |
| A 0004630126 | BALL SOCKET | |
| A 0004630393 | SPRING | |
| Repalced by: A 0004630493 | ||
| A 0004630493 | SPRING | |
| A 0004630493 | SPRING | |
| A 0004630431 | COVER | |
| Repalced by: A 0004631856 | ||
| A 0004631856 | DUST CAP | |
| TO 317 460 31 05,33 05,39 05 | ||
| A 0004630931 | COVER | |
| Repalced by: A 0004631431 | ||
| A 0004631431 | COVER | |
| TO 317 460 31 05,33 05,39 05 | ||
| A 0004631131 | COVER | |
| A 0004630831 | COVER | |
| A 0004631231 | COVER | |
| Repalced by: A 0004631331 | ||
| A 0004631331 | COVER | |
| N 071412008101 | GREASE NIPPLE | |
| Repalced by: N 071412008102 | ||
| N 071412008102 | GREASE NIPPLE | |
| A 0009940137 | SNAP RING | |
| A 0004630556 | DUST CAP | |
| N 000937024002 | NUT | |
| N 000937024002 | NUT | |
| TO 317 460 51 05,317 460 59 05 | ||
| N 000094005045 | COTTER PIN | |
| N 000094005045 | COTTER PIN | |
| TO 317 460 51 05,317 460 59 05 | ||
| A 3349910115 | BALL PIVOT | |
| A 3349910215 | BALL PIVOT | |
| A 0004630127 | BALL SOCKET | |
| BOTTOM | ||
| A 0004630627 | BALL SOCKET | |
| BOTTOM | ||
| TO 317 460 31 05,33 05,39 05 | ||
| A 0004630126 | BALL SOCKET | |
| TOP | ||
| A 0004632156 | DUST CAP | |
| A 3354600096 | BOOT | |
| Repalced by: A 0004621796 | ||
| A 0004621796 | BOOT | |
| TO 317 460 31 05,33 05,39 05 | ||
| A 0004631496 | BOOT | |
| Repalced by: A 0004621796 | ||
| A 0004621796 | BOOT | |
| TO 317 460 51 05,317 460 59 05 | ||
| A 0005860533 | REPAIR KIT | |
| A 0005860733 | REPAIR KIT | |
| A 0005860833 | REPAIR KIT | |
| TO 317 460 31 05,33 05,39 05 | ||
| A 0005860933 | REPAIR KIT | |
| TO 317 460 31 05,33 05,39 05 | ||
| 725 | A 3174630110 | STEERING INTERMEDIATE ARM |
| A 3174630510 | STEERING INTERMEDIATE ARM | |
| A 3174630410 | STEERING INTERMEDIATE ARM | |
| 728 | N 071412010200 | GREASE NIPPLE |
| 731 | A 3174630011 | TRUNNION BEARING |
| N 000961014043 | SCREW | |
| PIVOT BEARING TO SUBSTRUCTURE | ||
| N 000433015005 | WASHER | |
| PIVOT BEARING TO SUBSTRUCTURE | ||
| N 000935014004 | NUT | |
| PIVOT BEARING TO SUBSTRUCTURE | ||
| N 000094003013 | COTTER PIN | |
| PIVOT BEARING TO SUBSTRUCTURE | ||
| N 006504042101 | RADIAL SEAL RING | |
| 736 | N 006504042100 | RADIAL SEAL RING |
| Repalced by: A 0079976446 | ||
| 736 | A 0079976446 | SEAL RING |
| 740 | A 3174630052 | SPACER WASHER |
| 744 | N 000720030206 | TAPERED ROLLER BEARING |
| 746 | N 000720030205 | TAPERED ROLLER BEARING |
| Repalced by: A 0059819105 | ||
| 746 | A 0059819105 | TAPERED ROLLER BEARING |
| 748 | A 3174630062 | THRUST WASHER |
| 752 | N 000937020001 | NUT |
| N 000094004065 | COTTER PIN | |
| 756 | A 3214630033 | CAP |
| A 3174600405 | DRAG LINK | |
| Repalced by: A 3174606505 | ||
| A 3174601005 | DRAG LINK | |
| REAR | ||
| A 3174602105 | DRAG LINK | |
| REAR | ||
| A 3174603205 | DRAG LINK | |
| Repalced by: A 3174606505 | ||
| A 3174604005 | DRAG LINK | |
| Repalced by: A 3174606705 | ||
| 760 | A 3174606505 | DRAG LINK |
| Repalced by: A 3174607205 | ||
| 760 | A 3174607205 | DRAG LINK |
| REAR | ||
| 760 | A 3174606605 | DRAG LINK |
| Repalced by: A 3174607005 | ||
| 760 | A 3174607005 | DRAG LINK |
| REAR | ||
| A 3174603205 | DRAG LINK | |
| Repalced by: A 3174606705 | ||
| A 3174604105 | DRAG LINK | |
| Repalced by: A 3174606705 | ||
| A 3174606705 | DRAG LINK | |
| REAR | ||
| A 3174606805 | DRAG LINK | |
| REAR | ||
| A 0004621796 | BOOT | |
| FIXED PART OF JOINT | ||
| N 071412008302 | GREASE NIPPLE | |
| A 0004630127 | BALL SOCKET | |
| A 3349910115 | BALL PIVOT | |
| A 3349910215 | BALL PIVOT | |
| A 0004630026 | BALL SOCKET | |
| Repalced by: A 0004630126 | ||
| A 0004630126 | BALL SOCKET | |
| A 0004630393 | SPRING | |
| Repalced by: A 0004630493 | ||
| A 0004630493 | SPRING | |
| N 071412008101 | GREASE NIPPLE | |
| Repalced by: N 071412008102 | ||
| N 071412008102 | GREASE NIPPLE | |
| A 0004630431 | COVER | |
| Repalced by: A 0004631856 | ||
| A 0004631856 | DUST CAP | |
| A 0004631856 | DUST CAP | |
| A 0009940137 | SNAP RING | |
| A 0004630556 | DUST CAP | |
| N 000937024002 | NUT | |
| N 000937024002 | NUT | |
| TO 317 460 65 05,317 460 67 05 | ||
| N 000094005045 | COTTER PIN | |
| N 000094005045 | COTTER PIN | |
| TO 317 460 65 05,317 460 67 05 | ||
| A 3349910115 | BALL PIVOT | |
| A 3349910215 | BALL PIVOT | |
| A 0004630127 | BALL SOCKET | |
| BOTTOM | ||
| A 0004630627 | BALL SOCKET | |
| BOTTOM | ||
| TO 317 460 32 05,40 05,41 05 | ||
| A 0004630126 | BALL SOCKET | |
| TOP | ||
| A 0004632156 | DUST CAP | |
| A 3354600096 | BOOT | |
| Repalced by: A 0004621796 | ||
| A 0004621796 | BOOT | |
| TO 317 460 32 05,40 05,41 05 | ||
| A 0004631496 | BOOT | |
| Repalced by: A 0004621796 | ||
| A 0004621796 | BOOT | |
| TO 317 460 65 05,317 460 67 05 | ||
| A 0005860533 | REPAIR KIT | |
| A 0005860733 | REPAIR KIT | |
| A 0005860833 | REPAIR KIT | |
| TO 317 460 32 05,40 05,41 05 | ||
| A 0005860933 | REPAIR KIT | |
| TO 317 460 32 05,40 05,41 05 | ||
| 780 | A 3174600031 | STEERING COLUMN BRACKET |
| 782 | A 3209900005 | STUD |
| N 000931010114 | SCREW | |
| STEERING COLUMN BRACKET TO STEERING COLUMN | ||
| N 912004010102 | LOCK WASHER | |
| STEERING COLUMN BRACKET TO STEERING COLUMN | ||
| N 000934010014 | NUT | |
| STEERING COLUMN BRACKET TO STEERING COLUMN | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| STEERING COLUMN BRACKET TO STEERING COLUMN STAY | ||
| N 912004008102 | LOCK WASHER | |
| STEERING COLUMN BRACKET TO STEERING COLUMN STAY | ||
| N 000934008010 | NUT | |
| STEERING COLUMN BRACKET TO STEERING COLUMN STAY | ||
| 788 | A 3204620065 | RING |
| 800 | A 3174630132 | SHOCK ABSORBER |
| 800 | A 3174630232 | SHOCK ABSORBER |
| 800 | A 3174630332 | SHOCK ABSORBER |
| Repalced by: A 3024630432 | ||
| 800 | A 3024630432 | SHOCK ABSORBER |
| Repalced by: A 0004635932 | ||
| 800 | A 0004635932 | SHOCK ABSORBER |
| Repalced by: A 0004636132 | ||
| 800 | A 0004636132 | SHOCK ABSORBER |
| 804 | A 0004630065 | RUBBER RING |
| Repalced by: A 0004630565 | ||
| 804 | A 0004630565 | RUBBER RING |
| 808 | A 0004630050 | BUSHING |
| 812 | A 0004630165 | RUBBER RING |
| A 0004630229 | BALL JOINT | |
| A 0004630329 | BALL JOINT | |
| 816 | A 0004631429 | BALL JOINT |
| A 0004631729 | BALL JOINT | |
| N 071412010100 | GREASE NIPPLE | |
| 820 | A 0004631056 | DUST CAP |
| 824 | N 001481003012 | CLAMPING SLEEVE |
| A 0003300185 | BOOT | |
| Repalced by: A 0003300785 | ||
| A 0003300785 | BOOT | |
| A 3179901301 | SCREW | |
| A 3179902501 | SCREW | |
| N 000937014001 | NUT | |
| N 000094003226 | COTTER PIN | |
| A 3174630240 | BRACKET | |
| 830 | A 3174630540 | BRACKET |
| A 3174630640 | BRACKET | |
| 832 | N 912004012100 | LOCK WASHER |
| N 000961012052 | SCREW | |
| Repalced by: N 308676012012 | ||
| N 308676012012 | SCREW | |
| 836 | N 000960012079 | SCREW |
| 844 | A 3179940109 | LOCK |
| 848 | A 3174630172 | NUT |
| N 000935014004 | NUT | |
| N 000094003226 | COTTER PIN | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
