Transporto priemonė: O 317 FH: 317.222; VIN numerio dalis: 317222

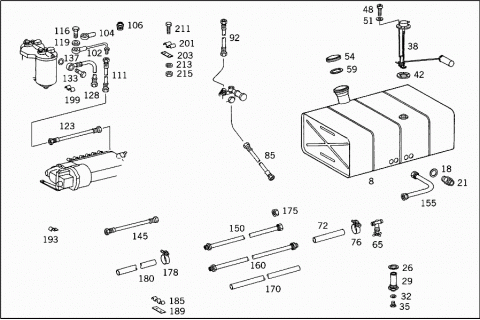

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3174700601 | FUEL TANK | |
| Repalced by: A 3174700701 | ||
| 008 | A 3174700701 | FUEL TANK |
| Repalced by: A 3074702701 | ||
| 008 | A 3074702701 | FUEL TANK |
| 200 L | ||
| 008 | A 3074702701 | FUEL TANK |
| 200 L | ||
| A 3174701601 | FUEL TANK | |
| Repalced by: A 3174701701 | ||
| 008 | A 3174701701 | FUEL TANK |
| 175 L | ||
| 018 | N 007603014106 | SEAL RING |
| 021 | N 915013008000 | SCREW FITTING |
| 026 | N 915035000010 | SEAL RING |
| FUEL STRAINER SCREEN TO FUEL TANK | ||
| 029 | A 3204700006 | FUEL STRAINER |
| Repalced by: A 3604700006 | ||
| 029 | A 3604700006 | FUEL STRAINER |
| Repalced by: A 3074700106 | ||
| 029 | A 3074700106 | FUEL STRAINER |
| 032 | N 007603014106 | SEAL RING |
| 035 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 035 | N 007604014110 | SCREW PLUG |
| 038 | A 0005426117 | SENDER UNIT |
| FUEL GAUGE | ||
| 042 | A 3524710080 | GASKET |
| Repalced by: A 4044710080 | ||
| 042 | A 4044710080 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 048 | N 000084005108 | SCREW |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 051 | A 0669970640 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 054 | A 3044700005 | FILLER CAP |
| Repalced by: A 3094700005 | ||
| 054 | A 3094700005 | FILLER CAP |
| A 1369970640 | SEAL RING | |
| 059 | A 3049970340 | SEAL RING |
| FILLER CAP | ||
| A 3174700371 | LINE | |
| Repalced by: A 3404701965 | ||
| A 3174703371 | LINE | |
| Repalced by: A 3404701965 | ||
| A 3174706171 | LINE | |
| Repalced by: A 3404701965 | ||
| A 3174709271 | LINE | |
| Repalced by: A 3404701265 | ||
| A 3174707271 | LINE | |
| Repalced by: A 3404701965 | ||
| A 3174709371 | LINE | |
| Repalced by: A 3404701965 | ||
| N 915017010201 | UNION NUT | |
| N 915003008201 | SEAL CONE | |
| Repalced by: A 0009909167 | ||
| A 0009909167 | SEAL CONE | |
| Repalced by: N 915003008202 | ||
| N 915003008202 | SEAL CONE | |
| N 915010008203 | BANJO UNION | |
| 065 | N 900121008000 | VALVE |
| A 3174700571 | LINE | |
| Repalced by: A 3404701465 | ||
| A 3174702771 | LINE | |
| Repalced by: A 3404701265 | ||
| N 915017010201 | UNION NUT | |
| N 915003008201 | SEAL CONE | |
| Repalced by: A 0009909167 | ||
| A 0009909167 | SEAL CONE | |
| Repalced by: N 915003008202 | ||
| N 915003008202 | SEAL CONE | |
| N 915008008406 | FITTING | |
| Repalced by: N 915008008402 | ||
| N 915008008402 | FITTING | |
| A 3174703471 | LINE | |
| Repalced by: A 3404701265 | ||
| A 3174706271 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3404701965 | LINE | |
| A 3224760026 | HOSE | |
| Repalced by: A 3054760126 | ||
| A 3124761426 | HOSE | |
| Repalced by: A 3054760126 | ||
| A 3054760126 | HOSE | |
| TO CONNECT THE FUEL LINES | ||
| 17X280 MM | ||
| 076 | N 916026016001 | CLAMP |
| Repalced by: A 0059970190 | ||
| 076 | A 0059970190 | LOOM TIE |
| LINE MOUNTING | ||
| N 915017010201 | UNION NUT | |
| N 915003008201 | SEAL CONE | |
| Repalced by: A 0009909167 | ||
| A 0009909167 | SEAL CONE | |
| Repalced by: N 915003008202 | ||
| N 915003008202 | SEAL CONE | |
| N 915008008406 | FITTING | |
| Repalced by: N 915008008402 | ||
| N 915008008402 | FITTING | |
| A 3174703571 | LINE | |
| Repalced by: A 3404701265 | ||
| N 915017010201 | UNION NUT | |
| N 915003008201 | SEAL CONE | |
| Repalced by: A 0009909167 | ||
| A 0009909167 | SEAL CONE | |
| Repalced by: N 915003008202 | ||
| N 915003008202 | SEAL CONE | |
| N 915008008406 | FITTING | |
| Repalced by: N 915008008402 | ||
| N 915008008402 | FITTING | |
| A 3174765914 | LINE | |
| Repalced by: A 0004290901 | ||
| A 3404702765 | LINE | |
| Repalced by: A 3404702865 | ||
| A 3174766114 | LINE | |
| Repalced by: A 0004290901 | ||
| A 3174766214 | LINE | |
| Repalced by: A 0004290901 | ||
| A 3174706371 | LINE | |
| Repalced by: A 3404702865 | ||
| N 915008008406 | FITTING | |
| Repalced by: N 915008008402 | ||
| N 915008008402 | FITTING | |
| 085 | A 0039974582 | HOSE |
| A 3260702432 | LINE | |
| Repalced by: A 3404702665 | ||
| N 915008008406 | FITTING | |
| Repalced by: N 915008008402 | ||
| N 915008008402 | FITTING | |
| N 915010008203 | BANJO UNION | |
| 092 | A 0039974582 | HOSE |
| A 3174700971 | LINE | |
| Repalced by: A 3174701071 | ||
| A 3174701071 | LINE | |
| Repalced by: A 3404702665 | ||
| N 915008008406 | FITTING | |
| Repalced by: N 915008008402 | ||
| N 915008008402 | FITTING | |
| A 3174703971 | LINE | |
| Repalced by: A 3404702665 | ||
| A 3174705171 | LINE | |
| Repalced by: A 3404702665 | ||
| N 915008008406 | FITTING | |
| Repalced by: N 915008008402 | ||
| N 915008008402 | FITTING | |
| N 915010008203 | BANJO UNION | |
| 102 | A 3174701271 | LINE |
| 104 | N 915010008203 | BANJO UNION |
| 106 | N 915008008406 | FITTING |
| Repalced by: N 915008008402 | ||
| 106 | N 915008008402 | FITTING |
| 111 | A 0039974582 | HOSE |
| A 3174700871 | LINE | |
| Repalced by: A 3174701171 | ||
| A 3404702765 | LINE | |
| Repalced by: A 3404702865 | ||
| N 915008008406 | FITTING | |
| Repalced by: N 915008008402 | ||
| N 915008008402 | FITTING | |
| A 3174704071 | LINE | |
| Repalced by: A 3404702665 | ||
| N 915008008406 | FITTING | |
| Repalced by: N 915008008402 | ||
| N 915008008402 | FITTING | |
| N 915010008203 | BANJO UNION | |
| N 007623014032 | HOLLOW SCREW | |
| N 007623008100 | HOLLOW SCREW | |
| 116 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 116 | N 915036010108 | HOLLOW SCREW |
| 119 | N 007603014106 | SEAL RING |
| 123 | A 0039974582 | HOSE |
| 123 | A 0039974582 | HOSE |
| A 3174705271 | LINE | |
| Repalced by: A 3404702665 | ||
| N 915008008406 | FITTING | |
| Repalced by: N 915008008402 | ||
| N 915008008402 | FITTING | |
| N 915010008203 | BANJO UNION | |
| N 007603014106 | SEAL RING | |
| 125 | N 915006006000 | DOUBLE FITTING |
| 125 | N 915006006000 | DOUBLE FITTING |
| 128 | A 0039974482 | HOSE |
| A 3174700072 | LINE | |
| Repalced by: A 3174700472 | ||
| A 3174700472 | LINE | |
| Repalced by: A 3404701265 | ||
| A 3174700972 | LINE | |
| Repalced by: A 3404701265 | ||
| N 915010008203 | BANJO UNION | |
| N 915010008203 | BANJO UNION | |
| N 915008008406 | FITTING | |
| Repalced by: N 915008008402 | ||
| N 915008008402 | FITTING | |
| N 915017010201 | UNION NUT | |
| N 915003008201 | SEAL CONE | |
| Repalced by: A 0009909167 | ||
| A 0009909167 | SEAL CONE | |
| Repalced by: N 915003008202 | ||
| N 915003008202 | SEAL CONE | |
| A 3174701372 | LINE | |
| Repalced by: A 3404701965 | ||
| N 915017008201 | UNION NUT | |
| N 915003006203 | SEAL CONE | |
| A 3174701772 | LINE | |
| Repalced by: A 3404702165 | ||
| N 915017010201 | UNION NUT | |
| N 915004006203 | SEAL CONE | |
| N 915003006203 | SEAL CONE | |
| N 915017008201 | UNION NUT | |
| 133 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 133 | N 915036010108 | HOLLOW SCREW |
| 137 | N 007603014403 | SEAL RING |
| A 1980700068 | DAMPER CAGE | |
| Repalced by: A 3404702165 | ||
| N 915003006203 | SEAL CONE | |
| N 915017008201 | UNION NUT | |
| A 3174700272 | LINE | |
| Repalced by: A 3404701265 | ||
| A 3174701072 | LINE | |
| Repalced by: A 3404701265 | ||
| N 915008008406 | FITTING | |
| Repalced by: N 915008008402 | ||
| N 915008008402 | FITTING | |
| N 915017010201 | UNION NUT | |
| N 915003008201 | SEAL CONE | |
| Repalced by: A 0009909167 | ||
| A 0009909167 | SEAL CONE | |
| Repalced by: N 915003008202 | ||
| N 915003008202 | SEAL CONE | |
| A 3174701472 | LINE | |
| Repalced by: A 3404702165 | ||
| N 915008006404 | FITTING | |
| A 3174702972 | LINE | |
| Repalced by: A 3404701265 | ||
| A 3174701172 | LINE | |
| Repalced by: A 3404701265 | ||
| N 915008008406 | FITTING | |
| Repalced by: N 915008008402 | ||
| N 915008008402 | FITTING | |
| N 915017010201 | UNION NUT | |
| N 915003008201 | SEAL CONE | |
| Repalced by: A 0009909167 | ||
| A 0009909167 | SEAL CONE | |
| Repalced by: N 915003008202 | ||
| N 915003008202 | SEAL CONE | |
| A 3174761310 | LINE | |
| Repalced by: A 0004290901 | ||
| N 915017010201 | UNION NUT | |
| N 915003008201 | SEAL CONE | |
| Repalced by: A 0009909167 | ||
| A 0009909167 | SEAL CONE | |
| Repalced by: N 915003008202 | ||
| N 915003008202 | SEAL CONE | |
| N 007603012308 | SEAL RING | |
| Repalced by: N 007603012111 | ||
| N 007603012111 | SEAL RING | |
| N 915007008000 | ADAPTER FITTING | |
| A 3174701972 | LINE | |
| Repalced by: A 3404702165 | ||
| N 915017010201 | UNION NUT | |
| N 915003008201 | SEAL CONE | |
| Repalced by: A 0009909167 | ||
| A 0009909167 | SEAL CONE | |
| Repalced by: N 915003008202 | ||
| N 915003008202 | SEAL CONE | |
| A 3174703572 | LINE | |
| Repalced by: A 3404701265 | ||
| N 915008008406 | FITTING | |
| Repalced by: N 915008008402 | ||
| N 915008008402 | FITTING | |
| N 915017010201 | UNION NUT | |
| N 915003008201 | SEAL CONE | |
| Repalced by: A 0009909167 | ||
| A 0009909167 | SEAL CONE | |
| Repalced by: N 915003008202 | ||
| N 915003008202 | SEAL CONE | |
| A 3174761410 | LINE | |
| Repalced by: A 0004290901 | ||
| A 3174761510 | LINE | |
| Repalced by: A 0004290901 | ||
| A 3174701272 | LINE | |
| Repalced by: A 3404701265 | ||
| N 915008008406 | FITTING | |
| Repalced by: N 915008008402 | ||
| N 915008008402 | FITTING | |
| N 915017010201 | UNION NUT | |
| N 915003008201 | SEAL CONE | |
| Repalced by: A 0009909167 | ||
| A 0009909167 | SEAL CONE | |
| Repalced by: N 915003008202 | ||
| N 915003008202 | SEAL CONE | |
| A 3174765914 | LINE | |
| Repalced by: A 0004290901 | ||
| A 3174701572 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3174702572 | LINE | |
| Repalced by: A 3404701465 | ||
| N 915017010201 | UNION NUT | |
| N 915003008201 | SEAL CONE | |
| Repalced by: A 0009909167 | ||
| A 0009909167 | SEAL CONE | |
| Repalced by: N 915003008202 | ||
| N 915003008202 | SEAL CONE | |
| N 915010008203 | BANJO UNION | |
| A 3124761426 | HOSE | |
| Repalced by: A 3054760126 | ||
| A 3224760026 | HOSE | |
| Repalced by: A 3054760126 | ||
| A 3054760126 | HOSE | |
| TO CONNECT THE FUEL LINES | ||
| 17 X 280 MM | ||
| N 916026016001 | CLAMP | |
| Repalced by: A 0059970190 | ||
| A 0059970190 | LOOM TIE | |
| N 900121008000 | VALVE | |
| A 3174700372 | LINE | |
| Repalced by: A 3404701965 | ||
| N 915017010201 | UNION NUT | |
| N 915003008201 | SEAL CONE | |
| Repalced by: A 0009909167 | ||
| A 0009909167 | SEAL CONE | |
| Repalced by: N 915003008202 | ||
| N 915003008202 | SEAL CONE | |
| 145 | A 0039974582 | HOSE |
| A 3174700771 | LINE | |
| Repalced by: A 3404701465 | ||
| A 3174702871 | LINE | |
| Repalced by: A 3404701265 | ||
| A 3404702765 | LINE | |
| Repalced by: A 3404702865 | ||
| A 3174706571 | LINE | |
| Repalced by: A 3404702865 | ||
| N 915008008406 | FITTING | |
| Repalced by: N 915008008402 | ||
| N 915008008402 | FITTING | |
| N 915017010201 | UNION NUT | |
| N 915003008201 | SEAL CONE | |
| Repalced by: A 0009909167 | ||
| A 0009909167 | SEAL CONE | |
| Repalced by: N 915003008202 | ||
| N 915003008202 | SEAL CONE | |
| A 3174703571 | LINE | |
| Repalced by: A 3404701265 | ||
| N 915017010201 | UNION NUT | |
| N 915003008201 | SEAL CONE | |
| Repalced by: A 0009909167 | ||
| A 0009909167 | SEAL CONE | |
| Repalced by: N 915003008202 | ||
| N 915003008202 | SEAL CONE | |
| A 3174766414 | LINE | |
| Repalced by: A 0004290901 | ||
| A 3174766514 | LINE | |
| Repalced by: A 0004290901 | ||
| A 3404701965 | LINE | |
| A 3174709971 | LINE | |
| Repalced by: A 3404701465 | ||
| A 3174702472 | LINE | |
| Repalced by: A 3404701265 | ||
| N 915017010201 | UNION NUT | |
| N 915003008201 | SEAL CONE | |
| Repalced by: A 0009909167 | ||
| A 0009909167 | SEAL CONE | |
| Repalced by: N 915003008202 | ||
| N 915003008202 | SEAL CONE | |
| N 915010008203 | BANJO UNION | |
| A 3404702065 | LINE | |
| Repalced by: A 3404702165 | ||
| N 915008008406 | FITTING | |
| Repalced by: N 915008008402 | ||
| N 915008008402 | FITTING | |
| N 915017010201 | UNION NUT | |
| N 915002008204 | UNION NUT | |
| A 3174765914 | LINE | |
| Repalced by: A 0004290901 | ||
| A 3174706471 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3174709471 | LINE | |
| Repalced by: A 3404701465 | ||
| A 3174709571 | LINE | |
| Repalced by: A 3404701465 | ||
| N 915017010201 | UNION NUT | |
| N 915003008201 | SEAL CONE | |
| Repalced by: A 0009909167 | ||
| A 0009909167 | SEAL CONE | |
| Repalced by: N 915003008202 | ||
| N 915003008202 | SEAL CONE | |
| N 915010008203 | BANJO UNION | |
| N 900121008000 | VALVE | |
| A 3174700671 | LINE | |
| Repalced by: A 3404701965 | ||
| N 915017010201 | UNION NUT | |
| N 915003008201 | SEAL CONE | |
| Repalced by: A 0009909167 | ||
| A 0009909167 | SEAL CONE | |
| Repalced by: N 915003008202 | ||
| N 915003008202 | SEAL CONE | |
| N 007603014106 | SEAL RING | |
| N 915036010204 | HOLLOW SCREW | |
| Repalced by: N 915036010108 | ||
| N 915036010108 | HOLLOW SCREW | |
| 150 | A 3404701265 | LINE |
| WITH BANJO UNION | ||
| A 3404701465 | LINE | |
| WITH BANJO UNION | ||
| 155 | A 3404701965 | LINE |
| WITH SEAL CONE | ||
| A 3404702165 | LINE | |
| WITH SEAL CONE | ||
| 160 | A 3404702665 | LINE |
| WITH FITTING | ||
| A 3404702865 | LINE | |
| WITH FITTING | ||
| 170 | A 0004290901 | LINE |
| 175 | N 915017010201 | UNION NUT |
| 178 | N 916026010000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 178 | N 000000000665 | CLAMP |
| 180 | N 073379009200 | HOSE |
| 185 | A 3129950232 | CLAMP |
| Repalced by: A 4429955032 | ||
| 185 | A 4429955032 | CLAMP |
| LINE MOUNTING | ||
| 189 | A 3124761236 | BRACKET |
| Repalced by: A 3604293140 | ||
| 189 | A 3604293140 | BRACKET |
| LINE MOUNTING | ||
| N 000933012077 | SCREW | |
| LINE MOUNTING | ||
| N 912004012100 | LOCK WASHER | |
| LINE MOUNTING | ||
| N 000934012021 | NUT | |
| LINE MOUNTING | ||
| 193 | A 3179950020 | CLAMP |
| RETURN LINE TO BODY | ||
| N 007971004226 | SHEET METAL SCREW | |
| RETURN LINE TO BODY | ||
| N 007971004240 | SHEET METAL SCREW | |
| Repalced by: N 007981004258 | ||
| N 007981004258 | SHEET METAL SCREW | |
| LINE MOUNTING | ||
| 199 | A 3179950832 | CLAMP |
| LINE MOUNTING | ||
| 201 | A 3229950632 | CLAMP |
| LINE MOUNTING | ||
| 203 | A 3124761736 | BRACKET |
| LINE MOUNTING | ||
| A 3124761036 | BRACKET | |
| Repalced by: A 3124761236 | ||
| A 3124761236 | BRACKET | |
| Repalced by: A 3604293140 | ||
| A 3604293140 | BRACKET | |
| LINE MOUNTING | ||
| 211 | N 000933006102 | SCREW |
| LINE MOUNTING | ||
| 213 | N 912004006102 | LOCK WASHER |
| LINE MOUNTING | ||
| 215 | N 000934006007 | NUT |
| LINE MOUNTING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
