Transporto priemonė: O 330; VIN numerio dalis: 600445

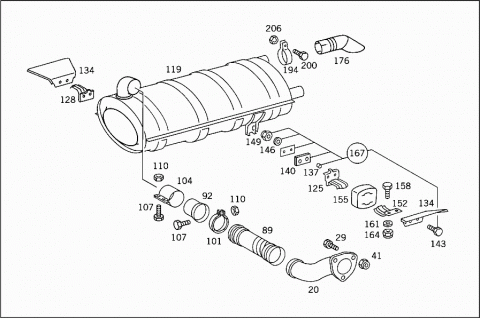

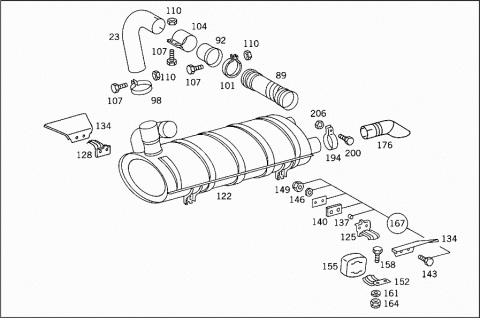

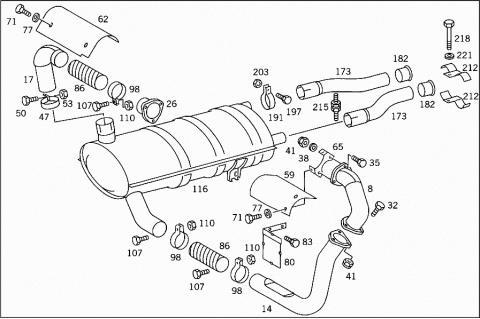

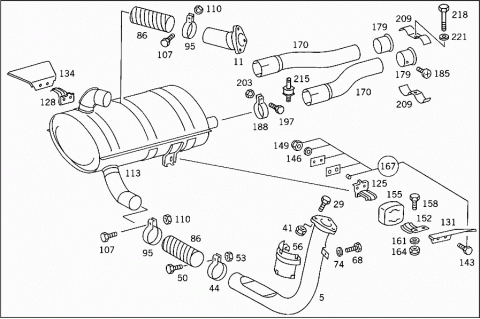

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6004900219 | EXHAUST PIPE |
| FRONT LEFT | ||
| 008 | A 3004900519 | EXHAUST PIPE |
| FRONT LEFT | ||
| 011 | A 3014903019 | EXHAUST PIPE |
| FRONT RIGHT | ||
| 014 | A 3004900619 | EXHAUST PIPE |
| FRONT LEFT | ||
| 017 | A 3004900219 | EXHAUST PIPE |
| FRONT RIGHT | ||
| 020 | A 3564901119 | EXHAUST PIPE |
| FRONT | ||
| 023 | A 3564921501 | FRONT EXHAUST PIPE |
| 026 | A 3004900119 | EXHAUST PIPE |
| FRONT | ||
| 029 | N 000931012114 | SCREW |
| 029 | N 000931012114 | SCREW |
| EXHAUST PIPE TO CONNECTION FITTING | ||
| 029 | N 000931012114 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 032 | N 000933012077 | SCREW |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| M 12X35 | ||
| 035 | N 000933012071 | SCREW |
| EXHAUST PIPE TO CONNECTION FITTING | ||
| M 12X40 | ||
| 038 | N 000125013008 | WASHER |
| EXHAUST PIPE TO CONNECTION FITTING | ||
| 041 | N 999901012000 | NUT |
| 041 | N 999901012000 | NUT |
| EXHAUST PIPE TO CONNECTION FITTING | ||
| 041 | N 999901012000 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 041 | N 999901012000 | NUT |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 044 | N 071555090501 | CLAMP |
| BRACKET TO FRONT EXHAUST PIPE | ||
| 047 | N 071555094501 | CLAMP |
| Repalced by: N 071555094502 | ||
| 047 | N 071555094502 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 050 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 050 | N 304017010002 | SCREW |
| BRACKET TO FRONT EXHAUST PIPE | ||
| 050 | N 304017010002 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| 053 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 053 | N 304032010003 | NUT |
| BRACKET TO FRONT EXHAUST PIPE | ||
| 053 | N 304032010003 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 056 | A 3014900530 | PROTECTIVE PLATE |
| FRONT LEFT | ||
| 059 | A 3004921330 | PROTECTIVE PLATE |
| FRONT | ||
| 062 | A 3004921430 | PROTECTIVE PLATE |
| 065 | A 3004900240 | BRACKET |
| FRONT | ||
| 068 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 068 | N 304017008016 | SCREW |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| 071 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 071 | N 304017008021 | SCREW |
| PROTECTIVE PLATE TO BRACKET | ||
| 074 | N 912004008102 | LOCK WASHER |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| 077 | N 009021008205 | WASHER |
| PROTECTIVE PLATE TO BRACKET | ||
| 080 | A 3004900130 | PROTECTIVE PLATE |
| 083 | N 000933016060 | SCREW |
| PROTECTIVE PLATE TO FLYWHEEL HOUSING | ||
| 086 | A 3014920059 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 086 | A 3004920059 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 086 | A 3004920159 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 089 | A 6214900065 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 092 | A 6214920008 | COLLAR |
| 095 | N 071555073500 | CLAMP |
| HOSE TO EXHAUST PIPE AND TO MUFFLER | ||
| 098 | N 071555094501 | CLAMP |
| Repalced by: N 071555094502 | ||
| 098 | N 071555094502 | CLAMP |
| HOSE TO EXHAUST PIPE AND TO MUFFLER | ||
| 098 | N 071555104501 | CLAMP |
| Repalced by: A 6139970090 | ||
| 098 | A 6139970090 | CLAMP |
| HOSE TO EXHAUST PIPE AND TO MUFFLER | ||
| 098 | N 071555104501 | CLAMP |
| Repalced by: A 6139970090 | ||
| 098 | A 6139970090 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 101 | A 6219970090 | CLAMP |
| HOSE TO EXHAUST PIPE AND TO MUFFLER | ||
| 104 | A 6254920040 | CLAMP |
| COLLAR TO EXHAUST PIPE | ||
| 107 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 107 | N 304017010002 | SCREW |
| HOSE TO EXHAUST PIPE AND TO MUFFLER | ||
| 107 | N 304017010002 | SCREW |
| COLLAR TO EXHAUST PIPE | ||
| 107 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 107 | N 000933008348 | SCREW |
| HOSE TO EXHAUST PIPE AND TO MUFFLER | ||
| 110 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 110 | N 304032010003 | NUT |
| HOSE TO EXHAUST PIPE AND TO MUFFLER | ||
| 110 | N 999901008000 | NUT |
| HOSE TO EXHAUST PIPE AND TO MUFFLER | ||
| 110 | N 999901010000 | NUT |
| COLLAR TO EXHAUST PIPE | ||
| 110 | N 999901010000 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 113 | A 6004900001 | EXHAUST MUFFLER |
| 116 | A 3004900001 | EXHAUST MUFFLER |
| 119 | A 3564900201 | EXHAUST MUFFLER |
| 122 | A 3564900001 | EXHAUST MUFFLER |
| 125 | A 3014910215 | CONSOLE |
| EXHAUST MUFFLER | ||
| 128 | A 3004910115 | CONSOLE |
| EXHAUST MUFFLER | ||
| 131 | A 3014910030 | PROTECTIVE PLATE |
| EXHAUST MUFFLER | ||
| 134 | A 3004910030 | PROTECTIVE PLATE |
| EXHAUST MUFFLER | ||
| 137 | A 3014910053 | SPACER TUBE |
| CONSOLE WITH PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| 140 | A 3004910183 | INSULATION |
| CONSOLE TO SUBSTRUCTURE | ||
| 140 | A 3004910283 | INSULATION |
| 143 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 143 | N 304017008034 | SCREW |
| CONSOLE WITH PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| M 8X25 | ||
| 143 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 143 | N 304017008027 | SCREW |
| CONSOLE WITH PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| M 8X30 | ||
| 146 | N 000125008418 | WASHER |
| CONSOLE WITH PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| 149 | N 999901008000 | NUT |
| CONSOLE WITH PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| 152 | A 3014910015 | CONSOLE |
| EXHAUST MUFFLER | ||
| 155 | A 3004920082 | DAMPING PAD |
| EXHAUST MUFFLER TO CONSOLE | ||
| 158 | N 000933010105 | SCREW |
| CONSOLE TO SUBSTRUCTURE | ||
| 161 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 161 | N 000125010532 | WASHER |
| CONSOLE TO SUBSTRUCTURE | ||
| 164 | N 913004010008 | NUT |
| CONSOLE TO SUBSTRUCTURE | ||
| 164 | N 999901010000 | NUT |
| CONSOLE TO SUBSTRUCTURE | ||
| 167 | A 3014900037 | SUSPENSION |
| EXHAUST MUFFLER SUSPENSION | ||
| 170 | A 3734927204 | REAR EXHAUST PIPE |
| 173 | A 3004920004 | REAR EXHAUST PIPE |
| 176 | A 3564900021 | EXHAUST PIPE |
| REAR | ||
| 179 | A 3014920314 | END PIECE |
| (CHROMIUM JACKET) | ||
| 182 | A 3004920014 | END PIECE |
| (CHROMIUM JACKET) | ||
| 185 | N 007513003207 | TAPPING SCREW |
| CHROMIUM JACKET TO REAR EXHAUST PIPE | ||
| 188 | N 071555073500 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 191 | N 071555085500 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 194 | N 071555094501 | CLAMP |
| Repalced by: N 071555094502 | ||
| 194 | N 071555094502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 197 | N 000933010105 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 200 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 200 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 203 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 203 | N 304032010003 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 206 | N 999901010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 209 | A 3734927040 | CLAMP |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 212 | A 3004900041 | CLAMP |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 215 | A 0019879640 | RUBBER BUFFER |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 218 | N 000931008189 | SCREW |
| CLAMP TO RUBBER BUFFER | ||
| 221 | N 009021008205 | WASHER |
| CLAMP TO RUBBER BUFFER | ||
