Transporto priemonė: O 340; VIN numerio dalis: 600344

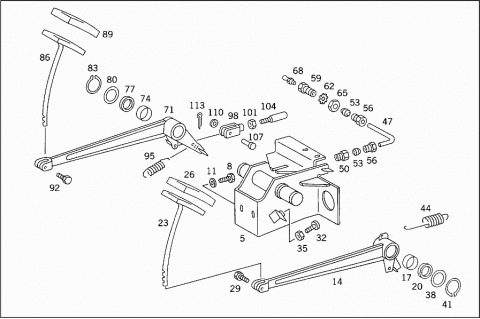

Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3012904319 | BEARING BRACKET |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 008 | N 000933010128 | SCREW |
| Repalced by: N 304017010028 | ||
| 008 | N 304017010028 | HEXAGON HEAD BOLT |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| M10X20 | ||
| 011 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 011 | N 000125010532 | WASHER |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 014 | A 3012900416 | PEDAL |
| CLUTCH | ||
| 014 | A 3732907016 | PEDAL |
| CLUTCH | ||
| 017 | A 3732927050 | BUSHING |
| CLUTCH PEDAL | ||
| TO 373 290 70 16 | ||
| 017 | A 3389920103 | BUSHING |
| CLUTCH PEDAL | ||
| TO 301 290 04 16 | ||
| 020 | A 0119972846 | SEAL RING |
| CLUTCH PEDAL | ||
| TO 301 290 04 16 | ||
| 023 | A 3002900024 | PEDAL PLATE |
| CLUTCH | ||
| 026 | A 3052910182 | PAD |
| PEDAL PLATE | ||
| 029 | N 000933010105 | SCREW |
| PEDAL PLATE TO PEDAL | ||
| 032 | A 3012910241 | STOP |
| CLUTCH AND BRAKE PEDALS TO BEARING BRACKET | ||
| 035 | N 000439008211 | NUT |
| STOP | ||
| 038 | A 3019900240 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 041 | N 000471040002 | LOCK RING |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 044 | A 3019930410 | SPRING |
| CLUTCH PEDAL RESET | ||
| 047 | A 0004290601 | LINE |
| PEDAL ASSEMBLY LUBRICATION | ||
| 4X0.7 MM | ||
| 050 | A 0005730532 | CONNECTOR |
| LINE TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 053 | N 003862004001 | DOUBLE TAPER RING |
| LINE TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 056 | N 003871004102 | UNION SCREW |
| LINE TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 059 | N 071429014110 | BULKHEAD FITTING |
| LINE TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 062 | N 006797014150 | TOOTHED WASHER |
| LINE TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 065 | N 000439014203 | NUT |
| Repalced by: N 308675014001 | ||
| 065 | N 308675014001 | NUT |
| LINE TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 068 | N 071412008300 | GREASE NIPPLE |
| LINE TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 071 | A 3012900218 | PEDAL |
| BRAKE | ||
| 071 | A 3732907018 | PEDAL |
| BRAKE | ||
| 074 | A 3732927050 | BUSHING |
| BRAKE PEDAL | ||
| TO 373 290 70 18 | ||
| 074 | A 3389920103 | BUSHING |
| BRAKE PEDAL | ||
| TO 301 290 02 18 | ||
| 077 | A 0119972846 | SEAL RING |
| BRAKE PEDAL | ||
| TO 301 290 02 18 | ||
| 080 | A 3019900240 | WASHER |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 083 | N 000471040002 | LOCK RING |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 086 | A 3012900524 | PEDAL PLATE |
| BRAKE | ||
| 089 | A 3052910182 | PAD |
| BRAKE PEDAL | ||
| 092 | N 000933010105 | SCREW |
| PEDAL PLATE TO PEDAL | ||
| 095 | A 3019930310 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 098 | N 071752010004 | YOKE |
| FROM BRAKE PEDAL TO BRAKE VALVE | ||
| 101 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 101 | N 304032010003 | NUT |
| FROM BRAKE PEDAL TO BRAKE VALVE | ||
| 104 | A 3002950033 | ROD |
| FROM BRAKE PEDAL TO BRAKE VALVE | ||
| 107 | N 001444010217 | PIN |
| ROD TO BRAKE PEDAL | ||
| 110 | N 000433010505 | WASHER |
| ROD TO BRAKE PEDAL | ||
| 113 | N 000094003210 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
