Transporto priemonė: O 345,CONECTO H; VIN numerio dalis: 671042

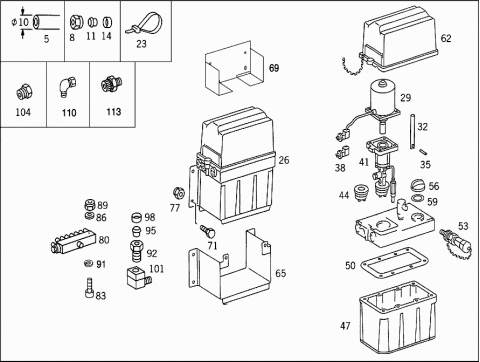

Grupė: 57 CENTRAL LUBRICATION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0179977182 | HOSE |
| 005 | A 0179977182 | HOSE |
| 005 | A 0179977182 | HOSE |
| 008 | N 915017010100 | UNION NUT |
| LINE CONNECTION | ||
| 008 | N 915017010100 | UNION NUT |
| LINE CONNECTION | ||
| 008 | N 915017010100 | UNION NUT |
| LINE CONNECTION | ||
| 011 | N 003861010009 | GLAND |
| LINE CONNECTION | ||
| 011 | N 003861010009 | GLAND |
| LINE CONNECTION | ||
| 011 | N 003861010009 | GLAND |
| LINE CONNECTION | ||
| 014 | A 0005730553 | PIN BUSHING |
| LINE CONNECTION | ||
| Repalced by: A 0005730753 | ||
| 014 | A 0005730753 | PIN BUSHING |
| LINE CONNECTION | ||
| 014 | A 0005730553 | PIN BUSHING |
| LINE CONNECTION | ||
| Repalced by: A 0005730753 | ||
| 014 | A 0005730753 | PIN BUSHING |
| LINE CONNECTION | ||
| 014 | A 0005730553 | PIN BUSHING |
| LINE CONNECTION | ||
| Repalced by: A 0005730753 | ||
| 014 | A 0005730753 | PIN BUSHING |
| LINE CONNECTION | ||
| 023 | A 3719977090 | LOOM TIE |
| TO MOUNT PLASTIC PIPING | ||
| 023 | A 3719977090 | LOOM TIE |
| TO MOUNT PLASTIC PIPING | ||
| 023 | A 3719977090 | LOOM TIE |
| TO MOUNT PLASTIC PIPING | ||
| 023 | A 0059971590 | CABLE TIE |
| TO MOUNT PLASTIC PIPING | ||
| 026 | A 0005718501 | PUMP |
| 026 | A 0005718501 | PUMP |
| 026 | A 0005718501 | PUMP |
| 029 | A 0005400788 | ELECTRIC MOTOR |
| 029 | A 0005400788 | ELECTRIC MOTOR |
| 029 | A 0005400788 | ELECTRIC MOTOR |
| 032 | A 0005710135 | SHAFT |
| 032 | A 0005710135 | SHAFT |
| 032 | A 0005710135 | SHAFT |
| 035 | N 007343002012 | CLAMPING PIN |
| 035 | N 007343002012 | CLAMPING PIN |
| 035 | N 007343002012 | CLAMPING PIN |
| 038 | A 0245458828 | PLUG |
| 038 | A 0245458828 | PLUG |
| 038 | A 0245458828 | PLUG |
| 041 | A 0005714601 | PUMP |
| 041 | A 0005714601 | PUMP |
| 041 | A 0005714601 | PUMP |
| 044 | A 0005717201 | PUMP |
| WITH GEAR | ||
| 044 | A 0005717201 | PUMP |
| WITH GEAR | ||
| 044 | A 0005717201 | PUMP |
| WITH GEAR | ||
| 047 | A 0005700004 | RESERVOIR |
| PUMP | ||
| 047 | A 0005700004 | RESERVOIR |
| PUMP | ||
| 047 | A 0005700004 | RESERVOIR |
| PUMP | ||
| 050 | A 0005712460 | GASKET |
| 050 | A 0005712460 | GASKET |
| 050 | A 0005712460 | GASKET |
| 053 | A 0005711014 | VALVE |
| GREASE FILLING | ||
| 053 | A 0005711014 | VALVE |
| GREASE FILLING | ||
| 053 | A 0005711014 | VALVE |
| GREASE FILLING | ||
| 056 | A 0005711503 | COVER |
| GREASE FILLING | ||
| 056 | A 0005711503 | COVER |
| GREASE FILLING | ||
| 056 | A 0005711503 | COVER |
| GREASE FILLING | ||
| 059 | A 1020180380 | GASKET |
| 059 | A 1020180380 | GASKET |
| 059 | A 1020180380 | GASKET |
| 062 | A 0005711403 | COVER |
| PUMP | ||
| 062 | A 0005711403 | COVER |
| PUMP | ||
| 062 | A 0005711403 | COVER |
| PUMP | ||
| 065 | A 0005710116 | RETAINING PLATE |
| PUMP | ||
| 065 | A 0005710116 | RETAINING PLATE |
| PUMP | ||
| 065 | A 0005710116 | RETAINING PLATE |
| PUMP | ||
| 069 | A 6715710088 | COVER PLATE |
| CENTRAL LUBRICATION PUMP | ||
| 069 | A 6715710088 | COVER PLATE |
| CENTRAL LUBRICATION PUMP | ||
| 069 | A 6715710088 | COVER PLATE |
| CENTRAL LUBRICATION PUMP | ||
| 071 | N 910105008039 | SCREW |
| CENTRAL LUBRICATION PUMP TO SUBSTRUCTURE AND TO SUPPORT,RESP. | ||
| 071 | N 910105008039 | SCREW |
| CENTRAL LUBRICATION PUMP TO SUBSTRUCTURE AND TO SUPPORT,RESP. | ||
| 071 | N 910105008039 | SCREW |
| CENTRAL LUBRICATION PUMP TO SUBSTRUCTURE AND TO SUPPORT,RESP. | ||
| 077 | N 910123008003 | NUT |
| SUPPORT TO BRACKET | ||
| 077 | N 910123008003 | NUT |
| SUPPORT TO BRACKET | ||
| 077 | N 910123008003 | NUT |
| SUPPORT TO BRACKET | ||
| 077 | N 913023008003 | NUT |
| CENTRAL LUBRICATION PUMP TO SUBSTRUCTURE AND TO SUPPORT,RESP. | ||
| 077 | N 913023008003 | NUT |
| CENTRAL LUBRICATION PUMP TO SUBSTRUCTURE AND TO SUPPORT,RESP. | ||
| 077 | N 913023008003 | NUT |
| CENTRAL LUBRICATION PUMP TO SUBSTRUCTURE AND TO SUPPORT,RESP. | ||
| 080 | A 6715730020 | DISTRIBUTOR |
| FRONT AXLE | ||
| 080 | A 6715730020 | DISTRIBUTOR |
| FRONT AXLE | ||
| 080 | A 6715730020 | DISTRIBUTOR |
| FRONT AXLE | ||
| 080 | A 6715730220 | DISTRIBUTOR |
| CENTRAL AXLE | ||
| 080 | A 6715730120 | DISTRIBUTOR |
| REAR AXLE | ||
| 080 | A 6715730120 | DISTRIBUTOR |
| REAR AXLE | ||
| 080 | A 6715730120 | DISTRIBUTOR |
| REAR AXLE | ||
| 083 | N 304017006019 | SCREW |
| DISTRIBUTOR TO BRACKET | ||
| 6X25 MM | ||
| 083 | N 304017006019 | SCREW |
| DISTRIBUTOR TO BRACKET | ||
| 6X25 MM | ||
| 083 | N 304017006019 | SCREW |
| DISTRIBUTOR TO BRACKET | ||
| 6X25 MM | ||
| 086 | N 009021006210 | WASHER |
| DISTRIBUTOR TO BRACKET | ||
| 086 | N 009021006210 | WASHER |
| DISTRIBUTOR TO BRACKET | ||
| 089 | N 910113006000 | NUT |
| DISTRIBUTOR TO BRACKET | ||
| 089 | N 910113006000 | NUT |
| DISTRIBUTOR TO BRACKET | ||
| 089 | N 910113006000 | NUT |
| DISTRIBUTOR TO BRACKET | ||
| 091 | N 912004006102 | LOCK WASHER |
| DISTRIBUTOR TO BRACKET | ||
| 091 | N 912004006102 | LOCK WASHER |
| DISTRIBUTOR TO BRACKET | ||
| 092 | A 0009907968 | FITTING |
| PLASTIC PIPE CONNECTION | ||
| 092 | A 0009907968 | FITTING |
| PLASTIC PIPE CONNECTION | ||
| 092 | A 0009907968 | FITTING |
| PLASTIC PIPE CONNECTION | ||
| 095 | A 0009905067 | SEAL CONE |
| PLASTIC PIPE CONNECTION | ||
| 095 | A 0009905067 | SEAL CONE |
| PLASTIC PIPE CONNECTION | ||
| 095 | A 0009905067 | SEAL CONE |
| PLASTIC PIPE CONNECTION | ||
| 098 | A 0005730053 | PIN BUSHING |
| PLASTIC PIPE CONNECTION | ||
| 098 | A 0005730053 | PIN BUSHING |
| PLASTIC PIPE CONNECTION | ||
| 098 | A 0005730053 | PIN BUSHING |
| PLASTIC PIPE CONNECTION | ||
| 101 | A 0005731330 | ELBOW |
| PLASTIC PIPE CONNECTION | ||
| 101 | A 0005731330 | ELBOW |
| PLASTIC PIPE CONNECTION | ||
| 101 | A 0005731330 | ELBOW |
| PLASTIC PIPE CONNECTION | ||
| 101 | A 0005731230 | ELBOW |
| PLASTIC PIPE CONNECTION | ||
| 101 | A 0005731230 | ELBOW |
| PLASTIC PIPE CONNECTION | ||
| 101 | A 0005731230 | ELBOW |
| PLASTIC PIPE CONNECTION | ||
| 104 | A 0005730432 | CONNECTOR |
| PLASTIC PIPE CONNECTION | ||
| M8X1MM | ||
| Repalced by: A 0005731055 | ||
| 104 | A 0005731055 | CONNECTOR |
| PLASTIC PIPE CONNECTION | ||
| M8X1MM | ||
| 104 | A 0005730432 | CONNECTOR |
| PLASTIC PIPE CONNECTION | ||
| M8X1MM | ||
| Repalced by: A 0005731055 | ||
| 104 | A 0005731055 | CONNECTOR |
| PLASTIC PIPE CONNECTION | ||
| M8X1MM | ||
| 104 | A 0005730432 | CONNECTOR |
| PLASTIC PIPE CONNECTION | ||
| M8X1MM | ||
| Repalced by: A 0005731055 | ||
| 104 | A 0005731055 | CONNECTOR |
| PLASTIC PIPE CONNECTION | ||
| M8X1MM | ||
| 104 | A 0005734032 | CONNECTOR |
| M20X1,5MM | ||
| 104 | A 0005730532 | CONNECTOR |
| PLASTIC PIPE TO BRAKE CAMSHAFT | ||
| M10X1MM | ||
| Repalced by: A 0005731155 | ||
| 104 | A 0005731155 | CONNECTOR |
| PLASTIC PIPE TO BRAKE CAMSHAFT | ||
| M10X1MM | ||
| 104 | A 0005730532 | CONNECTOR |
| PLASTIC PIPE TO BRAKE CAMSHAFT | ||
| M10X1MM | ||
| Repalced by: A 0005731155 | ||
| 104 | A 0005731155 | CONNECTOR |
| PLASTIC PIPE TO BRAKE CAMSHAFT | ||
| M10X1MM | ||
| 104 | A 0005730532 | CONNECTOR |
| PLASTIC PIPE TO BRAKE CAMSHAFT | ||
| M10X1MM | ||
| Repalced by: A 0005731155 | ||
| 104 | A 0005731155 | CONNECTOR |
| PLASTIC PIPE TO BRAKE CAMSHAFT | ||
| M10X1MM | ||
| 110 | A 0005734132 | CONNECTOR |
| 113 | A 0029905968 | FITTING |
