Transporto priemonė: O 345,CONECTO H; VIN numerio dalis: 671042
Grupė: 72 DOORS - 090 SWING-OUT FRONT DOOR

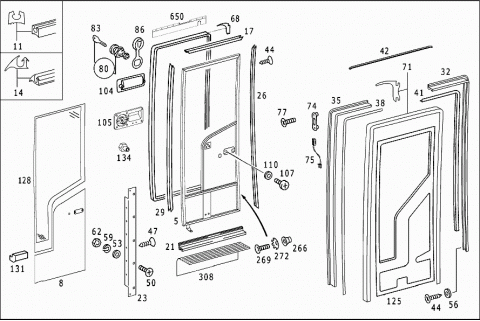

101108

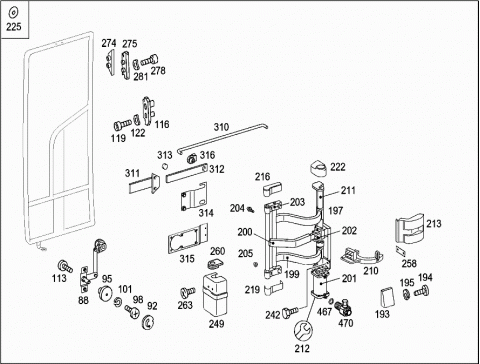

101111

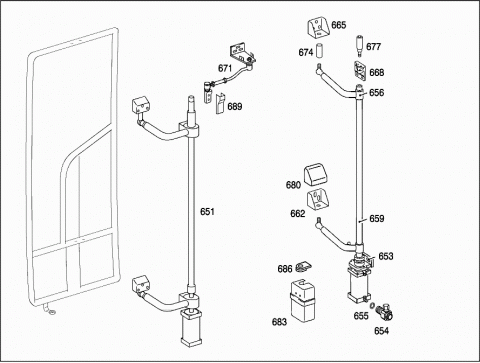

101112

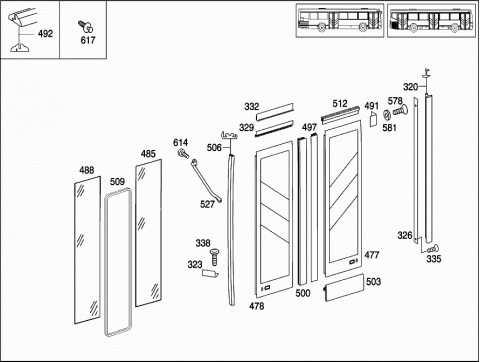

101105

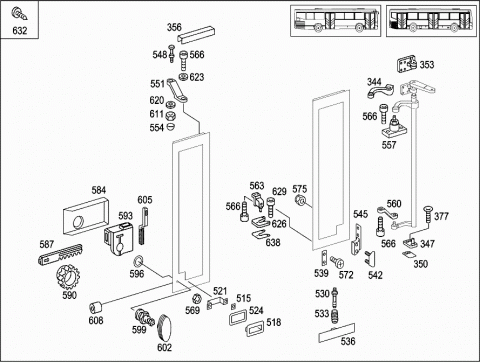

101110

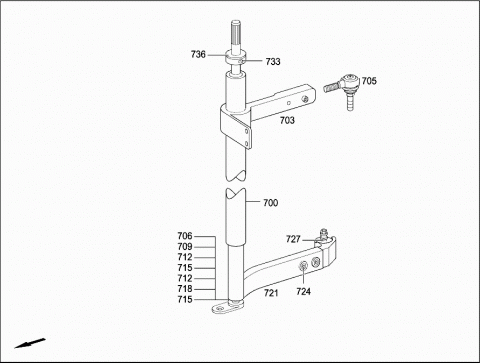

101115

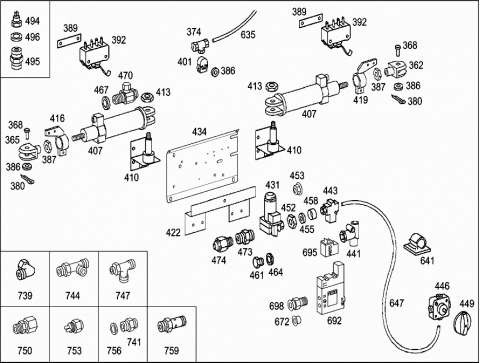

101109
# Kodas Pavadinimas
005 A 6717200603 DOOR COMPLETE
RIGHT
005 A 6717200903 DOOR COMPLETE
RIGHT
005 A 6717200703 DOOR COMPLETE
RIGHT
005 A 6717200803 DOOR COMPLETE
RIGHT
005 A 6717201503 DOOR COMPLETE
RIGHT
005 A 6717201603 DOOR COMPLETE
RIGHT
005 A 6717201603 DOOR COMPLETE
RIGHT
008 A 6717220209 PANELLING
OUTSIDE
008 A 6717220209 PANELLING
OUTSIDE
008 A 6717220609 PANELLING
OUTSIDE
008 A 6717220309 PANELLING
OUTSIDE
008 A 6717220509 PANELLING
OUTSIDE
011 H XB3739870725 PLASTIC SECTION
011 H XB3739870725 PLASTIC SECTION
014 H XB3739871725 PLASTIC SECTION
014 H XB3739871725 PLASTIC SECTION
017 H XB3737370435 RAIL
017 H XB3737370435 RAIL
017 A 6717272152 LEDGE
021 A 6717271452 LEDGE
021 A 6717271452 LEDGE
023 A 6717661123 LEDGE
023 A 6717661123 LEDGE
026 A 6717271352 LEDGE
026 A 6717272052 LEDGE
029 A 6717271252 LEDGE
029 A 6717271952 LEDGE
029 A 6717272252 LEDGE
032 A 6717271052 LEDGE
032 A 6717271652 LEDGE
035 A 6717270952 LEDGE
035 A 6717271752 LEDGE
038 A 6717662123 LEDGE
038 A 6717662423 LEDGE
041 A 6717662023 LEDGE
041 A 6717662523 LEDGE
042 A 6717662223 LEDGE
042 A 6717662223 LEDGE
044 N 007983003248 SHEET METAL SCREW
Repalced by: N 000000000483
044 N 007983003248 SHEET METAL SCREW
Repalced by: N 000000000483
044 N 000000000483 SCREW
LEDGE TO DOOR
4,2X16MM
044 N 000000000483 SCREW
LEDGE TO DOOR
4,2X16MM
047 N 007983003276 SHEET METAL SCREW
LEDGE TO DOOR
047 N 007983003276 SHEET METAL SCREW
LEDGE TO DOOR
3,5X13MM
050 H XB3739900230 SCREW
LEDGE TO DOOR
050 H XB3739900230 SCREW
LEDGE TO DOOR
053 N 000125006445 WASHER
Repalced by: N 000125006449
053 N 000125006449 WASHER
LEDGE TO DOOR
053 N 000125006445 WASHER
Repalced by: N 000125006449
053 N 000125006449 WASHER
LEDGE TO DOOR
6,4MM
056 H XB3739900341 WASHER
LEDGE TO DOOR
056 H XB3739900341 WASHER
LEDGE TO DOOR
059 N 912004006102 LOCK WASHER
LEDGE TO DOOR
059 N 912004006102 LOCK WASHER
LEDGE TO DOOR
062 N 000917006006 NUT
LEDGE TO DOOR
062 N 000917006006 NUT
LEDGE TO DOOR
M6
068 A 6717270630 SEAL
(DOOR SEAL)
068 A 6717270130 SEAL
(DOOR SEAL)
071 A 6717270430 SEAL
(DOOR SEAL)
071 A 6717270930 SEAL
(DOOR SEAL)
074 A 6717200004 LOCKING EYE
075 Q 325633423005 LOCKING EYE
075 Q 325633423005 LOCKING EYE
077 A 0029900220 SCREW
LOCKING EYE TO BODY
077 A 0029900220 SCREW
LOCKING EYE TO BODY
080 H XB3739880160 LOCK
080 H XB3739880160 LOCK
080 H XB3739880160 LOCK
080 A 6137600105 TUMBLER
080 A 0007500850 LOCK HOUSING
080 A 0027505784 LOCK
083 H XB3739880059 KEY
TO HXB 373 988 01 60
083 H XB3739880059 KEY
TO HXB 373 988 01 60
086 A 3027550584 FASTENER
086 A 3027550584 FASTENER
088 A 6717200135 DOOR LOCK
088 A 6717200135 DOOR LOCK
088 A 6717200235 DOOR LOCK
092 A 6718370175 ORNAMENTAL COVER
DOOR LOCK
092 A 6718370175 ORNAMENTAL COVER
DOOR LOCK
095 H XB3738370170 HANDLE
INSIDE
095 H XB3738370170 HANDLE
INSIDE
098 N 007985005504 SCREW
HANDLE TO DOOR
098 N 007985005504 SCREW
HANDLE TO DOOR
101 N 912006006002 LOCK WASHER
HANDLE TO DOOR
101 N 912006006002 LOCK WASHER
HANDLE TO DOOR
104 H XB3736890070 HANDLE
GREY
104 H XB3736890070 HANDLE
GREY
104 H XB3738450075 HANDLE
BLACK
104 H XB3738450075 HANDLE
BLACK
104 H XB3736890070 HANDLE
GREY
104 H XB3738450075 HANDLE
BLACK
105 Q 8011996000 HANDLE
OUTSIDE
107 N 304017006002 SCREW
Repalced by: N 910105006002
107 N 304017006002 SCREW
Repalced by: N 910105006002
107 N 910105006002 HEXAGON HEAD BOLT
HANDLE TO DOOR
M6X12
107 N 910105006002 HEXAGON HEAD BOLT
HANDLE TO DOOR
M6X12
110 N 000125006421 WASHER
HANDLE TO DOOR
110 N 000125006421 WASHER
HANDLE TO DOOR
113 N 007985006157 SCREW
113 N 007985006157 SCREW
116 H XB0007230086 CAM
116 H XB0007230086 CAM
119 N 007984008025 SCREW
ON DOOR PILLAR;TO LOCKING MECHANISM
119 N 007984008025 SCREW
ON DOOR PILLAR;TO LOCKING MECHANISM
122 N 000137008204 SPRING WASHER
ON DOOR PILLAR;TO LOCKING MECHANISM
122 N 000137008204 SPRING WASHER
ON DOOR PILLAR;TO LOCKING MECHANISM
125 A 6717270371 PANELLING
INSIDE
125 A 6717270671 PANELLING
INSIDE
125 A 6717270471 PANELLING
INSIDE
125 A 6717270571 PANELLING
INSIDE
125 A 6717270771 PANELLING
INSIDE
128 A 6717200120 GLASS PANE
DOUBLE GLAZING
128 A 6717200120 GLASS PANE
DOUBLE GLAZING
128 A 6717200320 GLASS PANE
DOUBLE GLAZING
128 A 6717200220 GLASS PANE
DOUBLE GLAZING
128 A 6717200420 GLASS PANE
DOUBLE GLAZING
131 H XB3736740021 FRAME
131 H XB3736740021 FRAME
134 Q 325633513305 HOLDING DEVICE
193 A 6717630118 CAP
PIVOT BEARING
193 A 6717630118 CAP
PIVOT BEARING
194 N 007985005133 SCREW
CAP TO BEARING
M 5 X 20
194 N 007985005133 SCREW
CAP TO BEARING
M 5 X 20
195 N 912004005100 LOCK WASHER
CAP TO BEARING
197 A 6717600364 PILLAR
SWIVEL BAR
197 A 6717600364 PILLAR
SWIVEL BAR
197 A 6717600564 PILLAR
SWIVEL BAR
197 A 6717600564 PILLAR
SWIVEL BAR
199 A 0007607773 SUPPORTING ARM
199 A 0007607773 SUPPORTING ARM
199 A 6717600073 SUPPORTING ARM
199 A 6717600073 SUPPORTING ARM
200 A 0007607873 SUPPORTING ARM
200 A 0007607873 SUPPORTING ARM
200 A 6717600173 SUPPORTING ARM
200 A 6717600173 SUPPORTING ARM
201 A 0007605703 DRIVE
201 A 0007605703 DRIVE
201 A 0007600905 DOOR CYLINDER
201 A 0007600905 DOOR CYLINDER
202 A 0007630411 PLATE
202 A 0007630411 PLATE
203 A 0007600635 DOOR GUIDE
TOP
203 A 0007600635 DOOR GUIDE
TOP
203 A 0007600735 DOOR GUIDE
BOTTOM
203 A 0007600735 DOOR GUIDE
BOTTOM
204 A 0009888411 BUFFER
ON LOWER SUPPORTING ARM
204 A 0009888411 BUFFER
ON LOWER SUPPORTING ARM
205 A 0009888511 BUFFER
TOP AND BOTTOM
205 A 0009888511 BUFFER
TOP AND BOTTOM
210 A 0098208910 SWITCH
210 A 0098208910 SWITCH
210 A 0098209010 SWITCH
210 A 0098209010 SWITCH
211 A 0007207065 CONTROL BAR
211 A 0007207065 CONTROL BAR
212 A 0007630717 REPAIR KIT
TO A 000 760 09 05
212 A 0007630717 REPAIR KIT
TO A 000 760 09 05
213 A 6717270188 COVERING
SWIVEL BAR
213 A 6717270188 COVERING
SWIVEL BAR
213 A 6717270588 COVERING
SWIVEL BAR
213 A 6717270588 COVERING
SWIVEL BAR
216 A 6717270388 COVERING
SWIVEL BAR
216 A 6717270388 COVERING
SWIVEL BAR
219 A 6717270488 COVERING
SWIVEL BAR
219 A 6717270488 COVERING
SWIVEL BAR
222 A 6717630318 CAP
SWIVEL BAR
222 A 6717630318 CAP
SWIVEL BAR
225 H XB3738140018 CAP
SWIVEL BAR
225 H XB3738140018 CAP
SWIVEL BAR
242 N 910105010007 SCREW
SWIVEL BAR TO BODY
M 10 X 35
242 N 910105010007 SCREW
SWIVEL BAR TO BODY
M 10 X 35
242 N 910105010009 SCREW
SWIVEL BAR TO BODY
M 10 X 25
242 N 910105010009 SCREW
SWIVEL BAR TO BODY
M 10 X 25
249 A 0007660314 HOUSING
SWIVEL BAR
249 A 0007660314 HOUSING
SWIVEL BAR
258 A 6717630311 PLATE
DOOR ADJUSTMENT
258 A 6717630311 PLATE
DOOR ADJUSTMENT
260 A 3666910098 SEAL
TOP
260 A 3666910098 SEAL
TOP
263 H XB0009900025 SCREW
CAP TO DOOR
263 H XB0009900025 SCREW
CAP TO DOOR
266 H XB0007230029 STOP
DOOR
266 H XB0007230029 STOP
DOOR
269 N 007991008013 SCREW
Repalced by: A 0029900820
269 N 007991008013 SCREW
Repalced by: A 0029900820
269 A 0029900820 SCREW
STOP TO PILLAR
269 A 0029900820 SCREW
STOP TO PILLAR
272 N 006798008304 SERRATED WASHER
STOP TO PILLAR
272 N 006798008304 SERRATED WASHER
STOP TO PILLAR
274 Q 8633237000 STRIKER
274 Q 8633237000 STRIKER
275 H XB0007230003 STRIKER
275 H XB0007230003 STRIKER
278 N 007984008010 SCREW
STRIKER TO FRAME
278 N 007984008010 SCREW
STRIKER TO FRAME
281 N 000137008101 SPRING WASHER
STRIKER TO FRAME
281 N 000137008204 SPRING WASHER
STRIKER TO FRAME
308 A 6717270752 LEDGE
308 A 6717270752 LEDGE
310 A 6717230469 PULL ROD
310 A 6717230469 PULL ROD
310 A 6717230469 PULL ROD
310 Q 325633513105 PULL ROD
311 Q 325633511105 LATCH
311 Q 325633511105 LATCH
312 Q 325633511205 LATCH
312 Q 325633511205 LATCH
313 Q 325633511405 SOLENOID
313 Q 325633511405 SOLENOID
314 A 6717200014 BRACKET
314 A 6717200014 BRACKET
314 A 6717200014 BRACKET
315 A 6327630097 PAD
316 A 0059887678 CLIP
316 A 0059887678 CLIP
320 A 6717250020 WEATHERSTRIP
320 A 6717250020 WEATHERSTRIP
323 A 6717230029 STOP
INSIDE
323 A 6717230029 STOP
INSIDE
326 A 6717250096 SEAL
LEFT
326 A 6717250096 SEAL
LEFT
326 A 6717250196 SEAL
RIGHT
326 A 6717250196 SEAL
RIGHT
329 A 6717660095 SEAL BRUSH
TOP
329 A 6717660095 SEAL BRUSH
TOP
332 A 6717660023 LEDGE
TOP
332 A 6717660023 LEDGE
TOP
335 A 6719900036 SCREW
338 N 007991008049 SCREW
Repalced by: A 0029900920
338 A 0029900920 SCREW
344 A 6717230008 COVERING
RIGHT
344 A 6717230008 COVERING
RIGHT
344 A 6717230108 COVERING
LEFT
344 A 6717230108 COVERING
LEFT
347 A 6717200027 MOUNTING
SWIVEL BAR,BOTTOM
347 A 6717200027 MOUNTING
SWIVEL BAR,BOTTOM
350 H XB3737350397 PAD
SWIVEL BAR BEARING
350 H XB3737350397 PAD
SWIVEL BAR BEARING
353 H XB3737300227 MOUNTING
SWIVEL BAR,TOP
353 H XB3737300227 MOUNTING
SWIVEL BAR,TOP
353 A 6717300027 MOUNTING
SWIVEL BAR,TOP
356 A 6717220049 RAIL
356 A 0007220049 RAIL
362 H XB3737630430 YOKE
LEFT
362 H XB3737630430 YOKE
LEFT
365 H XB3737630330 YOKE
RIGHT
365 H XB3737630330 YOKE
RIGHT
368 A 6717630015 PIN
368 A 6717630015 PIN
374 A 6717630063 DISTRIBUTOR
374 A 6717630063 DISTRIBUTOR
374 A 0007660339 LINK
D= 8 MM
377 N 007991008049 SCREW
Repalced by: A 0029900920
377 A 0029900920 SCREW
380 H XB3739900398 COTTER PIN
386 N 001440016001 WASHER
386 A 6719900048 WASHER
386 A 6719900048 WASHER
387 N 913002012013 NUT
M 12 X 6
387 N 000934016007 NUT
M 16 X 1,5
387 N 000934016007 NUT
M 16 X 1,5
389 A 6717630011 PLATE
389 A 6717630011 PLATE
389 A 6717250011 PLATE
392 A 6717630410 SWITCH
392 A 6717630410 SWITCH
401 A 6717630210 SWITCH
(PRESSURE SWITCH)
401 A 6717630210 SWITCH
(PRESSURE SWITCH)
407 A 6717630101 DOOR CYLINDER
RIGHT
407 A 6717630101 DOOR CYLINDER
RIGHT
407 A 6717630201 DOOR CYLINDER
LEFT
407 A 6717630201 DOOR CYLINDER
LEFT
410 A 6717630020 MOUNTING
RIGHT
410 A 6717630020 MOUNTING
RIGHT
410 A 6717630220 MOUNTING
LEFT
410 A 6717630220 MOUNTING
LEFT
413 A 6717660074 NUT
416 A 6719950001 CLAMP
416 A 6719950001 CLAMP
419 A 6719950101 CLAMP
419 A 6719950101 CLAMP
422 A 6717630120 MOUNTING
422 A 6717630120 MOUNTING
Repalced by: A 6717630320
422 A 6717630320 MOUNTING
431 A 0059974336 VALVE
(SOLENOID VALVE)
431 A 0059974336 VALVE
(SOLENOID VALVE)
431 A 0007600378 VALVE
(SOLENOID VALVE)
431 A 0007600378 VALVE
(SOLENOID VALVE)
434 A 6717630114 BRACKET
(SOLENOID VALVE)
434 A 6717630114 BRACKET
(SOLENOID VALVE)
441 A 0007601278 VALVE
3 BAR
441 A 0007601278 VALVE
3 BAR
443 Q 8633250000 PRESSURE LIMITER
4,2 BAR
443 Q 8633250000 PRESSURE LIMITER
4,2 BAR
443 A 6717630052 VALVE
443 A 6717630052 VALVE
446 A 0007602357 CONTROL COCK
446 A 0007602357 CONTROL COCK
446 A 0007602357 CONTROL COCK
449 A 6717640038 ROTARY KNOB
EMERGENCY COCK
449 A 6717640038 ROTARY KNOB
EMERGENCY COCK
449 A 6717640038 ROTARY KNOB
EMERGENCY COCK
449 A 6717640038 ROTARY KNOB
EMERGENCY COCK
452 A 6717660174 NUT
452 A 6717660174 NUT
452 N 913023010002 NUT
453 N 913023010002 NUT
SELF-LOCKING
M 10
453 N 913023010002 NUT
SELF-LOCKING
M10
455 A 6719940009 LOCK
455 A 6719940009 LOCK
455 N 000125010538 WASHER
458 A 6717630043 SLEEVE
458 A 6717630043 SLEEVE
458 A 6717630043 SLEEVE
458 A 6717630043 SLEEVE
461 N 007604012102 SCREW PLUG
461 N 007604012102 SCREW PLUG
464 A 0059976140 SEAL RING
464 A 0059976140 SEAL RING
467 A 0059972940 SEAL RING
470 A 6717630162 SCREW CONNECTION
THROTTLE
470 A 6717630162 SCREW CONNECTION
THROTTLE
470 A 6717630162 SCREW CONNECTION
THROTTLE
470 A 6717630162 SCREW CONNECTION
THROTTLE
473 A 6717630062 SCREW CONNECTION
473 A 6717630062 SCREW CONNECTION
473 A 6717630062 SCREW CONNECTION
473 A 6717630062 SCREW CONNECTION
474 Q 6997861060 FITTING
M12X1,5
474 Q 6997861060 FITTING
477 A 6717200003 DOOR WING
RIGHT
477 A 6717200003 DOOR WING
RIGHT
478 A 6717200103 DOOR WING
LEFT
478 A 6717200103 DOOR WING
LEFT
485 A 6717250009 GLASS PANE
SINGLE GLAZING,CLEAR FROM INSIDE LEFT;FROM OUTSIDE RIGHT
485 A 6717250909 GLASS PANE
DOUBLE GLAZING;CLEAR FROM INSIDE LEFT;FROM OUTSIDE RIGHT
485 A 6717251909 GLASS PANE
GREY
488 A 6717250109 GLASS PANE
SINGLE GLAZING;CLEAR FROM INSIDE RIGHT,FROM OUTSIDE LEFT
488 A 6717251009 GLASS PANE
DOUBLE GLAZING;CLEAR FROM INSIDE RIGHT;FROM OUTSIDE LEFT
488 A 6717252009 GLASS PANE
GREY
491 A 6717230014 BRACKET
491 A 6717230014 BRACKET
492 A 6717250820 WEATHERSTRIP
RIGHT
492 A 6717250820 WEATHERSTRIP
RIGHT
492 A 6717250920 WEATHERSTRIP
LEFT
492 A 6717250920 WEATHERSTRIP
LEFT
494 A 0015455714 SWITCH
(PRESSURE SWITCH)
494 A 0015455714 SWITCH
(PRESSURE SWITCH)
494 A 0015455714 SWITCH
(PRESSURE SWITCH)
494 H XB3737630310 SWITCH
(PRESSURE SWITCH)
494 A 0035456414 SWITCH
(PRESSURE SWITCH)
494 Q 7314035000 SWITCH
(PRESSURE SWITCH)
4,5 BAR WABCO
494 Q 7314035000 SWITCH
(PRESSURE SWITCH)
4,5 BAR WABCO
494 A 0028214251 SWITCH
(PRESSURE SWITCH)
4,5 BAR WESTINGHOUSE
494 A 0028214251 SWITCH
(PRESSURE SWITCH)
4,5 BAR WESTINGHOUSE
494 Q 7314041000 SWITCH
(PRESSURE SWITCH)
2 BAR
494 Q 7314041000 SWITCH
(PRESSURE SWITCH)
2 BAR
494 Q 7314043000 SWITCH
(PRESSURE SWITCH)
2 BAR MESSMER
494 Q 7314043000 SWITCH
(PRESSURE SWITCH)
2 BAR MESSMER
494 A 0007633810 SWITCH
(PRESSURE SWITCH)
3 BAR
494 A 0007633810 SWITCH
(PRESSURE SWITCH)
3 BAR
494 A 6717630610 SWITCH
(PRESSURE SWITCH)
M 12 X 1,5 / 0,15 BAR
494 A 6717630610 SWITCH
(PRESSURE SWITCH)
M 12 X 1,5 / 0,15 BAR
495 A 0019972572 FITTING
SWITCH
496 A 0059972940 SEAL RING
SWITCH
496 A 0059972940 SEAL RING
SWITCH
496 A 0059972940 SEAL RING
SWITCH
497 A 6717250120 WEATHERSTRIP
RIGHT
497 A 6717250120 WEATHERSTRIP
RIGHT
500 A 6717250220 WEATHERSTRIP
LEFT
500 A 6717250220 WEATHERSTRIP
LEFT
503 A 6717250320 WEATHERSTRIP
BOTTOM
503 A 6717250320 WEATHERSTRIP
BOTTOM
506 A 6717250420 WEATHERSTRIP
RIGHT
506 A 6717250420 WEATHERSTRIP
RIGHT
506 A 6717250520 WEATHERSTRIP
LEFT
506 A 6717250520 WEATHERSTRIP
LEFT
509 A 6717250620 WEATHERSTRIP
509 A 6717250620 WEATHERSTRIP
512 A 6717250720 WEATHERSTRIP
TOP
512 A 6717250720 WEATHERSTRIP
TOP
515 A 6717250296 SEAL
515 A 6717250296 SEAL
518 A 0007231109 DOOR PULL HANDLE
518 H XB3737330009 DOOR PULL HANDLE
521 A 6717230114 BRACKET
521 A 6717230114 BRACKET
524 H XB3737330398 SEAL
524 H XB3737330398 SEAL
527 A 6717230009 DOOR PULL HANDLE
527 A 6717230009 DOOR PULL HANDLE
527 A 6717230009 DOOR PULL HANDLE
530 A 6717230038 PIN
530 A 6717230038 PIN
533 A 6717230408 COVERING
533 A 6717230408 COVERING
536 A 6717230098 SEAL
536 A 6717230098 SEAL
536 A 6717230198 SEAL
536 A 6717230198 SEAL
539 A 6717230026 LEDGE
539 A 6717230026 LEDGE
542 A 6717230126 LEDGE
542 A 6717230126 LEDGE
545 A 6717230214 BRACKET
INSIDE
545 A 6717230214 BRACKET
INSIDE
548 A 6717230068 ROLLER
548 A 6717230068 ROLLER
551 A 6717230064 GUIDE
551 A 6717230064 GUIDE
554 A 6717230074 CAP
554 A 6717230074 CAP
557 A 6717200127 MOUNTING
557 A 6717200127 MOUNTING
560 A 6717200023 ANGLE
560 A 6717200023 ANGLE
563 A 6717200059 STOP
RIGHT
563 A 6717200159 STOP
LEFT
563 A 6717200159 STOP
LEFT
566 N 000912008173 SCREW
566 N 000912008173 SCREW
569 A 6719900051 NUT
569 A 6719900051 NUT
572 N 000966005067 SCREW
Repalced by: A 0009905131
572 A 0009905131 SCREW W HEXAGON SOCKET
572 A 0009905131 SCREW W HEXAGON SOCKET
575 A 6719900053 NUT
578 A 6719900031 SCREW
581 A 6717230076 WASHER
581 A 6717230076 WASHER
584 A 6717230508 COVERING
584 A 6717230508 COVERING
LEFT
584 A 6717230808 COVERING
LEFT
584 A 6717230608 COVERING
RIGHT
584 A 6717230608 COVERING
RIGHT
584 A 6717230908 COVERING
RIGHT
587 A 6717230069 PULL ROD
RED
587 A 6717230069 PULL ROD
RED
587 A 6717230269 PULL ROD
RIGHT
587 A 6717230369 PULL ROD
LEFT
587 A 6717230169 PULL ROD
BLACK
587 A 6717230169 PULL ROD
BLACK
590 A 6717230017 GEAR
590 A 6717230017 GEAR
593 A 6717230007 HOUSING
593 A 6717230007 HOUSING
593 A 6717230107 HOUSING
593 A 6717230107 HOUSING
596 A 6717230298 SEAL
596 A 6717230298 SEAL
599 A 6717600005 TUMBLER
599 A 6717600005 TUMBLER
602 A 6717230708 COVERING
TUMBLER
602 A 6717230708 COVERING
TUMBLER
605 A 0007630133 LINK
608 A 6717230164 GUIDE
608 A 6717230164 GUIDE
611 A 6719900151 NUT
611 A 6719900151 NUT
614 N 000966008058 SCREW
617 A 6717230022 CLAMPING PIECE
617 A 6717230022 CLAMPING PIECE
620 A 0049908140 WASHER
623 A 0049908040 WASHER
626 A 6717600024 PLATE
626 A 6717600024 PLATE
629 N 007991008049 SCREW
Repalced by: A 0029900920
629 A 0029900920 SCREW
632 A 6719900136 SCREW
635 A 6717630161 HOSE
635 A 6717630161 HOSE
638 A 6717660005 PAD
638 A 6717660005 PAD
641 A 0009959144 CLAMP
641 A 0009959144 CLAMP
A 6717230374 CAP
A 6717230374 CAP
647 A 6719970252 HOSE
4 X 1,2 MM
647 A 6719970252 HOSE
4 X 1,2 MM
650 A 6717600295 SEAL BRUSH
651 A 6717600764 SWIVEL BAR
COMPLETE
653 A 0098209310 SWITCH
LEFT
654 A 6717630162 SCREW CONNECTION
THROTTLE
655 A 0059976140 SEAL RING
THROTTLE
656 A 6717200077 ARM
659 A 6717200265 CONTROL BAR
662 A 0007231212 ANGLE
BOTTOM
665 A 0007231112 ANGLE
TOP
668 A 0007662317 MOUNTING
TOP
671 A 6717200092 ROD
TOP
672 A 0007660439 LINK
D= 8 - 4 MM
674 A 0007230489 LINK
677 A 0007230566 PIVOT PIN
102 MM
680 A 0007660225 ESCUTCHEON
FOR BRACKET
683 A 6717660335 CAP
686 A 3666910098 SEAL
689 A 0007236108 COVERING
692 A 0007606978 VALVE
695 A 0005460718 COIL
698 A 0007660139 LINK
D= 8 MM
698 A 0007660239 LINK
D= 4 MM
700 A 6717200065 SWIVEL BAR
RIGHT
700 A 6717200065 SWIVEL BAR
RIGHT
700 A 6717200165 SWIVEL BAR
LEFT
700 A 6717200165 SWIVEL BAR
LEFT
703 A 0007609173 GUIDE ARM
RIGHT
703 A 0007609173 GUIDE ARM
RIGHT
703 A 0017603573 GUIDE ARM
LEFT
703 A 0017603573 GUIDE ARM
LEFT
705 A 0007600914 BALL JOINT
706 A 0007250162 PIN
706 A 0007250162 PIN
709 A 0099814625 BALL BEARING
709 A 0099814625 BALL BEARING
712 A 0007230276 WASHER
SHIM
25X30X2
712 A 0007230276 WASHER
SHIM
25X30X2
715 A 0109946641 LOCK RING
30X1,2
715 A 0109946641 LOCK
30X1,2
718 A 0009981123 PROTECTIVE CAP
DUST CAP
718 A 0009981123 PROTECTIVE CAP
DUST CAP
721 A 0007231514 BRACKET
BOTTOM RIGHT
721 A 0007231514 BRACKET
BOTTOM RIGHT
721 A 0007231614 BRACKET
BOTTOM LEFT
721 A 0007231614 BRACKET
BOTTOM LEFT
724 A 0009901384 WASHER
724 A 0009901384 BANJO UNION
727 A 0007230376 WASHER
SHIM
10,5X22X3
727 A 0007230376 WASHER
SHIM
10,5X22X3
A 0007222608 COVERING
A 0007222608 COVERING
733 A 0029957701 CLAMP
733 A 0029957701 CLAMP
736 A 0009837792 FELT
DUST PROTECTION
736 A 0009837792 FELT
DUST PROTECTION
739 A 0019902171 ELBOW FITTING
741 A 0019972572 FITTING
SCREW-IN FITTING
744 A 0029901170 T-FITTING
747 A 0009909970 T-FITTING
750 A 0029976772 FITTING
SCREW-IN FITTING
753 A 0035459314 SWITCH
PRESSURE SWITCH
0,1X0,3BAR
753 A 0035459514 SWITCH
SCREW-IN FITTING
1,0X1,4BAR
756 A 0059972940 SEAL RING
759 N 915039008101 HOLLOW SCREW FITTING
M14X1,5
A 0009872727 PLASTIC PIPE
8X1
A 0009872627 PLASTIC PIPE
6X1
A 0029901120 SCREW
M5X16MM
N 007985005136 SCREW
M5X30MM
A 0009907470 T-FITTING
A 6717270014 BRACKET
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
