Transporto priemonė: O 345,CONECTO H; VIN numerio dalis: 671042
Grupė: 91 FRONT SEATS - 035 GRAMMER DRIVER'S SEAT
| # | Kodas | Pavadinimas |
|---|---|---|
| A 6719100001 | FRONT SEAT | |
| A 6719100201 | FRONT SEAT | |
| A 6719100901 | FRONT SEAT | |

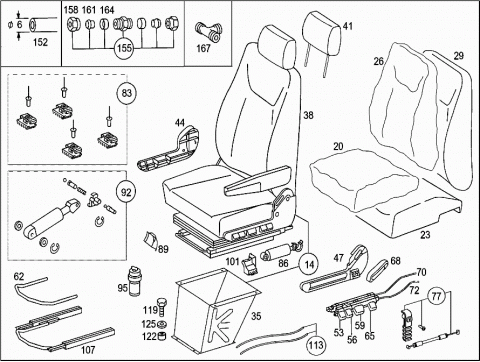

| 014 | A 6719100101 | FRONT SEAT |
| 020 | H XB3739100446 | COVER |
| SEAT CUSHION | ||
| 023 | A 0009100706 | SEAT CUSHION LESS COVER |
| SEAT CUSHION | ||
| 026 | H XB3739100847 | COVER |
| BACKREST | ||
| 029 | A 0009100507 | BACKREST |

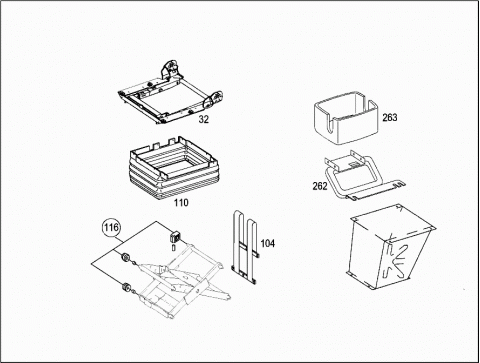

| 032 | A 0009100922 | CUSHION FRAME |
| 035 | A 6719100023 | SEAT BOX |
| 035 | A 6719100223 | SEAT BOX |
| 038 | A 6719100020 | SEAT FRAMEWORK |
| 038 | A 6719100320 | SEAT FRAMEWORK |
| 041 | A 0009702950 | HEADREST |
| 044 | A 0009121835 | COVERING |
| RIGHT | ||
| A 0009123135 | COVERING | |
| Repalced by: A 0009113230 | ||
| 047 | A 0009113230 | COVERING |
| LEFT | ||
| A 0009102071 | LEVER | |
| LEFT | ||
| 053 | A 0009197460 | HANDLE |
| TILT ADJUSTMENT HANDLE | ||
| 056 | A 0009199860 | HANDLE |
| Repalced by: A 0009197560 | ||
| 056 | A 0009197560 | HANDLE |
| INSULATION | ||
| 059 | A 0009181960 | HANDLE |
| HEIGHT ADJUSTMENT | ||
| 062 | A 0009199960 | HANDLE |
| FORE-AND-AFT ADJUSTMENT | ||
| 065 | A 0019190060 | HANDLE |
| QUICK LOWERING DEVICE | ||
| 068 | A 0009197760 | HANDLE |
| FRONT SEAT BACKREST | ||
| 070 | A 0009190570 | PULL |
| INSULATION | ||
| 072 | A 0009190030 | PULL |
| HEIGHT ADJUSTMENT | ||
| 077 | A 0009190770 | PULL |
| QUICK LOWERING DEVICE | ||
| A 0009190670 | PULL | |
| FORE-AND-AFT ADJUSTMENT | ||
| 083 | A 0009110122 | GUIDE |
| 086 | A 0009198945 | SHOCK ABSORBER |
| LEVEL ADJUSTMENT | ||
| 089 | A 0009100936 | SEAT ADJUSTER |
| SELF-LEVELLING DEVICE | ||
| 092 | A 0009199045 | SHOCK ABSORBER |
| FORE AND AFT ADJUSTMENT | ||
| 095 | A 0008000436 | SPRING |
| AIR SPRING | ||
| A 0009101428 | SPRING | |
| HORIZONTAL ADJUSTMENT | ||
| 101 | A 0009104538 | VALVE |
| SELF-LEVELLING DEVICE CONTROL VALVE | ||
| 104 | A 0009190085 | BELT |
| 107 | A 0009100589 | GUIDE RAIL |
| 110 | A 0009193620 | COVERING |
| 113 | A 0009190494 | AIR TUBE |
| (PARTS KIT) | ||
| 116 | A 0009102701 | FRONT SEAT |
| (WEARING PARTS KIT) | ||
| 119 | N 304017010033 | HEXAGON HEAD BOLT |
| SEAT FRAMEWORK TO FLOOR | ||
| M10X40 | ||
| 119 | N 304017010033 | HEXAGON HEAD BOLT |
| SEAT FRAMEWORK TO FLOOR | ||
| M10X40 | ||
| 122 | H XB3739390128 | BUSHING |
| SEAT FRAMEWORK TO FLOOR | ||
| 122 | H XB3739390128 | BUSHING |
| SEAT FRAMEWORK TO FLOOR | ||
| 125 | N 000125010532 | WASHER |
| SEAT FRAMEWORK TO FLOOR | ||
| 125 | N 000125010532 | WASHER |
| SEAT FRAMEWORK TO FLOOR | ||
| 152 | A 0009872627 | PLASTIC PIPE |
| AT DRIVER'S SEAT | ||
| 6X1MM | ||
| 155 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 158 | N 915017006100 | UNION NUT |
| AT DRIVER'S SEAT | ||
| 161 | A 0019901667 | GLAND |
| AT DRIVER'S SEAT | ||
| 164 | N 915062004000 | SLEEVE |
| AT DRIVER'S SEAT | ||
| 167 | A 0009902770 | T-FITTING |
| AT DRIVER'S SEAT | ||

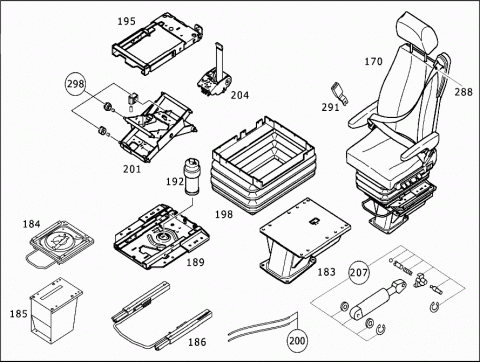

| 170 | A 6719100401 | FRONT SEAT |
| 170 | A 6719100801 | FRONT SEAT |
| 170 | A 6719101101 | FRONT SEAT |
| 170 | A 6719101201 | FRONT SEAT |
| 183 | A 0009101057 | CONSOLE |
| 184 | A 0009100057 | CONSOLE |
| 185 | A 0009101657 | CONSOLE |
| 186 | A 0009100989 | GUIDE RAIL |
| 186 | A 0009100589 | GUIDE RAIL |
| 189 | A 0009100443 | FRAME |
| 192 | A 0008000436 | SPRING |
| 195 | A 0009100343 | FRAME |
| 198 | A 0009194420 | COVERING |
| 200 | A 0009190494 | AIR TUBE |
| PARTS KIT | ||
| 201 | A 0009106220 | SEAT FRAMEWORK |
| 204 | A 0028200226 | VALVE |
| RAKE ADJUSTMENT | ||
| 207 | A 0009199045 | SHOCK ABSORBER |
| PARTS KIT | ||
| 207 | A 0019190845 | SHOCK ABSORBER |
| PARTS KIT | ||

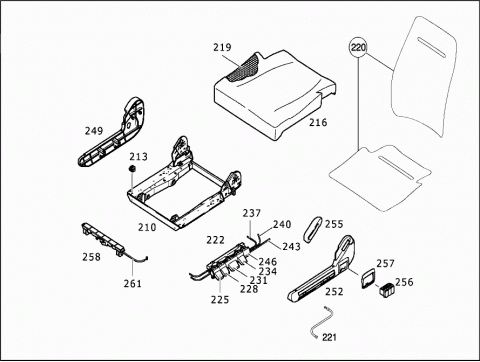

| 210 | A 0009103201 | SEAT FRAMEWORK |
| 213 | A 0009110122 | GUIDE |
| SEAT FRAMEWORK | ||
| 216 | A 0009108430 | SEAT CUSHION |
| LESS COVER | ||
| 216 | A 0029100430 | SEAT CUSHION |
| LESS COVER | ||
| 219 | A 6139100046 | COVER |
| 220 | A 0008300620 | HEATING PAD |
| 220 | A 6288200498 | SEAT HEATING |
| 221 | A 0098201710 | SWITCH |
| HEATING PAD | ||
| 221 | A 0015400305 | CABLE HARNESS |
| HEATING PAD | ||
| 222 | A 0009102371 | LEVER |
| 222 | A 0009103471 | LEVER |
| 225 | A 0009103271 | LEVER |
| RAKE ADJUSTMENT | ||
| 228 | A 0009199860 | HANDLE |
| Repalced by: A 0009197560 | ||
| 228 | A 0009197560 | HANDLE |
| INSULATION | ||
| 231 | A 0009181960 | HANDLE |
| HEIGHT ADJUSTMENT | ||
| 234 | A 0019190060 | HANDLE |
| QUICK LOWERING DEVICE | ||
| 234 | A 0019190660 | HANDLE |
| QUICK LOWERING DEVICE | ||
| 237 | A 0009190770 | PULL |
| ROTATING DEVICE | ||
| 237 | A 0009101674 | PULL |
| ROTATING DEVICE | ||
| 240 | A 0009190030 | PULL |
| HEIGHT ADJUSTMENT | ||
| 243 | A 0009190570 | PULL |
| INSULATION | ||
| 246 | A 0009113330 | COVERING |
| 249 | A 0009114830 | COVERING |
| RIGHT | ||
| 249 | A 0009121835 | COVERING |
| RIGHT | ||
| 252 | A 0009101618 | COVERING |
| LEFT | ||
| 252 | A 6719100018 | COVERING |
| LEFT | ||
| 252 | A 0009124535 | COVERING |
| LEFT | ||
| 255 | A 0009101671 | LEVER |
| BACKREST ADJUSTMENT | ||
| 256 | A 0009107038 | VALVE |
| 257 | A 0009125435 | COVERING |
| 258 | A 0009102077 | SEAT ADJUSTER |
| 261 | A 0009101974 | PULL |
| SEAT ADJUSTER | ||
| 262 | A 6719100414 | BRACKET |
| FOR EPS | ||
| 263 | A 6719110037 | COVERING |
| FOR EPS | ||
| 264 | A 0009100508 | SEAT ADAPTER |
| LESS COVER | ||

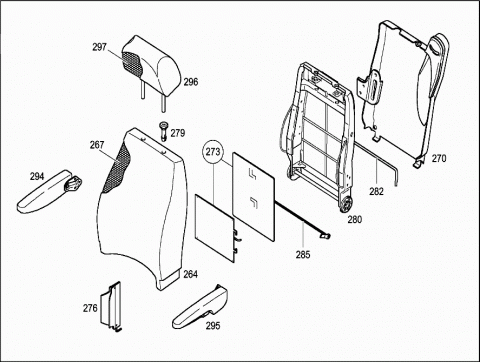

| 267 | A 6139101647 | COVER |
| 270 | A 0009102439 | PANELLING |
| 273 | A 0008001819 | SEAT ADAPTER |
| 276 | A 0019102086 | BACKREST ADJUSTER |
| 279 | A 0009100317 | BUSHING |
| HEAD RESTRAINT | ||
| 280 | A 0009109007 | BACKREST |
| 282 | A 0009194037 | SPRING |
| 285 | A 0009190447 | SPINDLE |
| BACKREST ADJUSTMENT | ||
| 288 | A 0038608785 | SAFETY BELT |
| 288 | A 0048602785 | SAFETY BELT |
| 291 | A 0018609569 | FASTENER |
| 294 | A 0009700202 | ARMREST |
| RIGHT | ||
| 295 | A 0009700002 | ARMREST |
| LEFT | ||
| 296 | A 0009703650 | HEADREST |
| 297 | A 6139101747 | COVER |
| HEAD RESTRAINT | ||
| 298 | A 0009102701 | PARTS KIT |
| SEAT FRAMEWORK | ||
| A 6289100099 | PARTS KIT | |

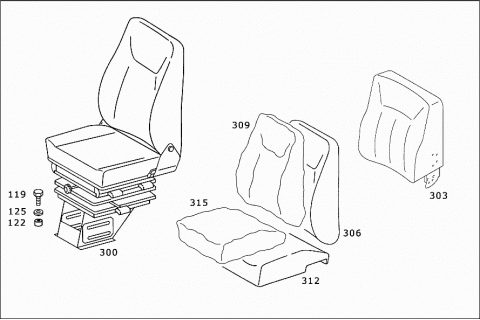

| 300 | H XB3739102201 | FRONT SEAT |
| 303 | A 0009102807 | BACKREST |
| 306 | A 0009100808 | SEAT ADAPTER |
| 309 | H XB3739100847 | COVER |
| 312 | A 0019105030 | SEAT CUSHION |
| 315 | H XB3739100446 | COVER |

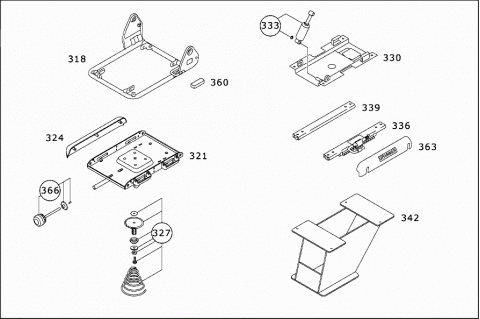

| 318 | A 0009103301 | SEAT FRAMEWORK |
| 321 | A 0009103401 | SEAT FRAMEWORK |
| 324 | A 0009114930 | COVERING |
| 327 | A 0009101628 | SPRING |
| 330 | A 0009103501 | SEAT FRAMEWORK |
| 333 | A 0009190896 | BUFFER |
| 336 | A 0009100527 | RAIL |
| 339 | A 0009100427 | RAIL |
| 342 | A 0009100957 | CONSOLE |

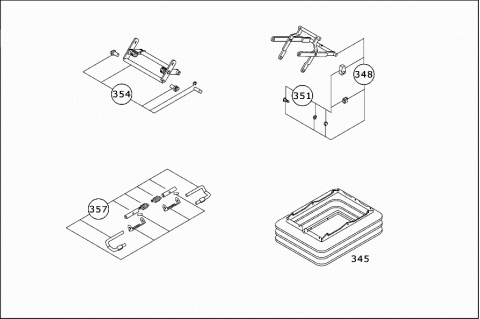

| 345 | A 0009196620 | COVERING |
| 348 | A 0009106320 | SEAT FRAMEWORK |
| REPAIR KIT | ||
| 351 | A 0009106420 | SEAT FRAMEWORK |
| REPAIR KIT | ||
| 354 | A 0009190066 | JOINT |
| REPAIR KIT | ||
| 357 | A 0009103836 | SEAT ADJUSTER |
| REPAIR KIT | ||
| 360 | A 0009183260 | HANDLE |
| 363 | A 0009115030 | COVERING |
| 366 | A 0009100881 | BACKREST ADJUSTER |

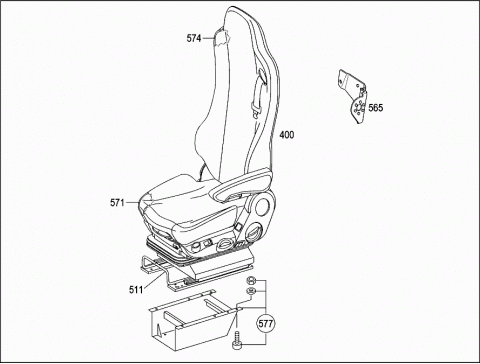

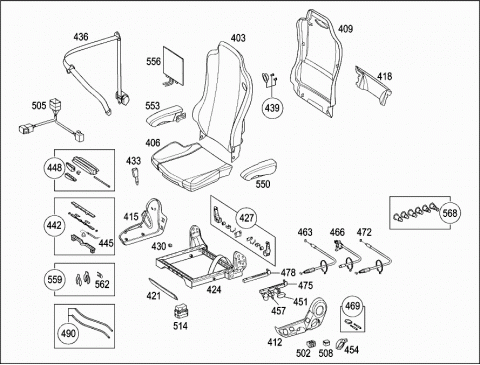

| 400 | A 6329101001 | FRONT SEAT |
| 400 | A 6139103401 | FRONT SEAT |
| 400 | A 6329102301 | FRONT SEAT |
| 403 | A 0009108807 | BACKREST |
| 406 | A 0019109430 | SEAT CUSHION |
| 409 | A 0009131128 | COVERING |
| 412 | A 0009126535 | COVERING |
| LEFT | ||
| 415 | A 0009126835 | COVERING |
| RIGHT | ||
| 418 | A 0009131228 | COVERING |
| REAR | ||
| 421 | A 0009131328 | COVERING |
| 424 | A 0009104822 | CUSHION FRAME |
| 427 | A 0009101361 | DETENT |
| 430 | A 0009110222 | GUIDE |
| 433 | A 0028603969 | FASTENER |
| SEAT BELT BUCKLE WITH WARNING CONTACT | ||
| 436 | A 0048601885 | SAFETY BELT |
| 439 | A 0008680922 | BELT GUIDE |
| 442 | A 0009102377 | SEAT ADJUSTER |
| 445 | A 0009102074 | PULL |
| RAKE ADJUSTMENT | ||
| 448 | A 0019194960 | HANDLE |
| RAKE ADJUSTMENT | ||
| 451 | A 0019191360 | HANDLE |
| HEIGHT ADJUSTMENT | ||
| 454 | A 0009183560 | HANDLE |
| BACKREST ADJUSTER | ||
| 457 | A 0019191560 | HANDLE |
| MUFFLER | ||
| 463 | A 0009104174 | PULL |
| QUICK LOWERING DEVICE | ||
| 466 | A 0009103774 | PULL |
| 469 | A 0009103274 | PULL |
| BACKREST ADJUSTER | ||
| 472 | A 0009102374 | PULL |
| MUFFLER | ||
| 475 | A 0009102771 | MOULDING TYPE HANDLE |
| 478 | A 0009190962 | DETENT |

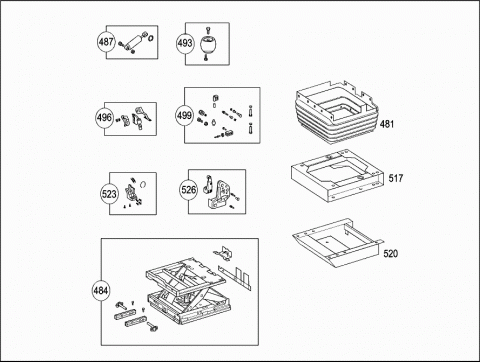

| 481 | A 0009110194 | BELLOWS |
| 484 | A 0019141501 | SPRING CORE |
| 484 | A 0009100353 | SWINGING FRAMEWORK |
| 487 | A 0029804664 | SHOCK ABSORBER |
| 490 | A 0049978352 | HOSE |
| 493 | A 0008001136 | SPRING |
| 496 | A 0009108736 | SEAT ADJUSTER |
| 499 | A 0009100699 | REPAIR KIT |
| 502 | A 0009198360 | HANDLE |
| 505 | A 0005467215 | ELECTRIC CABLE |
| SEAT HEATING | ||
| 508 | A 0009181336 | COVERING |
| HEATING SWITCH | ||
| 511 | A 0009104290 | RUN |
| 514 | A 0085459024 | SWITCH,AUTOMATIC |
| 517 | A 6289110431 | CONSOLE |
| 520 | A 6279110031 | CONSOLE |
| 523 | A 0009108838 | VALVE |
| 526 | A 0009903099 | REPAIR KIT |
| 550 | A 0009706401 | ARMREST |
| LEFT | ||
| 553 | A 0009706601 | ARMREST |
| RIGHT | ||
| 556 | A 6288200498 | SEAT HEATING |
| 559 | A 0009100499 | REPAIR KIT |
| 562 | A 0009904599 | ATTACHMENT |
| 565 | A 0009130214 | BRACKET |
| MICROPHONE | ||
| 568 | A 0009180014 | PIN |
| 571 | A 6139100246 | COVER |
| SEAT CUSHION | ||
| 571 | A 6139100246 | COVER |
| SEAT CUSHION | ||
| 574 | A 6139101947 | COVER |
| BACKREST | ||
| 574 | A 6139101947 | COVER |
| BACKREST | ||
| 577 | A 6719100157 | CONSOLE |
| 577 | A 6719100157 | CONSOLE |
