Transporto priemonė: O 345,CONECTO H; VIN numerio dalis: 671042

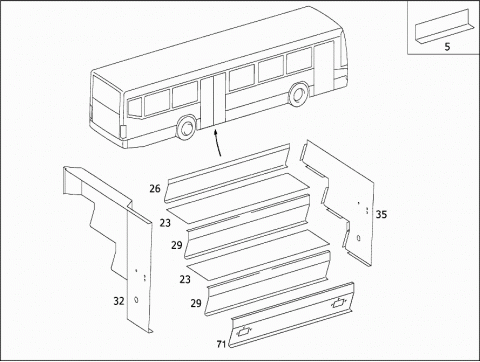

Grupė: 66 INSTALLATIONS - 030 ENTRANCE
| # | Kodas | Pavadinimas |
|---|---|---|

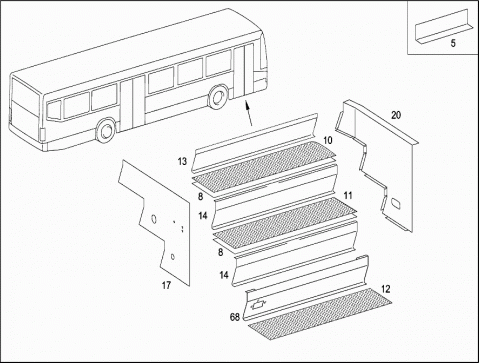

| 005 | A 6716321412 | ANGLE |
| LENGTH: | ||
| 1220MM | ||
| 005 | A 6716321412 | ANGLE |
| LENGTH: | ||
| 1220MM | ||
| 008 | A 6716661528 | ROCKER PANEL |
| FRONT ENTRANCE | ||
| 009 | A 6716662828 | ROCKER PANEL |
| FRONT ENTRANCE | ||
| 010 | A 6716861560 | STEP |
| FRONT ENTRANCE,NO.3 STEP | ||
| 011 | A 6716861660 | STEP |
| FRONT ENTRANCE,NO.2 STEP | ||
| 012 | A 6716861760 | STEP |
| FRONT ENTRANCE,NO.1 STEP | ||
| 013 | A 6716661328 | ROCKER PANEL |
| FRONT ENTRANCE | ||
| 013 | A 6716663728 | ROCKER PANEL |
| FRONT ENTRANCE | ||
| 014 | A 6716661428 | ROCKER PANEL |
| FRONT ENTRANCE | ||
| 014 | A 6716663828 | ROCKER PANEL |
| FRONT ENTRANCE | ||
| 015 | A 6716662728 | ROCKER PANEL |
| FRONT ENTRANCE | ||
| 017 | A 6716661409 | COVERING |
| FRONT ENTRANCE | ||
| 017 | A 6716663109 | COVERING |
| FRONT ENTRANCE | ||
| 018 | A 6716662209 | COVERING |
| FRONT ENTRANCE | ||
| 020 | A 6716661509 | COVERING |
| FRONT ENTRANCE | ||
| 020 | A 6716663209 | COVERING |
| FRONT ENTRANCE | ||
| 021 | A 6716662109 | COVERING |
| FRONT ENTRANCE | ||
| 023 | A 6716661928 | ROCKER PANEL |
| CENTRAL ENTRANCE | ||

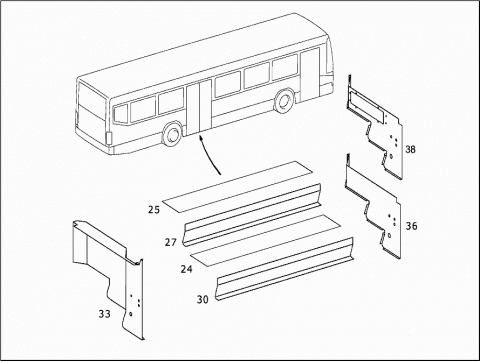

| 024 | A 6716663128 | ROCKER PANEL |
| CENTRAL ENTRANCE | ||
| 024 | A 6716664628 | ROCKER PANEL |
| CENTRAL ENTRANCE | ||
| 025 | A 6716662928 | ROCKER PANEL |
| CENTRAL ENTRANCE | ||
| 025 | A 6716664528 | ROCKER PANEL |
| CENTRAL ENTRANCE | ||
| 025 | A 6716664928 | ROCKER PANEL |
| CENTRAL ENTRANCE | ||
| 026 | A 6716661728 | ROCKER PANEL |
| CENTRAL ENTRANCE | ||
| 026 | A 6716664228 | ROCKER PANEL |
| CENTRAL ENTRANCE | ||
| 027 | A 6716663228 | ROCKER PANEL |
| CENTRAL ENTRANCE | ||
| 027 | A 6716664328 | ROCKER PANEL |
| VENTILATION SCREEN | ||
| 027 | A 6716664728 | ROCKER PANEL |
| CENTRAL ENTRANCE | ||

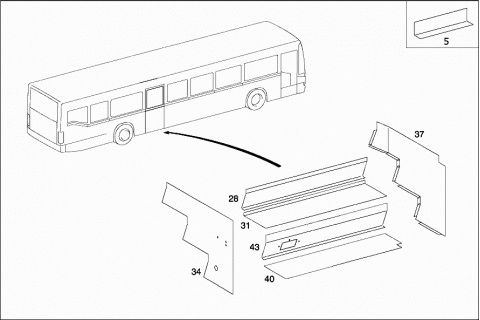

| 028 | A 6716663328 | ROCKER PANEL |
| CENTRAL ENTRANCE | ||
| 029 | A 6716661828 | ROCKER PANEL |
| CENTRAL ENTRANCE | ||
| 029 | A 6716664028 | ROCKER PANEL |
| CENTRAL ENTRANCE | ||
| 029 | A 6716662128 | ROCKER PANEL |
| BOTTOM | ||
| 030 | A 6716663028 | ROCKER PANEL |
| VENTILATION SCREEN | ||
| 030 | A 6716664428 | ROCKER PANEL |
| CENTRAL ENTRANCE | ||
| 030 | A 6716664828 | ROCKER PANEL |
| VENTILATION SCREEN | ||
| 031 | A 6716663628 | ROCKER PANEL |
| CENTRAL ENTRANCE | ||
| 031 | A 6716600028 | ROCKER PANEL |
| CENTRAL ENTRANCE | ||
| 032 | A 6716600355 | COVERING |
| CENTRAL ENTRANCE | ||
| TO A 671 666 18 28 | ||
| 032 | A 6716602009 | PANELLING |
| CENTRAL ENTRANCE | ||
| TO A 671 666 21 28 | ||
| 032 | A 6716601055 | COVERING |
| CENTRAL ENTRANCE | ||
| 032 | A 6716601755 | COVERING |
| CENTRAL ENTRANCE | ||
| 032 | A 6716601255 | COVERING |
| CENTRAL ENTRANCE | ||
| 033 | A 6716662409 | COVERING |
| CENTRAL ENTRANCE | ||
| 033 | A 6716662409 | COVERING |
| CENTRAL ENTRANCE | ||
| 033 | A 6716600955 | COVERING |
| CENTRAL ENTRANCE | ||
| 033 | A 6716601555 | COVERING |
| CENTRAL ENTRANCE | ||
| 033 | A 6716663609 | COVERING |
| CENTRAL ENTRANCE | ||
| 034 | A 6716662509 | COVERING |
| CENTRAL ENTRANCE | ||
| 035 | A 6716661609 | COVERING |
| CENTRAL ENTRANCE | ||
| 035 | A 6716601355 | COVERING |
| CENTRAL ENTRANCE | ||
| 036 | A 6716600655 | COVERING |
| CENTRAL ENTRANCE | ||
| 036 | A 6716600655 | COVERING |
| CENTRAL ENTRANCE | ||
| 036 | A 6716601655 | COVERING |
| CENTRAL ENTRANCE | ||
| 037 | A 6716662609 | COVERING |
| CENTRAL ENTRANCE | ||
| 038 | A 6716600555 | COVERING |
| CENTRAL ENTRANCE | ||
| 040 | A 6716663528 | ROCKER PANEL |
| CENTRAL ENTRANCE | ||
| 043 | A 6716663428 | ROCKER PANEL |
| CENTRAL ENTRANCE | ||

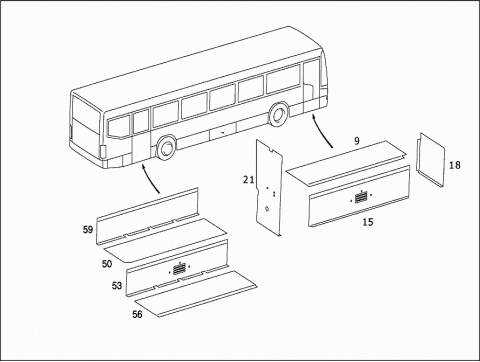

| 050 | A 6716662228 | ROCKER PANEL |
| REAR ENTRANCE | ||
| 053 | A 6716662328 | ROCKER PANEL |
| REAR ENTRANCE | ||
| 056 | A 6716662428 | ROCKER PANEL |
| REAR ENTRANCE | ||
| 059 | A 6716662528 | ROCKER PANEL |
| REAR ENTRANCE | ||

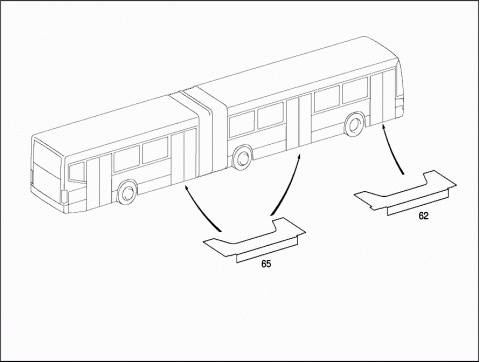

| 062 | A 6716860160 | STEP |
| DOOR: | ||
| NO. 1 | ||
| 065 | A 6716860260 | STEP |
| DOOR: | ||
| NO. 2 | ||
| 065 | A 6716860360 | STEP |
| DOOR: | ||
| NO. 3 | ||
| 068 | A 6716662028 | ROCKER PANEL |
| BOTTOM | ||
| 068 | A 6716663928 | ROCKER PANEL |
| BOTTOM | ||
| 071 | A 6716662128 | ROCKER PANEL |
| BOTTOM | ||
| 071 | A 6716600029 | ROCKER PANEL |
| BOTTOM | ||

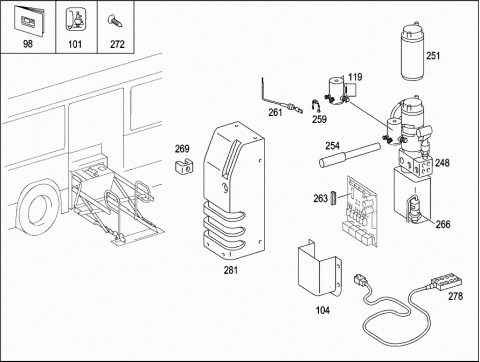

| 098 | A 0005842281 | OPERATING INSTRUCTIONS |
| D | ||
| 098 | A 0005842381 | OPERATING INSTRUCTIONS |
| I | ||
| 098 | A 0005842481 | OPERATING INSTRUCTIONS |
| E | ||
| 098 | A 0005842581 | OPERATING INSTRUCTIONS |
| F | ||
| 098 | A 0005842681 | OPERATING INSTRUCTIONS |
| GB | ||
| 101 | A 0038177520 | GUIDE SIGN |
| 300KG | ||
| A 0008102869 | SIGN | |
| TOTAL RANGE OF DELIVERY | ||
| D | ||
| A 0008102969 | SIGN | |
| TOTAL RANGE OF DELIVERY | ||
| I | ||
| A 0008103069 | SIGN | |
| TOTAL RANGE OF DELIVERY | ||
| E | ||
| A 0008103169 | SIGN | |
| TOTAL RANGE OF DELIVERY | ||
| F | ||

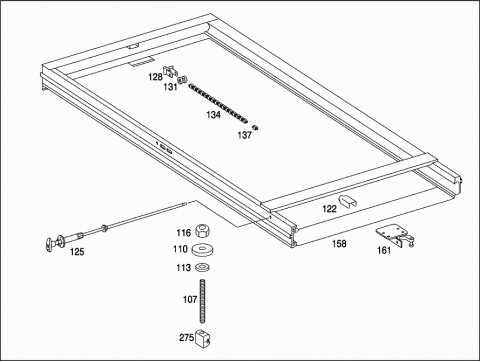

| 104 | A 6278990061 | BAG |
| PIPING | ||
| 107 | A 6279910012 | PIN |
| M20X1,5X180MM | ||
| 110 | N 000000003845 | WASHER |
| 113 | N 000000003132 | WASHER |
| 116 | N 000000005470 | HEXAGON NUT |
| M20X1,5 | ||
| 119 | A 0018213147 | RELAY |
| 122 | A 0008910456 | SWIVELLING LEVER |
| 125 | A 0008900124 | CABLE |
| TOTAL RANGE OF DELIVERY | ||
| 128 | A 0008910214 | BRACKET |
| TOTAL RANGE OF DELIVERY | ||
| 131 | A 0008900538 | ROLLER |
| TOTAL RANGE OF DELIVERY | ||
| 134 | A 0008900262 | CHAIN |
| TOTAL RANGE OF DELIVERY | ||
| 137 | A 0008910032 | CONNECTION |

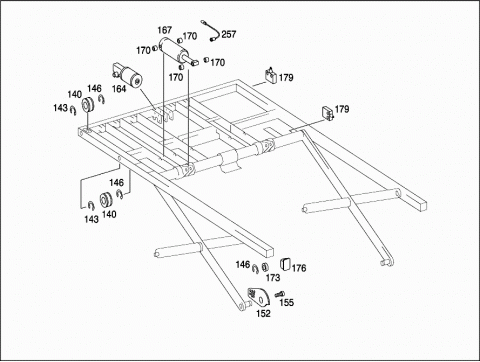

| 140 | A 0008910801 | RUBBER MOUNTING |
| 20X52MM | ||
| 143 | A 0009944510 | LOCK |
| LEFT | ||
| 146 | A 0009944610 | LOCK |
| RIGHT | ||
| 149 | A 0008910901 | RUBBER MOUNTING |
| 15X8MM | ||
| 152 | A 0008910310 | WASHER |
| 155 | A 0009903000 | SCREW |
| 1/4 " X 20 MM X 3/4 " | ||
| 158 | A 0008900063 | FRAME |
| TOTAL RANGE OF DELIVERY | ||
| 161 | A 0008902401 | MOUNTING |
| Repalced by: A 0008903601 | ||
| 161 | A 0008903601 | BEARING |
| 164 | A 0008201808 | ELECTRIC MOTOR |
| 24 V | ||
| 167 | A 0008900469 | CYLINDER |
| LEFT | ||
| D=15.85MM | ||
| 167 | A 0008900969 | CYLINDER |
| LEFT AND RIGHT | ||
| D=19,02MM | ||
| 170 | A 0008911201 | RUBBER MOUNTING |
| 173 | A 0008911001 | RUBBER MOUNTING |
| 176 | A 0008910008 | COVERING |
| 179 | A 0028207810 | SWITCH |
| 182 | A 0009907952 | NUT |
| 5 / 16 " X 20 " | ||
| 185 | A 0008910139 | STOP |
| 188 | A 0008910198 | SHIM |
| 191 | A 0008900669 | CYLINDER |
| 194 | A 0008900769 | CYLINDER |
| 197 | A 0008910280 | SPRING |
| 200 | A 0008911651 | SPRING |
| 203 | A 0008902501 | MOUNTING |
| 206 | A 0008910016 | REINFORCEMENT |
| 209 | A 0009903100 | SCREW |
| 5/16 " X 24 MM X 2 1/4 " | ||
| 212 | A 0009903200 | SCREW |
| 5/16 " X 24 MM X 2 " | ||
| 215 | A 0008910041 | SHACKLE |
| 218 | A 0008911301 | RUBBER MOUNTING |
| 221 | A 0008911101 | RUBBER MOUNTING |
| 224 | A 0008910141 | SHACKLE |
| Repalced by: A 0008900056 | ||
| 224 | A 0008900056 | SWIVELLING LEVER |
| 227 | A 0008900438 | ROLLER |
| Repalced by: A 0019923003 | ||
| 227 | A 0019923003 | BUSHING |
| 230 | A 0008910057 | PIN |
| 233 | A 0039811418 | ROLLER BEARING |
| 5/8 " X 5/8 " | ||
| 236 | A 0019900382 | WASHER |
| 239 | A 0009903300 | SCREW |
| 1/4 " X 20 MM X 1/2 " | ||
| 242 | A 0009911152 | PIN |
| 245 | A 0008910230 | CLAMP |
| INSIDE | ||
| Repalced by: A 0008100055 | ||
| 245 | A 0008100055 | GRAB RAIL |
| INSIDE | ||
| 248 | A 0008001948 | PUMP |
| TOTAL RANGE OF DELIVERY | ||
| 251 | A 0008202308 | ELECTRIC MOTOR |
| Repalced by: A 0008208608 | ||
| 251 | A 0008208608 | DC MOTOR |
| 254 | A 0008910156 | LEVER |
| 257 | A 0098207910 | PRESSURE SWITCH |
| 259 | A 0008211377 | DIODE |
| 261 | A 0008211477 | DIODE |
| Repalced by: A 0009821110 | ||
| 261 | A 0009821110 | DIODE |
| 263 | A 0018204500 | CHIP CARD |
| 266 | A 0028217251 | SWITCH |
| 269 | A 0008910414 | BRACKET |
| AT COVERING | ||
| 272 | A 0009905202 | CSK. BOLT W CROSS RECESS |
| AT COVERING | ||
| 275 | A 0008910314 | BRACKET |
| 278 | A 0028205226 | CONTROL UNIT |
| 281 | A 0008900108 | COVERING |
