Transporto priemonė: O 345,CONECTO H; VIN numerio dalis: 671042

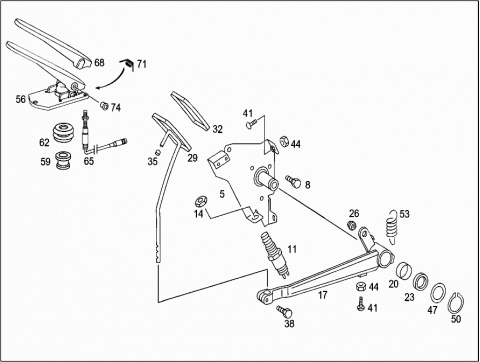

Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6712900019 | BEARING BRACKET |
| CLUTCH PEDAL | ||
| 008 | N 304017010028 | HEXAGON HEAD BOLT |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 011 | A 6555400017 | SENDER UNIT |
| CLUTCH ACTUATION | ||
| EPS | ||
| 014 | N 074305026202 | NUT |
| SENDER UNIT TO BEARING BRACKET | ||
| 017 | A 3562900516 | PEDAL |
| CLUTCH | ||
| 020 | A 3059920001 | BUSHING |
| 023 | A 0099976447 | SEAL RING |
| 026 | A 0009817031 | JOINT BEARING |
| 029 | A 3562900424 | PEDAL PLATE |
| CLUTCH | ||
| 032 | A 3052910182 | PAD |
| PEDAL PLATE | ||
| 035 | A 1262770081 | COVERING |
| PEDAL PLATE | ||
| 038 | N 304017010019 | SCREW |
| PEDAL PLATE TO PEDAL | ||
| 041 | A 3012910241 | STOP |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 041 | A 3012910241 | STOP |
| SENDER UNIT OPERATION | ||
| 044 | N 304035008001 | NUT |
| STOP TO BEARING BRACKET | ||
| 044 | N 304035008001 | NUT |
| SENDER UNIT OPERATION | ||
| 047 | N 000988030009 | FITTED WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 050 | N 000983028001 | LOCK RING |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 053 | A 3059930610 | SPRING |
| CLUTCH PEDAL RESET | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR HYDRAULIC-PNEUMATIC CONTROL,SEE GROUP/TU: | ||
| 25/330 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| BRAKE PEDAL UNIT | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR SERVICE BRAKE VALVE,SEE GROUP/TU: | ||
| 42/380 | ||
| 056 | A 0004300518 | BRAKE PEDAL |
| 056 | A 0004300518 | BRAKE PEDAL |
| 056 | A 0004300518 | BRAKE PEDAL |
| 056 | A 0004300518 | BRAKE PEDAL |
| 056 | A 0004300518 | BRAKE PEDAL |
| 059 | A 0004311850 | BUSHING |
| 059 | A 0004311850 | BUSHING |
| 059 | A 0004311850 | BUSHING |
| 059 | A 0004311850 | BUSHING |
| 059 | A 0004311850 | BUSHING |
| 062 | A 0059973240 | SEAL RING |
| 062 | A 0059973240 | SEAL RING |
| 065 | A 0045458332 | SWITCH |
| (APPROXIMATION SWITCH) RETARDER AND STOP LIGTH | ||
| 065 | A 0045458332 | SWITCH |
| (APPROXIMATION SWITCH) RETARDER AND STOP LIGTH | ||
| 068 | A 0002920182 | PAD |
| BRAKE PEDAL | ||
| 068 | A 0002920182 | PAD |
| BRAKE PEDAL | ||
| 068 | A 0002920182 | PAD |
| BRAKE PEDAL | ||
| 068 | A 0002920182 | PAD |
| BRAKE PEDAL | ||
| 068 | A 0002920182 | PAD |
| BRAKE PEDAL | ||
| 071 | A 0014318193 | SPRING |
| BRAKE PEDAL | ||
| 071 | A 0014318193 | SPRING |
| BRAKE PEDAL | ||
| 074 | A 0004311950 | BUSHING |
| BRAKE PEDAL | ||
| 074 | A 0004311950 | BUSHING |
| BRAKE PEDAL |
