Transporto priemonė: O 345,EURO 2; VIN numerio dalis: 671010

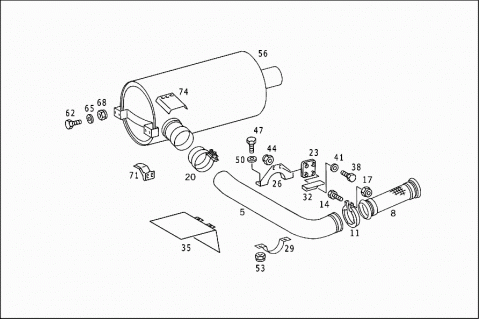

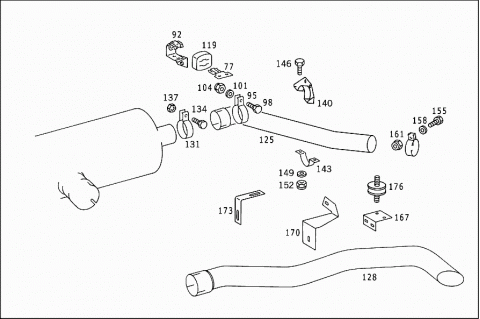

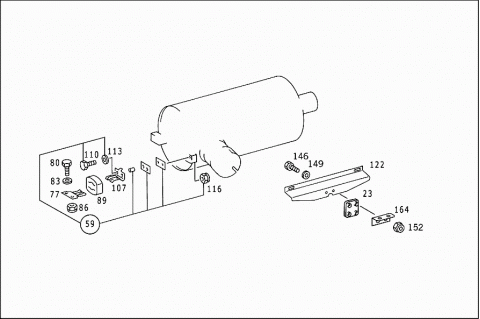

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6714900619 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 6714900619 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 6714900519 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 6714900519 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 6714900219 | EXHAUST PIPE |
| Repalced by: A 6714901119 | ||
| 005 | A 6714900219 | EXHAUST PIPE |
| Repalced by: A 6714901119 | ||
| 005 | A 6714901119 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 6714901119 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 6714900719 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 6714900819 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 6714900919 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 6714900319 | EXHAUST PIPE |
| Repalced by: A 6714901219 | ||
| 005 | A 6714901219 | EXHAUST PIPE |
| FRONT | ||
| 008 | A 6214900065 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 008 | A 6214900065 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 011 | A 6219970090 | CLAMP |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 011 | A 6219970090 | CLAMP |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 014 | N 304017008028 | HEXAGON HEAD BOLT |
| M8X50MM | ||
| Repalced by: N 910105008038 | ||
| 014 | N 910105008038 | HEXAGON HEAD BOLT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M8X50MM | ||
| 014 | N 304017008028 | HEXAGON HEAD BOLT |
| M8X50MM | ||
| Repalced by: N 910105008038 | ||
| 014 | N 910105008038 | HEXAGON HEAD BOLT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M8X50MM | ||
| 017 | N 910113008003 | HEXAGON NUT |
| M8 | ||
| Repalced by: N 913023008003 | ||
| 017 | N 913023008003 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M8 | ||
| 017 | N 910113008003 | HEXAGON NUT |
| M8 | ||
| Repalced by: N 913023008003 | ||
| 017 | N 913023008003 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M8 | ||
| 020 | A 3574921140 | CLAMP |
| Repalced by: A 3574921240 | ||
| 020 | A 3574921240 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 020 | A 3574921240 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 023 | A 0004920082 | DAMPING PAD |
| EXHAUST PIPE TO SUPPORT | ||
| 023 | A 0004920082 | DAMPING PAD |
| EXHAUST PIPE TO SUPPORT | ||
| 026 | A 3574900640 | BRACKET |
| EXHAUST PIPE TO SUPPORT | ||
| 026 | A 3574900640 | BRACKET |
| EXHAUST PIPE TO SUPPORT | ||
| 026 | A 6714900040 | BRACKET |
| EXHAUST PIPE TO SUPPORT | ||
| 029 | A 3574922141 | BRACKET |
| AT BRACKET | ||
| 029 | A 3574922141 | BRACKET |
| AT BRACKET | ||
| 029 | A 6714920541 | BRACKET |
| AT BRACKET | ||
| 032 | A 6714910030 | PROTECTIVE PLATE |
| FRONT EXHAUST PIPE | ||
| 032 | A 6714910030 | PROTECTIVE PLATE |
| FRONT EXHAUST PIPE | ||
| 035 | A 6714900130 | PROTECTIVE PLATE |
| SCREENING PLATE TO HEAT EXCHANGER | ||
| 038 | N 304017008021 | HEXAGON HEAD BOLT |
| M8X20MM | ||
| Repalced by: N 910105008026 | ||
| 038 | N 910105008026 | HEXAGON HEAD BOLT |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| M8X20MM | ||
| 038 | N 304017008021 | HEXAGON HEAD BOLT |
| M8X20MM | ||
| Repalced by: N 910105008026 | ||
| 038 | N 910105008026 | HEXAGON HEAD BOLT |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| M8X20MM | ||
| 041 | N 000125008417 | WASHER |
| Repalced by: N 000125008443 | ||
| 041 | N 000125008417 | WASHER |
| Repalced by: N 000125008443 | ||
| 041 | N 000125008443 | WASHER |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 041 | N 000125008443 | WASHER |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 044 | N 910113008003 | NUT |
| Repalced by: N 913023008003 | ||
| 044 | N 913023008003 | NUT |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 044 | N 910113008003 | NUT |
| Repalced by: N 913023008003 | ||
| 044 | N 913023008003 | NUT |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 047 | N 304017008042 | HEXAGON HEAD BOLT |
| Repalced by: N 910105008017 | ||
| 047 | N 910105008017 | HEXAGON HEAD BOLT |
| FRONT EXHAUST PIPE REAR PART TO DAMPING PAD | ||
| M8X45MM | ||
| 047 | N 304017008042 | HEXAGON HEAD BOLT |
| Repalced by: N 910105008017 | ||
| 047 | N 910105008017 | HEXAGON HEAD BOLT |
| FRONT EXHAUST PIPE REAR PART TO DAMPING PAD | ||
| M8X45MM | ||
| 050 | N 000125008417 | WASHER |
| Repalced by: N 000125008443 | ||
| 050 | N 000125008417 | WASHER |
| Repalced by: N 000125008443 | ||
| 050 | N 000125008443 | WASHER |
| FRONT EXHAUST PIPE REAR PART TO DAMPING PAD | ||
| 050 | N 000125008443 | WASHER |
| FRONT EXHAUST PIPE REAR PART TO DAMPING PAD | ||
| 053 | N 910113008003 | NUT |
| Repalced by: N 913023008003 | ||
| 053 | N 913023008003 | NUT |
| FRONT EXHAUST PIPE REAR PART TO DAMPING PAD | ||
| M8 | ||
| 053 | N 910113008003 | NUT |
| Repalced by: N 913023008003 | ||
| 053 | N 913023008003 | NUT |
| FRONT EXHAUST PIPE REAR PART TO DAMPING PAD | ||
| M8 | ||
| 056 | A 6714900001 | EXHAUST MUFFLER |
| 059 | A 3014900037 | SUSPENSION |
| EXHAUST MUFFLER,FRONT | ||
| 062 | N 000933008273 | SCREW |
| Repalced by: N 304017008027 | ||
| 062 | N 304017008027 | HEXAGON HEAD BOLT |
| Repalced by: N 910105008016 | ||
| 062 | N 910105008016 | HEXAGON HEAD BOLT |
| MAIN MUFFLER SUSPENSION | ||
| M8X30MM | ||
| 065 | N 000125008417 | WASHER |
| Repalced by: N 000125008443 | ||
| 065 | N 000125008443 | WASHER |
| MAIN MUFFLER SUSPENSION | ||
| 068 | N 999901008000 | NUT |
| MAIN MUFFLER SUSPENSION | ||
| M8 | ||
| 071 | A 3004910115 | CONSOLE |
| EXHAUST MUFFLER | ||
| 074 | A 3574910230 | PROTECTIVE PLATE |
| EXHAUST MUFFLER | ||
| 077 | A 3014910015 | CONSOLE |
| FRONT EXHAUST MUFFLER | ||
| 080 | N 304017010019 | HEXAGON HEAD BOLT |
| FRONT EXHAUST MUFFLER | ||
| M10X25MM | ||
| 083 | N 000000003386 | WASHER |
| Repalced by: N 000125010538 | ||
| 083 | N 000125010538 | WASHER |
| FRONT EXHAUST MUFFLER | ||
| 086 | N 913023010002 | NUT |
| FRONT EXHAUST MUFFLER | ||
| 089 | A 3004920082 | DAMPING PAD |
| FRONT EXHAUST MUFFLER | ||
| 092 | A 3574900134 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 095 | N 071555100500 | CLAMP |
| Repalced by: A 6139970090 | ||
| 095 | A 6139970090 | CLAMP |
| REAR EXHAUST MUFFLER | ||
| 098 | N 910105010008 | HEXAGON HEAD BOLT |
| REAR EXHAUST MUFFLER | ||
| M10X45MM | ||
| 101 | N 000000003386 | WASHER |
| REAR EXHAUST MUFFLER | ||
| 104 | N 910113010000 | NUT |
| REAR EXHAUST MUFFLER | ||
| 107 | A 3014910215 | CONSOLE |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 110 | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 110 | N 910105008006 | HEXAGON HEAD BOLT |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| M8X60MM | ||
| 110 | N 304017008021 | HEXAGON HEAD BOLT |
| Repalced by: N 910105008026 | ||
| 110 | N 910105008026 | HEXAGON HEAD BOLT |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| M8X20MM | ||
| 113 | N 000433008403 | WASHER |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 116 | N 910113008003 | HEXAGON NUT |
| Repalced by: N 913023008003 | ||
| 116 | N 913023008003 | NUT |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| M8 | ||
| 119 | A 3004920082 | DAMPING PAD |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 119 | A 0004920082 | DAMPING PAD |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 122 | A 3574924341 | BRACKET |
| Repalced by: A 6714920241 | ||
| 122 | A 6714920241 | BRACKET |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 125 | A 6714900121 | EXHAUST PIPE |
| REAR | ||
| 128 | A 3574902721 | EXHAUST PIPE |
| Repalced by: A 6714900421 | ||
| 128 | A 3574903021 | EXHAUST PIPE |
| REAR | ||
| 131 | N 071555104501 | CLAMP |
| Repalced by: A 6139970090 | ||
| 131 | A 6139970090 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 131 | N 071555100500 | CLAMP |
| Repalced by: A 6139970090 | ||
| 131 | A 6139970090 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 134 | N 304017010019 | HEXAGON HEAD BOLT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| M10X25MM | ||
| 137 | N 304032010003 | HEXAGON NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| M10 | ||
| 140 | A 3574900640 | BRACKET |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 143 | A 3574922141 | BRACKET |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 146 | N 304017008021 | HEXAGON HEAD BOLT |
| Repalced by: N 910105008026 | ||
| 146 | N 910105008026 | HEXAGON HEAD BOLT |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| M8X20MM | ||
| 146 | N 304017008042 | HEXAGON HEAD BOLT |
| Repalced by: N 910105008017 | ||
| 146 | N 910105008017 | HEXAGON HEAD BOLT |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| M8X45MM | ||
| 149 | N 000125008417 | WASHER |
| Repalced by: N 000125008443 | ||
| 149 | N 000125008443 | WASHER |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 152 | N 910113008003 | HEXAGON NUT |
| Repalced by: N 913023008003 | ||
| 152 | N 913023008003 | NUT |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| M8 | ||
| 155 | N 304017008042 | HEXAGON HEAD BOLT |
| Repalced by: N 910105008017 | ||
| 155 | N 910105008017 | HEXAGON HEAD BOLT |
| REAR EXHAUST PIPE TO BRACKET | ||
| M8X45MM | ||
| 155 | N 304017008021 | HEXAGON HEAD BOLT |
| Repalced by: N 910105008026 | ||
| 155 | N 910105008026 | HEXAGON HEAD BOLT |
| REAR EXHAUST PIPE TO BRACKET | ||
| M8X20MM | ||
| 158 | N 000125008443 | WASHER |
| REAR EXHAUST PIPE TO BRACKET | ||
| 161 | N 910113008003 | HEXAGON NUT |
| Repalced by: N 913023008003 | ||
| 161 | N 913023008003 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| M8 | ||
| 164 | A 3574924241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 167 | A 6714920141 | BRACKET |
| REAR EXHAUST PIPE | ||
| 170 | A 6714920041 | BRACKET |
| REAR EXHAUST PIPE | ||
| 173 | A 6205243040 | BRACKET |
| REAR EXHAUST PIPE | ||
| 176 | A 3225040212 | RUBBER MOUNTING |
| REAR EXHAUST PIPE | ||
