Transporto priemonė: O 345,EURO 2; VIN numerio dalis: 671010
Grupė: 92 SEATS - 040 REAR SEAT BENCH
| # | Kodas | Pavadinimas |
|---|---|---|

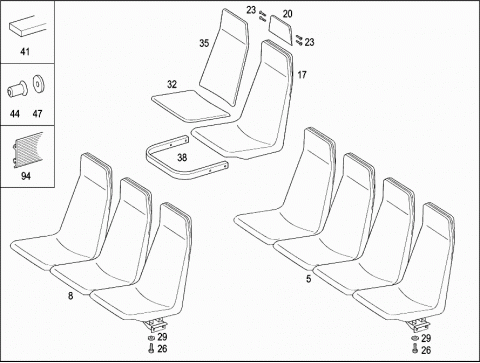

| 005 | A 6719200001 | REAR SEAT |
| QUADRUPLE | ||
| 005 | A 6719200201 | REAR SEAT |
| QUADRUPLE | ||
| 005 | A 6719200701 | REAR SEAT |
| QUADRUPLE | ||
| 005 | A 6719200901 | REAR SEAT |
| QUADRUPLE | ||
| 005 | A 6719201001 | REAR SEAT |
| QUADRUPLE | ||
| 008 | A 6719200601 | REAR SEAT |
| TRIPLE OCCUPANCY | ||
| 008 | A 6719200801 | REAR SEAT |
| TRIPLE OCCUPANCY | ||
| 008 | A 6719201101 | REAR SEAT |
| TRIPLE OCCUPANCY | ||

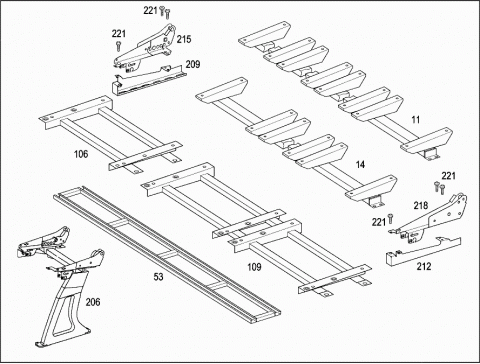

| 011 | A 6719200020 | SEAT FRAMEWORK |
| 011 | A 6719200020 | SEAT FRAMEWORK |
| 011 | A 6719200220 | SEAT FRAMEWORK |
| 014 | A 6719200120 | SEAT FRAMEWORK |
| 014 | A 6719200120 | SEAT FRAMEWORK |
| 017 | A 6719420057 | SEAT SHELL |
| 017 | A 6719420057 | SEAT SHELL |
| 017 | A 6719420057 | SEAT SHELL |
| 017 | A 6719420157 | SEAT SHELL |
| 020 | A 6719430028 | COVERING |
| 020 | A 6719430028 | COVERING |
| 023 | N 000965006107 | SCREW |
| M6X18MM | ||
| 023 | N 000965006107 | SCREW |
| M6X18MM | ||
| 026 | A 6719900101 | SCREW |
| SEAT SHELL ON SEAT FRAME | ||
| 6,3X30MM | ||
| 026 | A 6719900101 | SCREW |
| SEAT SHELL ON SEAT FRAME | ||
| 6,3X30MM | ||
| 026 | A 6719900101 | SCREW |
| SEAT SHELL ON SEAT FRAME | ||
| 6,3X30MM | ||
| 026 | A 6719900101 | SCREW |
| SEAT SHELL ON SEAT FRAME | ||
| 6,3X30MM | ||
| 029 | N 000125006421 | WASHER |
| SEAT SHELL ON SEAT FRAME | ||
| 029 | N 000125006421 | WASHER |
| SEAT SHELL ON SEAT FRAME | ||
| 029 | N 000125006421 | WASHER |
| SEAT SHELL ON SEAT FRAME | ||
| 029 | N 000125006421 | WASHER |
| SEAT SHELL ON SEAT FRAME | ||
| 032 | A 6719400121 | SEAT CUSHION |
| 032 | A 6719400121 | SEAT CUSHION |
| 032 | A 6719400121 | SEAT CUSHION |
| 032 | A 6719400121 | SEAT CUSHION |
| 035 | A 6719400131 | BACKREST |
| 035 | A 6719400131 | BACKREST |
| 035 | A 6719400131 | BACKREST |
| 035 | A 6719400131 | BACKREST |
| 038 | A 6719510516 | REINFORCEMENT |
| 038 | A 6719510516 | REINFORCEMENT |
| 038 | A 6719510516 | REINFORCEMENT |
| 041 | A 0039877551 | RUBBER SEAL |
| 041 | A 0039877551 | RUBBER SEAL |
| 041 | A 0039877551 | RUBBER SEAL |
| 044 | H XB3739900395 | RIVET |
| 044 | H XB3739900395 | RIVET |
| 044 | H XB3739900395 | RIVET |
| 047 | N 009021005102 | WASHER |
| 047 | N 009021005102 | WASHER |
| 047 | N 009021005102 | WASHER |

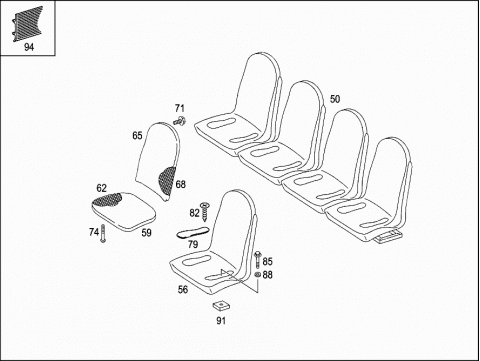

| 050 | A 6719204001 | REAR SEAT |
| QUADRUPLE | ||
| 050 | A 6719204101 | REAR SEAT |
| QUADRUPLE | ||
| 050 | A 6719206201 | REAR SEAT |
| QUADRUPLE | ||
| 053 | A 6719201220 | SEAT FRAMEWORK |
| 053 | A 6719201220 | SEAT FRAMEWORK |
| 056 | A 6289420355 | SEAT SHELL |
| 056 | A 6289420355 | SEAT SHELL |
| 056 | A 6289420155 | SEAT SHELL |
| 059 | A 6289400921 | SEAT CUSHION |
| 059 | A 6289400221 | SEAT CUSHION |
| 062 | A 6289440980 | COVER |
| SEAT CUSHION | ||
| 062 | A 6289440980 | COVER |
| SEAT CUSHION | ||
| 065 | A 6289401331 | BACKREST |
| 065 | A 6289401331 | BACKREST |
| SEAT CUSHION | ||
| 068 | A 6289441080 | COVER |
| BACKREST | ||
| 068 | A 6289441080 | COVER |
| BACKREST | ||
| 071 | A 3579900112 | SCREW |
| UPHOLSTERY TO SEAT SHELL | ||
| M4X12MM | ||
| 071 | N 000000002241 | HEXALOBULAR BOLT |
| UPHOLSTERY TO SEAT SHELL | ||
| M4X16 | ||
| 071 | N 000000002925 | SCREW |
| UPHOLSTERY TO SEAT SHELL | ||
| M4X12MM | ||
| 074 | N 007985004159 | SCREW |
| UPHOLSTERY TO SEAT SHELL | ||
| M4X22MM | ||
| 074 | N 000000002591 | SCREW |
| UPHOLSTERY TO SEAT SHELL | ||
| M4X25MM | ||
| 079 | A 6299420035 | COVERING |
| LEFT | ||
| 079 | A 6299420135 | COVERING |
| RIGHT | ||
| 082 | N 914127003202 | SHEET METAL SCREW |
| MOUNTING, COVER | ||
| 085 | N 304017008007 | SCREW |
| SEAT SHELL ON SEAT FRAME | ||
| M8X20MM | ||
| 085 | N 910105008026 | SCREW |
| SEAT SHELL ON SEAT FRAME | ||
| M8X20MM | ||
| 088 | N 009021008213 | WASHER |
| SEAT SHELL ON SEAT FRAME | ||
| 091 | A 9719900052 | NUT |
| SEAT SHELL ON SEAT FRAME | ||
| 091 | A 9719900352 | NUT |
| SEAT SHELL ON SEAT FRAME | ||
| 094 | A 6719871625 | PLASTIC SECTION |
| 094 | A 6719871625 | PLASTIC SECTION |

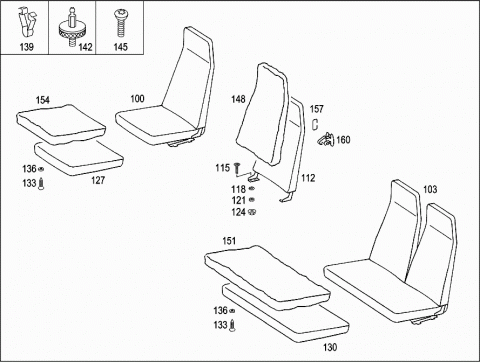

| 100 | A 6719201401 | REAR SEAT |
| LEFT | ||
| 100 | A 6719201501 | REAR SEAT |
| RIGHT | ||
| 103 | A 6719203301 | REAR SEAT |
| LEFT | ||
| 103 | A 6719203401 | REAR SEAT |
| RIGHT | ||
| 103 | A 6719201801 | REAR SEAT |
| DOUBLE OCCUPANCY SEAT,LEFT | ||
| 103 | A 6719202901 | REAR SEAT |
| DOUBLE OCCUPANCY SEAT,LEFT | ||
| 103 | A 6719201901 | REAR SEAT |
| DOUBLE OCCUPANCY SEAT,RIGHT | ||
| 103 | A 6719203001 | REAR SEAT |
| DOUBLE OCCUPANCY SEAT,RIGHT | ||
| 103 | A 6719202501 | REAR SEAT |
| DOUBLE OCCUPANCY SEAT,RIGHT | ||
| 103 | A 6719203101 | REAR SEAT |
| DOUBLE OCCUPANCY SEAT,RIGHT | ||
| 103 | A 6719202601 | REAR SEAT |
| DOUBLE OCCUPANCY SEAT,LEFT | ||
| 103 | A 6719203201 | REAR SEAT |
| DOUBLE OCCUPANCY SEAT,LEFT | ||
| 103 | A 6719203601 | REAR SEAT |
| DOUBLE OCCUPANCY SEAT,LEFT | ||
| 103 | A 6719203501 | REAR SEAT |
| DOUBLE OCCUPANCY SEAT,RIGHT | ||
| 106 | A 6719200420 | SEAT FRAMEWORK |
| LEFT | ||
| 106 | A 6719200520 | SEAT FRAMEWORK |
| RIGHT | ||
| 109 | A 6719200820 | SEAT FRAMEWORK |
| LEFT | ||
| 109 | A 6719200720 | SEAT FRAMEWORK |
| RIGHT | ||
| 109 | A 6719200820 | SEAT FRAMEWORK |
| LEFT | ||
| 109 | A 6719200720 | SEAT FRAMEWORK |
| RIGHT | ||
| 109 | A 6719200920 | SEAT FRAMEWORK |
| RIGHT | ||
| 109 | A 6719200920 | SEAT FRAMEWORK |
| RIGHT | ||
| 109 | A 6719201020 | SEAT FRAMEWORK |
| LEFT | ||
| 109 | A 6719201020 | SEAT FRAMEWORK |
| LEFT | ||
| 112 | A 6719400531 | BACKREST |
| 112 | A 6719400531 | BACKREST |
| 112 | A 6719400531 | BACKREST |
| 112 | A 6719401531 | BACKREST |
| 112 | A 6719401531 | BACKREST |
| 112 | A 6719401532 | BACKREST FRAME |
| 112 | A 6719401931 | BACKREST |
| 112 | A 9719401531 | BACKREST |
| RIGHT | ||
| 112 | A 6719401931 | BACKREST |
| LEFT | ||
| 115 | A 0029900520 | SCREW |
| BACKREST TO SEAT FRAME | ||
| M8X16MM T45 | ||
| 115 | A 0029900520 | SCREW |
| BACKREST TO SEAT FRAME | ||
| M8X16MM T45 | ||
| 118 | N 006798008304 | SERRATED WASHER |
| BACKREST TO SEAT FRAME | ||
| 118 | N 006798008304 | SERRATED WASHER |
| BACKREST TO SEAT FRAME | ||
| 121 | N 000125008443 | WASHER |
| BACKREST TO SEAT FRAME | ||
| 121 | N 000125008443 | WASHER |
| BACKREST TO SEAT FRAME | ||
| 124 | N 913023008003 | NUT |
| BACKREST TO SEAT FRAME | ||
| M8 | ||
| 124 | N 913023008003 | NUT |
| BACKREST TO SEAT FRAME | ||
| M8 | ||
| 127 | A 6279400021 | SEAT CUSHION |
| 127 | A 6719500521 | SEAT CUSHION |
| 127 | A 6719500621 | SEAT CUSHION |
| 127 | A 6719501521 | SEAT CUSHION |
| 127 | A 6719501621 | SEAT CUSHION |
| 130 | A 6719500021 | SEAT CUSHION |
| 130 | A 6719500021 | SEAT CUSHION |
| 130 | A 6719500021 | SEAT CUSHION |
| 133 | N 007981004336 | SHEET METAL SCREW |
| 4,8X16MM | ||
| 133 | N 007981004336 | SHEET METAL SCREW |
| 4,8X16MM | ||
| 136 | N 000125005328 | WASHER |
| 136 | N 000125005328 | WASHER |
| 139 | A 6299590464 | SPRING |
| 142 | A 6299500073 | SCREW |
| 145 | N 000000001181 | SCREW |
| M5X16MM | ||
| 145 | N 000000001181 | SCREW |
| M5X16MM | ||
| 148 | A 6719441191 | COVER |
| BACKREST | ||
| 148 | A 6719441191 | COVER |
| BACKREST | ||
| 151 | A 6719540091 | COVER |
| SEAT CUSHION | ||
| 151 | A 6719540091 | COVER |
| SEAT CUSHION | ||
| 154 | A 6719440490 | COVER |
| SEAT CUSHION | ||
| 157 | A 0009887078 | CLIP |
| 157 | A 0009887078 | CLIP |
| 160 | A 6279880069 | CLIP |
| 160 | A 6279880069 | CLIP |
| 200 | A 6719204201 | REAR SEAT |
| LESS SAFETY BELT | ||
| 200 | A 6719204501 | REAR SEAT |
| WITH SAFETY BELT | ||
| 203 | A 6719204301 | REAR SEAT |
| WITHOUT SEAT BELT,LEFT | ||
| 203 | A 6719204401 | REAR SEAT |
| WITHOUT SEAT BELT,RIGHT | ||
| 203 | A 6719204601 | REAR SEAT |
| WITH SAFETY BELT,LEFT | ||
| 203 | A 6719204701 | REAR SEAT |
| WITH SAFETY BELT,RIGHT | ||
| 206 | A 6719501727 | SEAT FRAME |
| 209 | A 6719200266 | REINFORCEMENT |
| RIGHT | ||
| 212 | A 6719200166 | REINFORCEMENT |
| LEFT | ||
| 215 | A 6299500774 | TAKE-UP DEVICE |
| RIGHT,WITHOUT ADJUSTMENT | ||
| 215 | A 6299500574 | TAKE-UP DEVICE |
| RIGHT,FOR ADJUSTMENT | ||
| 218 | A 6299500674 | TAKE-UP DEVICE |
| LEFT,WITHOUT ADJUSTMENT | ||
| 218 | A 6299500474 | TAKE-UP DEVICE |
| LEFT,FOR ADJUSTMENT | ||
| 221 | A 0029900520 | SCREW |
| M8X16MM T45 | ||
| 224 | A 6299501631 | BACKREST |
| NARROW, LEFT | ||
| 224 | A 6299501731 | BACKREST |
| NARROW, RIGHT | ||
| 227 | A 6299400347 | COVER |
| BACKREST | ||
| 230 | A 6299590817 | BUSHING |
| INSIDE | ||
| 230 | A 6299590917 | BUSHING |
| OUTSIDE | ||
| 233 | A 6299503521 | SEAT CUSHION |
| 236 | A 6719400246 | COVER |
| SEAT CUSHION | ||
| 239 | A 0009887078 | CLIP |
| 242 | A 6139140154 | HOOK |
| 245 | A 6298600232 | CLAMP |
| LEFT | ||
| 245 | A 6298600332 | CLAMP |
| RIGHT | ||
| 248 | A 6299590315 | PIN |
| LONG | ||
| 251 | A 6299590185 | GAS SPRING |
| 254 | A 0009590020 | SUPPORT |
| 257 | A 6299590015 | PIN |
| AT REAR ON GAS-OPERATED SPRING MOUNTING | ||
| 260 | A 6299590117 | BUSHING |
| AT REAR ON GAS-OPERATED SPRING MOUNTING | ||
| 263 | A 0009911725 | WASHER |
| 266 | A 6299590017 | BUSHING |
| 269 | A 3029590117 | WASHER |
| 272 | A 0009590021 | STOP |
| 8,6MM | ||
| 275 | A 6299501254 | LEVER |
| RIGHT,IN THE REAR | ||
| 278 | A 6299590028 | CAP |
| 281 | A 6299590364 | SPRING |
| 284 | A 6299500739 | PANELLING |
| WITHOUT CUTOUT FOR SAFETY BELT,RIGHT | ||
| 284 | A 6139500739 | PANELLING |
| WITHOUT CUTOUT FOR SAFETY BELT,RIGHT | ||
| 284 | A 6299500639 | PANELLING |
| WITH CUT-OUT FOR SAFETY BELT,RIGHT | ||
| 284 | A 6139500639 | PANELLING |
| WITH CUT-OUT FOR SAFETY BELT,RIGHT | ||
| 287 | A 6298600185 | SAFETY BELT |
| LEFT | ||
| 287 | A 6298600285 | SAFETY BELT |
| RIGHT | ||
| 290 | A 6298600069 | FASTENER |
| RIGID | ||
| 290 | A 6298600069 | FASTENER |
| RIGID | ||
| 293 | A 6298600169 | FASTENER |
| MOVABLE | ||
| 296 | A 6299590417 | BUSHING |
| 296 | A 6299591017 | BUSHING |
| 299 | A 6299510071 | SCREW |
| M10X32MM | ||
| 302 | A 6299590115 | PIN |
| 305 | A 6299700103 | ARMREST LESS COVER |
| 308 | A 6299701838 | SUPPORT |
| 311 | A 0009930202 | SPRING |
| 314 | A 6299730117 | BUSHING |
| 317 | N 006799015003 | LOCK PLATE |
| 320 | N 000000000921 | ROLL PIN |
| 3,5X22MM | ||
| 323 | N 000000000922 | ROLL PIN |
| 6X22MM | ||
| 326 | A 6299590315 | PIN |
| 329 | N 001440014002 | WASHER |
| 332 | A 6299510071 | SCREW |
