Transporto priemonė: O 355; VIN numerio dalis: 344230
Grupė: 42 BRAKES - 001 FRONT WHEEL BRAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| A 0024209118 | WHEEL BRAKE CYLINDER | |
| Repalced by: A 3454207418 | ||
| 004 | A 0454200118 | WHEEL BRAKE CYLINDER |
| Repalced by: A 3454207418 | ||
| 004 | A 3454207418 | WHEEL BRAKE CYLINDER |
| 46.83 MM | ||
| 004 | A 0034207918 | WHEEL BRAKE CYLINDER |
| 004 | A 0084203018 | WHEEL BRAKE CYLINDER |
| 004 | A 3454207118 | WHEEL BRAKE CYLINDER |
| 46.83 MM"VARGA" | ||
| 004 | A 0084203118 | WHEEL BRAKE CYLINDER |
| 46,83 MM "KUGELFISCHER" | ||
| A 0084200390 | SPRING | |
| TO 345 420 71 18 | ||
| 008 | A 0004231893 | SPRING |
| Repalced by: A 3444217090 | ||
| 008 | A 3444217090 | SPRING |
| 008 | A 0084311693 | SPRING |
| TO 345 420 74 18 | ||
| 014 | A 0084230483 | PISTON |
| Repalced by: A 3454237083 | ||
| 014 | A 0004232183 | PISTON |
| Repalced by: A 3454237083 | ||
| 014 | A 3454237083 | PISTON |
| 015 | A 0004231686 | CUP |
| Repalced by: A 3454237086 | ||
| 015 | A 0084230186 | CUP |
| Repalced by: A 3454237086 | ||
| 015 | A 3454237086 | CUP |
| TO 345 420 74 18,045 420 01 18 | ||
| 015 | A 0004214386 | CUP |
| TO 345 420 71 18 | ||
| 015 | A 0004210660 | SEAL RING |
| TO 345 420 71 18 | ||
| 016 | A 0004232187 | PROTECTIVE CAP |
| Repalced by: A 3454237087 | ||
| 016 | A 0084230287 | PROTECTIVE CAP |
| Repalced by: A 3454237087 | ||
| 016 | A 3454237087 | PROTECTIVE CAP |
| TO 345 420 74 18 | ||
| 016 | A 0004215087 | PROTECTIVE CAP |
| TO 008 420 31 18 | ||
| 016 | A 0004215387 | PROTECTIVE CAP |
| TO 008 420 31 18 | ||
| 017 | A 0004213087 | PROTECTIVE CAP |
| Repalced by: A 3454237020 | ||
| 017 | A 0084230020 | PROTECTIVE PLATE |
| Repalced by: A 3454237020 | ||
| 017 | A 3454237020 | PROTECTIVE PLATE |
| A 3024210088 | THRUST PIN | |
| TO 345 420 71 18 | ||
| A 0004231388 | THRUST PIN | |
| TO 345 420 74 18,002 420 91 18 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 028 | ||
| 022 | A 0004202155 | BLEEDER VALVE |
| Repalced by: A 0004310265 | ||
| 022 | A 0004310265 | VALVE |
| Repalced by: A 3454317165 | ||
| 022 | A 0084200055 | BLEEDER VALVE |
| Repalced by: A 3454317165 | ||
| 022 | A 3454317165 | VALVE |
| 026 | A 3454317287 | PROTECTIVE CAP |
| 027 | A 0025863443 | REPAIR KIT |
| TO 008 420 31 18 | ||
| 027 | A 0085861442 | REPAIR KIT |
| H 983455860042 | REPAIR KIT | |
| Repalced by: A 0005862842 | ||
| A 0005862842 | REPAIR KIT | |
| TO 003 420 79 18 | ||
| 028 | A 3024210088 | THRUST PIN |
| TO 345 420 71 18 | ||
| 030 | A 3024210020 | PROTECTIVE PLATE |
| 034 | N 000933010174 | SCREW |
| 038 | N 000127010202 | LOCK WASHER |
| 042 | A 3024201116 | BRAKE ANCHOR PLATE |
| 046 | A 3094210211 | PLUG |
| 050 | N 000933010270 | SCREW |
| BRAKE ANCHOR PLATE TO BRAKE ANCHOR | ||
| 054 | N 000127010202 | LOCK WASHER |
| BRAKE ANCHOR PLATE TO BRAKE ANCHOR | ||
| 060 | A 3024210606 | BRAKE ANCHOR |
| 064 | A 3024230419 | ADJUSTING PIN |
| 068 | A 3024210029 | SLIDE |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 302 421 01 29 | ||
| 072 | A 3124211073 | LOCK |
| 076 | A 3029930501 | SPRING |
| 080 | A 3024210176 | WASHER |
| 084 | A 3024200386 | BRACKET |
| Repalced by: A 3454200086 | ||
| 084 | A 3454200086 | BRACKET |
| Repalced by: A 3024210473 | ||
| 084E | A 3024210473 | LOCK |
| 084N | A 3024210076 | WASHER |
| 085 | A 3029900150 | NUT |
| Repalced by: A 3029900250 | ||
| 085 | A 3029900250 | NUT |
| 086 | N 914001010002 | COMBINATION BOLT |
| 088 | A 3604204420 | BRAKE SHOE |
| WITH LINING | ||
| 088 | A 3454207620 | BRAKE SHOE |
| WITH LINING | ||
| A 3024201619 | BRAKE SHOE | |
| Repalced by: A 3024202219 | ||
| A 3024202219 | BRAKE SHOE | |
| LESS LINING | ||
| 092 | A 3604210610 | BRAKE LINING |
| Repalced by: A 3454217010 | ||
| 092 | A 3454217010 | BRAKE LINING |
| STANDARD | ||
| 15,50 MM,LONAFLEX | ||
| 092 | A 3454217310 | BRAKE LINING |
| STANDARD | ||
| 15.70 MM,FRAS-LE | ||
| 092 | A 3604210710 | BRAKE LINING |
| Repalced by: A 3454217110 | ||
| 092 | A 3454217110 | BRAKE LINING |
| REPAIR SIZE I | ||
| 16,50 MM,LONAFLEX | ||
| 092 | A 3454217410 | BRAKE LINING |
| REPAIR SIZE I | ||
| 16.70 MM,FRAS-LE | ||
| 092 | A 3604210810 | BRAKE LINING |
| Repalced by: A 3454217210 | ||
| 092 | A 3454217210 | BRAKE LINING |
| REPAIR SIZE II | ||
| 17,50 MM,LONAFLEX | ||
| 092 | A 3454217510 | BRAKE LINING |
| REPAIR SIZE II | ||
| 17.70 MM,FRAS-LE | ||
| 093 | A 3455867842 | REPAIR KIT |
| Repalced by: A 3644210610 | ||
| 093 | A 3455867942 | REPAIR KIT |
| Repalced by: A 3644210610 | ||
| 093 | A 3644210610 | BRAKE LINING |
| (BRAKE LINING SET);STANDARD | ||
| 15.5 MM | ||
| 093 | A 3455868642 | REPAIR KIT |
| Repalced by: A 3644210710 | ||
| 093 | A 3455868842 | REPAIR KIT |
| Repalced by: A 3644210710 | ||
| 093 | A 3644210710 | BRAKE LINING |
| (BRAKE LINING SET);REPAIR SIZE I | ||
| 16.5 MM | ||
| 093 | A 3455868742 | REPAIR KIT |
| Repalced by: A 3644210810 | ||
| 093 | A 3455868942 | REPAIR KIT |
| Repalced by: A 3644210810 | ||
| 093 | A 3644210810 | BRAKE LINING |
| BRAKE LINING;REPAIR SIZE II | ||
| 17.5 MM | ||
| 096 | A 3079900197 | RIVET |
| Repalced by: N 007338008211 | ||
| 096 | A 3459907197 | RIVET |
| Repalced by: N 007338008211 | ||
| 096 | N 007338008211 | RIVET |
| Repalced by: A 3079900197 | ||
| 096 | A 3079900197 | RIVET |
| 15 MM | ||
| 096 | N 007338008212 | RIVET |
| 18 MM | ||
| 100 | A 3024210150 | BUSHING |
| 104 | A 3414210092 | SPRING |
| Repalced by: A 3524210192 | ||
| 104 | A 3524210192 | SPRING |
| BRAKE SHOE | ||
| 106 | A 3213320271 | SCREW |
| TO 002 420 91 18 | ||
| 110 | N 000935018001 | NUT |
| 111 | N 000094004065 | COTTER PIN |
| 114 | A 3029900204 | SCREW |
| 118 | A 3029900804 | SCREW |
| 122 | N 000935012003 | NUT |
| 123 | N 000094003024 | COTTER PIN |
| 126 | A 3024211074 | PIN |
| Repalced by: A 3464211174 | ||
| 126 | A 3464211174 | PIN |
| Repalced by: A 3454217074 | ||
| 126 | A 3454217074 | PIN |
| 130 | A 3029970445 | SEAL RING |
| 132 | N 000933010270 | SCREW |
| 134 | N 000093010502 | LOCK PLATE |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 134 | A 3029940010 | LOCK |
| Repalced by: A 3469940209 | ||
| 134 | A 3469940209 | LOCK |
| 136 | A 3029940209 | LOCK |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |

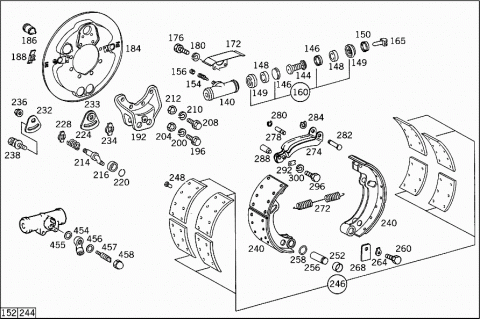

| REAR WHEEL BRAKE | ||
| 140 | A 0454200018 | WHEEL BRAKE CYLINDER |
| Repalced by: A 3454207518 | ||
| 140 | A 3454207518 | WHEEL BRAKE CYLINDER |
| 50.8 MM | ||
| 140 | A 0024209218 | WHEEL BRAKE CYLINDER |
| 50.8 MM | ||
| 140 | A 0034208018 | WHEEL BRAKE CYLINDER |
| 50.80 MM | ||
| 140 | A 0094204118 | WHEEL BRAKE CYLINDER |
| 50.80 MM | ||
| 144 | A 0084200290 | GUIDE |
| Repalced by: A 3454237093 | ||
| 144 | A 3454237093 | SPRING |
| TO 345 420 75 18 | ||
| 144 | A 0004231993 | SPRING |
| TO 003 420 80 18,002 420 92 18 | ||
| 146 | A 0004210386 | CUP |
| TO 003 420 80 18,002 420 92 18 | ||
| 148 | A 0084230583 | PISTON |
| TO 345 420 75 18 | ||
| 148 | A 0004232583 | PISTON |
| TO 003 420 80 18,002 420 92 18 | ||
| 149 | A 0084230120 | PROTECTIVE PLATE |
| Repalced by: A 0004232787 | ||
| 149 | A 0004232787 | PROTECTIVE CAP |
| TO 003 420 80 18,002 420 92 18 | ||
| 150 | A 0004232587 | PROTECTIVE CAP |
| TO 003 420 80 18,002 420 92 18 | ||
| A 0004231388 | THRUST PIN | |
| "ATE",TO 002 420 92 18 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 165 | ||
| 154 | A 0004310265 | VALVE |
| Repalced by: A 3454317165 | ||
| 154 | A 3454317165 | VALVE |
| TO 003 420 80 18,002 420 92 18 | ||
| 156 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 3454317287 | ||
| 156 | A 3454317287 | PROTECTIVE CAP |
| TO 003 420 80 18 | ||
| 160 | H 983455860142 | REPAIR KIT |
| Repalced by: A 0085861342 | ||
| 160 | A 0085861342 | REPAIR KIT |
| TO 345 420 75 18 | ||
| 160 | A 0005862342 | REPAIR KIT |
| TO 003 420 80 18,002 420 92 18 | ||
| 165 | A 3024210088 | THRUST PIN |
| TO 003 420 80 18 | ||
| 172 | A 3024210020 | PROTECTIVE PLATE |
| 176 | N 000933010174 | SCREW |
| 180 | N 000127010202 | LOCK WASHER |
| 184 | A 3454207017 | BRAKE ANCHOR PLATE |
| Repalced by: A 3024203017 | ||
| 184 | A 3024203017 | BRAKE ANCHOR PLATE |
| LEFT | ||
| A 3454207117 | BRAKE ANCHOR PLATE | |
| Repalced by: A 3024203117 | ||
| A 3024203117 | BRAKE ANCHOR PLATE | |
| RIGHT | ||
| 186 | A 3024270054 | PIPE SOCKET |
| 188 | A 3094210211 | PLUG |
| 192 | A 3024230806 | BRAKE ANCHOR |
| 196 | N 000961012106 | SCREW |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 200 | N 000127012201 | LOCK WASHER |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 204 | N 000934012013 | NUT |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| M12 X 1,5 MM | ||
| 208 | A 3029900504 | SCREW |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 210 | N 912004016101 | LOCK WASHER |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 212 | N 000934016003 | NUT |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 214 | A 3024230319 | ADJUSTING PIN |
| 216 | A 3024210029 | SLIDE |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 302 421 01 29 | ||
| 220 | A 3124211073 | LOCK |
| 224 | A 3029930701 | SPRING |
| 228 | A 3024210176 | WASHER |
| 232 | A 3024200386 | BRACKET |
| Repalced by: A 3454200086 | ||
| 232 | A 3454200086 | BRACKET |
| Repalced by: A 3024210473 | ||
| 233 | A 3024210473 | LOCK |
| 234 | A 3024210076 | WASHER |
| 236 | A 3029900150 | NUT |
| Repalced by: A 3029900250 | ||
| 236 | A 3029900250 | NUT |
| 238 | N 914001010002 | COMBINATION BOLT |
| 240 | A 3604204520 | BRAKE SHOE |
| Repalced by: A 3604209120 | ||
| 240 | A 3454207020 | BRAKE SHOE |
| WITH LINING | ||
| "LONAFLEX" | ||
| 240 | A 3604209120 | BRAKE SHOE |
| WITH LINING | ||
| "JURID" | ||
| A 3024201719 | BRAKE SHOE | |
| Repalced by: A 3024202119 | ||
| A 3024202119 | BRAKE SHOE | |
| LESS LINING | ||
| 244 | A 3604230010 | BRAKE LINING |
| STANDARD | ||
| 15.70 MM,JURID | ||
| 244 | A 3454237010 | BRAKE LINING |
| STANDARD | ||
| 15.50 MM,LONAFLEX | ||
| 244 | A 3454237310 | BRAKE LINING |
| STANDARD | ||
| 15.70 MM,FRAS-LE | ||
| A 3604230110 | BRAKE LINING | |
| REPAIR SIZE I | ||
| 16.70 MM,JURID | ||
| A 3454237110 | BRAKE LINING | |
| REPAIR SIZE I | ||
| 16.50 MM,LONAFLEX | ||
| A 3454237410 | BRAKE LINING | |
| REPAIR SIZE I | ||
| 16.70 MM,FRAS-LE | ||
| A 3604230210 | BRAKE LINING | |
| REPAIR SIZE II | ||
| 17.70 MM,JURID | ||
| A 3454237210 | BRAKE LINING | |
| REPAIR SIZE II | ||
| 17.50 MM,LONAFLEX | ||
| A 3454237510 | BRAKE LINING | |
| REPAIR SIZE II | ||
| 17.70 MM,FRAS-LE | ||
| 246 | A 3455868242 | REPAIR KIT |
| Repalced by: A 3644230310 | ||
| 246 | A 3455868042 | REPAIR KIT |
| Repalced by: A 3644230310 | ||
| 246 | A 3455868142 | REPAIR KIT |
| Repalced by: A 3644230310 | ||
| 246 | A 3644230310 | BRAKE LINING |
| (BRAKE LINING SET);STANDARD | ||
| 15.7 MM | ||
| 246 | A 3455867843 | REPAIR KIT |
| Repalced by: A 3644230410 | ||
| 246 | A 3455869342 | REPAIR KIT |
| Repalced by: A 3644230410 | ||
| 246 | A 3455869542 | REPAIR KIT |
| Repalced by: A 3644230410 | ||
| 246 | A 3644230410 | BRAKE LINING |
| (BRAKE LINING SET);REPAIR SIZE I | ||
| 16.7 MM | ||
| 246 | A 3455867943 | REPAIR KIT |
| Repalced by: A 3644230510 | ||
| 246 | A 3455869442 | REPAIR KIT |
| Repalced by: A 3644230510 | ||
| 246 | A 3455869642 | REPAIR KIT |
| Repalced by: A 3644230510 | ||
| 246 | A 3644230510 | BRAKE LINING |
| (BRAKE LINING SET);REPAIR SIZE II | ||
| 17.7 MM | ||
| 248 | A 3079900197 | RIVET |
| Repalced by: N 007338008211 | ||
| 248 | A 3459907197 | RIVET |
| Repalced by: N 007338008211 | ||
| 248 | N 007338008211 | RIVET |
| Repalced by: A 3079900197 | ||
| 248 | A 3079900197 | RIVET |
| 15 MM | ||
| 248 | N 007338008212 | RIVET |
| 18 MM | ||
| 252 | A 3024210150 | BUSHING |
| 256 | A 3024211074 | PIN |
| Repalced by: A 3464211174 | ||
| 256 | A 3464211174 | PIN |
| Repalced by: A 3454217074 | ||
| 256 | A 3454217074 | PIN |
| 258 | A 3029970445 | SEAL RING |
| 260 | N 000933010270 | SCREW |
| 264 | N 000093010502 | LOCK PLATE |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 264 | A 3029940010 | LOCK |
| Repalced by: A 3469940209 | ||
| 264 | A 3469940209 | LOCK |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 268 | A 3029940209 | LOCK |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 272 | A 3029930610 | SPRING |
| 274 | A 3024201419 | THRUST SHACKLE |
| Repalced by: A 3024203419 | ||
| A 3024201419 | THRUST SHACKLE | |
| Repalced by: A 3024203519 | ||
| 274 | A 3024203419 | THRUST SHACKLE |
| LEFT | ||
| A 3024203519 | THRUST SHACKLE | |
| RIGHT | ||
| A 3024230118 | PIVOT PIN | |
| Repalced by: A 3024230618 | ||
| 278 | A 3024230618 | PIVOT PIN |
| BRAKE SHAFT TO BRAKE SHOE | ||
| 280 | A 3459947035 | SNAP RING |
| BRAKE SHAFT TO BRAKE SHOE | ||
| 282 | A 3024230074 | PIN |
| Repalced by: A 3024230774 | ||
| 282 | A 3024230774 | PIN |
| THRUST SHACKLE TO BRAKE SHOE | ||
| 284 | N 000471018000 | LOCK RING |
| THRUST SHACKLE TO BRAKE SHOE | ||
| 288 | A 3024230474 | PIN |
| Repalced by: A 3024230874 | ||
| 288 | A 3024230874 | PIN |
| BRAKE SHAFT TO THRUST SHACKLE | ||
| 292 | A 3029940109 | LOCK |
| BRAKE SHAFT TO THRUST SHACKLE | ||
| 296 | N 000933008005 | SCREW |
| BRAKE SHAFT TO THRUST SHACKLE | ||
| 300 | N 912004008100 | LOCK WASHER |
| BRAKE SHAFT TO THRUST SHACKLE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| HYDRAULIC BRAKE | ||

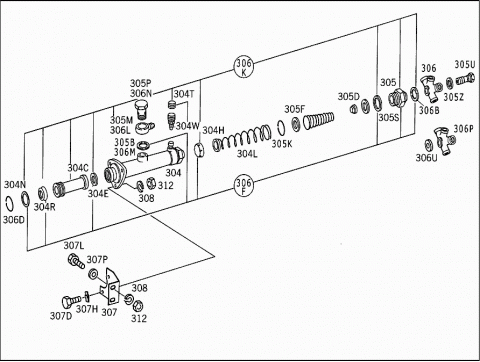

| 304 | H 983444300001 | BRAKE MASTER CYLINDER |
| Repalced by: A 3444307201 | ||
| 304 | A 3444307201 | BRAKE MASTER CYLINDER |
| Repalced by: A 3454307701 | ||
| A 3444307401 | BRAKE MASTER CYLINDER | |
| Repalced by: A 0024302701 | ||
| A 3444307301 | BRAKE MASTER CYLINDER | |
| Repalced by: A 3454307701 | ||
| 304 | A 3454307701 | BRAKE MASTER CYLINDER |
| VARGA | ||
| A 3444307501 | BRAKE MASTER CYLINDER | |
| Repalced by: A 0024302701 | ||
| 304 | A 0024302701 | BRAKE MASTER CYLINDER |
| TEVES | ||
| A 0084311083 | PISTON | |
| TO 344 430 72 01 | ||
| 304C | A 0004314283 | PISTON |
| TO 002 430 27 01 | ||
| 304E | A 3454317376 | WASHER |
| TO 002 430 27 01 | ||
| A 0084310476 | WASHER | |
| Repalced by: A 3454317076 | ||
| A 3454317076 | WASHER | |
| TO 344 430 72 01 | ||
| 304H | A 0004310389 | SPRING RETAINER |
| TO 002 430 27 01 | ||
| 304L | A 3454317393 | SPRING |
| TO 002 430 27 01,345 430 77 01 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 344 430 72 01,344 430 73 01 | ||
| 304N | A 0004310376 | WASHER |
| TO 002 430 27 01 | ||
| A 0084310786 | CUP | |
| TO 344 430 72 01 | ||
| A 3454317286 | CUP | |
| TO 002 430 27 01 | ||
| 304R | A 0039975246 | SEAL RING |
| TO 002 430 27 01 | ||
| 304T | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 3454317287 | ||
| 304T | A 3454317287 | PROTECTIVE CAP |
| 304W | A 3454317165 | VALVE |
| 305 | A 0084310675 | THREADED UNION |
| TO 344 430 72 01,345 430 77 01 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 344 430 73 01 | ||
| 305 | A 0004311075 | THREADED UNION |
| TO 002 430 27 01 | ||
| 305B | N 007603022102 | SEAL RING |
| TO 344 430 72 01 | ||
| 305D | A 0004300381 | VALVE |
| TO 002 430 27 01 | ||
| A 0009930605 | SPRING | |
| TO 002 430 27 01 | ||
| 305F | A 0004311776 | WASHER |
| TO 002 430 27 01 | ||
| 305K | A 0009941835 | SNAP RING |
| TO 002 430 27 01 | ||
| A 0084310576 | WASHER | |
| Repalced by: A 3454317376 | ||
| A 3454317376 | WASHER | |
| TO 344 430 72 01 | ||
| A 0084310886 | CUP | |
| Repalced by: A 3454317286 | ||
| A 3454317286 | CUP | |
| TO 344 430 72 01 | ||
| 305M | A 3454287030 | CONNECTOR |
| TO 344 430 72 01,344 430 73 01 | ||
| 305P | A 3454287026 | HOLLOW SCREW |
| TO 344 430 72 01,344 430 73 01 | ||
| 305S | N 007603040102 | SEAL RING |
| TO 002 430 27 01 | ||
| 305U | A 3454287226 | HOLLOW SCREW |
| Repalced by: A 3454287126 | ||
| 305U | A 3454287126 | HOLLOW SCREW |
| TO 344 430 72 01,344 430 73 01 | ||
| 305Z | N 007603014102 | SEAL RING |
| TO 344 430 72 01,344 430 73 01 | ||
| 306 | A 3454287324 | DISTRIBUTOR |
| TO 344 430 72 01 | ||
| 306 | A 3454287524 | DISTRIBUTOR |
| Repalced by: A 3454288024 | ||
| 306 | A 3454288024 | DISTRIBUTOR |
| TO 344 430 73 01 | ||
| A 3454288024 | DISTRIBUTOR | |
| TO 344 430 73 01 | ||
| 306B | N 007603040102 | SEAL RING |
| TO 345 430 77 01,344 430 72 01,73 01 | ||
| 306D | A 0004310194 | LOCK |
| TO 002 430 27 01 | ||
| 306D | A 3454317194 | LOCK |
| TO 345 430 77 01,344 430 72 01,73 01 | ||
| 306F | A 0455860542 | REPAIR KIT |
| MINOR | ||
| TO 344 430 72 01,345 430 77 01 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 344 430 73 01 | ||
| 306K | A 0455860442 | REPAIR KIT |
| MAJOR | ||
| TO 344 430 72 01,345 430 77 01 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 344 430 73 01 | ||
| A 0005861743 | REPAIR KIT | |
| TO 002 430 27 01 | ||
| A 0004280130 | CONNECTOR | |
| FRONT/REAR BRAKE CIRCUIT | ||
| TO 002 430 27 01 | ||
| 306L | A 3454287030 | CONNECTOR |
| FRONT/REAR BRAKE CIRCUIT | ||
| TO 345 430 77 01 | ||
| 306M | N 007603022102 | SEAL RING |
| FRONT/REAR BRAKE CIRCUIT | ||
| A 0004280026 | HOLLOW SCREW | |
| Repalced by: A 3454287126 | ||
| A 3454287126 | HOLLOW SCREW | |
| FRONT/REAR BRAKE CIRCUIT | ||
| TO 002 430 27 01 | ||
| 306N | A 3454287126 | HOLLOW SCREW |
| FRONT/REAR BRAKE CIRCUIT | ||
| TO 345 430 77 01 | ||
| 306P | A 0004281924 | DISTRIBUTOR |
| FRONT AXLE BRAKE CIRCUIT | ||
| TO 002 430 27 01 | ||
| 306P | A 3454287324 | DISTRIBUTOR |
| FRONT AXLE BRAKE CIRCUIT | ||
| TO 344 430 77 01 | ||
| 306P | A 0004280830 | CONNECTOR |
| REAR AXLE BRAKE CIRCUIT | ||
| TO 002 430 27 01 | ||
| 306P | A 3454287524 | DISTRIBUTOR |
| Repalced by: A 3454288024 | ||
| 306P | A 3454288024 | DISTRIBUTOR |
| REAR AXLE BRAKE CIRCUIT | ||
| TO 344 430 77 01 | ||
| 306U | N 007603014106 | SEAL RING |
| 307 | A 3124294840 | BRACKET |
| BRAKE BOOSTER AND MASTER CYLINDER | ||
| 307D | N 000933010129 | SCREW |
| BRACKET TO MASTER CYLINDER | ||
| 307H | A 3219940015 | LOCK |
| BRACKET TO MASTER CYLINDER | ||
| 307L | N 000933010129 | SCREW |
| BRACKET TO SUBSTRUCTURE | ||
| 307P | N 000125010517 | WASHER |
| BRACKET TO SUBSTRUCTURE | ||
| 308 | N 000127010202 | LOCK WASHER |
| 312 | N 000934010000 | NUT |

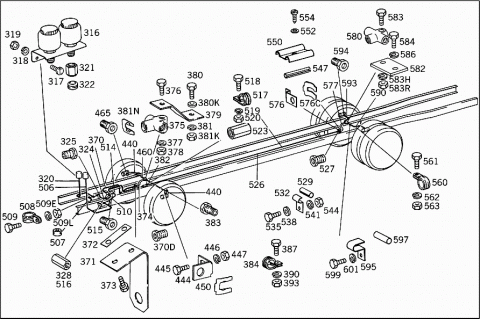

| 316 | A 0454310102 | RESERVOIR |
| Repalced by: A 3454300002 | ||
| 316 | A 3454300002 | RESERVOIR |
| 317 | N 000084006134 | SCREW |
| RESERVOIR TO FRONT PANEL | ||
| 318 | N 000127006203 | LOCK WASHER |
| RESERVOIR TO FRONT PANEL | ||
| 319 | N 000934006006 | NUT |
| RESERVOIR TO FRONT PANEL | ||
| 320 | H 983444201228 | LINE |
| FROM FLUID RESERVOIR TO BRAKE MASTER CYLINDER,FRONT AXLE BRAKE CIRCUIT | ||
| 8X0.7 MM | ||
| 321 | A 0009971173 | FITTING |
| 322 | A 3129970481 | GROMMET |
| 324 | H 983444201528 | LINE |
| FROM MASTER CYLINDER TO DISTRIBUTOR | ||
| 6X0.7 MM | ||
| 325 | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 325 | A 0004280072 | UNION SCREW |
| 328 | A 0004292736 | CONNECTOR |
| Repalced by: A 3454297836 | ||
| 328 | A 3454297836 | CONNECTOR |
| 370 | H 983444201728 | LINE |
| 6X0.7 MM | ||
| 370D | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 370D | A 0004280072 | UNION SCREW |
| 371 | A 3444280140 | BRACKET |
| BRAKE HOSE | ||
| 372 | A 3129940330 | LOCK |
| BRACKET TO COVER PLATE | ||
| 373 | N 000933008228 | SCREW |
| BRACKET TO COVER PLATE | ||
| 374 | A 0004280235 | BRAKE HOSE |
| Repalced by: A 3454287035 | ||
| 374 | A 3454287035 | BRAKE HOSE |
| 374 | A 0014283535 | BRAKE HOSE |
| Repalced by: A 3454287135 | ||
| 374 | A 3454287135 | BRAKE HOSE |
| 375 | A 0004290437 | DISTRIBUTOR |
| 375 | A 3454297037 | DISTRIBUTOR |
| 376 | N 000933008273 | SCREW |
| DISTRIBUTOR TO BRACKET | ||
| 377 | N 912004008100 | LOCK WASHER |
| DISTRIBUTOR TO BRACKET | ||
| 378 | N 000934008000 | NUT |
| DISTRIBUTOR TO BRACKET | ||
| 379 | A 0444280040 | BRACKET |
| Repalced by: A 3444280440 | ||
| 379 | A 3444280440 | BRACKET |
| 380 | N 000931008072 | SCREW |
| BRACKET TO FRONT AXLE | ||
| 380K | A 3219900740 | WASHER |
| BRACKET TO FRONT AXLE | ||
| 381 | N 912004008100 | LOCK WASHER |
| BRACKET TO FRONT AXLE | ||
| 381K | N 000934008000 | NUT |
| BRACKET TO FRONT AXLE | ||
| 381N | A 0004280473 | BRACKET |
| BRAKE HOSE TO BRACKET | ||
| 382 | A 3444200728 | LINE |
| FROM DISTRIBUTOR TO LEFT FRONT WHEEL BRAKE HOSE | ||
| 6X0.7 MM | ||
| 383 | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 383 | A 0004280072 | UNION SCREW |
| 384 | A 0009954501 | CLAMP |
| Repalced by: N 916016006200 | ||
| 384 | N 916016006200 | CLAMP |
| LINE TO FRONT AXLE,LEFT | ||
| 387 | N 000933005097 | SCREW |
| LINE TO FRONT AXLE,LEFT | ||
| 390 | N 000127005001 | LOCK WASHER |
| LINE TO FRONT AXLE,LEFT | ||
| 393 | N 000934005008 | NUT |
| LINE TO FRONT AXLE,LEFT | ||
| 440 | A 0004280735 | BRAKE HOSE |
| 440 | A 0014287435 | BRAKE HOSE |
| Repalced by: A 3644287335 | ||
| 440 | A 3644287335 | BRAKE HOSE |
| 444 | A 3214280043 | ANGLE |
| BRAKE HOSE,FRONT | ||
| 445 | N 000931008072 | SCREW |
| BRAKE HOSE,FRONT | ||
| 446 | N 912004008100 | LOCK WASHER |
| BRAKE HOSE,FRONT | ||
| 447 | N 000934008000 | NUT |
| BRAKE HOSE,FRONT | ||
| 450 | A 0004280473 | BRACKET |
| 454 | A 3444280030 | CONNECTOR |
| LINE TO LEFT WHEEL CYLINDER | ||
| 455 | N 007603012106 | SEAL RING |
| LINE TO LEFT WHEEL CYLINDER | ||
| 456 | N 007603014102 | SEAL RING |
| LINE TO LEFT WHEEL CYLINDER | ||
| 457 | A 3444280026 | HOLLOW SCREW |
| LINE TO LEFT WHEEL CYLINDER | ||
| 458 | A 3449900053 | NUT |
| LINE TO LEFT WHEEL CYLINDER | ||
| 460 | A 3444200828 | LINE |
| FROM DISTRIBUTOR TO RIGHT FRONT WHEEL BRAKE HOSE | ||
| 6X0.7 MM | ||
| 465 | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 465 | A 0004280072 | UNION SCREW |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 440 | ||
| 506 | H 983444201328 | LINE |
| FROM FLUID RESERVOIR TO BRAKE MASTER CYLINDER,REAR AXLE BRAKE CIRCUIT | ||
| 8X0.7 MM | ||
| A 0009971173 | FITTING | |
| 507 | A 3129970481 | GROMMET |
| 508 | A 0009951801 | CLAMP |
| Repalced by: N 916016008200 | ||
| 508 | N 916016008200 | CLAMP |
| 509 | N 000933006220 | SCREW |
| 509E | N 000127006203 | LOCK WASHER |
| 509L | N 000934006006 | NUT |
| 510 | H 983444201428 | LINE |
| FROM MASTER CYLINDER TO UNION SCREW | ||
| 6X0.7 MM | ||
| 514 | H 983444201628 | LINE |
| FROM CONNECTOR I TO CONNECTOR II | ||
| 6X0.7 MM | ||
| 515 | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 515 | A 0004280072 | UNION SCREW |
| 516 | A 0004292736 | CONNECTOR |
| Repalced by: A 3454297836 | ||
| 516 | A 3454297836 | CONNECTOR |
| NO.1 | ||
| 516 | A 3454297836 | CONNECTOR |
| NO.1 | ||
| A 0009954501 | CLAMP | |
| Repalced by: N 916016006200 | ||
| 517 | N 916016006200 | CLAMP |
| LINE TO SUBSTRUCTURE | ||
| 518 | N 000933005097 | SCREW |
| LINE TO SUBSTRUCTURE | ||
| 519 | N 000127005001 | LOCK WASHER |
| LINE TO SUBSTRUCTURE | ||
| 520 | N 000934005000 | NUT |
| LINE TO SUBSTRUCTURE | ||
| 523 | A 0004292736 | CONNECTOR |
| Repalced by: A 3454297836 | ||
| 523 | A 3454297836 | CONNECTOR |
| NO.2 | ||
| 526 | H 983214200628 | LINE |
| FROM CONNECTOR II TO BRAKE HOSE | ||
| 6X0.7 MM | ||
| 526 | A 3214201128 | LINE |
| FROM CONNECTOR II TO BRAKE HOSE | ||
| 6X0.7 MM | ||
| 527 | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 527 | A 0004280072 | UNION SCREW |
| 529 | A 3129973482 | HOSE |
| LINE TO CROSS AND SIDE MEMBERS | ||
| 532 | N 072571001024 | CLAMP |
| LINE TO CROSS AND SIDE MEMBERS | ||
| 535 | N 000933004017 | SCREW |
| LINE TO CROSS AND SIDE MEMBERS | ||
| 538 | N 000125004313 | WASHER |
| LINE TO CROSS AND SIDE MEMBERS | ||
| 541 | N 912004004102 | LOCK WASHER |
| LINE TO CROSS AND SIDE MEMBERS | ||
| 544 | N 000934004000 | NUT |
| LINE TO CROSS AND SIDE MEMBERS | ||
| 547 | A 3129973482 | HOSE |
| LINE TO ELBOW CONNECTION | ||
| 550 | A 3449950132 | CLAMP |
| LINE TO ELBOW CONNECTION | ||
| 552 | N 009021004103 | WASHER |
| LINE TO ELBOW CONNECTION | ||
| 554 | N 007971003227 | SHEET METAL SCREW |
| LINE TO ELBOW CONNECTION | ||
| 560 | A 0009954501 | CLAMP |
| Repalced by: N 916016006200 | ||
| 560 | N 916016006200 | CLAMP |
| LINE TO CROSS MEMBER | ||
| 561 | N 000933005097 | SCREW |
| LINE TO CROSS MEMBER | ||
| 562 | N 000127005001 | LOCK WASHER |
| LINE TO CROSS MEMBER | ||
| N 000934005008 | NUT | |
| LINE TO CROSS MEMBER | ||
| 576 | H 983214280043 | ANGLE |
| Repalced by: A 3214280440 | ||
| 576 | A 3214280440 | BRACKET |
| 576C | A 0004280473 | BRACKET |
| 577 | A 0004280735 | BRAKE HOSE |
| 577 | A 0014287435 | BRAKE HOSE |
| Repalced by: A 3644287335 | ||
| 577 | A 3644287335 | BRAKE HOSE |
| 580 | A 0004290437 | DISTRIBUTOR |
| 580 | A 3454297037 | DISTRIBUTOR |
| 582 | A 3214280343 | ANGLE |
| Repalced by: A 3524280740 | ||
| 582 | A 3444287640 | BRACKET |
| Repalced by: A 3524280740 | ||
| 582 | A 3524280740 | BRACKET |
| 583 | N 000933008273 | SCREW |
| DISTRIBUTOR TO BRACKET | ||
| 583H | N 912004008100 | LOCK WASHER |
| DISTRIBUTOR TO BRACKET | ||
| 583R | N 000934008000 | NUT |
| DISTRIBUTOR TO BRACKET | ||
| 584 | N 000933008228 | SCREW |
| DISTRIBUTOR TO REAR AXLE | ||
| 586 | N 912004008100 | LOCK WASHER |
| DISTRIBUTOR TO REAR AXLE | ||
| 590 | H 983214200728 | LINE |
| FROM DISTRIBUTOR TO LEFT REAR WHEEL | ||
| 6X0.7 MM | ||
| 590 | A 3444208828 | LINE |
| FROM DISTRIBUTOR TO LEFT REAR WHEEL | ||
| 6X0.7 MM | ||
| 593 | H 983214200828 | LINE |
| FROM DISTRIBUTOR TO RIGHT REAR WHEEL | ||
| 6X0.7 MM | ||
| 593 | A 3644208028 | LINE |
| FROM DISTRIBUTOR TO LEFT AND RIGHT REAR WHEELS | ||
| 6X0.7 MM | ||
| 594 | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 594 | A 0004280072 | UNION SCREW |
| 595 | A 3129951020 | CLAMP |
| LINE TO REAR AXLE | ||
| 597 | A 3129973482 | HOSE |
| LINE TO REAR AXLE | ||
| 599 | N 000933008228 | SCREW |
| LINE TO REAR AXLE | ||
| 601 | N 912004008100 | LOCK WASHER |
| LINE TO REAR AXLE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| AIR BRAKE | ||
| A 3454298236 | CONNECTOR | |
| A 0019972072 | FITTING | |

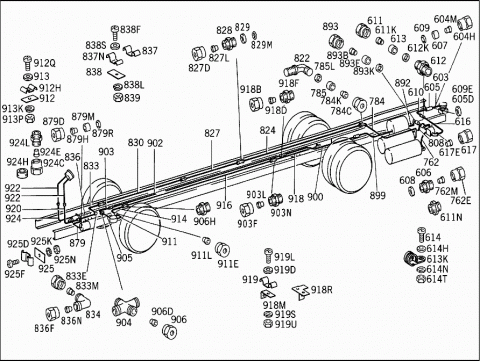

| 603 | A 0444200036 | LINE |
| FROM AIR COMPRESSOR TO HOSE | ||
| 18X1.5 MM | ||
| 603 | A 3444307564 | LINE |
| FROM AIR COMPRESSOR TO DOUBLE FITTING | ||
| 18X1.5 MM | ||
| 604H | N 915017018100 | UNION NUT |
| 604M | N 003861018003 | GLAND |
| 605 | H 983444200005 | HOSE |
| Repalced by: A 3214204045 | ||
| 605 | A 3214204045 | LINE |
| COMPRESSED AIR HOSE | ||
| 605D | N 915045015100 | SEAL RING |
| 606 | A 3454298236 | CONNECTOR |
| 606 | A 0019972072 | FITTING |
| 607 | N 915065018101 | THRUST RING |
| 608 | N 007603026106 | SEAL RING |
| 609 | A 0004291584 | SEAL RING |
| Repalced by: N 915045015100 | ||
| 609 | N 915045015100 | SEAL RING |
| AIR COMPRESSOR | ||
| 609 | N 915045015100 | SEAL RING |
| AT AIR COMPRESSOR | ||
| 609E | N 915045015100 | SEAL RING |
| HOSE | ||
| 610 | H 983444200026 | LINE |
| FROM HOSE TO DOUBLE FITTING | ||
| 18X1.5 MM | ||
| 610 | A 3444307664 | LINE |
| FROM FITTING TO DOUBLE FITTING | ||
| 18X1.5 MM | ||
| 611 | N 915017018100 | UNION NUT |
| 611K | N 003861018003 | GLAND |
| 611N | A 3454298236 | CONNECTOR |
| 611N | A 0019972072 | FITTING |
| 612 | A 0019972072 | FITTING |
| Repalced by: A 3454298236 | ||
| 612 | A 3454298236 | CONNECTOR |
| AT AIR COMPRESSOR | ||
| 612K | N 915045015100 | SEAL RING |
| COMPRESSED AIR LINE TO DOUBLE FITTING | ||
| 613 | N 915065018101 | THRUST RING |
| COMPRESSED AIR LINE TO DOUBLE FITTING | ||
| 613K | A 0009958901 | CLAMP |
| Repalced by: N 916016018204 | ||
| 613K | N 916016018204 | CLAMP |
| LINE TO SUBSTRUCTURE | ||
| 613K | A 3049950120 | CLAMP |
| Repalced by: A 3049950220 | ||
| 613K | A 3049950220 | CLAMP |
| LINE TO SUBSTRUCTURE | ||
| 614 | N 007985005171 | SCREW |
| LINE TO SUBSTRUCTURE | ||
| 614 | N 007985006515 | SCREW |
| LINE TO SUBSTRUCTURE | ||
| 614H | N 000125005315 | WASHER |
| LINE TO SUBSTRUCTURE | ||
| 614H | N 000125006420 | WASHER |
| LINE TO SUBSTRUCTURE | ||
| 614N | N 000127005001 | LOCK WASHER |
| LINE TO SUBSTRUCTURE | ||
| 614N | N 912004006100 | LOCK WASHER |
| LINE TO SUBSTRUCTURE | ||
| 614T | N 000934005008 | NUT |
| LINE TO SUBSTRUCTURE | ||
| 614T | N 000934006006 | NUT |
| LINE TO SUBSTRUCTURE | ||
| 616 | H 983444200426 | LINE |
| TIRE INFLATOR CYLINDER | ||
| 18X1.5 MM | ||
| 617 | N 915017018100 | UNION NUT |
| 617E | N 003861018003 | GLAND |
| 618 | N 915065018101 | THRUST RING |
| LINE TO DOUBLE FITTING AND TO TIRE INFLATOR CYLINDER | ||
| 620 | N 915045015100 | SEAL RING |
| LINE TO DOUBLE FITTING AND TO TIRE INFLATOR CYLINDER | ||
| 622 | A 3454297838 | ELBOW FITTING |
| PRESSURE REGULATOR | ||
| 623 | N 074305022202 | NUT |
| PRESSURE REGULATOR | ||
| 624 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 624 | A 0009940203 | THRUST RING |
| PRESSURE REGULATOR | ||
| 625 | A 0009870446 | O-RING |
| PRESSURE REGULATOR | ||
| 628 | H 983455910002 | TIRE INFLATOR CYLINDER |
| Repalced by: A 3445910019 | ||
| 628 | A 3445910019 | TIRE INFLATOR CYLINDER |
| 630 | A 0005910097 | REPAIR KIT |
| 633 | A 0019972372 | FITTING |
| 633 | N 074313016401 | FITTING |
| 635 | N 007603022102 | SEAL RING |
| 637 | N 074305022202 | NUT |
| 639 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 639 | A 0009940203 | THRUST RING |
| 641 | A 0009870446 | O-RING |
| 644 | A 0004312706 | PRESSURE REGULATOR |
| 647 | A 0004310212 | COMPENSATOR |
| 649 | A 0004310856 | SCREW PLUG |
| 681 | A 0004310070 | STUD |
| 683 | N 000934005008 | NUT |
| 685 | A 0004310956 | SCREW PLUG |
| 687 | A 0004312493 | SPRING |
| 689 | A 0004312383 | PISTON |
| 691 | A 0004311476 | WASHER |
| 693 | A 0004311056 | SCREW PLUG |
| 695 | A 0004310073 | BREATHER PIPE |
| 697 | N 000063010122 | SCREW |
| 699 | H 983455860743 | REPAIR KIT |
| 703 | N 007603022102 | SEAL RING |
| 705 | A 0019972372 | FITTING |
| 705 | N 074313016401 | FITTING |
| 707 | N 074305022202 | NUT |
| 709 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 709 | A 0009940203 | THRUST RING |
| 711 | A 0009870446 | O-RING |

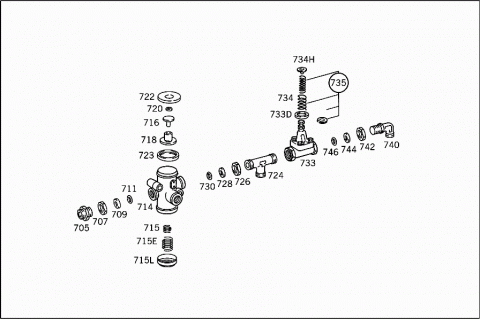

| 714 | A 0004317206 | VALVE |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 715 | A 0014316693 | SPRING |
| TO BOSCH-NR.0481 027 024 | ||
| 715E | A 0014316793 | SPRING |
| TO BOSCH-NR.0481 027 024 | ||
| A 0009935205 | SPRING | |
| TO BOSCH-NR.0481 027 104 | ||
| 715L | A 0004315333 | FILLER CAP |
| 716 | A 0004311981 | VALVE DISC |
| TO BOSCH-NR.0481 027 024 | ||
| 718 | A 0004312081 | VALVE DISC |
| TO BOSCH-NR.0481 027 024 | ||
| 720 | A 0007630454 | SEAL |
| TO BOSCH-NR.0481 027 024 | ||
| 722 | A 0004315086 | CUP |
| TO BOSCH-NR.0481 027 024 | ||
| A 0014312086 | CUP | |
| Repalced by: A 0014312386 | ||
| A 0014312386 | CUP | |
| TO BOSCH-NR.0481 027 104 | ||
| A 0014312186 | CUP | |
| TO BOSCH-NR.0481 027 104 | ||
| 723 | A 0004317987 | PROTECTIVE CAP |
| A 0004350780 | GASKET | |
| TO BOSCH-NR.0481 027 104 | ||
| A 0049977945 | SEAL RING | |
| TO BOSCH-NR.0481 027 104 | ||
| 724 | N 074317000100 | FITTING |
| 724 | A 0009902470 | T-FITTING |
| 726 | N 074305022202 | NUT |
| 728 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 728 | A 0009940203 | THRUST RING |
| 730 | A 0009870446 | O-RING |
| 733 | A 0004298344 | VALVE |
| Repalced by: A 0004296044 | ||
| 733 | A 0004296044 | VALVE |
| (OVERFLOW VALVE) | ||
| WESTINGHOUSE | ||
| 733 | A 0004315406 | VALVE |
| Repalced by: A 0034290344 | ||
| 733D | A 0004290145 | DIAPHRAGM |
| TO 000 431 54 06 | ||
| 734 | A 0019932301 | SPRING |
| TO 000 429 60 44 | ||
| 734H | A 0004290389 | SPRING RETAINER |
| TO 000 429 60 44 | ||
| 735 | H 983455860742 | REPAIR KIT |
| Repalced by: A 0005863642 | ||
| 735 | A 0005863642 | REPAIR KIT |
| TO 000 429 83 44 | ||
| 735 | A 3455867042 | REPAIR KIT |
| Repalced by: A 0005865842 | ||
| 735 | A 0005865842 | REPAIR KIT |
| TO 000 429 60 44 | ||
| 740 | N 074315000200 | FITTING |
| 740 | A 0009905871 | ELBOW FITTING |
| 742 | N 074305022202 | NUT |
| 744 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 744 | A 0009940203 | THRUST RING |
| 746 | A 0009870446 | O-RING |
| 748 | H 983449970482 | HOSE |
| Repalced by: A 3649977382 | ||
| 748 | A 3649977382 | HOSE |
| 750 | N 900288020006 | CLAMP |
| AS REQUIRED | ||
| 751 | A 3509970290 | CLAMP |
| AS REQUIRED | ||
| 752 | A 3215910084 | SHIM |
| TIRE INFLATOR CYLINDER | ||
| 754 | N 000931008321 | SCREW |
| TIRE INFLATOR CYLINDER | ||
| 756 | N 912004008100 | LOCK WASHER |
| TIRE INFLATOR CYLINDER | ||
| 758 | N 000934008010 | NUT |
| TIRE INFLATOR CYLINDER | ||
| 759 | A 3219970240 | SEAL RING |
| TIRE INFLATOR CYLINDER | ||
| 762 | H 983444200526 | LINE |
| FROM TWO-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR II | ||
| 15X1.5 MM | ||
| 762E | N 915018015000 | UNION NUT |
| 762M | N 003861015004 | GLAND |
| 763 | N 915065015101 | THRUST RING |
| 764 | N 915045012100 | SEAL RING |

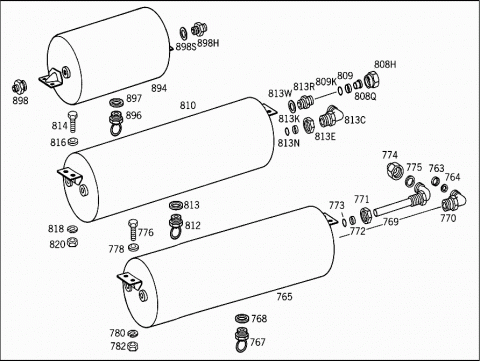

| 765 | A 3124303005 | RESERVOIR |
| II | ||
| 767 | A 0004320607 | VALVE |
| Repalced by: A 0004320807 | ||
| 767 | A 0454300081 | VALVE |
| Repalced by: A 3454300281 | ||
| 767 | H 983454300081 | VALVE |
| Repalced by: A 3454300281 | ||
| 767 | A 3454300081 | VALVE |
| Repalced by: A 0004320807 | ||
| 767 | A 3454300181 | VALVE |
| Repalced by: A 3454300281 | ||
| 767 | A 3454300281 | VALVE |
| Repalced by: A 0004320807 | ||
| 767 | A 0004320807 | VALVE |
| DRAIN | ||
| G.EISELE | ||
| 767 | A 0004322207 | VALVE |
| Repalced by: A 3644327107 | ||
| 767 | A 3644327107 | VALVE |
| DRAIN | ||
| KNORR | ||
| 768 | N 007603022102 | SEAL RING |
| 769 | H 983454300079 | CONNECTOR |
| Repalced by: A 3454307079 | ||
| 769 | A 3454307079 | CONNECTOR |
| 770 | N 074315000200 | FITTING |
| 770 | A 0009905871 | ELBOW FITTING |
| 771 | N 074305022202 | NUT |
| 772 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 772 | A 0009940203 | THRUST RING |
| 773 | A 0009870446 | O-RING |
| 774 | A 3229970071 | FITTING |
| AT AIR RESERVOIR II | ||
| 775 | N 915045012100 | SEAL RING |
| AT AIR RESERVOIR II | ||
| 776 | N 000933008016 | SCREW |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 778 | N 000433008403 | WASHER |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 780 | N 912004008100 | LOCK WASHER |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 782 | N 000934008013 | NUT |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 784 | H 983444200826 | LINE |
| FROM AIR RESERVOIR I TO RELAY VALVE, CONNECTION: | ||
| 15X1.5 MM"V" | ||
| 784 | H 983444200926 | LINE |
| FROM AIR RESERVOIR I TO ELBOW FITTING | ||
| 15X1.5 MM | ||
| 784C | N 003872015100 | UNION NUT |
| 784K | N 003861015004 | GLAND |
| 785 | N 915065015101 | THRUST RING |
| 785L | N 915045012100 | SEAL RING |
| A 0059972648 | SEAL RING | |
| A 0004312788 | VALVE SEAT | |
| A 0059972748 | SEAL RING | |
| A 0014311660 | SEAL RING | |
| A 0014311760 | SEAL RING | |
| A 0004311980 | GASKET | |

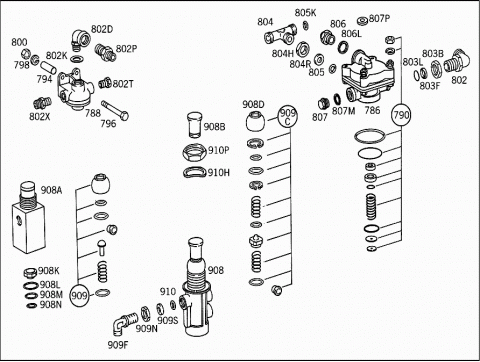

| 786 | A 0014295444 | VALVE |
| Repalced by: A 0034295244 | ||
| 786 | A 0034295244 | VALVE |
| "KNORR" | ||
| 786 | A 0004296544 | VALVE |
| RELAY | ||
| "WABCO" | ||
| 788 | A 0004292844 | VALVE |
| Repalced by: A 0044295044 | ||
| 788 | A 0044295044 | VALVE |
| "BENDIX-WESTINGHOUSE" | ||
| 790 | A 0005865742 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 000 429 65 44 | ||
| 790 | H 983455860842 | REPAIR KIT |
| Repalced by: A 0004205555 | ||
| 790 | A 0004205555 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 000 429 65 44 | ||
| 790 | A 0025863542 | REPAIR KIT |
| TO 001 429 54 44,003 429 52 44 | ||
| 790 | A 3445867242 | REPAIR KIT |
| TO 000 429 28 44 | ||
| 794 | A 1209911140 | SPACER TUBE |
| QUICK-RELEASE VALVE TO BRACKET | ||
| 796 | N 000933008279 | SCREW |
| QUICK-RELEASE VALVE TO BRACKET | ||
| 798 | N 912004008100 | LOCK WASHER |
| QUICK-RELEASE VALVE TO BRACKET | ||
| 800 | N 000934008000 | NUT |
| QUICK-RELEASE VALVE TO BRACKET | ||
| 802 | N 074315000200 | FITTING |
| RELAY VALVE,CONNECTION "2" | ||
| 802 | A 0009905871 | ELBOW FITTING |
| RELAY VALVE,CONNECTION "2" | ||
| 802D | A 3454297038 | ELBOW FITTING |
| AT QUICK-RELEASE VALVE | ||
| 802K | N 007603022102 | SEAL RING |
| AT QUICK-RELEASE VALVE | ||
| 802P | N 074313008101 | FITTING |
| AT QUICK-RELEASE VALVE | ||
| 802T | A 3454297056 | SCREW PLUG |
| AT QUICK-RELEASE VALVE | ||
| 802X | A 3454297936 | CONNECTOR |
| AT QUICK-RELEASE VALVE | ||
| 803B | N 074305022202 | NUT |
| RELAY VALVE,CONNECTION "2" | ||
| 803F | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 803F | A 0009940203 | THRUST RING |
| RELAY VALVE,CONNECTION "2" | ||
| 803L | A 0009870446 | O-RING |
| RELAY VALVE,CONNECTION "2" | ||
| 804 | N 074302022202 | T-FITTING |
| Repalced by: A 0009900970 | ||
| 804 | A 0009900970 | T-FITTING |
| RELAY VALVE,CONNECTION "1" | ||
| 804H | N 074305022202 | NUT |
| RELAY VALVE,CONNECTION "1" | ||
| 804R | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 804R | A 0009940203 | THRUST RING |
| RELAY VALVE,CONNECTION "1" | ||
| 805 | A 0009870446 | O-RING |
| RELAY VALVE,CONNECTION "1" | ||
| 805K | N 915045012100 | SEAL RING |
| RELAY VALVE,CONNECTION "1" | ||
| 806 | A 0004291234 | ADAPTER FITTING |
| Repalced by: N 074313008101 | ||
| 806 | N 074313008101 | FITTING |
| RELAY VALVE,CONNECTION "4" | ||
| 806L | N 007603022102 | SEAL RING |
| RELAY VALVE,CONNECTION "4" | ||
| 807 | N 000908022001 | SCREW PLUG |
| RELAY VALVE,CONNECTION "2" | ||
| 807M | N 007603022102 | SEAL RING |
| RELAY VALVE,CONNECTION "2" | ||
| 807P | N 000125008417 | WASHER |
| RELAY VALVE TO BRACKET | ||
| 808 | H 983444200626 | LINE |
| FROM T-FITTING AT TIRE INFLATOR CYLINDER TO AIR RESERVOIR I | ||
| 15X1.5 MM | ||
| 808H | N 915018015000 | UNION NUT |
| 808Q | N 003861015004 | GLAND |
| 809 | N 915065015101 | THRUST RING |
| 809K | N 915045012100 | SEAL RING |
| 810 | A 3124303005 | RESERVOIR |
| I | ||
| 812 | A 0004320607 | VALVE |
| Repalced by: A 0004320807 | ||
| 812 | A 0454300081 | VALVE |
| Repalced by: A 3454300281 | ||
| 812 | H 983454300081 | VALVE |
| Repalced by: A 3454300281 | ||
| 812 | A 3454300081 | VALVE |
| Repalced by: A 0004320807 | ||
| 812 | A 3454300181 | VALVE |
| Repalced by: A 3454300281 | ||
| 812 | A 3454300281 | VALVE |
| Repalced by: A 0004320807 | ||
| 812 | A 0004320807 | VALVE |
| DRAIN | ||
| G.EISELE | ||
| 812 | A 0004322207 | VALVE |
| Repalced by: A 3644327107 | ||
| 812 | A 3644327107 | VALVE |
| DRAIN | ||
| KNORR | ||
| 813 | N 007603022102 | SEAL RING |
| 813C | N 074315000200 | FITTING |
| 813C | A 0009905871 | ELBOW FITTING |
| 813E | N 074305022202 | NUT |
| 813K | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 813K | A 0009940203 | THRUST RING |
| 813N | A 0009870446 | O-RING |
| 813R | N 074313016201 | FITTING |
| 813R | A 0019972172 | FITTING |
| 813W | N 007603022102 | SEAL RING |
| 814 | N 000933008016 | SCREW |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 816 | N 000433008403 | WASHER |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 818 | N 912004008100 | LOCK WASHER |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 820 | N 000934008013 | NUT |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 822 | A 0004293538 | ELBOW FITTING |
| 824 | H 983444201926 | LINE |
| FROM ELBOW FITTING TO DOUBLE FITTING | ||
| 15X1.5 MM | ||
| 827 | H 983444203726 | LINE |
| FROM DOUBLE FITTING I TO DOUBLE FITTING II | ||
| 15X1.5 MM | ||
| 827D | N 915018015000 | UNION NUT |
| 827L | N 003861015004 | GLAND |
| 828 | N 074313016201 | FITTING |
| 828 | A 0019972172 | FITTING |
| 829 | N 915065015101 | THRUST RING |
| 829M | N 915045012100 | SEAL RING |
| 830 | H 983214200336 | LINE |
| Repalced by: A 3214206226 | ||
| 830 | A 3214206226 | LINE |
| FROM DOUBLE FITTING II TO DOUBLE FITTING III | ||
| 15X1.5 MM | ||
| 833 | H 983444203626 | LINE |
| FROM DOUBLE FITTING III TO ELBOW FITTING | ||
| 15X1.5 MM | ||
| 833 | A 3214206426 | LINE |
| FROM DOUBLE FITTING III TO ELBOW FITTING | ||
| 15X1.5 MM | ||
| 833E | N 915018015000 | UNION NUT |
| 833M | N 003861015004 | GLAND |
| 834 | A 0004293538 | ELBOW FITTING |
| 836 | H 983444203526 | LINE |
| FROM ELBOW FITTING TO BRAKE BOOSTER | ||
| 15X1.5 MM | ||
| 836 | H 983214200426 | LINE |
| FROM ELBOW FITTING TO BRAKE BOOSTER | ||
| 15X1.5 MM | ||
| 836F | N 915018015000 | UNION NUT |
| 836N | N 003861015004 | GLAND |
| 837 | A 3219950332 | CLAMP |
| COMPRESSED AIR LINE | ||
| 837N | A 3444290240 | CLAMP |
| COMPRESSED AIR LINE | ||
| 838 | A 3444290340 | BRACKET |
| COMPRESSED AIR LINE | ||
| 838F | N 007985005171 | SCREW |
| COMPRESSED AIR LINE | ||
| 838L | N 912004004100 | LOCK WASHER |
| COMPRESSED AIR LINE | ||
| 838S | N 000125005315 | WASHER |
| COMPRESSED AIR LINE | ||
| 839 | N 000934005008 | NUT |
| COMPRESSED AIR LINE | ||

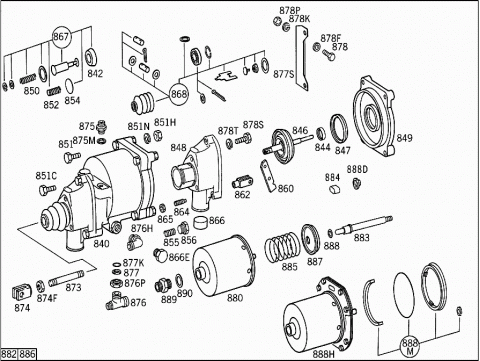

| 840 | A 0004312405 | BRAKE BOOSTER |
| Repalced by: A 3444317014 | ||
| 840 | A 3444317014 | BRAKE BOOSTER |
| 842 | A 0004312986 | CUP |
| 844 | A 0004312886 | SEAL RING |
| 846 | H 983454310192 | ROD |
| 847 | A 0004312786 | CUP |
| Repalced by: A 3459978846 | ||
| 847 | A 3459978846 | SEAL RING |
| 848 | H 983454310222 | COVER |
| Repalced by: A 0004311822 | ||
| 848 | A 0004311822 | COVER |
| A 0004311087 | PROTECTIVE CAP | |
| 849 | H 983454310122 | COVER |
| 850 | H 983454310293 | SPRING |
| Repalced by: A 0014316493 | ||
| 850 | A 0014314093 | SPRING |
| Repalced by: A 0014316493 | ||
| 850 | A 0014316493 | SPRING |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 001 431 40 93 | ||
| 851 | N 000931010100 | SCREW |
| 851C | N 000933010261 | SCREW |
| 851H | N 000934010200 | NUT |
| 851N | N 000127010202 | LOCK WASHER |
| 852 | H 983454310393 | SPRING |
| 854 | H 983454310152 | SPACER WASHER |
| 855 | A 0084310356 | SCREW PLUG |
| H 983454310493 | SPRING | |
| Repalced by: H 983454310793 | ||
| 856 | H 983454310793 | SPRING |
| 860 | H 983454310024 | SLIDE |
| 862 | N 071752012000 | YOKE |
| 864 | N 000417008002 | HEADLESS SETSCREW |
| 865 | N 000934008000 | NUT |
| 866 | A 0004290695 | AIR CLEANER |
| 866E | H 983459970030 | SCREW PLUG |
| 867 | H 983455860243 | REPAIR KIT |
| MINOR | ||
| 868 | H 983455860343 | REPAIR KIT |
| Repalced by: A 3455867043 | ||
| 868 | A 3455867043 | REPAIR KIT |
| MAJOR | ||
| 873 | A 3214310192 | ROD |
| FROM BRAKE LEVER TO BRAKE BOOSTER | ||
| 874 | A 3124311097 | YOKE |
| FROM BRAKE LEVER TO BRAKE BOOSTER | ||
| 874F | N 000936012017 | NUT |
| Repalced by: N 000936012005 | ||
| 874F | N 000936012005 | NUT |
| FROM BRAKE LEVER TO BRAKE BOOSTER | ||
| 875 | H 983444290039 | CONNECTOR |
| Repalced by: A 3454298136 | ||
| 875 | A 3454298136 | CONNECTOR |
| 875M | N 007603012112 | SEAL RING |
| 876 | A 0004295032 | T-FITTING |
| AT BRAKE BOOSTER | ||
| 876H | N 074315000200 | FITTING |
| AT BRAKE BOOSTER | ||
| 876H | A 0009905871 | ELBOW FITTING |
| AT BRAKE BOOSTER | ||
| 876P | N 074305022202 | NUT |
| AT BRAKE BOOSTER | ||
| 877 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 877 | A 0009940203 | THRUST RING |
| AT BRAKE BOOSTER | ||
| 877K | A 0009870446 | O-RING |
| AT BRAKE BOOSTER | ||
| 877S | A 3214290240 | BRACKET |
| BRAKE BOOSTER AND MASTER CYLINDER | ||
| 878 | N 000933010129 | SCREW |
| BRACKET TO SUBSTRUCTURE | ||
| 878F | N 000125010517 | WASHER |
| BRACKET TO SUBSTRUCTURE | ||
| 878K | N 000127010202 | LOCK WASHER |
| BRACKET TO SUBSTRUCTURE | ||
| 878P | N 000934010000 | NUT |
| BRACKET TO SUBSTRUCTURE | ||
| 878S | N 000933010129 | SCREW |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 878T | N 000127010202 | LOCK WASHER |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 879 | H 983444200126 | LINE |
| FROM BRAKE BOOSTER TO BRAKE CYLINDER | ||
| 15X1.5 MM | ||
| 879D | N 915018015000 | UNION NUT |
| 879H | N 003861015004 | GLAND |
| 879M | N 915065015101 | THRUST RING |
| 879R | N 915045012100 | SEAL RING |
| 880 | A 0014309901 | BRAKE MASTER CYLINDER |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG.-NO. 883 | ||
| 883 | H 983454310092 | ROD |
| Repalced by: A 0004312892 | ||
| 883 | H 983454310022 | COVER |
| Repalced by: A 0004312892 | ||
| 883 | A 0004312892 | ROD |
| 884 | H 983454290095 | AIR CLEANER |
| Repalced by: A 0004313934 | ||
| 884 | A 0004313934 | STRAINER |
| 885 | H 983454310293 | SPRING |
| Repalced by: A 0014316493 | ||
| 885 | A 0014314093 | SPRING |
| Repalced by: A 0014316493 | ||
| 885 | A 0014316493 | SPRING |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 001 431 40 93 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG.-NO. 888 | ||
| 887 | H 983454310052 | SPACER WASHER |
| Repalced by: A 0049978045 | ||
| 887 | H 983454310086 | CUP |
| Repalced by: A 0004318083 | ||
| 887 | A 0004318083 | PISTON |
| 888 | H 933454310060 | SEAL RING |
| Repalced by: A 0049978045 | ||
| 888 | A 0049978045 | SEAL RING |
| 888D | A 0009882735 | CAP |
| 888H | A 0004313414 | BRAKE CYLINDER |
| Repalced by: A 3644317014 | ||
| 888H | A 3644317014 | BRAKE CYLINDER |
| 888M | H 983455860643 | REPAIR KIT |
| Repalced by: A 0015869143 | ||
| 888M | A 0015869143 | REPAIR KIT |
| Repalced by: A 0004301608 | ||
| 888M | A 0004301608 | REPAIR KIT |
| TO 000 431 34 14,364 431 70 14 | ||
| 889 | N 074313016201 | FITTING |
| 889 | A 0019972172 | FITTING |
| 890 | N 007603022102 | SEAL RING |
| 892 | H 983444200726 | LINE |
| FROM OVERFLOW VALVE AND TIRE INFLATOR CYLINDER TO AIR RESERVOIR III | ||
| 15X1.5 MM | ||
| 893 | N 915018015000 | UNION NUT |
| 893B | N 003861015004 | GLAND |
| 893E | N 915065015101 | THRUST RING |
| 893K | N 915045012100 | SEAL RING |
| 894 | A 3224302205 | RESERVOIR |
| Repalced by: A 3084307005 | ||
| 894 | A 3084307005 | RESERVOIR |
| III | ||
| A 0004320607 | VALVE | |
| Repalced by: A 0004320807 | ||
| 563 | A 0454300081 | VALVE |
| Repalced by: A 3454300281 | ||
| H 983454300081 | VALVE | |
| Repalced by: A 3454300281 | ||
| A 3454300081 | VALVE | |
| Repalced by: A 0004320807 | ||
| A 3454300181 | VALVE | |
| Repalced by: A 3454300281 | ||
| A 3454300281 | VALVE | |
| Repalced by: A 0004320807 | ||
| 896 | A 0004320807 | VALVE |
| DRAIN VALVE | ||
| G.EISELE | ||
| 896 | A 0004322207 | VALVE |
| Repalced by: A 3644327107 | ||
| 896 | A 3644327107 | VALVE |
| DRAIN VALVE | ||
| KNORR | ||
| 897 | N 007603022102 | SEAL RING |
| 898 | A 0004291234 | ADAPTER FITTING |
| 898H | N 074313016201 | FITTING |
| 898H | A 0019972172 | FITTING |
| 898S | N 007603022102 | SEAL RING |
| 899 | H 983444201126 | LINE |
| FROM AIR RESERVOIR III TO DOUBLE FITTING I | ||
| 8X0.7 MM | ||
| 900 | H 983444201626 | LINE |
| FROM DOUBLE FITTING I TO DOUBLE FITTING II | ||
| 8X0.7 MM | ||
| 902 | H 983214200626 | LINE |
| FROM DOUBLE FITTING II TO DOUBLE FITTING III | ||
| 8X0.7 MM | ||
| H 983444202326 | LINE | |
| FROM DOUBLE FITTING III TO DOUBLE FITTING IV | ||
| 8X0.7 MM | ||
| 903 | A 3444208145 | LINE |
| FROM DOUBLE FITTING III TO DISTRIBUTOR | ||
| 8X0.7 MM | ||
| H 983444202826 | LINE | |
| FROM DOUBLE FITTING IV TO DISTRIBUTOR | ||
| 8.0.7 MM | ||
| 903F | N 915017008100 | UNION NUT |
| 903L | N 003861008005 | GLAND |
| 903N | N 003902008001 | CONNECTION FITTING |
| 904 | H 983444290037 | DISTRIBUTOR |
| H 983444202926 | LINE | |
| FROM DISTRIBUTOR TO DOUBLE FITTING V | ||
| 8X0.7 MM | ||
| 905 | A 3444207736 | LINE |
| FROM CROSS FITTING TO EMERGENCY RELEASE VALVE | ||
| 8X0.7 MM | ||
| 906 | N 915017008100 | UNION NUT |
| 906D | N 003861008005 | GLAND |
| 906H | N 003902008001 | CONNECTION FITTING |
| H 980009900020 | SCREW | |
| N 000127005001 | LOCK WASHER | |
| 908 | A 0004340501 | VALVE |
| Repalced by: A 3454347001 | ||
| 908 | A 3454347001 | VALVE |
| EMERGENCY RELEASE | ||
| "WABCO DO BRASIL" | ||
| 908A | A 0004342901 | VALVE |
| EMERGENCY RELEASE | ||
| "KNORR" | ||
| 908B | A 0009971977 | HANDLE |
| TO 000 434 23 01 | ||
| 908D | A 0004340586 | CUP |
| TO 000 434 23 01 | ||
| 908K | A 0004317387 | PROTECTIVE CAP |
| TO 000 434 05 01,345 434 70 01 | ||
| 908L | A 0109970948 | SEAL RING |
| TO 000 434 29 01 | ||
| 908M | A 0109971048 | SEAL RING |
| TO 000 434 29 01 | ||
| 908N | A 0109971148 | SEAL RING |
| TO 000 434 29 01 | ||
| 908N | A 0109971248 | SEAL RING |
| TO 000 434 29 01 | ||
| A 0079972448 | SEAL RING | |
| TO 000 434 23 01 | ||
| A 0079972548 | SEAL RING | |
| TO 000 434 23 01 | ||
| A 0014301360 | REPAIR KIT | |
| Repalced by: A 0004304106 | ||
| A 0004304106 | REPAIR KIT | |
| LARGE SCOPE | ||
| TO 000 434 29 01 | ||
| A 0014301460 | REPAIR KIT | |
| SMALL SCOPE | ||
| TO 000 434 29 01 | ||
| 909 | H 983455860943 | REPAIR KIT |
| Repalced by: A 0034301281 | ||
| 909 | A 0034301281 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 000 434 05 01,345 434 70 01 | ||
| A 0005869743 | REPAIR KIT | |
| LARGE SCOPE | ||
| TO 000 434 05 01,345 434 70 01 | ||
| 909C | A 0025869843 | REPAIR KIT |
| TO 000 434 23 01 | ||
| 909F | A 3444297038 | ELBOW FITTING |
| 909N | N 080705012003 | NUT |
| 909S | A 0004290827 | THRUST RING |
| Repalced by: A 0009940103 | ||
| 909S | A 0009940103 | THRUST RING |
| 910 | A 0019875046 | SEALING CORD |
| 910H | N 000137027201 | SPRING WASHER |
| VALVE TO BRACKET | ||
| 910P | N 074305026202 | NUT |
| VALVE TO BRACKET | ||
| 911 | H 983444203026 | LINE |
| FROM EMERGENCY RELEASE VALVE TO DOUBLE FITTING I | ||
| 8X0.7 MM | ||
| 911 | A 3444207836 | LINE |
| FROM EMERGENCY RELEASE VALVE TO DOUBLE FITTING I | ||
| 8X0.7 MM | ||
| H 983444202726 | LINE | |
| FROM PRESSURE REGULATOR TO INSIDE AIR RESERVOIR | ||
| 8X0.7 MM | ||
| 911E | N 915017008100 | UNION NUT |
| 911L | N 003861008005 | GLAND |
| 912 | A 3124761036 | BRACKET |
| Repalced by: A 3124761236 | ||
| 912 | A 3124761236 | BRACKET |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 912H | A 3379950332 | CLAMP |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 912Q | N 007985005171 | SCREW |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 913 | N 000125005315 | WASHER |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 913K | N 000127005001 | LOCK WASHER |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 913P | N 000934005008 | NUT |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 914 | H 983444202226 | LINE |
| FROM DOUBLE FITTING I TO DOUBLE FITTING II | ||
| 8X0.7 MM | ||
| 914 | A 3444208045 | LINE |
| FROM DOUBLE FITTING I TO DOUBLE FITTING II | ||
| 8X0.7 MM | ||
| 916 | H 983214200626 | LINE |
| FROM DOUBLE FITTING II TO DOUBLE FITTING III | ||
| 8X0.7 MM | ||
| 918 | H 983444201726 | LINE |
| FROM DOUBLE FITTING III TO TWO-WAY VALVE | ||
| 8X0.7 MM | ||
| 918B | N 915017008100 | UNION NUT |
| 918D | N 003861008005 | GLAND |
| 918F | N 003902008001 | CONNECTION FITTING |
| 918M | H 983214290040 | BRACKET |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 918R | H 983444290040 | BRACKET |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 919 | A 3379950332 | CLAMP |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 919L | N 007985005171 | SCREW |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 919D | N 000125005315 | WASHER |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 919S | N 000127005001 | LOCK WASHER |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 919U | N 000934005008 | NUT |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 920 | H 983215400061 | ELECTRIC CABLE |
| Repalced by: A 3215407661 | ||
| 920 | A 3215407661 | ELECTRIC CABLE |
| FROM T-FITTING TO DOUBLE FITTING | ||
| 6X0.7 MM | ||
| 922 | H 983215400361 | ELECTRIC CABLE |
| FROM DOUBLE FITTING TO PRESSURE GAUGE | ||
| 6X0.7 MM | ||
| 924 | H 983215400261 | ELECTRIC CABLE |
| Repalced by: A 3215407861 | ||
| 924 | A 3215407861 | ELECTRIC CABLE |
| FROM DOUBLE FITTING TO CONNECTION FITTING | ||
| 6X0.7 MM | ||
| 924C | N 915017006100 | UNION NUT |
| 924E | N 003861006007 | GLAND |
| 924H | A 1819970281 | GROMMET |
| Repalced by: A 1869970781 | ||
| 924H | A 1869970781 | GROMMET |
| 924L | N 003902006001 | CONNECTION FITTING |
| 925 | A 3215422340 | BRACKET |
| 925D | A 3129950332 | CLAMP |
| 925F | N 000084004106 | SCREW |
| 925K | N 912004004102 | LOCK WASHER |
| 925N | N 000934004000 | NUT |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| COMPRESSED AIR OPERATED SIGNAL SYSTEM | ||
| 926 | A 3445407162 | ELECTRIC CABLE |
| FROM DISTRIBUTOR TO VALVE | ||
| 6X0.7 MM | ||
| 927 | N 915017006100 | UNION NUT |
| 927D | N 003861006007 | GLAND |
| 928 | A 3215420028 | VALVE |
| AIR HORN | ||
| 929F | N 000963006037 | SCREW |
| VALVE TO FLOOR | ||
| 929N | N 000127006203 | LOCK WASHER |
| VALVE TO FLOOR | ||
| 929T | N 000934006006 | NUT |
| VALVE TO FLOOR | ||
| 930 | A 3445401061 | ELECTRIC CABLE |
| FROM VALVE TO CONNECTION FITTING | ||
| 6X0.7 MM | ||
| 930D | N 915017006100 | UNION NUT |
| 930K | N 003861006007 | GLAND |
| 931 | N 003902006001 | CONNECTION FITTING |
| 932 | A 3445401161 | ELECTRIC CABLE |
| FROM CONNECTOR I TO CONNECTOR II | ||
| 6X0.7 MM | ||
| 932C | N 915017006100 | UNION NUT |
| 932H | N 003861006007 | GLAND |
| 933 | N 003902006001 | CONNECTION FITTING |
| 934 | A 3445401261 | ELECTRIC CABLE |
| AIR HORN | ||
| 6X0.7 MM | ||
| 934B | N 915017006100 | UNION NUT |
| 934F | N 003861006007 | GLAND |
| 935 | A 3215420021 | AIR HORN |
| Repalced by: A 3445427021 | ||
| 935 | A 3445427021 | AIR HORN |
| Repalced by: A 3645427021 | ||
| 935 | A 3645427021 | AIR HORN |
| 935K | N 900264009526 | LOOM TIE |
| 935M | N 900263009002 | STRAP |
| 935N | N 900262009100 | LOOM TIE |
| 935R | A 3454297132 | T-FITTING |
| 935R | A 0009901070 | T-FITTING |
| M14X1,5 / M14X1,5 / M12X1,5 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| HAND BRAKE | ||
| 936 | A 0004304781 | VALVE |
| Repalced by: A 3454307381 | ||
| 936 | A 3454307381 | VALVE |
| 936B | A 0089973845 | SEAL RING |
| 936D | A 0089973745 | SEAL RING |
| 936F | A 0009933305 | SPRING |
| 936K | A 0089974045 | SEAL RING |
| 936M | A 0004312188 | VALVE SEAT |
| 936P | A 0089974145 | SEAL RING |
| TO 000 430 47 81 | ||
| 936R | A 0004313323 | VALVE |
| TO 000 430 47 81 | ||
| 936T | A 0009933205 | SPRING |
| TO 000 430 47 81 | ||
| 936W | A 0059976545 | SEAL RING |
| TO 000 430 47 81 | ||
| 936Y | A 0014311093 | SPRING |
| A 0009973277 | HANDLE | |
| TO 345 430 73 81 | ||
| 936Z | A 0025867843 | REPAIR KIT |
| TO 000 430 47 81 | ||
| 936Z | H 983455861043 | REPAIR KIT |
| Repalced by: A 0034301181 | ||
| 936Z | A 0034301181 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 345 430 73 81 | ||
| 936Z | A 0005868043 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 345 430 73 81 | ||
| 937A | A 0004305760 | REPAIR KIT |
| HAND BRAKE VALVE | ||
| TO 000 430 55 81 | ||
| 937 | N 007603014102 | SEAL RING |
| 938 | A 0009972072 | FITTING |
| Repalced by: A 0039979972 | ||
| 938 | A 0039979972 | FITTING |
| H 983214310040 | BRACKET | |
| Repalced by: G 983214300039 | ||
| H 983214310140 | BRACKET | |
| Repalced by: G 983214300039 | ||
| H 983214310041 | ANGLE | |
| Repalced by: G 983214300039 | ||
| H 983214300039 | SUPPORT | |
| 939 | A 3444307010 | BRACKET |
| 939F | N 000933006220 | SCREW |
| BRACKET TO BODY | ||
| 939M | N 000127006203 | LOCK WASHER |
| BRACKET TO BODY | ||
| 939U | N 000934006006 | NUT |
| BRACKET TO BODY | ||
| 940 | N 000963006037 | SCREW |
| VALVE TO BRACKET | ||
| 940D | N 000127006203 | LOCK WASHER |
| VALVE TO BRACKET | ||
| 940H | N 000934006006 | NUT |
| VALVE TO BRACKET | ||
| H 983214310087 | PROTECTIVE CAP | |
| 940L | H 103446840227 | PROTECTIVE CAP |
| Repalced by: A 3446847027 | ||
| 940L | A 3446847027 | PLATE |
| 940N | N 000966005023 | SCREW |
| PROTECTIVE CAP TO BRACKET | ||
| 940R | N 900056005202 | COUNTERSUNK WASHER |
| PROTECTIVE CAP TO BRACKET | ||
| 940T | A 0454290032 | T-FITTING |
| Repalced by: A 3454297132 | ||
| 940T | A 3454297132 | T-FITTING |
| 941 | H 983444202626 | LINE |
| HAND BRAKE VALVE BLEEDING | ||
| 8X0.7 MM | ||
| 941 | A 3444207545 | LINE |
| HAND BRAKE VALVE BLEEDING | ||
| 8X0.7 MM | ||
| 942 | H 983444202526 | LINE |
| FROM HAND BRAKE VALVE,CONNECTION "2", TO T-FITTING | ||
| 8X0.7 MM | ||
| 942 | A 3444207645 | LINE |
| FROM HAND BRAKE VALVE,CONNECTION "2", TO CONNECTION FITTING I | ||
| 8X0.7 MM | ||
| H 983444202126 | LINE | |
| FROM T-FITTING TO CONNECTION FITTING I | ||
| 8X0.7 MM | ||
| 943 | A 3444207945 | LINE |
| FROM CONNECTOR I TO CONNECTOR II | ||
| 8X0.7 MM | ||
| 944 | H 983214200626 | LINE |
| FROM CONNECTOR II TO CONNECTOR III | ||
| 8X0.7 MM | ||
| 946 | H 983444201526 | LINE |
| FROM CONNECTION FITTING III TO CONNECTION FITTING IV | ||
| 8X0.7 MM | ||
| 948 | H 983444201226 | LINE |
| 8X0.7 MM | ||
| 948 | H 983444201226 | LINE |
| 8X0.7 MM | ||
| H 983444201326 | LINE | |
| FROM RELAY VALVE T-FITTING TO CONNECTION FITTING I | ||
| 950 | H 983444200536 | LINE |
| FROM AIR RESERVOIR II TO FITTING I | ||
| 8X0.7 MM | ||
| 952 | H 983444201426 | LINE |
| FROM CONNECTOR I TO CONNECTOR II | ||
| 8X0.7 MM | ||
| 954 | H 983214200626 | LINE |
| FROM CONNECTOR II TO CONNECTOR III | ||
| 8X0.7 MM | ||
| 956 | H 983444202026 | LINE |
| FROM CONNECTION FITTING III TO CONNECTION FITTING IV | ||
| 8X0.7 MM | ||
| 956 | A 3444207845 | LINE |
| FROM CONNECTION FITTING III TO CONNECTION FITTING IV | ||
| 8X0.7 MM | ||
| 957 | H 983444202426 | LINE |
| FROM CONNECTION FITTING IV TO HAND BRAKE VALVE | ||
| 8X0.7 MM | ||
| 957 | A 3444207445 | LINE |
| 8X0.7 MM | ||
| 957C | N 915017008100 | UNION NUT |
| 957F | N 003861008005 | GLAND |
| 957M | N 003902008001 | CONNECTION FITTING |
| 958 | A 3124761036 | BRACKET |
| Repalced by: A 3124761236 | ||
| 958 | A 3124761236 | BRACKET |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 958E | H 983444290240 | BRACKET |
| Repalced by: A 3444297340 | ||
| 958E | A 3444297340 | BRACKET |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 958Q | A 3379950332 | CLAMP |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 959 | N 007985005171 | SCREW |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 959F | N 000125005315 | WASHER |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 959L | N 000934005008 | NUT |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 959R | N 000127005001 | LOCK WASHER |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 960 | H 983444200636 | LINE |
| FROM ELBOW FITTING TO QUICK-RELEASE VALVE | ||
| 15X1.5 MM | ||
| 960D | N 915018015000 | UNION NUT |
| 960H | N 003861015004 | GLAND |
| 960N | N 915065015101 | THRUST RING |
| 960R | N 915045012100 | SEAL RING |
| 961 | A 0004293538 | ELBOW FITTING |
| 962 | H 983444201826 | LINE |
| 15X1.5 MM | ||
| 962 | H 983444201826 | LINE |
| FROM TWO-WAY VALVE TO RELAY VALVE,"Z" CONNECTION | ||
| 15X1.5 MM | ||
| 962 | H 983444201826 | LINE |
| FROM TWO-WAY VALVE TO CONNECTOR | ||
| 15X1.5 MM | ||
| 963 | N 915018015000 | UNION NUT |
| 963B | N 003861015004 | GLAND |
| 963E | N 915065015101 | THRUST RING |
| 963L | N 915045012100 | SEAL RING |
| 964 | H 980004290144 | VALVE |
| Repalced by: A 0014298744 | ||
| 964 | A 0014298744 | VALVE |
| TWO-WAY | ||
| A 0014302960 | REPAIR KIT | |
| 965 | A 0454290136 | CONNECTOR |
| Repalced by: A 3454298036 | ||
| 965 | A 3454298036 | CONNECTOR |
| AT TWO-WAY VALVE | ||
| 966 | A 0454290036 | CONNECTOR |
| Repalced by: A 3454297436 | ||
| 966 | A 3454297436 | CONNECTOR |
| AT TWO-WAY VALVE | ||
| 967 | A 0454290336 | CONNECTOR |
| Repalced by: A 3454297936 | ||
| 967 | A 3454297936 | CONNECTOR |
| AT TWO-WAY VALVE | ||
| 968 | H 983214200526 | LINE |
| Repalced by: A 3644207437 | ||
| 968 | A 3644207437 | LINE |
| FROM TWO-WAY VALVE TO LEFT BRAKE CYLINDER | ||
| 15X1.5 MM | ||
| 970 | A 0214203326 | LINE |
| Repalced by: A 3644207537 | ||
| 970 | A 3644207537 | LINE |
| FROM TWO-WAY VALVE TO RIGHT BRAKE CYLINDER | ||
| 15X1.5 MM | ||
| 970C | N 915018015000 | UNION NUT |
| 970E | N 003861015004 | GLAND |
| 970K | N 915065015101 | THRUST RING |
| 970N | N 915045012100 | SEAL RING |
| 971 | H 980004310075 | THREADED UNION |
| Repalced by: A 3454297238 | ||
| 971 | A 3454297238 | ELBOW FITTING |
| LEFT SPRING-LOAD ACCUMULATOR | ||
| A 0004311675 | THREADED UNION | |
| RIGHT SPRING-LOAD ACCUMULATOR | ||
| 971E | N 080705016003 | NUT |
| LINES TO BRAKE CYLINDERS | ||
| 971L | A 0029971640 | SEAL RING |
| LINES TO BRAKE CYLINDERS | ||
| 971R | A 0004310051 | SPACER RING |
| LINES TO BRAKE CYLINDERS | ||
| 972 | H 983454310114 | BRAKE CYLINDER |
| Repalced by: A 0014312314 | ||
| 972 | A 3454317014 | BRAKE CYLINDER |
| Repalced by: A 0014312314 | ||
| 972 | A 0014312314 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR | ||
| "WESTINGHOUSE" | ||
| 972 | A 0004314814 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR | ||
| "BOSCH" | ||
| 972 | A 3454317114 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR | ||
| "FRESINBAR" | ||
| A 0004310649 | SLIDE | |
| TO 000 431 48 14 | ||
| A 0004318186 | CUP | |
| TO 000 431 48 14 | ||
| A 0004310736 | FILTER BOTTOM | |
| TO 000 431 48 14 | ||
| H 983454310087 | PROTECTIVE CAP | |
| Repalced by: A 0004301808 | ||
| A 0004301808 | REPAIR KIT | |
| TO 98 345 431 01 14,345 431 71 14 | ||
| H 983454310593 | SPRING | |
| TO 98 345 431 01 14,345 431 71 14 | ||
| H 983454310193 | SPRING | |
| MAJOR | ||
| TO 345 431 70 14 | ||
| A 0084311093 | SPRING | |
| MINOR | ||
| TO 345 431 70 14 | ||
| H 983454310089 | SPRING RETAINER | |
| Repalced by: A 3454317189 | ||
| A 3454317189 | SPRING RETAINER | |
| TO 98 345 431 01 14,345 431 71 14 | ||
| N 000933006030 | SCREW | |
| TO 98 345 431 01 14,345 431 70 14 | ||
| N 000933006220 | SCREW | |
| TO 345 431 71 14 | ||
| N 000127006203 | LOCK WASHER | |
| TO 98 345 431 01 14 | ||
| N 000934006006 | NUT | |
| TO 98 345 431 01 14,345 431 70 14 | ||
| N 000934006006 | NUT | |
| TO 345 431 71 14 | ||
| H 983454310036 | FILTER BOTTOM | |
| TO 98 345 431 01 14,345 431 71 14 | ||
| H 983454310083 | PISTON | |
| TO 98 345 431 01 14,345 431 71 14 | ||
| N 000127014201 | LOCK WASHER | |
| TO 98 345 431 01 14,345 431 70 14 | ||
| N 000934014020 | NUT | |
| TO 98 345 431 01 14,345 431 70 14 | ||
| N 000934014020 | NUT | |
| TO 345 431 71 14 | ||
| H 983455860543 | REPAIR KIT | |
| Repalced by: A 0004301708 | ||
| A 0004301708 | REPAIR KIT | |
| TO 98 345 431 01 14,345 431 71 14 | ||
| H 983455860043 | REPAIR KIT | |
| TO 000 431 48 14 | ||
| H 983455860143 | REPAIR KIT | |
| TO 000 431 48 14 | ||
| A 0015864342 | REPAIR KIT | |
| TO 000 431 48 14 | ||
| 974 | A 0025861443 | REPAIR KIT |
| TO 001 431 23 14 | ||
| 975 | H 983214300211 | CONSOLE |
| Repalced by: A 3214300411 | ||
| 975 | A 3214300411 | CONSOLE |
| LEFT | ||
| H 983214300311 | CONSOLE | |
| Repalced by: A 3214300511 | ||
| A 3214300511 | CONSOLE | |
| RIGHT | ||
| 975N | A 0214310342 | PLATE |
| Repalced by: A 3214310184 | ||
| 975N | A 3214310184 | SHIM |
| 1.00 MM | ||
| 975N | A 0214310442 | PLATE |
| Repalced by: A 3214310284 | ||
| 975N | A 3214310284 | SHIM |
| 2.00 MM | ||
| 975W | N 000933010129 | SCREW |
| BRAKE CYLINDER TO CONSOLE | ||
| 975W | N 000933010174 | SCREW |
| BRAKE CYLINDER TO CONSOLE | ||
| 976 | N 000127010202 | LOCK WASHER |
| BRAKE CYLINDER TO CONSOLE | ||
| 976D | N 000934010000 | NUT |
| BRAKE CYLINDER TO CONSOLE | ||
| 976K | N 000933010174 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 976Q | N 000127010202 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 976U | N 000934010000 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 977 | H 983214200180 | BRAKE INTERMEDIATE SHAFT |
| Repalced by: A 3214204780 | ||
| 977 | A 3214204780 | BRAKE INTERMEDIATE SHAFT |
| 978 | H 983214200178 | BEARING BRACKET |
| Repalced by: A 3214201778 | ||
| 978 | A 3214201778 | BEARING BRACKET |
| 978K | H 983214260083 | SPHERICAL PIECE |
| Repalced by: A 3214260083 | ||
| 978K | A 3214260083 | SPHERICAL PIECE |
| 978Q | A 3214260082 | SHIM |
| 1.5 MM | ||
| 978Q | A 3214260182 | SHIM |
| 0.5 MM | ||
| 979 | N 000933010269 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 979F | N 000127010202 | LOCK WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| 979M | H 983444200374 | ROD |
| Repalced by: A 3444207074 | ||
| 979M | A 3444207074 | ROD |
| FROM BRAKE LEVER TO INTERMEDIATE SHAFT | ||
| 979T | N 000934012010 | NUT |
| Repalced by: N 000934012021 | ||
| 979T | N 000934012010 | NUT |
| 980 | H 983444200047 | YOKE |
| Repalced by: A 3214200147 | ||
| 980 | A 3214200147 | YOKE |
| 980D | A 3529910207 | PIN |
| 980L | N 000125013012 | WASHER |
| YOKE TO INTERMEDIATE LEVER | ||
| 980P | N 000094004050 | COTTER PIN |
| YOKE TO INTERMEDIATE LEVER | ||
| 981 | A 3529910107 | PIN |
| YOKE TO BRAKE LEVER | ||
| 981H | N 000125013012 | WASHER |
| YOKE TO BRAKE LEVER | ||
| N 000094004050 | COTTER PIN | |
| YOKE TO BRAKE LEVER | ||
| 981K | A 3444277231 | ROD |
| BRAKE INTERMEDIATE SHAFT | ||
| 981P | A 3029930610 | SPRING |
| BRAKE INTERMEDIATE SHAFT | ||
| 981T | A 3444277041 | BRACKET |
| BRAKE INTERMEDIATE SHAFT | ||
| 982 | A 0454230042 | LEVER |
| LEFT | ||
| A 0454230142 | LEVER | |
| RIGHT | ||
| 984 | H 983214230036 | BRAKE CAMSHAFT |
| Repalced by: A 3444237036 | ||
| 984 | A 3444237036 | BRAKE CAMSHAFT |
| H 983214230153 | SPACER TUBE | |
| 985N | A 3414230186 | CUP |
| 986 | H 983444230037 | ADJUSTING LEVER |
| LEFT | ||
| H 983444230137 | ADJUSTING LEVER | |
| RIGHT | ||
| 987 | A 3024230170 | STUD |
| 987F | N 000439018202 | NUT |
| 987L | A 3544230171 | SCREW |
| 987Q | N 000936012017 | NUT |
| Repalced by: N 000936012005 | ||
| 987Q | N 000936012005 | NUT |
| 988 | A 3414230353 | SPACER TUBE |
| AS REQUIRED | ||
| 14.00 MM | ||
| 988 | A 3414230453 | SPACER TUBE |
| AS REQUIRED | ||
| 14.50 MM | ||
| 988 | A 3414230553 | SPACER TUBE |
| AS REQUIRED | ||
| 15.00 MM | ||
| 988 | A 3414230653 | SPACER TUBE |
| AS REQUIRED | ||
| 15.50 MM | ||
| 988 | A 3414230753 | SPACER TUBE |
| AS REQUIRED | ||
| 16.00 MM | ||
| 990 | A 0049973646 | SEAL RING |
| 992 | A 3414260183 | SPHERICAL PIECE |
| 992 | A 3414260283 | SPHERICAL PIECE |
| 993 | N 071412010100 | GREASE NIPPLE |
| 994 | N 000471035002 | LOCK RING |
| 995 | A 3084299401 | LINE |
| 6X0,7 MM | ||
| 996 | A 3084299501 | LINE |
| 8X0,7 MM | ||
| 997 | A 0004295101 | LINE |
| 15X1,5 MM | ||
| 998 | A 0004294201 | LINE |
| 18X1,5 MM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
