Transporto priemonė: O 355; VIN numerio dalis: 344230

Grupė: 25 CLUTCH

#	Kodas	Pavadinimas

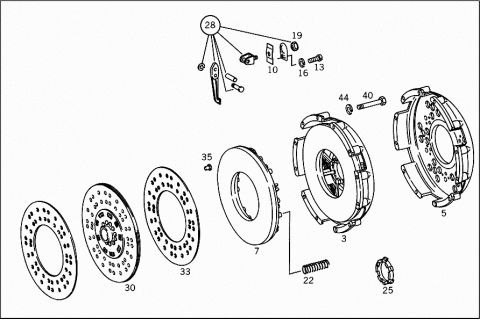

003	A 0012505304	CLUTCH PRESSURE PLATE
005	A 0082520232	HOUSING
007	A 0082520112	PRESSURE PLATE
	Repalced by: H 983442520012
007	H 983442520012	PRESSURE PLATE
010	A 0082520273	LOCK
013	N 007985005183	SCREW
016	N 000127005001	LOCK WASHER
019	A 0082520072	NUT
022	A 0082520420	PRESSURE SPRING
	A 0082520320	PRESSURE SPRING
025	A 0082520145	FLANGE
028	A 0315860025	REPAIR KIT
	Repalced by: A 3505867025
028	A 3505867025	REPAIR KIT
030	A 0012506703	CLUTCH DISC
	Repalced by: A 3442507203
030	A 3442507203	CLUTCH DISC
		IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.:
		004 250 89 03
033	A 0082520110	CLUTCH LINING
		TO 001 250 67 03
035	A 0082520175	RIVET
		TO 001 250 67 03
	A 0082520578	WASHER
	Repalced by: A 0002520375
	A 0002520375	RIVET
	Repalced by: A 3452527075
	A 3452527075	RIVET
		TO 001 250 67 03
	A 3455867125	REPAIR KIT
040	N 000931010409	SCREW
044	N 000127010202	LOCK WASHER

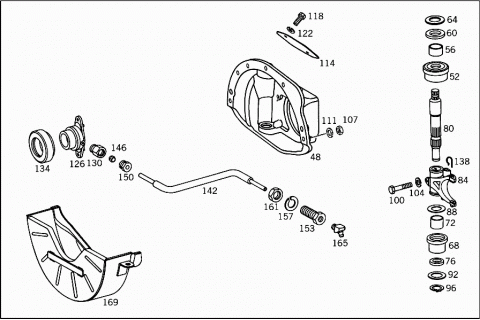

048	A 3442500205	HOUSING
052	A 3432500150	BUSHING
		TOP
056	A 3439920003	BUSHING
060	N 005419035101	FELT RING
064	A 3432930027	COVER PLATE
068	A 3432500050	BUSHING
		BOTTOM
072	A 3439920103	BUSHING
076	N 005419025101	FELT RING
080	A 3432930001	RELEASE SHAFT
084	A 3372540208	RELEASE LEVER
	Repalced by: A 3452937011
084	A 3452937011	RELEASE YOKE
	Repalced by: A 3452930111
084	A 3452930111	RELEASE YOKE
088	A 3172930177	WASHER
		AS REQUIRED
		0.8 MM
088	A 3172930277	WASHER
		AS REQUIRED
		0.9 MM
088	A 3172930377	WASHER
		AS REQUIRED
		1.0 MM
088	A 3172930477	WASHER
		AS REQUIRED
		1.1 MM
088	A 3172930577	WASHER
		AS REQUIRED
		1.2 MM
088	A 3172930677	WASHER
		AS REQUIRED
		1.3 MM
092	A 3432930052	SPACER WASHER
096	N 000471024000	LOCK RING
100	N 000931012251	SCREW
104	N 000127012201	LOCK WASHER
107	N 000934016003	NUT
111	N 912004016101	LOCK WASHER
114	A 3602510004	END COVER
		TOP
118	N 000933006223	SCREW
122	N 000127006203	LOCK WASHER
126	A 3442540110	RELEASE COLLAR
130	N 071428004102	SCREW-IN FITTING
134	A 3042500315	RELEASE BEARING
138	A 3402540013	SPRING LOCK
142	A 3205730036	HOSE
146	N 003862004001	DOUBLE TAPER RING
150	N 003871004100	UNION SCREW
153	A 0009973683	SLEEVE
157	N 000137014203	SPRING WASHER
161	N 000936014010	NUT
165	N 071412008300	GREASE NIPPLE
165	A 3459977288	GREASE NIPPLE
169	A 3445200043	PROTECTIVE PLATE
		REAR
	N 000127010202	LOCK WASHER
	N 000934010000	NUT
