Transporto priemonė: O 355; VIN numerio dalis: 344230
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0005418101 | BATTERY |
| 12V/135 AH | ||
| 010 | A 3445400530 | POSITIVE CABLE |
| FROM BATTERY I TO STARTING SWITCH | ||
| 015 | A 3445400431 | NEG. CABLE |
| FROM BATTERY I TO GROUND | ||
| 020 | A 3445400078 | STARTER SWITCH |
| 025 | N 000085006151 | SCREW |
| STARTING SWITCH | ||
| 027 | N 000125006420 | WASHER |
| STARTING SWITCH | ||
| 029 | N 000127006203 | LOCK WASHER |
| STARTING SWITCH | ||
| 031 | N 000934006006 | NUT |
| 036 | A 3445400605 | CABLE HARNESS |
| FROM STARTING SWITCH TO STARTING CHANGE-OVER SWITCH | ||
| A 3129950235 | CLAMP | |
| A 1369950135 | CLAMP | |
| Repalced by: A 3449957120 | ||
| A 3449957120 | CLAMP | |
| N 000084005106 | SCREW | |
| N 000127005001 | LOCK WASHER | |
| N 007985006502 | SCREW | |
| N 000127006203 | LOCK WASHER | |
| A 3445400531 | NEG. CABLE | |
| FROM BATTERY II TO STARTING SWITCH | ||
| A 3445400330 | POSITIVE CABLE | |
| FROM BATTERY II TO STARTING MOTOR | ||
| 051 | N 900271030005 | HOSE |
| 056 | A 0005454208 | SWITCH |
| Repalced by: A 3455457108 | ||
| 056 | A 3455457108 | SWITCH |
| A 0005451934 | FUSE | |
| Repalced by: A 3455457634 | ||
| A 3455457634 | FUSE | |
| 060 | N 000933008048 | SCREW |
| STARTING CHANGE-OVER SWITCH | ||
| 065 | N 912004008100 | LOCK WASHER |
| STARTING CHANGE-OVER SWITCH | ||
| A 3445400139 | ELECTRIC CABLE | |
| FROM STARTING CHANGE-OVER SWITCH TO GROUND | ||
| 075 | A 3445400231 | NEG. CABLE |
| A 3445400430 | POSITIVE CABLE | |
| N 072571002009 | CLAMP | |
| N 072586001200 | CABLE CONNECTOR | |
| A 3445467141 | CABLE CONNECTOR | |
| A 3129950235 | CLAMP | |
| N 007985006502 | SCREW | |
| N 000127006203 | LOCK WASHER | |
| A 1369950420 | CLAMP | |
| N 007985006502 | SCREW | |
| N 000127006203 | LOCK WASHER | |
| 083 | A 0009972881 | GROMMET |
| 087 | N 072571001022 | CLAMP |
| 091 | N 007971004233 | SHEET METAL SCREW |
| A 1369950135 | CLAMP | |
| Repalced by: A 3449957120 | ||
| A 3449957120 | CLAMP | |
| N 007971004233 | SHEET METAL SCREW | |
| N 007985006502 | SCREW | |
| N 000127006203 | LOCK WASHER | |
| A 0009972881 | GROMMET | |
| A 1819970081 | GROMMET | |
| A 3129950235 | CLAMP | |
| A 3129952020 | CLAMP | |
| 100 | N 072571001011 | CLAMP |
| Repalced by: N 072571001028 | ||
| 100 | N 072571001028 | CLAMP |
| N 072571001023 | CLAMP | |
| 104 | N 007971003211 | SHEET METAL SCREW |
| Repalced by: N 007971003234 | ||
| 104 | N 007981003263 | SHEET METAL SCREW |
| N 007985006502 | SCREW | |
| N 000127006203 | LOCK WASHER | |
| 108 | A 1369950135 | CLAMP |
| Repalced by: A 3449957120 | ||
| 108 | A 3449957120 | CLAMP |
| 110 | N 007985006502 | SCREW |
| 112 | N 000127006203 | LOCK WASHER |
| 114 | N 072571002009 | CLAMP |
| N 072571001024 | CLAMP | |
| N 072571001023 | CLAMP | |
| N 007971004233 | SHEET METAL SCREW | |
| N 072571001018 | CLAMP | |
| N 007971003211 | SHEET METAL SCREW | |
| Repalced by: N 007971003234 | ||
| N 007981003263 | SHEET METAL SCREW | |
| 120 | A 3445401027 | ELECTRIC CABLE |
| FROM ALTERNATOR TO REGULATOR | ||
| N 000933010174 | SCREW | |
| GROUND CABLE TO SUBSTRUCTURE | ||
| N 000125010517 | WASHER | |
| GROUND CABLE TO SUBSTRUCTURE | ||
| N 000127010202 | LOCK WASHER | |
| GROUND CABLE TO SUBSTRUCTURE | ||
| N 000934010000 | NUT | |
| GROUND CABLE TO SUBSTRUCTURE | ||
| A 3129952120 | CLAMP | |
| Repalced by: N 916016018201 | ||
| N 916016018201 | CLAMP | |
| FROM ALTERNATOR TO REGULATOR | ||
| A 3129950235 | CLAMP | |
| FROM ALTERNATOR TO REGULATOR | ||
| A 1369950135 | CLAMP | |
| Repalced by: A 3449957120 | ||
| A 3449957120 | CLAMP | |
| FROM ALTERNATOR TO REGULATOR | ||
| N 007971004233 | SHEET METAL SCREW | |
| FROM ALTERNATOR TO REGULATOR | ||
| A 0009954801 | CLAMP | |
| Repalced by: N 916016018201 | ||
| N 916016018201 | CLAMP | |
| N 007985005171 | SCREW | |
| N 000127005001 | LOCK WASHER | |
| 128 | A 3215400032 | ELECTRIC CABLE |
| HORN AND STOP LIGHT SWITCH | ||
| N 072571001011 | CLAMP | |
| Repalced by: N 072571001028 | ||
| N 072571001028 | CLAMP | |
| HORN AND STOP LIGHT SWITCH | ||
| N 072571001024 | CLAMP | |
| HORN AND STOP LIGHT SWITCH | ||
| N 007971003211 | SHEET METAL SCREW | |
| Repalced by: N 007971003234 | ||
| N 007981003263 | SHEET METAL SCREW | |
| HORN AND STOP LIGHT SWITCH | ||
| 132 | A 3445400331 | NEG. CABLE |
| N 000933010174 | SCREW | |
| NEG.CABLE TO ENGINE SUPPORT | ||
| N 000125010517 | WASHER | |
| NEG.CABLE TO ENGINE SUPPORT | ||
| N 000127010202 | LOCK WASHER | |
| NEG.CABLE TO ENGINE SUPPORT | ||
| N 000933010269 | SCREW | |
| NEG.CABLE TO SUBSTRUCTURE | ||
| N 000125010517 | WASHER | |
| NEG.CABLE TO SUBSTRUCTURE | ||
| N 000127010202 | LOCK WASHER | |
| NEG.CABLE TO SUBSTRUCTURE | ||
| N 000934010000 | NUT | |
| NEG.CABLE TO SUBSTRUCTURE | ||
| N 072571001018 | CLAMP | |
| N 007971004233 | SHEET METAL SCREW | |
| N 000084004106 | SCREW | |
| RELAY TO FUSE BOX BRACKET | ||
| N 912004004102 | LOCK WASHER | |
| RELAY TO FUSE BOX BRACKET | ||
| A 3215401639 | ELECTRIC CABLE | |
| RELAY | ||
| 143 | A 3445420019 | RELAY |
| A 3445427019 | RELAY | |
| A 3645427019 | RELAY | |

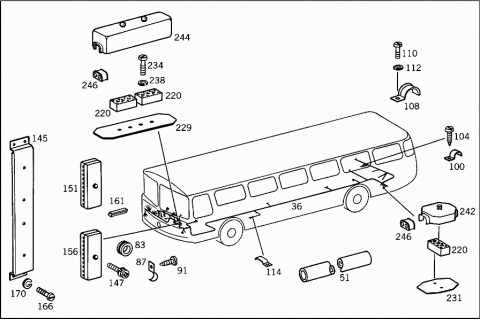

| 145 | A 3125451251 | BRACKET |
| 147 | N 914028004100 | COMBINATION BOLT |
| 151 | A 3215450101 | FUSE BOX |
| 10-POLE | ||
| 156 | A 3215450201 | FUSE BOX |
| Repalced by: A 3455458201 | ||
| 156 | A 3455458201 | FUSE BOX |
| 10-POLE | ||
| 161 | A 3085450333 | CARTRIDGE |
| Repalced by: A 3085450334 | ||
| 161 | A 3085450334 | FUSE |
| 15 A | ||
| A 3085450233 | CARTRIDGE | |
| Repalced by: A 3085450234 | ||
| A 3085450234 | FUSE | |
| 8 A | ||
| N 007985005171 | SCREW | |
| FUSE BOX TO BRACKET | ||
| N 000127005001 | LOCK WASHER | |
| FUSE BOX TO BRACKET | ||
| N 000934005008 | NUT | |
| FUSE BOX TO BRACKET | ||
| 166 | N 007985006515 | SCREW |
| BRACKET TO SUPPORT | ||
| 170 | N 000127006203 | LOCK WASHER |
| BRACKET TO SUPPORT | ||
| H 980005450109 | SWITCH | |
| Repalced by: A 3455457209 | ||
| A 3215450009 | SWITCH | |
| Repalced by: A 3455457209 | ||
| 174 | A 3455457209 | SWITCH |
| STOP LIGHT | ||
| 178 | A 0015421019 | RELAY |
| STARTING MOTOR | ||
| 182 | N 007985006515 | SCREW |
| 187 | N 000127006203 | LOCK WASHER |
| 192 | A 0011548406 | REGULATOR AND CUT-OUT |
| Repalced by: A 3455477002 | ||
| 192 | A 3455477002 | REGULATOR AND CUT-OUT |
| Repalced by: A 0021545006 | ||
| 192 | A 0021545006 | REGULATOR AND CUT-OUT |
| Repalced by: A 0021546206 | ||
| 192 | A 0021546206 | REGULATOR AND CUT-OUT |
| (ELECTRONIC FIELD REGULATOR) | ||
| 194 | N 007985006515 | SCREW |
| 196 | A 0025425120 | HORN |
| Repalced by: A 3445427120 | ||
| 196 | A 0025421920 | HORN |
| Repalced by: A 3445427120 | ||
| 196 | A 0025421620 | HORN |
| Repalced by: A 3445427120 | ||
| 196 | A 3445427120 | HORN |
| 196 | A 3445427520 | HORN |
| 196 | A 3445427720 | HORN |
| N 000933010174 | SCREW | |
| N 000127010202 | LOCK WASHER | |
| N 000934010000 | NUT | |
| A 0005461841 | CABLE CONNECTOR | |
| 220 | A 0005460941 | CABLE CONNECTOR |
| Repalced by: A 0005461241 | ||
| 220 | A 0005461241 | CABLE CONNECTOR |
| N 007985004192 | SCREW | |
| N 000084004422 | SCREW | |
| N 912004004102 | LOCK WASHER | |
| 229 | A 3205460178 | INSULATION |
| 231 | A 3125461178 | INSULATION |
| 234 | N 000084004160 | SCREW |
| 238 | N 912004004102 | LOCK WASHER |
| 242 | A 3125401480 | COVERING |
| 244 | A 3205400180 | COVERING |
| 246 | A 3205460036 | INSULATION |
| N 000084004422 | SCREW | |
| CABLE CONNECTOR TO BRACKET | ||
| N 912004004102 | LOCK WASHER | |
| CABLE CONNECTOR TO BRACKET | ||

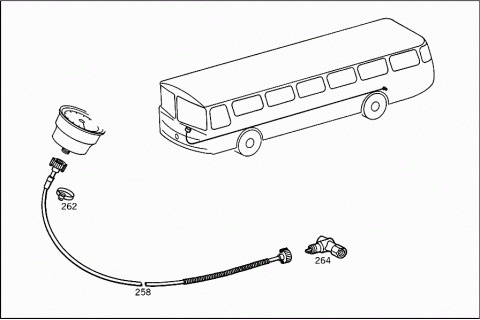

| 254 | H 980005420106 | SPEEDOMETER |
| Repalced by: A 3215420106 | ||
| 254 | A 3215420106 | SPEEDOMETER |
| 254 | A 3445427106 | SPEEDOMETER |
| 258 | A 0005421707 | FLEXIBLE SHAFT |
| Repalced by: A 0035427107 | ||
| 258 | A 0035427107 | FLEXIBLE SHAFT |
| 262 | N 900264005000 | LOOM TIE |
| Repalced by: N 900264005502 | ||
| 262 | N 900264005502 | LOOM TIE |
| N 072571001022 | CLAMP | |
| N 007971004233 | SHEET METAL SCREW | |
| 264 | H 983455426830 | ANGLE DRIVE |
| Repalced by: A 3455423630 | ||
| 264 | A 0015427830 | ANGLE DRIVE |
| Repalced by: A 3455423630 | ||
| 264 | A 3455423630 | ANGLE DRIVE |
| H 980005420916 | TACHOMETER | |
| Repalced by: A 3455420116 | ||
| 266 | A 3455420116 | TACHOMETER |
| 266 | H 980005420017 | SENDER UNIT |
| Repalced by: A 3455420017 | ||
| 266 | A 3455420017 | SENDER UNIT |
| 266 | A 0005427216 | TACHOMETER |
| 266 | A 0015422417 | SENDER UNIT |
| 271 | H 980005400347 | INSTRUMENT CLUSTER |
| Repalced by: A 3455407547 | ||
| 271 | A 3455407547 | INSTRUMENT CLUSTER |
| 271 | A 3455407147 | INSTRUMENT CLUSTER |
| 275 | H 983455420005 | TEMPERATURE GAUGE |
| TO 345 540 75 47 | ||
| A 3455427005 | TEMPERATURE GAUGE | |
| TO 345 540 71 47 | ||
| 279 | A 3445427108 | AIR PRESSURE GAUGE |
| TO 345 540 75 47 | ||
| A 3455427008 | AIR PRESSURE GAUGE | |
| TO 345 540 71 47 | ||
| 283 | H 983455420032 | OIL PRESSURE GAUGE |
| BRAKE PRESSURE | ||
| 285 | H 983455420002 | OIL PRESSURE GAUGE |
| TO 345 540 71 47 | ||
| 287 | H 983455420003 | FUEL GAUGE DASH UNIT |
| TO 345 540 75 47 | ||
| A 3455427003 | FUEL GAUGE DASH UNIT | |
| TO 345 540 71 47 | ||
| 291 | A 0015422317 | SENDER UNIT |
| Repalced by: A 3455427717 | ||
| 291 | A 3455427717 | SENDER UNIT |
| TEMPERATURE | ||
| 291 | A 0025425917 | SENDER UNIT |
| TEMPERATURE | ||
| 291 | A 3455427417 | SENDER UNIT |
| TEMPERATURE | ||
| 291 | A 3455427517 | SENDER UNIT |
| TEMPERATURE | ||
| 295 | N 007603014104 | SEAL RING |
| 299 | A 3455440093 | LAMP SOCKET |
| TO 345 540 75 47 | ||
| 304 | A 3455440193 | LAMP SOCKET |
| 308 | N 072601012800 | BULB |
| 312 | A 0015426917 | SENDER UNIT |
| Repalced by: A 0015427017 | ||
| 312 | A 0015427017 | SENDER UNIT |
| OIL PRESSURE | ||
| 312 | A 3455427117 | SENDER UNIT |
| OIL PRESSURE | ||
| 316 | A 0005455414 | SWITCH |
| HAND BRAKE | ||
| 316 | A 3445457214 | SWITCH |
| A 0025456324 | SWITCH,AUTOMATIC | |
| TEMPERATURE | ||
| A 3455457324 | SWITCH,AUTOMATIC | |
| Repalced by: A 3455457824 | ||
| A 3455457824 | SWITCH,AUTOMATIC | |
| A 3455458224 | SWITCH,AUTOMATIC | |
| STARTING MOTOR | ||
| 320 | A 3215450114 | SWITCH |
| STARTING MOTOR | ||
| 320 | A 3455457314 | SWITCH |
| STARTING MOTOR | ||
| 324 | A 0089901451 | NUT |
| 328 | A 0005421023 | BUZZER |
| Repalced by: A 3455427023 | ||
| 328 | A 3455427023 | BUZZER |
| 332 | A 0005450525 | PLUG SOCKET |
| Repalced by: A 3445457125 | ||
| 332 | A 3445457125 | PLUG SOCKET |
| HAND LAMP | ||
| N 006797019101 | TOOTHED WASHER | |
| 336 | A 0005451213 | SWITCH BOX |
| 340 | A 0445450176 | WASHER |
| 344 | A 0445450072 | NUT |
| 348 | A 0005451235 | KEY |
| 348 | A 3455457035 | KEY |
| A 0005459111 | SWITCH | |
| 352 | A 0005459211 | SWITCH |
| PANE WIPER | ||
| 356 | A 0005459311 | SWITCH |
| PANE WIPER | ||
| 360 | A 3099870144 | EXPANSION PLUG |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 364 | A 0005451883 | CAP |
| Repalced by: A 3445451283 | ||
| 364 | A 3445451283 | CAP |
| INTERIOR LIGHTING | ||
| A 0005451783 | CAP | |
| Repalced by: A 3445451183 | ||
| A 3445451183 | CAP | |
| VENTILATION | ||
| A 0005451483 | CAP | |
| Repalced by: A 3445450883 | ||
| A 3445450883 | CAP | |
| WINDSHIELD WIPER O F F O N | ||
| A 0005451583 | CAP | |
| Repalced by: A 3445450983 | ||
| A 3445450983 | CAP | |
| WINDSHIELD WIPER,"SLOW-FAST" | ||
| A 3445450183 | CAP | |
| SIGN BOX | ||
| A 3445450283 | CAP | |
| READING LAMP | ||
| A 0005451283 | CAP | |
| Repalced by: A 3445450783 | ||
| A 3445450783 | CAP | |
| FOGLAMP | ||
| 372 | A 0015450615 | TELL-TALE LAMP |
| Repalced by: A 3455457015 | ||
| 372 | A 3455457015 | TELL-TALE LAMP |
| LESS LENS | ||
| 376 | A 0005451290 | LENS |
| BLINKER LIGHT | ||
| A 0005450190 | LENS | |
| CHARGE CONTROL | ||
| A 0005451190 | LENS | |
| A 3455450090 | LENS | |
| PARKING BRAKE | ||
| A 0005452490 | LENS | |
| VENTILATION | ||
| 380 | A 0035458124 | SWITCH,AUTOMATIC |
| Repalced by: A 3455457124 | ||
| 380 | A 3455457124 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 380 | A 3455457424 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 384 | A 0005452637 | BUTTON |
| TO 003 545 81 24 | ||
| N 000091004141 | SCREW | |
| TO 003 545 81 24 | ||
| 389 | N 000965005122 | SCREW |
| TO 003 545 81 24 | ||
| A 0449950132 | CLAMP | |
| Repalced by: A 3219950421 | ||
| 393 | A 3219950421 | CLAMP |
| N 007985005183 | SCREW | |
| N 000127005001 | LOCK WASHER | |
| 400 | A 0005422125 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| A 0005450372 | NUT | |
| 405 | A 0005421189 | KNOB |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
