Transporto priemonė: O 355; VIN numerio dalis: 344230

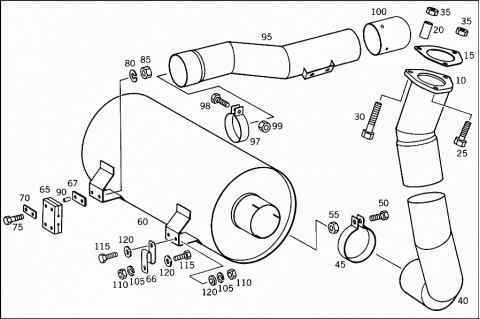

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3444900619 | EXHAUST PIPE |
| FRONT | ||
| 015 | A 3444920080 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 020 | A 3044920053 | SPACER TUBE |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 025 | N 000933012135 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 030 | N 000931012140 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 035 | A 3459900251 | NUT |
| Repalced by: N 913004012010 | ||
| 035 | N 913004012010 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 040 | A 3444900519 | EXHAUST PIPE |
| FRONT,FOR MUFFLER | ||
| 045 | A 3274925240 | CLAMP |
| 050 | N 000933010129 | SCREW |
| 055 | N 000934010000 | NUT |
| 060 | A 3444900101 | EXHAUST MUFFLER |
| 060 | A 3454907401 | EXHAUST MUFFLER |
| 065 | A 3444920082 | DAMPING PAD |
| Repalced by: A 3054920082 | ||
| 065 | A 3054920082 | DAMPING PAD |
| 066 | A 3444927026 | CLAMPING PIECE |
| 067 | A 3214920083 | INSULATION |
| Repalced by: A 3174920083 | ||
| 067 | A 3174920083 | INSULATION |
| DAMPING PAD TO EXHAUST MUFFLER | ||
| N 000933006083 | SCREW | |
| DAMPING PAD TO EXHAUST MUFFLER AND TO SUBSTRUCTURE | ||
| N 000960008002 | SCREW | |
| DAMPING PAD TO MUFFLER | ||
| 070 | A 1834920018 | BASE PLATE |
| Repalced by: A 3174920018 | ||
| 070 | A 3174920018 | BASE PLATE |
| DAMPING PAD TO EXHAUST MUFFLER AND TO SUBSTRUCTURE | ||
| N 000933006083 | SCREW | |
| DAMPING PAD TO EXHAUST MUFFLER AND TO SUBSTRUCTURE | ||
| N 000933006083 | SCREW | |
| 075 | N 000960008002 | SCREW |
| DAMPING PAD TO EXHAUST MUFFLER AND TO SUBSTRUCTURE | ||
| N 000127006203 | LOCK WASHER | |
| DAMPING PAD TO EXHAUST MUFFLER AND TO SUBSTRUCTURE | ||
| N 000127006203 | LOCK WASHER | |
| 080 | N 912004008100 | LOCK WASHER |
| DAMPING PAD TO EXHAUST MUFFLER AND TO SUBSTRUCTURE | ||
| N 009021006103 | WASHER | |
| DAMPING PAD TO EXHAUST MUFFLER AND TO SUBSTRUCTURE | ||
| N 009021006103 | WASHER | |
| N 009021008100 | WASHER | |
| DAMPING PAD TO EXHAUST MUFFLER AND TO SUBSTRUCTURE | ||
| N 000934006006 | NUT | |
| DAMPING PAD TO EXHAUST MUFFLER AND TO SUBSTRUCTURE | ||
| N 000934006006 | NUT | |
| 085 | N 000934008007 | NUT |
| DAMPING PAD TO EXHAUST MUFFLER AND TO SUBSTRUCTURE | ||
| 090 | A 3179910840 | SPACER TUBE |
| DAMPING PAD TO EXHAUST MUFFLER AND TO SUBSTRUCTURE | ||
| 095 | A 3444907121 | EXHAUST PIPE |
| REAR | ||
| 097 | A 3034930143 | CLAMP |
| 098 | N 000933008288 | SCREW |
| 099 | N 000934008000 | NUT |
| 100 | H 983214920114 | END PIECE |
| Repalced by: A 3444920214 | ||
| 100 | A 3444920214 | END PIECE |
| A 3219902501 | SCREW | |
| A 3054920082 | DAMPING PAD | |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| A 3444927026 | CLAMPING PIECE | |
| A 3174920083 | INSULATION | |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| A 3174920018 | BASE PLATE | |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| A 3179910840 | SPACER TUBE | |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| N 000960008002 | SCREW | |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| N 000960008002 | SCREW | |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 105 | N 912004008100 | LOCK WASHER |
| 105 | N 912004008100 | LOCK WASHER |
| 110 | N 000934008007 | NUT |
| 110 | N 000934008007 | NUT |
| 115 | N 000961008021 | SCREW |
| 120 | N 009021008100 | WASHER |
