Transporto priemonė: O 355; VIN numerio dalis: 344230

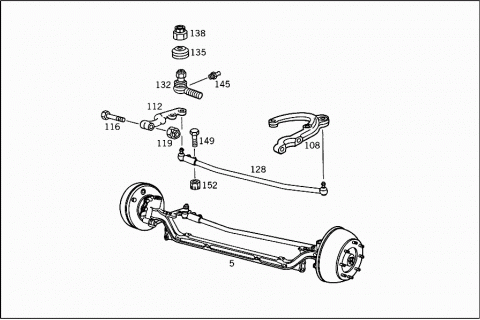

Grupė: 33 FRONT AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | H 983213300600 | FRONT AXLE |
| 005 | A 3443307600 | FRONT AXLE |
| 008 | A 0443310401 | FRONT AXLE BEAM |
| Repalced by: A 3443310101 | ||
| 008 | A 3443310101 | FRONT AXLE BEAM |
| 010 | A 3443300020 | STEERING KNUCKLE |
| Repalced by: A 3443300120 | ||
| 010 | A 3443300120 | STEERING KNUCKLE |
| 013 | A 3403320049 | BUSHING |
| Repalced by: A 3403320048 | ||
| 013 | A 3403320048 | BUSHING |
| 015 | A 0089977646 | SEAL RING |
| 018 | A 0455860033 | REPAIR KIT |
| Repalced by: A 3455867033 | ||
| 018 | A 3455867033 | REPAIR KIT |
| Repalced by: A 3763300019 | ||
| 018 | A 3763300019 | KING PIN |
| PARTS KIT,STANDARD | ||
| 36.60 MM | ||
| A 0455860133 | REPAIR KIT | |
| Repalced by: A 3455867133 | ||
| A 3455867133 | REPAIR KIT | |
| Repalced by: A 3763300119 | ||
| A 3763300119 | KING PIN | |
| PARTS KIT,STANDARD SIZE I | ||
| 36.90 MM | ||
| A 0455860233 | REPAIR KIT | |
| Repalced by: A 3455867233 | ||
| A 3455867233 | REPAIR KIT | |
| Repalced by: A 3763300219 | ||
| A 3763300219 | KING PIN | |
| PARTS KIT,REPAIR SIZE I | ||
| 37.20 MM | ||
| A 0455860333 | REPAIR KIT | |
| KINGPIN | ||
| 37.50 MM | ||
| 020 | A 3603320306 | KINGPIN |
| 36.6 MM | ||
| A 3603320406 | KINGPIN | |
| 36.9 MM | ||
| A 3603320506 | KINGPIN | |
| 37.2 MM | ||
| A 3603320606 | KINGPIN | |
| 37.5 MM | ||
| 023 | A 0009811818 | ROLLER BEARING |
| Repalced by: A 0009815418 | ||
| A 0009815418 | ROLLER BEARING | |
| 36.6 MM | ||
| A 0009818618 | ROLLER BEARING | |
| 36.9 MM | ||
| A 0019815805 | TAPERED ROLLER BEARING | |
| 37.5 MM | ||
| 026 | A 3403320152 | SPACER WASHER |
| 1.0 MM | ||
| A 3403320252 | SPACER WASHER | |
| 1.1 MM | ||
| A 3403320352 | SPACER WASHER | |
| 1.2 MM | ||
| A 3403320452 | SPACER WASHER | |
| 1.3 MM | ||
| A 3403320552 | SPACER WASHER | |
| 1.4 MM | ||
| A 3403320652 | SPACER WASHER | |
| 1.5 MM | ||
| A 3403320752 | SPACER WASHER | |
| 1.6 MM | ||
| A 3403320852 | SPACER WASHER | |
| 1.7 MM | ||
| A 3403320952 | SPACER WASHER | |
| 1.8 MM | ||
| A 3403321052 | SPACER WASHER | |
| 1.9 MM | ||
| A 3403321152 | SPACER WASHER | |
| 2.0 MM | ||
| A 3403321252 | SPACER WASHER | |
| 2.1 MM | ||
| 030 | A 3603320029 | SEALING CAP |
| OUTSIDE | ||
| 033 | A 3409970145 | SEAL RING |
| 036 | A 3603320129 | SEALING CAP |
| INSIDE | ||
| 039 | N 000472045000 | LOCK RING |
| 042 | A 3279900137 | BOLT |
| KINGPIN | ||
| 045 | N 912004008100 | LOCK WASHER |
| 048 | N 000934008000 | NUT |
| A 3533340282 | OIL COLLECTOR | |
| FRONT WHEEL BEARING | ||
| 051 | A 3603340115 | RING |
| Repalced by: A 3453340015 | ||
| 054 | A 3603340215 | RING |
| Repalced by: A 3453340015 | ||
| 054 | A 3453340015 | RING |
| FRONT WHEEL HUB,INSIDE,LEFT | ||
| 058 | N 071412010200 | GREASE NIPPLE |
| STEERING KNUCKLE,BOTTOM | ||
| N 071412010100 | GREASE NIPPLE | |
| STEERING KNUCKLE,TOP | ||
| 062 | A 3409900601 | SCREW |
| STEERING KNUCKLE STOP | ||
| TO 344 330 00 20 | ||
| 062 | A 3873320071 | SCREW |
| STEERING KNUCKLE STOP | ||
| TO 344 330 01 20 | ||
| 066 | A 3403370072 | NUT |
| STEERING KNUCKLE STOP | ||
| TO 344 330 00 20 | ||
| 066 | N 000934016003 | NUT |
| STEERING KNUCKLE STOP | ||
| TO 344 330 01 20 | ||
| H 983443340101 | WHEEL HUB | |
| Repalced by: A 3443347301 | ||
| N 915042011000 | PLUG | |
| STEERING KNUCKLE STOP | ||
| TO 344 330 00 20 | ||
| N 915042015000 | PLUG | |
| STEERING KNUCKLE STOP | ||
| TO 344 330 01 20 | ||
| 069 | A 3443347301 | WHEEL HUB |
| 074 | A 0009808802 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 074 | A 0039816005 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 074 | A 0039816205 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 074 | H 983459810005 | TAPERED ROLLER BEARING |
| Repalced by: A 3449817005 | ||
| 074 | A 3449817005 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 078 | A 3523340051 | SPACER RING |
| 082 | A 0069979846 | SEAL RING |
| 086 | A 0049813405 | TAPERED ROLLER BEARING |
| 086 | A 0049813805 | TAPERED ROLLER BEARING |
| 089 | A 3174010571 | WHEEL MOUNTING BOLT |
| Repalced by: A 3174010471 | ||
| 089 | A 3174010471 | WHEEL MOUNTING BOLT |
| 091 | A 3764000074 | PIN |
| (PARTS KIT),WHEEL MOUNTING; WHEEL OPENING: | ||
| 30 MM | ||
| 091 | A 3764000574 | PIN |
| (PARTS KIT),WHEEL MOUNTING; WHEEL OPENING: | ||
| 27 MM | ||
| 093 | A 3273321662 | THRUST WASHER |
| 096 | N 000937032000 | NUT |
| N 000094006017 | COTTER PIN | |
| 100 | H 983444210001 | BRAKE DRUM |
| Repalced by: A 3444217201 | ||
| 100 | A 3444217201 | BRAKE DRUM |
| STANDARD | ||
| A 3444217601 | BRAKE DRUM | |
| REPAIR SIZE I | ||
| 104 | A 0453340025 | HUB CAP |
| Repalced by: A 3443347025 | ||
| 104 | A 3443347025 | HUB CAP |
| A 3443380007 | STEERING ARM | |
| Repalced by: A 3443380207 | ||
| 108 | A 3443380207 | STEERING ARM |
| LEFT | ||
| 112 | A 0213380106 | STEERING ARM |
| RIGHT | ||
| A 3443380006 | STEERING ARM | |
| Repalced by: A 3443380206 | ||
| A 3443380206 | STEERING ARM | |
| RIGHT | ||
| 116 | A 3023320371 | SCREW |
| H 983443320071 | SCREW | |
| Repalced by: A 3213320271 | ||
| A 3213320271 | SCREW | |
| 119 | N 000935018001 | NUT |
| N 000094004065 | COTTER PIN | |
| H 983443301003 | TIE ROD | |
| Repalced by: A 3643307103 | ||
| A 3643307103 | TIE ROD | |
| Repalced by: A 3643307303 | ||
| A 3643307303 | TIE ROD | |
| "THOMSON" | ||
| 128 | H 983443300403 | TIE ROD |
| Repalced by: A 3643307003 | ||
| 128 | A 3643307003 | TIE ROD |
| Repalced by: A 3643307403 | ||
| 128 | A 3643307403 | TIE ROD |
| "NAKATA" | ||
| 132 | H 983213380029 | BALL SOCKET HEAD |
| Repalced by: G 983443300635 | ||
| 132 | H 983443300635 | JOINT |
| TO 98 344 330 10 03,98 344 330 04 03 | ||
| A 3503307035 | JOINT | |
| TO 364 330 70 03 | ||
| A 3643307135 | JOINT | |
| TO 364 330 71 03 | ||
| 135 | H 983213380056 | DUST CAP |
| TO 98 344 330 10 03,98 344 330 04 03 | ||
| A 3643307085 | BOOT | |
| TO 364 330 71 03 | ||
| A 3503387058 | SEAL HOLDER | |
| TO 364 330 70 03 | ||
| A 3503387056 | DUST CAP | |
| TO 364 330 70 03 | ||
| A 3643387082 | RUBBER RING | |
| Repalced by: A 0003381463 | ||
| 138 | N 000937020000 | NUT |
| N 000094004065 | COTTER PIN | |
| 145 | N 071412010100 | GREASE NIPPLE |
| H 983213380045 | CLAMP | |
| TO 98 344 330 10 03,98 344 330 04 03 | ||
| A 3503387045 | CLAMP | |
| TO 364 330 70 03 | ||
| 149 | N 000960010032 | SCREW |
| 152 | N 000935010001 | NUT |
| N 000094002008 | COTTER PIN | |
| 160 | A 3213310112 | STRUT |
| 164 | A 3213310050 | BUSHING |
| STRUT TO FRONT AXLE BEAM | ||
| 168 | A 3219901001 | SCREW |
| STRUT TO FRONT AXLE BEAM | ||
| 172 | A 3213310273 | LOCK |
| STRUT TO FRONT AXLE BEAM | ||
| 176 | N 000933010294 | SCREW |
| LOCK TO STRUT | ||
| 180 | N 000127010202 | LOCK WASHER |
| LOCK TO STRUT | ||
| 184 | A 3443300043 | BEARING BRACKET |
| STRUT | ||
| A 3643337064 | RUBBER RING | |
| 188 | N 001472010006 | GROOVED PIN |
| 192 | N 000937028000 | NUT |
| STRUT TO BEARING BRACKET | ||
| N 000094005016 | COTTER PIN | |
| STRUT TO BEARING BRACKET | ||
| 200 | A 3443310093 | SHIM |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 204 | N 000960016036 | SCREW |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 208 | N 000935016002 | NUT |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| N 000094004056 | COTTER PIN | |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 216 | A 3213310054 | PIPE |
| STRUT | ||
| 220 | N 000934020002 | NUT |
| TUBE TO STRUT | ||
| 224 | N 001587020000 | CAP NUT |
| TUBE TO STRUT | ||
| 228 | A 3213300407 | TRANSVERSE CONTROL ARM |
| Repalced by: A 3443307007 | ||
| 228 | A 3443307007 | TRANSVERSE CONTROL ARM |
| 232 | N 000937028000 | NUT |
| CONTROL ARM TO FRONT AXLE | ||
| N 000094005016 | COTTER PIN | |
| CONTROL ARM TO FRONT AXLE | ||
| 240 | A 3443300104 | AXLE CASING |
| 244 | A 3213330030 | PIN |
| CONTROL ARM TO AXLE CASING | ||
| 248 | N 000125027002 | WASHER |
| CONTROL ARM TO AXLE CASING | ||
| 252 | N 000937026000 | NUT |
| CONTROL ARM TO AXLE CASING | ||
| N 000094005016 | COTTER PIN | |
| CONTROL ARM TO AXLE CASING | ||
