Transporto priemonė: O 355; VIN numerio dalis: 344230

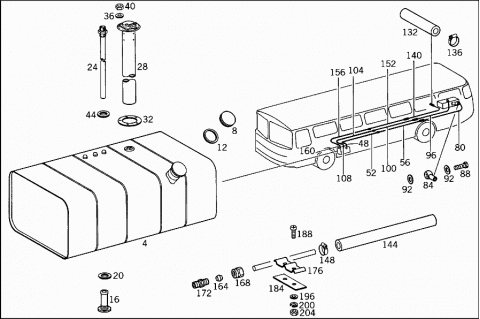

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 3444700401 | FUEL TANK |
| 008 | A 3444700205 | FILLER CAP |
| 012 | A 3444710679 | SEAL RING |
| 016 | A 3444700006 | FUEL STRAINER |
| Repalced by: A 3504700006 | ||
| 016 | A 3604700006 | FUEL STRAINER |
| Repalced by: A 3504700006 | ||
| 016 | A 3504700006 | FUEL STRAINER |
| 020 | A 0029977245 | SEAL RING |
| 024 | H 983444700026 | RISING PIPE |
| Repalced by: A 3444700126 | ||
| A 3444700126 | RISING PIPE | |
| 028 | A 0015426117 | SENDER UNIT |
| Repalced by: A 3455427617 | ||
| 028 | A 3455427617 | SENDER UNIT |
| Repalced by: A 3455427817 | ||
| 028 | A 3455427817 | SENDER UNIT |
| Repalced by: A 3505427017 | ||
| 028 | A 3505427017 | SENDER UNIT |
| TANK | ||
| 032 | A 3524710080 | GASKET |
| 036 | A 0669970640 | SEAL RING |
| 040 | N 000934005008 | NUT |
| A 3214710220 | FITTING | |
| 044 | N 007603016301 | SEAL RING |
| 048 | H 983444700864 | LINE |
| Repalced by: A 3444703964 | ||
| 048 | A 3444703964 | LINE |
| FROM FUEL TANK TO CONNECTOR I | ||
| 380 MM | ||
| 052 | H 983444700964 | LINE |
| Repalced by: A 3444704064 | ||
| 052 | A 3444704064 | LINE |
| FROM CONNECTOR I TO CONNECTOR II | ||
| 3950 MM | ||
| 056 | H 983444701064 | LINE |
| Repalced by: A 3444705264 | ||
| 056 | A 3444705264 | LINE |
| FROM CONNECTOR II TO RUBBER HOSE | ||
| 2500 MM | ||
| 080 | H 983444701164 | LINE |
| Repalced by: A 3444704864 | ||
| 080 | A 3444704864 | LINE |
| FROM RUBBER HOSE TO FUEL PUMP | ||
| 1050 MM | ||
| 084 | N 915010008202 | BANJO UNION |
| Repalced by: A 3454767024 | ||
| 084 | A 3454767024 | CONNECTOR |
| 088 | N 915011008101 | HOLLOW SCREW |
| FUEL LINE TO FEED PUMP | ||
| 092 | N 007603014102 | SEAL RING |
| FUEL LINE TO FEED PUMP | ||
| 096 | H 983444701364 | LINE |
| Repalced by: A 3444705164 | ||
| 096 | A 3444705164 | LINE |
| FROM FUEL FILTER TO RUBBER HOSE | ||
| 1600 MM | ||
| 100 | H 983444701064 | LINE |
| Repalced by: A 3444705264 | ||
| 100 | A 3444705264 | LINE |
| FROM RUBBER HOSE TO CONNECTOR I | ||
| 2500 MM | ||
| 104 | H 983444701264 | LINE |
| Repalced by: A 3444704164 | ||
| 104 | A 3444704164 | LINE |
| FROM CONNECTOR I TO CONNECTOR II | ||
| 4050 MM | ||
| 108 | H 983444700864 | LINE |
| Repalced by: A 3444703964 | ||
| 108 | A 3444703964 | LINE |
| FROM CONNECTOR II TO FUEL TANK | ||
| 380 MM | ||
| 132 | A 0444760126 | HOSE |
| Repalced by: A 3440780081 | ||
| 132 | A 3440780081 | HOSE |
| Repalced by: A 3769978182 | ||
| 132 | A 3769978182 | HOSE |
| 136 | N 916002010100 | CLAMP |
| 140 | H 983444701564 | LINE |
| Repalced by: A 3444705564 | ||
| 140 | A 3444705564 | LINE |
| FROM RUBBER HOSE TO RUBBER HOSE | ||
| 850 MM | ||
| 144 | A 3444760126 | HOSE |
| 148 | A 0019979790 | LOOM TIE |
| Repalced by: N 916017011000 | ||
| 148 | N 916017011000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 148 | N 000000000665 | CLAMP |
| 148 | H 980009970190 | LOOM TIE |
| Repalced by: A 3449979290 | ||
| 148 | A 3449979290 | LOOM TIE |
| 152 | H 983444701064 | LINE |
| Repalced by: A 3444705264 | ||
| 152 | A 3444705264 | LINE |
| FROM RUBBER HOSE TO CONNECTOR I | ||
| 2500 MM | ||
| 156 | H 983444701464 | LINE |
| Repalced by: A 3444704264 | ||
| 156 | A 3444704264 | LINE |
| FROM CONNECTOR I TO CONNECTOR II | ||
| 4150 MM | ||
| 160 | H 983444700864 | LINE |
| Repalced by: A 3444703964 | ||
| 160 | A 3444703964 | LINE |
| FROM CONNECTOR II TO FUEL TANK | ||
| 380 MM | ||
| 164 | N 915003008201 | SEAL CONE |
| Repalced by: A 3449907067 | ||
| 164 | A 3449907067 | SEAL CONE |
| 168 | N 915017010200 | UNION NUT |
| 172 | N 915008008402 | FITTING |
| Repalced by: A 3444777010 | ||
| 172 | A 3444777010 | FITTING |
| 176 | A 3129950232 | CLAMP |
| FUEL LINES TO SUBSTRUCTURE,REAR | ||
| N 007981004226 | SHEET METAL SCREW | |
| FUEL LINES TO SUBSTRUCTURE,REAR | ||
| 184 | A 3124761236 | BRACKET |
| FUEL LINES TO SUBSTRUCTURE,REAR | ||
| 188 | N 000933006220 | SCREW |
| FUEL LINES TO SUBSTRUCTURE,REAR | ||
| N 007985006502 | SCREW | |
| FUEL LINES TO SUBSTRUCTURE,REAR | ||
| 196 | N 000125006420 | WASHER |
| FUEL LINES TO SUBSTRUCTURE,REAR | ||
| 200 | N 000127006203 | LOCK WASHER |
| FUEL LINES TO SUBSTRUCTURE,REAR | ||
| 204 | N 000934006006 | NUT |
| FUEL LINES TO SUBSTRUCTURE,REAR | ||
| A 3129950232 | CLAMP | |
| FUEL LINES ABOVE LUGGAGE COMPARTMENT TO SUBSTRUCTURE | ||
| N 000933006220 | SCREW | |
| FUEL LINES ABOVE LUGGAGE COMPARTMENT TO SUBSTRUCTURE | ||
| N 000127006203 | LOCK WASHER | |
| FUEL LINES ABOVE LUGGAGE COMPARTMENT TO SUBSTRUCTURE | ||
| N 000934006006 | NUT | |
| FUEL LINES ABOVE LUGGAGE COMPARTMENT TO SUBSTRUCTURE | ||
