Transporto priemonė: O 355; VIN numerio dalis: 344230

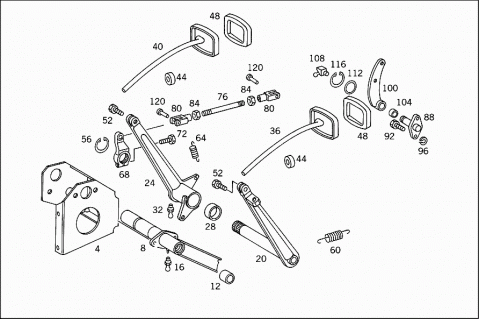

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 3442900219 | BEARING BRACKET |
| N 000933010164 | SCREW | |
| PEDAL BEARING BRACKET TO FRAME | ||
| N 000933010174 | SCREW | |
| PEDAL BEARING BRACKET TO FRAME | ||
| N 000127010202 | LOCK WASHER | |
| PEDAL BEARING BRACKET TO FRAME | ||
| N 000934010000 | NUT | |
| PEDAL BEARING BRACKET TO FRAME | ||
| 008 | H 983212900020 | BEARING |
| Repalced by: A 3212900620 | ||
| 008 | A 3212900620 | BEARING |
| 012 | A 3122940150 | BUSHING |
| 016 | N 071412010200 | GREASE NIPPLE |
| N 000933008282 | SCREW | |
| BEARING TUBE TO BRACKET | ||
| N 912004008100 | LOCK WASHER | |
| BEARING TUBE TO BRACKET | ||
| N 000934008000 | NUT | |
| BEARING TUBE TO BRACKET | ||
| 020 | A 3442900416 | PEDAL |
| CLUTCH | ||
| 024 | A 3212900718 | PEDAL |
| BRAKE | ||
| 028 | A 3122911550 | BUSHING |
| 032 | N 071412010100 | GREASE NIPPLE |
| 036 | H 983212900024 | PEDAL PLATE |
| Repalced by: A 3442907024 | ||
| 036 | A 3442907024 | PEDAL PLATE |
| CLUTCH | ||
| 040 | A 3442900124 | PEDAL PLATE |
| BRAKE | ||
| 044 | A 3122911097 | SEAL WASHER |
| 048 | A 3202925082 | PAD |
| 052 | N 000933010174 | SCREW |
| 056 | N 000471040002 | LOCK RING |
| N 000988040001 | FITTED WASHER | |
| 060 | A 3529931110 | SPRING |
| Repalced by: A 3649937310 | ||
| 060 | A 3649937310 | SPRING |
| CLUTCH PEDAL | ||
| 064 | A 3129931510 | SPRING |
| Repalced by: A 3649937010 | ||
| 064 | A 3649937010 | SPRING |
| BRAKE PEDAL | ||
| 068 | A 3442930310 | LEVER |
| 072 | N 000933008279 | SCREW |
| N 000934008000 | NUT | |
| 076 | N 900331010324 | PULL ROD |
| 540 MM | ||
| 080 | N 071752010002 | YOKE |
| Repalced by: A 0009961501 | ||
| 080 | A 0009961501 | YOKE |
| 084 | N 000934010000 | NUT |
| 088 | A 3212900031 | PIVOT PIN |
| A 3212900074 | PIN | |
| 092 | N 000933008282 | SCREW |
| PIVOT PIN TO SUBSTRUCTURE | ||
| 096 | N 912004008100 | LOCK WASHER |
| PIVOT PIN TO SUBSTRUCTURE | ||
| N 000934008000 | NUT | |
| PIVOT PIN TO SUBSTRUCTURE | ||
| H 983212900027 | LEVER | |
| Repalced by: A 3212900634 | ||
| 100 | A 3212900634 | LEVER |
| 104 | A 3213010050 | BUSHING |
| 108 | N 071412010300 | GREASE NIPPLE |
| 112 | A 3219900040 | WASHER |
| 116 | N 000471020000 | LOCK RING |
| 120 | N 001434010006 | PIN |
| Repalced by: N 001434010009 | ||
| 120 | N 001434010009 | PIN |
| N 000433010500 | WASHER | |
| N 900055010001 | SPRING WASHER | |
| N 000094003027 | COTTER PIN | |
| 136 | N 900331010325 | PULL ROD |
| 3480 MM | ||
| 140 | N 900331010153 | PULL ROD |
| 3880 MM | ||
| 144 | H 983212930033 | NUT |
| Repalced by: A 3212930033 | ||
| 144 | A 3212930033 | NUT |
| 148 | N 000934010000 | NUT |
| 152 | N 000934010035 | NUT |
| L.H. THREAD | ||
| 156 | N 071752010002 | YOKE |
| Repalced by: A 0009961501 | ||
| 156 | A 0009961501 | YOKE |
| 160 | N 001434010006 | PIN |
| Repalced by: N 001434010009 | ||
| 160 | N 001434010009 | PIN |
| N 000433010501 | WASHER | |
| N 900055010001 | SPRING WASHER | |
| N 000094003027 | COTTER PIN | |
| H 983442900074 | PIN | |
| Repalced by: A 3442907031 | ||
| A 3442907031 | BEARING | |
| N 000933008282 | SCREW | |
| N 912004008100 | LOCK WASHER | |
| N 000934008010 | NUT | |
| H 983212900327 | LEVER | |
| Repalced by: A 3212900734 | ||
| A 3212900734 | LEVER | |
| A 3213010050 | BUSHING | |
| A 3219900040 | WASHER | |
| N 000471020000 | LOCK RING | |
| N 071412010300 | GREASE NIPPLE | |
| N 900331010626 | PULL ROD | |
| 420 MM | ||
| N 000934010000 | NUT | |
| N 071752010002 | YOKE | |
| Repalced by: A 0009961501 | ||
| A 0009961501 | YOKE | |
| N 001434010006 | PIN | |
| Repalced by: N 001434010009 | ||
| N 001434010009 | PIN | |
| N 000433010500 | WASHER | |
| N 900055010001 | SPRING WASHER | |
| N 000094003027 | COTTER PIN | |
| 196 | A 3442900227 | LEVER |
| 200 | A 3442930050 | BUSHING |
| 202 | A 3339910015 | BALL PIVOT |
| N 000934014000 | NUT | |
| N 071412008300 | GREASE NIPPLE | |
| A 3459977288 | GREASE NIPPLE | |
| 204 | A 3442930074 | PIN |
| A 3449940230 | LOCK | |
| N 000933005095 | SCREW | |
| N 000127005001 | LOCK WASHER | |
| 208 | A 3442930029 | ROD |
| N 000936014010 | NUT | |
| 212 | A 3042930387 | BALL SOCKET |
| A 3449940035 | SNAP RING | |
| A 3449940060 | LOCK | |
| 216 | A 3442930036 | BEARING BRACKET |
| 220 | A 3339910015 | BALL PIVOT |
| A 3442930077 | WASHER | |
| N 000934014000 | NUT | |
| N 000933010269 | SCREW | |
| INTERMEDIATE SHAFT BRACKET TO ENGINE CROSS MEMBER | ||
| N 000125010517 | WASHER | |
| INTERMEDIATE SHAFT BRACKET TO ENGINE CROSS MEMBER | ||
| N 000127010202 | LOCK WASHER | |
| INTERMEDIATE SHAFT BRACKET TO ENGINE CROSS MEMBER | ||
| N 000934010000 | NUT | |
| INTERMEDIATE SHAFT BRACKET TO ENGINE CROSS MEMBER | ||
| 224 | A 3442900035 | SHAFT |
| A 3339910015 | BALL PIVOT | |
| N 000934014000 | NUT | |
| 228 | N 071412008100 | GREASE NIPPLE |
| 232 | A 3449930001 | SPRING |
| 236 | A 3442930150 | BUSHING |
| 240 | A 3442950083 | BOOT |
| 244 | A 3339910015 | BALL PIVOT |
| A 3442930077 | WASHER | |
| N 000934014000 | NUT | |
| 248 | A 3442930229 | ROD |
| 252 | A 3442930129 | ROD |
| 256 | N 900333014000 | TURNBUCKLE |
| 260 | A 3449900751 | NUT |
| 264 | A 3449900651 | NUT |
| N 000936014007 | NUT | |
| 268 | A 3042930387 | BALL SOCKET |
| A 3449940035 | SNAP RING | |
| A 3449940060 | LOCK | |
| 272 | A 3449900123 | SCREW |
| N 000934008000 | NUT | |
| A 3129931510 | SPRING | |
| Repalced by: A 3649937010 | ||
| 276 | A 3649937010 | SPRING |
| H 983442900037 | BEARING | |
| Repalced by: A 3442900337 | ||
| 279 | A 3442900337 | BEARING |
| H 983212900337 | BEARING | |
| Repalced by: A 3212903237 | ||
| 281 | A 3212903237 | BEARING |
| 283 | A 3022680050 | BUSHING |
| 285 | A 3173010085 | RUBBER BUFFER |
| 287 | A 3442910085 | BUSHING |
| N 000933008282 | SCREW | |
| N 000125008417 | WASHER | |
| N 912004008100 | LOCK WASHER | |
| N 000934008000 | NUT | |
| 297 | A 3442900627 | LEVER |
| CLUTCH ACTUATION | ||
| 300 | A 3339910015 | BALL PIVOT |
| N 000936014015 | NUT | |
| BALL PIVOT TO LEVER | ||
| N 000931010409 | SCREW | |
| LEVER II | ||
| N 000127010202 | LOCK WASHER | |
| LEVER II | ||
| N 000934010000 | NUT | |
| LEVER II | ||
