Transporto priemonė: O 355; VIN numerio dalis: 344230

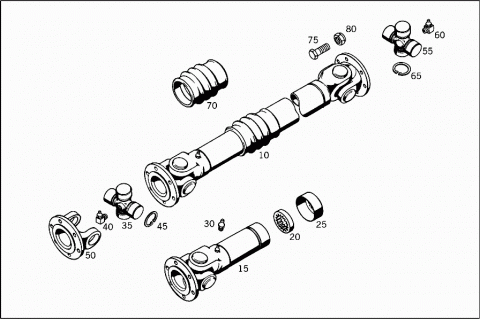

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3444101302 | PROPELLER SHAFT |
| 713 MM | ||
| 015 | A 3044100208 | UNIVERSAL JOINT YOKE |
| 020 | A 3044130080 | SEAL RING |
| 025 | A 3044130261 | PROTECTIVE CAP |
| 030 | N 071412010100 | GREASE NIPPLE |
| A 3314110011 | DRIVE FLANGE | |
| 035 | A 3314100031 | UNIVERSAL JOINT CROSS |
| A 3314110031 | UNIVERSAL JOINT CROSS | |
| 040 | N 071412008300 | GREASE NIPPLE |
| 040 | A 3459977288 | GREASE NIPPLE |
| 045 | A 3354111173 | LOCK |
| 1.700 MM | ||
| A 3354111273 | LOCK | |
| 1.725 MM | ||
| A 3354111373 | LOCK | |
| 1.750 MM | ||
| A 3354111473 | LOCK | |
| 1.775 MM | ||
| A 3354111573 | LOCK | |
| 1.800 MM | ||
| A 3454110073 | LOCK | |
| 1.825 MM | ||
| 050 | A 3314110011 | DRIVE FLANGE |
| A 3314110031 | UNIVERSAL JOINT CROSS | |
| 055 | A 3314100031 | UNIVERSAL JOINT CROSS |
| 060 | N 071412008300 | GREASE NIPPLE |
| 060 | A 3459977288 | GREASE NIPPLE |
| 065 | A 3354111173 | LOCK |
| 1.700 MM | ||
| A 3354111273 | LOCK | |
| 1.725 MM | ||
| A 3354111373 | LOCK | |
| 1.750 MM | ||
| A 3354111473 | LOCK | |
| 1.775 MM | ||
| A 3354111573 | LOCK | |
| 1.800 MM | ||
| A 3454110073 | LOCK | |
| 1.825 MM | ||
| 070 | A 3444100080 | BOOT |
| A 3214110053 | WIRE RING | |
| A 3449979790 | CLAMP | |
| A 3459979790 | CLAMP | |
| A 3449979890 | CLAMP | |
| AS REQUIRED | ||
| A 3459979890 | CLAMP | |
| AS REQUIRED | ||
| 075 | A 0029908301 | SCREW |
| Repalced by: A 3609901901 | ||
| 075 | A 3609901901 | SCREW |
| 080 | N 913004012006 | NUT |
