Transporto priemonė: O 355; VIN numerio dalis: 344230

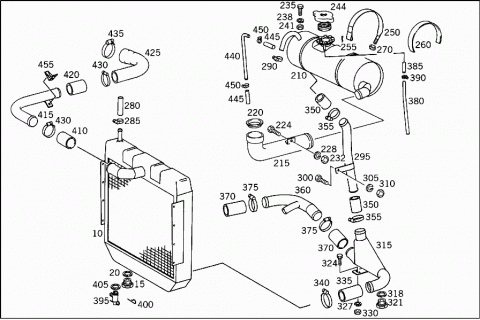

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 0445000003 | RADIATOR |
| Repalced by: A 3445017201 | ||
| 010 | A 3445017201 | RADIATOR |
| 010 | A 3445017301 | RADIATOR |
| 015 | A 1369970830 | SCREW PLUG |
| WATER DRAIN | ||
| 020 | N 007603018401 | SEAL RING |
| WATER DRAIN | ||
| 030 | A 0445001327 | SUPPORT |
| Repalced by: A 3445000827 | ||
| 030 | A 3445000827 | SUPPORT |
| 030 | A 3445007427 | SUPPORT |
| 040 | N 000933008317 | SCREW |
| RADIATOR TO SUPPORT | ||
| 045 | N 912004008100 | LOCK WASHER |
| RADIATOR TO SUPPORT | ||
| 050 | A 3449870014 | RUBBER STRIP |
| TOP | ||
| 055 | A 3449870114 | RUBBER STRIP |
| BOTTOM | ||
| 060 | A 3612660084 | RUBBER MOUNTING |
| 060 | A 3452667084 | SHIM |
| Repalced by: A 3612660184 | ||
| 060 | A 3612660184 | RUBBER MOUNTING |
| 065 | N 000933010270 | SCREW |
| RADIATOR MOUNTING | ||
| 065 | N 000931010264 | SCREW |
| RADIATOR MOUNTING | ||
| 070 | N 007349010001 | WASHER |
| RADIATOR MOUNTING | ||
| 080 | N 000127010202 | LOCK WASHER |
| RADIATOR MOUNTING | ||
| 085 | N 000934010000 | NUT |
| RADIATOR MOUNTING | ||
| 090 | A 3212050405 | BEARING BODY |
| FAN | ||
| 095 | A 3262050002 | FAN SHAFT |
| 100 | N 003760032300 | RADIAL SEAL RING |
| 105 | N 000628003205 | ANG. CONTACT BALL BEARING |
| 110 | A 3262060153 | SPACER TUBE |
| 115 | A 3262050952 | SPACER WASHER |
| 120 | N 000472052000 | LOCK RING |
| 125 | A 3262060053 | SPACER TUBE |
| 130 | N 070952024101 | LOCK PLATE |
| 135 | N 070852024000 | NUT |
| 140 | N 007603010110 | SEAL RING |
| 145 | N 007604010100 | SCREW PLUG |
| 150 | N 071412010200 | GREASE NIPPLE |
| Repalced by: N 007604010100 | ||
| 155 | A 3262050410 | PULLEY |
| Repalced by: A 3552050210 | ||
| 155 | A 3552050210 | PULLEY |
| 165 | N 006888004002 | WOODRUFF KEY |
| 170 | N 000127014201 | LOCK WASHER |
| 175 | N 000936014010 | NUT |
| 180 | N 000933008275 | SCREW |
| BEARING BODY TO SUPPORT | ||
| 185 | N 000125008417 | WASHER |
| BEARING BODY TO SUPPORT | ||
| 190 | N 912004008100 | LOCK WASHER |
| BEARING BODY TO SUPPORT | ||
| 195 | A 0442000224 | FAN |
| Repalced by: A 3442000124 | ||
| 195 | A 3442000124 | FAN |
| 200 | A 3129940330 | LOCK |
| 205 | N 000933008282 | SCREW |
| 210 | A 3445000349 | TANK |
| Repalced by: A 3455007249 | ||
| 215 | A 0445000423 | FILLER NECK |
| A 0445000306 | FILLER CAP | |
| 220 | A 0445010160 | SEAL RING |
| Repalced by: A 3445010060 | ||
| 220 | A 3445010060 | SEAL RING |
| 224 | N 000933008282 | SCREW |
| 228 | N 912004008100 | LOCK WASHER |
| 232 | N 000934008000 | NUT |
| A 3455007249 | TANK | |
| 235 | N 000933005095 | SCREW |
| 238 | N 000127005001 | LOCK WASHER |
| 241 | N 000934005000 | NUT |
| 244 | A 3455017015 | RADIATOR CAP |
| TO 345 500 72 49 | ||
| 250 | A 0445000077 | FLAP |
| Repalced by: A 3445000446 | ||
| 250 | A 3445000446 | CLAMP |
| 255 | N 000094006317 | COTTER PIN |
| 260 | H 983449870014 | RUBBER STRIP |
| Repalced by: A 3449870214 | ||
| 260 | A 3449870214 | RUBBER STRIP |
| 270 | N 000934008000 | NUT |
| 280 | N 900271022010 | HOSE |
| FROM RADIATOR TO TANK | ||
| 285 | A 3509970390 | LOOM TIE |
| AS REQUIRED | ||
| 290 | A 3449978490 | CLAMP |
| AS REQUIRED | ||
| 295 | A 0445000689 | LINE |
| Repalced by: A 3445000789 | ||
| 295 | A 3645007172 | LINE |
| Repalced by: A 3445000789 | ||
| 295 | A 3445000789 | LINE |
| FROM SEPARATOR TO TANK | ||
| 300 | N 000933008282 | SCREW |
| WATER LINE TO SUPPORT | ||
| 305 | N 912004008100 | LOCK WASHER |
| WATER LINE TO SUPPORT | ||
| 310 | N 000934008000 | NUT |
| WATER LINE TO SUPPORT | ||
| 315 | A 3445000069 | SEPARATOR |
| 318 | N 007603018101 | SEAL RING |
| DRAIN | ||
| 321 | N 007604018101 | SCREW PLUG |
| DRAIN | ||
| 324 | N 000933008282 | SCREW |
| SEPARATOR TO SUBSTRUCTURE | ||
| 327 | N 912004008100 | LOCK WASHER |
| SEPARATOR TO SUBSTRUCTURE | ||
| 330 | N 000934008000 | NUT |
| SEPARATOR TO SUBSTRUCTURE | ||
| 335 | N 900271050020 | HOSE |
| FROM SEPARATOR TO RADIATOR | ||
| 340 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 340 | N 000000000672 | CLAMP |
| AS REQUIRED | ||
| 340 | A 3449978790 | CLAMP |
| AS REQUIRED | ||
| 350 | N 900271038039 | HOSE |
| WATER LINE TO SEPARATOR AND TO TANK | ||
| 38 X 50 X 430 | ||
| 355 | A 0019972590 | LOOM TIE |
| 360 | H 983445000689 | LINE |
| Repalced by: A 3445000589 | ||
| 360 | A 3445000589 | LINE |
| FROM SEPARATOR TO OIL RADIATOR | ||
| 370 | N 900271050020 | HOSE |
| 375 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 375 | N 000000000672 | CLAMP |
| AS REQUIRED | ||
| 375 | A 3449978790 | CLAMP |
| AS REQUIRED | ||
| 380 | A 0445010085 | THREADED UNION |
| Repalced by: A 3445010125 | ||
| 380 | A 3445010125 | BREATHER PIPE |
| 385 | A 0009974682 | HOSE |
| Repalced by: A 3449970482 | ||
| 385 | A 3449970482 | HOSE |
| DE-AERATION PIPE TO TANK | ||
| 390 | A 3449977490 | CLAMP |
| Repalced by: N 916017016000 | ||
| 390 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 390 | N 000000000666 | CLAMP |
| 390 | A 3449978390 | LOOM TIE |
| 395 | A 0215000168 | VALVE |
| Repalced by: A 3445007025 | ||
| 395 | A 3445007025 | DRAIN COCK |
| 400 | A 0009930225 | SPRING |
| 405 | N 007603014102 | SEAL RING |
| 410 | N 900271045016 | HOSE |
| 415 | H 983445000589 | LINE |
| Repalced by: A 3445000189 | ||
| 415 | A 3445000189 | LINE |
| FROM THERMOSTAT TO RADIATOR | ||
| 420 | N 900271045016 | HOSE |
| 425 | H 983445010082 | HOSE |
| Repalced by: A 3445010182 | ||
| 425 | A 3445010182 | HOSE |
| 430 | A 3449978690 | CLAMP |
| Repalced by: A 0019972590 | ||
| 430 | A 0019972590 | LOOM TIE |
| 435 | A 3449977890 | CLAMP |
| 435 | A 3449978790 | CLAMP |
| 440 | H 983445010824 | COOLING WATER PIPE |
| Repalced by: A 3445010025 | ||
| 440 | A 3445010025 | BREATHER PIPE |
| 445 | A 0059975882 | HOSE |
| 450 | A 3449977490 | CLAMP |
| Repalced by: N 916017016000 | ||
| 450 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 450 | N 000000000666 | CLAMP |
| 450 | A 3449978390 | LOOM TIE |
| 455 | H 983445060340 | BRACKET |
| Repalced by: A 3445010220 | ||
| 455 | A 3445010220 | BRACKET |

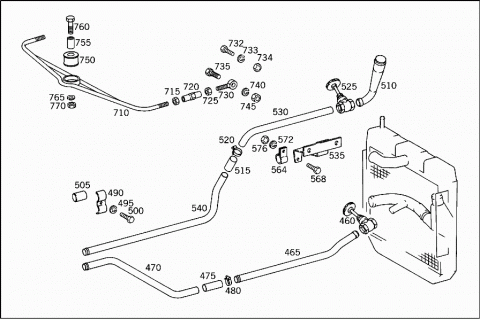

| 460 | A 3445060064 | VALVE |
| HEATING WATER; FEED AND RETURN | ||
| 465 | H 983445001189 | LINE |
| Repalced by: A 3445000078 | ||
| 465 | A 3445000078 | PIPE ELBOW |
| FROM VALVE TO HEATING WATER LINE | ||
| 470 | H 983445060560 | PIPE |
| Repalced by: A 3445060960 | ||
| 470 | A 3445060960 | PIPE |
| RETURN | ||
| 475 | A 3179971782 | HOSE |
| HEATING WATER LINE TO PIPE | ||
| 480 | A 0019972590 | LOOM TIE |
| 480 | A 3449978590 | LOOM TIE |
| 490 | A 0449950135 | CLAMP |
| Repalced by: A 3449950232 | ||
| 490 | A 3449950232 | CLAMP |
| HEATING WATER LINE TO SIDE MEMBER | ||
| 495 | N 912004008100 | LOCK WASHER |
| HEATING WATER LINE TO SIDE MEMBER | ||
| 500 | N 000931008072 | SCREW |
| HEATING WATER LINE TO SIDE MEMBER | ||
| 505 | N 900271028006 | HOSE |
| HEATING WATER LINE TO SIDE MEMBER | ||
| 510 | H 983445000189 | LINE |
| Repalced by: A 3445000389 | ||
| 510 | A 3445000389 | LINE |
| FROM WATER PUMP TO VALVE | ||
| 515 | N 900271038039 | HOSE |
| HEATING WATER CONNECTION | ||
| 38 X 50 X 430 | ||
| 520 | A 3449978690 | CLAMP |
| Repalced by: A 0019972590 | ||
| 520 | A 0019972590 | LOOM TIE |
| 525 | A 3445060064 | VALVE |
| HEATING WATER; FEED AND RETURN | ||
| 530 | H 983445000489 | LINE |
| Repalced by: A 3445000489 | ||
| 530 | A 3445000489 | LINE |
| FROM VALVE TO RUBBER HOSE | ||
| 535 | H 983445000031 | BRACKET |
| Repalced by: A 3445000031 | ||
| 535 | A 3445000031 | BRACKET |
| HEATING WATER LINE | ||
| 540 | A 3445067160 | PIPE |
| 545 | A 0445002840 | VALVE |
| Repalced by: A 3445001227 | ||
| 545 | A 3445001227 | SUPPORT |
| 550 | A 0445040374 | PIN |
| Repalced by: A 3445040174 | ||
| 550 | A 3445040174 | PIN |
| 555 | A 3455040084 | SHIM |
| 560 | N 000934012004 | NUT |
| 564 | A 3219950935 | CLAMP |
| HEATING WATER LINE TO BRACKET | ||
| 568 | N 000933006220 | SCREW |
| HEATING WATER LINE TO BRACKET | ||
| 572 | N 000127006203 | LOCK WASHER |
| HEATING WATER LINE TO BRACKET | ||
| 576 | N 000934006006 | NUT |
| HEATING WATER LINE TO BRACKET | ||

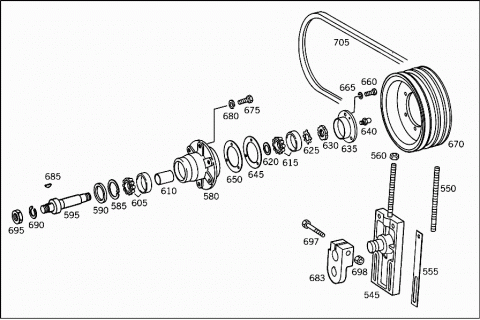

| A 3262000526 | HUB | |
| Repalced by: A 3262060013 | ||
| 580 | A 3262060013 | HUB |
| 585 | N 000472052000 | LOCK RING |
| 590 | N 003760040300 | RADIAL SEAL RING |
| 595 | A 3262050303 | FAN SPINDLE |
| N 000934012004 | NUT | |
| 605 | N 000720030205 | TAPERED ROLLER BEARING |
| 610 | A 3262050253 | SPACER TUBE |
| 615 | N 000720030204 | TAPERED ROLLER BEARING |
| 620 | A 8200750052 | SPACER WASHER |
| 625 | N 070952020101 | LOCK PLATE |
| 625 | A 3229940112 | LOCK |
| 630 | A 3219900160 | NUT |
| 635 | A 3262050213 | EXPANSION PLUG |
| 640 | N 071412010100 | GREASE NIPPLE |
| 645 | A 3262050752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.05 MM | ||
| 645 | A 3262050552 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 645 | A 3262050452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 645 | A 3262050652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 650 | A 3262050380 | GASKET |
| 660 | N 000933006220 | SCREW |
| COVER TO HUB | ||
| 665 | N 912004006100 | LOCK WASHER |
| COVER TO HUB | ||
| 670 | H 983442060010 | PULLEY |
| Repalced by: A 3442060019 | ||
| 670 | A 3442060019 | TIGHTENER PULLEY |
| 675 | N 000933008288 | SCREW |
| TIGHTENER PULLEY TO HUB | ||
| 680 | N 912004008100 | LOCK WASHER |
| TIGHTENER PULLEY TO HUB | ||
| 683 | A 3442060033 | LEVER |
| 685 | N 006888003005 | WOODRUFF KEY |
| CLAMPING LEVER TO FAN SPINDLE | ||
| 690 | N 912004024101 | LOCK WASHER |
| CLAMPING LEVER TO FAN SPINDLE | ||
| 695 | N 000439024202 | NUT |
| CLAMPING LEVER TO FAN SPINDLE | ||
| 697 | N 000961012184 | SCREW |
| CLAMPING LEVER | ||
| 698 | N 000936012017 | NUT |
| Repalced by: N 000936012005 | ||
| 698 | N 000936012005 | NUT |
| CLAMPING LEVER | ||
| 700 | A 0039970992 | V-BELT |
| 18 X 1246 MM | ||
| 705 | N 007753012532 | NARROW V-BELT |
| 12.5 X 1875 MM | ||
| 710 | A 0445000146 | CLAMP |
| Repalced by: A 3445000346 | ||
| 710 | A 3445000346 | CLAMP |
| 710 | A 3445007246 | CLAMP |
| 715 | N 000934014000 | NUT |
| 720 | N 900333014000 | TURNBUCKLE |
| 725 | N 000934014002 | NUT |
| L.H. THREAD | ||
| 730 | A 3449900023 | SCREW |
| 730 | A 3449907123 | SCREW |
| 730 | A 3449907223 | SCREW |
| 730 | A 3449907323 | SCREW |
| 732 | N 000961014106 | SCREW |
| 733 | N 912004014100 | LOCK WASHER |
| 734 | N 000934014025 | NUT |
| 735 | N 000961012106 | SCREW |
| CLAMP TO RADIADOR | ||
| 740 | N 000127012201 | LOCK WASHER |
| CLAMP TO RADIADOR | ||
| 745 | N 000934012004 | NUT |
| CLAMP TO RADIADOR | ||
| 750 | A 3445040112 | RUBBER MOUNTING |
| CLAMP TO SUBSTRUCTURE | ||
| 755 | A 3445040153 | SPACER TUBE |
| CLAMP TO SUBSTRUCTURE | ||
| 760 | N 000961012192 | SCREW |
| CLAMP TO SUBSTRUCTURE | ||
| 765 | N 000127012201 | LOCK WASHER |
| CLAMP TO SUBSTRUCTURE | ||
| 770 | N 000934012004 | NUT |
| CLAMP TO SUBSTRUCTURE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
