Transporto priemonė: O 362; VIN numerio dalis: 321427

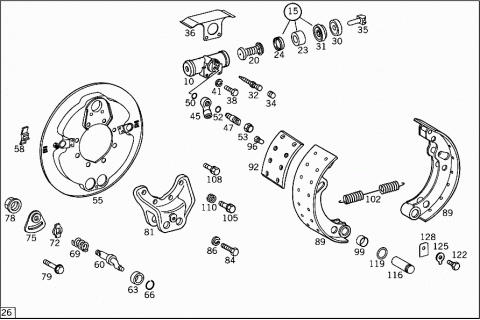

Grupė: 42 BRAKE SYSTEM - 001 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|
| A 0454200118 | WHEEL BRAKE CYLINDER | |
| Repalced by: A 3454207418 | ||
| A 0024209118 | WHEEL BRAKE CYLINDER | |
| Repalced by: A 3454207418 | ||
| A 3454207418 | WHEEL BRAKE CYLINDER | |
| 010 | A 0034207918 | WHEEL BRAKE CYLINDER |
| 46.83 MM "ATE" | ||
| 010 | A 0084203018 | WHEEL BRAKE CYLINDER |
| 46.83 MM "ATE" | ||
| 015 | H 983455860042 | REPAIR KIT |
| Repalced by: A 0005862842 | ||
| 015 | A 0005862842 | REPAIR KIT |
| "ATE"TO 045 420 01 18 | ||
| A 0085861442 | REPAIR KIT | |
| "VARGA"TO 045 420 01 18 | ||
| 020 | A 0004231893 | SPRING |
| Repalced by: A 3444217090 | ||
| 020 | A 3444217090 | SPRING |
| 023 | A 0004232183 | PISTON |
| Repalced by: A 3454237083 | ||
| 023 | A 3454237083 | PISTON |
| "ATE" | ||
| A 0084230483 | PISTON | |
| Repalced by: A 3454237083 | ||
| A 3454237083 | PISTON | |
| "VARGA"TO 045 420 01 18 | ||
| 024 | A 0004231686 | CUP |
| Repalced by: A 3454237086 | ||
| 024 | A 3454237086 | CUP |
| "ATE" | ||
| A 0004231388 | THRUST PIN | |
| TO 002 420 91 18,045 420 01 18 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG.-NO.035 | ||
| 030 | A 0004213087 | PROTECTIVE CAP |
| Repalced by: A 3454237020 | ||
| 030 | A 3454237020 | PROTECTIVE PLATE |
| 031 | A 0004232187 | PROTECTIVE CAP |
| Repalced by: A 3454237087 | ||
| 031 | A 3454237087 | PROTECTIVE CAP |
| 032 | A 0004310265 | VALVE |
| Repalced by: A 3454317165 | ||
| 032 | A 3454317165 | VALVE |
| 034 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 3454317287 | ||
| 034 | A 3454317287 | PROTECTIVE CAP |
| 035 | A 3024210088 | THRUST PIN |
| TO 003 420 79 18 | ||
| 036 | A 3024210020 | PROTECTIVE PLATE |
| 038 | N 000933010174 | SCREW |
| 041 | N 000127010202 | LOCK WASHER |
| 045 | A 3444280030 | CONNECTOR |
| 047 | A 3444280026 | HOLLOW SCREW |
| 050 | N 007603012106 | SEAL RING |
| 052 | N 007603014102 | SEAL RING |
| 053 | A 3449900053 | NUT |
| 055 | A 3024201116 | BRAKE ANCHOR PLATE |
| 058 | A 3094210211 | PLUG |
| 060 | A 3024230419 | ADJUSTING PIN |
| 063 | A 3024210029 | SLIDE |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 302 421 01 29 | ||
| 066 | A 3124211073 | LOCK |
| 069 | A 3029930501 | SPRING |
| 072 | A 3024210176 | WASHER |
| 075 | A 3024200386 | BRACKET |
| Repalced by: A 3454200086 | ||
| 075 | A 3454200086 | BRACKET |
| Repalced by: A 3024210473 | ||
| A 3024210473 | LOCK | |
| A 3024210076 | WASHER | |
| 078 | A 3029900150 | NUT |
| Repalced by: A 3029900250 | ||
| 078 | A 3029900250 | NUT |
| 079 | N 914001010002 | COMBINATION BOLT |
| A 3024210506 | BRAKE ANCHOR | |
| 081 | A 3024210606 | BRAKE ANCHOR |
| 084 | N 000933010270 | SCREW |
| 086 | N 000127010202 | LOCK WASHER |
| A 3604203320 | BRAKE SHOE | |
| WITH LINING | ||
| A 3604204420 | BRAKE SHOE | |
| Repalced by: A 3454207620 | ||
| 089 | A 3454207620 | BRAKE SHOE |
| WITH LINING | ||
| A 3024201619 | BRAKE SHOE | |
| Repalced by: A 3024202219 | ||
| A 3024202219 | BRAKE SHOE | |
| LESS LINING | ||
| 092 | A 3604210610 | BRAKE LINING |
| Repalced by: A 3454217010 | ||
| 092 | A 3454217010 | BRAKE LINING |
| STANDARD | ||
| 15.50 MM LONALFEX | ||
| 092 | A 3454217310 | BRAKE LINING |
| STANDARD | ||
| 15.70 MM,FRAS-LE | ||
| 092 | A 3604210710 | BRAKE LINING |
| Repalced by: A 3454217110 | ||
| 092 | A 3454217110 | BRAKE LINING |
| REPAIR SIZE I | ||
| 16.50 MM,LONAFLEX | ||
| 092 | A 3454217410 | BRAKE LINING |
| REPAIR SIZE I | ||
| 16.70 MM,FRAS-LE | ||
| 092 | A 3604210810 | BRAKE LINING |
| Repalced by: A 3454217210 | ||
| 092 | A 3454217210 | BRAKE LINING |
| REPAIR SIZE II | ||
| 17.50 MM,LONAFLEX | ||
| 092 | A 3454217510 | BRAKE LINING |
| REPAIR SIZE II | ||
| 17.70 MM,FRAS-LE | ||
| A 3455867842 | REPAIR KIT | |
| Repalced by: A 3644210610 | ||
| A 3455867942 | REPAIR KIT | |
| Repalced by: A 3644210610 | ||
| A 3644210610 | BRAKE LINING | |
| (BRAKE LINING SET);STANDARD | ||
| 15.5 MM | ||
| A 3455868642 | REPAIR KIT | |
| Repalced by: A 3644210710 | ||
| A 3455868842 | REPAIR KIT | |
| Repalced by: A 3644210710 | ||
| A 3644210710 | BRAKE LINING | |
| (BRAKE LINING SET);REPAIR SIZE I | ||
| 16.5 MM | ||
| A 3455868742 | REPAIR KIT | |
| Repalced by: A 3644210810 | ||
| A 3455868942 | REPAIR KIT | |
| Repalced by: A 3644210810 | ||
| A 3644210810 | BRAKE LINING | |
| (BRAKE LINING SET);REPAIR SIZE II | ||
| 17.5 MM | ||
| 096 | A 3079900197 | RIVET |
| Repalced by: N 007338008211 | ||
| 096 | A 3459907197 | RIVET |
| Repalced by: N 007338008211 | ||
| 096 | N 007338008211 | RIVET |
| Repalced by: A 3079900197 | ||
| 096 | A 3079900197 | RIVET |
| 15 MM | ||
| 096 | N 007338008212 | RIVET |
| 18 MM | ||
| A 3024210050 | BUSHING | |
| 099 | A 3024210150 | BUSHING |
| 102 | A 3414210092 | SPRING |
| Repalced by: A 3524210192 | ||
| 102 | A 3524210192 | SPRING |
| BRAKE SHOE | ||
| 105 | A 3029900204 | SCREW |
| 108 | A 3559900004 | SCREW |
| Repalced by: A 3029900804 | ||
| 108 | A 3029900804 | SCREW |
| 110 | N 000935012003 | NUT |
| N 000094003217 | COTTER PIN | |
| A 3024210974 | PIN | |
| 116 | A 3024211074 | PIN |
| Repalced by: A 3464211174 | ||
| 116 | A 3464211174 | PIN |
| Repalced by: A 3454217074 | ||
| 116 | A 3454217074 | PIN |
| A 3029970145 | SEAL RING | |
| 119 | A 3029970445 | SEAL RING |
| N 000933010294 | SCREW | |
| 122 | N 000933010270 | SCREW |
| 125 | N 000093010502 | LOCK PLATE |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 125 | A 3029940010 | LOCK |
| Repalced by: A 3469940209 | ||
| 125 | A 3469940209 | LOCK |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| A 3029940009 | LOCK | |
| 128 | A 3029940209 | LOCK |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |

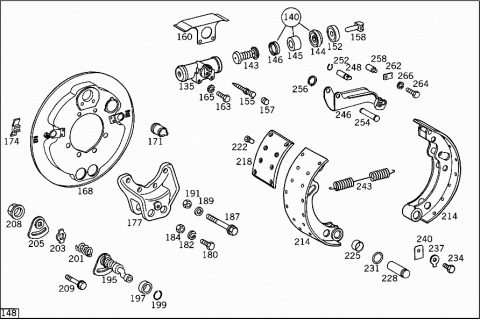

| REAR WHEEL BRAKE | ||
| 135 | A 0454200018 | WHEEL BRAKE CYLINDER |
| Repalced by: A 0034208018 | ||
| 135 | A 0024209218 | WHEEL BRAKE CYLINDER |
| Repalced by: A 0034208018 | ||
| 135 | A 0034208018 | WHEEL BRAKE CYLINDER |
| 50.80 MM "ATE" | ||
| 135 | A 0094204118 | WHEEL BRAKE CYLINDER |
| 50.80 MM "ATE" | ||
| 140 | A 0005862342 | REPAIR KIT |
| TO 003 420 80 18 | ||
| H 983455860142 | REPAIR KIT | |
| Repalced by: A 0085861342 | ||
| A 0085861342 | REPAIR KIT | |
| TO 045 420 00 18 | ||
| 143 | A 0004231993 | SPRING |
| Repalced by: A 3454237093 | ||
| 143 | A 3454237093 | SPRING |
| TO 003 420 80 18 | ||
| A 0084200290 | GUIDE | |
| Repalced by: A 3454237093 | ||
| A 3454237093 | SPRING | |
| TO 045 420 00 18 | ||
| 144 | A 0004232587 | PROTECTIVE CAP |
| TO 003 420 80 18 | ||
| 145 | A 0004232583 | PISTON |
| TO 002 420 92 18 | ||
| A 0084230583 | PISTON | |
| TO 045 420 00 18 | ||
| 146 | A 0004210386 | CUP |
| TO 002 420 92 18 | ||
| A 0004231388 | THRUST PIN | |
| TO 045 420 00 18,002 420 92 18 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG.-NO. 158 | ||
| 152 | A 0084230120 | PROTECTIVE PLATE |
| Repalced by: A 0004232787 | ||
| 152 | A 0004232787 | PROTECTIVE CAP |
| TO 003 420 80 18 | ||
| 155 | A 0004310265 | VALVE |
| Repalced by: A 3454317165 | ||
| 155 | A 3454317165 | VALVE |
| 157 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 3454317287 | ||
| 157 | A 3454317287 | PROTECTIVE CAP |
| TO 003 420 80 18 | ||
| 158 | A 3024210088 | THRUST PIN |
| TO 003 420 80 18 | ||
| 160 | A 3024210020 | PROTECTIVE PLATE |
| 163 | N 000933010174 | SCREW |
| 165 | N 000127010202 | LOCK WASHER |
| 168 | A 3454207017 | BRAKE ANCHOR PLATE |
| Repalced by: A 3024203017 | ||
| 168 | A 3024203017 | BRAKE ANCHOR PLATE |
| LEFT | ||
| A 3454207117 | BRAKE ANCHOR PLATE | |
| Repalced by: A 3024203117 | ||
| A 3024203117 | BRAKE ANCHOR PLATE | |
| RIGHT | ||
| 171 | A 3024270054 | PIPE SOCKET |
| 174 | A 3094210211 | PLUG |
| A 3024230706 | BRAKE ANCHOR | |
| 177 | A 3024230806 | BRAKE ANCHOR |
| 180 | N 000961012106 | SCREW |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 182 | N 000127012201 | LOCK WASHER |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 184 | N 000934012013 | NUT |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| M12 X 1,5 MM | ||
| 187 | A 3029900504 | SCREW |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 189 | N 912004016101 | LOCK WASHER |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 191 | N 000934016003 | NUT |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 195 | A 3024230319 | ADJUSTING PIN |
| 197 | A 3024210029 | SLIDE |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 302 421 01 29 | ||
| 199 | A 3124211073 | LOCK |
| 201 | A 3029930701 | SPRING |
| 203 | A 3024210176 | WASHER |
| 205 | A 3024200386 | BRACKET |
| Repalced by: A 3454200086 | ||
| 205 | A 3454200086 | BRACKET |
| Repalced by: A 3024210473 | ||
| A 3024210473 | LOCK | |
| A 3024210076 | WASHER | |
| 208 | A 3029900150 | NUT |
| 209 | N 914001010002 | COMBINATION BOLT |
| A 3604202920 | BRAKE SHOE | |
| WITH LINING | ||
| A 3604204520 | BRAKE SHOE | |
| Repalced by: A 3604209120 | ||
| 214 | A 3454207020 | BRAKE SHOE |
| WITH LINING | ||
| "LONAFLEX" | ||
| A 3604209120 | BRAKE SHOE | |
| WITH LINING | ||
| "JURID" | ||
| A 3024201719 | BRAKE SHOE | |
| Repalced by: A 3024202119 | ||
| A 3024202119 | BRAKE SHOE | |
| LESS LINING | ||
| 218 | A 3604231310 | BRAKE LINING |
| Repalced by: A 3454237010 | ||
| 218 | A 3454237010 | BRAKE LINING |
| STANDARD | ||
| 15.50 MM,LONAFLEX | ||
| 218 | A 3454237310 | BRAKE LINING |
| STANDARD | ||
| 15.70 MM,FRAS-LE | ||
| 218 | A 3604230010 | BRAKE LINING |
| STANDARD | ||
| 15.70 MM,JURID | ||
| 218 | A 3454237110 | BRAKE LINING |
| REPAIR SIZE I | ||
| 16.50 MM,LONAFLEX | ||
| 218 | A 3454237410 | BRAKE LINING |
| REPAIR SIZE I | ||
| 16.70 MM,FRAS-LE | ||
| 218 | A 3604230110 | BRAKE LINING |
| REPAIR SIZE I | ||
| 16.70 MM,JURID | ||
| 218 | A 3454237210 | BRAKE LINING |
| REPAIR SIZE II | ||
| 17.50 MM,LONAFLEX | ||
| 218 | A 3454237510 | BRAKE LINING |
| REPAIR SIZE II | ||
| 17.70 MM,FRAS-LE | ||
| 218 | A 3604230210 | BRAKE LINING |
| REPAIR SIZE II | ||
| 17.70 MM,JURID | ||
| A 3455868242 | REPAIR KIT | |
| Repalced by: A 3644230310 | ||
| A 3455868042 | REPAIR KIT | |
| Repalced by: A 3644230310 | ||
| A 3455868142 | REPAIR KIT | |
| Repalced by: A 3644230310 | ||
| A 3644230310 | BRAKE LINING | |
| (BRAKE LINING SET);STANDARD | ||
| 15.70 MM | ||
| A 3455867843 | REPAIR KIT | |
| Repalced by: A 3644230410 | ||
| A 3455869342 | REPAIR KIT | |
| Repalced by: A 3644230410 | ||
| A 3455869542 | REPAIR KIT | |
| Repalced by: A 3644230410 | ||
| A 3644230410 | BRAKE LINING | |
| (BRAKE LINING SET);REPAIR SIZE I | ||
| 16.70 MM | ||
| A 3455867943 | REPAIR KIT | |
| Repalced by: A 3644230510 | ||
| A 3455869442 | REPAIR KIT | |
| Repalced by: A 3644230510 | ||
| A 3455869642 | REPAIR KIT | |
| Repalced by: A 3644230510 | ||
| A 3644230510 | BRAKE LINING | |
| (BRAKE LINING SET);REPAIR SIZE II | ||
| 17.7 MM | ||
| 222 | A 3079900197 | RIVET |
| Repalced by: N 007338008211 | ||
| 222 | A 3459907197 | RIVET |
| Repalced by: N 007338008211 | ||
| 222 | N 007338008211 | RIVET |
| Repalced by: A 3079900197 | ||
| 222 | A 3079900197 | RIVET |
| 15 MM | ||
| 222 | N 007338008212 | RIVET |
| 18 MM | ||
| A 3024210050 | BUSHING | |
| 225 | A 3024210150 | BUSHING |
| A 3024210974 | PIN | |
| 228 | A 3024211074 | PIN |
| Repalced by: A 3464211174 | ||
| 228 | A 3464211174 | PIN |
| Repalced by: A 3454217074 | ||
| 228 | A 3454217074 | PIN |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| A 3029970145 | SEAL RING | |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 231 | A 3029970445 | SEAL RING |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| N 000933010294 | SCREW | |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 234 | N 000933010270 | SCREW |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 237 | N 000093010502 | LOCK PLATE |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 237 | A 3029940010 | LOCK |
| Repalced by: A 3469940209 | ||
| 237 | A 3469940209 | LOCK |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| A 3029940009 | LOCK | |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 240 | A 3029940209 | LOCK |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| A 3029930310 | SPRING | |
| 243 | A 3029930610 | SPRING |
| 246 | A 3024201419 | THRUST SHACKLE |
| Repalced by: A 3024203419 | ||
| 246 | A 3024203419 | THRUST SHACKLE |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| A 3024203519 | THRUST SHACKLE | |
| 248 | A 3024230118 | PIVOT PIN |
| Repalced by: A 3024230618 | ||
| 248 | A 3024230618 | PIVOT PIN |
| BRAKE SHAFT TO BRAKE SHOE | ||
| 252 | A 3459947035 | SNAP RING |
| BRAKE SHAFT TO BRAKE SHOE | ||
| 254 | A 3024230074 | PIN |
| Repalced by: A 3024230774 | ||
| 254 | A 3024230774 | PIN |
| THRUST SHACKLE TO BRAKE SHOE | ||
| 256 | N 000471018000 | LOCK RING |
| THRUST SHACKLE TO BRAKE SHOE | ||
| 258 | A 3024230374 | PIN |
| Repalced by: A 3024230874 | ||
| 258 | A 3024230474 | PIN |
| Repalced by: A 3024230874 | ||
| 258 | A 3024230874 | PIN |
| BRAKE SHAFT TO THRUST SHACKLE | ||
| 262 | A 3029940109 | LOCK |
| BRAKE SHAFT TO THRUST SHACKLE | ||
| 264 | N 000933008005 | SCREW |
| BRAKE SHAFT TO THRUST SHACKLE | ||
| 266 | N 912004008100 | LOCK WASHER |
| BRAKE SHAFT TO THRUST SHACKLE | ||

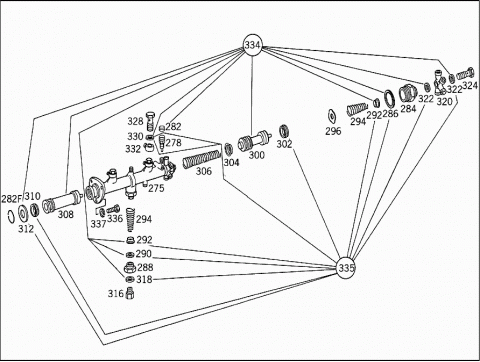

| 275 | A 0024307101 | BRAKE MASTER CYLINDER |
| Repalced by: A 3454307801 | ||
| A 3454307801 | BRAKE MASTER CYLINDER | |
| "VARGA" | ||
| A 3454307901 | BRAKE MASTER CYLINDER | |
| "TEVES" | ||
| 278 | A 0004200055 | BLEEDER VALVE |
| Repalced by: A 3454317165 | ||
| 278 | A 3454317165 | VALVE |
| 282 | A 3454317287 | PROTECTIVE CAP |
| 282F | A 3454317194 | LOCK |
| 284 | A 0084310575 | THREADED UNION |
| Repalced by: A 3454237284 | ||
| 284 | A 3454237284 | FITTING |
| 286 | N 007603050101 | SEAL RING |
| 288 | A 0084310275 | THREADED UNION |
| Repalced by: A 3454237184 | ||
| 288 | A 3454237184 | FITTING |
| 290 | N 007603032101 | SEAL RING |
| 292 | A 0084300081 | VALVE |
| Repalced by: A 3454307081 | ||
| 292 | A 3454307081 | VALVE |
| 294 | A 0084310893 | SPRING |
| Repalced by: A 3454317093 | ||
| 294 | A 3454317093 | SPRING |
| 296 | A 0084310376 | WASHER |
| Repalced by: A 3454317176 | ||
| 296 | A 3454317176 | WASHER |
| A 0084311493 | SPRING | |
| Repalced by: A 3454317293 | ||
| A 3454317293 | SPRING | |
| 300 | A 0084310883 | PISTON |
| Repalced by: A 3454317083 | ||
| 300 | A 3454317083 | PISTON |
| 302 | A 0084310686 | CUP |
| Repalced by: A 3454317186 | ||
| 302 | A 3454317186 | CUP |
| 304 | A 0084310689 | SPRING RETAINER |
| Repalced by: A 3454317089 | ||
| 304 | A 3454317089 | SPRING RETAINER |
| 306 | H 983454310093 | SPRING |
| Repalced by: A 3454317193 | ||
| 306 | A 3454317193 | SPRING |
| 308 | A 0084310983 | PISTON |
| Repalced by: A 3454317183 | ||
| 308 | A 3454317183 | PISTON |
| 310 | A 0084310686 | CUP |
| Repalced by: A 3454317186 | ||
| 310 | A 3454317186 | CUP |
| 312 | A 0084310476 | WASHER |
| Repalced by: A 3454317076 | ||
| 312 | A 3454317076 | WASHER |
| A 0084310394 | LOCK | |
| Repalced by: A 3454317194 | ||
| A 3454317194 | LOCK | |
| 316 | A 0084230084 | FITTING |
| 318 | N 007603014102 | SEAL RING |
| 320 | A 0084280024 | DISTRIBUTOR |
| Repalced by: A 3454287024 | ||
| 320 | A 3454287024 | DISTRIBUTOR |
| 322 | N 007603014102 | SEAL RING |
| 324 | A 0004280026 | HOLLOW SCREW |
| Repalced by: A 3454287126 | ||
| 324 | A 3454287126 | HOLLOW SCREW |
| 328 | A 0084280126 | HOLLOW SCREW |
| 330 | N 007603022102 | SEAL RING |
| 332 | A 0084280030 | CONNECTOR |
| 334 | A 0455860242 | REPAIR KIT |
| Repalced by: A 3455867342 | ||
| 334 | A 3455867142 | REPAIR KIT |
| Repalced by: A 3455867342 | ||
| 334 | A 3455867342 | REPAIR KIT |
| MAJOR | ||
| A 3455867442 | REPAIR KIT | |
| MINOR | ||
| TO 345 430 78 01 | ||
| 335 | A 0455860342 | REPAIR KIT |
| Repalced by: A 3455867242 | ||
| 335 | A 3455867242 | REPAIR KIT |
| TO 002 430 71 01 | ||
| A 3454287224 | DISTRIBUTOR | |
| Repalced by: A 0084280124 | ||
| A 0084280124 | DISTRIBUTOR | |
| TO 345 430 78 01 | ||
| A 3454287724 | DISTRIBUTOR | |
| TO 345 430 79 01 | ||
| A 0004280026 | HOLLOW SCREW | |
| Repalced by: A 3454287126 | ||
| A 3454287126 | HOLLOW SCREW | |
| TO 345 430 79 01 | ||
| A 3454287126 | HOLLOW SCREW | |
| TO 345 430 78 01 | ||
| A 0004230184 | FITTING | |
| TO 345 430 79 01 | ||
| A 3454237084 | FITTING | |
| TO 345 430 78 01 | ||
| N 007603014106 | SEAL RING | |
| 336 | N 000933010129 | SCREW |
| 337 | N 000127010202 | LOCK WASHER |

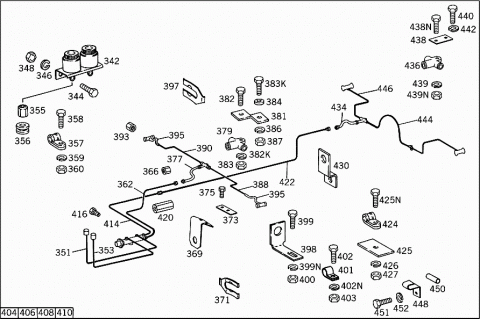

| 342 | A 0454310102 | RESERVOIR |
| Repalced by: A 3454300002 | ||
| 342 | A 3454300002 | RESERVOIR |
| TO 002 430 71 01 | ||
| A 0004311602 | RESERVOIR | |
| TO 345 430 79 01 | ||
| A 3454307002 | RESERVOIR | |
| TO 345 430 78 01 | ||
| N 007603022102 | SEAL RING | |
| 344 | N 000084006134 | SCREW |
| 346 | N 000127006203 | LOCK WASHER |
| 348 | N 000934006006 | NUT |
| 351 | H 983214200228 | LINE |
| Repalced by: A 3214200628 | ||
| 351 | A 3214200628 | LINE |
| FROM FLUID RESERVOIR TO BRAKE MASTER CYLINDER,REAR AXLE BRAKE CIRCUIT | ||
| 8X0.70 MM | ||
| 353 | H 983214200328 | LINE |
| Repalced by: A 3214200528 | ||
| 353 | A 3214200528 | LINE |
| FROM FLUID RESERVOIR TO BRAKE MASTER CYLINDER,FRONT AXLE BRAKE CIRCUIT | ||
| 8X0.70 MM | ||
| 355 | A 0004280572 | NUT |
| Repalced by: A 0009971173 | ||
| 355 | A 0009971173 | FITTING |
| 356 | A 3129970481 | GROMMET |
| 357 | A 0009951801 | CLAMP |
| Repalced by: N 916016008200 | ||
| 357 | N 916016008200 | CLAMP |
| 358 | N 000933006220 | SCREW |
| 359 | N 000127006203 | LOCK WASHER |
| 360 | N 000934006006 | NUT |
| 362 | H 983214200428 | LINE |
| Repalced by: A 3214200728 | ||
| 362 | A 3214200728 | LINE |
| FROM MASTER CYLINDER TO FRONT AXLE | ||
| 6X0.70 MM | ||
| H 983214201028 | LINE | |
| Repalced by: A 3214201228 | ||
| A 3214201228 | LINE | |
| FROM MASTER CYLINDER TO FRONT AXLE | ||
| 6X0.70 MM | ||
| H 983214201128 | LINE | |
| Repalced by: A 3214201328 | ||
| A 3214201328 | LINE | |
| FROM MASTER CYLINDER TO FRONT AXLE | ||
| 6X0.70 MM | ||
| 366 | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 366 | A 0004280072 | UNION SCREW |
| A 0004292736 | CONNECTOR | |
| Repalced by: A 3454297836 | ||
| A 3454297836 | CONNECTOR | |
| 369 | A 3444280040 | BRACKET |
| 371 | A 0004280473 | BRACKET |
| 373 | A 3129940330 | LOCK |
| 375 | N 000933008228 | SCREW |
| 377 | A 0004280735 | BRAKE HOSE |
| 377 | A 0014287435 | BRAKE HOSE |
| Repalced by: A 3644287335 | ||
| 377 | A 3644287335 | BRAKE HOSE |
| 379 | A 0004290437 | DISTRIBUTOR |
| 379 | A 3454297037 | DISTRIBUTOR |
| 381 | A 0444280040 | BRACKET |
| Repalced by: A 3444280440 | ||
| 381 | A 3444280440 | BRACKET |
| 382 | N 000933008071 | SCREW |
| 382K | N 912004008100 | LOCK WASHER |
| 383 | N 000934008000 | NUT |
| 383K | N 000931008072 | SCREW |
| 384 | A 3219900740 | WASHER |
| 386 | N 912004008100 | LOCK WASHER |
| 387 | N 000934008000 | NUT |
| 388 | A 3444200728 | LINE |
| FROM DISTRIBUTOR TO LEFT FRONT WHEEL | ||
| 6X0.70 MM | ||
| 390 | A 3444200828 | LINE |
| FROM DISTRIBUTOR TO RIGHT FRONT WHEEL | ||
| 6X0.70 MM | ||
| 393 | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 393 | A 0004280072 | UNION SCREW |
| 395 | A 0004280735 | BRAKE HOSE |
| 395 | A 0014287435 | BRAKE HOSE |
| Repalced by: A 3644287335 | ||
| 395 | A 3644287335 | BRAKE HOSE |
| 397 | A 0004280473 | BRACKET |
| 398 | A 3214280043 | ANGLE |
| 399 | N 000931008072 | SCREW |
| 399N | N 912004008100 | LOCK WASHER |
| 400 | N 000934008000 | NUT |
| 401 | A 3129951401 | CLAMP |
| Repalced by: A 0009954501 | ||
| 401 | A 0009954501 | CLAMP |
| Repalced by: N 916016006200 | ||
| 401 | N 916016006200 | CLAMP |
| 402 | N 000933005097 | SCREW |
| 402N | N 000127005001 | LOCK WASHER |
| 403 | N 000934005008 | NUT |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG.-NO.045 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG.-NO.050 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG.-NO.047 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG.-NO.053 | ||
| 414 | H 983214200528 | LINE |
| Repalced by: A 3214201028 | ||
| 414 | A 3214201028 | LINE |
| FROM MASTER CYLINDER TO CONNECTOR | ||
| 6X0.70 MM | ||
| H 983214200928 | LINE | |
| Repalced by: A 3214201428 | ||
| A 3214201428 | LINE | |
| FROM MASTER CYLINDER TO CONNECTOR | ||
| 6X0.70 MM | ||
| 416 | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 416 | A 0004280072 | UNION SCREW |
| 420 | A 0004280531 | CONNECTOR |
| Repalced by: A 0004292736 | ||
| 420 | A 0004292736 | CONNECTOR |
| Repalced by: A 3454297836 | ||
| 420 | A 3454297836 | CONNECTOR |
| H 983214200128 | LINE | |
| Repalced by: A 3214201628 | ||
| A 3214201628 | LINE | |
| FROM CONNECTOR TO REAR AXLE | ||
| 6X0.70 MM | ||
| H 983214200028 | LINE | |
| Repalced by: A 3214201528 | ||
| A 3214201528 | LINE | |
| FROM CONNECTION FITTING TO CONNECTION FITTING | ||
| 6X0.70 MM | ||
| 422 | H 983214200628 | LINE |
| Repalced by: A 3214201128 | ||
| 422 | A 3214201128 | LINE |
| FROM INTERMEDIATE PIECE TO REAR AXLE BRAKE HOSE | ||
| 6X0.70 MM | ||
| N 074233012001 | UNION SCREW | |
| Repalced by: A 0004280072 | ||
| A 0004280072 | UNION SCREW | |
| 424 | A 3129950332 | CLAMP |
| Repalced by: A 0009954501 | ||
| 424 | N 072571001024 | CLAMP |
| Repalced by: A 0009954501 | ||
| 424 | A 3129973482 | HOSE |
| Repalced by: A 0009954501 | ||
| 424 | A 0009954501 | CLAMP |
| Repalced by: N 916016006200 | ||
| 424 | N 916016006200 | CLAMP |
| 425 | A 3125421039 | PLATE |
| Repalced by: A 3215422340 | ||
| 425 | A 3215422340 | BRACKET |
| 425N | N 000933004067 | SCREW |
| Repalced by: N 000933005014 | ||
| 425N | N 000933005097 | SCREW |
| 426 | N 912004004102 | LOCK WASHER |
| Repalced by: N 912004005100 | ||
| 426 | N 000127005001 | LOCK WASHER |
| 427 | N 000934004000 | NUT |
| 430 | H 983214280043 | ANGLE |
| Repalced by: A 3214280440 | ||
| 430 | A 3214280440 | BRACKET |
| A 0004280473 | BRACKET | |
| 434 | A 0004280735 | BRAKE HOSE |
| 434 | A 0014287435 | BRAKE HOSE |
| Repalced by: A 3644287335 | ||
| 434 | A 3644287335 | BRAKE HOSE |
| 436 | A 0004290437 | DISTRIBUTOR |
| 436 | A 3454297037 | DISTRIBUTOR |
| 438 | A 3214280343 | ANGLE |
| Repalced by: A 3524280740 | ||
| 438 | A 3444287640 | BRACKET |
| Repalced by: A 3524280740 | ||
| 438 | A 3524280740 | BRACKET |
| 438N | N 000933008273 | SCREW |
| 439 | N 912004008100 | LOCK WASHER |
| 439N | N 000934008000 | NUT |
| 440 | N 000933008228 | SCREW |
| DISTRIBUTOR TO REAR AXLE | ||
| 442 | N 912004008100 | LOCK WASHER |
| DISTRIBUTOR TO REAR AXLE | ||
| 444 | H 983214200728 | LINE |
| Repalced by: A 3214200828 | ||
| 444 | A 3214200828 | LINE |
| FROM DISTRIBUTOR TO LEFT REAR WHEEL | ||
| 6X0.70 MM | ||
| A 3444208828 | LINE | |
| FROM DISTRIBUTOR TO LEFT REAR WHEEL | ||
| 6X0.70 MM | ||
| 446 | H 983214200828 | LINE |
| Repalced by: A 3214200928 | ||
| 446 | A 3214200928 | LINE |
| FROM DISTRIBUTOR TO RIGHT REAR WHEEL | ||
| 6X0.70 MM | ||
| A 3644208028 | LINE | |
| FROM DISTRIBUTOR TO RIGHT REAR WHEEL | ||
| 6X0.70 MM | ||
| N 074233012001 | UNION SCREW | |
| Repalced by: A 0004280072 | ||
| A 0004280072 | UNION SCREW | |
| 448 | A 3129951020 | CLAMP |
| BRAKE LINE TO REAR AXLE | ||
| 450 | A 3129973482 | HOSE |
| BRAKE LINE TO REAR AXLE | ||
| 451 | N 000933008228 | SCREW |
| BRAKE LINE TO REAR AXLE | ||
| 452 | N 912004008100 | LOCK WASHER |
| BRAKE LINE TO REAR AXLE | ||
| 456 | N 074305022202 | NUT |
| 458 | N 074301026202 | ELBOW FITTING |
| 460 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 460 | A 0009940203 | THRUST RING |
| 462 | A 0009870446 | O-RING |
| A 0004295935 | BRAKE HOSE | |
| N 915045015100 | SEAL RING | |
| N 074298026202 | DOUBLE FITTING | |
| H 983214200036 | LINE | |
| Repalced by: A 3214205226 | ||
| A 3214205226 | LINE | |
| FROM AIR COMPRESSOR TO HOSE | ||
| 18X1.5 MM | ||
| A 3214205326 | LINE | |
| FROM HOSE TO PRESSURE REGULATOR | ||
| 18X1.5 MM | ||
| 469 | A 3444209637 | LINE |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 18X1.5 MM | ||
| 471 | N 003872018100 | UNION NUT |
| 472 | N 003861018003 | GLAND |
| 473 | N 915065018101 | THRUST RING |
| 475 | N 915045015100 | SEAL RING |
| 476 | A 0004291584 | SEAL RING |
| Repalced by: N 915045015100 | ||
| 476 | N 915045015100 | SEAL RING |
| AT AIR COMPRESSOR | ||
| A 3444297240 | BRACKET | |
| N 000933008282 | SCREW | |
| N 000125008417 | WASHER | |
| N 912004008100 | LOCK WASHER | |
| 484 | A 0009958901 | CLAMP |
| Repalced by: N 916016018204 | ||
| 484 | N 916016018204 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 485 | N 000085006110 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 486 | N 000125006420 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 487 | N 000127006203 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 488 | N 000934006006 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| A 0444200005 | HOSE | |
| H 983444200005 | HOSE | |
| Repalced by: A 3444201748 | ||
| A 3444201748 | BRAKE HOSE | |
| A 3214204045 | LINE | |
| N 915045015100 | SEAL RING | |
| N 074298026202 | DOUBLE FITTING | |
| 495 | N 074301026202 | ELBOW FITTING |
| 497 | N 074305022202 | NUT |
| 499 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 499 | A 0009940203 | THRUST RING |
| 501 | A 0009870446 | O-RING |

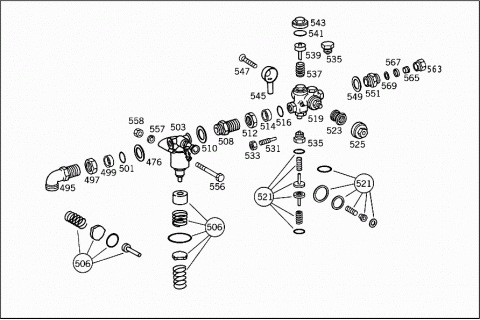

| 503 | H 983455910002 | TIRE INFLATOR CYLINDER |
| Repalced by: A 3445910019 | ||
| 503 | A 3445910019 | TIRE INFLATOR CYLINDER |
| 506 | A 0005910097 | REPAIR KIT |
| 508 | A 0019972372 | FITTING |
| 508 | N 074313016401 | FITTING |
| 510 | N 007603022102 | SEAL RING |
| 512 | N 074305022202 | NUT |
| 514 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 514 | A 0009940203 | THRUST RING |
| 516 | A 0009870446 | O-RING |
| 519 | A 0004312706 | PRESSURE REGULATOR |
| 521 | H 983455860743 | REPAIR KIT |
| 523 | A 0004310212 | COMPENSATOR |
| 525 | A 0004310856 | SCREW PLUG |
| 531 | A 0004310070 | STUD |
| 533 | N 000934005008 | NUT |
| 535 | A 0004310956 | SCREW PLUG |
| 537 | A 0004312493 | SPRING |
| 539 | A 0004312383 | PISTON |
| 541 | A 0004311476 | WASHER |
| 543 | A 0004311056 | SCREW PLUG |
| 545 | A 0004310073 | BREATHER PIPE |
| 547 | N 000063010122 | SCREW |
| 549 | N 007603022102 | SEAL RING |
| 551 | N 074299022203 | DOUBLE FITTING |
| A 3529971282 | HOSE | |
| Repalced by: A 3449977782 | ||
| A 3449977782 | HOSE | |
| H 980009972090 | LOOM TIE | |
| Repalced by: A 3509970290 | ||
| A 3509970290 | CLAMP | |
| AS REQUIRED | ||
| N 900288020006 | CLAMP | |
| AS REQUIRED | ||
| A 3215910084 | SHIM | |
| 556 | N 000931008321 | SCREW |
| 557 | N 912004008100 | LOCK WASHER |
| 558 | N 000934008010 | NUT |
| A 3219970240 | SEAL RING | |
| 561 | A 0214200826 | LINE |
| FROM PRESSURE REGULATOR TO FITTING | ||
| 15X1.5 MM | ||
| 563 | N 915018015000 | UNION NUT |
| 565 | N 003861015004 | GLAND |
| 567 | N 915065015101 | THRUST RING |
| 569 | N 915045012100 | SEAL RING |
| 571 | A 3179970581 | GROMMET |
| 573 | A 3129952420 | CLAMP |
| Repalced by: A 3049950220 | ||
| 573 | A 3049950220 | CLAMP |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 574 | N 007985005171 | SCREW |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 574N | N 000127005001 | LOCK WASHER |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 575 | N 000934005008 | NUT |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 576 | N 074313016201 | FITTING |
| 576 | A 0019972172 | FITTING |
| 578 | A 0214200926 | LINE |
| FROM FITTING TO ELBOW FITTING | ||
| 15X1.5 MM | ||
| 580 | N 915018015000 | UNION NUT |
| 582 | N 003861015004 | GLAND |
| 584 | N 915065015101 | THRUST RING |
| 586 | N 915045012100 | SEAL RING |
| N 074301022301 | ELBOW FITTING | |
| Repalced by: A 0004293538 | ||
| 588 | A 0004293538 | ELBOW FITTING |
| 590 | H 983214200226 | LINE |
| FROM T-FITTING TO AIR RESERVOIR I | ||
| 15X1.5 MM | ||
| N 915018015000 | UNION NUT | |
| N 003861015004 | GLAND | |
| 591 | A 3459950033 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 592 | A 3444290240 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 593 | N 007985005171 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 594 | N 000127005001 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 595 | N 000934005008 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| A 0214201026 | LINE | |
| FROM FITTING TO T-FITTING | ||
| 15X1.5 MM | ||
| A 0214201326 | LINE | |
| 15X1.5 MM | ||
| H 983214201726 | LINE | |
| 15X1.5 MM | ||
| A 3444207136 | LINE | |
| FROM T-FITTING TO AIR RESERVOIR I | ||
| 15X1.5 MM | ||
| A 3444209337 | LINE | |
| FROM T-FITTING TO AIR RESERVOIR II | ||
| 15X1.5 MM | ||
| N 915018015000 | UNION NUT | |
| N 003861015004 | GLAND | |
| N 074313016201 | FITTING | |
| A 0019972172 | FITTING | |
| N 915065015101 | THRUST RING | |
| N 915045012100 | SEAL RING | |
| A 0004293838 | ELBOW FITTING | |
| 602 | N 074317000100 | FITTING |
| 602 | A 0009902470 | T-FITTING |
| 604 | N 074305022202 | NUT |
| 606 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 606 | A 0009940203 | THRUST RING |
| 608 | A 0009870446 | O-RING |

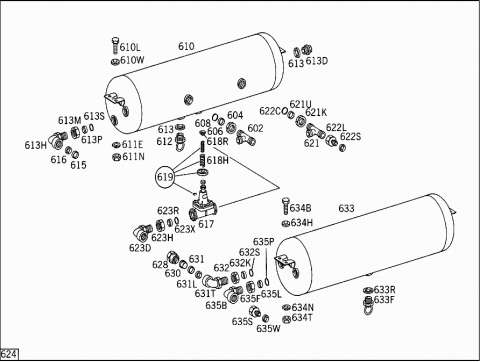

| 610 | A 3224302305 | RESERVOIR |
| 610L | N 000933008016 | SCREW |
| RESERVOIR TO SUBSTRUCTURE | ||
| 610W | N 000433008403 | WASHER |
| RESERVOIR TO SUBSTRUCTURE | ||
| 611E | N 912004008100 | LOCK WASHER |
| RESERVOIR TO SUBSTRUCTURE | ||
| 611N | N 000934008013 | NUT |
| RESERVOIR TO SUBSTRUCTURE | ||
| 612 | A 0004320607 | VALVE |
| Repalced by: A 3454300281 | ||
| A 3454300081 | VALVE | |
| Repalced by: A 3454300281 | ||
| A 0454300081 | VALVE | |
| Repalced by: A 3454300281 | ||
| A 3454300181 | VALVE | |
| Repalced by: A 3454300281 | ||
| H 983454300081 | VALVE | |
| Repalced by: A 3454300281 | ||
| A 3454300281 | VALVE | |
| Repalced by: A 0004320807 | ||
| A 0004320807 | VALVE | |
| DRAIN | ||
| A 0004322207 | VALVE | |
| Repalced by: A 3644327107 | ||
| A 3644327107 | VALVE | |
| DRAIN | ||
| 613 | N 007603022102 | SEAL RING |
| 613D | N 007604022100 | SCREW PLUG |
| Repalced by: A 3469970230 | ||
| 613D | A 3469970230 | SCREW PLUG |
| 613H | N 074315000200 | FITTING |
| 613H | A 0009905871 | ELBOW FITTING |
| A 0009900970 | T-FITTING | |
| 613M | N 074305022202 | NUT |
| 613P | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 613P | A 0009940203 | THRUST RING |
| 613S | A 0009870446 | O-RING |
| N 074313016201 | FITTING | |
| A 0019972172 | FITTING | |
| N 007603022102 | SEAL RING | |
| H 983214204326 | LINE | |
| FROM AIR RESERVOIR I TO AIR RESERVOIR IA | ||
| 15X1.5 MM | ||
| H 983214205526 | LINE | |
| FROM AIR RESERVOIR I TO AIR RESERVOIR IA | ||
| 15X1.5 MM | ||
| 614 | H 983214200026 | LINE |
| FROM AIR RESERVOIR I TO AIR RESERVOIR IA | ||
| 15X1.5 MM | ||
| N 915018015000 | UNION NUT | |
| N 003861015004 | GLAND | |
| 615 | N 915065015101 | THRUST RING |
| 616 | N 915045012100 | SEAL RING |
| A 0004298344 | VALVE | |
| (OVERFLOW VALVE) | ||
| 617 | A 0004296044 | VALVE |
| (OVERFLOW VALVE) | ||
| FA.WESTINGHOUSE | ||
| 617 | A 0004315406 | VALVE |
| Repalced by: A 0034290344 | ||
| A 0004290145 | DIAPHRAGM | |
| TO 000 431 54 06 | ||
| 618H | A 0019932301 | SPRING |
| TO 000 429 60 44 | ||
| 618R | A 0004290389 | SPRING RETAINER |
| TO 000 429 60 44 | ||
| 619 | A 0005865842 | REPAIR KIT |
| TO 000 429 83 44,000 429 60 44 | ||
| 621 | N 074317000100 | FITTING |
| 621 | A 0009902470 | T-FITTING |
| 621K | N 074305022202 | NUT |
| 621U | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 621U | A 0009940203 | THRUST RING |
| 622C | A 0009870446 | O-RING |
| 622L | A 3229970071 | FITTING |
| 622S | N 915045012100 | SEAL RING |
| 623D | N 074315000200 | FITTING |
| 623D | A 0009905871 | ELBOW FITTING |
| 623H | N 074305022202 | NUT |
| 623R | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 623R | A 0009940203 | THRUST RING |
| 623X | A 0009870446 | O-RING |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 617 | ||
| H 983214201826 | LINE | |
| FROM RESERVOIR I TO RESERVOIR II | ||
| 15X1.5 MM | ||
| A 3444207236 | LINE | |
| FROM RESERVOIR I TO RESERVOIR II | ||
| 15X1.5 MM | ||
| 626 | A 0214201726 | LINE |
| FROM RESERVOIR I TO RESERVOIR II | ||
| 15X1.5 MM | ||
| 628 | N 915018015000 | UNION NUT |
| 630 | N 003861015004 | GLAND |
| 631 | N 915065015101 | THRUST RING |
| 631L | N 915045012100 | SEAL RING |
| 631T | N 074315000200 | FITTING |
| 631T | A 0009905871 | ELBOW FITTING |
| 632 | N 074305022202 | NUT |
| 632K | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 632K | A 0009940203 | THRUST RING |
| 632S | A 0009870446 | O-RING |
| 633 | A 3124303005 | RESERVOIR |
| 633F | A 0004320607 | VALVE |
| Repalced by: A 0004320807 | ||
| 633F | A 3524300081 | VALVE |
| Repalced by: A 0004320807 | ||
| 633F | A 0454300081 | VALVE |
| Repalced by: A 3454300181 | ||
| 633F | A 3454300181 | VALVE |
| Repalced by: A 0004320807 | ||
| 633F | H 983454300081 | VALVE |
| Repalced by: A 3454300281 | ||
| 633F | A 3454300281 | VALVE |
| Repalced by: A 0004320807 | ||
| 633F | A 0004320807 | VALVE |
| DRAIN | ||
| 633F | A 0004322207 | VALVE |
| Repalced by: A 3644327107 | ||
| 633F | A 3644327107 | VALVE |
| DRAIN | ||
| 633R | N 007603022102 | SEAL RING |
| 634B | N 000933008016 | SCREW |
| RESERVOIR TO SUBSTRUCTURE | ||
| 634H | N 000433008403 | WASHER |
| RESERVOIR TO SUBSTRUCTURE | ||
| 634N | N 912004008100 | LOCK WASHER |
| RESERVOIR TO SUBSTRUCTURE | ||
| 634T | N 000934008013 | NUT |
| RESERVOIR TO SUBSTRUCTURE | ||
| 635B | N 074315000200 | FITTING |
| 635B | A 0009905871 | ELBOW FITTING |
| A 3454307079 | CONNECTOR | |
| AT AIR RESERVOIR II | ||
| A 3454307079 | CONNECTOR | |
| AT AIR RESERVOIR II | ||
| 635F | N 074305022202 | NUT |
| AT AIR RESERVOIR II | ||
| 635F | N 074305022202 | NUT |
| AT AIR RESERVOIR II | ||
| 635L | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 635L | A 0009940203 | THRUST RING |
| AT AIR RESERVOIR II | ||
| 635L | A 0009940203 | THRUST RING |
| AT AIR RESERVOIR II | ||
| 635P | A 0009870446 | O-RING |
| AT AIR RESERVOIR II | ||
| 635P | A 0009870446 | O-RING |
| AT AIR RESERVOIR II | ||
| 635S | A 3229970071 | FITTING |
| AT AIR RESERVOIR II | ||
| 635W | N 915045012100 | SEAL RING |
| AT AIR RESERVOIR II | ||
| A 0214203126 | LINE | |
| FROM AIR RESERVOIR II TO RELAY VALVE, "V" CONNECTION | ||
| 15X1.5 MM | ||
| A 3444207336 | LINE | |
| FROM AIR RESERVOIR II TO RELAY VALVE, "V" CONNECTION | ||
| 15X1.5 MM | ||
| H 983214200126 | LINE | |
| FROM AIR RESERVOIR II TO RELAY VALVE, "V" CONNECTION | ||
| 15X1.5 MM | ||
| N 915018015000 | UNION NUT | |
| N 003861015004 | GLAND | |
| H 983214201036 | LINE | |
| FROM AIR RESERVOIR II TO FITTING I | ||
| 8X0.7 MM | ||
| 636 | H 983214200536 | LINE |
| FROM AIR RESERVOIR II TO FITTING I | ||
| 8X0.7 MM | ||
| N 915017008100 | UNION NUT | |
| N 003861008005 | GLAND | |
| N 915065015101 | THRUST RING | |
| FROM AIR RESERVOIR II TO RELAY VALVE, "V" CONNECTION | ||
| N 915045012100 | SEAL RING | |
| FROM AIR RESERVOIR II TO RELAY VALVE, "V" CONNECTION | ||
| A 0059972648 | SEAL RING | |
| A 0004312788 | VALVE SEAT | |
| A 0059972748 | SEAL RING | |
| TO 000 429 28 95,GRAU | ||
| A 0014311660 | SEAL RING | |
| A 0014311760 | SEAL RING | |
| A 0004311980 | GASKET | |

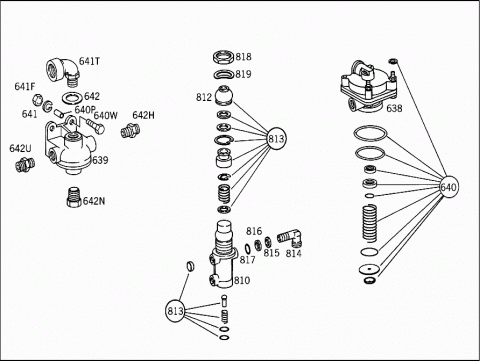

| 638 | A 0014295444 | VALVE |
| Repalced by: A 0034295244 | ||
| 638 | A 0034295244 | VALVE |
| RELAY | ||
| "KNORR" | ||
| 638 | A 0004296544 | VALVE |
| RELAY | ||
| "WABCO" | ||
| 639 | A 0004292844 | VALVE |
| Repalced by: A 0044295044 | ||
| 639 | A 0044295044 | VALVE |
| "BENDIX-WESTINGHOUSE" | ||
| 640 | A 0005865742 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 000 429 65 44 | ||
| 640 | H 983455860842 | REPAIR KIT |
| Repalced by: A 0004205555 | ||
| 640 | A 0004205555 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 000 429 65 44 | ||
| A 0025863542 | REPAIR KIT | |
| TO 001 429 54 44,003 429 52 44 | ||
| A 3445867242 | REPAIR KIT | |
| TO 000 429 28 44 | ||
| 640P | A 1209911140 | SPACER TUBE |
| QUICK-RELEASE VALVE TO BRACKET | ||
| 640W | N 000933008279 | SCREW |
| QUICK-RELEASE VALVE TO BRACKET | ||
| 641 | N 912004008100 | LOCK WASHER |
| QUICK-RELEASE VALVE TO BRACKET | ||
| 641F | N 000934008000 | NUT |
| QUICK-RELEASE VALVE TO BRACKET | ||
| N 074315000200 | FITTING | |
| A 0009905871 | ELBOW FITTING | |
| 641T | A 3454297038 | ELBOW FITTING |
| AT QUICK-RELEASE VALVE | ||
| 642 | N 007603022102 | SEAL RING |
| AT QUICK-RELEASE VALVE | ||
| 642H | N 074313008101 | FITTING |
| AT QUICK-RELEASE VALVE | ||
| 642N | A 3454297056 | SCREW PLUG |
| AT QUICK-RELEASE VALVE | ||
| 642U | A 3454297936 | CONNECTOR |
| AT QUICK-RELEASE VALVE | ||
| N 074305022202 | NUT | |
| A 0004290227 | THRUST RING | |
| Repalced by: A 0009940203 | ||
| A 0009940203 | THRUST RING | |
| A 0009870446 | O-RING | |
| A 0009900970 | T-FITTING | |
| N 074305022202 | NUT | |
| A 0004290227 | THRUST RING | |
| Repalced by: A 0009940203 | ||
| A 0009940203 | THRUST RING | |
| A 0009870446 | O-RING | |
| A 3229970071 | FITTING | |
| N 915045012100 | SEAL RING | |
| A 0019972372 | FITTING | |
| N 074313016401 | FITTING | |
| N 915045012100 | SEAL RING | |
| N 007603022102 | SEAL RING | |
| A 3229970071 | FITTING | |
| N 074313008101 | FITTING | |
| N 000908022001 | SCREW PLUG | |
| N 007603022102 | SEAL RING | |
| N 000125008417 | WASHER | |
| A 0214201126 | LINE | |
| FROM AIR RESERVOIR TO DOUBLE FITTING | ||
| 15X1.5 MM | ||
| A 3444203226 | LINE | |
| FROM AIR RESERVOIR TO DOUBLE FITTING | ||
| 15X1.5 MM | ||
| 655 | A 0214201226 | LINE |
| FROM AIR RESERVOIR TO DOUBLE FITTING | ||
| 15X1.5 MM | ||
| N 915018015000 | UNION NUT | |
| N 003861015004 | GLAND | |
| N 915065015101 | THRUST RING | |
| N 915045012100 | SEAL RING | |
| 656 | A 3444290240 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 656K | A 3444290340 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 657 | N 007985005171 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 657K | N 000127005001 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 657S | N 000125005315 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 658 | N 000934005008 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| N 074313016201 | FITTING | |
| A 0019972172 | FITTING | |
| 658L | N 074301022202 | ELBOW FITTING |
| Repalced by: A 0004293538 | ||
| 658L | A 0004293538 | ELBOW FITTING |
| 660 | A 0214201426 | LINE |
| FROM ELBOW FITTING TO DOUBLE FITTING | ||
| 15X1.5 MM | ||
| N 915018015000 | UNION NUT | |
| N 003861015004 | GLAND | |
| N 915065015101 | THRUST RING | |
| N 915045012100 | SEAL RING | |
| 661 | N 074313016201 | FITTING |
| 661 | A 0019972172 | FITTING |
| 662 | A 0214201526 | LINE |
| Repalced by: A 3214206226 | ||
| 662 | A 3214206226 | LINE |
| FROM FITTING I TO CONNECTION FITTING II | ||
| 15X1.5 MM | ||
| 665 | H 983214200326 | LINE |
| Repalced by: A 3214206426 | ||
| 665 | A 3214206426 | LINE |
| FROM FITTING TO ELBOW FITTING | ||
| 15X1.5 MM | ||
| 669 | H 983214200426 | LINE |
| FROM ELBOW FITTING TO BRAKE BOOSTER | ||
| 15X1.5 MM | ||
| N 915018015000 | UNION NUT | |
| N 003861015004 | GLAND | |
| N 074313016201 | FITTING | |
| A 0019972172 | FITTING | |
| A 0004293538 | ELBOW FITTING | |
| 670 | N 915065015101 | THRUST RING |
| 671 | N 915045012100 | SEAL RING |
| 672 | A 0004295032 | T-FITTING |
| AT BRAKE BOOSTER | ||
| 673 | N 074305022202 | NUT |
| AT BRAKE BOOSTER | ||
| 674 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 674 | A 0009940203 | THRUST RING |
| AT BRAKE BOOSTER | ||
| 675 | A 0009870446 | O-RING |
| AT BRAKE BOOSTER | ||

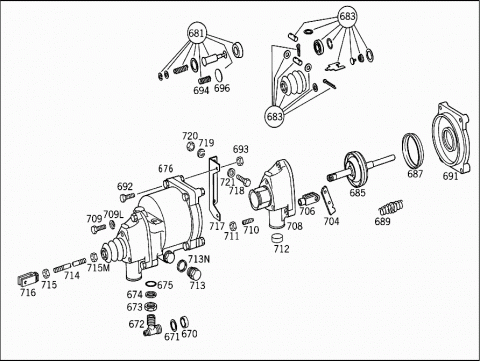

| 676 | A 0004312405 | BRAKE BOOSTER |
| Repalced by: A 3444317014 | ||
| 676 | A 3444317014 | BRAKE BOOSTER |
| 681 | H 983455860243 | REPAIR KIT |
| MINOR | ||
| 683 | H 983455860343 | REPAIR KIT |
| MAJOR | ||
| 685 | H 983454310192 | ROD |
| 687 | A 0004312786 | CUP |
| Repalced by: A 3459978846 | ||
| 687 | A 3459978846 | SEAL RING |
| 689 | H 983454310293 | SPRING |
| Repalced by: A 0014316493 | ||
| 689 | A 0014314093 | SPRING |
| Repalced by: A 0014316493 | ||
| 689 | A 0014316493 | SPRING |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 691 | H 983454310122 | COVER |
| 692 | N 000931010100 | SCREW |
| 693 | N 000934010000 | NUT |
| 694 | H 983454310393 | SPRING |
| 696 | H 983454310152 | SPACER WASHER |
| H 983454310493 | SPRING | |
| Repalced by: H 983454310793 | ||
| H 983454310793 | SPRING | |
| A 0084310356 | SCREW PLUG | |
| 704 | H 983454310024 | SLIDE |
| 706 | N 071752012000 | YOKE |
| 708 | H 983454310222 | COVER |
| Repalced by: A 0004311822 | ||
| 708 | A 0004311822 | COVER |
| A 0004311087 | PROTECTIVE CAP | |
| 709 | N 000933010261 | SCREW |
| 709L | N 000127010202 | LOCK WASHER |
| 710 | N 000417008002 | HEADLESS SETSCREW |
| 711 | N 000934008000 | NUT |
| 712 | A 0004290695 | AIR CLEANER |
| H 983459970030 | SCREW PLUG | |
| 713 | N 000908022001 | SCREW PLUG |
| AT BRAKE BOOSTER | ||
| 713N | N 007603022102 | SEAL RING |
| AT BRAKE BOOSTER | ||
| 714 | A 3214310192 | ROD |
| AT BRAKE BOOSTER | ||
| 715 | N 000936012017 | NUT |
| Repalced by: N 000936012005 | ||
| 715 | N 000936012005 | NUT |
| 715M | N 000936012010 | NUT |
| 716 | A 3124311097 | YOKE |
| 717 | A 3214290240 | BRACKET |
| BRAKE BOOSTER | ||
| 718 | N 000931010081 | SCREW |
| BRACKET TO SUBSTRUCTURE | ||
| 719 | N 000127010202 | LOCK WASHER |
| BRACKET TO SUBSTRUCTURE | ||
| 720 | N 913004010004 | NUT |
| BRACKET TO SUBSTRUCTURE | ||
| 721 | N 000125010517 | WASHER |
| BRACKET TO SUBSTRUCTURE | ||
| N 000933010174 | SCREW | |
| N 000127010202 | LOCK WASHER | |
| 722 | H 983215400061 | ELECTRIC CABLE |
| Repalced by: A 3215407661 | ||
| 722 | A 3215407661 | ELECTRIC CABLE |
| FROM BRAKE BOOSTER T-FITTING TO DOUBLE FITTING | ||
| 6X0.7 MM | ||
| N 915017006100 | UNION NUT | |
| N 003861006007 | GLAND | |
| 725 | H 983215400361 | ELECTRIC CABLE |
| FROM DOUBLE FITTING TO PRESSURE GAUGE | ||
| N 915017006100 | UNION NUT | |
| N 003861006007 | GLAND | |
| 727 | A 1819970281 | GROMMET |
| 728 | H 983215400261 | ELECTRIC CABLE |
| Repalced by: A 3215407861 | ||
| 728 | A 3215407861 | ELECTRIC CABLE |
| FROM TRUCK-TRACTOR BRAKE VALVE TO DOUBLE FITTING | ||
| 6X0.7 MM | ||
| N 915017006100 | UNION NUT | |
| N 003861006007 | GLAND | |
| 732 | A 3215422340 | BRACKET |
| AIR PRESSURE GAUGE LINES | ||
| 733 | A 3129950332 | CLAMP |
| AIR PRESSURE GAUGE LINES | ||
| 734 | N 000084004106 | SCREW |
| CLAMP TO BRACKET | ||
| 735 | N 912004004102 | LOCK WASHER |
| CLAMP TO BRACKET | ||
| 736 | N 000934004000 | NUT |
| CLAMP TO BRACKET | ||
| 737 | A 0009959001 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 738 | A 3379950332 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 739 | A 0219950033 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 740 | N 007985005171 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 740N | N 000127005001 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 741 | N 000125005315 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 741M | N 000934005008 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| A 0214202926 | LINE | |
| FROM RELAY VALVE,"S" CONNECTION,TO TWO-WAY VALVE | ||
| 15X1.5 MM | ||
| A 0214203026 | LINE | |
| FROM RELAY VALVE,"S" CONNECTION,TO TWO-WAY VALVE | ||
| 15X1.5 MM | ||
| H 983214200836 | LINE | |
| FROM QUICK-RELEASE VALVE TO TWO-WAY VALVE | ||
| 15X1.5 MM | ||
| 742 | H 983214200636 | LINE |
| FROM ELBOW FITTING TO QUICK-RELEASE VALVE | ||
| 15X1.5 MM | ||
| N 915018015000 | UNION NUT | |
| N 003861015004 | GLAND | |
| 744 | N 915065015101 | THRUST RING |
| 745 | N 915045012100 | SEAL RING |
| 746 | N 074301022202 | ELBOW FITTING |
| Repalced by: A 0004293538 | ||
| 746 | A 0004293538 | ELBOW FITTING |
| 748 | A 0214203226 | LINE |
| FROM TWO-WAY VALVE TO CONNECTOR | ||
| 15X1.5 MM | ||
| N 915018015000 | UNION NUT | |
| N 003861015004 | GLAND | |
| N 915065015101 | THRUST RING | |
| N 915045012100 | SEAL RING | |
| 751 | A 3379950332 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 752 | A 0009959101 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 753 | H 983214290040 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 754 | N 007985005171 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 755 | N 000127005001 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 756 | N 000125005315 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 757 | N 000934005008 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 758 | A 0004290344 | VALVE |
| Repalced by: A 0014298744 | ||
| 758 | H 980004290144 | VALVE |
| Repalced by: A 0014298744 | ||
| 758 | A 0014298744 | VALVE |
| A 0014302960 | REPAIR KIT | |
| 759 | A 0454290136 | CONNECTOR |
| Repalced by: A 3454298036 | ||
| 759 | A 3454298036 | CONNECTOR |
| AT TWO-WAY VALVE | ||
| 760 | A 0454290036 | CONNECTOR |
| Repalced by: A 3454297436 | ||
| 760 | A 3454297436 | CONNECTOR |
| AT TWO-WAY VALVE | ||
| 761 | A 0454290336 | CONNECTOR |
| Repalced by: A 3454297936 | ||
| 761 | A 3454297936 | CONNECTOR |
| AT TWO-WAY VALVE | ||
| H 983214202026 | LINE | |
| FROM TWO-WAY VALVE TO LEFT BRAKE CYLINDER | ||
| 15X1.5 MM | ||
| 767 | H 983214200526 | LINE |
| Repalced by: A 3644207437 | ||
| 767 | A 3644207437 | LINE |
| FROM TWO-WAY VALVE TO LEFT BRAKE CYLINDER | ||
| 15X1.5 MM | ||
| H 983214201926 | LINE | |
| FROM TWO-WAY VALVE TO RIGHT BRAKE CYLINDER | ||
| 15X1.5 MM | ||
| 770 | A 0214203326 | LINE |
| Repalced by: A 3644207537 | ||
| 770 | A 3644207537 | LINE |
| FROM TWO-WAY VALVE TO RIGHT BRAKE CYLINDER | ||
| 15X1.5 MM | ||
| N 915018015000 | UNION NUT | |
| N 003861015004 | GLAND | |
| N 915065015101 | THRUST RING | |
| N 915045012100 | SEAL RING | |
| 773 | H 980004310075 | THREADED UNION |
| Repalced by: A 3454297238 | ||
| 773 | A 3454297238 | ELBOW FITTING |
| LEFT SPRING-LOAD ACCUMULATOR | ||
| A 0004311675 | THREADED UNION | |
| RIGHT SPRING-LOAD ACCUMULATOR | ||
| 774 | N 080705016003 | NUT |
| 775 | A 0029971640 | SEAL RING |
| 776 | A 0004310051 | SPACER RING |
| H 983214202326 | LINE | |
| FROM AIR RESERVOIR T-FITTING TO DOUBLE FITTING | ||
| 8X0.7 MM | ||
| 783 | A 0214203526 | LINE |
| FROM AIR RESERVOIR T-FITTING TO DOUBLE FITTING | ||
| 8X0.7 MM | ||
| H 983214203426 | LINE | |
| 8X0.7 MM | ||
| A 3444207636 | LINE | |
| FROM CONNECTOR TO T-FITTING | ||
| 8X0.7 MM | ||
| 786 | A 0214203826 | LINE |
| H 983214203526 | LINE | |
| 8X0.7 MM | ||
| H 983214204626 | LINE | |
| FROM DOUBLE FITTING II TO DOUBLE FITTING III | ||
| 8X0.7 MM | ||
| 789 | A 0214202226 | LINE |
| FROM DOUBLE FITTING II TO DOUBLE FITTING III | ||
| 8X0.7 MM | ||
| 792 | H 983214200626 | LINE |
| FROM DOUBLE FITTING III TO DOUBLE FITTING IV | ||
| 8X0.7 MM | ||
| 794 | A 3444208536 | LINE |
| FROM CROSS FITTING TO DOUBLE FITTING | ||
| 8X0.7 MM | ||
| H 983214206226 | LINE | |
| FROM CONNECTOR TO T-FITTING | ||
| 8X0.7 MM | ||
| H 983214201026 | LINE | |
| 8X0.7 MM | ||
| H 983214204226 | LINE | |
| 8X0.7 MM | ||
| H 983214204426 | LINE | |
| 8X0.7 MM | ||
| H 983214201126 | LINE | |
| 8X0.7 MM | ||
| 805 | A 3444207736 | LINE |
| FROM CROSS FITTING TO EMERGENCY RELEASE VALVE | ||
| 8X0.7 MM | ||
| N 915017008100 | UNION NUT | |
| N 003861008005 | GLAND | |
| N 003902008001 | CONNECTION FITTING | |
| A 0009901070 | T-FITTING | |
| M14X1,5 / M14X1,5 / M12X1,5 | ||
| A 0454290032 | T-FITTING | |
| Repalced by: A 3454297132 | ||
| A 3454297132 | T-FITTING | |
| 806 | H 983444290037 | DISTRIBUTOR |
| H 983214201226 | LINE | |
| 8X0.7 MM | ||
| N 915017008100 | UNION NUT | |
| N 003861008005 | GLAND | |
| A 0009900020 | SCREW | |
| N 000127005001 | LOCK WASHER | |
| H 983214310087 | PROTECTIVE CAP | |
| Repalced by: G 103446840227 | ||
| H 103446840227 | PROTECTIVE CAP | |
| Repalced by: A 3446847027 | ||
| A 3446847027 | PLATE | |
| N 000966005023 | SCREW | |
| N 900056005202 | COUNTERSUNK WASHER | |
| 810 | A 0004340501 | VALVE |
| Repalced by: A 3454347001 | ||
| 810 | A 3454347001 | VALVE |
| "WABCO DO BRASIL" | ||
| 810 | A 0004342901 | VALVE |
| "KNORR" | ||
| A 0009971977 | HANDLE | |
| TO 000 434 23 01 | ||
| A 0004340586 | CUP | |
| TO 000 434 23 01 | ||
| 812 | A 0004317387 | PROTECTIVE CAP |
| TO 000 434 05 01,345 434 70 01 | ||
| A 0109970948 | SEAL RING | |
| TO 000 434 29 01 | ||
| A 0109971048 | SEAL RING | |
| TO 000 434 29 01 | ||
| A 0109971148 | SEAL RING | |
| TO 000 434 29 01 | ||
| A 0109971248 | SEAL RING | |
| TO 000 434 29 01 | ||
| A 0079972448 | SEAL RING | |
| TO 000 434 23 01 | ||
| A 0079972548 | SEAL RING | |
| TO 000 434 23 01 | ||
| 813 | H 983455860943 | REPAIR KIT |
| Repalced by: A 0034301281 | ||
| 813 | A 0034301281 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 000 434 05 01,345 434 70 01 | ||
| 813 | A 0005869743 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 000 434 05 01,345 434 70 01 | ||
| A 0025869843 | REPAIR KIT | |
| TO 000 434 23 01 | ||
| 813 | A 0014301360 | REPAIR KIT |
| Repalced by: A 0004304106 | ||
| 813 | A 0004304106 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 000 434 29 01 | ||
| 813 | A 0014301460 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 000 434 29 01 | ||
| 814 | A 3444297038 | ELBOW FITTING |
| 815 | N 080705012003 | NUT |
| 816 | A 0004290827 | THRUST RING |
| Repalced by: A 0009940103 | ||
| 816 | A 0009940103 | THRUST RING |
| 817 | A 0019875046 | SEALING CORD |
| 818 | N 074305026202 | NUT |
| OPERATING VALVE TO BRACKET | ||
| 819 | N 000137027201 | SPRING WASHER |
| OPERATING VALVE TO BRACKET | ||
| H 983214201626 | LINE | |
| 8X0.7 MM | ||
| 822 | A 3444207836 | LINE |
| FROM EMERGENCY RELEASE VALVE TO DOUBLE FITTING I | ||
| 8X0.7 MM | ||
| H 983214203326 | LINE | |
| 8X0.7 MM | ||
| H 983214201526 | LINE | |
| 8X0.7 MM | ||
| 825 | A 3444208636 | LINE |
| FROM DOUBLE FITTING I TO DOUBLE FITTING II | ||
| 8X0.7 MM | ||
| H 983214203226 | LINE | |
| 8X0.7 MM | ||
| A 3444207745 | LINE | |
| FROM DOUBLE FITTING I TO DOUBLE FITTING II | ||
| 8X0.7 MM | ||
| H 983214202226 | LINE | |
| 8X0.7 MM | ||
| H 983214201426 | LINE | |
| 8X0.7 MM | ||
| 832 | H 983214200626 | LINE |
| FROM DOUBLE FITTING II TO DOUBLE FITTING III | ||
| 8X0.7 MM | ||
| 836 | H 983214201326 | LINE |
| FROM DOUBLE FITTING III TO TWO-WAY VALVE | ||
| 8X0.7 MM | ||
| A 0214203426 | LINE | |
| FROM DOUBLE FITTING TO TWO-WAY VALVE | ||
| 8X0.7 MM | ||
| H 983214202126 | LINE | |
| 8X0.7 MM | ||
| A 3444207936 | LINE | |
| FROM DOUBLE FITTING II TO DOUBLE FITTING III | ||
| 8X0.7 MM | ||
| A 0214203726 | LINE | |
| 8X0.7 MM | ||
| A 3444208036 | LINE | |
| FROM DOUBLE FITTING III TO DOUBLE FITTING IV | ||
| 8X0.7 MM | ||
| A 0214203626 | LINE | |
| 8X0.7 MM | ||
| N 915017008100 | UNION NUT | |
| N 003861008005 | GLAND | |
| N 003902008001 | CONNECTION FITTING | |
| 838 | A 3379950332 | CLAMP |
| 839 | A 3124761036 | BRACKET |
| Repalced by: A 3124761236 | ||
| 839 | A 3124761236 | BRACKET |
| 840 | N 007985005171 | SCREW |
| 841 | N 000127005001 | LOCK WASHER |
| 842 | N 000125005315 | WASHER |
| 843 | N 000934005008 | NUT |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| HAND BRAKE | ||
| 850 | A 0004304781 | VALVE |
| Repalced by: A 3454307381 | ||
| 850 | A 3454307381 | VALVE |
| 851 | A 0089973845 | SEAL RING |
| 851E | A 0089973745 | SEAL RING |
| 851K | A 0009933305 | SPRING |
| 852 | A 0089974045 | SEAL RING |
| 852E | A 0004312188 | VALVE SEAT |
| 852K | A 0089974145 | SEAL RING |
| TO 000 430 47 81 | ||
| 853 | A 0004313323 | VALVE |
| TO 000 430 47 81 | ||
| 853E | A 0009933205 | SPRING |
| TO 000 430 47 81 | ||
| 853K | A 0059976545 | SEAL RING |
| TO 000 430 47 81 | ||
| 853R | A 0014311093 | SPRING |
| A 0009973277 | HANDLE | |
| TO 345 430 73 81 | ||
| 853X | A 0025867843 | REPAIR KIT |
| 000 430 47 81 | ||
| 853X | H 983455861043 | REPAIR KIT |
| Repalced by: A 0034301181 | ||
| 853X | A 0034301181 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 345 430 73 81 | ||
| 853X | A 0005868043 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 345 430 73 81 | ||
| 853Z | A 0004305760 | REPAIR KIT |
| HAND BRAKE VALVE | ||
| TO 000 430 55 81 | ||
| 854 | N 007603014102 | SEAL RING |
| 856 | N 003901010001 | SCREW-IN FITTING |
| Repalced by: A 0009972072 | ||
| 856 | A 0009972072 | FITTING |
| Repalced by: A 0039979972 | ||
| 856 | A 0039979972 | FITTING |
| A 3554311340 | BRACKET | |
| 857 | A 3444307010 | BRACKET |
| 857H | N 000963006037 | SCREW |
| HAND BRAKE VALVE TO BRACKET | ||
| 857P | N 000127006203 | LOCK WASHER |
| HAND BRAKE VALVE TO BRACKET | ||
| 857U | N 000934006006 | NUT |
| HAND BRAKE VALVE TO BRACKET | ||
| 858F | N 000933006220 | SCREW |
| BRACKET TO BODY | ||
| 858R | N 000127006203 | LOCK WASHER |
| BRACKET TO BODY | ||
| A 0214202326 | LINE | |
| HAND BRAKE VALVE BLEEDING | ||
| 8X0.7 MM | ||
| 860 | A 3444207545 | LINE |
| HAND BRAKE VALVE BLEEDING | ||
| 8X0.7 MM | ||
| 864 | N 915017008100 | UNION NUT |
| 866 | N 003861008005 | GLAND |
| A 0454290032 | T-FITTING | |
| Repalced by: A 3454297132 | ||
| A 3454297132 | T-FITTING | |
| H 983214203126 | LINE | |
| FROM HAND BRAKE VALVE TO DOUBLE FITTING | ||
| 8X0.7 MM | ||
| H 983214200926 | LINE | |
| FROM HAND BRAKE VALVE TO DOUBLE FITTING | ||
| 8X0.7 MM | ||
| 870 | A 3444207645 | LINE |
| FROM HAND BRAKE VALVE TO DOUBLE FITTING | ||
| 8X0.7 MM | ||
| H 983214203026 | LINE | |
| FROM T-FITTING TO DOUBLE FITTING | ||
| 8X0.7 MM | ||
| A 0214202826 | LINE | |
| FROM FITTING I TO CONNECTION FITTING II | ||
| 8X0.7 MM | ||
| 875 | A 3444208236 | LINE |
| FROM FITTING I TO CONNECTION FITTING II | ||
| 8X0.7 MM | ||
| H 983214202726 | LINE | |
| FROM FITTING II TO CONNECTION FITTING III | ||
| 8X0.7 MM | ||
| 882 | H 983214200626 | LINE |
| FROM FITTING II TO CONNECTION FITTING III | ||
| 8X0.7 MM | ||
| 885 | A 0214202226 | LINE |
| FROM FITTING III TO CONNECTION FITTING IV | ||
| 8X0.7 MM | ||
| H 983214202626 | LINE | |
| 8X0.7 MM | ||
| 888 | A 0214202726 | LINE |
| FROM DOUBLE FITTING IV TO DOUBLE FITTING V | ||
| 8X0.7 MM | ||
| A 0214202626 | LINE | |
| 8X0.7 MM | ||
| A 0214202526 | LINE | |
| FROM FITTING V TO RELAY VALVE,"S" CONNECTION | ||
| 8X0.7 MM | ||
| 892 | H 983214200736 | LINE |
| FROM FITTING V TO QUICK-RELEASSE VALVE | ||
| 8X0.7 MM | ||
| A 0214202426 | LINE | |
| 8X0.7 MM | ||
| A 3444207536 | LINE | |
| FROM FITTING III TO RELAY VALVE, "S" CONNECTION | ||
| 8X0.7 MM | ||
| H 983214200936 | LINE | |
| FROM FITTING III TO QUICK-RELEASE VALVE | ||
| 8X0.7 MM | ||
| N 915017008100 | UNION NUT | |
| N 003861008005 | GLAND | |
| N 003902008001 | CONNECTION FITTING | |
| 894 | A 3379950332 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 895 | A 3444290340 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 896 | N 007985005171 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 897 | N 000127005001 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 898 | N 000125005315 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 899 | N 000934005008 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| A 0214201826 | LINE | |
| 8X0.7 MM | ||
| A 3444207436 | LINE | |
| FROM RELAY-VALVE T-FITTING TO HAND BRAKE VALVE | ||
| 8X0.7 MM | ||
| A 0214201926 | LINE | |
| FROM AIR RESERVOIR II TO FITTING I | ||
| 8X0.7 MM | ||
| 905 | A 0214202026 | LINE |
| FROM FITTING I TO CONNECTION FITTING II | ||
| 8X0.7 MM | ||
| A 0214202126 | LINE | |
| 8X0.7 MM | ||
| 910 | H 983214204526 | LINE |
| FROM FITTING II TO CONNECTION FITTING III | ||
| 8X0.7 MM | ||
| H 983214202426 | LINE | |
| FROM FITTING II TO CONNECTION FITTING III | ||
| 8X0.7 MM | ||
| 914 | H 983214200626 | LINE |
| FROM FITTING III TO CONNECTION FITTING IV | ||
| 8X0.7 MM | ||
| H 983214202526 | LINE | |
| FROM FITTING I TO CONNECTION FITTING II | ||
| 8X0.7 MM | ||
| H 983214200726 | LINE | |
| FROM DOUBLE FITTING IV TO DOUBLE FITTING V | ||
| 8X0.7 MM | ||
| 918 | A 3444208136 | LINE |
| FROM DOUBLE FITTING IV TO DOUBLE FITTING V | ||
| 8X0.7 MM | ||
| H 983214202826 | LINE | |
| FROM FITTING II TO CONNECTION FITTING III | ||
| 8X0.7 MM | ||
| A 3444208336 | LINE | |
| FROM FITTING II TO CONNECTION FITTING III | ||
| 8X0.7 MM | ||
| H 983214200826 | LINE | |
| FROM FITTING TO HAND BRAKE VALVE | ||
| 8X0.7 MM | ||
| H 983214202926 | LINE | |
| FROM FITTING TO HAND BRAKE VALVE | ||
| 8X0.7 MM | ||
| 922 | A 3444207445 | LINE |
| FROM FITTING TO HAND BRAKE VALVE | ||
| 8X0.7 MM | ||
| N 915017008100 | UNION NUT | |
| N 003861008005 | GLAND | |
| N 003902008001 | CONNECTION FITTING | |
| A 0004314814 | BRAKE CYLINDER | |
| SPRING LOAD ACCUMULATOR | ||
| BOSCH | ||
| H 983455860043 | REPAIR KIT | |
| H 983455860143 | REPAIR KIT | |
| H 983454310193 | SPRING | |
| A 0084311093 | SPRING | |
| N 000933006030 | SCREW | |
| N 000934006006 | NUT | |
| N 000934014020 | NUT | |
| N 000127014201 | LOCK WASHER | |
| 930 | A 0004316314 | BRAKE CYLINDER |
| Repalced by: A 0014312314 | ||
| 930 | H 983454310114 | BRAKE CYLINDER |
| Repalced by: A 0014312314 | ||
| 930 | A 0014312314 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR | ||
| "WESTINGHOUSE" | ||
| 930 | A 3454317114 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR | ||
| "RESINBAR" | ||
| H 983455860543 | REPAIR KIT | |
| Repalced by: A 0004301708 | ||
| A 0004301708 | REPAIR KIT | |
| TO G98 345 431 01 14 | ||
| 932 | A 0025861443 | REPAIR KIT |
| TO 001 431 23 14 | ||
| 934 | H 983454310087 | PROTECTIVE CAP |
| Repalced by: A 0004301808 | ||
| 934 | A 0004301808 | REPAIR KIT |
| TO G98 345 431 01 14 | ||
| 936 | H 983454310593 | SPRING |
| TO G98 345 431 01 14 | ||
| 938 | H 983454310089 | SPRING RETAINER |
| Repalced by: A 3454317189 | ||
| 938 | A 3454317189 | SPRING RETAINER |
| TO G98 345 431 01 14 | ||
| N 000933006030 | SCREW | |
| TO G98 345 431 01 14 | ||
| N 000127006203 | LOCK WASHER | |
| TO G98 345 431 01 14 | ||
| N 000934006006 | NUT | |
| TO G98 345 431 01 14 | ||
| 942 | H 983454310036 | FILTER BOTTOM |
| TO G98 345 431 01 14 | ||
| 944 | H 983454310083 | PISTON |
| TO G98 345 431 01 14 | ||
| 946 | N 000127014201 | LOCK WASHER |
| TO G98 345 431 01 14 | ||
| 948 | N 000934014020 | NUT |
| TO G98 345 431 01 14 | ||
| H 983214300011 | CONSOLE | |
| Repalced by: A 3214300211 | ||
| A 3214300211 | CONSOLE | |
| LEFT | ||
| H 983214300111 | CONSOLE | |
| Repalced by: A 3214300311 | ||
| A 3214300311 | CONSOLE | |
| RIGHT | ||
| 952 | H 983214300211 | CONSOLE |
| Repalced by: A 3214300411 | ||
| 952 | A 3214300411 | CONSOLE |
| LEFT | ||
| H 983214300311 | CONSOLE | |
| Repalced by: A 3214300511 | ||
| A 3214300511 | CONSOLE | |
| RIGHT | ||
| 954 | A 3214310184 | SHIM |
| A 3214310284 | SHIM | |
| A 0214310342 | PLATE | |
| Repalced by: A 3214310484 | ||
| A 3214310484 | SHIM | |
| A 0214310442 | PLATE | |
| Repalced by: A 3214310584 | ||
| A 3214310584 | SHIM | |
| N 000933010129 | SCREW | |
| BRAKE CYLINDER TO CONSOLE | ||
| 956 | N 000933010174 | SCREW |
| BRAKE CYLINDER TO CONSOLE | ||
| 958 | N 000127010202 | LOCK WASHER |
| BRAKE CYLINDER TO CONSOLE | ||
| 960 | N 000934010000 | NUT |
| BRAKE CYLINDER TO CONSOLE | ||
| 961D | N 000933010174 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 961H | N 000127010202 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 961M | N 000934010000 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 962 | H 983214200180 | BRAKE INTERMEDIATE SHAFT |
| Repalced by: A 3214204780 | ||
| 962 | A 3214204780 | BRAKE INTERMEDIATE SHAFT |
| H 983214200078 | BEARING BRACKET | |
| Repalced by: A 3214201878 | ||
| A 3214201878 | BEARING BRACKET | |
| 964 | H 983214200178 | BEARING BRACKET |
| Repalced by: A 3444207478 | ||
| 964 | A 3444207478 | BEARING BRACKET |
| 966 | H 983214260083 | SPHERICAL PIECE |
| Repalced by: A 3214260083 | ||
| 966 | A 3214260083 | SPHERICAL PIECE |
| A 3214260182 | SHIM | |
| 0.5 MM | ||
| 967 | A 3214260082 | SHIM |
| 1.5 MM | ||
| 968 | N 000933010269 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 969 | N 000127010202 | LOCK WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| N 900331012119 | PULL ROD | |
| 970 | H 983444200374 | ROD |
| Repalced by: A 3444207074 | ||
| 970 | A 3444207074 | ROD |
| FROM BRAKE LEVER TO INTERMEDIATE LEVER | ||
| N 000934012020 | NUT | |
| 971 | N 000934012010 | NUT |
| YOKE TO PULL ROD | ||
| A 3524200047 | YOKE | |
| 972 | H 983444200047 | YOKE |
| Repalced by: A 3444200147 | ||
| 972 | A 3444200147 | YOKE |
| N 071752012002 | YOKE | |
| 974 | A 3529910207 | PIN |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 975 | A 3529910107 | PIN |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| 976 | N 000125013012 | WASHER |
| N 000094004050 | COTTER PIN | |
| 977D | A 3444277231 | ROD |
| 977H | A 3029930610 | SPRING |
| 977M | A 3444277041 | BRACKET |
| 978 | A 0454230042 | LEVER |
| LEFT | ||
| A 0454230142 | LEVER | |
| RIGHT | ||
| A 3444230036 | BRAKE CAMSHAFT | |
| Repalced by: G 983214230036 | ||
| 980 | H 983214230036 | BRAKE CAMSHAFT |
| Repalced by: A 3444237036 | ||
| 980 | A 3444237036 | BRAKE CAMSHAFT |
| H 983214230153 | SPACER TUBE | |
| 984 | A 3414230186 | CUP |
| 986 | A 3444230037 | ADJUSTING LEVER |
| Repalced by: G 983444230037 | ||
| 986 | H 983444230037 | ADJUSTING LEVER |
| LEFT | ||
| A 3444230137 | ADJUSTING LEVER | |
| Repalced by: G 983444230137 | ||
| H 983444230137 | ADJUSTING LEVER | |
| RIGHT | ||
| 989 | A 3024230170 | STUD |
| 990 | A 3544230171 | SCREW |
| 991 | N 000439018202 | NUT |
| 992 | N 000936012017 | NUT |
| Repalced by: N 000936012005 | ||
| 992 | N 000936012005 | NUT |
| 993 | A 3414230353 | SPACER TUBE |
| AS REQUIRED | ||
| 14.00 MM | ||
| A 3414230453 | SPACER TUBE | |
| AS REQUIRED | ||
| 14.50 MM | ||
| A 3414230553 | SPACER TUBE | |
| AS REQUIRED | ||
| 15.00 MM | ||
| A 3414230653 | SPACER TUBE | |
| AS REQUIRED | ||
| 15.50 MM | ||
| A 3414230753 | SPACER TUBE | |
| AS REQUIRED | ||
| 16.00 MM | ||
| 995 | A 0049973646 | SEAL RING |
| 997 | A 3414260183 | SPHERICAL PIECE |
| 997 | A 3414260283 | SPHERICAL PIECE |
| N 071412010100 | GREASE NIPPLE | |
| 999 | N 000471035002 | LOCK RING |
| A 0004294201 | LINE | |
| 18X1.5 MM | ||
| A 0004295101 | LINE | |
| 15X1.5 MM | ||
| A 3084299401 | LINE | |
| 6X0.7 MM | ||
| A 3084299501 | LINE | |
| 8X0.7 MM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
