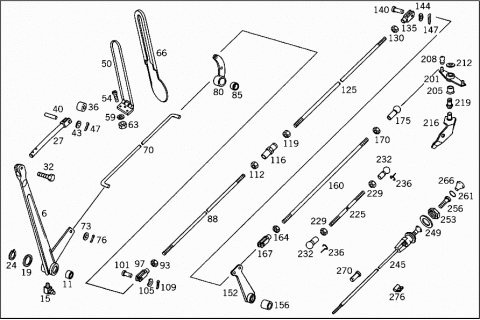

| 006 |
A 0443000016 |
ACCELERATOR PEDAL |
|
Repalced by: A 3443000104
|
| 006 |
A 3443000104 |
ACCELERATOR PEDAL |
| 011 |
A 3213010050 |
BUSHING |
| 015 |
N 071412010300 |
GREASE NIPPLE |
| 019 |
A 3219900040 |
WASHER |
|
|
ACCELERATOR PEDAL TO BEARING BRACKET |
| 024 |
N 000471020000 |
LOCK RING |
|
|
ACCELERATOR PEDAL TO BEARING BRACKET |
| 027 |
A 3443000123 |
CLAMP |
| 032 |
N 000933008282 |
SCREW |
| 036 |
A 3443000006 |
ROLLER |
| 040 |
N 001443006200 |
PIN |
| 043 |
N 000125006420 |
WASHER |
| 047 |
N 000094001609 |
COTTER PIN |
| 050 |
A 3443000002 |
PLATE |
| 054 |
N 007985006515 |
SCREW |
| 059 |
N 000127006203 |
LOCK WASHER |
| 063 |
N 000934006006 |
NUT |
| 066 |
A 3443010082 |
PAD |
| 070 |
A 0213020004 |
ROD |
|
Repalced by: A 3213020004
|
| 070 |
A 3213020004 |
ROD |
|
A 3213010815 |
ROD |
| 073 |
N 000125006420 |
WASHER |
| 076 |
N 000094001609 |
COTTER PIN |
| 080 |
A 0443001025 |
LEVER |
|
Repalced by: A 3443000125
|
| 080 |
A 3443000125 |
LEVER |
|
|
"I" |
| 085 |
A 3213010050 |
BUSHING |
| 088 |
N 900331006110 |
PULL ROD |
| 093 |
N 000934006006 |
NUT |
| 097 |
N 071752006001 |
YOKE |
| 101 |
N 001434006005 |
PIN |
| 105 |
N 000125006420 |
WASHER |
| 109 |
N 000094001609 |
COTTER PIN |
| 112 |
N 000934006004 |
NUT |
| 116 |
A 3219960034 |
NUT |
| 119 |
N 000934006006 |
NUT |
|
N 900331006293 |
PULL ROD |
| 125 |
N 900331006435 |
PULL ROD |
| 130 |
N 000934006006 |
NUT |
| 135 |
N 071752006001 |
YOKE |
| 140 |
N 001434006005 |
PIN |
| 144 |
N 000125006420 |
WASHER |
| 147 |
N 000094001609 |
COTTER PIN |
| 152 |
A 0213000425 |
LEVER |
|
Repalced by: A 3213002425
|
| 152 |
A 3213002425 |
LEVER |
|
|
"II" |
| 156 |
A 3213010050 |
BUSHING |
|
N 000934008000 |
NUT |
| 160 |
N 900331006102 |
PULL ROD |
| 164 |
N 000934006006 |
NUT |
| 167 |
N 071752006001 |
YOKE |
|
N 001434006005 |
PIN |
|
N 000125006420 |
WASHER |
|
N 000094001609 |
COTTER PIN |
| 170 |
N 000934006006 |
NUT |
| 175 |
N 071805010202 |
BALL SOCKET |
|
N 071805010302 |
SNAP RING |
|
N 071805010402 |
CIRCLIP |
|
A 3213011220 |
LEVER |
|
N 071803010209 |
BALL PIVOT |
|
A 3023010150 |
BUSHING |
|
A 3023010076 |
WASHER |
|
N 000471014000 |
LOCK RING |
|
A 3213000736 |
BEARING BRACKET |
|
A 3023010174 |
PIN |
|
A 3219940021 |
LOCK |
|
N 000127012201 |
LOCK WASHER |
|
N 000934012004 |
NUT |
|
N 000125013012 |
WASHER |
|
A 3443001415 |
ROD |
|
N 000934006006 |
NUT |
|
N 071805010202 |
BALL SOCKET |
|
N 071805010403 |
CIRCLIP |
| 201 |
A 3023010820 |
LEVER |
| 205 |
A 3023010150 |
BUSHING |
| 208 |
A 3129910120 |
BALL PIVOT |
|
Repalced by: N 071803010209
|
| 208 |
N 071803010209 |
BALL PIVOT |
| 212 |
A 3023010076 |
WASHER |
|
N 000471014000 |
LOCK RING |
| 216 |
A 3023001036 |
BEARING BRACKET |
| 219 |
A 3023010174 |
PIN |
|
N 000961012171 |
SCREW |
|
N 000137012203 |
SPRING WASHER |
|
N 000936012017 |
NUT |
|
Repalced by: N 000936012005
|
|
N 000936012005 |
NUT |
| 225 |
N 900331006152 |
PULL ROD |
| 229 |
N 000934006006 |
NUT |
| 232 |
N 071805010202 |
BALL SOCKET |
|
N 071805010302 |
SNAP RING |
| 236 |
N 071805010402 |
CIRCLIP |
|
A 0213000117 |
LEVER |
|
A 0459921601 |
BUSHING |
|
A 3523020050 |
BUSHING |
|
N 000125006420 |
WASHER |
|
N 000934006006 |
NUT |
|
A 0213010173 |
LOCK |
|
N 000127010202 |
LOCK WASHER |
|
N 000934010000 |
NUT |
|
N 071412010200 |
GREASE NIPPLE |
| 245 |
A 0453000108 |
MANUAL CONTROL |
|
Repalced by: A 3443007007
|
| 245 |
A 3443007007 |
KNOB |
| 249 |
A 0459900140 |
WASHER |
| 253 |
A 3129901151 |
NUT |
| 256 |
A 3523020208 |
GUIDE |
|
Repalced by: A 3523020308
|
| 256 |
A 3523020308 |
GUIDE |
| 261 |
A 3129902140 |
WASHER |
| 266 |
A 3523020101 |
KNOB |
| 270 |
A 3523020091 |
GROMMET |
|
Repalced by: A 3453027191
|
| 270 |
A 3453027191 |
GROMMET |
|
N 000933006220 |
SCREW |
|
N 000127006203 |
LOCK WASHER |
|
N 000934006006 |
NUT |
| 276 |
A 0009954501 |
CLAMP |
|
Repalced by: N 916016006200
|
| 276 |
N 916016006200 |
CLAMP |
|
N 912004005100 |
LOCK WASHER |

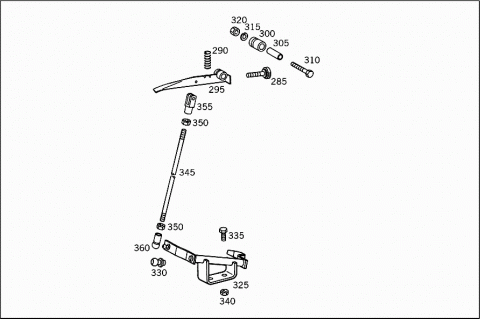

| 285 |
A 3224300071 |
SCREW |
|
|
MANUAL CONTROL |
| 285 |
A 3454307071 |
SCREW |
|
A 1829930601 |
SPRING |
| 290 |
A 3209930301 |
SPRING |
| 295 |
A 3213002625 |
LEVER |
|
|
MANUAL CONTROL |
| 300 |
A 3213010450 |
BUSHING |
| 305 |
A 3213010550 |
BUSHING |
|
|
LEVER TO COWL |
| 310 |
N 000933008358 |
SCREW |
|
|
LEVER TO COWL |
| 315 |
N 912004008100 |
LOCK WASHER |
|
|
LEVER TO COWL |
| 320 |
N 000934008010 |
NUT |
|
|
LEVER TO COWL |
| 325 |
A 3213000536 |
BEARING BRACKET |
|
A 3219920301 |
BUSHING |
|
N 000936010007 |
NUT |
|
A 3129910120 |
BALL PIVOT |
|
Repalced by: N 071803010209
|
| 330 |
N 071803010209 |
BALL PIVOT |
|
N 071412010300 |
GREASE NIPPLE |
| 335 |
N 000933008282 |
SCREW |
|
|
BEARING BRACKET TO SUBSTRUCTURE |
| 340 |
N 913002008000 |
NUT |
|
|
BEARING BRACKET TO SUBSTRUCTURE |
| 345 |
N 900331006149 |
PULL ROD |
| 350 |
N 000934006006 |
NUT |
| 355 |
N 071752006001 |
YOKE |
| 360 |
N 071805010202 |
BALL SOCKET |
|
N 071805010402 |
CIRCLIP |
|
N 918001006000 |
PIN |
