Transporto priemonė: O 362; VIN numerio dalis: 321427
Grupė: 54 ELEKTRICAL EQUIPMENT AND INSTRUMENTS - 001 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|

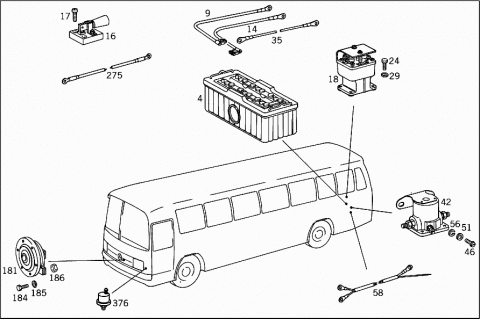

| 004 | H 983455410001 | BATTERY |
| Repalced by: A 3215410001 | ||
| 004 | A 3215410001 | BATTERY |
| Repalced by: A 3645410001 | ||
| 004 | H 983455410101 | BATTERY |
| Repalced by: A 3215410101 | ||
| 004 | A 3215410101 | BATTERY |
| Repalced by: A 3645410001 | ||
| 004 | A 3645410001 | BATTERY |
| LESS ACID | ||
| 180 AH | ||
| A 3215403130 | POSITIVE CABLE | |
| 009 | A 3445407330 | POSITIVE CABLE |
| 014 | H 983215400031 | NEG. CABLE |
| Repalced by: A 3215403831 | ||
| 014 | A 3215403831 | NEG. CABLE |
| 016 | H 980005450008 | SWITCH |
| Repalced by: A 3215450008 | ||
| 016 | A 3215450008 | SWITCH |
| 017 | N 000963008003 | SCREW |
| 018 | A 0005450008 | SWITCH |
| BATTERY CHANGE-OVER SWITCH | ||
| H 403216100031 | CONSOLE | |
| 024 | N 000933008282 | SCREW |
| 029 | N 000127008206 | LOCK WASHER |
| 035 | A 3215403931 | NEG. CABLE |
| 042 | A 3455450005 | RELAY |
| STARTING | ||
| A 0005450017 | SWITCH | |
| HEATER PLUG STARTING SWITCH | ||
| 046 | N 007985005171 | SCREW |
| 051 | N 000125005315 | WASHER |
| 056 | N 000127005001 | LOCK WASHER |
| 058 | A 3215409827 | ELECTRIC CABLE |
| FROM STARTING RELAY TO STARTING MOTOR | ||

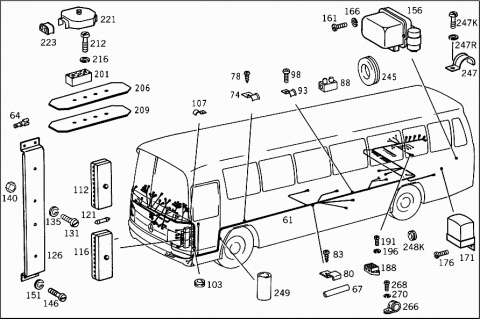

| H 983215400105 | CABLE HARNESS | |
| 061 | H 983215400005 | CABLE HARNESS |
| 064 | A 0005453826 | PIN BUSHING |
| 067 | A 0009970681 | GROMMET |
| CABLE HARNESS MOUNTING | ||
| A 0009970581 | GROMMET | |
| CABLE HARNESS MOUNTING | ||
| A 0009970381 | GROMMET | |
| CABLE HARNESS MOUNTING | ||
| 074 | A 1369950135 | CLAMP |
| Repalced by: A 3449957120 | ||
| 074 | A 3449957120 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| A 3219950120 | CLAMP | |
| CABLE HARNESS MOUNTING | ||
| A 3129950235 | CLAMP | |
| CABLE HARNESS MOUNTING | ||
| N 007985005183 | SCREW | |
| CABLE HARNESS MOUNTING | ||
| N 007985006502 | SCREW | |
| CABLE HARNESS MOUNTING | ||
| N 000127005001 | LOCK WASHER | |
| CABLE HARNESS MOUNTING | ||
| N 000127006203 | LOCK WASHER | |
| CABLE HARNESS MOUNTING | ||
| 078 | N 007981004226 | SHEET METAL SCREW |
| CABLE HARNESS MOUNTING | ||
| 080 | N 072571002008 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 083 | N 007981004226 | SHEET METAL SCREW |
| CABLE HARNESS MOUNTING | ||
| 088 | N 072586001200 | CABLE CONNECTOR |
| CABLE HARNESS MOUNTING | ||
| 088 | A 3445467141 | CABLE CONNECTOR |
| 093 | A 1369950420 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 098 | N 007985006515 | SCREW |
| CABLE HARNESS MOUNTING | ||
| 103 | A 0009972881 | GROMMET |
| CABLE HARNESS MOUNTING | ||
| 107 | A 3129952020 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 112 | A 3215450101 | FUSE BOX |
| 116 | A 3215450201 | FUSE BOX |
| Repalced by: A 3455458201 | ||
| 116 | A 3455458201 | FUSE BOX |
| 121 | H 983455450133 | CARTRIDGE |
| Repalced by: A 3085450234 | ||
| 121 | A 3085450234 | FUSE |
| 8 A | ||
| H 983455450233 | CARTRIDGE | |
| Repalced by: A 3085450334 | ||
| A 3085450334 | FUSE | |
| 15 A | ||
| 126 | A 3125451251 | BRACKET |
| FUSE BOX | ||
| 131 | N 007985005171 | SCREW |
| FUSE BOX TO BRACKET | ||
| 135 | N 000127005001 | LOCK WASHER |
| FUSE BOX TO BRACKET | ||
| 140 | N 000934005008 | NUT |
| FUSE BOX TO BRACKET | ||
| 146 | N 007985006515 | SCREW |
| BRACKET TO SUPPORT | ||
| 151 | N 000127006203 | LOCK WASHER |
| BRACKET TO SUPPORT | ||
| 156 | A 0015421019 | RELAY |
| 161 | N 007985006515 | SCREW |
| 166 | N 000127006203 | LOCK WASHER |
| 171 | A 0011548406 | REGULATOR AND CUT-OUT |
| Repalced by: A 3455477002 | ||
| 171 | A 3455477002 | REGULATOR AND CUT-OUT |
| Repalced by: A 0021545006 | ||
| 171 | A 0021545006 | REGULATOR AND CUT-OUT |
| Repalced by: A 0021546206 | ||
| 171 | A 0021546206 | REGULATOR AND CUT-OUT |
| (ELECTRONIC FIELD REGULATOR) | ||
| 176 | N 007985006515 | SCREW |
| 181 | A 0005420720 | HORN |
| Repalced by: A 0025425120 | ||
| 181 | A 0025425120 | HORN |
| Repalced by: A 3445427120 | ||
| 181 | A 3445427120 | HORN |
| 181 | A 3445427520 | HORN |
| 181 | A 3445427720 | HORN |
| A 0005420820 | HORN | |
| Repalced by: A 3445427220 | ||
| A 0025425220 | HORN | |
| Repalced by: A 3445427220 | ||
| A 3445427220 | HORN | |
| A 3445427420 | HORN | |
| A 3645427020 | HORN | |
| 184 | N 000933010174 | SCREW |
| HORN MOUNTING | ||
| 185 | N 000127010202 | LOCK WASHER |
| HORN MOUNTING | ||
| 186 | N 000934010000 | NUT |
| HORN MOUNTING | ||
| 188 | A 0005461841 | CABLE CONNECTOR |
| 191 | N 007985004193 | SCREW |
| 196 | N 912004004102 | LOCK WASHER |
| 201 | A 0005460941 | CABLE CONNECTOR |
| Repalced by: A 0005461241 | ||
| 201 | A 0005461241 | CABLE CONNECTOR |
| 206 | A 3215460081 | COVERING |
| 209 | A 3205460178 | INSULATION |
| 212 | N 007985004124 | SCREW |
| 216 | N 912004004102 | LOCK WASHER |
| 221 | A 3125401480 | COVERING |
| 223 | A 3205460036 | INSULATION |

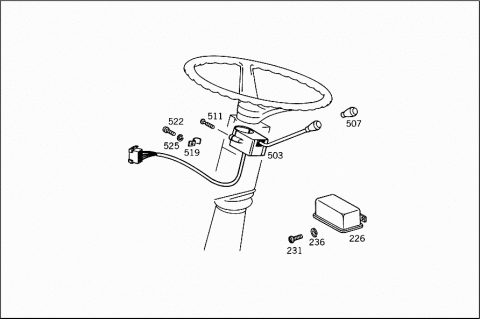

| 226 | A 3445420019 | RELAY |
| A 3445427019 | RELAY | |
| A 3645427019 | RELAY | |
| 231 | N 007985004182 | SCREW |
| 236 | N 912004004102 | LOCK WASHER |
| 237 | A 3215401639 | ELECTRIC CABLE |
| 238 | A 3215400032 | ELECTRIC CABLE |
| 241 | H 980005450109 | SWITCH |
| Repalced by: A 3455457209 | ||
| 241 | A 3215450009 | SWITCH |
| Repalced by: A 3455457209 | ||
| 241 | A 3455457209 | SWITCH |
| STOP LIGHT | ||
| A 3129950235 | CLAMP | |
| N 007985006502 | SCREW | |
| N 000127006203 | LOCK WASHER | |
| A 1369950420 | CLAMP | |
| N 007985006515 | SCREW | |
| N 000127006203 | LOCK WASHER | |
| 245 | A 0009972881 | GROMMET |
| A 3129952020 | CLAMP | |
| N 007981004226 | SHEET METAL SCREW | |
| A 1369950135 | CLAMP | |
| Repalced by: A 3449957120 | ||
| A 3449957120 | CLAMP | |
| N 007981004226 | SHEET METAL SCREW | |
| A 0009972881 | GROMMET | |
| 247 | A 1369950135 | CLAMP |
| Repalced by: A 3449957120 | ||
| 247 | A 3449957120 | CLAMP |
| 247K | N 007985006502 | SCREW |
| 247R | N 000127006203 | LOCK WASHER |
| A 1819970081 | GROMMET | |
| 248K | A 0009975081 | GROMMET |
| 249 | N 900271028003 | HOSE |
| 60 MM | ||
| A 3129950235 | CLAMP | |
| A 3129952020 | CLAMP | |
| N 072571001011 | CLAMP | |
| Repalced by: N 072571001028 | ||
| N 072571001028 | CLAMP | |
| N 072571001023 | CLAMP | |
| N 007985006502 | SCREW | |
| N 000127006203 | LOCK WASHER | |
| N 007971003211 | SHEET METAL SCREW | |
| Repalced by: N 007971003234 | ||
| N 007981003263 | SHEET METAL SCREW | |
| A 1369950420 | CLAMP | |
| A 1369950135 | CLAMP | |
| Repalced by: A 3449957120 | ||
| A 3449957120 | CLAMP | |
| N 007985006502 | SCREW | |
| N 000127006203 | LOCK WASHER | |
| A 0009972881 | GROMMET | |
| N 072571001023 | CLAMP | |
| N 007981004226 | SHEET METAL SCREW | |
| A 1369950135 | CLAMP | |
| Repalced by: A 3449957120 | ||
| A 3449957120 | CLAMP | |
| N 007971003211 | SHEET METAL SCREW | |
| Repalced by: N 007971003234 | ||
| N 007981003263 | SHEET METAL SCREW | |
| 264 | A 3215400132 | ELECTRIC CABLE |
| N 072571001026 | CLAMP | |
| N 007981004226 | SHEET METAL SCREW | |
| 266 | A 0009954801 | CLAMP |
| Repalced by: N 916016018201 | ||
| 266 | N 916016018201 | CLAMP |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 268 | N 007985005171 | SCREW |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 270 | N 000127005001 | LOCK WASHER |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| A 3505017139 | VALVE | |
| A 3215409927 | ELECTRIC CABLE | |
| N 072571001011 | CLAMP | |
| Repalced by: N 072571001028 | ||
| N 072571001028 | CLAMP | |
| N 072571001024 | CLAMP | |
| N 007971003211 | SHEET METAL SCREW | |
| Repalced by: N 007971003234 | ||
| N 007981003263 | SHEET METAL SCREW | |

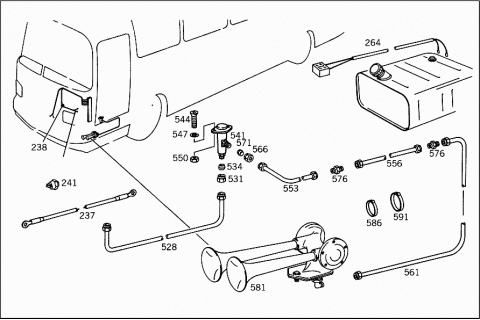

| 275 | A 3215400338 | ELECTRIC CABLE |
| Repalced by: A 3225400239 | ||
| 275 | A 3225400239 | ELECTRIC CABLE |
| N 072571001011 | CLAMP | |
| Repalced by: N 072571001028 | ||
| N 072571001028 | CLAMP | |
| N 007981004226 | SHEET METAL SCREW | |
| N 000933010174 | SCREW | |
| N 000125010517 | WASHER | |
| N 000127010202 | LOCK WASHER | |
| N 913004010004 | NUT | |

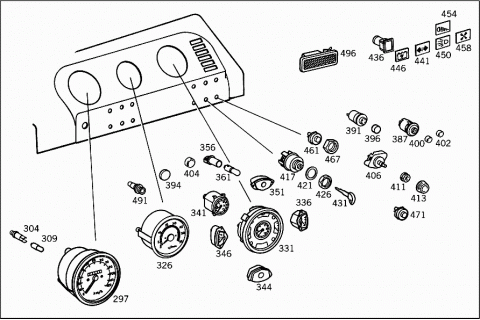

| 297 | A 0035421306 | SPEEDOMETER |
| A 0035421406 | SPEEDOMETER | |
| Repalced by: A 3215420106 | ||
| H 980005420106 | SPEEDOMETER | |
| Repalced by: A 3215420106 | ||
| A 3215420106 | SPEEDOMETER | |
| A 3445427106 | SPEEDOMETER | |
| 304 | A 0005450019 | SOCKET |
| Repalced by: A 3455440093 | ||
| 304 | A 3455440093 | LAMP SOCKET |
| 309 | N 072601012800 | BULB |
| 12V/2W | ||

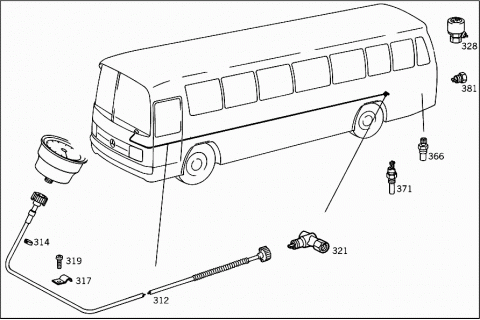

| 312 | A 0035423807 | FLEXIBLE SHAFT |
| 314 | N 900264005502 | LOOM TIE |
| 317 | N 072571001014 | CLAMP |
| 319 | N 007981004226 | SHEET METAL SCREW |
| 321 | A 0005424730 | ANGLE DRIVE |
| Repalced by: A 3455420930 | ||
| 321 | A 3455420930 | ANGLE DRIVE |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 000 542 47 30 | ||
| A 0005428630 | ANGLE DRIVE | |
| Repalced by: A 3455421730 | ||
| A 3455421730 | ANGLE DRIVE | |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 000 542 86 30 | ||
| 326 | A 0005424816 | TACHOMETER |
| 326 | A 3455420016 | TACHOMETER |
| 328 | A 0015422417 | SENDER UNIT |
| TO 000 542 48 16 | ||
| A 3455420017 | SENDER UNIT | |
| TO 345 542 00 16 | ||
| 331 | H 980005400347 | INSTRUMENT CLUSTER |
| Repalced by: A 3455407547 | ||
| 331 | A 3455407547 | INSTRUMENT CLUSTER |
| 331 | A 3455407147 | INSTRUMENT CLUSTER |
| 336 | H 983455420005 | TEMPERATURE GAUGE |
| TO 345 540 75 47 | ||
| A 3455427005 | TEMPERATURE GAUGE | |
| TO 345 540 71 47 | ||
| 341 | H 983455420008 | AIR PRESSURE GAUGE |
| A 3455427008 | AIR PRESSURE GAUGE | |
| TO 345 540 71 47 | ||
| A 3445427108 | AIR PRESSURE GAUGE | |
| TO 345 540 75 47 | ||
| 344 | H 983455420002 | OIL PRESSURE GAUGE |
| 346 | H 983455420003 | FUEL GAUGE DASH UNIT |
| TO 345 540 75 47 | ||
| A 3455427003 | FUEL GAUGE DASH UNIT | |
| TO 345 540 71 47 | ||
| 351 | H 983455420032 | OIL PRESSURE GAUGE |
| 356 | A 0005450019 | SOCKET |
| Repalced by: A 3455440093 | ||
| 356 | A 3455440093 | LAMP SOCKET |
| TO 345 540 75 47 | ||
| A 0005450119 | SOCKET | |
| Repalced by: A 3455440193 | ||
| A 3455440193 | LAMP SOCKET | |
| 361 | N 072601012800 | BULB |
| 12V/2 W | ||
| 366 | A 0025425917 | SENDER UNIT |
| TEMPERATURE | ||
| 366 | A 0015422317 | SENDER UNIT |
| Repalced by: A 3455427717 | ||
| 366 | A 3455427717 | SENDER UNIT |
| TEMPERATURE | ||
| 366 | A 3455427417 | SENDER UNIT |
| TEMPERATURE | ||
| 366 | A 3455427517 | SENDER UNIT |
| TEMPERATURE | ||
| 371 | A 0025456324 | SWITCH,AUTOMATIC |
| 371 | A 3455457324 | SWITCH,AUTOMATIC |
| Repalced by: A 3455457824 | ||
| 371 | A 3455457824 | SWITCH,AUTOMATIC |
| 371 | A 3455458224 | SWITCH,AUTOMATIC |
| 376 | A 0015424917 | SENDER UNIT |
| Repalced by: A 0045428917 | ||
| 376 | A 0045428917 | SENDER UNIT |
| OIL PRESSURE GAUGE | ||
| 376 | A 3455427317 | SENDER UNIT |
| OIL PRESSURE GAUGE | ||
| A 0015426917 | SENDER UNIT | |
| Repalced by: A 0015427017 | ||
| A 0015427017 | SENDER UNIT | |
| OIL PRESSURE | ||
| A 3455427117 | SENDER UNIT | |
| OIL PRESSURE | ||
| 381 | A 0005455414 | SWITCH |
| 381 | A 3445457214 | SWITCH |
| 387 | A 0005459211 | SWITCH |
| PANE WIPER | ||
| 391 | A 0005459111 | SWITCH |
| CAB LAMP | ||
| A 0005459311 | SWITCH | |
| PANE WIPER | ||
| 394 | A 3099870144 | EXPANSION PLUG |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 396 | A 0005451883 | CAP |
| Repalced by: A 3445451283 | ||
| 396 | A 3445451283 | CAP |
| INTERIOR LIGHTING | ||
| A 0005451783 | CAP | |
| Repalced by: A 3445451183 | ||
| A 3445451183 | CAP | |
| FAN | ||
| 400 | A 0005451483 | CAP |
| Repalced by: A 3445450883 | ||
| 400 | A 3445450883 | CAP |
| WINDSHIELD WIPER O F F O N | ||
| 402 | A 0005451583 | CAP |
| Repalced by: A 3445450983 | ||
| 402 | A 3445450983 | CAP |
| WINDSHIELD WIPER,"SLOW-FAST" | ||
| 404 | H 983215450183 | CAP |
| Repalced by: A 3445450183 | ||
| 404 | A 3445450183 | CAP |
| SIGN BOX | ||
| 406 | A 0005422125 | POTENTIOMETER |
| 411 | A 0005450372 | NUT |
| 413 | A 0005421189 | KNOB |
| 417 | A 0005451213 | SWITCH BOX |
| 417 | A 3455457013 | SWITCH BOX |
| 417 | A 3455457113 | SWITCH BOX |
| 421 | A 0445450176 | WASHER |
| 426 | A 0445450072 | NUT |
| 431 | A 0005451235 | KEY |
| 431 | A 3455457035 | KEY |
| 431 | A 3455457135 | KEY |
| 436 | A 0015450615 | TELL-TALE LAMP |
| Repalced by: A 3455457015 | ||
| 436 | A 3455457015 | TELL-TALE LAMP |
| LESS LENS | ||
| 441 | A 0005451290 | LENS |
| BLINKER LIGHT | ||
| 446 | A 0005450190 | LENS |
| CHARGE CONTROL | ||
| 450 | A 0005451190 | LENS |
| HIGH BEAM | ||
| 454 | A 0005451790 | LENS |
| PARKING BRAKE | ||
| 458 | A 0005452490 | LENS |
| FAN | ||
| 461 | A 0455450314 | SWITCH |
| Repalced by: A 3215450114 | ||
| 461 | A 3215450114 | SWITCH |
| STARTING MOTOR | ||
| 461 | A 3455457314 | SWITCH |
| STARTING MOTOR | ||
| 467 | A 0089901451 | NUT |
| 471 | A 0455450414 | SWITCH |
| Repalced by: A 3215450214 | ||
| 471 | A 3215450214 | SWITCH |
| A 0089901451 | NUT | |
| 491 | A 0005450525 | PLUG SOCKET |
| Repalced by: A 3445457125 | ||
| 491 | A 3445457125 | PLUG SOCKET |
| HAND LAMP | ||
| N 006797019101 | TOOTHED WASHER | |
| PLUG SOCKET | ||
| 496 | A 0005421023 | BUZZER |
| Repalced by: A 3455427023 | ||
| 496 | A 3455427023 | BUZZER |
| 503 | A 0025453524 | SWITCH,AUTOMATIC |
| Repalced by: A 0035458124 | ||
| 503 | A 0035458124 | SWITCH,AUTOMATIC |
| Repalced by: A 3455457124 | ||
| 503 | A 3455457124 | SWITCH,AUTOMATIC |
| 503 | A 3455457424 | SWITCH,AUTOMATIC |
| 507 | A 0005452637 | BUTTON |
| N 000091004141 | SCREW | |
| 511 | N 000965005122 | SCREW |
| 519 | A 3219950421 | CLAMP |
| 522 | N 007985005183 | SCREW |
| 525 | N 000127005001 | LOCK WASHER |
| A 3445400861 | ELECTRIC CABLE | |
| FROM DISTRIBUTOR TO VALVE | ||
| 6X0.7 MM | ||
| 528 | A 3445407162 | ELECTRIC CABLE |
| FROM DISTRIBUTOR TO VALVE | ||
| 531 | N 915017006100 | UNION NUT |
| 534 | N 003861006007 | GLAND |
| 541 | A 3215420028 | VALVE |
| AIR HORN | ||
| 544 | N 000963006037 | SCREW |
| VALVE TO FLOOR | ||
| 547 | N 000127006203 | LOCK WASHER |
| VALVE TO FLOOR | ||
| 550 | N 000934006006 | NUT |
| VALVE TO FLOOR | ||
| 553 | A 3445401061 | ELECTRIC CABLE |
| FROM VALVE TO CONNECTION FITTING | ||
| 6X0.7 MM | ||
| 556 | A 3445401161 | ELECTRIC CABLE |
| FROM AIR RESERVOIR T-FITTING TO T-FITTING | ||
| 6X0.7 MM | ||
| 561 | A 3445401261 | ELECTRIC CABLE |
| AIR HORN | ||
| 6X0.7 MM | ||
| 566 | N 915017006100 | UNION NUT |
| 571 | N 003861006007 | GLAND |
| 576 | N 003902006001 | CONNECTION FITTING |
| 581 | A 3215420021 | AIR HORN |
| Repalced by: A 3445427021 | ||
| 581 | A 3445427021 | AIR HORN |
| Repalced by: A 3645427021 | ||
| 581 | A 3645427021 | AIR HORN |
| 586 | N 900264009526 | LOOM TIE |
| 591 | N 900262009100 | LOOM TIE |
| A 3454297132 | T-FITTING | |
| A 0009901070 | T-FITTING | |
| M14X1,5 / M14X1,5 / M12X1,5 | ||
| A 3084299401 | LINE | |
| 6X0.7 MM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
