Transporto priemonė: O 362; VIN numerio dalis: 321427

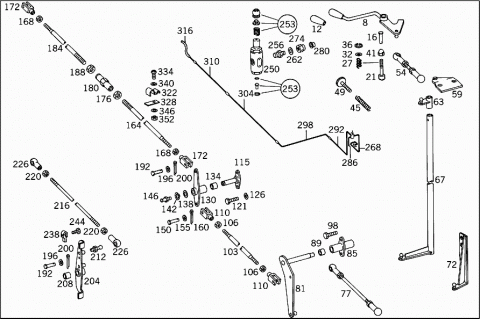

Grupė: 43 EXHAUST BRAKE

#	Kodas	Pavadinimas
008	A 0214300052	LEVER
	N 071803010209	BALL PIVOT
012	A 1862680040	KNOB
012	A 0442680040	BRACKET
016	A 0214340074	PIN
021	A 3124341133	SET SCREW
027	A 3129935201	SPRING
032	A 3129903740	WASHER
036	N 000472016000	LOCK RING
041	N 001587008005	CAP NUT
045	A 1829930601	SPRING
049	A 3224300071	SCREW
049	A 3454307071	SCREW
054	A 0214300092	ROD
	N 000934006006	NUT
	N 071805010202	BALL SOCKET
	N 071805010402	CIRCLIP
059	A 0214300010	BRACKET
	N 000933008036	SCREW
	N 912004008100	LOCK WASHER
	N 000934008010	NUT
063	A 0214300124	LEVER
	A 3124341023	GUIDE
	N 071803010209	BALL PIVOT
067	A 0214300021	GUIDE TUBE
	N 071803010209	BALL PIVOT
	N 000934008010	NUT
	N 001481006023	CLAMPING SLEEVE
072	A 0214300110	BRACKET
	N 000961012155	SCREW
	N 000127012201	LOCK WASHER
077	A 0214300192	ROD
	N 000934006006	NUT
	N 071805010202	BALL SOCKET
	N 071805010402	CIRCLIP
081	A 0214300224	LEVER
	N 071803010209	BALL PIVOT
085	A 3214300138	BEARING
089	A 3213010150	BUSHING
	N 071412008300	GREASE NIPPLE
	A 3459977288	GREASE NIPPLE
	N 000934010007	NUT
	Repalced by: N 000934010009
	N 000934010009	NUT
	N 000125010517	WASHER
	N 000127010202	LOCK WASHER
098	N 000933008282	SCREW
	N 912004008100	LOCK WASHER
103	A 3214340322	ROD
106	N 000934006006	NUT
110	N 071752006001	YOKE
115	A 3214300082	PIN
121	N 000933008282	SCREW
126	N 912004008100	LOCK WASHER
130	A 3214300524	LEVER
134	A 3213010150	BUSHING
138	A 3129901340	WASHER
142	N 000471014000	LOCK RING
146	N 071412010100	GREASE NIPPLE
150	A 3219910005	PIN
155	N 000137006203	PART NAME MISSING
160	N 000094001203	COTTER PIN
164	A 3214340522	ROD
168	N 000934006006	NUT
172	N 071752006001	YOKE
176	N 000934008000	NUT
180	A 1362930033	NUT
184	A 3214340222	ROD
188	N 000934008004	NUT
192	A 3219910005	PIN
196	N 000137006203	PART NAME MISSING
200	N 000094001203	COTTER PIN
204	A 3214300135	LEVER
208	A 3213010150	BUSHING
212	N 071803010209	BALL PIVOT
216	N 900331006031	PULL ROD
220	N 000934006006	NUT
226	N 071805010202	BALL SOCKET
	N 071805010402	CIRCLIP
238	A 3214340232	CLAMPING PIECE
244	N 000933006220	SCREW
250	A 3214340001	VALVE
	Repalced by: A 3454347001
250	A 0004340501	VALVE
	Repalced by: A 3454347001
250	A 3454347001	VALVE
		"WABCO DO BRASIL"
250	A 0004342901	VALVE
		"KNORR"
	A 0004350590	VALVE DISC
		TO 321 434 00 01
	A 0004340359	SEAL RING
		TO 321 434 00 01
	A 0009971977	HANDLE
		TO 000 434 23 01
	A 0004340586	CUP
		TO 000 434 23 01
	A 0004317387	PROTECTIVE CAP
		TO 000 434 05 01,345 434 70 01
	A 0109970948	SEAL RING
		TO 000 434 29 01
	A 0109971048	SEAL RING
		TO 000 434 29 01
	A 0109971148	SEAL RING
		TO 000 434 29 01
	A 0109971248	SEAL RING
		TO 000 434 29 01
	A 0079972448	SEAL RING
		TO 000 434 23 01
	A 0079972548	SEAL RING
		TO 000 434 23 01
253	H 983455860943	REPAIR KIT
	Repalced by: A 0034301281
253	A 0034301281	REPAIR KIT
		SMALL SCOPE
		TO 000 434 05 01,345 434 70 01
253	A 0005869743	REPAIR KIT
		LARGE SCOPE
		TO 000 434 05 01,345 434 70 01
253	A 0014301360	REPAIR KIT
	Repalced by: A 0004304106
253	A 0004304106	REPAIR KIT
		LARGE SCOPE
		TO 000 434 29 01
253	A 0014301460	REPAIR KIT
		SMALL SCOPE
		TO 000 434 29 01
	A 0025869843	REPAIR KIT
		TO 000 434 23 01
256	A 3454298136	CONNECTOR
	Repalced by: A 3454297438
256	A 3454297438	ELBOW FITTING
	N 074305026202	NUT
262	N 007603012112	SEAL RING
268	H 983214203626	LINE
		FROM T-FITTING TO OPERATING VALVE
		6X0.7 MM
	A 3444208836	LINE
		FROM T-FITTING TO OPERATING VALVE
		6X0.7 MM
274	N 915017006100	UNION NUT
280	N 003861006007	GLAND
286	H 983214204126	LINE
		6X0.7 MM
	H 983214206026	LINE
	Repalced by: A 3214204345
	A 3214204345	LINE
		EXHAUST BRAKE CYLINDER
		6X0.7 MM
292	H 983214204026	LINE
		6X0.7 MM
	A 3444208936	LINE
		FROM OPERATING VALVE TO CONNECTION FITTING
		6X0.7 MM
298	H 983214203926	LINE
	Repalced by: A 3214204926
298	A 3214204926	LINE
		FROM CONNECTION FITTING I TO CONNECTION FITTING II
		6X0.7 MM
304	H 983214203826	LINE
	Repalced by: A 3214205026
304	A 3214205026	LINE
		FROM CONNECTION FITTING II TO CONNECTION FITTING III
		6X0.7 MM
310	H 983214203726	LINE
		6X0.7 MM
	H 983444204826	LINE
		6X0.7 MM
316	A 3444202426	LINE
		6X0.7 MM
	N 915017006100	UNION NUT
	N 003861006007	GLAND
	N 003902006001	CONNECTION FITTING
	N 003902006001	CONNECTION FITTING
	Repalced by: A 3454298136
	A 3454298136	CONNECTOR
	N 007603012112	SEAL RING
322	A 3444290240	CLAMP
328	A 3444290340	BRACKET
334	N 007985005171	SCREW
340	N 000127005001	LOCK WASHER
346	N 000125005315	WASHER
352	N 000934005008	NUT
	A 3084299401	LINE
		6X0.7 MM
