Transporto priemonė: O 362; VIN numerio dalis: 321427

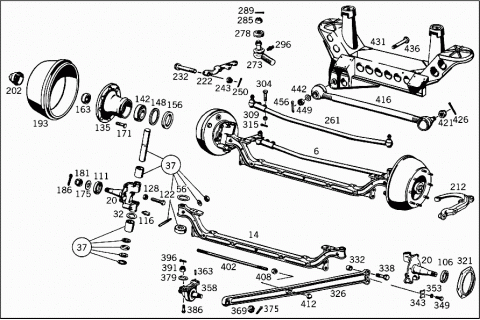

Grupė: 33 FRONT AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | H 983213300300 | FRONT AXLE |
| 014 | A 0443310401 | FRONT AXLE BEAM |
| Repalced by: A 3443310101 | ||
| 014 | A 3443310101 | FRONT AXLE BEAM |
| 020 | A 3443300020 | STEERING KNUCKLE |
| Repalced by: A 3443300120 | ||
| 020 | A 3443300120 | STEERING KNUCKLE |
| 032 | A 0029979945 | SEAL RING |
| A 0029979945 | SEAL RING | |
| Repalced by: A 0089977646 | ||
| A 0089977646 | SEAL RING | |
| 037 | A 0455860033 | REPAIR KIT |
| Repalced by: A 3455867033 | ||
| 037 | A 3455867033 | REPAIR KIT |
| Repalced by: A 3763300019 | ||
| 037 | A 3763300019 | KING PIN |
| PARTS KIT,STANDARD | ||
| 36.6 MM | ||
| A 0455860133 | REPAIR KIT | |
| Repalced by: A 3455867133 | ||
| A 3455867133 | REPAIR KIT | |
| Repalced by: A 3763300119 | ||
| A 3763300119 | KING PIN | |
| PARTS KIT,STANDARD SIZE I | ||
| 36,9 MM | ||
| A 0455860233 | REPAIR KIT | |
| Repalced by: A 3455867233 | ||
| A 3455867233 | REPAIR KIT | |
| Repalced by: A 3763300219 | ||
| A 3763300219 | KING PIN | |
| PARTS KIT,REPAIR SIZE I | ||
| 37.2 MM | ||
| A 0455860333 | REPAIR KIT | |
| REPAIR SIZE II | ||
| 37.5 MM | ||
| 056 | A 3403320152 | SPACER WASHER |
| 1.0 MM | ||
| A 3403320252 | SPACER WASHER | |
| 1.1 MM | ||
| A 3403320352 | SPACER WASHER | |
| 1.2 MM | ||
| A 3403320452 | SPACER WASHER | |
| 1.3 MM | ||
| A 3403320552 | SPACER WASHER | |
| 1.4 MM | ||
| A 3403320652 | SPACER WASHER | |
| 1.5 MM | ||
| A 3403320752 | SPACER WASHER | |
| 1.6 MM | ||
| A 3403320852 | SPACER WASHER | |
| 1.7 MM | ||
| A 3403320952 | SPACER WASHER | |
| 1.8 MM | ||
| A 3403321052 | SPACER WASHER | |
| 1.9 MM | ||
| A 3403321152 | SPACER WASHER | |
| 2.0 MM | ||
| A 3403321252 | SPACER WASHER | |
| 2.1 MM | ||
| 106 | A 3603340115 | RING |
| Repalced by: A 3453340015 | ||
| 111 | A 3603340215 | RING |
| Repalced by: A 3453340015 | ||
| 111 | A 3453340015 | RING |
| FRONT WHEEL HUB,INSIDE,LEFT | ||
| N 071412010100 | GREASE NIPPLE | |
| OUTSIDE | ||
| 116 | N 071412010200 | GREASE NIPPLE |
| INSIDE | ||
| 122 | A 3409900601 | SCREW |
| STEERING KNUCKLE STOP | ||
| TO 344 330 00 20 | ||
| 122 | A 3873320071 | SCREW |
| STEERING KNUCKLE STOP | ||
| TO 344 330 01 20 | ||
| 128 | A 3403370072 | NUT |
| STEERING KNUCKLE STOP | ||
| TO 344 330 00 20 | ||
| 128 | N 000934016003 | NUT |
| STEERING KNUCKLE STOP | ||
| TO 344 330 01 20 | ||
| N 915042011000 | PLUG | |
| STEERING KNUCKLE STOP | ||
| TO 344 330 00 20 | ||
| N 915042015000 | PLUG | |
| STEERING KNUCKLE STOP | ||
| TO 344 330 01 20 | ||
| 135 | A 3453340001 | WHEEL HUB |
| 142 | A 0009808802 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 142 | A 0039816005 | TAPERED ROLLER BEARING |
| 142 | A 0039816205 | TAPERED ROLLER BEARING |
| 148 | A 3523340051 | SPACER RING |
| 156 | A 0069979846 | SEAL RING |
| 163 | A 0009819605 | TAPERED ROLLER BEARING |
| Repalced by: A 0049813405 | ||
| 163 | A 0009819605 | TAPERED ROLLER BEARING |
| Repalced by: A 0049813805 | ||
| 163 | A 0019815605 | TAPERED ROLLER BEARING |
| Repalced by: A 0049813405 | ||
| 163 | A 0019815605 | TAPERED ROLLER BEARING |
| Repalced by: A 0049813805 | ||
| 163 | A 0039816405 | TAPERED ROLLER BEARING |
| Repalced by: A 0049813405 | ||
| 163 | A 0039816405 | TAPERED ROLLER BEARING |
| Repalced by: A 0049813805 | ||
| 163 | A 0049813405 | TAPERED ROLLER BEARING |
| 163 | A 0049813805 | TAPERED ROLLER BEARING |
| 171 | A 3174010571 | WHEEL MOUNTING BOLT |
| Repalced by: A 3174010471 | ||
| 171 | A 3174010471 | WHEEL MOUNTING BOLT |
| A 3764000074 | PIN | |
| (PARTS KIT),WHEEL MOUNTING; WHEEL OPENING: | ||
| 30 MM | ||
| A 3764000574 | PIN | |
| (PARTS KIT),WHEEL MOUNTING; WHEEL OPENING: | ||
| 27 MM | ||
| 175 | A 3273321662 | THRUST WASHER |
| 181 | N 000937032000 | NUT |
| 186 | N 000094006317 | COTTER PIN |
| 193 | A 3544210101 | BRAKE DRUM |
| Repalced by: A 3544210301 | ||
| 193 | A 3544210301 | BRAKE DRUM |
| STANDARD | ||
| A 3454217301 | BRAKE DRUM | |
| REPAIR SIZE I | ||
| 202 | A 0453340025 | HUB CAP |
| Repalced by: A 3443347025 | ||
| 202 | A 3443347025 | HUB CAP |
| A 0213380108 | STEERING ARM | |
| Repalced by: A 3443380007 | ||
| A 3443380007 | STEERING ARM | |
| Repalced by: A 3443380207 | ||
| 212 | A 3443380207 | STEERING ARM |
| LEFT | ||
| A 0213380106 | STEERING ARM | |
| Repalced by: A 3443380006 | ||
| A 3443380006 | STEERING ARM | |
| Repalced by: A 3443380206 | ||
| 222 | A 3443380206 | STEERING ARM |
| RIGHT | ||
| 232 | A 3023320371 | SCREW |
| H 983443320071 | SCREW | |
| Repalced by: A 3213320271 | ||
| A 3213320271 | SCREW | |
| 243 | N 000935018001 | NUT |
| 250 | N 000094004065 | COTTER PIN |
| 261 | H 983443300403 | TIE ROD |
| Repalced by: A 3643307003 | ||
| 261 | A 3643307003 | TIE ROD |
| Repalced by: A 3643307403 | ||
| 261 | A 3643307403 | TIE ROD |
| "NAKATA" | ||
| 261 | A 3643307103 | TIE ROD |
| Repalced by: A 3643307303 | ||
| 261 | A 3643307303 | TIE ROD |
| "THOMSON" | ||
| 273 | H 983213380029 | BALL SOCKET HEAD |
| Repalced by: A 3503307035 | ||
| 273 | A 3503307035 | JOINT |
| TO 364 330 70 03 | ||
| A 3643307135 | JOINT | |
| TO 364 330 71 03 | ||
| A 3503387058 | SEAL HOLDER | |
| TO 364 330 70 03 | ||
| 278 | H 983213380056 | DUST CAP |
| Repalced by: A 3503387056 | ||
| 278 | A 3443387097 | BOOT |
| Repalced by: A 3503387056 | ||
| 278 | A 3503387056 | DUST CAP |
| TO 98 344 330 04 03,364 330 70 03 | ||
| A 3503387097 | BOOT | |
| TO 364 330 70 03 | ||
| A 3643307085 | BOOT | |
| TO 364 330 71 03 | ||
| 285 | N 000937020000 | NUT |
| 289 | N 000094004065 | COTTER PIN |
| 296 | N 071412010100 | GREASE NIPPLE |
| TO 98 344 330 04 03 | ||
| A 0449950044 | CLAMP | |
| Repalced by: G 983213380045 | ||
| H 983213380045 | CLAMP | |
| TO 98 344 330 04 03 | ||
| A 3503387045 | CLAMP | |
| TO 364 330 70 03 | ||
| 304 | N 000961012075 | SCREW |
| 309 | N 000935012003 | NUT |
| 315 | N 000094003030 | COTTER PIN |
| 321 | A 3533340282 | OIL COLLECTOR |
| 326 | A 3213310112 | STRUT |
| 332 | A 3213310050 | BUSHING |
| STRUT TO FRONT AXLE BEAM | ||
| 338 | A 3219901001 | SCREW |
| STRUT TO FRONT AXLE BEAM | ||
| 343 | A 3213310273 | LOCK |
| STRUT TO FRONT AXLE BEAM | ||
| 349 | N 000933010294 | SCREW |
| LOCK TO STRUT | ||
| 353 | N 000127010202 | LOCK WASHER |
| LOCK TO STRUT | ||
| 358 | A 3443300043 | BEARING BRACKET |
| STRUT | ||
| A 3643337064 | RUBBER RING | |
| 363 | N 001472010006 | GROOVED PIN |
| 369 | N 000937028000 | NUT |
| STRUT TO BEARING BRACKET | ||
| 375 | N 000094005016 | COTTER PIN |
| STRUT TO BEARING BRACKET | ||
| 379 | A 3443310093 | SHIM |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 386 | N 000960016036 | SCREW |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 391 | N 000935016002 | NUT |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 396 | N 000094004056 | COTTER PIN |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 402 | A 3213310054 | PIPE |
| STRUT | ||
| 408 | N 000934020002 | NUT |
| TUBE TO STRUT | ||
| 412 | N 001587020000 | CAP NUT |
| TUBE TO STRUT | ||
| 416 | A 3213300407 | TRANSVERSE CONTROL ARM |
| Repalced by: A 3443307007 | ||
| 416 | A 3443307007 | TRANSVERSE CONTROL ARM |
| 421 | N 000937028000 | NUT |
| CONTROL ARM TO FRONT AXLE | ||
| 426 | N 000094005016 | COTTER PIN |
| CONTROL ARM TO FRONT AXLE | ||
| 431 | A 3443300104 | AXLE CASING |
| 436 | A 3213330030 | PIN |
| CONTROL ARM TO AXLE CASING | ||
| 442 | N 000125027002 | WASHER |
| CONTROL ARM TO AXLE CASING | ||
| 449 | N 000937026000 | NUT |
| CONTROL ARM TO AXLE CASING | ||
| 456 | N 000094005016 | COTTER PIN |
| CONTROL ARM TO AXLE CASING | ||
