Transporto priemonė: O 362; VIN numerio dalis: 321427

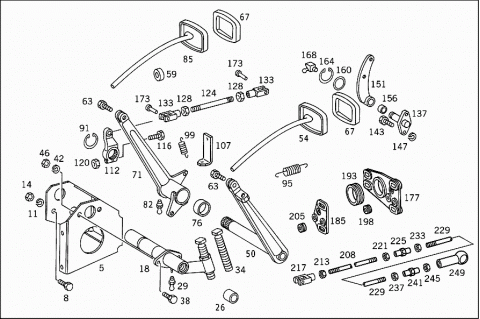

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3442900219 | BEARING BRACKET |
| 008 | N 000933010174 | SCREW |
| N 000933010174 | SCREW | |
| 011 | N 000127010202 | LOCK WASHER |
| 014 | N 000934010000 | NUT |
| 018 | A 0442900220 | BEARING |
| Repalced by: G 983212900020 | ||
| H 983212900020 | BEARING | |
| Repalced by: A 3212900620 | ||
| A 3212900620 | BEARING | |
| 026 | A 3122940150 | BUSHING |
| 029 | N 071412010200 | GREASE NIPPLE |
| 034 | A 3049900022 | SCREW |
| N 000439018201 | NUT | |
| 038 | N 000933008282 | SCREW |
| 042 | N 912004008100 | LOCK WASHER |
| 046 | N 000934008000 | NUT |
| 050 | A 3442900416 | PEDAL |
| 054 | A 3442900024 | PEDAL PLATE |
| H 983212900024 | PEDAL PLATE | |
| Repalced by: A 3442907024 | ||
| A 3442907024 | PEDAL PLATE | |
| 059 | A 3122911097 | SEAL WASHER |
| 063 | N 000933010174 | SCREW |
| 067 | A 3202925082 | PAD |
| 071 | A 3212900718 | PEDAL |
| 076 | A 3122911550 | BUSHING |
| 082 | N 071412010100 | GREASE NIPPLE |
| 085 | A 0442900124 | PEDAL PLATE |
| Repalced by: A 3442900124 | ||
| 085 | A 3442900124 | PEDAL PLATE |
| 091 | N 000471040002 | LOCK RING |
| N 000988040001 | FITTED WASHER | |
| 095 | A 3049931210 | SPRING |
| A 3529931110 | SPRING | |
| Repalced by: A 3649937310 | ||
| A 3649937310 | SPRING | |
| CLUTCH PEDAL | ||
| N 001434010009 | PIN | |
| N 000094003027 | COTTER PIN | |
| 099 | A 3129931510 | SPRING |
| Repalced by: A 3649937010 | ||
| 099 | A 3649937010 | SPRING |
| 107 | A 3212920740 | BRACKET |
| 112 | A 3212930010 | LEVER |
| A 3442930310 | LEVER | |
| 116 | N 000933008279 | SCREW |
| 120 | N 000934008000 | NUT |
| 124 | N 900331008028 | PULL ROD |
| N 900331010324 | PULL ROD | |
| 128 | N 000934008000 | NUT |
| N 000934010000 | NUT | |
| 133 | N 071752008001 | YOKE |
| N 071752010002 | YOKE | |
| Repalced by: A 0009961501 | ||
| A 0009961501 | YOKE | |
| 137 | A 3212900031 | PIVOT PIN |
| A 3212900074 | PIN | |
| 143 | N 000933008282 | SCREW |
| PIVOT PIN TO SUBSTRUCTURE | ||
| 147 | N 912004008100 | LOCK WASHER |
| PIVOT PIN TO SUBSTRUCTURE | ||
| N 000934008000 | NUT | |
| PIVOT PIN TO SUBSTRUCTURE | ||
| 151 | A 0442901227 | LEVER |
| H 983212900027 | LEVER | |
| Repalced by: A 3212900634 | ||
| A 3212900634 | LEVER | |
| 156 | A 3213010050 | BUSHING |
| 160 | A 3219900040 | WASHER |
| 164 | N 000471020000 | LOCK RING |
| 168 | N 071412010300 | GREASE NIPPLE |
| 173 | N 001434008109 | PIN |
| N 001434010006 | PIN | |
| Repalced by: N 001434010009 | ||
| N 001434010009 | PIN | |
| N 000433008403 | WASHER | |
| N 000433010500 | WASHER | |
| N 900055010001 | SPRING WASHER | |
| N 000094002059 | COTTER PIN | |
| N 000094003027 | COTTER PIN | |
| 177 | A 0212900037 | BEARING |
| H 983212900437 | BEARING | |
| Repalced by: A 3212902937 | ||
| A 3212902937 | BEARING | |
| H 983212900137 | BEARING | |
| Repalced by: A 3212903037 | ||
| A 3212903037 | BEARING | |
| 185 | A 0212900137 | BEARING |
| H 983212900537 | BEARING | |
| Repalced by: A 3212903137 | ||
| A 3212903137 | BEARING | |
| H 983212900337 | BEARING | |
| Repalced by: A 3212903237 | ||
| A 3212903237 | BEARING | |
| A 3212680850 | BUSHING | |
| 193 | A 3022680050 | BUSHING |
| 198 | A 3173010085 | RUBBER BUFFER |
| 205 | A 3172910085 | BUSHING |
| A 3442910085 | BUSHING | |
| N 000933008282 | SCREW | |
| N 000125008417 | WASHER | |
| N 912004008100 | LOCK WASHER | |
| N 000934008000 | NUT | |
| 208 | N 900331008253 | PULL ROD |
| N 900331010325 | PULL ROD | |
| 213 | N 000934008000 | NUT |
| N 000934010000 | NUT | |
| 217 | N 071752008001 | YOKE |
| N 071752010002 | YOKE | |
| Repalced by: A 0009961501 | ||
| A 0009961501 | YOKE | |
| 221 | N 000934008004 | NUT |
| N 000934010035 | NUT | |
| 225 | A 1362930033 | NUT |
| H 983212930033 | NUT | |
| Repalced by: A 3212930033 | ||
| A 3212930033 | NUT | |
| 229 | N 900331008105 | PULL ROD |
| N 900331010409 | PULL ROD | |
| N 900331008251 | PULL ROD | |
| N 900331010328 | PULL ROD | |
| 233 | N 000934008000 | NUT |
| N 000934010000 | NUT | |
| 237 | N 000934008004 | NUT |
| N 000934010035 | NUT | |
| 241 | A 1362930033 | NUT |
| H 983212930033 | NUT | |
| Repalced by: A 3212930033 | ||
| A 3212930033 | NUT | |
| 245 | N 000934008000 | NUT |
| N 000934010000 | NUT | |
| 249 | A 3129901038 | SCREW |
| A 0459900038 | SCREW | |
| Repalced by: A 3459900038 | ||
| A 3459900038 | SCREW | |
| N 001434008002 | PIN | |
| PULL RODS TO LEVER AND TO RELEASE YOKE | ||
| N 001434008109 | PIN | |
| PULL RODS TO LEVER AND TO RELEASE YOKE | ||
| N 001434010006 | PIN | |
| Repalced by: N 001434010009 | ||
| N 001434010009 | PIN | |
| PULL RODS TO LEVER AND TO RELEASE YOKE | ||
| N 000433008403 | WASHER | |
| PULL RODS TO LEVER AND TO RELEASE YOKE | ||
| N 900055010001 | SPRING WASHER | |
| PULL RODS TO LEVER AND TO RELEASE YOKE | ||
| N 000433010500 | WASHER | |
| PULL RODS TO LEVER AND TO RELEASE YOKE | ||
| N 000094002059 | COTTER PIN | |
| PULL RODS TO LEVER AND TO RELEASE YOKE | ||
| N 000094003027 | COTTER PIN | |
| PULL RODS TO LEVER AND TO RELEASE YOKE | ||
| A 0212900025 | LEVER | |
| CLUTCH PULL ROD | ||
| H 983212900327 | LEVER | |
| Repalced by: A 3212900734 | ||
| A 3212900734 | LEVER | |
| CLUTCH PULL ROD | ||
| A 3213010050 | BUSHING | |
| A 3212900074 | PIN | |
| N 000933008282 | SCREW | |
| PIN TO CHASSIS | ||
| N 912004008100 | LOCK WASHER | |
| PIN TO CHASSIS | ||
| N 000934008000 | NUT | |
| PIN TO CHASSIS | ||
| A 3219900040 | WASHER | |
| PIN TO INTERMEDIATE LEVER | ||
| N 000471020000 | LOCK RING | |
| PIN TO INTERMEDIATE LEVER | ||
| N 071412010300 | GREASE NIPPLE | |
| PIN | ||
| N 900331008225 | PULL ROD | |
| FROM INTERMEDIATE LEVER TO RELEASE YOKE | ||
| N 900331010439 | PULL ROD | |
| FROM INTERMEDIATE LEVER TO RELEASE YOKE | ||
| N 000934008000 | NUT | |
| FROM INTERMEDIATE LEVER TO RELEASE YOKE | ||
| N 000934010000 | NUT | |
| FROM INTERMEDIATE LEVER TO RELEASE YOKE | ||
| N 071752008001 | YOKE | |
| FROM INTERMEDIATE LEVER TO RELEASE YOKE | ||
| N 071752010002 | YOKE | |
| Repalced by: A 0009961501 | ||
| A 0009961501 | YOKE | |
| FROM INTERMEDIATE LEVER TO RELEASE YOKE | ||
| N 000934008004 | NUT | |
| FROM INTERMEDIATE LEVER TO RELEASE YOKE | ||
| N 000934010035 | NUT | |
| FROM INTERMEDIATE LEVER TO RELEASE YOKE | ||
| A 1362930033 | NUT | |
| FROM INTERMEDIATE LEVER TO RELEASE YOKE | ||
| H 983212930033 | NUT | |
| Repalced by: A 3212930033 | ||
| A 3212930033 | NUT | |
| FROM INTERMEDIATE LEVER TO RELEASE YOKE | ||
| N 000934008000 | NUT | |
| FROM INTERMEDIATE LEVER TO RELEASE YOKE | ||
| N 000934010000 | NUT | |
| FROM INTERMEDIATE LEVER TO RELEASE YOKE | ||
| A 3129901038 | SCREW | |
| FROM INTERMEDIATE LEVER TO RELEASE YOKE | ||
| A 0459900038 | SCREW | |
| Repalced by: A 3459900038 | ||
| A 3459900038 | SCREW | |
| FROM INTERMEDIATE LEVER TO RELEASE YOKE | ||
| N 001434008109 | PIN | |
| PULL ROD TO INTERMEDIATE LEVER | ||
| N 001434010006 | PIN | |
| Repalced by: N 001434010009 | ||
| N 001434010009 | PIN | |
| PULL ROD TO INTERMEDIATE LEVER | ||
| N 000433008403 | WASHER | |
| PULL ROD TO INTERMEDIATE LEVER | ||
| N 900055010001 | SPRING WASHER | |
| PULL ROD TO INTERMEDIATE LEVER | ||
| N 000433010500 | WASHER | |
| PULL ROD TO INTERMEDIATE LEVER | ||
| N 000094002059 | COTTER PIN | |
| PULL ROD TO INTERMEDIATE LEVER | ||
| N 000094003027 | COTTER PIN | |
| PULL ROD TO INTERMEDIATE LEVER | ||
| A 3219930010 | SPRING | |
| CLUTCH PULL ROD | ||
| A 3649937110 | SPRING | |
| CLUTCH PULL ROD | ||
