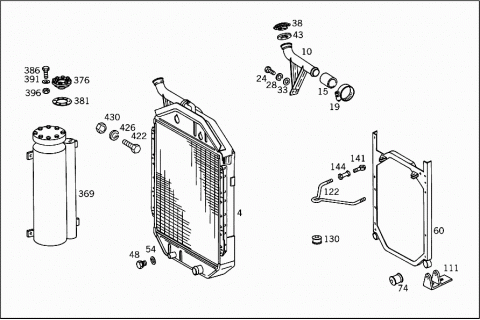

| 004 |
A 0445010201 |
RADIATOR |
| 010 |
A 0215000307 |
FILLER NECK |
| 015 |
A 3179971182 |
HOSE |
| 019 |
A 0019972590 |
LOOM TIE |
| 024 |
N 000933006223 |
SCREW |
| 028 |
N 000127006203 |
LOCK WASHER |
| 033 |
N 009021006103 |
WASHER |
| 038 |
A 3045000306 |
FILLER CAP |
| 043 |
A 3045010260 |
SEAL RING |
| 048 |
N 007604018101 |
SCREW PLUG |
| 054 |
N 915035000001 |
SEAL RING |
| 057 |
A 0455010001 |
RADIATOR |
|
Repalced by: A 3645017101
|
| 057 |
A 3645017101 |
RADIATOR |
| 060 |
H 983215000019 |
FRAME |
| 062 |
A 3215007027 |
SUPPORT |
|
N 000933008282 |
SCREW |
| 066 |
N 000933008228 |
SCREW |
| 068 |
N 912004008100 |
LOCK WASHER |
| 070 |
N 000934008000 |
NUT |
| 074 |
H 103216420074 |
JOINT RUBBER |
|
Repalced by: A 3216420074
|
| 074 |
A 3216420074 |
JOINT RUBBER |
| 079 |
A 0445001527 |
SUPPORT |
|
A 3025000027 |
SUPPORT |
|
A 3445007327 |
SUPPORT |

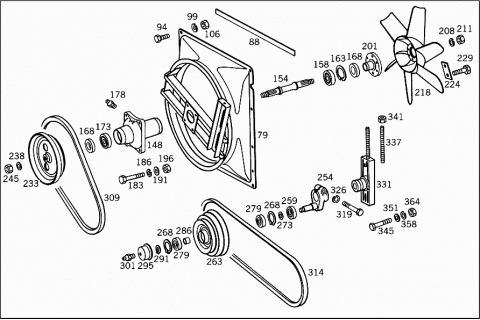

| 088 |
A 3219870014 |
RUBBER STRIP |
|
A 3219870314 |
RUBBER STRIP |
| 094 |
N 000933008228 |
SCREW |
|
N 000933008282 |
SCREW |
|
N 000125008417 |
WASHER |
| 099 |
N 912004008100 |
LOCK WASHER |
| 106 |
N 000934008000 |
NUT |
| 111 |
H 103216400183 |
MOUNTING |
| 115 |
A 3525040640 |
BRACKET |
| 118 |
A 3525040740 |
BRACKET |
|
N 000933008282 |
SCREW |
|
N 000433008403 |
WASHER |
|
N 912004008100 |
LOCK WASHER |
|
N 000934008000 |
NUT |
|
N 000961012209 |
SCREW |
|
N 000127012201 |
LOCK WASHER |
|
N 000934012013 |
NUT |
|
|
M12 X 1,5 MM |
| 122 |
A 0215040039 |
ANGLE |
|
A 3215007045 |
CLAMP |
| 122K |
A 3445007146 |
CLAMP |
| 123 |
N 900333014000 |
TURNBUCKLE |
| 123K |
N 000934014002 |
NUT |
|
|
L.H. THREAD |
| 124 |
N 000934014000 |
NUT |
|
A 3449900023 |
SCREW |
| 124K |
A 3449907123 |
SCREW |
| 125 |
A 3449907223 |
SCREW |
| 125K |
A 3449907323 |
SCREW |
| 126 |
N 000961014106 |
SCREW |
| 126K |
N 000127014201 |
LOCK WASHER |
| 127 |
N 000934014020 |
NUT |
| 127K |
A 3445040153 |
SPACER TUBE |
|
|
CLAMP TO SUBSTRUCTURE |
| 127R |
A 3445040112 |
RUBBER MOUNTING |
|
|
CLAMP TO SUBSTRUCTURE |
| 128 |
N 000961012192 |
SCREW |
|
|
CLAMP TO SUBSTRUCTURE |
| 128K |
N 000127012201 |
LOCK WASHER |
|
|
CLAMP TO SUBSTRUCTURE |
| 128R |
N 000934012004 |
NUT |
|
|
CLAMP TO SUBSTRUCTURE |
| 129 |
N 000961014106 |
SCREW |
|
|
CLAMP TO RADIADOR |
| 129K |
N 000127014201 |
LOCK WASHER |
|
|
CLAMP TO RADIADOR |
| 129R |
N 000934014020 |
NUT |
|
|
CLAMP TO RADIADOR |
| 130 |
H 103216420174 |
JOINT RUBBER |
|
Repalced by: A 3216420174
|
| 130 |
A 3216420174 |
JOINT RUBBER |
| 134 |
A 3028880224 |
MOUNTING |
|
H 103216420026 |
SPACER |
|
Repalced by: A 3216420026
|
|
A 3216420026 |
SPACER TUBE |
| 138 |
A 3028880026 |
SLEEVE |
|
N 000961012209 |
SCREW |
| 139 |
N 000961012212 |
SCREW |
| 140 |
N 000127012201 |
LOCK WASHER |
|
N 000934012013 |
NUT |
|
|
M12 X 1,5 MM |
| 140K |
N 000934012004 |
NUT |
| 141 |
N 000444010300 |
EYEBOLT |
|
N 000934010000 |
NUT |
|
N 000934010007 |
NUT |
| 144 |
N 900333010000 |
TURNBUCKLE |
|
N 000933010129 |
SCREW |
| 145 |
N 000933010174 |
SCREW |
| 146 |
N 000127010202 |
LOCK WASHER |
| 147 |
N 000125010517 |
WASHER |
| 147K |
N 000934010035 |
NUT |
| 148 |
A 3212050405 |
BEARING BODY |
| 154 |
A 3212050302 |
FAN SHAFT |
| 158 |
N 000628003304 |
ANG. CONTACT BALL BEARING |
| 158 |
A 3459817125 |
BALL BEARING |
| 163 |
N 000472052000 |
LOCK RING |
| 168 |
N 003760030300 |
RADIAL SEAL RING |
|
Repalced by: A 0019978447
|
| 168 |
A 0019978447 |
SEAL RING |
| 173 |
N 000625006304 |
GROOVED BALL BEARING |
|
Repalced by: A 3449817025
|
| 173 |
A 3449817025 |
BALL BEARING |
| 178 |
N 007604010100 |
SCREW PLUG |
| 183 |
N 000931008238 |
SCREW |
| 186 |
N 912004008100 |
LOCK WASHER |
| 191 |
N 000125008417 |
WASHER |
| 196 |
N 000934008000 |
NUT |
| 201 |
A 3212050012 |
HUB |
| 208 |
N 912004016101 |
LOCK WASHER |
| 211 |
N 000934016003 |
NUT |
| 218 |
A 3212050006 |
FAN |
| 224 |
A 3159940030 |
LOCK |
| 229 |
N 000933008282 |
SCREW |
|
|
M 8X20 |
| 233 |
A 0442050110 |
PULLEY |
|
Repalced by: A 3212051810
|
| 233 |
A 3212051810 |
PULLEY |
| 238 |
N 912004016101 |
LOCK WASHER |
| 245 |
N 000934016003 |
NUT |
|
N 007603010110 |
SEAL RING |
| 254 |
A 3212000473 |
LEVER |
| 259 |
N 003760020102 |
RADIAL SEAL RING |
| 263 |
A 0442060119 |
TIGHTENER PULLEY |
|
Repalced by: A 3212061019
|
| 263 |
A 3212061019 |
TIGHTENER PULLEY |
| 268 |
N 000472042000 |
LOCK RING |
| 273 |
A 3212050052 |
SPACER WASHER |
|
|
AS REQUIRED |
|
|
0.2 MM |
|
A 3212050152 |
SPACER WASHER |
|
|
AS REQUIRED |
|
|
0.5 MM |
|
A 3212050252 |
SPACER WASHER |
|
|
AS REQUIRED |
|
|
1.0 MM |
| 279 |
N 000625006302 |
GROOVED BALL BEARING |
| 286 |
A 3212060053 |
SPACER TUBE |
| 291 |
N 000471015000 |
LOCK RING |
| 295 |
A 3212060157 |
EXPANSION PLUG |
| 301 |
N 071412010100 |
GREASE NIPPLE |
| 309 |
N 007753012506 |
NARROW V-BELT |
| 314 |
N 007753012532 |
NARROW V-BELT |
| 319 |
N 000961012209 |
SCREW |
| 326 |
N 000127012201 |
LOCK WASHER |
| 331 |
A 3212000039 |
SUPPORT |
| 337 |
A 3219900005 |
STUD |
| 341 |
N 000934012004 |
NUT |
| 345 |
N 000931010264 |
SCREW |
| 351 |
N 000125010517 |
WASHER |
| 358 |
N 000127010202 |
LOCK WASHER |
| 364 |
N 000934010000 |
NUT |
| 369 |
A 3445000049 |
TANK |
|
A 0005000640 |
VALVE |
| 376 |
A 3205010144 |
COVER |
| 381 |
A 3205010180 |
GASKET |
| 386 |
N 000933005095 |
SCREW |
| 391 |
N 000127005001 |
LOCK WASHER |
| 396 |
N 000934005008 |
NUT |
| 401 |
A 0455000049 |
TANK |
|
Repalced by: A 3455007049
|
| 401 |
A 3455007049 |
TANK |
| 401 |
A 3455007349 |
TANK |
|
A 3505017139 |
VALVE |
|
A 3505017080 |
GASKET |
|
|
TO 350 501 71 39 |
| 404 |
H 983455010115 |
RADIATOR CAP |
|
Repalced by: A 3455017015
|
| 404 |
A 3455017015 |
RADIATOR CAP |
| 408 |
A 3225000331 |
BRACKET |
|
Repalced by: A 3445007345
|
| 408 |
A 3445007345 |
STRAP |
| 412 |
A 3029870814 |
RUBBER STRIP |
|
Repalced by: A 3449870214
|
| 412 |
A 3449870214 |
RUBBER STRIP |
| 422 |
N 007985006515 |
SCREW |
| 426 |
N 000127006203 |
LOCK WASHER |
| 430 |
N 000125006420 |
WASHER |
|
A 0445041340 |
BRACKET |
|
A 0449950232 |
CLAMP |
| 434 |
A 0009951410 |
CLAMP |
| 436 |
A 3025060240 |
BRACKET |
|
A 0449970682 |
HOSE |
|
A 0449970782 |
HOSE |
|
N 000933008282 |
SCREW |
|
N 000125008417 |
WASHER |
|
N 000934008000 |
NUT |
| 444 |
A 3025010020 |
RUBBER PAD |
| 446 |
A 3179910840 |
SPACER TUBE |
| 448 |
A 0009952001 |
CLAMP |
|
Repalced by: N 916016012201
|
| 448 |
N 916016012201 |
CLAMP |
|
|
DE-AERATION LINE |
| 449 |
A 3025060240 |
BRACKET |
|
|
DE-AERATION LINE |
| 449D |
N 000933008228 |
SCREW |
|
|
DE-AERATION LINE |
| 449L |
N 912004008100 |
LOCK WASHER |
|
|
DE-AERATION LINE |
| 449P |
N 000934008000 |
NUT |
|
|
DE-AERATION LINE |
| 450 |
N 000933008288 |
SCREW |
|
N 000933008279 |
SCREW |
| 454 |
N 000125008417 |
WASHER |
| 456 |
N 912004008100 |
LOCK WASHER |
| 458 |
N 000934008000 |
NUT |
|
A 0445012324 |
COOLING WATER PIPE |
| 462 |
A 3445017024 |
COOLING WATER PIPE |
| 467 |
N 900271045016 |
HOSE |
|
A 0019972590 |
LOOM TIE |
| 473 |
A 0445000658 |
INTERMEDIATE PIPE |
| 473 |
A 3445000358 |
INTERMEDIATE PIPE |
|
A 3649977072 |
FITTING |
|
Repalced by: A 3449970772
|
|
A 3449970772 |
FITTING |
|
N 007603014102 |
SEAL RING |
|
A 0445014024 |
COOLING WATER PIPE |
| 479 |
A 3445067057 |
BREATHER PIPE |
|
N 900271012020 |
HOSE |
|
|
200 MM |
|
A 3025011482 |
HOSE |
| 485 |
N 900271012020 |
HOSE |
|
|
100 MM |
| 491 |
A 3449977490 |
CLAMP |
|
Repalced by: N 916017016000
|
| 491 |
N 916017016000 |
CLAMP |
|
Repalced by: N 000000000666
|
| 491 |
N 000000000666 |
CLAMP |
| 498 |
A 3445007069 |
SEPARATOR |
| 500 |
N 900271045016 |
HOSE |
|
|
80 MM |
| 502 |
A 0019972590 |
LOOM TIE |
|
N 000933008282 |
SCREW |
|
N 912004008100 |
LOCK WASHER |
|
N 000934008000 |
NUT |
| 510 |
A 3445067760 |
PIPE |
| 513 |
N 900271038039 |
HOSE |
|
|
38 X 50 X 430 |
|
A 0019972590 |
LOOM TIE |
|
N 900271022010 |
HOSE |
|
|
240 MM |
|
A 3509970390 |
LOOM TIE |
|
H 983215000058 |
INTERMEDIATE PIPE |
| 520 |
A 3445007072 |
LINE |
|
H 983215010124 |
COOLING WATER PIPE |
| 530 |
A 3645017724 |
COOLING WATER PIPE |
| 535 |
N 900271045016 |
HOSE |
|
|
80 MM |
| 540 |
A 0019972590 |
LOOM TIE |
|
H 983215060160 |
PIPE |
| 545 |
A 3445067860 |
PIPE |
| 552 |
A 3445007172 |
LINE |
| 560 |
A 3445060064 |
VALVE |
| 564 |
A 3219971682 |
HOSE |
|
|
85 MM |
|
A 0019972590 |
LOOM TIE |
| 580 |
A 3219950935 |
CLAMP |
|
A 3215010282 |
HOSE |
| 588 |
A 0019972590 |
LOOM TIE |
| 592 |
A 0009970436 |
VALVE |
|
A 0009930235 |
SPRING |
