Transporto priemonė: O 362; VIN numerio dalis: 321427
Grupė: 35 REAR AXLE
| # | Kodas | Pavadinimas |
|---|---|---|

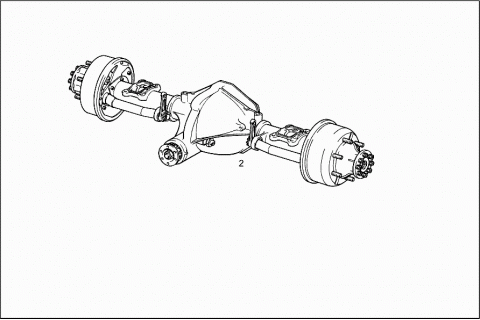

| 002 | A 0213502400 | REAR AXLE |
| Repalced by: A 3443509300 | ||
| 002 | A 3443509300 | REAR AXLE |
| WITH BRAKES | ||
| 7:48 | ||
| A 0213502300 | REAR AXLE | |
| Repalced by: A 3443509400 | ||
| A 3443509400 | REAR AXLE | |
| WITH BRAKES | ||
| 8:39 | ||
| H 983213500200 | REAR AXLE | |
| WITH BRAKES | ||
| 7:40 | ||
| H 983213500400 | REAR AXLE | |
| Repalced by: A 3443507500 | ||
| A 3443507500 | REAR AXLE | |
| LESS BRAKES | ||
| 7:48 | ||
| H 983213500300 | REAR AXLE | |
| Repalced by: A 3443507600 | ||
| A 3443507600 | REAR AXLE | |
| LESS BRAKES | ||
| 8:39 | ||
| H 983213500500 | REAR AXLE | |
| Repalced by: A 3443508100 | ||
| A 3443508100 | REAR AXLE | |
| LESS BRAKES | ||
| 7:40 | ||

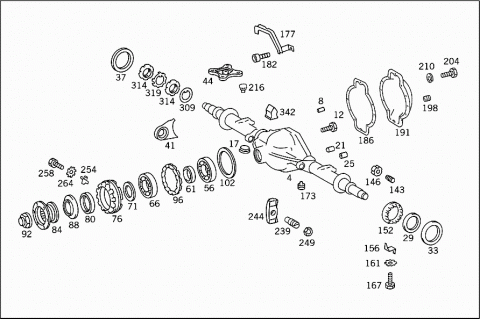

| 004 | A 0213500820 | AXLE HOUSING |
| Repalced by: A 3443507420 | ||
| 004 | A 3443507420 | AXLE HOUSING |
| 008 | N 000007006205 | CYLINDRICAL PIN |
| 012 | A 3529900801 | SCREW |
| Repalced by: N 914126016005 | ||
| 012 | N 914126016005 | SCREW |
| BEARING COVER TO AXLE HOUSING | ||
| 017 | N 000906016000 | SCREW PLUG |
| 021 | A 3523510074 | PIN |
| 025 | A 3129971002 | PLUG |
| 029 | A 3023570282 | OIL COLLECTOR |
| 033 | A 3273560515 | THRUST RING |
| Repalced by: A 3523560515 | ||
| 033 | A 3523560515 | THRUST RING |
| 037 | A 3273560615 | THRUST RING |
| Repalced by: A 3523560515 | ||
| 037 | A 3523560515 | THRUST RING |
| 041 | A 3444230033 | BEARING BRACKET |
| 044 | A 3443250012 | SPRING SADDLE |
| 049 | A 3223501839 | RING GEAR AND PINION |
| RATIO: | ||
| 48:7 "GLEASON" | ||
| 049 | A 6153500039 | RING GEAR AND PINION |
| RATIO: | ||
| 7:48,"OERLIKON" | ||
| A 3023501139 | RING GEAR AND PINION | |
| Repalced by: A 3443500239 | ||
| A 3443500239 | RING GEAR AND PINION | |
| 39:8 | ||
| A 3223502139 | RING GEAR AND PINION | |
| Repalced by: A 3643500439 | ||
| A 3643500439 | RING GEAR AND PINION | |
| 7:40 | ||
| 056 | A 0019819805 | TAPERED ROLLER BEARING |
| 056 | A 0029811105 | TAPERED ROLLER BEARING |
| 056 | A 0009814005 | TAPERED ROLLER BEARING |
| 056 | A 3869817505 | TAPERED ROLLER BEARING |
| 056 | A 3869817605 | TAPERED ROLLER BEARING |
| 061 | A 3223530051 | SPACER RING |
| 066 | A 0019819805 | TAPERED ROLLER BEARING |
| 066 | A 0029811105 | TAPERED ROLLER BEARING |
| 066 | A 0009814005 | TAPERED ROLLER BEARING |
| 066 | A 3869817505 | TAPERED ROLLER BEARING |
| 066 | A 3869817605 | TAPERED ROLLER BEARING |
| 071 | A 3213530762 | THRUST WASHER |
| 076 | A 3273531025 | SCREW COLLAR |
| 080 | A 0039974446 | SEAL RING |
| Repalced by: A 0089970747 | ||
| 080 | A 0109975746 | SEAL RING |
| Repalced by: A 0089970747 | ||
| 080 | A 0089970747 | SEAL RING |
| 080 | A 3459977346 | SEAL RING |
| Repalced by: A 3459977646 | ||
| 080 | A 3459977646 | SEAL RING |
| 084 | A 3603500045 | FLANGE |
| 088 | A 3273530291 | PROTECTIVE PLATE |
| 092 | A 3273530172 | NUT |
| Repalced by: A 3853510072 | ||
| 092 | A 3853510072 | NUT |
| 092 | A 3853510172 | NUT |
| 096 | A 3223531352 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.10 MM | ||
| 096 | A 6163530152 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.10 MM | ||
| 096 | A 3223531452 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.12 MM | ||
| 096 | A 6163530252 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.12 MM | ||
| 096 | A 3223531552 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.14 MM | ||
| 096 | A 6163530352 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.14 MM | ||
| 096 | A 3223531652 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.16 MM | ||
| 096 | A 6163530452 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.16 MM | ||
| 096 | A 3223531752 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.18 MM | ||
| 096 | A 6163530552 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.18 MM | ||
| 096 | A 3223531852 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.20 MM | ||
| 096 | A 6163530652 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.20 MM | ||
| 096 | A 3223531952 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.22 MM | ||
| 096 | A 6163530752 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.22 MM | ||
| 096 | A 3223532052 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.24 MM | ||
| 096 | A 6163530852 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.24 MM | ||
| 096 | A 3223532152 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.26 MM | ||
| 096 | A 6163530952 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.26 MM | ||
| 096 | A 3223530152 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.28 MM | ||
| 096 | A 6163531052 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.28 MM | ||
| 096 | A 3223530252 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.30 MM | ||
| 096 | A 6163531152 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.30 MM | ||
| 096 | A 3223530352 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.32 MM | ||
| 096 | A 6163531252 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.32 MM | ||
| 096 | A 3223530452 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.34 MM | ||
| 096 | A 6163531352 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.34 MM | ||
| 096 | A 3223530552 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.36 MM | ||
| 096 | A 6163531452 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.36 MM | ||
| 096 | A 3223530652 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.38 MM | ||
| 096 | A 6163531552 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.38 MM | ||
| 096 | A 3223530752 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.40 MM | ||
| 096 | A 6163531652 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.40 MM | ||
| 096 | A 3223530852 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.42 MM | ||
| 096 | A 6163531752 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.42 MM | ||
| 096 | A 3223530952 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.44 MM | ||
| 096 | A 6163531852 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.44 MM | ||
| 096 | A 3223531052 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.46 MM | ||
| 096 | A 6163531952 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.46 MM | ||
| 096 | A 3223531152 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.48 MM | ||
| 096 | A 6163532052 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.48 MM | ||
| 096 | A 3223531252 | SPACER WASHER |
| AS REQUIRED; STEEL | ||
| 10.50 MM | ||
| 096 | A 6163532152 | SPACER WASHER |
| AS REQUIRED; BRASS | ||
| 10.50 MM | ||
| 096 | A 3853530051 | SPACER RING |
| AS REQUIRED; STEEL | ||
| 10.52 MM | ||
| 096 | A 6163532251 | SPACER RING |
| AS REQUIRED; BRASS | ||
| 10.52 MM | ||
| 102 | A 3273536252 | SPACER WASHER |
| Repalced by: A 6703530852 | ||
| 102 | A 6703530852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 102 | A 3273532262 | THRUST WASHER |
| Repalced by: A 6703530752 | ||
| 102 | A 6703530752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.15 MM | ||
| 102 | A 3273536352 | SPACER WASHER |
| Repalced by: A 6703530652 | ||
| 102 | A 6703530652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 102 | A 3273536452 | SPACER WASHER |
| Repalced by: A 6703530552 | ||
| 102 | A 6703530552 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 102 | A 3273532362 | THRUST WASHER |
| Repalced by: A 6703533752 | ||
| 102 | A 6703533752 | SPACER WASHER |
| AS REQUIRED | ||
| 1.50 MM | ||

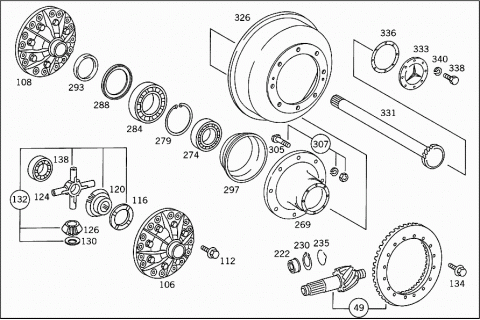

| 106 | A 3223503523 | DIFFERENTIAL GEAR |
| Repalced by: A 3833502123 | ||
| 106 | A 3833502123 | DIFFERENTIAL GEAR |
| Repalced by: A 3503501423 | ||
| 106 | A 3503501423 | DIFFERENTIAL GEAR |
| 108 | A 3223500927 | DIFFERENTIAL CASE |
| Repalced by: A 3833500127 | ||
| 108 | A 3833500127 | DIFFERENTIAL CASE |
| Repalced by: A 6163500027 | ||
| 108 | A 6163500027 | DIFFERENTIAL CASE |
| 112 | A 3229903001 | SCREW |
| COVER TO DIFFERENTIAL CASE | ||
| TO 322 350 09 27 | ||
| N 914112014304 | SCREW | |
| COVER TO DIFFERENTIAL CASE | ||
| TO 383 350 01 27 | ||
| 116 | A 3223530162 | THRUST WASHER |
| Repalced by: A 6743530362 | ||
| 116 | A 6743530362 | THRUST WASHER |
| 120 | A 3023530015 | SIDE GEAR |
| Repalced by: A 3453537315 | ||
| A 3453530015 | SIDE GEAR | |
| Repalced by: A 3453537315 | ||
| A 3453537315 | SIDE GEAR | |
| Repalced by: A 3453530815 | ||
| A 3453530815 | SIDE GEAR | |
| 124 | A 3223530120 | DIFFERENTIAL SPIDER |
| Repalced by: A 3453537020 | ||
| 124 | A 3453537020 | DIFFERENTIAL SPIDER |
| 124 | A 3833530120 | DIFFERENTIAL SPIDER |
| Repalced by: A 3453537120 | ||
| 124 | A 3453537120 | DIFFERENTIAL SPIDER |
| A 3453530014 | DIFFERENTIAL PINION | |
| Repalced by: A 3023530014 | ||
| 126 | A 3453350014 | DIFFERENTIAL PINION |
| Repalced by: A 3023530014 | ||
| 126 | A 3023530014 | DIFFERENTIAL PINION |
| 130 | A 3523530024 | SPHERICAL WASHER |
| 132 | A 3215860035 | REPAIR KIT |
| Repalced by: A 3455860035 | ||
| 132 | A 3455860035 | REPAIR KIT |
| Repalced by: A 3453500026 | ||
| A 3215860135 | REPAIR KIT | |
| Repalced by: A 3455860135 | ||
| A 3455860135 | REPAIR KIT | |
| Repalced by: A 3453500026 | ||
| A 3453500026 | REPAIR KIT | |
| DIFFERENTIAL GEAR | ||
| 134 | A 3229902901 | SCREW |
| TO 322 350 09 27 | ||
| 134 | A 3839900301 | SCREW |
| Repalced by: A 3839900801 | ||
| 134 | A 3839900801 | SCREW |
| RING GEAR TO DIFFERENTIAL CASE | ||
| TO 383 350 01 27 | ||
| 134 | A 3839900401 | SCREW |
| Repalced by: A 3839900301 | ||
| 138 | A 0009815705 | TAPERED ROLLER BEARING |
| 138 | A 0029811605 | TAPERED ROLLER BEARING |
| 138 | A 0029812605 | TAPERED ROLLER BEARING |
| 138 | A 3849817305 | TAPERED ROLLER BEARING |
| 138 | A 3849817405 | TAPERED ROLLER BEARING |
| 143 | A 3223510171 | SCREW |
| Repalced by: A 3853370171 | ||
| 143 | A 3853370171 | SCREW |
| BEARING COVER | ||
| 146 | N 080705014001 | NUT |
| 152 | A 3213530025 | SCREW COLLAR |
| 156 | A 3123531173 | LOCK |
| 161 | N 006797008239 | TOOTHED WASHER |
| 167 | N 000933008228 | SCREW |
| 173 | A 0009971332 | SCREW PLUG |
| Repalced by: A 0009972632 | ||
| 173 | A 0009972632 | SCREW PLUG |
| OIL FILLING AND OIL DRAIN | ||
| 173 | A 0009972632 | SCREW PLUG |
| OIL FILLING AND OIL DRAIN | ||
| 177 | H 983453500065 | OIL SCRAPER |
| Repalced by: A 3453507065 | ||
| 177 | A 3453507065 | OIL SCRAPER |
| 182 | N 000912008000 | SCREW |
| 186 | A 3023510180 | GASKET |
| 186 | A 6503510180 | GASKET |
| 191 | A 3023500421 | COVER |
| Repalced by: A 6163500021 | ||
| 191 | A 6163500021 | COVER |
| REAR AXLE HOUSING | ||
| 198 | A 1869970032 | SCREW PLUG |
| Repalced by: A 0009972632 | ||
| N 914112010016 | SCREW | |
| COVER TO REAR AXLE HOUSING | ||
| M 10X20,TO 616 350 00 21,616 351 02 08 | ||
| 204 | N 000933010294 | SCREW |
| COVER TO REAR AXLE HOUSING | ||
| M 10X20,TO 302 350 04 21 | ||
| 210 | N 000127010202 | LOCK WASHER |
| COVER TO REAR AXLE HOUSING | ||
| TO 302 350 04 21 | ||
| 216 | A 3123501090 | VALVE |
| Repalced by: A 3453507290 | ||
| 216 | A 3453507290 | VALVE |
| 222 | A 0029817901 | CYLINDR. ROLLER BEARING |
| 222 | A 0029819601 | CYLINDR. ROLLER BEARING |
| Repalced by: A 0029819501 | ||
| 222 | A 0029819501 | CYLINDR. ROLLER BEARING |
| 222 | A 0029818201 | CYLINDR. ROLLER BEARING |
| 222 | A 3459817301 | CYLINDR. ROLLER BEARING |
| 230 | N 000471035002 | LOCK RING |
| 235 | A 3229940137 | SNAP RING |
| 239 | A 3223530176 | SET SCREW |
| Repalced by: A 3833530276 | ||
| 239 | A 3833530276 | SET SCREW |
| 244 | A 3223530049 | SLIDE |
| Repalced by: A 3853530149 | ||
| 244 | A 3853530149 | SLIDE |
| 249 | A 3159900051 | NUT |
| 254 | A 3223530073 | LOCK |
| 258 | N 000933008005 | SCREW |
| 264 | N 006797008239 | TOOTHED WASHER |
| A 3603560301 | WHEEL HUB | |
| Repalced by: A 3453560001 | ||
| 269 | A 3453560001 | WHEEL HUB |
| 274 | A 0039816505 | TAPERED ROLLER BEARING |
| 274 | A 0039816605 | TAPERED ROLLER BEARING |
| N 000472120000 | LOCK RING | |
| 279 | N 900055120310 | LOCK RING |
| 284 | A 0009804002 | TAPERED ROLLER BEARING |
| 284 | A 0039811405 | TAPERED ROLLER BEARING |
| 284 | A 0039811805 | TAPERED ROLLER BEARING |
| 288 | A 3453560051 | SPACER RING |
| 293 | A 0059974446 | SEAL RING |
| Repalced by: A 3459977046 | ||
| 293 | A 3459977046 | SEAL RING |
| 293 | A 0069972147 | SEAL RING |
| Repalced by: A 3459978046 | ||
| 293 | A 3459978046 | SEAL RING |
| A 3603560053 | SPACER TUBE | |
| 297 | A 3273560182 | OIL COLLECTOR |
| 305 | A 3274020471 | WHEEL MOUNTING BOLT |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 381 401 03 71 | ||
| 307 | A 3764000174 | PIN |
| (PARTS KIT),WHEEL MOUNTING; WHEEL OPENING: | ||
| 30 MM | ||
| 307 | A 3764000874 | PIN |
| (PARTS KIT),WHEEL MOUNTING; WHEEL OPENING: | ||
| 27 MM | ||
| 309 | H 983453560052 | SPACER WASHER |
| Repalced by: A 3453560052 | ||
| 309 | A 3453560052 | SPACER WASHER |
| HUB TO REAR AXLE TUBE | ||
| A 3223560126 | GROOVED NUT | |
| Repalced by: A 3453560026 | ||
| 314 | H 983453560026 | GROOVED NUT |
| Repalced by: A 3453560026 | ||
| 314 | A 3453560026 | GROOVED NUT |
| HUB TO REAR AXLE TUBE | ||
| A 3223560173 | LOCK PLATE | |
| Repalced by: A 3453560073 | ||
| 319 | H 983453560073 | LOCK PLATE |
| Repalced by: A 3453560073 | ||
| 319 | A 3453560073 | LOCK PLATE |
| HUB TO REAR AXLE TUBE | ||
| 326 | A 3604230101 | BRAKE DRUM |
| STANDARD | ||
| 326 | A 3454237401 | BRAKE DRUM |
| REPAIR SIZE I | ||
| 331 | A 3023570001 | REAR AXLE SHAFT |
| 333 | A 3223560020 | HUB CAP |
| 336 | A 3223560179 | GASKET |
| 338 | N 000933008317 | SCREW |
| 340 | N 912004008100 | LOCK WASHER |
| 342 | A 3213510044 | RUBBER BUFFER |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
