Transporto priemonė: O 362; VIN numerio dalis: 321427

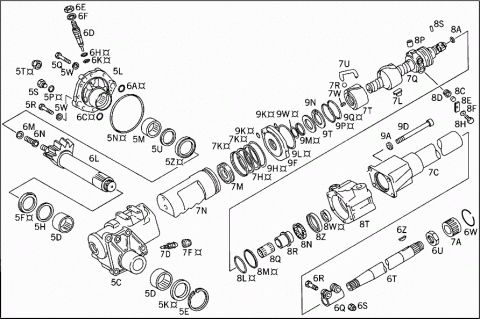

Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0444603401 | STEERING BOX ASSEMBLY |
| Repalced by: A 3444600801 | ||
| 005 | A 3444600801 | STEERING BOX ASSEMBLY |
| Repalced by: A 3444601701 | ||
| 005 | A 3444601701 | STEERING BOX ASSEMBLY |
| 005A | N 000937035000 | NUT |
| 005A | A 0009903355 | NUT |
| Repalced by: N 000937035000 | ||
| 005A | N 000937035000 | NUT |
| 005B | N 000094006013 | COTTER PIN |
| 005B | N 000094006317 | COTTER PIN |
| 005C | A 0004615701 | BOX |
| Repalced by: A 0004617101 | ||
| 005C | A 0004617101 | BOX |
| 005C | A 0004616801 | BOX |
| 005D | A 0019816010 | NEEDLE BEARING |
| 005D | A 0149819310 | NEEDLE BEARING |
| 005E | N 000472060000 | LOCK RING |
| 005F | A 0004621865 | RING |
| 005H | A 0004622475 | WASHER |
| 005H | N 000988045007 | FITTED WASHER |
| 005K | A 0019970640 | SEAL RING |
| 005K | A 0049976940 | SEAL RING |
| A 0004611260 | SEAL RING | |
| A 0004611360 | SEAL RING | |
| A 0004620896 | BOOT | |
| 005L | A 0004612505 | COVER |
| TO 000 461 57 01 | ||
| A 0004614205 | COVER | |
| TO 000 461 71 01 | ||
| 005L | A 0004613705 | COVER |
| 005M | A 0019816110 | NEEDLE BEARING |
| 005M | A 0149819210 | NEEDLE BEARING |
| 005N | A 0089971648 | SEAL RING |
| Repalced by: A 0099978748 | ||
| 005N | A 0099978748 | SEAL RING |
| A 0004611460 | SEAL RING | |
| A 0004611560 | SEAL RING | |
| 005P | N 007603012111 | SEAL RING |
| 005Q | N 000961008014 | SCREW |
| 005R | N 000961008012 | SCREW |
| 005S | N 007604012102 | SCREW PLUG |
| 005T | A 0004620372 | NUT |
| 005U | A 0004622975 | WASHER |
| 005U | N 000988040002 | FITTED WASHER |
| 005W | A 0004629952 | SPACER WASHER |
| 005Z | A 0004622765 | RING |
| 006A | A 0089971748 | SEAL RING |
| 006C | A 0079979348 | SEAL RING |
| Repalced by: A 0049978548 | ||
| 006C | A 0049978548 | SEAL RING |
| 006D | A 0004611582 | VALVE |
| Repalced by: A 0004611982 | ||
| 006D | A 0004611982 | VALVE |
| Repalced by: A 0004612182 | ||
| 006D | A 0004612182 | VALVE |
| Repalced by: A 0004612582 | ||
| 006D | A 0004612582 | VALVE |
| 006E | A 0029903751 | NUT |
| Repalced by: A 0029909251 | ||
| 006E | A 0029909251 | NUT |
| 006F | N 000125015102 | WASHER |
| 006H | A 0089970045 | SEAL RING |
| Repalced by: A 0169979148 | ||
| 006H | A 0169979148 | SEAL RING |
| 006K | A 0079979945 | SEAL RING |
| Repalced by: A 0169978948 | ||
| 006K | A 0169978948 | SEAL RING |
| 006L | A 0004624912 | STEERG. WORM SECTOR SHAFT |
| Repalced by: A 0004625212 | ||
| 006L | A 0004625212 | STEERG. WORM SECTOR SHAFT |
| 006L | A 0004625412 | STEERG. WORM SECTOR SHAFT |
| 006M | A 0034620452 | SPACER WASHER |
| AS REQUIRED | ||
| 2.950 MM | ||
| 006M | A 0034620552 | SPACER WASHER |
| AS REQUIRED | ||
| 2.975 MM | ||
| 006M | A 0034620652 | SPACER WASHER |
| AS REQUIRED | ||
| 3.000 MM | ||
| 006M | A 0034620752 | SPACER WASHER |
| AS REQUIRED | ||
| 3.025 MM | ||
| 006M | A 0034624952 | SPACER WASHER |
| AS REQUIRED | ||
| 3.050 MM | ||
| 006M | A 0034625052 | SPACER WASHER |
| AS REQUIRED | ||
| 3.075 MM | ||
| 006M | A 0034625152 | SPACER WASHER |
| AS REQUIRED | ||
| 3.100 MM | ||
| 006M | A 0034625252 | SPACER WASHER |
| AS REQUIRED | ||
| 3.125 MM | ||
| 006M | A 0034625352 | SPACER WASHER |
| AS REQUIRED | ||
| 3.150 MM | ||
| 006M | A 0034625452 | SPACER WASHER |
| AS REQUIRED | ||
| 3.175 MM | ||
| 006M | A 0034625552 | SPACER WASHER |
| AS REQUIRED | ||
| 3.200 MM | ||
| 006M | A 0034625652 | SPACER WASHER |
| AS REQUIRED | ||
| 3.225 MM | ||
| 006M | A 0034625752 | SPACER WASHER |
| AS REQUIRED | ||
| 3.250 MM | ||
| 006M | A 0034625852 | SPACER WASHER |
| AS REQUIRED | ||
| 3.275 MM | ||
| 006N | A 0004621471 | SCREW |
| 006Q | A 0004620378 | COUPLING COLLAR |
| 006R | A 0009900614 | SCREW |
| 006S | A 0019902951 | NUT |
| 006T | A 0004621501 | STEERING SHAFT |
| 006U | N 000936022002 | NUT |
| 006W | A 0049940641 | LOCK |
| 006Z | N 006888005006 | WOODRUFF KEY |
| 007A | A 0004624050 | BUSHING |
| 007A | A 0004623950 | BUSHING |
| N 000912012073 | SCREW | |
| 007C | A 0004624620 | STEER.COLUMN JACKET TUBE |
| 007D | A 0009900315 | SCREW |
| BREATHER | ||
| 007D | A 0009900015 | SCREW |
| Repalced by: A 3454667091 | ||
| 007D | A 3454667091 | VALVE |
| BREATHER | ||
| 007F | A 0004620096 | BOOT |
| Repalced by: A 3454667096 | ||
| 007F | A 3454667096 | BOOT |
| BREATHER | ||
| 007H | A 0004621665 | RING |
| 007K | A 0004621565 | RING |
| A 0119977748 | SEAL RING | |
| A 0004611660 | SEAL RING | |
| A 0119977848 | SEAL RING | |
| A 0004611760 | SEAL RING | |
| 007L | A 0004620974 | PIN |
| 007M | A 0004620134 | SCREW COLLAR |
| 007N | A 0004622283 | PISTON |
| 007N | A 0004622483 | PISTON |
| A 0039943041 | LOCK | |
| 007Q | A 0004604908 | STEERING WORM |
| Repalced by: A 0004607208 | ||
| 007Q | A 0004607208 | STEERING WORM |
| 007Q | A 0004608008 | STEERING WORM |
| 007R | A 0019816185 | BALL |
| AS REQUIRED | ||
| 7.990 MM | ||
| 007R | A 0019815285 | BALL |
| AS REQUIRED | ||
| 7.991 MM | ||
| 007R | A 0019815385 | BALL |
| AS REQUIRED | ||
| 7.992 MM | ||
| 007R | A 0019816285 | BALL |
| AS REQUIRED | ||
| 7.993 MM | ||
| 007R | A 0019816385 | BALL |
| AS REQUIRED | ||
| 7.994 MM | ||
| 007R | A 0019815485 | BALL |
| AS REQUIRED | ||
| 7.995 MM | ||
| 007R | A 0019816485 | BALL |
| AS REQUIRED | ||
| 7.996 MM | ||
| 007R | A 0019816585 | BALL |
| AS REQUIRED | ||
| 7.997 MM | ||
| 007R | A 0019815585 | BALL |
| AS REQUIRED | ||
| 7.998 MM | ||
| 007R | A 0019816685 | BALL |
| AS REQUIRED | ||
| 7.999 MM | ||
| 007R | A 0019815685 | BALL |
| AS REQUIRED | ||
| 8.000 MM | ||
| 007R | A 0019816785 | BALL |
| AS REQUIRED | ||
| 8.001 MM | ||
| 007R | A 0019815785 | BALL |
| AS REQUIRED | ||
| 8.002 MM | ||
| 007R | A 0019816885 | BALL |
| AS REQUIRED | ||
| 8.003 MM | ||
| 007R | A 0019816985 | BALL |
| AS REQUIRED | ||
| 8.004 MM | ||
| 007R | A 0019815885 | BALL |
| AS REQUIRED | ||
| 8.005 MM | ||
| 007R | A 0019817085 | BALL |
| AS REQUIRED | ||
| 8.006 MM | ||
| 007R | A 0019817185 | BALL |
| AS REQUIRED | ||
| 8.007 MM | ||
| 007R | A 0019815985 | BALL |
| AS REQUIRED | ||
| 8.008 MM | ||
| 007R | A 0019817285 | BALL |
| AS REQUIRED | ||
| 8.009 MM | ||
| 007R | A 0019816085 | BALL |
| AS REQUIRED | ||
| 8.010 MM | ||
| 007R | A 0019817385 | BALL |
| AS REQUIRED | ||
| 8.011 MM | ||
| 007R | A 0019817485 | BALL |
| AS REQUIRED | ||
| 8.012 MM | ||
| 007R | A 0019817585 | BALL |
| AS REQUIRED | ||
| 8.013 MM | ||
| 007R | A 0019817685 | BALL |
| AS REQUIRED | ||
| 8.014 MM | ||
| 007R | A 0019817785 | BALL |
| AS REQUIRED | ||
| 8.015 MM | ||
| 007T | A 0004620206 | STEERING NUT |
| 007U | A 0004622127 | BALL RACE |
| 007W | N 001481004025 | CLAMPING SLEEVE |
| 008A | A 0079979945 | SEAL RING |
| Repalced by: A 0169978948 | ||
| 008A | A 0169978948 | SEAL RING |
| 008C | A 0004620983 | PISTON |
| 008D | A 0004622750 | BUSHING |
| 008E | A 0004621573 | LOCK |
| 008F | A 0004621673 | LOCK |
| 008H | N 000933005097 | SCREW |
| 008L | A 0019871346 | SEALING CORD |
| 008M | A 0004621265 | RING |
| 008M | A 0004621265 | RING |
| 008M | A 0004625865 | RING |
| 008N | A 0004620438 | BALL CAGE |
| 008P | A 0004610482 | VALVE |
| 008Q | A 0019811610 | NEEDLE BEARING |
| 008Q | A 0019811710 | NEEDLE BEARING |
| 008Q | A 0019811810 | NEEDLE BEARING |
| 008Q | A 0019811910 | NEEDLE BEARING |
| 008Q | A 0039814810 | NEEDLE BEARING |
| 008R | A 0009817481 | INNER RING |
| 38.00 MM | ||
| 008R | A 0009817581 | INNER RING |
| 38.015 MM | ||
| 008S | A 0004610274 | PIN |
| AS REQUIRED | ||
| 6.04 MM | ||
| 008S | A 0004610374 | PIN |
| AS REQUIRED | ||
| 6.05 MM | ||
| 008S | A 0004610474 | PIN |
| AS REQUIRED | ||
| 6.06 MM | ||
| 008T | A 0004610904 | BOX |
| 008T | A 0004611404 | BOX |
| 008W | A 0059973747 | SEAL RING |
| Repalced by: A 0089979447 | ||
| 008W | A 0089979447 | SEAL RING |
| 008W | A 0159975147 | SEAL RING |
| A 0004620196 | BOOT | |
| 008Z | A 0009816180 | OUTER RACE |
| 009A | A 0014622752 | SPACER WASHER |
| 009D | N 000912012065 | SCREW |
| M12X1.5X100 | ||
| 009D | N 000912012073 | SCREW |
| 009F | A 0004613405 | COVER |
| 009F | A 0004613805 | COVER |
| 009H | A 0079972048 | SEAL RING |
| Repalced by: A 0129975948 | ||
| 009H | A 0129975948 | SEAL RING |
| Repalced by: A 0149976948 | ||
| 009H | A 0149976948 | SEAL RING |
| 009H | A 0119977948 | SEAL RING |
| Repalced by: A 0169979048 | ||
| 009H | A 0169979048 | SEAL RING |
| 009K | A 0089971848 | SEAL RING |
| Repalced by: A 0129976048 | ||
| 009K | A 0129976048 | SEAL RING |
| Repalced by: A 0079979748 | ||
| 009K | A 0019871046 | SEALING CORD |
| Repalced by: A 0079979748 | ||
| 009K | A 0079979748 | SEAL RING |
| 009L | A 0079972148 | SEAL RING |
| Repalced by: A 0129976148 | ||
| 009L | A 0129976148 | SEAL RING |
| Repalced by: A 0149976848 | ||
| 009L | A 0149976848 | SEAL RING |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 009 997 14 48 | ||
| 009L | A 0119978048 | SEAL RING |
| 009M | A 0089976447 | SEAL RING |
| 009N | A 0019812010 | NEEDLE BEARING |
| 009P | A 0019871246 | SEALING CORD |
| 009Q | A 0004620965 | RING |
| 009Q | A 0004625965 | RING |
| 009Q | A 0004626065 | RING |
| 009T | A 0024625052 | SPACER WASHER |
| AS REQUIRED | ||
| 2.91 MM | ||
| 009T | A 0024625152 | SPACER WASHER |
| AS REQUIRED | ||
| 2.92 MM | ||
| 009T | A 0024625252 | SPACER WASHER |
| AS REQUIRED | ||
| 2.93 MM | ||
| 009T | A 0024625352 | SPACER WASHER |
| AS REQUIRED | ||
| 2.94 MM | ||
| 009T | A 0014620752 | SPACER WASHER |
| AS REQUIRED | ||
| 2.95 MM | ||
| 009T | A 0024625452 | SPACER WASHER |
| AS REQUIRED | ||
| 2.96 MM | ||
| 009T | A 0024625552 | SPACER WASHER |
| AS REQUIRED | ||
| 2.97 MM | ||
| 009T | A 0024625652 | SPACER WASHER |
| AS REQUIRED | ||
| 2.98 MM | ||
| 009T | A 0024625752 | SPACER WASHER |
| AS REQUIRED | ||
| 2.99 MM | ||
| 009T | A 0014620952 | SPACER WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||
| 009T | A 0024625852 | SPACER WASHER |
| AS REQUIRED | ||
| 3.01 MM | ||
| 009T | A 0024625952 | SPACER WASHER |
| AS REQUIRED | ||
| 3.02 MM | ||
| 009T | A 0024626052 | SPACER WASHER |
| AS REQUIRED | ||
| 3.03 MM | ||
| 009T | A 0024626152 | SPACER WASHER |
| AS REQUIRED | ||
| 3.04 MM | ||
| 009T | A 0014621152 | SPACER WASHER |
| AS REQUIRED | ||
| 3.05 MM | ||
| 009T | A 0024626252 | SPACER WASHER |
| AS REQUIRED | ||
| 3.06 MM | ||
| 009T | A 0024626352 | SPACER WASHER |
| AS REQUIRED | ||
| 3.07 MM | ||
| 009T | A 0024626452 | SPACER WASHER |
| AS REQUIRED | ||
| 3.08 MM | ||
| 009T | A 0024626552 | SPACER WASHER |
| AS REQUIRED | ||

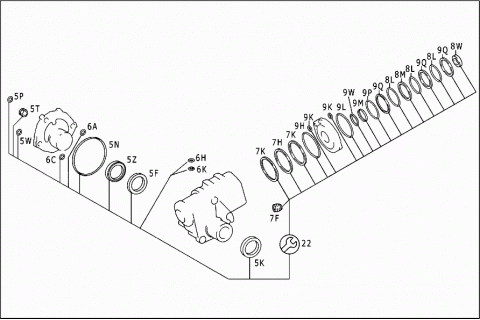

| 3.09 MM | ||
| 009T | A 0014621352 | SPACER WASHER |
| AS REQUIRED | ||
| 3.10 MM | ||
| 009T | A 0024626652 | SPACER WASHER |
| AS REQUIRED | ||
| 3.11 MM | ||
| 009T | A 0024626752 | SPACER WASHER |
| AS REQUIRED | ||
| 3.12 MM | ||
| 009T | A 0024626852 | SPACER WASHER |
| AS REQUIRED | ||
| 3.13 MM | ||
| 009T | A 0024626952 | SPACER WASHER |
| AS REQUIRED | ||
| 3.14 MM | ||
| 009T | A 0014621552 | SPACER WASHER |
| AS REQUIRED | ||
| 3.15 MM | ||
| 009T | A 0024627052 | SPACER WASHER |
| AS REQUIRED | ||
| 3.16 MM | ||
| 009T | A 0024627152 | SPACER WASHER |
| AS REQUIRED | ||
| 3.17 MM | ||
| 009T | A 0024627252 | SPACER WASHER |
| AS REQUIRED | ||
| 3.18 MM | ||
| 009T | A 0024627352 | SPACER WASHER |
| AS REQUIRED | ||
| 3.19 MM | ||
| 009T | A 0014621752 | SPACER WASHER |
| AS REQUIRED | ||
| 3.20 MM | ||
| 009T | A 0024627452 | SPACER WASHER |
| AS REQUIRED | ||
| 3.21 MM | ||
| 009T | A 0024627552 | SPACER WASHER |
| AS REQUIRED | ||
| 3.22 MM | ||
| 009T | A 0024627652 | SPACER WASHER |
| AS REQUIRED | ||
| 3.23 MM | ||
| 009T | A 0024627752 | SPACER WASHER |
| AS REQUIRED | ||
| 3.24 MM | ||
| 009T | A 0014621952 | SPACER WASHER |
| AS REQUIRED | ||
| 3.25 MM | ||
| 009T | A 0024627852 | SPACER WASHER |
| AS REQUIRED | ||
| 3.26 MM | ||
| 009T | A 0024627952 | SPACER WASHER |
| AS REQUIRED | ||
| 3.27 MM | ||
| 009T | A 0024628052 | SPACER WASHER |
| AS REQUIRED | ||
| 3.28 MM | ||
| 009T | A 0024628152 | SPACER WASHER |
| AS REQUIRED | ||
| 3.29 MM | ||
| 009T | A 0014622152 | SPACER WASHER |
| AS REQUIRED | ||
| 3.30 MM | ||
| 009T | A 0024628252 | SPACER WASHER |
| AS REQUIRED | ||
| 3.31 MM | ||
| 009T | A 0024628352 | SPACER WASHER |
| AS REQUIRED | ||
| 3.32 MM | ||
| 009T | A 0024628452 | SPACER WASHER |
| AS REQUIRED | ||
| 3.33 MM | ||
| 009T | A 0024628552 | SPACER WASHER |
| AS REQUIRED | ||
| 3.34 MM | ||
| 009T | A 0014622352 | SPACER WASHER |
| AS REQUIRED | ||
| 3.35 MM | ||
| 009T | A 0024628652 | SPACER WASHER |
| AS REQUIRED | ||
| 3.36 MM | ||
| 009T | A 0024628752 | SPACER WASHER |
| AS REQUIRED | ||
| 3.37 MM | ||
| 009T | A 0024628852 | SPACER WASHER |
| AS REQUIRED | ||
| 3.38 MM | ||
| 009T | A 0024628952 | SPACER WASHER |
| AS REQUIRED | ||
| 3.39 MM | ||
| 009T | A 0014622552 | SPACER WASHER |
| AS REQUIRED | ||
| 3.40 MM | ||
| 009W | A 0004610760 | SEAL RING |
| AS REQUIRED | ||
| 2.5 MM | ||
| 009W | A 0004610860 | SEAL RING |
| AS REQUIRED | ||
| 2.6 MM | ||
| 009W | A 0004610960 | SEAL RING |
| AS REQUIRED | ||
| 2.7 MM | ||
| 009W | A 0004611060 | SEAL RING |
| AS REQUIRED | ||
| 2.8 MM | ||
| H 983455860046 | REPAIR KIT | |
| Repalced by: A 3455867046 | ||
| A 3455867046 | REPAIR KIT | |
| Repalced by: A 0004602161 | ||
| A 0004602161 | GASKET KIT | |
| A 0004601261 | GASKET KIT | |
| H 983455860146 | REPAIR KIT | |
| Repalced by: A 3455867146 | ||
| A 3455867146 | REPAIR KIT | |
| Repalced by: A 0004602261 | ||
| A 0004602261 | GASKET KIT | |
| A 0004601461 | GASKET KIT | |
| H 983455860246 | REPAIR KIT | |
| Repalced by: A 3455867246 | ||
| A 3455867246 | REPAIR KIT | |
| Repalced by: A 0004602361 | ||
| A 0004602361 | GASKET KIT | |
| A 0004601361 | GASKET KIT | |
| 022 | A 0005869446 | REPAIR KIT |
| A 0004601161 | GASKET KIT | |

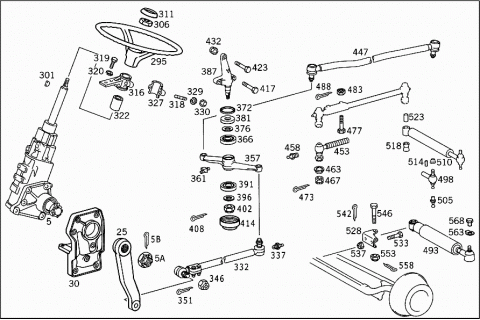

| 025 | A 3444630301 | PITMAN ARM |
| A 0444610040 | STEERING SUPPORT | |
| Repalced by: A 3444610240 | ||
| 030 | A 3444610240 | STEERING SUPPORT |
| N 000961014107 | SCREW | |
| STEERING BRACKET TO FRAME | ||
| N 000960014179 | SCREW | |
| STEERING BRACKET TO FRAME | ||
| N 000979014001 | NUT | |
| STEERING BRACKET TO FRAME | ||
| N 000094003222 | COTTER PIN | |
| STEERING BRACKET TO FRAME | ||
| N 000961014106 | SCREW | |
| STEERING BRACKET TO FRAME | ||
| N 000127014201 | LOCK WASHER | |
| STEERING BRACKET TO FRAME | ||
| N 000961016085 | SCREW | |
| STEERING TO STEERING BRACKET | ||

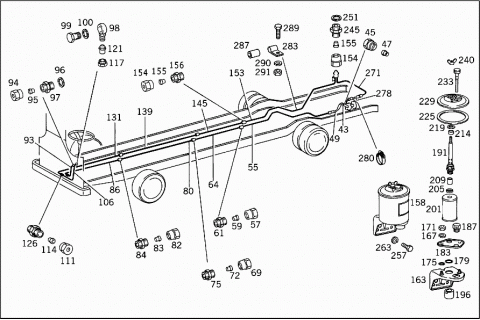

| 043 | H 983214600524 | LINE |
| FROM OIL PUMP TO HIGH PRESSURE HOSE | ||
| 043 | A 3444608024 | LINE |
| FROM OIL PUMP TO HIGH PRESSURE HOSE | ||
| 045 | N 915017015100 | UNION NUT |
| 047 | N 003861015004 | GLAND |
| 049 | A 3449970382 | HOSE |
| 049 | A 3449970082 | HOSE |
| 049 | A 3059971682 | HOSE |
| Repalced by: A 3649978282 | ||
| 049 | A 3649978282 | HOSE |
| 049 | A 3059971082 | HOSE |
| 049 | A 3079970682 | HOSE |
| 049 | A 0139971182 | HOSE |
| 055 | A 0214600024 | LINE |
| FROM HIGH PRESSURE HOSE TO CONNECTION FITTING | ||
| 055 | A 3214602124 | LINE |
| FROM HIGH PRESSURE HOSE TO CONNECTION FITTING | ||
| 055 | A 3444608224 | LINE |
| FROM HIGH PRESSURE HOSE TO CONNECTION FITTING | ||
| 055 | A 3444609524 | LINE |
| FROM HIGH PRESSURE HOSE TO CONNECTION FITTING | ||
| 055 | A 3444608124 | LINE |
| FROM HIGH PRESSURE HOSE TO CONNECTION FITTING | ||
| 055 | A 3444609324 | LINE |
| FROM HIGH PRESSURE HOSE TO CONNECTION FITTING | ||
| 057 | N 915017015100 | UNION NUT |
| 059 | N 003861015004 | GLAND |
| 061 | N 003902015000 | CONNECTION FITTING |
| 064 | A 3214602224 | LINE |
| FROM CONNECTOR I TO CONNECTOR II | ||
| 069 | N 915017015100 | UNION NUT |
| 072 | N 003861015004 | GLAND |
| 075 | N 003902015000 | CONNECTION FITTING |
| 080 | A 3214602324 | LINE |
| FROM CONNECTOR II TO CONNECTOR III | ||
| 082 | N 915017015100 | UNION NUT |
| 083 | N 003861015004 | GLAND |
| 084 | N 003902015000 | CONNECTION FITTING |
| 086 | A 3214602424 | LINE |
| FROM CONNECTION FITTING III TO CONNECTION FITTING IV | ||
| N 915017015100 | UNION NUT | |
| N 003861015004 | GLAND | |
| N 003902015000 | CONNECTION FITTING | |
| 093 | A 0214600524 | LINE |
| 093 | A 3214602524 | LINE |
| FROM CONNECTION FITTING IV TO HYDRAULIC STEERING | ||
| 094 | N 915017015100 | UNION NUT |
| 095 | N 003861015004 | GLAND |
| 096 | A 3219970840 | SEAL RING |
| 097 | N 003901015000 | SCREW-IN FITTING |
| 098 | N 915009020000 | BANJO UNION |
| 099 | N 915011020100 | HOLLOW SCREW |
| 100 | N 007603026104 | SEAL RING |
| 106 | A 3214602624 | LINE |
| FROM STEERING TO CONNECTOR I | ||
| 111 | N 915017022100 | UNION NUT |
| 114 | N 003861022004 | GLAND |
| 117 | N 915001020002 | UNION NUT |
| 121 | N 915003020200 | SEAL CONE |
| 126 | N 003902022000 | CONNECTION FITTING |
| 131 | A 3214602724 | LINE |
| FROM CONNECTION I TO CONNECTOR III | ||
| 139 | A 3214602824 | LINE |
| FROM CONNECTOR II TO CONNECTOR III | ||
| 145 | A 3214602924 | LINE |
| FROM CONNECTOR III TO CONNECTOR IV | ||
| 153 | A 0214601124 | LINE |
| FROM CONNECTOR IV TO OIL TANK | ||
| 153 | H 983214600724 | LINE |
| FROM CONNECTOR IV TO OIL TANK | ||
| A 3444608424 | LINE | |
| Repalced by: A 3444609624 | ||
| 153 | A 3444609624 | LINE |
| FROM CONNECTOR IV TO OIL TANK | ||
| 153 | H 983214600124 | LINE |
| FROM CONNECTOR IV TO OIL TANK | ||
| 153 | A 3214603024 | LINE |
| FROM CONNECTOR IV TO OIL TANK | ||
| 153 | A 3444608324 | LINE |
| FROM CONNECTOR IV TO OIL TANK | ||
| 153 | A 3444609424 | LINE |
| FROM CONNECTOR IV TO OIL TANK | ||
| 154 | N 915017022100 | UNION NUT |
| 155 | N 003861022004 | GLAND |
| 156 | N 003902022000 | CONNECTION FITTING |
| N 915013020000 | SCREW FITTING | |
| N 003901022002 | SCREW-IN FITTING | |
| AT OIL TANK | ||
| N 007603026104 | SEAL RING | |
| AT OIL TANK | ||
| A 0214600083 | OIL TANK | |
| Repalced by: A 3214600883 | ||
| 158 | A 3214600883 | OIL TANK |
| 163 | A 0004660040 | BRACKET |
| Repalced by: A 0004660640 | ||
| 163 | A 0004660640 | BRACKET |
| 167 | N 912004008001 | LOCK WASHER |
| 171 | N 000934008035 | NUT |
| 175 | A 0029973345 | SEAL RING |
| Repalced by: A 0099970145 | ||
| 175 | A 0099970145 | SEAL RING |
| 179 | A 0029973245 | SEAL RING |
| Repalced by: A 0059970848 | ||
| 179 | A 0059970848 | SEAL RING |
| 183 | A 0004660037 | REINFORCEMENT |
| Repalced by: A 0004660095 | ||
| 183 | A 0004660095 | STRUT |
| 187 | A 0009976872 | FITTING |
| Repalced by: A 0004660571 | ||
| 187 | A 0004660571 | FITTING |
| A 0009977672 | FITTING | |
| 191 | A 0014664465 | FILTER CARRIER |
| Repalced by: A 0004610065 | ||
| 191 | A 0004610065 | FILTER SUPPORT |
| 196 | A 0004660272 | CONNECTOR |
| 201 | A 0004660204 | FILTER |
| Repalced by: A 0001842225 | ||
| 201 | A 0001842225 | FILTER ELEMENT |
| 205 | A 0004660675 | CENTERING RING |
| 209 | A 0009870643 | RUBBER SLEEVE |
| 214 | A 0004660153 | SPACER TUBE |
| 219 | A 0004660275 | WASHER |
| 225 | A 0004660260 | SEAL RING |
| 229 | A 0004661305 | COVER |
| Repalced by: A 0004664405 | ||
| 229 | A 0004664405 | COVER |
| 233 | A 0004660067 | OIL DIPSTICK |
| 240 | N 000315008004 | NUT |
| 245 | N 003901022006 | SCREW-IN FITTING |
| AT OIL TANK | ||
| 251 | N 007603026104 | SEAL RING |
| AT OIL TANK | ||
| 257 | N 000933010294 | SCREW |
| OIL TANK TO SUBSTRUCTURE | ||
| 263 | N 000127010202 | LOCK WASHER |
| OIL TANK TO SUBSTRUCTURE | ||
| 271 | H 983214600024 | LINE |
| 271 | A 3214603124 | LINE |
| N 915017022100 | UNION NUT | |
| N 003861022004 | GLAND | |
| 278 | H 983459970182 | HOSE |
| Repalced by: A 3609970982 | ||
| 278 | A 3609970982 | HOSE |
| 278 | A 0069971282 | HOSE |
| A 3214603224 | LINE | |
| FROM OIL TANK TO PUMP | ||
| N 915017022100 | UNION NUT | |
| N 003861022004 | GLAND | |
| 278 | A 3444607188 | LINE |
| FROM OIL TANK TO PUMP | ||
| 280 | A 3509970390 | LOOM TIE |
| AS REQUIRED | ||
| 280 | A 3449978490 | CLAMP |
| AS REQUIRED | ||
| 283 | A 3449950001 | CLAMP |
| 283 | A 3449950101 | CLAMP |
| 287 | A 3449970182 | HOSE |
| 287 | A 3449970282 | HOSE |
| 289 | N 000933008282 | SCREW |
| 290 | N 912004008100 | LOCK WASHER |
| 291 | N 000934008000 | NUT |
| H 103446840127 | PROTECTIVE CAP | |
| 295 | A 3454600303 | STEERING WHEEL |
| Repalced by: A 3454607003 | ||
| 295 | A 3454607003 | STEERING WHEEL |
| 295 | A 0004641101 | STEERING WHEEL |
| 301 | N 006888005006 | WOODRUFF KEY |
| 306 | N 000439022203 | NUT |
| 311 | A 0004640431 | CAP |
| Repalced by: A 3454647131 | ||
| 311 | A 3454647131 | CAP |
| TO 345 460 70 03 | ||
| 311 | A 0004642631 | CAP |
| TO 000 464 11 01 | ||
| A 0444620121 | STEERING COLUMN BRACKET | |
| Repalced by: A 3444620121 | ||
| 316 | A 3444620121 | STEERING COLUMN BRACKET |
| 318 | N 000835008049 | STUD |
| 319 | N 000933008288 | SCREW |
| STEERING COLUMN BRACKET TO CAB | ||
| 320 | N 912004008100 | LOCK WASHER |
| STEERING COLUMN BRACKET TO CAB | ||
| 322 | A 0009975282 | HOSE |
| STEERING COLUMN BRACKET TO STEERING COLUMN | ||
| 327 | H 983214620022 | CLAMPING PIECE |
| Repalced by: A 3214620022 | ||
| 327 | A 3214620022 | CLAMPING PIECE |
| 329 | N 912004008100 | LOCK WASHER |
| STEERING COLUMN BRACKET TO STEERING COLUMN | ||
| 330 | N 000917008005 | NUT |
| STEERING COLUMN BRACKET TO STEERING COLUMN | ||
| 332 | H 983444600305 | DRAG LINK |
| Repalced by: A 3444607605 | ||
| 332 | A 3444607605 | DRAG LINK |
| FRONT | ||
| 337 | N 071412010100 | GREASE NIPPLE |
| TO 98 344 460 03 05 | ||
| A 0003382356 | DUST CAP | |
| Repalced by: G 983213380056 | ||
| H 983213380056 | DUST CAP | |
| TO 98 344 460 03 05 | ||
| 346 | N 000937020000 | NUT |
| 351 | N 000094004065 | COTTER PIN |
| A 3444607205 | DRAG LINK | |
| FRONT | ||
| A 3643307135 | JOINT | |
| A 3643307085 | BOOT | |
| A 3643387082 | RUBBER RING | |
| Repalced by: A 0003381463 | ||
| 357 | A 3444630010 | STEERING INTERMEDIATE ARM |
| 361 | N 071412010200 | GREASE NIPPLE |
| 366 | N 000720030206 | TAPERED ROLLER BEARING |
| 372 | A 3174630052 | SPACER WASHER |
| 376 | A 3214630252 | SPACER WASHER |
| 381 | N 006504042100 | RADIAL SEAL RING |
| Repalced by: A 0079976446 | ||
| 381 | A 0079976446 | SEAL RING |
| 387 | A 0444630011 | TRUNNION BEARING |
| Repalced by: A 3644630038 | ||
| 387 | A 3644630038 | BEARING BRACKET |
| 391 | N 000720030205 | TAPERED ROLLER BEARING |
| 396 | A 3174630062 | THRUST WASHER |
| 402 | N 000937020000 | NUT |
| 408 | N 000094004065 | COTTER PIN |
| 414 | A 3214630033 | CAP |
| 417 | N 000960014240 | SCREW |
| STEERING INTERMEDIATE ARM | ||
| 423 | N 000960014207 | SCREW |
| STEERING INTERMEDIATE ARM | ||
| N 000125015012 | WASHER | |
| 432 | N 913004014002 | NUT |
| STEERING INTERMEDIATE ARM | ||
| N 000094003222 | COTTER PIN | |
| A 0444630016 | DRAG LINK TUBE | |
| Repalced by: A 3444630042 | ||
| A 3444630042 | STOP | |
| N 000961014105 | SCREW | |
| 447 | H 983444600405 | DRAG LINK |
| Repalced by: A 3444607405 | ||
| 447 | A 3444607405 | DRAG LINK |
| MAKE NAKATA | ||
| 453 | H 983213380029 | BALL SOCKET HEAD |
| TO 98 344 460 03 05 | ||
| 458 | N 071412010100 | GREASE NIPPLE |
| TO 98 344 460 04 05 | ||
| 463 | A 0003382356 | DUST CAP |
| Repalced by: G 983213380056 | ||
| 463 | H 983213380056 | DUST CAP |
| TO98 344 460 04 05 | ||
| 467 | N 000937020000 | NUT |
| 473 | N 000094004065 | COTTER PIN |
| A 0449950044 | CLAMP | |
| Repalced by: G 983213380045 | ||
| H 983213380045 | CLAMP | |
| Repalced by: A 3503387045 | ||
| A 3503387045 | CLAMP | |
| TO 98 344 460 04 05 | ||
| 477 | N 000960010032 | SCREW |
| 483 | N 000935010001 | NUT |
| 488 | N 000094002008 | COTTER PIN |
| A 3444607005 | DRAG LINK | |
| MAKE COFAP | ||
| A 3643307135 | JOINT | |
| A 3643307085 | BOOT | |
| A 3643387082 | RUBBER RING | |
| Repalced by: A 0003381463 | ||
| 493 | A 3444600166 | SHOCK ABSORBER |
| Repalced by: A 3444607066 | ||
| 493 | A 3444607066 | SHOCK ABSORBER |
| MONROE | ||
| 493 | A 3444607166 | SHOCK ABSORBER |
| 498 | A 3444630029 | BALL JOINT |
| TO 344 460 01 66 | ||
| 505 | N 071412008100 | GREASE NIPPLE |
| TO 344 460 01 66 | ||
| 510 | A 0004630856 | DUST CAP |
| TO 344 460 01 66 | ||
| 514 | N 001481003036 | CLAMPING SLEEVE |
| TO 344 460 01 66 | ||
| 518 | A 0084630065 | RUBBER RING |
| TO 344 460 01 66 | ||
| 518 | A 0004630865 | RUBBER RING |
| TO 344 460 70 66 | ||
| 523 | A 0084630050 | BUSHING |
| TO 344 460 01 66 | ||
| 523 | A 0004630850 | BUSHING |
| TO 344 460 70 66 | ||
| 528 | A 3214630240 | BRACKET |
| Repalced by: A 3214630340 | ||
| 528 | A 3214630340 | BRACKET |
| 533 | N 000960012084 | SCREW |
| 537 | N 000935012003 | NUT |
| 542 | N 000094003217 | COTTER PIN |
| 546 | N 000960014244 | SCREW |
| 553 | N 000979014001 | NUT |
| 558 | N 000094003222 | COTTER PIN |
| 563 | N 000093021001 | LOCK PLATE |
| 568 | A 3444630072 | NUT |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
