Transporto priemonė: O 362; VIN numerio dalis: 321427

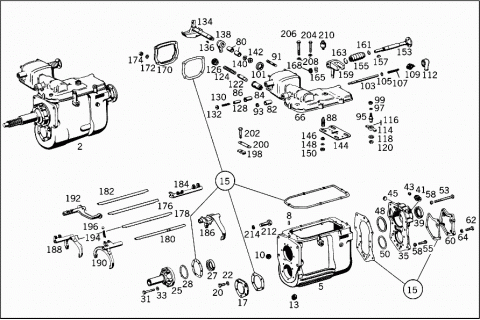

Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| A 0212600400 | TRANSMISSION | |
| Repalced by: A 3212605400 | ||
| H 983212600000 | TRANSMISSION | |
| Repalced by: A 3212605800 | ||
| H 983212600200 | TRANSMISSION | |
| Repalced by: A 3212607200 | ||
| 002 | A 3212605400 | TRANSMISSION |
| G 32/8.02 | ||
| A 3212605800 | TRANSMISSION | |
| G 32/8.02 | ||
| A 3212607200 | TRANSMISSION | |
| G 3/40-5 | ||
| A 3442602300 | TRANSMISSION | |
| LESS TRANSMISSION CASE TOP COVER | ||
| "G 32/8.02" | ||
| A 3452603400 | TRANSMISSION | |
| LESS TRANSMISSION CASE TOP COVER | ||
| "G 3/40-5" | ||
| 005 | A 3442600111 | TRANSMISSION CASE |
| Repalced by: A 3442600211 | ||
| 005 | A 3442600211 | TRANSMISSION CASE |
| Repalced by: A 3442600411 | ||
| 005 | A 3442600411 | TRANSMISSION CASE |
| 008 | N 000007010221 | CYLINDRICAL PIN |
| 010 | A 1869970032 | SCREW PLUG |
| Repalced by: A 0009972632 | ||
| 013 | A 0009971332 | SCREW PLUG |
| Repalced by: A 0009972632 | ||
| 013 | A 0009972632 | SCREW PLUG |
| OIL FILLING AND OIL DRAIN | ||
| 013 | A 0009973432 | SCREW PLUG |
| OIL FILLING AND OIL DRAIN | ||
| A 0215860026 | REPAIR KIT | |
| Repalced by: A 3452600568 | ||
| A 3452600568 | GASKET KIT | |
| 015 | H 983215860026 | REPAIR KIT |
| Repalced by: H 983455860126 | ||
| 015 | H 983455860126 | REPAIR KIT |
| Repalced by: A 3452600368 | ||
| 015 | A 3452600368 | GASKET KIT |
| 017 | A 3212610133 | COVER |
| 020 | N 000933008282 | SCREW |
| 022 | N 912004008100 | LOCK WASHER |
| 025 | A 3212610318 | TRANSMISSION CASE COVER |
| 027 | A 0029971346 | SEAL RING |
| Repalced by: A 0089970146 | ||
| 027 | A 0089970146 | SEAL RING |
| 028 | A 3122625362 | THRUST WASHER |
| AS REQUIRED | ||
| 2.85 MM | ||
| 028 | A 3122625462 | THRUST WASHER |
| AS REQUIRED | ||
| 2.90 MM | ||
| 028 | A 3122625562 | THRUST WASHER |
| AS REQUIRED | ||
| 2.95 MM | ||
| 028 | A 3122623462 | THRUST WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||
| 028 | A 3122624362 | THRUST WASHER |
| AS REQUIRED | ||
| 3.05 MM | ||
| 028 | A 3122624462 | THRUST WASHER |
| AS REQUIRED | ||
| 3.10 MM | ||
| 028 | A 3122623562 | THRUST WASHER |
| AS REQUIRED | ||
| 028 | A 3122623662 | THRUST WASHER |
| AS REQUIRED | ||
| 3.20 MM | ||
| 028 | A 3122623762 | THRUST WASHER |
| AS REQUIRED | ||
| 3.25 MM | ||
| 031 | N 000931008085 | SCREW |
| 033 | N 912004008100 | LOCK WASHER |
| 035 | A 0442610020 | TRANSMISSION CASE COVER |
| Repalced by: A 3372610220 | ||
| 035 | A 3372610220 | TRANSMISSION CASE COVER |
| 035 | A 3442617020 | TRANSMISSION CASE COVER |
| 039 | A 0089971146 | SEAL RING |
| 041 | A 3212600086 | THREADED BUSHING |
| 041 | A 3212610031 | THREADED BUSHING |
| 043 | A 1202610080 | GASKET |
| 045 | N 915015024000 | PLUG |
| 048 | A 3212620862 | THRUST WASHER |
| AS REQUIRED | ||
| 2.90 MM | ||
| 048 | A 3212620962 | THRUST WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||
| 048 | A 3212621062 | THRUST WASHER |
| AS REQUIRED | ||
| 3.10 MM | ||
| 048 | A 3212621162 | THRUST WASHER |
| AS REQUIRED | ||
| 3.20 MM | ||
| 048 | A 3212621262 | THRUST WASHER |
| AS REQUIRED | ||
| 3.30 MM | ||
| 048 | A 3212621362 | THRUST WASHER |
| AS REQUIRED | ||
| 3.40 MM | ||
| 048 | A 3212621462 | THRUST WASHER |
| AS REQUIRED | ||
| 3.50 MM | ||
| 048 | A 3212621562 | THRUST WASHER |
| AS REQUIRED | ||
| 3.60 MM | ||
| 050 | A 3122831752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.05 MM | ||
| 050 | A 3122831052 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 050 | A 3122831152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 050 | A 3122831252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.40 MM | ||
| 050 | A 3122832152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.80 MM | ||
| 053 | N 000931008387 | SCREW |
| 055 | N 000933008273 | SCREW |
| N 000933008296 | SCREW | |
| 058 | N 912004008100 | LOCK WASHER |
| 060 | A 3212610833 | COVER |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 321 261 03 33 | ||
| 062 | N 000933008279 | SCREW |
| 064 | N 000137008101 | SPRING WASHER |
| 066 | A 3212604114 | TRANSMISSION CASE COVER |
| Repalced by: A 3442607514 | ||
| 066 | A 3442607514 | TRANSMISSION CASE COVER |
| H 983452600014 | TRANSMISSION CASE COVER | |
| Repalced by: A 3452600314 | ||
| A 3452600314 | TRANSMISSION CASE COVER | |
| 080 | A 3212610050 | BUSHING |
| A 3212610150 | BUSHING | |
| 082 | A 3222610050 | BUSHING |
| 084 | A 3212650250 | BUSHING |
| 086 | A 3212650150 | BUSHING |
| N 000835008007 | STUD | |
| 088 | N 000835008007 | STUD |
| Repalced by: A 3442657044 | ||
| 088 | A 1362650247 | INTERLOCK PLUG |
| Repalced by: A 3442657044 | ||
| 088 | A 3142650044 | GUIDE PIN |
| Repalced by: A 3442657044 | ||
| 088 | A 3442657044 | GUIDE PIN |
| N 000835008015 | STUD | |
| 091 | N 000835006008 | STUD |
| 093 | N 000443020000 | EXPANSION PLUG |
| 20 MM | ||
| N 000443018000 | EXPANSION PLUG | |
| 095 | A 3212650474 | PIN |
| 097 | N 000125013012 | WASHER |
| 099 | N 000979012002 | NUT |
| N 000094003217 | COTTER PIN | |
| 101 | A 0009973746 | SEAL RING |
| Repalced by: A 0089971046 | ||
| 101 | A 0089971046 | SEAL RING |
| 103 | A 3212610274 | PIN |
| Repalced by: A 3172610174 | ||
| 103 | A 3172610174 | PIN |
| 105 | A 0019946341 | LOCK |
| 107 | A 3129934201 | SPRING |
| 109 | A 3445450106 | SWITCH |
| Repalced by: A 3455457006 | ||
| 109 | A 0005455011 | SWITCH |
| Repalced by: A 3455457006 | ||
| 109 | A 3455457006 | SWITCH |
| BACK-UP LIGHT | ||
| A 1369970830 | SCREW PLUG | |
| 112 | A 0005460035 | BOOT |
| 114 | A 3372650007 | LEVER |
| 116 | N 005402302104 | CYLINDRICAL ROLLER |
| 118 | N 000433017000 | WASHER |
| 120 | N 900055017300 | LOCK RING |
| 122 | H 983452650016 | THRUST PIECE |
| Repalced by: A 3212650516 | ||
| 122 | A 3212650516 | THRUST PIECE |
| 124 | A 3219930501 | SPRING |
| A 3219931701 | SPRING | |
| 126 | A 3219970103 | PLUG |
| 128 | A 3212650148 | INTERLOCK PIN |
| 130 | A 3219930601 | SPRING |
| 132 | N 915015024000 | PLUG |
| 134 | A 0442680029 | SHIFTING ROD |
| Repalced by: A 3442680029 | ||
| 134 | A 3442680029 | SHIFTING ROD |
| A 3222680129 | SHIFTING ROD | |
| 136 | N 006888005006 | WOODRUFF KEY |
| 138 | A 3212680433 | SHIFTING FINGER |
| A 3172680333 | SHIFTING FINGER | |
| Repalced by: A 3942687333 | ||
| A 3942687333 | SHIFTING FINGER | |
| 140 | A 3219940112 | LOCK |
| N 070952020101 | LOCK PLATE | |
| A 3229940112 | LOCK | |
| 142 | A 3229900060 | NUT |
| A 3219900160 | NUT | |
| 144 | A 3212601046 | PLATE |
| A 3212600846 | PLATE | |
| Repalced by: A 3852600046 | ||
| A 3852600046 | PLATE | |
| Repalced by: A 3452600046 | ||
| A 3452600046 | PLATE | |
| 146 | A 3212650350 | BUSHING |
| 148 | N 000137008101 | SPRING WASHER |
| 150 | N 000937008000 | NUT |
| N 000094002033 | COTTER PIN | |
| A 1369908240 | WASHER | |
| A 1362650272 | NUT | |
| 153 | A 3212681029 | SHIFTING ROD |
| A 3222680229 | SHIFTING ROD | |
| 155 | A 0002680497 | BOOT |
| 157 | N 006888005006 | WOODRUFF KEY |
| 159 | A 3212650330 | SELECTOR LEVER |
| A 3222680033 | SHIFTING FINGER | |
| 161 | N 009045028001 | SNAP RING |
| 163 | N 009045038001 | SNAP RING |
| 165 | A 3229940112 | LOCK |
| 165 | N 070952020101 | LOCK PLATE |
| A 0459940012 | LOCK | |
| Repalced by: N 070952018101 | ||
| N 070952018101 | LOCK PLATE | |
| 168 | A 3219900160 | NUT |
| A 3229900060 | NUT | |
| 170 | A 3212610905 | TRANSMISSION CASE COVER |
| A 3222610305 | TRANSMISSION CASE COVER | |
| 172 | N 000137008101 | SPRING WASHER |
| N 000137006203 | SPRING WASHER | |
| 174 | N 000934008000 | NUT |
| N 000934006006 | NUT | |
| 176 | A 3212650805 | SHIFTING ROD |
| 1ST SPEED | ||
| 178 | A 3212651805 | SHIFTING ROD |
| 2ND AND 3RD SPEED | ||
| 180 | A 3212651905 | SHIFTING ROD |
| 4TH AND 5TH SPEED | ||
| 182 | A 3222650305 | SHIFTING ROD |
| REVERSE SPEED | ||
| 184 | A 3222650123 | SHIFTING DOG |
| 1ST SPEED | ||
| 186 | A 3442600330 | SHIFTING FORK |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 322 260 09 30 | ||
| 188 | A 3442600130 | SHIFTING FORK |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 321 260 26 30 | ||
| 190 | A 3212602730 | SHIFTING FORK |
| 4TH AND 5TH SPEED | ||
| 192 | A 3212650403 | SHIFTING FORK |
| REVERSE SPEED | ||
| 192 | A 3452600030 | SHIFTING FORK |
| REVERSE SPEED | ||
| 194 | A 3129931001 | SPRING |
| 196 | N 005401311000 | BALL |
| 198 | A 3122651236 | BRACKET |
| 198 | A 3122651036 | BRACKET |
| 198 | A 3442657036 | BRACKET |
| 200 | A 3129940332 | LOCK |
| 202 | N 000933008288 | SCREW |
| 204 | N 000933008279 | SCREW |
| 206 | N 000931008085 | SCREW |
| 208 | N 000137008101 | SPRING WASHER |
| 210 | A 1112600058 | BREATHER |
| 212 | N 000933014050 | SCREW |
| 214 | N 000127014201 | LOCK WASHER |
| 218 | A 3222620102 | DRIVE SHAFT |
| 218 | A 3402620402 | DRIVE SHAFT |
| 221 | A 3219931201 | SPRING |
| 223 | A 3212620073 | LOCK |
| 225 | A 0019813101 | CYLINDR. ROLLER BEARING |
| 225 | A 3449817101 | CYLINDR. ROLLER BEARING |
| 228 | N 005417085001 | SNAP RING |
| AS REQUIRED | ||
| 1.7 MM | ||
| 228 | A 0009943435 | SNAP RING |
| AS REQUIRED | ||
| 1.80 MM | ||
| 228 | A 0009942835 | SNAP RING |
| AS REQUIRED | ||
| 1.90 MM | ||
| 231 | A 0009812827 | ANGULAR CONTACT BEARING |
| 231 | A 0009814327 | ANGULAR CONTACT BEARING |
| Repalced by: A 3459817027 | ||
| 231 | A 3459817027 | ANGULAR CONTACT BEARING |
| 231 | A 3459817327 | ANGULAR CONTACT BEARING |
| 233 | A 3122623162 | THRUST WASHER |
| 235 | A 3122621172 | NUT |
| 238 | A 0009814312 | ROLLER ASSEMBLY |
| 238 | A 0009814512 | ROLLER ASSEMBLY |
| 238 | A 0009814612 | ROLLER ASSEMBLY |
| 238 | A 3459817012 | ROLLER ASSEMBLY |
| 238 | A 3219810012 | ROLLER ASSEMBLY |
| A 0009819512 | ROLLER ASSEMBLY | |
| A 0009819612 | ROLLER ASSEMBLY | |
| A 3459810012 | ROLLER ASSEMBLY | |
| 241 | A 3222620505 | MAIN SHAFT |
| 243 | A 3129931701 | SPRING |
| 245 | A 3212620374 | PIN |
| 245 | A 3852621074 | PIN |
| A 3212622162 | THRUST WASHER | |
| Repalced by: A 3212623862 | ||
| A 3212622062 | THRUST WASHER | |
| Repalced by: A 3212623762 | ||
| A 3212621962 | THRUST WASHER | |
| Repalced by: A 3212623662 | ||
| A 3212621862 | THRUST WASHER | |
| Repalced by: A 3212623562 | ||
| A 3212621762 | THRUST WASHER | |
| Repalced by: A 3212623462 | ||
| A 3212620462 | THRUST WASHER | |
| Repalced by: A 3212623962 | ||
| A 3212622862 | THRUST WASHER | |
| Repalced by: A 3212624662 | ||
| A 3212620562 | THRUST WASHER | |
| Repalced by: A 3212624062 | ||
| A 3212622962 | THRUST WASHER | |
| Repalced by: A 3212624762 | ||
| A 3212620662 | THRUST WASHER | |
| Repalced by: A 3212624162 | ||
| A 3212623062 | THRUST WASHER | |
| Repalced by: A 3212624862 | ||
| A 3212620762 | THRUST WASHER | |
| Repalced by: A 3212624262 | ||
| A 3212622562 | THRUST WASHER | |
| Repalced by: A 3212624362 | ||
| A 3212622662 | THRUST WASHER | |
| Repalced by: A 3212624462 | ||
| A 3212622762 | THRUST WASHER | |
| Repalced by: A 3212624562 | ||
| 247 | A 3212623862 | THRUST WASHER |
| AS REQUIRED | ||
| 6.90 MM | ||
| 247 | A 3212623762 | THRUST WASHER |
| AS REQUIRED | ||
| 247 | A 3212623662 | THRUST WASHER |
| AS REQUIRED | ||
| 7.10 MM | ||
| 247 | A 3212623562 | THRUST WASHER |
| AS REQUIRED | ||
| 7.20 MM | ||
| 247 | A 3212623462 | THRUST WASHER |
| AS REQUIRED | ||
| 7.30 MM | ||
| 247 | A 3212623962 | THRUST WASHER |
| AS REQUIRED | ||
| 7.40 MM | ||
| 247 | A 3212624662 | THRUST WASHER |
| AS REQUIRED | ||
| 7.45 MM | ||
| 247 | A 3212624062 | THRUST WASHER |
| AS REQUIRED | ||
| 7.50 MM | ||
| 247 | A 3212624762 | THRUST WASHER |
| AS REQUIRED | ||
| 7.55 MM | ||
| 247 | A 3212624162 | THRUST WASHER |
| AS REQUIRED | ||
| 7.60 MM | ||
| 247 | A 3212624862 | THRUST WASHER |
| AS REQUIRED | ||
| 7.65 MM | ||
| 247 | A 3212624262 | THRUST WASHER |
| AS REQUIRED | ||
| 7.70 MM | ||
| 247 | A 3212624362 | THRUST WASHER |
| AS REQUIRED | ||
| 7.80 MM | ||
| 247 | A 3212624462 | THRUST WASHER |
| AS REQUIRED | ||
| 7.90 MM | ||
| 247 | A 3212624562 | THRUST WASHER |
| AS REQUIRED | ||
| 8.00 MM | ||
| 252 | A 3222620034 | SYNCHRONIZER RING |
| 4TH AND 5TH SPEED | ||
| 252 | A 3402620034 | SYNCHRONIZER RING |
| A 3222600645 | SYNCHRONIZER BODY | |
| 4TH AND 5TH SPEED | ||
| 254 | A 3212621835 | SYNCHRONIZER BODY |
| 4TH AND 5TH SPEED | ||
| 256 | A 3219930701 | SPRING |
| 258 | A 3212620774 | PIN |
| 261 | A 3212621040 | FOLLOWER |
| 263 | A 3222620137 | SYNCHRONIZER CONE |
| A 3212600469 | SPRING | |
| 269 | A 3212620823 | SLIDING COLLAR |
| A 3222600244 | GEAR | |
| Repalced by: A 3222601744 | ||
| 272 | A 3222601744 | GEAR |
| 4TH SPEED | ||
| A 0009819112 | ROLLER ASSEMBLY | |
| Repalced by: A 3459817312 | ||
| 273 | A 3459817312 | ROLLER ASSEMBLY |
| A 3229810612 | ROLLER ASSEMBLY | |
| Repalced by: A 3529810012 | ||
| A 3229810812 | ROLLER ASSEMBLY | |
| Repalced by: A 3529810012 | ||
| 273 | A 3529810012 | ROLLER ASSEMBLY |
| 275 | A 3222624050 | BUSHING |
| 44.50 MM | ||
| 275 | A 3222624150 | BUSHING |
| 44.60 MM | ||
| A 0009819012 | ROLLER ASSEMBLY | |
| Repalced by: A 3459817212 | ||
| 276 | A 3459817212 | ROLLER ASSEMBLY |
| A 3229810512 | ROLLER ASSEMBLY | |
| Repalced by: A 3529810112 | ||
| A 3229810712 | ROLLER ASSEMBLY | |
| Repalced by: A 3529810112 | ||
| 276 | A 3529810112 | ROLLER ASSEMBLY |
| 278 | A 3222600644 | GEAR |
| 3RD SPEED | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 322 260 24 44 | ||
| 280 | A 3222600545 | SYNCHRONIZER BODY |
| 2ND AND 3RD SPEED | ||
| 280 | A 3222620435 | SYNCHRONIZER BODY |
| 2ND AND 3RD SPEED | ||
| 282 | A 3219930701 | SPRING |
| 285 | A 3212620774 | PIN |
| 287 | A 3212621040 | FOLLOWER |
| 289 | A 3222620137 | SYNCHRONIZER CONE |
| A 3212600469 | SPRING | |
| 294 | A 3212620823 | SLIDING COLLAR |
| A 0009819012 | ROLLER ASSEMBLY | |
| Repalced by: A 3459817212 | ||
| A 3459817212 | ROLLER ASSEMBLY | |
| A 3229810512 | ROLLER ASSEMBLY | |
| Repalced by: A 3529810112 | ||
| A 3229810712 | ROLLER ASSEMBLY | |
| Repalced by: A 3529810112 | ||
| A 3529810112 | ROLLER ASSEMBLY | |
| 297 | A 3222620112 | GEAR |
| 2ND SPEED | ||
| 299 | A 3222600625 | GEAR |
| MAIN SHAFT | ||
| 299 | A 3222630333 | REVERSE IDLER GEAR |
| 301 | A 3219930701 | SPRING |
| 303 | A 3212620674 | PIN |
| 305 | A 3212620940 | FOLLOWER |
| 307 | A 3222620137 | SYNCHRONIZER CONE |
| A 3142620076 | BALL SOCKET | |
| A 3212600469 | SPRING | |
| 314 | A 3212620723 | SLIDING COLLAR |
| 316 | A 3222621150 | BUSHING |
| AS REQUIRED | ||
| 44.20 MM | ||
| 316 | A 3222621250 | BUSHING |
| AS REQUIRED | ||
| 44.30 MM | ||
| 316 | A 3222621350 | BUSHING |
| AS REQUIRED | ||
| 44.40 MM | ||
| 316 | A 3222621450 | BUSHING |
| AS REQUIRED | ||
| 44.50 MM | ||
| 316 | A 3222621550 | BUSHING |
| AS REQUIRED | ||
| 44.60 MM | ||
| 316 | A 3222621650 | BUSHING |
| AS REQUIRED | ||
| 44.70 MM | ||
| 316 | A 3222621750 | BUSHING |
| AS REQUIRED | ||
| 44.80 MM | ||
| 316 | A 3222621850 | BUSHING |
| AS REQUIRED | ||
| 44.90 MM | ||
| 319 | N 005402004203 | CYLINDRICAL ROLLER |
| 319 | A 3449817086 | ROLLER |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 005402 004203 | ||
| 321 | A 3212620611 | GEAR |
| 1ST SPEED | ||
| A 3222620211 | GEAR | |
| Repalced by: A 3222620511 | ||
| 321 | A 3222620511 | GEAR |
| 1ST SPEED | ||
| 324 | A 0009811201 | CYLINDR. ROLLER BEARING |
| 324 | A 3449817001 | CYLINDR. ROLLER BEARING |
| 324 | A 3459817001 | CYLINDR. ROLLER BEARING |
| 327 | A 3219940040 | SNAP RING |
| AS REQUIRED | ||
| 2.68 MM | ||
| 327 | A 3219940140 | SNAP RING |
| AS REQUIRED | ||
| 2.73 MM | ||
| 327 | A 3219940240 | SNAP RING |
| AS REQUIRED | ||
| 2.78 MM | ||
| 327 | A 3219940340 | SNAP RING |
| AS REQUIRED | ||
| 2.83 MM | ||
| 327 | A 3219940440 | SNAP RING |
| AS REQUIRED | ||
| 2.88 MM | ||
| 327 | A 3219940540 | SNAP RING |
| AS REQUIRED | ||
| 2.93 MM | ||
| 330 | A 0009812927 | ANGULAR CONTACT BEARING |
| 330 | A 0009814227 | ANGULAR CONTACT BEARING |
| Repalced by: A 3459817127 | ||
| 330 | A 3459817127 | ANGULAR CONTACT BEARING |
| 330 | A 3459817227 | ANGULAR CONTACT BEARING |
| 333 | A 3522640030 | DRIVE GEAR |
| 335 | A 3212640532 | SHAFT |
| Repalced by: A 3142640032 | ||
| 335 | A 3142640032 | SHAFT |
| 337 | A 3212640531 | DRIVE GEAR |
| 339 | A 3522620045 | FLANGE |
| 342 | A 3222620072 | NUT |
| 344 | H 983212630002 | COUNTERSHAFT |
| Repalced by: A 3212630702 | ||
| 344 | A 3212630702 | COUNTERSHAFT |
| 344 | A 3222630202 | COUNTERSHAFT |
| 348 | A 3222630313 | GEAR |
| 2ND AND 3RD SPEED | ||
| A 3222630314 | GEAR | |
| Repalced by: A 3222630514 | ||
| 351 | A 3222630514 | GEAR |
| 4TH SPEED | ||
| 353 | A 3222630010 | GEAR |
| CONSTANT | ||
| 353 | A 3402630010 | GEAR |
| CONSTANT | ||
| 356 | N 900055052300 | LOCK RING |
| COUNTERSHAFT | ||
| 360 | A 0019813105 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 360 | A 0019815005 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 360 | A 3459817005 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 363 | A 3212650208 | LEVER |
| 365 | A 3142650349 | SLIDE |
| 367 | A 3212650074 | PIN |
| 371 | A 3212650050 | BUSHING |
| 374 | N 000127010202 | LOCK WASHER |
| 375 | N 000934010000 | NUT |
| A 3022650074 | PIN | |
| 376 | A 3222600725 | GEAR |
| A 3212630450 | BUSHING | |
| 378 | H 983452630030 | REVERSE IDLER SHAFT |
| Repalced by: A 3212630430 | ||
| 378 | A 3212630430 | REVERSE IDLER SHAFT |
| Repalced by: A 3412637030 | ||
| 378 | A 3412637030 | REVERSE IDLER SHAFT |

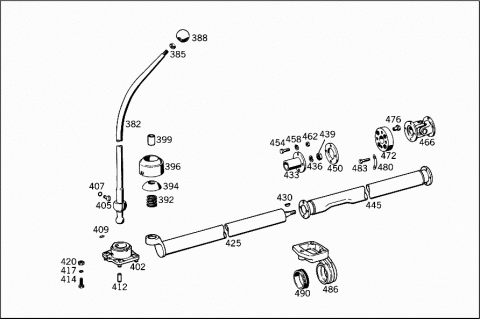

| 382 | A 3212607639 | SHIFT LEVER |
| 382 | A 3212607739 | SHIFT LEVER |
| 385 | N 000936010007 | NUT |
| 388 | A 3452607140 | HANDLE |
| 388 | A 3442600040 | HANDLE |
| 388 | A 3222600040 | HANDLE |
| A 3212680550 | BUSHING | |
| A 3219932701 | SPRING | |
| A 3212680138 | THRUST PIECE | |
| A 3212680238 | THRUST PIECE | |
| N 000417005011 | HEADLESS SETSCREW | |
| H 103216830066 | BOOT | |
| Repalced by: A 3216830066 | ||
| A 3216830066 | BOOT | |
| N 900264009016 | LOOM TIE | |
| N 900264009020 | LOOM TIE | |
| A 3212680174 | PIN | |
| N 000125019009 | WASHER | |
| N 000094005028 | COTTER PIN | |
| N 071412010300 | GREASE NIPPLE | |
| 392 | A 3179930501 | SPRING |
| 394 | A 3022670008 | SPHERICAL PIECE |
| 396 | A 3142680005 | COVER |
| Repalced by: A 3082680005 | ||
| 396 | A 3082680005 | COVER |
| 399 | A 3129970982 | HOSE |
| 402 | A 3222603214 | TRANSMISSION CASE COVER |
| 405 | A 3212670025 | SLIDING BLOCK |
| 405 | A 3442677025 | SLIDING BLOCK |
| 407 | N 009045008002 | SNAP RING |
| 409 | N 001473005012 | GROOVED PIN |
| 412 | N 000007008205 | CYLINDRICAL PIN |
| 414 | N 000933008282 | SCREW |
| 417 | N 912004008100 | LOCK WASHER |
| 420 | N 000934008000 | NUT |
| A 0442600333 | SHIFTING ROD | |
| Repalced by: A 3442607533 | ||
| A 3442607533 | SHIFTING ROD | |
| FRONT | ||
| 425 | H 983212600033 | SHIFTING ROD |
| Repalced by: A 3442607233 | ||
| 425 | A 3442607233 | SHIFTING ROD |
| FRONT | ||
| 430 | N 006888005006 | WOODRUFF KEY |
| 433 | A 3212680228 | CONNECTOR |
| 436 | N 000127012201 | LOCK WASHER |
| 439 | N 000934012004 | NUT |
| A 0212600233 | SHIFTING ROD | |
| Repalced by: A 3442607833 | ||
| A 3442607833 | SHIFTING ROD | |
| REAR | ||
| 445 | A 0212600333 | SHIFTING ROD |
| Repalced by: A 3442607333 | ||
| 445 | A 3442607333 | SHIFTING ROD |
| REAR | ||
| 450 | A 3212680552 | SPACER WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| 450 | A 3212680452 | SPACER WASHER |
| AS REQUIRED | ||
| 3.0 MM | ||
| 450 | A 3212680352 | SPACER WASHER |
| AS REQUIRED | ||
| 5.0 MM | ||
| 454 | A 3179900301 | SCREW |
| 458 | N 912004008000 | LOCK WASHER |
| 462 | N 000934008000 | NUT |
| 466 | A 0002681389 | JOINT |
| Repalced by: A 3442687089 | ||
| 466 | A 0002681889 | JOINT |
| Repalced by: A 3442687089 | ||
| 466 | A 0002681789 | JOINT |
| Repalced by: A 3442687289 | ||
| 466 | A 0002681989 | JOINT |
| Repalced by: A 3442687289 | ||
| 466 | A 3442687089 | JOINT |
| 466 | A 3442687289 | JOINT |
| 472 | A 0442600075 | CONNECTOR |
| Repalced by: A 3442600075 | ||
| 472 | A 3222600075 | CONNECTOR |
| Repalced by: A 3442600075 | ||
| 472 | A 3442600075 | CONNECTOR |
| 476 | A 3222680150 | BUSHING |
| 480 | A 3222680073 | LOCK |
| 483 | A 3219900601 | SCREW |
| 486 | A 3212600072 | SHIFT CASE |
| A 3212680850 | BUSHING | |
| A 3212600272 | SHIFT CASE | |
| A 3212600372 | SHIFT CASE | |
| 490 | A 3022680050 | BUSHING |
| N 000931010264 | SCREW | |
| BEARING BRACKET TO FRAME | ||
| N 000933010174 | SCREW | |
| BEARING BRACKET TO FRAME | ||
| N 000933008288 | SCREW | |
| BEARING BRACKET TO FRAME | ||
| N 000127010202 | LOCK WASHER | |
| BEARING BRACKET TO FRAME | ||
| N 912004008100 | LOCK WASHER | |
| BEARING BRACKET TO FRAME | ||
| N 000934010000 | NUT | |
| BEARING BRACKET TO FRAME | ||
| N 000934008000 | NUT | |
| BEARING BRACKET TO FRAME | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
