Transporto priemonė: O 364,365; VIN numerio dalis: 364111

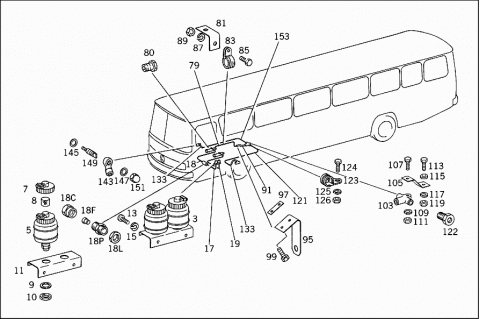

Grupė: 42 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 3644307002 | RESERVOIR |
| 005 | A 3644317002 | RESERVOIR |
| 007 | A 3644317033 | FILLER CAP |
| SENSOR TO COVER | ||
| 008 | A 3644317034 | STRAINER |
| 009 | H 983084310176 | WASHER |
| 010 | N 000934018012 | NUT |
| 011 | A 3454298440 | BRACKET |
| 013 | N 000084006134 | SCREW |
| RESERVOIR | ||
| 015 | N 000127006203 | LOCK WASHER |
| RESERVOIR | ||
| 017 | A 3644207028 | LINE |
| FROM FLUID RESERVOIR TO BRAKE MASTER CYLINDER,FRONT AXLE BRAKE CIRCUIT | ||
| 8X0.7 MM | ||
| 017 | A 3644209335 | LINE |
| FROM RESERVOIR TO FITTING | ||
| 8X0.7 MM | ||
| 018 | A 3644209435 | LINE |
| FROM FITTING TO MASTER CYLINDER, FRONT AXLE BRAKE CIRCUIT | ||
| 8X0.7 MM | ||
| 018 | A 3644209535 | LINE |
| FROM FITTING TO MASTER CYLINDER, FRONT AXLE BRAKE CIRCUIT | ||
| 8X0.7 MM | ||
| 018C | N 915017008100 | UNION NUT |
| 018F | N 003861008005 | GLAND |
| 018L | A 0009971173 | FITTING |
| 018P | N 003902008001 | CONNECTION FITTING |
| BETWEEN THE LINES | ||
| 018P | A 0019972672 | FITTING |
| BETWEEN THE LINES | ||
| 019 | A 3644207128 | LINE |
| FROM FLUID RESERVOIR TO BRAKE MASTER CYLINDER,REAR AXLE BRAKE CIRCUIT | ||
| 8X0.7 MM | ||
| A 3644297040 | BRACKET | |
| BRAKE LINE TO SUBSTRUCTURE | ||
| N 916016008201 | CLAMP | |
| BRAKE LINE TO SUBSTRUCTURE | ||
| 020 | A 3449950132 | CLAMP |
| BRAKE LINE TO SUBSTRUCTURE | ||
| 020E | N 007985006515 | SCREW |
| BRAKE LINE TO SUBSTRUCTURE | ||
| N 007985005171 | SCREW | |
| BRAKE LINE TO SUBSTRUCTURE | ||
| 020K | N 009021006103 | WASHER |
| BRAKE LINE TO SUBSTRUCTURE | ||
| 020P | N 000127006203 | LOCK WASHER |
| BRAKE LINE TO SUBSTRUCTURE | ||
| N 000127005001 | LOCK WASHER | |
| BRAKE LINE TO SUBSTRUCTURE | ||
| 020T | N 000934006006 | NUT |
| BRAKE LINE TO SUBSTRUCTURE | ||
| N 000934005008 | NUT | |
| BRAKE LINE TO SUBSTRUCTURE | ||

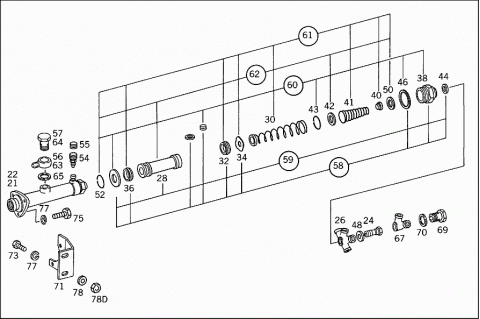

| 021 | A 3444307201 | BRAKE MASTER CYLINDER |
| Repalced by: A 0024302701 | ||
| 021 | A 0024302701 | BRAKE MASTER CYLINDER |
| FRONT AXLE BRAKE CIRCUIT I | ||
| "TEVES" | ||
| A 3444307401 | BRAKE MASTER CYLINDER | |
| Repalced by: A 3454307701 | ||
| 022 | A 3454307701 | BRAKE MASTER CYLINDER |
| FRONT AXLE BRAKE CIRCUIT I | ||
| VARGA 34,92 MM | ||
| 022 | A 3444307301 | BRAKE MASTER CYLINDER |
| Repalced by: A 3454307301 | ||
| 022 | A 3454307301 | BRAKE MASTER CYLINDER |
| REAR AXLE BRAKE CIRCUIT | ||
| VARGA 31,75 MM | ||
| 024 | A 3454287226 | HOLLOW SCREW |
| Repalced by: A 3454287126 | ||
| 024 | A 3454287126 | HOLLOW SCREW |
| TO 344 430 73 01,344 430 72 01 | ||
| 026 | A 3454287524 | DISTRIBUTOR |
| Repalced by: A 3454288024 | ||
| 026 | A 3454288024 | DISTRIBUTOR |
| TO 344 430 73 01 | ||
| A 3454288024 | DISTRIBUTOR | |
| TO 344 430 73 01 | ||
| 026 | A 3454287324 | DISTRIBUTOR |
| TO 344 430 72 01 | ||
| A 0084311083 | PISTON | |
| TO 344 430 72 01,344 430 73 01 | ||
| 028 | A 0004314283 | PISTON |
| TO 002 430 27 01 | ||
| A 3454317376 | WASHER | |
| TO 002 430 27 01 | ||
| 030 | A 3454317393 | SPRING |
| TO 002 430 27 01,345 430 77 01 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 344 430 72 01,344 430 73 01 | ||
| 030 | A 0084311193 | SPRING |
| TO 345 430 73 01 | ||
| 032 | A 0084310460 | SEAL RING |
| TO 344 430 73 01 | ||
| 034 | A 0004310389 | SPRING RETAINER |
| TO 002 430 27 01 | ||
| A 3454317286 | CUP | |
| TO 002 430 27 01 | ||
| 036 | A 0039975246 | SEAL RING |
| TO 002 430 27 01 | ||
| A 0084310476 | WASHER | |
| Repalced by: A 3454317076 | ||
| A 3454317076 | WASHER | |
| TO 344 430 72 01,344 430 73 01 | ||
| A 0084310786 | CUP | |
| TO 344 430 72 01,344 430 73 01 | ||
| 038 | A 0084310675 | THREADED UNION |
| TO 344 430 72 01,344 430 73 01 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 345 430 77 01 | ||
| 038 | A 0004311075 | THREADED UNION |
| TO 002 430 27 01 | ||
| 038 | A 0084310475 | THREADED UNION |
| TO 345 430 73 01 | ||
| 040 | A 0004300381 | VALVE |
| TO 002 430 27 01 | ||
| A 0009930605 | SPRING | |
| TO 002 430 27 01 | ||
| 041 | A 0084311293 | SPRING |
| TO 345 430 73 01 | ||
| 042 | A 0004311776 | WASHER |
| TO 002 430 27 01 | ||
| 043 | A 0009941835 | SNAP RING |
| TO 002 430 27 01 | ||
| A 0084310576 | WASHER | |
| Repalced by: A 3454317376 | ||
| A 3454317376 | WASHER | |
| TO 344 430 72 01,344 430 73 01 | ||
| 044 | A 0004310376 | WASHER |
| TO 002 430 27 01 | ||
| A 0084310886 | CUP | |
| Repalced by: A 3454317286 | ||
| A 3454317286 | CUP | |
| TO 344 430 72 01,344 430 73 01 | ||
| N 007603050100 | SEAL RING | |
| 046 | N 007603040102 | SEAL RING |
| TO 002 430 27 01,345 430 77 01 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 344 430 72 01,344 430 73 01 | ||
| N 007603022102 | SEAL RING | |
| TO 344 430 72 01,344 430 73 01 | ||
| 048 | N 007603014102 | SEAL RING |
| TO 344 430 72 01,344 430 73 01 | ||
| 050 | N 007603035101 | SEAL RING |
| TO 345 430 73 01 | ||
| 052 | A 0004310194 | LOCK |
| TO 002 430 27 01 | ||
| 052 | A 3454317194 | LOCK |
| TO 345 430 77 01 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 344 430 72 01,344 430 73 01 | ||
| 054 | A 3454317165 | VALVE |
| 055 | A 3454317287 | PROTECTIVE CAP |
| 056 | A 3454287030 | CONNECTOR |
| TO 344 430 72 01,344 430 73 01 | ||
| 057 | A 3454287026 | HOLLOW SCREW |
| TO 344 430 72 01,344 430 73 01 | ||
| 058 | A 0455860542 | REPAIR KIT |
| MINOR | ||
| TO 344 430 72 01,344 430 73 01 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 345 430 77 01 | ||
| 059 | A 0455860442 | REPAIR KIT |
| MAJOR | ||
| TO 344 430 72 01,344 430 73 01 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 345 430 77 01 | ||
| 060 | A 0005861743 | REPAIR KIT |
| TO 002 430 27 01 | ||
| 061 | A 3455868643 | REPAIR KIT |
| MINOR | ||
| TO 345 430 73 01 | ||
| 062 | A 3455868543 | REPAIR KIT |
| MAJOR | ||
| TO 345 430 73 01 | ||
| 063 | A 3454287030 | CONNECTOR |
| TO 345 430 73 01,345 430 77 01 | ||
| A 0004280130 | CONNECTOR | |
| TO 002 430 27 01 | ||
| A 0004280126 | HOLLOW SCREW | |
| TO 002 430 27 01 | ||
| 064 | A 3454287026 | HOLLOW SCREW |
| TO 345 430 73 01 | ||
| A 0004280026 | HOLLOW SCREW | |
| Repalced by: A 3454287126 | ||
| A 3454287126 | HOLLOW SCREW | |
| TO 002 430 27 01 | ||
| 065 | N 007603022102 | SEAL RING |
| TO 345 430 73 01 | ||
| 067 | A 3454287524 | DISTRIBUTOR |
| Repalced by: A 3454288024 | ||
| 067 | A 3454288024 | DISTRIBUTOR |
| TO 344 430 73 01,344 430 72 01 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 345 430 73 01 | ||
| 067 | A 0004281924 | DISTRIBUTOR |
| TO 002 430 27 01 | ||
| 067 | A 3454287324 | DISTRIBUTOR |
| TO 345 430 77 01,345 430 73 01 | ||
| 069 | A 3454287126 | HOLLOW SCREW |
| TO 345 430 77 01 | ||
| 070 | N 007603014106 | SEAL RING |
| TO 345 430 73 01 | ||
| 071 | A 3124294840 | BRACKET |
| 073 | N 000933010269 | SCREW |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 075 | N 000933010129 | SCREW |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 075 | N 000933010129 | SCREW |
| MASTER CYLINDER TO ONE-CHAMBER AIR BRAKE CYLINDER | ||
| 075 | N 000933010129 | SCREW |
| BRACKET TO SUBSTRUCTURE | ||
| 077 | N 000127010202 | LOCK WASHER |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 077 | N 000127010202 | LOCK WASHER |
| MASTER CYLINDER TO ONE-CHAMBER AIR BRAKE CYLINDER | ||
| 078 | N 000125010517 | WASHER |
| BRACKET TO SUBSTRUCTURE | ||
| 078D | N 913004010004 | NUT |
| BRACKET TO SUBSTRUCTURE | ||
| 079 | A 3644207328 | LINE |
| FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR | ||
| 6X0.7 MM | ||
| 079 | A 3644207428 | LINE |
| FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR | ||
| 6X0.7 MM | ||
| 079 | A 3644209635 | LINE |
| FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR | ||
| 080 | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 080 | A 0004280072 | UNION SCREW |
| 081 | A 3644297040 | BRACKET |
| BRAKE LINE TO FRAME | ||
| 083 | N 916016006200 | CLAMP |
| BRAKE LINE TO FRAME | ||
| 085 | N 007985005171 | SCREW |
| BRAKE LINE TO FRAME | ||
| 087 | N 000127005001 | LOCK WASHER |
| BRAKE LINE TO FRAME | ||
| 089 | N 000934005008 | NUT |
| BRAKE LINE TO FRAME | ||
| 091 | A 0004280235 | BRAKE HOSE |
| Repalced by: A 3454287035 | ||
| 091 | A 3454287035 | BRAKE HOSE |
| 091 | A 0014283535 | BRAKE HOSE |
| Repalced by: A 3454287135 | ||
| 091 | A 3454287135 | BRAKE HOSE |
| 091 | A 3454287235 | BRAKE HOSE |
| 095 | A 3444280140 | BRACKET |
| BRAKE HOSE | ||
| 097 | A 3129940330 | LOCK |
| BRACKET TO COVER PLATE | ||
| 099 | N 000933008228 | SCREW |
| BRACKET TO COVER PLATE | ||
| 101 | A 0004280473 | BRACKET |
| BRAKE HOSE TO BRACKET | ||
| 103 | A 0004290437 | DISTRIBUTOR |
| 103 | A 3454297037 | DISTRIBUTOR |
| 105 | A 3444280440 | BRACKET |
| 107 | N 000933008273 | SCREW |
| DISTRIBUTOR TO BRACKET | ||
| 109 | N 912004008100 | LOCK WASHER |
| DISTRIBUTOR TO BRACKET | ||
| 111 | N 000934008000 | NUT |
| DISTRIBUTOR TO BRACKET | ||
| 113 | N 000931008072 | SCREW |
| BRACKET AND DISTRIBUTOR TO FRONT AXLE | ||
| 115 | A 3219900740 | WASHER |
| BRACKET AND DISTRIBUTOR TO FRONT AXLE | ||
| 117 | N 912004008100 | LOCK WASHER |
| BRACKET AND DISTRIBUTOR TO FRONT AXLE | ||
| 119 | N 000934008000 | NUT |
| BRACKET AND DISTRIBUTOR TO FRONT AXLE | ||
| 121 | A 3444200728 | LINE |
| FROM DISTRIBUTOR TO LEFT FRONT WHEEL BRAKE HOSE | ||
| 6X0.7 MM | ||
| 122 | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 122 | A 0004280072 | UNION SCREW |
| 123 | N 916016006200 | CLAMP |
| BRAKE LINE TO FRONT AXLE,LEFT & RIGHT | ||
| 124 | N 007985005171 | SCREW |
| BRAKE LINE TO FRONT AXLE,LEFT & RIGHT | ||
| 125 | N 000127005001 | LOCK WASHER |
| BRAKE LINE TO FRONT AXLE,LEFT & RIGHT | ||
| 126 | N 000934005008 | NUT |
| BRAKE LINE TO FRONT AXLE,LEFT & RIGHT | ||
| 133 | A 0004280735 | BRAKE HOSE |
| Repalced by: A 3644287235 | ||
| 133 | A 3644287235 | BRAKE HOSE |
| BRAKE CYLINDER | ||
| 133 | A 0014287435 | BRAKE HOSE |
| Repalced by: A 3644287335 | ||
| 133 | A 3644287335 | BRAKE HOSE |
| BRAKE CYLINDER | ||
| 135 | A 3214280043 | ANGLE |
| BRAKE HOSE,FRONT | ||
| 137 | N 000931008085 | SCREW |
| BRAKE HOSE,FRONT | ||
| 139 | N 912004008100 | LOCK WASHER |
| BRAKE HOSE,FRONT | ||
| 141 | N 000934008000 | NUT |
| BRAKE HOSE,FRONT | ||
| 142 | A 0004280473 | BRACKET |
| BRAKE HOSE TO ANGLE | ||
| 143 | A 3444280030 | CONNECTOR |
| LEFT AND RIGHT FRONT WHEEL BRAKE LINES | ||
| 145 | N 007603012106 | SEAL RING |
| LEFT AND RIGHT FRONT WHEEL BRAKE LINES | ||
| 147 | N 007603014106 | SEAL RING |
| LEFT AND RIGHT FRONT WHEEL BRAKE LINES | ||
| 149 | A 3444280026 | HOLLOW SCREW |
| LEFT AND RIGHT FRONT WHEEL BRAKE LINES | ||
| 151 | A 3449900053 | NUT |
| LEFT AND RIGHT FRONT WHEEL BRAKE LINES | ||
| 153 | A 3444200828 | LINE |
| FROM DISTRIBUTOR TO RIGHT FRONT WHEEL BRAKE HOSE | ||
| 6X0.7 MM | ||
| 167 | A 3644207228 | LINE |
| FROM MASTER CYLINDER TO INTERMEDIATE PIECE | ||
| 6X0.7 MM | ||
| 167 | A 3644207228 | LINE |
| FROM MASTER CYLINDER TO INTERMEDIATE PIECE | ||
| 6X0.7 MM | ||
| 167 | A 3644207728 | LINE |
| FROM MASTER CYLINDER TO INTERMEDIATE PIECE | ||
| 6X0.7 MM | ||

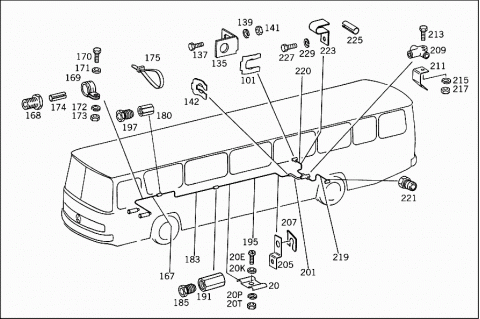

| 168 | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 168 | A 0004280072 | UNION SCREW |
| 169 | N 916016006200 | CLAMP |
| BRAKE LINES TO FRAME | ||
| 170 | N 007985005171 | SCREW |
| BRAKE LINES TO FRAME | ||
| 171 | N 009021005104 | WASHER |
| BRAKE LINES TO FRAME | ||
| 172 | N 000127005001 | LOCK WASHER |
| BRAKE LINES TO FRAME | ||
| 173 | N 000934005008 | NUT |
| BRAKE LINES TO FRAME | ||
| 174 | A 3449978082 | HOSE |
| BRAKE LINES TO FRAME | ||
| 175 | A 3449977290 | LOOM TIE |
| Repalced by: A 3459977390 | ||
| 175 | A 3459977390 | LOOM TIE |
| BRAKE LINES TO FRAME | ||
| 195 MM | ||
| N 000934005008 | NUT | |
| BRAKE LINES TO FRAME | ||
| 180 | A 0004292736 | CONNECTOR |
| Repalced by: A 3454297836 | ||
| 180 | A 3454297836 | CONNECTOR |
| 183 | A 3644207528 | LINE |
| FROM INTERMEDIATE PIECE TO INTERMEDIATE PIECE | ||
| 6X0.7 MM | ||
| 183 | A 3644208128 | LINE |
| FROM INTERMEDIATE PIECE TO INTERMEDIATE PIECE | ||
| 6X0.7 MM | ||
| 183 | A 3644207628 | LINE |
| FROM INTERMEDIATE PIECE TO INTERMEDIATE PIECE | ||
| 6X0.7 MM | ||
| 183 | A 3644207728 | LINE |
| FROM INTERMEDIATE PIECE TO INTERMEDIATE PIECE | ||
| 6X0.7 MM | ||
| 185 | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 185 | A 0004280072 | UNION SCREW |
| 191 | A 0004292736 | CONNECTOR |
| Repalced by: A 3454297836 | ||
| 191 | A 3454297836 | CONNECTOR |
| 195 | A 3214201128 | LINE |
| FROM CONNECTOR TO BRAKE HOSE | ||
| 6X0.7 MM | ||
| 195 | A 3214201128 | LINE |
| FROM CONNECTOR TO BRAKE HOSE | ||
| 6X0.7 MM | ||
| 195 | A 3644207628 | LINE |
| FROM CONNECTOR TO BRAKE HOSE | ||
| 6X0.7 MM | ||
| 197 | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 197 | A 0004280072 | UNION SCREW |
| 201 | A 0014283935 | BRAKE HOSE |
| Repalced by: A 0014287435 | ||
| 201 | A 0014287435 | BRAKE HOSE |
| Repalced by: A 3644287335 | ||
| 201 | A 3644287335 | BRAKE HOSE |
| 201 | A 0014280235 | BRAKE HOSE |
| Repalced by: A 0004280735 | ||
| 201 | A 0004280735 | BRAKE HOSE |
| Repalced by: A 3644287235 | ||
| 201 | A 3644287235 | BRAKE HOSE |
| 205 | A 3214280440 | BRACKET |
| BRAKE HOSE | ||
| 207 | A 0004280473 | BRACKET |
| BRAKE HOSE TO BRACKET | ||
| 209 | A 0004290437 | DISTRIBUTOR |
| 209 | A 3454297037 | DISTRIBUTOR |
| 211 | A 3524280740 | BRACKET |
| 213 | N 000933008273 | SCREW |
| DISTRIBUTOR TO BRACKET | ||
| 215 | N 912004008100 | LOCK WASHER |
| DISTRIBUTOR TO BRACKET | ||
| 217 | N 000934008000 | NUT |
| DISTRIBUTOR TO BRACKET | ||
| 219 | A 3444208828 | LINE |
| FROM DISTRIBUTOR TO LEFT AND RIGHT REAR WHEELS | ||
| 6X0.7 MM | ||
| 219 | A 3444208828 | LINE |
| FROM DISTRIBUTOR TO LEFT REAR WHEEL | ||
| 6X0.7 MM | ||
| 220 | A 3644208028 | LINE |
| FROM DISTRIBUTOR TO RIGHT REAR WHEEL | ||
| 6X0.7 MM | ||
| 221 | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 221 | A 0004280072 | UNION SCREW |
| 223 | A 3129951020 | CLAMP |
| BRAKE LINE TO REAR AXLE | ||
| 225 | A 3129973482 | HOSE |
| 227 | N 000933008228 | SCREW |
| 229 | N 912004008100 | LOCK WASHER |
| 230 | N 074301026202 | ELBOW FITTING |
| Repalced by: A 3454297838 | ||
| 230 | A 3454297838 | ELBOW FITTING |
| AT AIR COMPRESSOR | ||
| 230D | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 230D | A 0009940203 | THRUST RING |
| AT AIR COMPRESSOR | ||
| 230H | A 0009870446 | O-RING |
| AT AIR COMPRESSOR | ||
| 230K | N 074305022202 | NUT |
| AT AIR COMPRESSOR | ||
| 230K | N 074305022202 | NUT |
| AT AIR COMPRESSOR | ||
| 231 | A 0019972072 | FITTING |
| Repalced by: A 3454298236 | ||
| 231 | A 3454298236 | CONNECTOR |
| AT AIR COMPRESSOR | ||
| 231 | A 3454298236 | CONNECTOR |
| AT AIR COMPRESSOR | ||
| 233 | N 007603026104 | SEAL RING |
| AT AIR COMPRESSOR | ||
| 233 | N 007603026104 | SEAL RING |
| AT AIR COMPRESSOR | ||

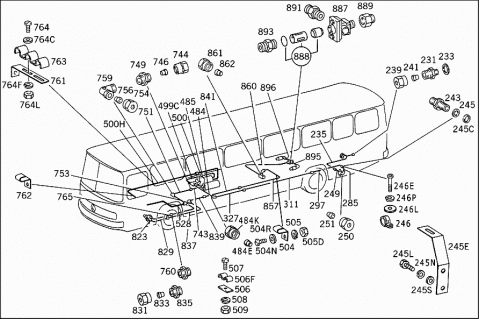

| 235 | A 3644207126 | LINE |
| FROM AIR COMPRESSOR TO FITTING | ||
| 18X1.5 MM | ||
| 235 | A 3644207026 | LINE |
| FROM AIR COMPRESSOR TO FITTING | ||
| 18X1.5 MM | ||
| 235 | A 3644208637 | LINE |
| FROM AIR COMPRESSOR TO FITTING | ||
| 18X1.5 MM | ||
| 239 | N 915017018100 | UNION NUT |
| 241 | N 003861018003 | GLAND |
| 243 | A 0019972072 | FITTING |
| Repalced by: N 003902018001 | ||
| 243 | N 003902018001 | CONNECTION FITTING |
| 245 | N 915065018101 | THRUST RING |
| 245C | N 915045015100 | SEAL RING |
| 245E | A 3444297240 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 245L | N 000933008282 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 245N | N 912004008100 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 245S | N 000125008417 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 246 | N 916016018204 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 246E | N 007985006502 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 246L | N 009021006103 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 246P | N 000127006203 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||

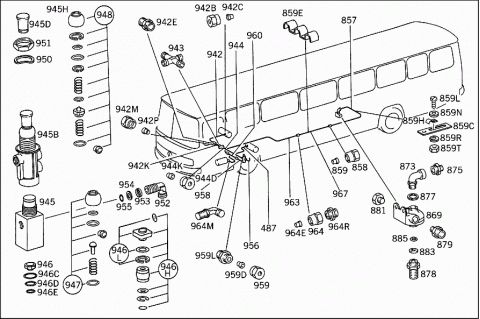

| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 245 C | ||
| 249 | A 3644207226 | LINE |
| FROM FITTING TO PRESSURE REGULATOR | ||
| 18X1.5 MM | ||
| 249 | A 3644207226 | LINE |
| FROM FITTING TO PRESSURE REGULATOR | ||
| 18X1.5 MM | ||
| 249 | A 3644208537 | LINE |
| FROM FITTING TO PRESSURE REGULATOR | ||
| 18X1.5 MM | ||
| 250 | N 915017018100 | UNION NUT |
| 251 | N 003861018003 | GLAND |

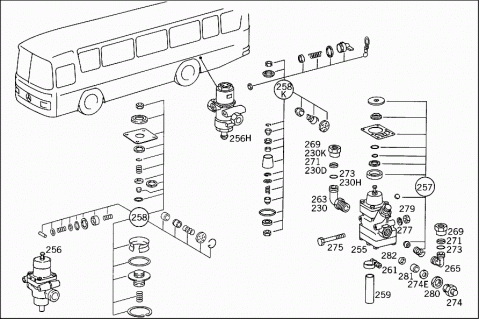

| 255 | A 0014314106 | PRESSURE REGULATOR |
| Repalced by: A 0014312206 | ||
| A 3454317206 | PRESSURE REGULATOR | |
| Repalced by: A 0014312206 | ||
| 256 | A 0014312206 | PRESSURE REGULATOR |
| PRESSURE REGULATOR WITH TIRE INFLATOR CONNECTION | ||
| WABCO | ||
| 256H | A 0014319906 | PRESSURE REGULATOR |
| PRESSURE REGULATOR WITH TIRE INFLATOR CONNECTION | ||
| KNORR | ||
| 257 | A 0015868543 | REPAIR KIT |
| TO 001 431 41 06 | ||
| 258 | A 3455868243 | REPAIR KIT |
| Repalced by: A 0015864343 | ||
| 258 | A 0015864343 | REPAIR KIT |
| TO 001 431 22 06 | ||
| 258K | A 0025866743 | REPAIR KIT |
| Repalced by: A 0004201371 | ||
| 258K | A 0004201371 | REPAIR KIT |
| TO 001 431 99 06 | ||
| 259 | N 900271015037 | HOSE |
| PRESSURE REGULATOR | ||
| 259 | A 3649977482 | HOSE |
| PRESSURE REGULATOR | ||
| 259 | A 3649977382 | HOSE |
| PRESSURE REGULATOR | ||
| 261 | N 900288021004 | CLAMP |
| PRESSURE REGULATOR | ||
| 261 | A 3509970390 | LOOM TIE |
| PRESSURE REGULATOR | ||
| 263 | N 074301026202 | ELBOW FITTING |
| Repalced by: A 3454297838 | ||
| 263 | A 3454297838 | ELBOW FITTING |
| PRESSURE REGULATOR | ||
| 265 | A 0009905871 | ELBOW FITTING |
| PRESSURE REGULATOR | ||
| 265 | N 074315000200 | FITTING |
| PRESSURE REGULATOR | ||
| 269 | N 074305022202 | NUT |
| PRESSURE REGULATOR | ||
| 269 | N 074305022202 | NUT |
| PRESSURE REGULATOR | ||
| 271 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 271 | A 0009940203 | THRUST RING |
| PRESSURE REGULATOR | ||
| 271 | A 0009940203 | THRUST RING |
| PRESSURE REGULATOR | ||
| 273 | A 0009870446 | O-RING |
| PRESSURE REGULATOR | ||
| 273 | A 0009870446 | O-RING |
| PRESSURE REGULATOR | ||
| 274 | A 0019972172 | FITTING |
| PRESSURE REGULATOR | ||
| 274 | N 074313016201 | FITTING |
| PRESSURE REGULATOR | ||
| 274E | N 007603022102 | SEAL RING |
| PRESSURE REGULATOR | ||
| 275 | N 000931008228 | SCREW |
| AT PRESSURE REGULATOR | ||
| 277 | N 912004008100 | LOCK WASHER |
| AT PRESSURE REGULATOR | ||
| N 000125008417 | WASHER | |
| AT PRESSURE REGULATOR | ||
| 279 | N 000934008010 | NUT |
| AT PRESSURE REGULATOR | ||
| 280 | A 3649900158 | NUT |
| AT PRESSURE REGULATOR | ||
| 281 | N 915065018101 | THRUST RING |
| AT PRESSURE-REGULATOR FITTING | ||
| 282 | N 915045015100 | SEAL RING |
| AT PRESSURE-REGULATOR FITTING | ||
| 285 | A 3644207326 | LINE |
| FROM PRESSURE REGULATOR TO FITTING | ||
| 15X1.5 MM | ||
| 285 | A 3644208326 | LINE |
| FROM PRESSURE REGULATOR TO FITTING | ||
| 15X1.5 MM | ||
| 285 | A 3644208437 | LINE |
| FROM PRESSURE REGULATOR TO FITTING | ||
| 15X1.5 MM | ||
| 285 | A 3644208437 | LINE |
| FROM PRESSURE REGULATOR TO FITTING | ||
| 15X1.5 MM | ||
| 285 | A 3644208737 | LINE |
| FROM PRESSURE REGULATOR TO FITTING | ||
| 15X1.5 MM | ||
| 286 | N 915018015000 | UNION NUT |
| 287 | N 003861015004 | GLAND |
| 288 | N 074313016201 | FITTING |
| 288 | A 0019972172 | FITTING |
| 289 | N 915065015101 | THRUST RING |
| AT PRESSURE-REGULATOR FITTING | ||
| 290 | N 915045012100 | SEAL RING |
| AT PRESSURE-REGULATOR FITTING | ||
| 297 | A 3644207426 | LINE |
| FROM FITTING I TO CONNECTION FITTING II | ||
| 15X1.5 MM | ||
| 297 | A 3644207526 | LINE |
| FROM FITTING I TO CONNECTION FITTING II | ||
| 15X1.5 MM | ||
| 297 | A 3644207037 | LINE |
| FROM FITTING I TO CONNECTION FITTING II | ||
| 15X1.5 MM | ||
| 297 | A 3644207836 | LINE |
| FROM FITTING I TO CONNECTION FITTING II | ||
| 15X1.5 MM | ||
| 298 | N 915018015000 | UNION NUT |
| 299 | N 003861015004 | GLAND |
| 300 | N 915065015101 | THRUST RING |
| AT FITTING | ||
| 301 | N 915045012100 | SEAL RING |
| AT FITTING | ||
| 302 | A 3129952420 | CLAMP |
| Repalced by: A 3049950220 | ||
| 302 | A 3049950220 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 303 | N 007985006515 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 304 | N 009021006103 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 305 | N 000127006203 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 306 | N 000934006006 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 311 | A 3644207037 | LINE |
| FROM FITTING II TO CONNECTION FITTING III | ||
| 15X1.5 MM | ||
| 311 | A 3644207836 | LINE |
| FROM FITTING II TO CONNECTION FITTING III | ||
| 15X1.5 MM | ||
| 311 | A 3644207936 | LINE |
| FROM FITTING II TO CONNECTION FITTING III | ||
| 15X1.5 MM | ||
| 312 | N 915018015000 | UNION NUT |
| 313 | N 003861015004 | GLAND |
| 314 | N 915065015101 | THRUST RING |
| AT FITTING | ||
| 315 | N 915045012100 | SEAL RING |
| AT FITTING | ||
| 316 | A 3129952420 | CLAMP |
| Repalced by: A 3049950220 | ||
| 316 | A 3049950220 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 316 | A 3509957033 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 317 | N 007985006515 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 318 | N 009021006103 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 319 | N 000127006203 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 320 | N 000934006006 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 321 | A 3644207936 | LINE |
| FROM FITTING III TO CONNECTION FITTING IV | ||
| 15X1.5 MM | ||
| 322 | N 915018015000 | UNION NUT |
| 323 | N 003861015004 | GLAND |
| 324 | N 915065015101 | THRUST RING |
| AT FITTING | ||
| 325 | N 915045012100 | SEAL RING |
| AT FITTING | ||
| 327 | A 3644207626 | LINE |
| FROM FITTING TO TWO-CIRCUIT PROTECTIVE VALVE | ||
| 15X1.5 MM | ||
| 329 | A 3644208036 | LINE |
| FROM FITTING TO TWO-CIRCUIT PROTECTIVE VALVE | ||
| 15X1.5 MM | ||
| 330 | N 915018015000 | UNION NUT |
| 331 | N 003861015004 | GLAND |

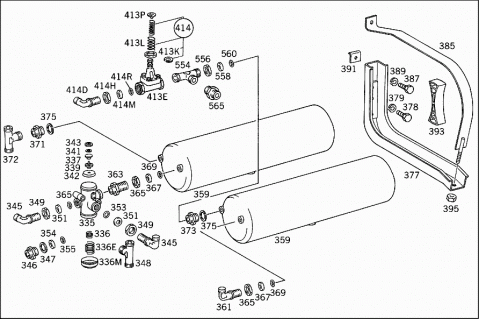

| 335 | A 0004317206 | VALVE |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 336 | A 0014316693 | SPRING |
| TO BOSCH-NR.0481 027 024 | ||
| 336E | A 0014316793 | SPRING |
| TO BOSCH-NR.0481 027 024 | ||
| A 0009935205 | SPRING | |
| TO BOSCH-NR.0481 027 104 | ||
| 336M | A 0004315333 | FILLER CAP |
| 337 | A 0004311981 | VALVE DISC |
| TO BOSCH-NR.0481 027 024 | ||
| 339 | A 0004312081 | VALVE DISC |
| TO BOSCH-NR.0481 027 024 | ||
| 341 | A 0007630454 | SEAL |
| TO BOSCH-NR.0481 027 024 | ||
| 342 | A 0004317987 | PROTECTIVE CAP |
| 343 | A 0004315086 | CUP |
| TO BOSCH-NR.0481 027 024 | ||
| A 0014312086 | CUP | |
| Repalced by: A 0014312386 | ||
| A 0014312386 | CUP | |
| TO BOSCH-NR.0481 027 104 | ||
| A 0014312186 | CUP | |
| TO BOSCH-NR.0481 027 104 | ||
| A 0004350780 | GASKET | |
| TO BOSCH-NR.0481 027 104 | ||
| A 0049977945 | SEAL RING | |
| TO BOSCH-NR.0481 027 104 | ||
| 345 | A 0009905871 | ELBOW FITTING |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 345 | A 0009905871 | ELBOW FITTING |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 345 | N 074315000200 | FITTING |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 345 | N 074315000200 | FITTING |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 346 | N 074313016201 | FITTING |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 346 | A 0019972172 | FITTING |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 347 | N 007603022102 | SEAL RING |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 348 | N 074317000100 | FITTING |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 348 | A 0009902470 | T-FITTING |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 349 | N 074305022202 | NUT |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 349 | N 074305022202 | NUT |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 351 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 351 | A 0009940203 | THRUST RING |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 351 | A 0009940203 | THRUST RING |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 353 | A 0009870446 | O-RING |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 353 | A 0009870446 | O-RING |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 354 | N 915065015101 | THRUST RING |
| AT FITTING | ||
| 355 | N 915045012100 | SEAL RING |
| AT FITTING | ||
| 356 | A 3129952420 | CLAMP |
| Repalced by: A 3049950220 | ||
| 356 | A 3049950220 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 357 | N 007985006515 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 358 | N 009021006103 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 358E | N 000127006203 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 358H | N 000934006006 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 359 | A 3214300205 | RESERVOIR |
| Repalced by: A 3454308205 | ||
| 359 | A 3454308205 | RESERVOIR |
| 359 | A 3454308205 | RESERVOIR |
| A 3124302905 | RESERVOIR | |
| 361 | A 0009905871 | ELBOW FITTING |
| AIR RESERVOIR I | ||
| 361 | A 0009905871 | ELBOW FITTING |
| AIR RESERVOIR II | ||
| 361 | N 074315000200 | FITTING |
| AIR RESERVOIR I | ||
| 361 | N 074315000200 | FITTING |
| AIR RESERVOIR II | ||
| 363 | A 0019972372 | FITTING |
| AIR RESERVOIR II | ||
| 363 | N 074313016401 | FITTING |
| AIR RESERVOIR II | ||
| 363 | N 074313016401 | FITTING |
| AIR RESERVOIR I | ||
| 365 | N 074305022202 | NUT |
| AIR RESERVOIRS I AND II | ||
| 365 | N 074305022202 | NUT |
| AIR RESERVOIR II | ||
| 367 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 367 | A 0009940203 | THRUST RING |
| AIR RESERVOIRS I AND II | ||
| 367 | A 0009940203 | THRUST RING |
| AIR RESERVOIR II | ||
| 369 | A 0009870446 | O-RING |
| AIR RESERVOIRS I AND II | ||
| 369 | A 0009870446 | O-RING |
| AIR RESERVOIR II | ||
| 371 | N 074313016201 | FITTING |
| AIR RESERVOIR II | ||
| 371 | A 0019972172 | FITTING |
| AIR RESERVOIR II | ||
| 372 | N 074317000100 | FITTING |
| AIR RESERVOIR II | ||
| 372 | A 0009902470 | T-FITTING |
| AIR RESERVOIR II | ||
| 373 | N 074313008101 | FITTING |
| AIR RESERVOIR I | ||
| 373 | A 0009970171 | FITTING |
| AIR RESERVOIR I | ||
| 375 | N 007603022102 | SEAL RING |
| AIR RESERVOIR I | ||
| 377 | A 3604301311 | CONSOLE |
| 378 | N 000961012154 | SCREW |
| CONSOLE TO FRAME | ||
| 379 | N 000127012201 | LOCK WASHER |
| CONSOLE TO FRAME | ||
| 385 | A 3604300040 | STRAP |
| 387 | N 000961012020 | SCREW |
| STRAP | ||
| 389 | N 000127012201 | LOCK WASHER |
| STRAP | ||
| 391 | A 3454320026 | PLATE |
| STRAP | ||
| 393 | A 3354320218 | BASE |
| AIR RESERVOIR TO CONSOLE | ||
| 395 | N 000934010000 | NUT |

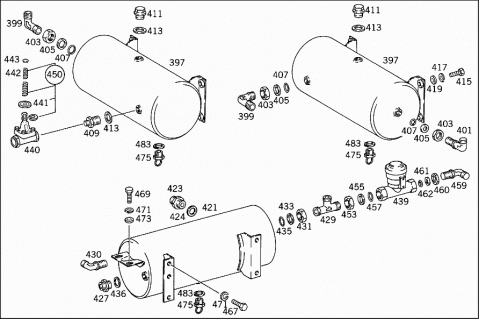

| 397 | A 3644307004 | RESERVOIR |
| 399 | A 0009905871 | ELBOW FITTING |
| RESERVOIR | ||
| 399 | N 074315000200 | FITTING |
| RESERVOIR | ||
| 401 | A 3459907371 | ELBOW FITTING |
| RESERVOIR | ||
| 403 | N 074305022202 | NUT |
| RESERVOIR | ||
| 405 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 405 | A 0009940203 | THRUST RING |
| RESERVOIR | ||
| 407 | A 0009870446 | O-RING |
| RESERVOIR | ||
| 409 | N 074313008101 | FITTING |
| RESERVOIR | ||
| 411 | N 000908022001 | SCREW PLUG |
| RESERVOIR | ||
| 413 | N 007603022102 | SEAL RING |
| RESERVOIR | ||
| 413E | A 0004296044 | VALVE |
| (OVERFLOW VALVE) | ||
| WESTINGHOUSE | ||
| 413K | A 0004290945 | DIAPHRAGM |
| TO 000 429 03 44 | ||
| 413L | A 0019932301 | SPRING |
| TO 000 429 60 44 | ||
| 413P | A 0004290389 | SPRING RETAINER |
| TO 000 429 60 44 | ||
| 414 | A 0005865842 | REPAIR KIT |
| TO 000 429 60 44 | ||
| 414D | N 074315000200 | FITTING |
| AT OVERFLOW VALVE | ||
| 414D | A 0009905871 | ELBOW FITTING |
| AT OVERFLOW VALVE | ||
| 414H | N 074305022202 | NUT |
| AT OVERFLOW VALVE | ||
| 414M | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 414M | A 0009940203 | THRUST RING |
| AT OVERFLOW VALVE | ||
| 414R | A 0009870446 | O-RING |
| AT OVERFLOW VALVE | ||
| 415 | N 000933010294 | SCREW |
| RESERVOIR TO SUBSTRUCTURE | ||
| 417 | N 000127010202 | LOCK WASHER |
| RESERVOIR TO SUBSTRUCTURE | ||
| 419 | N 000125010517 | WASHER |
| RESERVOIR TO SUBSTRUCTURE | ||
| 421 | A 3644307104 | RESERVOIR |
| 421 | A 3644307104 | RESERVOIR |
| 421 | A 3644307005 | RESERVOIR |
| 423 | N 074313008101 | FITTING |
| RESERVOIR | ||
| 424 | N 007603022102 | SEAL RING |
| RESERVOIR | ||
| 427 | A 0019972372 | FITTING |
| RESERVOIR | ||
| 427 | N 074313016401 | FITTING |
| RESERVOIR | ||
| 429 | N 074317000100 | FITTING |
| RESERVOIR | ||
| 429 | A 0009902470 | T-FITTING |
| RESERVOIR | ||
| 430 | N 074315000200 | FITTING |
| 430 | A 0009905871 | ELBOW FITTING |
| 431 | N 074305022202 | NUT |
| RESERVOIR | ||
| 431 | N 074305022202 | NUT |
| RESERVOIR | ||
| 433 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 433 | A 0009940203 | THRUST RING |
| RESERVOIR | ||
| 433 | A 0009940203 | THRUST RING |
| RESERVOIR | ||
| 435 | A 0009870446 | O-RING |
| RESERVOIR | ||
| 435 | A 0009870446 | O-RING |
| RESERVOIR | ||
| 436 | N 007603022102 | SEAL RING |
| AT FITTING | ||
| 436 | N 007603022102 | SEAL RING |
| AT FITTING | ||
| 439 | A 0004295544 | VALVE |
| 439 | A 0004295544 | VALVE |
| 439 | A 0004298344 | VALVE |
| 439 | A 0004298344 | VALVE |
| A 0014294044 | VALVE | |
| BOSCH | ||
| A 0014294644 | VALVE | |
| WESTINGHOUSE | ||
| A 0014297444 | VALVE | |
| GRAU | ||
| 440 | A 0004296044 | VALVE |
| (OVERFLOW VALVE) | ||
| WESTINGHOUSE | ||
| 441 | A 0004290645 | DIAPHRAGM |
| Repalced by: A 0004290745 | ||
| 441 | A 0004290745 | DIAPHRAGM |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 000 429 07 45; "GRAU" | ||
| A 0004290945 | DIAPHRAGM | |
| TO 003 429 03 44 | ||
| 442 | A 0019932301 | SPRING |
| TO 000 429 60 44 | ||
| 443 | A 0004290389 | SPRING RETAINER |
| TO 000 429 60 44 | ||
| A 0015862642 | REPAIR KIT | |
| MAKE BOSCH | ||
| TO 001 429 40 44 | ||
| 450 | A 0005865842 | REPAIR KIT |
| TO 000 429 60 44 | ||
| 453 | N 074305022202 | NUT |
| OVERFLOW VALVE TO T-FITTING | ||
| 455 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 455 | A 0009940203 | THRUST RING |
| OVERFLOW VALVE TO T-FITTING | ||
| 457 | A 0009870446 | O-RING |
| OVERFLOW VALVE TO T-FITTING | ||
| 459 | A 0009905871 | ELBOW FITTING |
| OVERFLOW VALVE | ||
| 459 | N 074315000200 | FITTING |
| OVERFLOW VALVE | ||
| 460 | N 074305022202 | NUT |
| OVERFLOW VALVE | ||
| 461 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 461 | A 0009940203 | THRUST RING |
| OVERFLOW VALVE | ||
| 462 | A 0009870446 | O-RING |
| OVERFLOW VALVE | ||
| 463 | A 3644208835 | LINE |
| FROM T-FITTING TO BRAKE VALVE, CONNECTION: | ||
| "11" | ||
| 464 | N 003872015104 | UNION NUT |
| 465 | N 003861015100 | GLAND |
| 466 | N 915065015101 | THRUST RING |
| 466F | N 915045012100 | SEAL RING |
| 467 | N 000933010294 | SCREW |
| RESERVOIR TO SUBSTRUCTURE | ||
| 469 | N 000933010174 | SCREW |
| RESERVOIR TO SUBSTRUCTURE | ||
| 471 | N 000127010202 | LOCK WASHER |
| RESERVOIR TO SUBSTRUCTURE | ||
| 473 | N 000125010517 | WASHER |
| RESERVOIR TO SUBSTRUCTURE | ||
| 475 | A 0004320607 | VALVE |
| Repalced by: A 0004320807 | ||
| 475 | A 3454300081 | VALVE |
| Repalced by: A 0004320807 | ||
| 475 | A 3454300181 | VALVE |
| Repalced by: A 0004320807 | ||
| A 3454300281 | VALVE | |
| Repalced by: A 0004320807 | ||
| 475 | A 0004320807 | VALVE |
| 475 | A 0004320807 | VALVE |
| 475 | A 0004322207 | VALVE |
| Repalced by: A 3644327107 | ||
| 475 | A 3644327107 | VALVE |
| 475 | A 3644327107 | VALVE |
| 483 | N 007603022102 | SEAL RING |
| 483 | N 007603022102 | SEAL RING |
| A 3644207935 | LINE | |
| FROM T-FITTING TO ELBOW FITTING | ||
| 15X1.5 MM | ||
| 484 | A 3644208235 | LINE |
| FROM T-FITTING TO ELBOW FITTING | ||
| 15X1.5 MM | ||
| 484E | N 003861015004 | GLAND |
| 484K | N 915018015000 | UNION NUT |
| A 0004293538 | ELBOW FITTING | |
| 485 | A 3454207737 | LINE |
| FROM TWO-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR | ||
| "I",15X1.5 MM | ||
| 487 | A 3644208136 | LINE |
| FROM TWO-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR | ||
| "I",15X1.5 MM | ||
| 488 | A 3644208735 | LINE |
| FROM TWO-CIRCUIT PROTECTIVE VALVE TO OVERFLOW VALVE | ||
| 15X1.5 MM | ||
| 489 | N 915018015000 | UNION NUT |
| 489 | N 915018015000 | UNION NUT |
| 490 | N 003861015004 | GLAND |
| 490 | N 003861015004 | GLAND |
| 491 | N 915065015101 | THRUST RING |
| AT TWO-CIRCUIT PROTECTIVE VALVE & AIR RESERVOIR | ||
| "I" | ||
| 491 | N 915065015101 | THRUST RING |
| COMPRESSED AIR LINE TO T-FITTING AND TO ELBOW FITTING | ||
| "I" | ||
| 491 | N 915065015101 | THRUST RING |
| AT PROTECTIVE VALVE & OVERFLOW VALVE | ||
| "I" | ||
| 492 | N 915045012100 | SEAL RING |
| AT TWO-CIRCUIT PROTECTIVE VALVE & AIR RESERVOIR | ||
| "I" | ||
| 492 | N 915045012100 | SEAL RING |
| COMPRESSED AIR LINE TO T-FITTING AND TO ELBOW FITTING | ||
| "I" | ||
| 492 | N 915045012100 | SEAL RING |
| AT PROTECTIVE VALVE & OVERFLOW VALVE | ||
| "I" | ||
| 497 | A 3644207826 | LINE |
| FROM AIR RESERVOIR II TO FITTING I | ||
| 15X1.5 MM | ||
| 497 | A 3644207535 | LINE |
| FROM AIR RESERVOIR II TO FITTING I | ||
| 15X1.5 MM | ||
| 499 | A 3644208236 | LINE |
| FROM AIR RESERVOIR II TO FITTING I | ||
| 15X1.5 MM | ||
| 499C | A 3644207835 | LINE |
| FROM TWO-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR II | ||
| 15X1.5 MM | ||
| 499N | A 3644207435 | LINE |
| FROM TWO-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR II | ||
| 15X1.5 MM | ||
| 500 | A 3644208035 | LINE |
| FROM AIR RESERVOIR II TO CONNECTION FITTING | ||
| 15X1.5 MM | ||
| 500H | A 3644208135 | LINE |
| FROM FITTING TO BRAKE VALVE | ||
| 15X1.5 MM | ||
| 501 | A 3644208635 | LINE |
| FROM AIR RESERVOIR TO BRAKE VALVE | ||
| 15X1.5 MM | ||
| 501K | N 915018015000 | UNION NUT |
| 502 | N 003861015004 | GLAND |
| 502L | N 074313016201 | FITTING |
| 502L | A 0019972172 | FITTING |
| 503 | N 915065015101 | THRUST RING |
| LINES | ||
| 503M | N 915045012100 | SEAL RING |
| LINES | ||
| 504 | A 3129952420 | CLAMP |
| Repalced by: A 3049950220 | ||
| 504 | A 3049950220 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 504N | N 007985006515 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 504R | N 009021006103 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 505 | N 000127006203 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 505D | N 000934006006 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 506 | A 3179950148 | CLAMPING PIECE |
| COMPRESSED AIR LINE MOUNTING | ||
| 506F | A 3219950332 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 507 | N 007985005171 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 508 | N 000127006203 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 509 | N 000934006006 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 511 | A 3644207926 | LINE |
| FROM FITTING I TO CONNECTION FITTING II | ||
| 15X1.5 MM | ||
| 513 | A 3644208336 | LINE |
| FROM FITTING I TO CONNECTION FITTING II | ||
| 15X1.5 MM | ||
| 514 | N 915018015000 | UNION NUT |
| 515 | N 003861015004 | GLAND |
| 516 | N 074313016201 | FITTING |
| 516 | A 0019972172 | FITTING |
| 517 | N 915065015101 | THRUST RING |
| LINES | ||
| 518 | N 915045012100 | SEAL RING |
| LINES | ||
| 519 | A 3129952420 | CLAMP |
| Repalced by: A 3049950220 | ||
| 519 | A 3049950220 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 520 | N 007985006515 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 521 | N 009021006103 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 522 | N 000127006203 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 523 | N 000934006006 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||

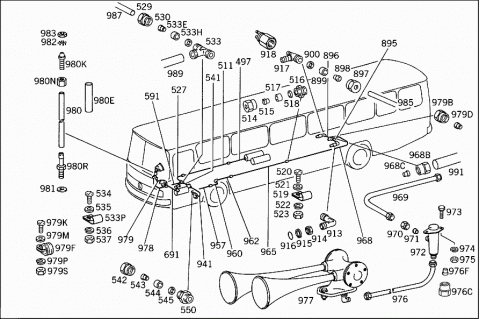

| 527 | A 3644208026 | LINE |
| FROM FITTING II TO T-FITTING | ||
| 15X1.5 MM | ||
| 528 | A 3644207735 | LINE |
| FROM T-FITTING TO BRAKE VALVE, CONNECTION: | ||
| "11" | ||
| 529 | N 915018015000 | UNION NUT |
| 530 | N 003861015004 | GLAND |
| 533 | N 074302022104 | T-FITTING |
| 533 | A 0009902370 | T-FITTING |
| 533E | N 915065015101 | THRUST RING |
| LINES | ||
| 533E | N 915065015101 | THRUST RING |
| LINES | ||
| 533H | N 915045012100 | SEAL RING |
| LINES | ||
| 533H | N 915045012100 | SEAL RING |
| LINES | ||
| 533P | A 3129952420 | CLAMP |
| Repalced by: A 3049950220 | ||
| 533P | A 3049950220 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 534 | N 007985006515 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 535 | N 009021006103 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 536 | N 000127006203 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 537 | N 000934006006 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 541 | A 3644208126 | LINE |
| FROM T-FITTING TO OVERFLOW VALVE | ||
| 15X1.5 MM | ||
| 541 | A 3644208435 | LINE |
| FROM T-FITTING TO OVERFLOW VALVE | ||
| 15X1.5 MM | ||
| 542 | N 915018015000 | UNION NUT |
| 543 | N 003861015004 | GLAND |
| 544 | N 915065015101 | THRUST RING |
| LINES | ||
| 545 | N 915045012100 | SEAL RING |
| LINES | ||
| 550 | A 0019972372 | FITTING |
| OVERFLOW VALVE | ||
| 550 | N 074313016401 | FITTING |
| OVERFLOW VALVE | ||
| 554 | N 074302022104 | T-FITTING |
| OVERFLOW VALVE | ||
| 554 | A 0009902370 | T-FITTING |
| OVERFLOW VALVE | ||
| 556 | N 074305022202 | NUT |
| T-FITTING TO AIR RESERVOIR | ||
| 558 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 558 | A 0009940203 | THRUST RING |
| T-FITTING TO AIR RESERVOIR | ||
| 560 | A 0009870446 | O-RING |
| T-FITTING TO AIR RESERVOIR | ||
| 565 | A 3229970071 | FITTING |
| AT T-FITTING | ||
| 565 | N 915045012100 | SEAL RING |
| AT T-FITTING | ||

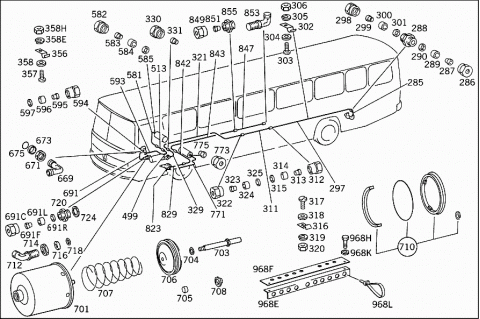

| 581 | A 3644208436 | LINE |
| FROM FITTING TO AIR RESERVOIR | ||
| "III",15X1.5 MM | ||
| 582 | N 915018015000 | UNION NUT |
| 583 | N 003861015004 | GLAND |
| 584 | N 915065015101 | THRUST RING |
| LINES | ||
| 585 | N 915045012100 | SEAL RING |
| LINES | ||
| 591 | A 3644208226 | LINE |
| FROM T-FITTING TO BRAKE BOOSTER | ||
| 15X1.5 MM | ||
| 593 | A 3644208536 | LINE |
| FROM T-FITTING TO BRAKE BOOSTER | ||
| 15X1.5 MM | ||
| 594 | N 915018015000 | UNION NUT |
| 595 | N 003861015004 | GLAND |
| 596 | N 915065015101 | THRUST RING |
| LINES | ||
| 597 | N 915045012100 | SEAL RING |
| LINES | ||

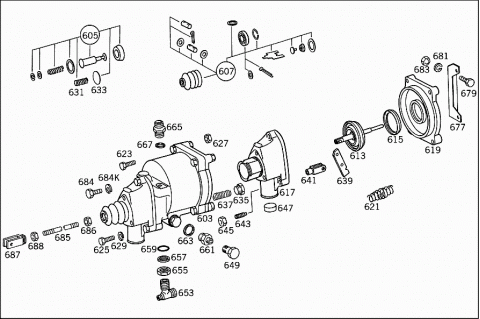

| 603 | A 3444317014 | BRAKE BOOSTER |
| 605 | H 983455860243 | REPAIR KIT |
| MINOR | ||
| 607 | H 983455860343 | REPAIR KIT |
| MAJOR | ||
| A 0004312986 | CUP | |
| A 0004312886 | SEAL RING | |
| 613 | H 983454310192 | ROD |
| 615 | A 0004312786 | CUP |
| Repalced by: A 3459978846 | ||
| 615 | A 3459978846 | SEAL RING |
| 617 | H 983454310222 | COVER |
| Repalced by: A 0004311822 | ||
| 617 | A 0004311822 | COVER |
| A 0004311087 | PROTECTIVE CAP | |
| 619 | H 983454310122 | COVER |
| 621 | H 983454310293 | SPRING |
| Repalced by: A 0014316493 | ||
| 621 | A 0014314093 | SPRING |
| Repalced by: A 0014316493 | ||
| 621 | A 0014316493 | SPRING |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 001 431 40 93 | ||
| 623 | N 000931010100 | SCREW |
| 625 | N 000933010261 | SCREW |
| 627 | N 000934010000 | NUT |
| 629 | N 000127010202 | LOCK WASHER |
| 631 | H 983454310393 | SPRING |
| 633 | H 983454310152 | SPACER WASHER |
| 635 | A 0084310356 | SCREW PLUG |
| 637 | H 983454310493 | SPRING |
| Repalced by: H 983454310793 | ||
| 637 | H 983454310793 | SPRING |
| 639 | H 983454310024 | SLIDE |
| 641 | N 071752012000 | YOKE |
| 643 | N 000417008002 | HEADLESS SETSCREW |
| 645 | N 000934008000 | NUT |
| 647 | A 0004290695 | AIR CLEANER |
| 649 | H 983459970030 | SCREW PLUG |
| 653 | A 0009902970 | T-FITTING |
| AT BRAKE BOOSTER | ||
| 653 | A 0004295032 | T-FITTING |
| AT BRAKE BOOSTER | ||
| 655 | N 074305022202 | NUT |
| AT BRAKE BOOSTER | ||
| 657 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 657 | A 0009940203 | THRUST RING |
| AT BRAKE BOOSTER | ||
| 659 | A 0009870446 | O-RING |
| AT BRAKE BOOSTER | ||
| 661 | N 074313016201 | FITTING |
| AT BRAKE BOOSTER | ||
| 661 | A 0019972172 | FITTING |
| AT BRAKE BOOSTER | ||
| 663 | N 007603022102 | SEAL RING |
| AT BRAKE BOOSTER | ||
| 665 | A 3454298136 | CONNECTOR |
| AT BRAKE BOOSTER | ||
| 667 | N 007603012113 | SEAL RING |
| AT BRAKE BOOSTER | ||
| 669 | A 0009905871 | ELBOW FITTING |
| AT BRAKE BOOSTER | ||
| 669 | N 074315000200 | FITTING |
| AT BRAKE BOOSTER | ||
| 671 | N 074305022202 | NUT |
| AT BRAKE BOOSTER | ||
| 673 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 673 | A 0009940203 | THRUST RING |
| AT BRAKE BOOSTER | ||
| 675 | A 0009870446 | O-RING |
| AT BRAKE BOOSTER | ||
| 677 | A 3214290240 | BRACKET |
| BRAKE BOOSTER | ||
| 679 | N 000931010080 | SCREW |
| BRAKE BOOSTER | ||
| 681 | N 000127010202 | LOCK WASHER |
| BRAKE BOOSTER | ||
| 683 | N 000934010000 | NUT |
| BRAKE BOOSTER | ||
| 684 | N 000933010174 | SCREW |
| BRAKE BOOSTER TO PEDAL BEARING BRACKET | ||
| 684K | N 000127010202 | LOCK WASHER |
| BRAKE BOOSTER TO PEDAL BEARING BRACKET | ||
| 685 | A 3214310192 | ROD |
| FROM BRAKE LEVER TO BRAKE BOOSTER | ||
| 686 | N 000936012017 | NUT |
| Repalced by: N 000936012005 | ||
| 686 | N 000936012005 | NUT |
| FROM BRAKE LEVER TO BRAKE BOOSTER | ||
| 687 | A 3124311097 | YOKE |
| FROM BRAKE LEVER TO BRAKE BOOSTER | ||
| 688 | N 000936012010 | NUT |
| FROM BRAKE LEVER TO BRAKE BOOSTER | ||
| A 3644208326 | LINE | |
| FROM BRAKE BOOSTER TO ONE-CHAMBER COMPRESSED AIR CYLINDER | ||
| 691 | A 3644208636 | LINE |
| FROM BRAKE BOOSTER TO ONE-CHAMBER COMPRESSED AIR CYLINDER | ||
| 15X1.5 MM | ||
| 691C | N 915018015000 | UNION NUT |
| 691F | N 003861015004 | GLAND |
| 691L | N 915065015101 | THRUST RING |
| LINES | ||
| 691R | N 915045012100 | SEAL RING |
| LINES | ||

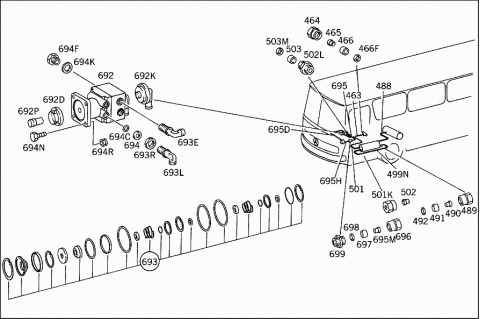

| 692 | A 0024312705 | BRAKE VALVE |
| Repalced by: A 3454317005 | ||
| 692 | A 3454317005 | BRAKE VALVE |
| SERVICE BRAKE | ||
| KNORR | ||
| 692 | A 0014318305 | BRAKE VALVE |
| Repalced by: A 3454317105 | ||
| 692 | A 3454317105 | BRAKE VALVE |
| SERVICE BRAKE | ||
| WABCO | ||
| A 0049949541 | LOCK | |
| Repalced by: N 000472060000 | ||
| N 000472060000 | LOCK RING | |
| TO 001 431 83 05,345 431 71 05 | ||
| A 0049949641 | LOCK | |
| Repalced by: N 000472045000 | ||
| N 000472045000 | LOCK RING | |
| TO 001 431 83 05,345 431 71 05 | ||
| A 0049949741 | LOCK | |
| Repalced by: N 000984038000 | ||
| N 000984038000 | LOCK RING | |
| TO 001 431 83 05,345 431 71 05 | ||
| A 0049949841 | LOCK | |
| Repalced by: N 000472047001 | ||
| N 000472047001 | LOCK RING | |
| TO 001 431 83 05,345 431 71 05 | ||
| A 0049949941 | LOCK | |
| TO 345 431 70 05, 002 431 27 05 | ||
| A 0014317393 | SPRING | |
| A 0014317193 | SPRING | |
| TO 002 431 27 05,345 431 70 05 | ||
| A 0014317493 | SPRING | |
| TO 001 431 83 05,345 431 71 05 | ||
| A 0014317293 | SPRING | |
| TO 002 431 27 05,345 431 70 05 | ||
| 692D | A 0004312185 | FILLER RING |
| TO 001 431 83 05 | ||
| A 0004318683 | PISTON | |
| TO 001 431 83 05,345 431 71 05 | ||
| A 0004319483 | PISTON | |
| TO 002 431 27 05, 345 431 70 05 | ||
| A 0004318783 | PISTON | |
| A 0004318883 | PISTON | |
| 692K | A 0004310273 | BREATHER PIPE |
| TO 001 431 83 05 | ||
| 692P | A 0004318383 | PISTON |
| TO 001 431 83 05 | ||
| 693 | A 0004306260 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 001 431 83 05,345 431 71 05 | ||
| A 0004307160 | REPAIR KIT | |
| Repalced by: A 0004304206 | ||
| A 0004304206 | REPAIR KIT | |
| LARGE SCOPE | ||
| TO 002 431 27 05, 345 431 70 05 | ||
| 693 | A 0014301160 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 001 431 83 05,345 431 71 05 | ||
| A 0014301260 | REPAIR KIT | |
| SMALL SCOPE | ||
| TO 002 431 27 05,345 431 70 05 | ||
| 693E | A 3454297238 | ELBOW FITTING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11,12,21,22" | ||
| 693L | A 3459907471 | ELBOW FITTING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11,12" | ||
| 693R | N 000936016003 | NUT |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11,12,21,22" | ||
| 694 | A 3084297027 | THRUST RING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11,12,21,22" | ||
| 694C | A 0029971640 | SEAL RING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11,12,21,22" | ||
| 694F | N 000908016001 | SCREW PLUG |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "21,22" | ||
| 694K | N 007603016102 | SEAL RING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "21,22" | ||
| A 3459978282 | HOSE | |
| BRAKE VALVE BLEEDING | ||
| TO 002 431 27 05,001 431 83 05 | ||
| A 3449977490 | CLAMP | |
| Repalced by: N 916017016000 | ||
| N 916017016000 | CLAMP | |
| Repalced by: N 000000000666 | ||
| N 000000000666 | CLAMP | |
| TO 002 431 27 05,001 431 83 05 | ||
| 694N | N 000933008278 | SCREW |
| BRAKE VALVE TO PEDAL BEARING BRACKET | ||
| 694N | N 000933008294 | SCREW |
| BRAKE VALVE TO PEDAL BEARING BRACKET | ||
| 694R | N 913004008001 | NUT |
| BRAKE VALVE TO PEDAL BEARING BRACKET | ||
| 695 | A 3644207635 | LINE |
| FROM SERVICE BRAKE VALVE TO REAR AXLE BRAKE CYLINDER | ||
| 695D | A 3644208535 | LINE |
| FROM SERVICE BRAKE VALVE TO FRONT AXLE BRAKE CYLINDER | ||
| 695D | A 3644209035 | LINE |
| FROM SERVICE BRAKE VALVE TO FRONT AXLE BRAKE CYLINDER | ||
| 695H | A 3644208335 | LINE |
| FROM FITTING TO FRONT AXLE BRAKE CYLINDER | ||
| 695M | N 003861015004 | GLAND |
| 696 | N 915018015000 | UNION NUT |
| 697 | N 915065015101 | THRUST RING |
| LINE CONNECTION | ||
| 698 | N 915045012100 | SEAL RING |
| LINE CONNECTION | ||
| 699 | N 074313016201 | FITTING |
| LINE CONNECTION | ||
| 699 | A 0019972172 | FITTING |
| LINE CONNECTION | ||
| 701 | A 0014309901 | BRAKE MASTER CYLINDER |
| 701 | A 0014309901 | BRAKE MASTER CYLINDER |
| 701 | A 0004313414 | BRAKE CYLINDER |
| Repalced by: A 3644317014 | ||
| 701 | A 3644317014 | BRAKE CYLINDER |
| 701 | A 3644317014 | BRAKE CYLINDER |
| N 000933008282 | SCREW | |
| TO 364 431 71 14 | ||
| 703 | A 0004312892 | ROD |
| TO 001 430 99 01 | ||
| 704 | A 0049978045 | SEAL RING |
| TO 001 430 99 01 | ||
| H 983454310022 | COVER | |
| TO 364 431 71 14 | ||
| 705 | A 0004313934 | STRAINER |
| TO 001 430 99 01 | ||
| 706 | A 0004318083 | PISTON |
| TO 001 430 99 01 | ||
| 707 | A 0014314093 | SPRING |
| Repalced by: A 0014316493 | ||
| 707 | A 0014316493 | SPRING |
| TO 001 430 99 01 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| TO 001 431 40 93 | ||
| 708 | A 0009882735 | CAP |
| TO 001 430 99 01 | ||
| 710 | A 0015869143 | REPAIR KIT |
| Repalced by: A 0004301608 | ||
| 710 | A 0004301608 | REPAIR KIT |
| TO 000 431 34 14,364 431 70 14 | ||
| 710 | A 0004301608 | REPAIR KIT |
| TO 000 431 34 14,364 431 70 14 | ||
| A 0004302783 | PISTON | |
| TO 364 431 71 14 | ||
| 712 | A 0009905871 | ELBOW FITTING |
| CYLINDER | ||
| 712 | A 0009905871 | ELBOW FITTING |
| CYLINDER | ||
| 712 | N 074315000200 | FITTING |
| CYLINDER | ||
| 712 | N 074315000200 | FITTING |
| CYLINDER | ||
| 714 | N 074305022202 | NUT |
| CYLINDER | ||
| 714 | N 074305022202 | NUT |
| CYLINDER | ||
| 716 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 716 | A 0009940203 | THRUST RING |
| CYLINDER | ||
| 716 | A 0009940203 | THRUST RING |
| CYLINDER | ||
| 718 | A 0009870446 | O-RING |
| CYLINDER | ||
| 718 | A 0009870446 | O-RING |
| CYLINDER | ||
| 720 | N 074313016201 | FITTING |
| CYLINDER | ||
| 720 | N 074313016201 | FITTING |
| CYLINDER | ||
| 720 | A 0019972172 | FITTING |
| CYLINDER | ||
| 720 | A 0019972172 | FITTING |
| CYLINDER | ||
| 724 | N 007603022102 | SEAL RING |
| CYLINDER | ||
| 724 | N 007603022102 | SEAL RING |
| CYLINDER | ||
| 743 | A 3644209026 | LINE |
| FROM AIR RESERVOIR I TO FITTING | ||
| 8X0.7 MM | ||
| 744 | N 915017008100 | UNION NUT |
| 746 | N 003861008005 | GLAND |
| 749 | N 003902008001 | CONNECTION FITTING |
| 749 | A 0019972672 | FITTING |
| 751 | A 3644209126 | LINE |
| FROM ELBOW FITTING TO DOUBLE FITTING | ||
| 8X0.7 MM | ||
| 753 | A 3644209226 | LINE |
| FROM ELBOW FITTING TO DOUBLE FITTING | ||
| 8X0.7 MM | ||
| 754 | N 915017008100 | UNION NUT |
| 756 | N 003861008005 | GLAND |
| 759 | N 003905008002 | FITTING |
| 760 | N 003902008001 | CONNECTION FITTING |
| 760 | A 0019972672 | FITTING |
| 761 | A 3524281640 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 761 | A 3524281640 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 762 | A 3129952420 | CLAMP |
| Repalced by: A 3049950220 | ||
| 762 | A 3049950220 | CLAMP |
| 763 | A 3444297340 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 764 | N 007985006515 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 764C | N 009021006103 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 764F | N 000127006203 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 764L | N 000934006006 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 765 | A 3644209326 | LINE |
| FROM HAND BRAKE VALVE,CONNECTION "1", TO CONNECTION FITTING | ||
| 8X0.7 MM | ||
| 771 | A 3644209936 | LINE |
| FROM AIR RESERVOIR TO HAND BRAKE VALVE | ||
| 8X0.7 MM | ||
| 773 | N 915017008100 | UNION NUT |
| 775 | N 003861008005 | GLAND |
| 777 | A 0004304781 | VALVE |
| Repalced by: A 3454307381 | ||
| 777 | A 3454307381 | VALVE |
| 779 | A 0089973845 | SEAL RING |
| 781 | A 0089973745 | SEAL RING |
| 783 | A 0009933305 | SPRING |
| 785 | A 0089974045 | SEAL RING |
| 787 | A 0004312188 | VALVE SEAT |
| A 0089974145 | SEAL RING | |
| TO 000 430 47 81 | ||
| A 0004313323 | VALVE | |
| TO 000 430 47 81 | ||
| A 0009933205 | SPRING | |
| TO 000 430 47 81 | ||
| A 0059976545 | SEAL RING | |
| TO 000 430 47 81 | ||
| 797 | A 0014311093 | SPRING |
| A 0009973277 | HANDLE | |
| TO 345 430 73 81 | ||
| 798F | A 0004305760 | REPAIR KIT |
| HAND BRAKE VALVE | ||
| TO 000 430 55 81 | ||
| 798F | H 983455861043 | REPAIR KIT |
| Repalced by: A 0034301181 | ||
| 798F | A 0034301181 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 345 430 73 81 | ||
| 798F | A 0005868043 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 345 430 73 81 | ||
| 799 | A 0025867843 | REPAIR KIT |
| TO 000 430 47 81 | ||
| 801 | N 003901010001 | SCREW-IN FITTING |
| HAND BRAKE VALVE | ||
| 803 | N 007603014104 | SEAL RING |
| HAND BRAKE VALVE | ||
| 805 | A 3454297338 | ELBOW FITTING |
| HAND BRAKE VALVE | ||
| 807 | N 915017010100 | UNION NUT |
| HAND BRAKE VALVE | ||
| 809 | N 003861010009 | GLAND |
| HAND BRAKE VALVE | ||
| 811 | A 3644307010 | BRACKET |
| HAND BRAKE VALVE | ||
| 813 | N 000933006220 | SCREW |
| BRACKET TO BODY | ||
| 815 | N 000127006203 | LOCK WASHER |
| BRACKET TO BODY | ||
| 817 | N 000965006026 | SCREW |
| HAND BRAKE VALVE TO BRACKET | ||
| 819 | N 000127006203 | LOCK WASHER |
| HAND BRAKE VALVE TO BRACKET | ||
| 821 | N 000934006006 | NUT |
| HAND BRAKE VALVE TO BRACKET | ||
| 823 | A 3644209926 | LINE |
| HAND BRAKE VALVE BLEEDING | ||
| 8X0.7 MM | ||
| 829 | A 3644209426 | LINE |
| FROM HAND BRAKE VALVE TO FITTING | ||
| 8X0.7 MM | ||
| 829 | A 3644209137 | LINE |
| FROM HAND BRAKE VALVE TO FITTING | ||
| 8X0.7 MM | ||
| 831 | N 915017008100 | UNION NUT |
| 833 | N 003861008005 | GLAND |
| 835 | N 003902008001 | CONNECTION FITTING |
| 835 | A 0019972672 | FITTING |
| 837 | A 3644209526 | LINE |
| FROM FITTING TO ELBOW FITTING | ||
| 8X0.7 MM | ||
| 839 | A 3644209626 | LINE |
| FROM FITTING TO ELBOW FITTING | ||
| 8X0.7 MM | ||
| 841 | A 3644209726 | LINE |
| FROM FITTING TO CONNECTION FITTING | ||
| 8X0.7 MM | ||
| 842 | A 3644207737 | LINE |
| FROM FITTING TO CONNECTION FITTING | ||
| 8X0.7 MM | ||
| 842 | A 3644207737 | LINE |
| FROM FITTING TO CONNECTION FITTING | ||
| 8X0.7 MM | ||
| 843 | A 3644209836 | LINE |
| FROM FITTING TO CONNECTION FITTING | ||
| 8X0.7 MM | ||
| 847 | A 3644207137 | LINE |
| FROM FITTING TO CONNECTION FITTING | ||
| 8X0.7 MM | ||
| 847 | A 3644209236 | LINE |
| FROM FITTING TO CONNECTION FITTING | ||
| 8X0.7 MM | ||
| 849 | N 915017008100 | UNION NUT |
| 851 | N 003861008005 | GLAND |
| 853 | A 0019903171 | ELBOW FITTING |
| 855 | N 003902008001 | CONNECTION FITTING |
| 855 | A 0019972672 | FITTING |
| 857 | A 3644208937 | LINE |
| FROM CONNECTION FITTING TO QUICKRELEASE VALVE | ||
| 8X0.7 MM | ||
| 857 | A 3644209826 | LINE |
| FROM CONNECTION FITTING TO QUICKRELEASE VALVE | ||
| 8X0.7 MM | ||
| 858 | N 915018008100 | UNION NUT |
| 859 | N 003861008005 | GLAND |
| 859C | A 3524281640 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 859E | A 3444297340 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 859E | A 3444297340 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 859H | A 3449950132 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 859L | N 007985006515 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 859N | N 009021006103 | WASHER |
| 859R | N 000127006203 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 859T | N 000934006006 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 860 | A 3644207726 | LINE |
| FROM QUICK-RELEASE VALVE TO TWO-WAY VALVE | ||
| 15X1.5 MM | ||
| 861 | N 915018015000 | UNION NUT |
| 862 | N 003861015004 | GLAND |
| 869 | A 0004292844 | VALVE |
| Repalced by: A 0044295044 | ||
| 869 | A 0044295044 | VALVE |
| QUICK-RELEASE VALVE | ||
| A 3445867242 | REPAIR KIT | |
| TO 000 429 28 44 | ||
| 873 | A 3454297038 | ELBOW FITTING |
| AT VALVE | ||
| 875 | N 074313008101 | FITTING |
| AT VALVE | ||
| 877 | N 007603022102 | SEAL RING |
| AT VALVE | ||
| 878 | A 3644297036 | CONNECTOR |
| AT VALVE | ||
| 879 | A 3454297936 | CONNECTOR |
| AT VALVE | ||
| 881 | A 3454297056 | SCREW PLUG |
| AT VALVE | ||
| 883 | N 915065015101 | THRUST RING |
| FROM QUICK-RELEASE VALVE TO TWO-WAY VALVE | ||
| 885 | N 915045012100 | SEAL RING |
| FROM QUICK-RELEASE VALVE TO TWO-WAY VALVE | ||
| 887 | A 0014298744 | VALVE |
| TWO-WAY | ||
| 888 | A 0014302960 | REPAIR KIT |
| 889 | A 3454298036 | CONNECTOR |
| AT TWO-WAY VALVE | ||
| 891 | A 3454297936 | CONNECTOR |
| AT TWO-WAY VALVE | ||
| 893 | A 3454297436 | CONNECTOR |
| AT TWO-WAY VALVE | ||
| 895 | A 3644207437 | LINE |
| FROM TWO-WAY VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER | ||
| 15X1.5 MM | ||
| 896 | A 3644207537 | LINE |
| FROM TWO-WAY VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER | ||
| 15X1.5 MM | ||
| 897 | N 915018015000 | UNION NUT |
| FROM TWO-WAY VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER | ||
| 898 | N 003861015004 | GLAND |
| FROM TWO-WAY VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER | ||
| 899 | N 915065015101 | THRUST RING |
| FROM TWO-WAY VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER | ||
| 900 | N 915045012100 | SEAL RING |
| FROM TWO-WAY VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER | ||
| 901 | A 0004314814 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR | ||
| "BOSCH" | ||
| 901 | A 0014312314 | BRAKE CYLINDER |
| Repalced by: A 0014316014 | ||
| 901 | A 3454317114 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR | ||
| "RESINBAR" | ||
| 902 | A 0004317486 | CUP |
| TO 000 431 48 14 | ||
| 902A | A 0004319586 | CUP |
| TO 001 431 60 14 | ||
| 903 | A 0039975490 | LOOM TIE |
| TO 001 431 60 14 | ||
| 904 | H 983454310193 | SPRING |
| TO 000 431 48 14 | ||
| 904 | A 0084311093 | SPRING |
| TO 000 431 48 14 | ||
| 905 | N 000127014201 | LOCK WASHER |
| TO 001 431 23 14,001 431 48 14, | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 345 431 71 14 | ||
| 906 | N 000934014019 | NUT |
| TO 001 431 23 14,001 431 48 14, | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 345 431 71 14 | ||
| 908 | N 000933006030 | SCREW |
| TO 001 431 23 14,001 431 48 14, | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 345 431 71 14 | ||
| 909 | N 000127006203 | LOCK WASHER |
| TO 001 431 23 14,001 431 48 14, | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 345 431 71 14 | ||
| 910 | N 000934006006 | NUT |
| TO 001 431 23 14,001 431 48 14, | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 345 431 71 14 | ||
| 911 | H 983455860043 | REPAIR KIT |
| TO 000 431 48 14 | ||
| H 983455860143 | REPAIR KIT | |
| TO 000 431 48 14 | ||
| 912 | A 0025861443 | REPAIR KIT |
| TO 001 431 23 14 | ||
| 912A | A 0004308160 | REPAIR KIT |
| TO 001 431 60 14 | ||
| 913 | A 3454297238 | ELBOW FITTING |
| LEFT SPRING-LOAD ACCUMULATOR | ||
| 913 | A 3454297238 | ELBOW FITTING |
| LEFT SPRING-LOAD ACCUMULATOR | ||
| 914 | N 000936016003 | NUT |
| LEFT SPRING-LOAD ACCUMULATOR | ||
| 915 | A 0004290727 | THRUST RING |
| Repalced by: A 3084297027 | ||
| 915 | A 3084297027 | THRUST RING |
| LEFT SPRING-LOAD ACCUMULATOR | ||
| 916 | A 0029971640 | SEAL RING |
| LEFT SPRING-LOAD ACCUMULATOR | ||
| 917 | A 0004311675 | THREADED UNION |
| RIGHT SPRING-LOAD ACCUMULATOR | ||
| N 000936016003 | NUT | |
| RIGHT SPRING-LOAD ACCUMULATOR | ||
| A 0004290727 | THRUST RING | |
| Repalced by: A 3084297027 | ||
| A 3084297027 | THRUST RING | |
| RIGHT SPRING-LOAD ACCUMULATOR | ||
| A 0029971640 | SEAL RING | |
| RIGHT SPRING-LOAD ACCUMULATOR | ||
| 918 | A 0005455414 | SWITCH |
| SPRING-LOAD-ACCUMULATOR HAND BRAKE | ||
| 918 | A 3445457214 | SWITCH |
| SPRING-LOAD-ACCUMULATOR HAND BRAKE | ||
| 919 | N 000933010129 | SCREW |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET | ||
| 919 | N 000933010174 | SCREW |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET | ||
| 921 | N 000127010202 | LOCK WASHER |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET | ||
| 922 | N 000934010000 | NUT |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET | ||
| 923 | A 3214300411 | CONSOLE |
| LEFT | ||
| A 3214300511 | CONSOLE | |
| RIGHT | ||
| 924 | A 3214310184 | SHIM |
| 1.00 MM | ||
| 924 | A 3214310284 | SHIM |
| 2.00 MM | ||
| 925 | N 000933010174 | SCREW |
| BRAKE CYLINDER TO SUBSTRUCTURE | ||
| 926 | N 000127010202 | LOCK WASHER |
| BRAKE CYLINDER TO SUBSTRUCTURE | ||
| 927 | N 000934010000 | NUT |
| BRAKE CYLINDER TO SUBSTRUCTURE | ||
| 929E | A 3644207174 | ROD |
| Repalced by: A 3854200174 | ||
| 929E | A 3214200147 | YOKE |
| Repalced by: A 3854200174 | ||
| 929E | A 3854200174 | ROD |
| Repalced by: A 3584200174 | ||
| 929E | A 3584200174 | ROD |
| FROM BRAKE LEVER TO INTERMEDIATE SHAFT | ||
| 929K | A 3604200474 | ROD |
| FRONT | ||
| 929R | N 001480012200 | TURNBUCKLE |
| LEFT | ||
| 930 | N 000934012010 | NUT |
| PULL ROD | ||
| 930K | N 000934012002 | NUT |
| Repalced by: N 000934012020 | ||
| 930K | N 000934012020 | NUT |
| 930R | A 3854200274 | ROD |
| Repalced by: A 3584200074 | ||
| 930R | A 3584200074 | ROD |
| REAR | ||
| 931 | A 3529910107 | PIN |
| PULL RODS TO BRAKE LEVERS | ||
| 931 | A 3529910207 | PIN |
| PULL RODS TO BRAKE LEVERS | ||
| 931D | N 000094004050 | COTTER PIN |
| PULL RODS TO BRAKE LEVERS | ||
| 932 | N 000125013012 | WASHER |
| PULL RODS TO BRAKE LEVERS | ||
| 933 | A 3529910207 | PIN |
| YOKE TO INTERMEDIATE LEVER | ||
| 933E | N 000094004050 | COTTER PIN |
| YOKE TO INTERMEDIATE LEVER | ||
| 934 | N 000125013012 | WASHER |
| YOKE TO INTERMEDIATE LEVER | ||
| 934F | N 000137012203 | PART NAME MISSING |
| YOKE TO INTERMEDIATE LEVER | ||
| 935 | A 3214260083 | SPHERICAL PIECE |
| 936 | A 3444207478 | BEARING BRACKET |
| 937 | A 3214204780 | BRAKE INTERMEDIATE SHAFT |
| 938 | A 3214260082 | SHIM |
| 938 | A 3214260182 | SHIM |
| 939 | N 000933010269 | SCREW |
| BEARING TO SUBSTRUCTURE | ||
| 940 | N 000127010202 | LOCK WASHER |
| BEARING TO SUBSTRUCTURE | ||
| 941 | A 3644207036 | LINE |
| FROM AIR RESERVOIR TO OPERATING VALVE | ||
| 8X0.7 MM | ||
| 942 | A 3644209336 | LINE |
| FROM FITTING TO AIR RESERVOIR | ||
| "III", 8X0.7 MM | ||
| 942B | N 915017008100 | UNION NUT |
| 942C | N 003861008005 | GLAND |
| 942E | N 003902008001 | CONNECTION FITTING |
| 942E | A 0019972672 | FITTING |
| 942K | A 3644207637 | LINE |
| FROM CROSS FITTING TO DOUBLE FITTING | ||
| 8X0.7 MM | ||
| 942M | N 915017008100 | UNION NUT |
| 942P | N 003861008005 | GLAND |
| 943 | A 3644297037 | DISTRIBUTOR |
| 944 | A 3644209736 | LINE |
| FROM DISTRIBUTOR TO VALVE | ||
| 8X0.7 MM | ||
| 944D | N 915017008100 | UNION NUT |
| 944K | N 003861008005 | GLAND |
| 945 | A 0004342001 | VALVE |
| Repalced by: A 3454347001 | ||
| 945 | A 0004342901 | VALVE |
| "KNORR" | ||
| 945B | A 3454347001 | VALVE |
| "WABCO DO BRASIL" | ||
| 945D | A 0009971977 | HANDLE |
| TO 000 434 23 01 | ||
| 945H | A 0004340586 | CUP |
| TO 000 434 23 01 | ||
| 946 | A 0004317387 | PROTECTIVE CAP |
| TO 000 434 20 01,345 434 70 01 | ||
| 946C | A 0109970948 | SEAL RING |
| TO 000 434 29 01 | ||
| 946D | A 0109971048 | SEAL RING |
| TO 000 434 29 01 | ||
| 946E | A 0109971148 | SEAL RING |
| TO 000 434 29 01 | ||
| 946E | A 0109971248 | SEAL RING |
| TO 000 434 29 01 | ||
| A 0079972448 | SEAL RING | |
| TO 000 434 23 01 | ||
| A 0079972548 | SEAL RING | |
| TO 000 434 23 01 | ||
| 946H | A 0014301360 | REPAIR KIT |
| Repalced by: A 0004304106 | ||
| 946H | A 0004304106 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 000 434 29 01 | ||
| 946L | A 0014301460 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 000 434 29 01 | ||
| 947 | H 983455860943 | REPAIR KIT |
| Repalced by: A 0034301281 | ||
| 947 | A 0034301281 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 000 434 20 01, 345 434 70 01 | ||
| 948 | A 0025869843 | REPAIR KIT |
| TO 000 434 23 01 | ||
| 950 | N 000137027201 | SPRING WASHER |
| OPERATING VALVE TO BRACKET | ||
| 951 | N 074305026202 | NUT |
| OPERATING VALVE TO BRACKET | ||
| 952 | A 3444297038 | ELBOW FITTING |
| OPERATING VALVE | ||
| 953 | N 080705012003 | NUT |
| OPERATING VALVE | ||
| 954 | A 0004290827 | THRUST RING |
| Repalced by: A 0009940103 | ||
| 954 | A 0009940103 | THRUST RING |
| OPERATING VALVE | ||
| 955 | A 0019875046 | SEALING CORD |
| OPERATING VALVE | ||
| 956 | A 3644207136 | LINE |
| BLEEDING | ||
| 8X0.7 MM | ||
| 957 | A 3644207236 | LINE |
| FROM OPERATING VALVE TO CONNECTION FITTING | ||
| 8X0.7 MM | ||
| 958 | A 3644207837 | LINE |
| FROM OPERATING VALVE TO CONNECTION FITTING | ||
| 8X0.7 MM | ||
| 959 | N 915017008100 | UNION NUT |
| FROM OPERATING VALVE TO CONNECTION FITTING | ||
| 959D | N 003861008005 | GLAND |
| 959L | N 003902008001 | CONNECTION FITTING |
| 959L | A 0019972672 | FITTING |
| 960 | A 3644207336 | LINE |
| FROM FITTING TO CONNECTION FITTING | ||
| 8X0.7 MM | ||
| 960 | A 3644209636 | LINE |
| FROM FITTING TO CONNECTION FITTING | ||
| 8X0.7 MM | ||
| 962 | A 3644207436 | LINE |
| FROM FITTING TO CONNECTION FITTING | ||
| 8X0.7 MM | ||
| 963 | A 3644209536 | LINE |
| FROM FITTING TO CONNECTION FITTING | ||
| 8X0.7 MM | ||
| 964 | N 915017008100 | UNION NUT |
| 964E | N 003861008005 | GLAND |
| 964M | N 003905008002 | FITTING |
| 964R | N 003902008001 | CONNECTION FITTING |
| 964R | A 0019972672 | FITTING |
| 965 | A 3644207536 | LINE |
| FROM FITTING TO CONNECTION FITTING | ||
| 8X0.7 MM | ||
| 965 | A 3644207237 | LINE |
| FROM FITTING TO CONNECTION FITTING | ||
| 8X0.7 MM | ||
| 967 | A 3644209436 | LINE |
| FROM FITTING TO CONNECTION FITTING | ||
| 8X0.7 MM | ||
| 968 | A 3644207636 | LINE |
| FROM CONNECTION FITTING TO TWO-WAY VALVE | ||
| 8X0.7 MM | ||
| 968 | A 3644209037 | LINE |
| FROM CONNECTION FITTING TO TWO-WAY VALVE | ||
| 8X0.7 MM | ||
| 968B | N 915017008100 | UNION NUT |
| 968C | N 003861008005 | GLAND |
| 968E | A 3644267046 | MOUNTING ANGLE |
| 968F | A 3644267079 | PART NAME MISSING |
| Repalced by: A 3644297080 | ||
| 968F | A 3644297080 | GASKET |
| 968H | N 007981003263 | SHEET METAL SCREW |
| MOUNTING ANGLE AND GASKET TO BODY | ||
| 968K | N 000137004101 | SPRING WASHER |
| MOUNTING ANGLE AND GASKET TO BODY | ||
| 968L | A 3459977290 | LOOM TIE |
| BRAKE FLUID LINES AND COMPRESSED AIR LINES TO MOUNTING ANGLE | ||
| 969 | A 3644208836 | LINE |
| FROM DISTRIBUTOR TO VALVE | ||
| 6X0.7 MM | ||
| 970 | N 915017006100 | UNION NUT |
| 971 | N 003861006007 | GLAND |
| 972 | A 3215420028 | VALVE |
| AIR HORN | ||
| 973 | N 000965006026 | SCREW |
| VALVE TO FLOOR | ||
| 974 | N 000127006203 | LOCK WASHER |
| 975 | N 000934006006 | NUT |
| 976 | A 3644208736 | LINE |
| AIR HORN | ||
| 6X0.7 MM | ||
| 976C | N 915017006100 | UNION NUT |
| 976F | N 003861006007 | GLAND |
| 977 | A 3445427021 | AIR HORN |
| Repalced by: A 3645427021 | ||
| 977 | A 3645427021 | AIR HORN |
| 978 | A 3645407061 | ELECTRIC CABLE |
| FROM BRAKE BOOSTER T-FITTING TO DOUBLE FITTING | ||
| 6X0.7 MM | ||
| 979 | A 3645407361 | ELECTRIC CABLE |
| FROM SERVICE BRAKE VALVE TO FITTING | ||
| 6X0.7 MM | ||
| 979 | A 3645407261 | ELECTRIC CABLE |
| FROM SERVICE BRAKE VALVE TO FITTING | ||
| 6X0.7 MM | ||
| 979 | A 3645407161 | ELECTRIC CABLE |
| FROM BRAKE BOOSTER TO DOUBLE FITTING | ||
| 6X0.7 MM | ||
| 979B | N 915017006100 | UNION NUT |
| 979D | N 003861006007 | GLAND |
| 979F | N 916016006205 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 979F | N 916016006205 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 979K | N 007985005171 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 979K | N 007985005171 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 979M | N 009021005104 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 979M | N 009021005104 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 979P | N 000127005001 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 979S | N 000934005008 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 979S | N 000934005008 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| A 3525407461 | ELECTRIC CABLE | |
| TO INSTRUMENT CLUSTER | ||
| 980 | A 0089976082 | HOSE |
| TO INSTRUMENT CLUSTER | ||
| 980E | N 040621012200 | INSULATING HOSE |
| TO INSTRUMENT CLUSTER | ||
| 980K | A 0019975072 | FITTING |
| TO INSTRUMENT CLUSTER | ||
| 980N | N 915017006200 | UNION NUT |
| TO INSTRUMENT CLUSTER | ||
| 980R | A 0019973772 | FITTING |
| Repalced by: A 3454297139 | ||
| 980R | A 0019977139 | SIGHT GLASS |
| TO INSTRUMENT CLUSTER | ||
| A 0004295235 | HOSE | |
| 981 | N 000125013012 | WASHER |
| FOR HOSE | ||
| 982 | N 006797012153 | TOOTHED WASHER |
| FOR HOSE | ||
| 983 | N 000936012017 | NUT |
| Repalced by: N 000936012005 | ||
| 983 | N 000936012005 | NUT |
| FOR HOSE | ||
| 985 | A 3084299401 | LINE |
| 6X0,7 MM | ||
| 987 | A 3084299501 | LINE |
| 8X0,7 MM | ||
| 989 | A 0004295101 | LINE |
| 15X1,5 MM | ||
| 991 | A 0004294201 | LINE |
| 18X1,5 MM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
