Transporto priemonė: O 364,365; VIN numerio dalis: 364111

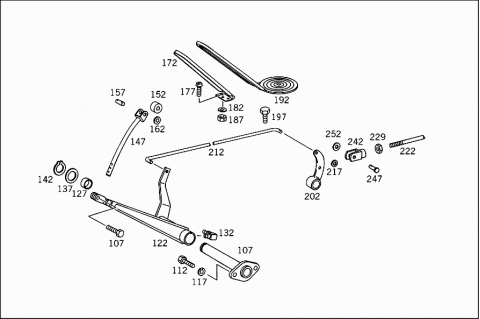

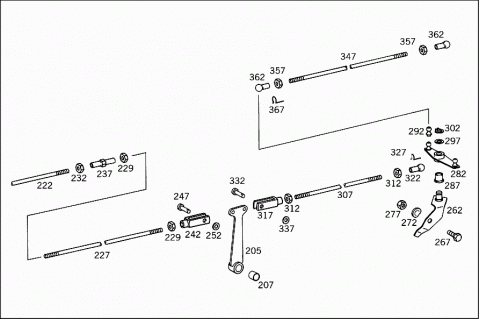

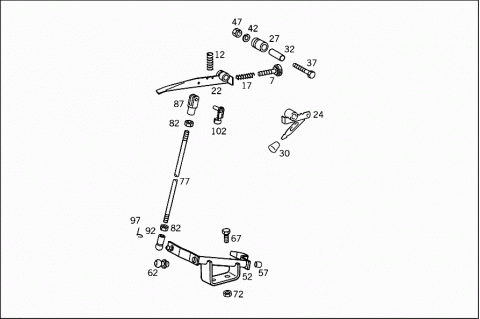

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 007 | A 3224300071 | SCREW |
| MANUAL CONTROL | ||
| 007 | A 3454307071 | SCREW |
| MANUAL CONTROL | ||
| 012 | A 3209930301 | SPRING |
| 017 | A 1829930601 | SPRING |
| 022 | A 3213002625 | LEVER |
| Repalced by: A 3643007017 | ||
| 024 | A 3643007017 | LEVER |
| MANUAL CONTROL | ||
| 027 | A 3213010450 | BUSHING |
| 030 | A 3649590060 | HANDLE |
| 032 | A 3213010550 | BUSHING |
| LEVER TO COWL | ||
| 037 | N 000933008358 | SCREW |
| LEVER TO COWL | ||
| 042 | N 912004008100 | LOCK WASHER |
| LEVER TO COWL | ||
| 047 | N 000934008010 | NUT |
| LEVER TO COWL | ||
| 052 | A 3213000536 | BEARING BRACKET |
| 057 | A 3219920301 | BUSHING |
| N 000936010007 | NUT | |
| N 071412010300 | GREASE NIPPLE | |
| A 3213000920 | SHAFT | |
| 062 | N 071803010209 | BALL PIVOT |
| 067 | N 000933008282 | SCREW |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 072 | N 913002008000 | NUT |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 077 | N 900331006503 | PULL ROD |
| MANUAL CONTROL | ||
| 082 | N 000934006006 | NUT |
| MANUAL CONTROL | ||
| 087 | N 071752006001 | YOKE |
| MANUAL CONTROL | ||
| 092 | N 071805010202 | BALL SOCKET |
| MANUAL CONTROL | ||
| 097 | N 071805010402 | SECURING CLIP |
| MANUAL CONTROL | ||
| 102 | N 918001006000 | PIN |
| PULL ROD TO LEVER | ||
| 107 | A 3023000120 | SHAFT |
| 112 | N 000933010174 | SCREW |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 117 | N 000127010202 | LOCK WASHER |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 122 | A 3643007004 | ACCELERATOR PEDAL |
| 127 | A 3213010050 | BUSHING |
| 132 | N 071412010300 | GREASE NIPPLE |
| 137 | A 3219900040 | WASHER |
| ACCELERATOR PEDAL TO BEARING BRACKET | ||
| 142 | N 000471020000 | LOCK RING |
| ACCELERATOR PEDAL TO BEARING BRACKET | ||
| 147 | A 3443000123 | CLAMP |
| ACCELERATOR PEDAL | ||
| 152 | A 3443000006 | ROLLER |
| ACCELERATOR PEDAL | ||
| 157 | N 001443006200 | PIN |
| ACCELERATOR PEDAL | ||
| 162 | N 000125006420 | WASHER |
| ACCELERATOR PEDAL | ||
| N 000094001609 | COTTER PIN | |
| ACCELERATOR PEDAL | ||
| 172 | A 3443000002 | PLATE |
| Repalced by: A 3643007304 | ||
| 172 | A 3643007304 | ACCELERATOR PEDAL |
| 177 | N 007985006515 | SCREW |
| PEDAL PLATE | ||
| 182 | N 000127006203 | LOCK WASHER |
| PEDAL PLATE | ||
| 187 | N 000934006006 | NUT |
| PEDAL PLATE | ||
| 192 | A 3443010082 | PAD |
| PEDAL PLATE | ||
| 197 | N 000933008282 | SCREW |
| ACCELERATOR PEDAL | ||
| 202 | A 3443000125 | LEVER |
| (INTERMEDIATE LEVER) | ||
| NO. 1 | ||
| 205 | A 3213002425 | LEVER |
| (INTERMEDIATE LEVER) | ||
| NO. 2 | ||
| 207 | A 3213010050 | BUSHING |
| 212 | A 3643017115 | ROD |
| A 3643017215 | ROD | |
| 217 | N 000125006420 | WASHER |
| PULL ROD TO LEVER AND TO INTERMEDIATE LEVER | ||
| N 000094001609 | COTTER PIN | |
| PULL ROD TO LEVER AND TO INTERMEDIATE LEVER | ||
| 222 | N 900331006110 | PULL ROD |
| FROM LEVER I TO TURNBUCKLE NUT | ||
| 227 | N 900331006413 | PULL ROD |
| FROM TURNBUCKLE NUT TO LEVER II | ||
| N 900331006439 | PULL ROD | |
| FROM TURNBUCKLE NUT TO LEVER II | ||
| 229 | N 000934006006 | NUT |
| FROM LEVER I TO LEVER II | ||
| 232 | N 000934006004 | NUT |
| FROM LEVER I TO LEVER II | ||
| 237 | A 3219960034 | NUT |
| FROM LEVER I TO LEVER II | ||
| 242 | N 071752006001 | YOKE |
| FROM LEVER I TO LEVER II | ||
| 247 | N 001444006206 | PIN |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 252 | N 000125006420 | WASHER |
| PULL ROD TO INTERMEDIATE LEVER | ||
| N 000094001609 | COTTER PIN | |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 262 | A 3023001036 | BEARING BRACKET |
| REAR LEFT | ||
| 267 | N 000961012171 | SCREW |
| BEARING BRACKET TO TRANSMISSION | ||
| 272 | N 000137012203 | SPRING WASHER |
| BEARING BRACKET TO TRANSMISSION | ||
| 277 | N 000936012017 | NUT |
| Repalced by: N 000936012005 | ||
| 277 | N 000936012005 | NUT |
| BEARING BRACKET TO TRANSMISSION | ||
| 282 | A 3023000725 | LEVER |
| Repalced by: A 3643000025 | ||
| 282 | A 3643000025 | LEVER |
| LEFT | ||
| 287 | A 3023010150 | BUSHING |
| 292 | A 3129910120 | BALL PIVOT |
| Repalced by: N 071803010209 | ||
| 292 | N 071803010209 | BALL PIVOT |
| 297 | A 3023010076 | WASHER |
| LEVER TO BEARING BRACKET | ||
| 302 | N 000471014000 | LOCK RING |
| LEVER TO BEARING BRACKET | ||
| 307 | A 3643007215 | ROD |
| FROM INTERMEDIATE LEVER II TO CONTROL LEVER | ||
| A 3643007315 | ROD | |
| FROM INTERMEDIATE LEVER II TO CONTROL LEVER | ||
| A 3643007715 | ROD | |
| FROM INTERMEDIATE LEVER II TO CONTROL LEVER | ||
| A 3643007615 | ROD | |
| FROM INTERMEDIATE LEVER II TO CONTROL LEVER | ||
| 312 | N 000934006006 | NUT |
| PULL ROD TO LEVER AND TO INTERMEDIATE LEVER | ||
| 317 | N 071752006001 | YOKE |
| PULL ROD TO LEVER AND TO INTERMEDIATE LEVER | ||
| 322 | N 071805010202 | BALL SOCKET |
| PULL ROD TO LEVER AND TO INTERMEDIATE LEVER | ||
| 327 | N 071805010402 | SECURING CLIP |
| PULL ROD TO LEVER AND TO INTERMEDIATE LEVER | ||
| 332 | N 001444006206 | PIN |
| PULL ROD TO LEVER II | ||
| 337 | N 000125006420 | WASHER |
| PULL ROD TO LEVER II | ||
| N 000094001609 | COTTER PIN | |
| PULL ROD TO LEVER II | ||
| 347 | N 900331006311 | PULL ROD |
| CONTROL,REAR | ||
| A 3443001215 | ROD | |
| PULL ROD TO INTERMEDIATE LEVER AND TO REAR CONTROL LEVER | ||
| 357 | N 000934006006 | NUT |
| CONTROL,REAR | ||
| 357 | N 000934006006 | NUT |
| PULL ROD TO INTERMEDIATE LEVER AND TO REAR CONTROL LEVER | ||
| 362 | N 071805010202 | BALL SOCKET |
| CONTROL,REAR | ||
| 362 | N 071805010202 | BALL SOCKET |
| PULL ROD TO INTERMEDIATE LEVER AND TO REAR CONTROL LEVER | ||
| 367 | N 071805010402 | SECURING CLIP |
| CONTROL,REAR | ||
| 367 | N 071805010402 | SECURING CLIP |
| PULL ROD TO INTERMEDIATE LEVER AND TO REAR CONTROL LEVER | ||
